OverviewBack to Top

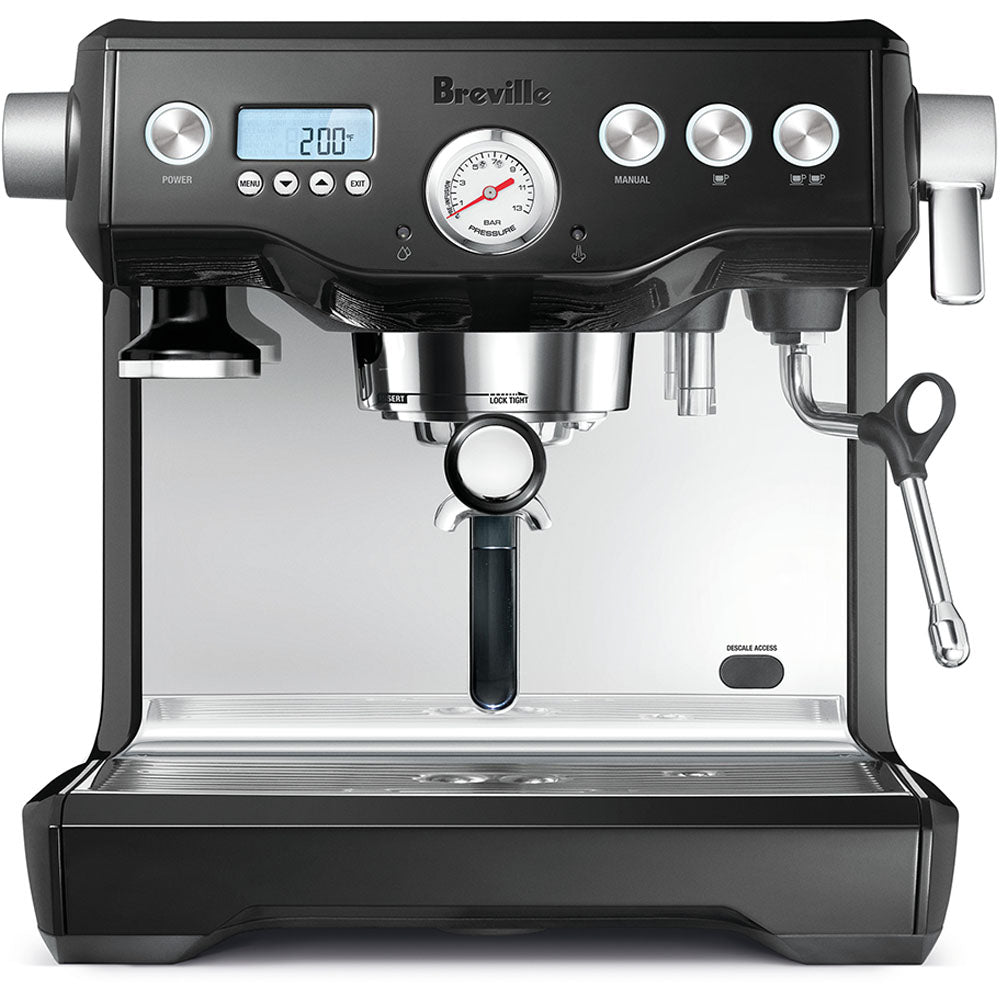

Updated to further address the needs and wants of the home espresso drinker, Breville has improved the BES920XL Dual Boiler espresso machine so that it no longer meets but exceeds the “Gold Standard” for making great espresso. Breville defines four key elements that dual boilers and state-of-the-art electronic controls should maintain control over:
- limiting maximum extraction pressure
- low pressure pre-infusion
- consistent extraction temperature
- simultaneous extraction and steam
With one boiler just for espresso and dual electronic PID controls, (proportional–integral–derivative), the BES920XL delivers temperature controlled pre-heated water to the boiler, producing precise water temperature for an ideal extraction every time! Added temperature control over the steam boiler has been included, allowing you to adjust between 265 - 285 degrees Fahrenheit, allowing you to fine tune steaming pressure.
That said, there's still much more to this machine for the coffee geek. Programmable pre-infusion duration and pre-infusion power with manual override; a temperature display in either °F or °C; and preset/manual-override/programmable shot volume. An optional Auto Start setting preheats the machine at a programmed time; a top-fill 84 oz water tank ensures easy access; and the dedicated hot water outlet makes it faster to pre-heat cups or prepare an Americano. There is also a shot clock and pressure gauge to help you improve your barista skills over time. All you'll need are some freshly ground beans and a bit of practice to rival the best café. Brevile has also included their patented 58mm twist blade, allowing you to precisely level off your portafilter for consistent extraction.
It might be the last thing you want to think about, but maintaining your machine has never been easier thanks to the new descale alert and assisted descale procedure, which help you to keep your machine in top condition for increased performance and lifespan. If that wasn't enough, Breville offers a 2-Year limited product warranty on the BES920XL.
FeaturesBack to Top
- Breville 58mm twist blade
- 58mm stainless steel portafilter (double spout)
- Single wall filter baskets (1 & 2 cup)
- Dual wall filter baskets (1 & 2 cup)
- Integrated tamper
- 25 fl.oz (750ml) stainless steel frothing jug
- Cleaning disc and tablets
- Cleaning tool and Allen key
- Water filter holder and water filters (1 year supply)
- Construction: Stainless Steel
- Voltage: 110 - 120 Volts
- Wattage: 1700 Watts
- Dimensions: 15 x 16.25 x 15 (inches H x W x D)
- Weight: 38 lb
Features & Benefits
New to this Version
The BES920XL has been updated with a number of new features including a new descale alert system and an LCD assisted descale procedure, enhanced steaming control with the ability to adjust the steam boiler temperature between 265 and 285 degrees. Breville has now included their patented 58mm twist blade for consistent dosing and leveling and shot control allows you to brew based on duration or volume.
The Breville BES920XL Dual Boiler features not one, but two PID controllers. One is working on the brew boiler, and the second one is on the grouphead, not the steam boiler. This temperature control delivers precise water temperature for optimum espresso flavor and is user programmable to achieve optimal espresso flavor. The steam boiler is controlled via a thermister control. This focus on maintaining temperature extends to the commercial grade grouphead which has an embedded element for optimal thermal stability during extraction.
Components & Functionality
- Dual Stainless Steel Boilers - Dedicated boilers for simultaneous espresso extraction and milk steaming
- Dual Italian Pumps - Dedicated espresso and steam pumps for optimal pressure
- Regulated Extraction Pressure - Over-pressure valve limits extraction pressure
- Electronic PID Temperature Control - For precise water temperature
- Actively Heated Group Head - Maintains thermal stability throughout extraction
- Programmable Extraction Temperature - 190 degrees - 205 degrees for different roasts and origins. Displays in either Fahrenheit of Celsius
- Programmable Volumetric Control - Preset 1 and 2 cup volumes, manual over-ride or reprogrammable volumes
- Programmable Pre-Infusion - Alter the pre-infusion duration and power to fine tune flavor profiles
- Espresso Pressure Gauge - Monitors extraction pressure
- Espresso Shot Clock - A guide to extraction consistency
- Backlit LCD - Displays either extraction temperature, shot clock or clock
- Auto Start - Preheats the machine at a programmed time
- 360 degree Swivel Steam Wand - 3-hole tip for a silkier texture
- Hot Water Outlet - For making an Americano or preheating cups
- Drop Down Swivel Foot - Lifts the machine upwards for easy maneuverability around the countertop
- Built-in 24 hour clock allows you to program the machine to turn on every day at a specific time.
Steam Wand and Steam Control
The steam wand has full range of motion, left to right, front to back, and even swivels. The movement has enough drag to require a little effort but moves smoothly and provides satisfying feedback for precise positioning. A large soft rubberized grip keeps your hands safe from burning while operating. The bulbous end of the wand features a three-hole tip. Included with the BES920XL is a multi-tool for cleaning the wand or even unscrewing the tip so you can give it a complete cleaning.
Being a dual boiler machine, the BES920XL has on demand steam, and possibly the best steam control system in its class. It even rivals many commercial systems. Steam power is excellent for building perfect micro-foam time after time. A dedicated 32 oz, (950ml) steam boiler, delivers instant and continuous steam.
The Breville Dual Boiler has PID-controlled temperature for both the brewing boiler and the grouphead's active heating system. That means if you want to have 94C temperatures, you get that, or at least very close. More importantly, the temperatures hold very steady once they get to your programmed setting. The settings are in 1C or 2F jumps.
The 84 oz, (2.5L), reservoir can be entirely removed from the back of the machine through a lift and pull out handle system built right into its base. Removing it is simple to allow refilling or replacing the integrated filter.
One would think that removing the reservoir from the back of a heavy machine to refill it on a crowded counter would be very difficult. Breville did not overlook this situation and have designed two ingenious ways to handle refilling.
First, at the top of the machine, in front of the cup tray, there's a soft-touch, damped release lid that once pressed, slowly rises showing a place to pour water into. You can fill the entire reservoir from here. There is an LED lighting diode that enables you to see the water level as you fill through a sighting area under the grouphead. In the event you overfill the reservoir, Breville designed the shape of it in such a way that any overfill automatically gets poured into the machine's drip tray! Very nice!
The second way to fill the water reservoir is to remove the machine's drip tray, where you'll see a big knob underneath it. Turn it from 12 o'clock to 6 o'clock and the front of the machine rises up slightly setting the machine on three rubberized roller wheels. The front wheel (right under that knob you just turned) is on a 360 degree swivel. All of a sudden, you can roll the machine around on your counter, allowing easy access to the sides and back. Brilliant!
Hidden Accessories Tray
By pulling out the drip tray a small accessories storage tray is released revealing space to store spare filters, tools, cleaning tablets, and more.
Hot Water Tap
The hot water knob on the left of the Breville BES920XL Dual Boiler has a micro-switch that communicates with the main CPU about its status. Water comes from the brewing boiler, and because the brew boiler is given 80C water via the steam boiler's heat exchanger, there's little chance of excessive temperature drops even when dispensing 150ml or more of hot water.
A cavity inside the back left of the machine provides space for the flat cord to roll up. Very little effort is required to fit the entire cord inside.
The covered drip tray has a large surface, covering 33cm wide by 12.5cm deep. It is designed with a spill area that helps you pour out the contents; by tipping the tray towards the spill area you can control the out-flow of waste water. Another very nice feature is the clear visual indicator of waste water level - a wide “empty me” sign slowly starts to pop up as the tray fills.
The BES920XL Dual Boiler includes a 58mm steel based tamper that fits into a magnetic storage slot in the grouphead underhang.
