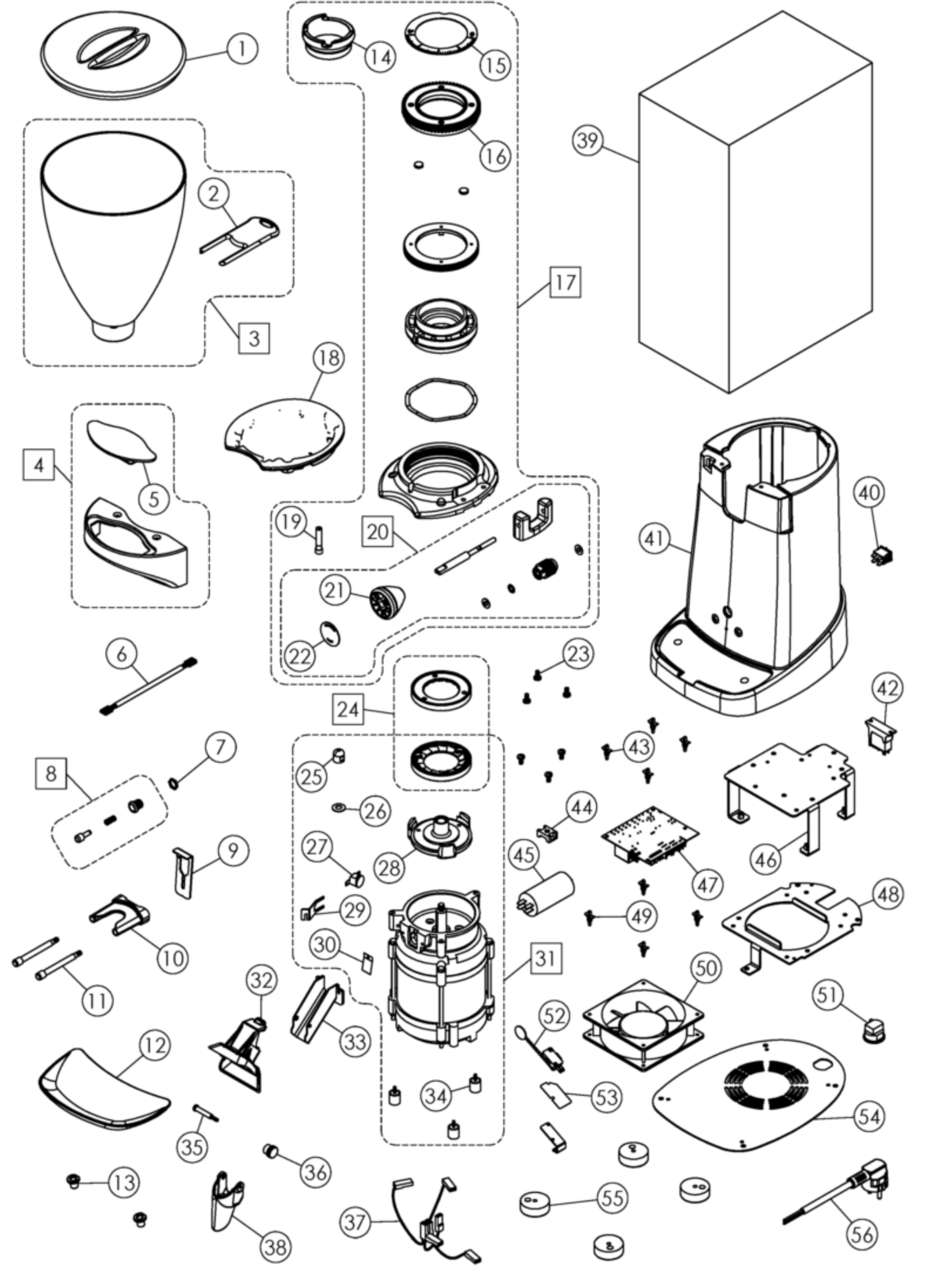

Ceado E37T Part Diagram CEAE37T
This is the Ceado E37T Part Diagram CEAE37T. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE37T-1 | 1 | LARGE BELL COVER FOR COFFEE GRINDER [MOCA] Part Number: 70146 |
$15.36 | View Part | |
| CEAE37T-1 | 2 |
|
COFFEE BELL SHUTTER [MOCA] Part Number: 70145 |
$5.15 | View Part |
| CEAE37T-1 | 3 | LARGE COFFEE GRINDER BELL WITH SHUTTER Part Number: 90166 |
$79.99 | View Part | |
| CEAE37T-1 | 4 | FULL E37S/E92 CAPACITIVE DISPLAY SUPPORT
Part Number: 90325 |
|||
| CEAE37T-1 | 5 |
|
CAPACITIVE KEYBOARD E37S (D530015100) Part Number: 50271 |
$271.26 | View Part |
| CEAE37T-1 | 6 | SERIAL CABLE FOR CAPACITIVE KEYBOARD/CARD L=480mm (D503745200) Part Number: 50276 |
$16.50 | View Part | |
| CEAE37T-1 | 7 | NUT M12 X 0.8 (IU0166)
Part Number: 45323 |
|||
| CEAE37T-1 | 8 | E37S/E92 BUTTON KEY COMPLETE
Part Number: 90180 |
|||
| CEAE37T-1 | 9 | FILTER HOLDER BRACKET STOPPING CUP E37S/E92 (rev.E)
Part Number: 20365 |
|||
| CEAE37T-1 | 10 | RUBBER FILTER HOLDER SUPPORT 80sh E37J/S/K/T/Z
Part Number: 75548 |
|||
| CEAE37T-1 | 11 | RUBBER FILTER HOLDER SUPPORT PIN E37J/S/K/T/Z (Rev. D)
Part Number: 40246 |
|||
| CEAE37T-1 | 12 |
|
E37 FAMILY COFFEE COLLECTION SAUCER Part Number: 70163 |
$21.23 | View Part |
| CEAE37T-1 | 13 | E37 FAMILY SAUCER RUBBER Part Number: 70173 |
$8.81 | View Part | |
| CEAE37T-1 | 14 | KNOB ADJUSTMENT BELL SUPPORT [MOCA]
Part Number: 70245 |
|||
| CEAE37T-1 | 15 | LASER SCREEN PRINTING RING E37SD/ E37Z BARISTA (Rev.F)
Part Number: 85131 |
|||
| CEAE37T-1 | 16 |
|
PLASTIC TOOTHED RING RING FOR ADJUSTMENT E37S (rev.A) [MOCA] Part Number: 70239 |
$11.99 | View Part |
| CEAE37T-1 | 17 |
|
QUICK SET GEAR KIT (rev.E) Part Number: 90342 |
$299.00 | View Part |
| CEAE37T-1 | 18 | E8 GRINDER RING GASKET (rev.B)
Part Number: 75530 |
|||
| CEAE37T-1 | 19 | PAINTED ADJUSTMENT INDICATOR PIN
Part Number: 40414 |
|||
| CEAE37T-1 | 20 | QUICK SET GEAR ALUMINUM ADJUSTMENT ASSEMBLY
Part Number: 90375 |
|||
| CEAE37T-1 | 21 | PLASTIC ADJUSTMENT KNOB E37S (rev.A)
Part Number: 70240 |
|||
| CEAE37T-1 | 22 | CEADO SCREEN PRINTING KNOB E37S/ E37K/E37Z (rev. A)
Part Number: 85130 |
|||
| CEAE37T-1 | 23 | metric head screw d9.3 combined 5x10 INOX
Part Number: 912087 |
|||
| CEAE37T-1 | 24 | E37T PAIR OF GRINDERS KIT [MOCA]
Part Number: 90306 |
|||
| CEAE37T-1 | 25 | STAINLESS STEEL BLIND NUT M8 LEFT COFFEE GRINDER [MOCA]
Part Number: 45132 |
|||
| CEAE37T-1 | 26 | elastic disc D.8x18 Burnished DIN 137
Part Number: 746822 |
|||
| CEAE37T-1 | 27 | FAN THERMOSTAT 42/31 (rev.B) (3TE1NT01F-8937 )
Part Number: 50236 |
|||
| CEAE37T-1 | 28 | MACHINED E37S IMPELLER (rev.D) [MOCA]
Part Number: 10471 |
|||
| CEAE37T-1 | 29 | CUP THERMOSTAT BRACKET (rev. B)
Part Number: 20369 |
|||
| CEAE37T-1 | 30 | METAL FLAP E37 FAMILY (rev.A) [MOCA]
Part Number: 45516 |
|||
| CEAE37T-1 | 31 | COMPLETE ENGINE E37T 110V
Part Number: 90292 |
|||
| CEAE37T-1 | 32 | SLIDE RUBBER (rev.A) [MOCA]
Part Number: 70165 |
|||
| CEAE37T-1 | 33 | SLIDE E37S/E92 INOX (rev.C) [MOCA]
Part Number: 20387 |
|||
| CEAE37T-1 | 34 | VIBRATION DAMPER M/F 15X15 (M5X10+M5 SH60)
Part Number: 75165 |
|||
| CEAE37T-1 | 35 | PLASTIC SLIDE EXTENSION FIXING PIN [MOCA]
Part Number: 40315 |
|||
| CEAE37T-1 | 36 | SLIDE EXTENSION FIXING KNOB (6336000 VB/17/P M4 brass)
Part Number: 75188 |
|||
| CEAE37T-1 | 37 | WIRING E37T UL (rev.D)
Part Number: 50370 |
|||
| CEAE37T-1 | 38 | PLASTIC SLIDE EXTENSION [MOCA]
Part Number: 70241 |
|||
| CEAE37T-1 | 39 | COFFEE GRINDER BOX E8/E92/E15 (23x29x60h) (rev. B)
Part Number: 80121 |
|||
| CEAE37T-1 | 40 | BIPOLAR SWITCH OI M98 (3INGP12H1121M00)
Part Number: 50108 |
|||
| CEAE37T-1 | 41 | E37K/E37T/E37SL BLACK COFFEE GRINDER BODY
Part Number: 11411 |
|||
| CEAE37T-1 | 41 | E37K/E37T/E37SL GRAY GRINDER BODY
Part Number: 11611 |
|||
| CEAE37T-1 | 41 | E37K/E37T/E37SL WHITE GRINDER BODY
Part Number: 11911 |
|||
| CEAE37T-1 | 42 | E37T RELAY (FINDER 466190120040 + 4304605)
Part Number: 50266 |
|||
| CEAE37T-1 | 43 | BOARD PIN E37S B210 (LCBS 5-01)
Part Number: 75146 |
|||
| CEAE37T-1 | 44 | CONDENSER SUPPORT (6137 AA 00)
Part Number: 75164 |
|||
| CEAE37T-1 | 45 | ALUMINUM CAPACITOR 40uF (416272264)
Part Number: 50224 |
|||
| CEAE37T-1 | 46 | E8D/E37T ENGINE SUPPORT (rev.L)
Part Number: 20349 |
|||
| CEAE37T-1 | 47 | COFFEE GRINDER DATA SHEET E37S 2011 (D530013101)
Part Number: 50286 |
|||
| CEAE37T-1 | 48 | E37T/E37SL ENGINE BRACKET (rev.D)
Part Number: 20377 |
|||
| CEAE37T-1 | 49 | BOARD PIN E37S B210 (LCBS 5-01)
Part Number: 75146 |
|||
| CEAE37T-1 | 50 | FAN 120x120x38 (art. 12031ABWAD -HB) 110V WIRED
Part Number: 50492 |
|||
| CEAE37T-1 | 51 | CABLE LOCK PA107 (70590.46.01)
Part Number: 50161 |
|||
| CEAE37T-1 | 52 | MICRO E37S/E92 ASSEMBLY
Part Number: 90261 |
|||
| CEAE37T-1 | 53 | BAKELITE INSULATION
Part Number: 75110 |
|||
| CEAE37T-1 | 54 | BACKPACK E37T/E37SL
Part Number: 20376 |
|||
| CEAE37T-1 | 55 | RUBBER FOOT D.40
Part Number: 70138 |
|||
| CEAE37T-1 | 56 | USA PLUG CABLE SJT 18AWGX3C VW-1 3X1 2MT F4.8x0.8
Part Number: 50223 |
