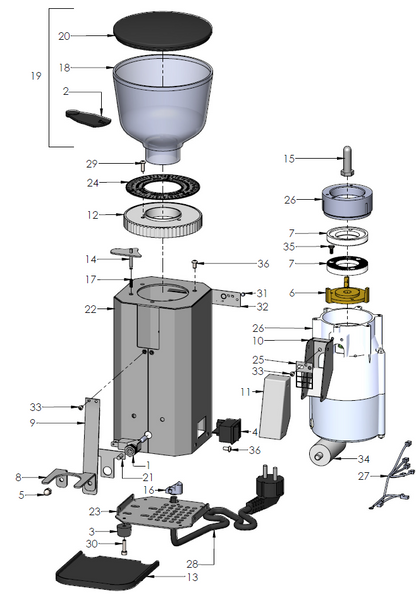

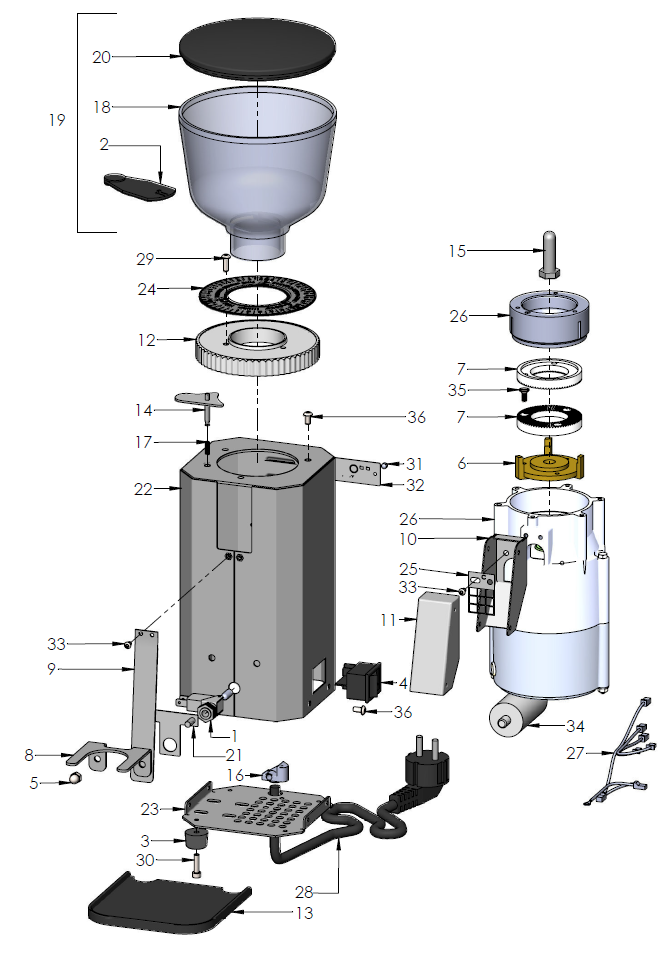

Profitec Pro M54 Part Diagram 20200
This is the Profitec Pro M54 Part Diagram 20200. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| 20200-1 | 1 |
|
Microswitch Part Number: C199900306 |
$29.17 | View Part |
| 20200-1 | 2 | Slide for bean hopper
Part Number: G1014 |
|||
| 20200-1 | 3 | Foot Part Number: G1015 |
$6.60 | View Part | |
| 20200-1 | 4 | On/off switch
Part Number: G1021 |
|||
| 20200-1 | 5 | Cap nut M5
Part Number: G1034 |
|||
| 20200-1 | 6 | Burr bracket holder below 54mm
Part Number: G1036 |
|||
| 20200-1 | 7 | Grinding burrs 54mm pair
Part Number: G1039 |
|||
| 20200-1 | 8 | Rack portafilter Part Number: G1072 |
$1.00 | View Part | |
| 20200-1 | 9 |
|
Tap microswitch Part Number: G1073 |
$28.54 | View Part |
| 20200-1 | 10 | Ejection
Part Number: G1074 |
|||
| 20200-1 | 11 | Ejection cover
Part Number: G1074.2 |
|||
| 20200-1 | 12 | Plastic ring gear
Part Number: G1077 |
|||
| 20200-1 | 13 | Collecting plate coffee powder
Part Number: G1078 |
|||
| 20200-1 | 14 | Grinding level holder Part Number: G1079 |
$1.00 | View Part | |
| 20200-1 | 15 | Fastening burr bracket
Part Number: G1081 |
|||
| 20200-1 | 16 | Strain relief
Part Number: G1082 |
|||
| 20200-1 | 17 |
|
Spring grinding level adjustment Part Number: G1083 |
$1.99 | View Part |
| 20200-1 | 18 | Bean hopper 0,25 kg Part Number: G1085 |
$39.00 | View Part | |
| 20200-1 | 19 | Bean hopper 0,25kg complete Part Number: G1085.K |
$35.99 | View Part | |
| 20200-1 | 20 |
|
Lid bean hopper 0,25 kg Part Number: G1086 |
$15.30 | View Part |
| 20200-1 | 21 | Fastening rack portafilter
Part Number: G1087 |
|||
| 20200-1 | 22 | Body polished
Part Number: G1090 |
|||
| 20200-1 | 23 | Base plate
Part Number: G1091 |
|||
| 20200-1 | 24 | Dial wheel digit plate black grey
Part Number: G1092 |
|||
| 20200-1 | 25 | Grid coffee shaft
Part Number: G1196 |
|||
| 20200-1 | 26 | Motor 220V-240V / 50Hz with body
Part Number: G1218 |
|||
| 20200-1 | Motor 110V-120V / 50Hz with body
Part Number: G1219 |
||||
| 20200-1 | 27 | Cable loom
Part Number: G1251 |
|||
| 20200-1 | 28 | Cable Schuko plug Grinder
Part Number: G1400 |
|||
| 20200-1 | Cable AUS plug grinder
Part Number: G1401 |
||||
| 20200-1 | Cable USA plug grinder
Part Number: G1402 |
||||
| 20200-1 | 29 | Round-head screw M4x12
Part Number: P1992 |
|||
| 20200-1 | 30 | Hexagon socket head cap screw M4x16
Part Number: P1996 |
|||
| 20200-1 | 31 | Blind rivet truss head 2,4x12
Part Number: P1998 |
|||
| 20200-1 | 32 | Emblem Profitec
Part Number: P2063.1 |
|||
| 20200-1 | 33 | Lens head screw M3x5
Part Number: P2064 |
|||
| 20200-1 | 34 | Capacitor 6 F 230V
Part Number: P3026.1 |
|||
| 20200-1 | Capacitor 110V
Part Number: G1219.1 |
||||
| 20200-1 | 35 | Screw counter sunk head slotted M4x10
Part Number: P6110 |
|||
| 20200-1 | 36 | Lens head screw M4x8
Part Number: P6114 |
