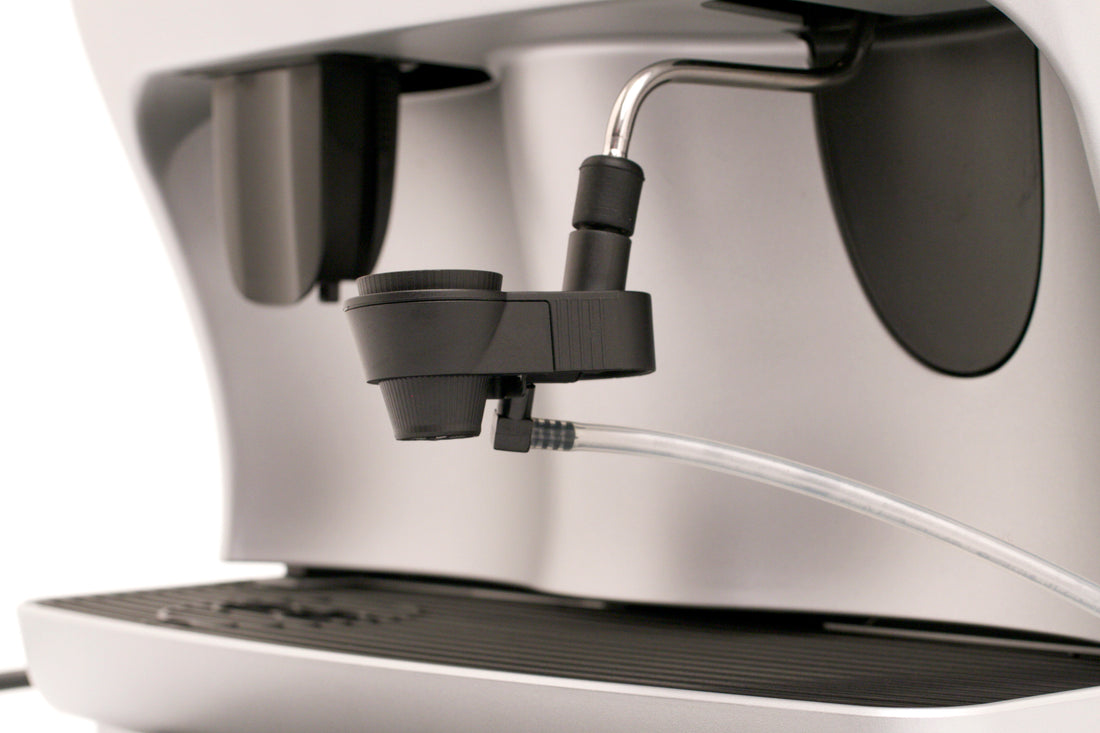

Syncrony logic frother
Syncrony logic display panel
Syncrony logic bean hopper

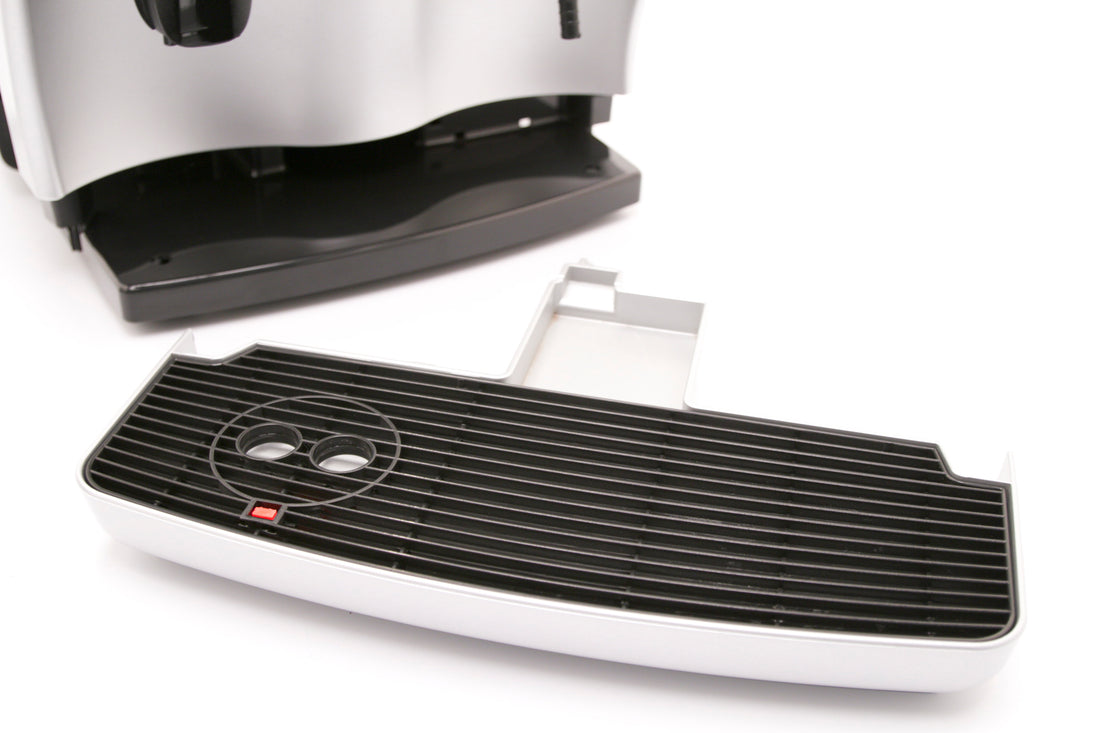

Syncrony logic drip tray
Watch Videos

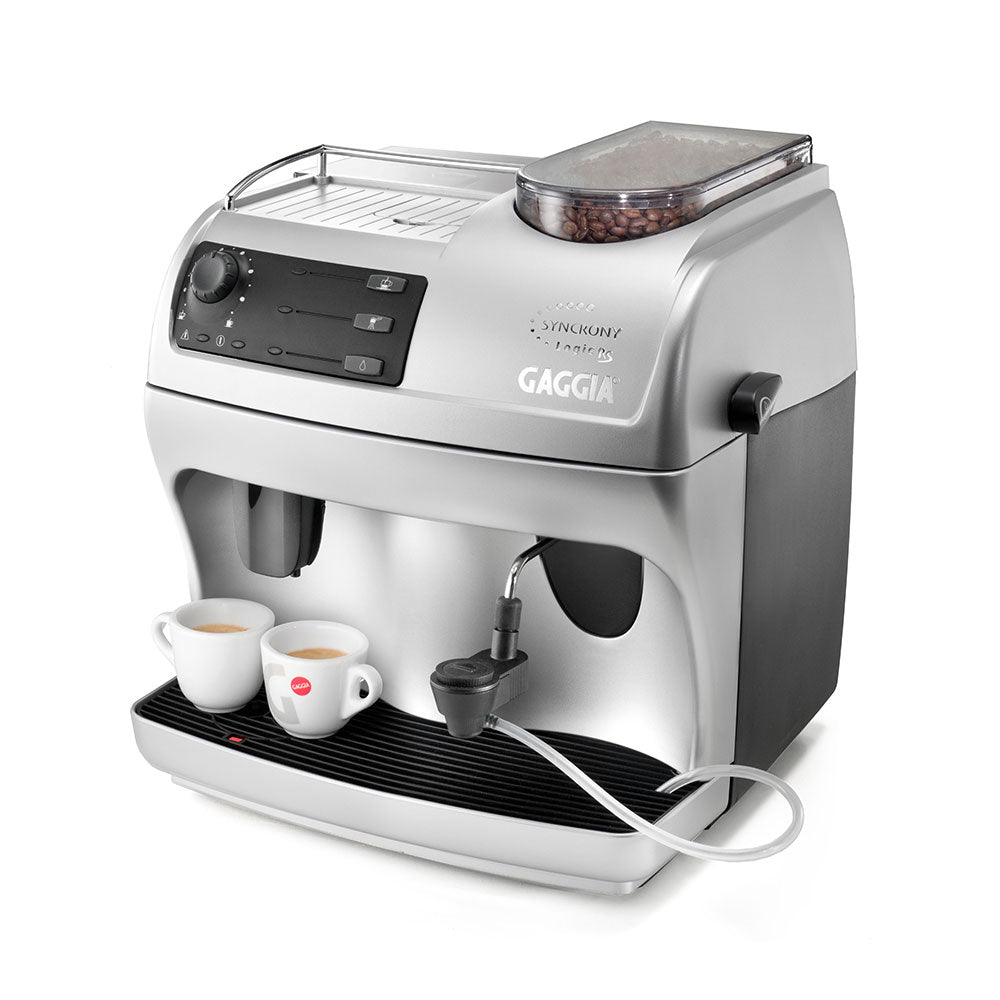

Gaggia Syncrony Logic Rapid Steam

By: Gaggia
Reg. $549.00
Latte Rewards: $7.98
Earn Latte Rewards with every purchase which you can use towards future orders. Your account page will display your current balance.

5 out of 5 stars based on 20 customer reviews

Seen this item cheaper somewhere else? Ask for a price match!

Notify me when this product is available



Please Note: The Gaggia Syncrony Logic Rapid Steam does not come with a Pannarello steam wand.

Redesigned for 2013, the venerable Gaggia Syncrony Logic makes a triumphant return to the modern market. Sporting all of the same features people fell in love with, this updated version boasts a new boiler and improved milk frothing system. Inside the Syncrony Logic sits a stainless steel lined, aluminum J-boiler, coupled with a separate steaming boiler. The Logic's brew group is designed with the same dual stainless steel screen group found in the Gaggia Titanium. The end result is a heavy-duty, hard-working machine, that is made easy to use by its intuitively designed push-button control panel.

The Logic has a simple control knob on its front panel that lets you select the liquid volume of espresso you’d like to brew from 1oz to 8oz. You can use this in conjunction with the 6 to 9 gram adjustable dosing and 18 grind settings to craft a drink that’s custom made for your palate. Alternatively, you can brew using pre-ground coffee by using the bypass doser. Lastly, the Logic's rapid steam boiler allows you to transition between brewing and steaming without delay.

With regards to steaming, the Logic includes an all-new automatic milk frother based on Gaggia's original Cappuccinatore. With an ergonomic design for easier positioning over your cup, this new frother is designed with a cyclonic chamber for superior micro foam and hotter milk. For manual frothing, the Syncrony Logic is also compatible with the Gaggia Pannarello Wand which is sold separately.

Even cleaning and maintaining the Logic is quick and easy. Unlike many super-automatics, you don’t need to remove the drip tray or open a door to access the dreg drawer, it simply pulls out of the left side of the machine. The Logic is also mounted on a swivel base, providing easy access to other components, like the removable 58oz capacity reservoir, 12oz bean hopper, and removable brew group.

Housed in a matte silver ABS plastic, the Gaggia Syncrony Logic comes with a 7-gram coffee scoop and cleaning brush, weighs 20 lbs, and measures 15.35" L x 15" H x 13" D.


New to this Version

Improved Milk Frother

Improving upon the design of the traditional Cappuccinatore, the Syncrony Logic Rapid Steam employs a new automatic milk frother with the following improvements:

  • Cyclonic chamber: The new automatic frother is designed with a cyclonic chamber which emulsifies the milk for a longer duration, resulting in superior foam quality and higher temperature.
  • Ergonomic design: The frother's ergonomic shape allows it to be easily rotated according to your cup size.
  • Easy to clean: Simply dispense hot water through the milk frother to rinse after each use.
  • Improved J Boiler

    This new iteration of the Syncrony Logic is fitted with an improved J boiler for faster heat up times.

Features & Benefits: Coffee

Automatic Coffee Center

This is more than just an "Espresso Machine"! It is easily capable of making any style of cappuccino or latte. In fact, most of our customers use their Super Automatic espresso machines for "crema coffee" instead of drip coffee. Crema coffee is simply an espresso brewed to fill a regular coffee mug. This produces a much more aromatic and flavorful cup of coffee. As a result of the pressure brewed process (8 to 10 atmospheres of pressure!), the gravity-based drip coffee systems simply cannot match. The Gaggia Syncrony Logic will also produce hot water for tea or steamed milk for hot chocolate!

Rapid Steam®

This technology allows you to instantly go from brewing to steaming and back again without the wait time normally associated with single-boiler systems. There is no faster way to make cappuccinos and lattes in your home.

Push-Button Technology

It really does not get any easier than this. Just press the brew button and the machine does the rest. It will automatically grind and extract the coffee to your desired taste. When the coffee is finished brewing, the machine will automatically place coffee grounds into an internal dump box for later disposal and even tell you when it is full. Depending on the size of the coffee that you are brewing, it will be done in as quick as 35 seconds and ready to brew again.

Adjustable Beverage Volume

A liquid volume selector knob allows you to customize the amount of coffee you brew before every brewing cycle. Just turn the knob to the desired liquid volume, press the brew button, and you’ll get exactly what you want every time.

Adjustable Dosing Feature

The Gaggia Syncrony Logic has an adjustable doser that controls the amount of ground coffee used for each beverage (6 to 9 grams for a single shot). Combine this ability with the "adjustable volume control" and you have total control over coffee strength and flavor at the push of a button.

Coffee Pre-infusion

This is another advantage of the super-automatic coffee center. The first step takes about 2 seconds, as it moistens and conditions the ground coffee. Next, a 2 second pause allows the aromatic oils to leach from the interior of the coffee. The second step activates the high-pressure pump to ensure absolute maximum flavor extraction with a perfect crema topping.

Bypass Doser

This is used with ground coffee only. Perfect for those occasions when you don't want to be "caffeinated" or have decaf-only guests. This is also useful for experimenting with different types of coffees. If you are usually a decaf drinker, use the bypass doser for regular instead.

Adjustable Coffee Spout

The dispensing spout slides up or down to adjust for different size cups. It adjusts from small espresso cups up to large mugs with no splashing.

Professional Conical Burr Grinder

The grinder has 18 settings providing plenty of control. You can grind from fine to coarse to accommodate any style of coffee roast. Light, medium or dark, espresso or regular coffee beans.

Cup Warmer

Preheating your cups is important. The Syncrony Logic will hold up to 4 espresso cups and features a polished metal railing to keep your cups in place.

Features & Benefits: Frothing and Hot Water

Hot Water Dispenser

Hot water is instantly available by turning the steam/hot water control knob. Makes 8 oz for a cup of tea or hot cider in 30 seconds.

Features & Benefits: Care, Maintenance & Other

Water Reservoir

The removable reservoir holds a plentiful 58 oz of water.

Removable Brew Group

The Gaggia brew group is easy to remove. Just open the front door and remove with the thumb release lever. This gives you access to everything that brews the coffee. Normal maintenance would include a quick rinse and dry.

Bean Container

Holds 12 oz of fresh whole bean coffee - about enough for 40 espressos before refilling.

Removable Dreg Drawer

The dregs drawer is located inside the machine and is easily accessed from the left side. The Logic is unique in the fact that you do not need to remove the drip tray or open the front access door to remove the dregs drawer.

Swivel Base

The swivel base makes accessing the different parts of the machine for maintenance, refilling water reservoir, and bean hopper easy. Just rotate the machine, no lifting required!


Misc Data
Manufacturer: Gaggia
Model: Syncromy Logic RS
Dimension - Width (Inches): 15.35
Dimension - Height (Inches): 15
Dimension - Depth (Inches): 13
Weight (lbs): 20
Housing Materials: ABS Plastic
Bean Hopper Material: Plastic
Drip Tray Material: Plastic
Drip Tray Cover Material: Plastic
Ground Coffee Container Material: Plastic
Drain Line Adaptable: No
Tall Legs: No
One Touch cappuccino
Programmable: No
Water Source
Reservoir Or Plumbed: Reservoir
Removable: Yes
Reservoir Access: Top
Reservoir Removable: Yes
Water Level Visible: No
Adjustable Coffee Strength: Yes
Number Of Grind Settings: 18
Type Of Controls: Push Button/ Dial
Display Type: Indicator Lights
Programmable Brewing: Yes
Brewing Light: No
Temperature Control: No
Adjustable Coffee Dosage: Yes
Coffee Dosage Quantity: 6 - 9
Cup Volume Control: Yes
Bypass Doser: Yes
Pre-Infusion: Yes
Decalcification Warning Indicator: Yes
Pressure Gauges: No
Brew Temperature Display: No
Cup Warmer
Material: Plastic
Passive / Active: Passive
Brew Group
Material: Plastic
Type: Automatic
Preheat: No
Removable: Yes
Self-Cleaning: No
Boiler Data
Number Of Boilers: 2
Brew And Steam Simultaneously: No
Rapid Steam: Yes
Brew Boiler Data
Brew Boiler Type: Thermoblock
Brew boiler Volume (Oz): Low
Brew Boiler Material: Stainless Steel Lined Aluminum
Brew Boiler Heater Location: External
Steam Boiler Data
Steam Boiler Heater Location: External
Pump Data
Pump Type: Vibration
Maximum Pressure (Bar): 15
Brew Pressure Adjustability: No
Self Priming Pump: Yes
Grinder Data
Number Of Grind Settings: 18
Hopper Capacity (Oz): 12
Burr Type: Conical
Burr Material: Stainless Steel
Freshness Lid: Yes
Maintenance Alerts: Yes
Descaler Used: Durgol
Warranty (Years): 1
Country Of Manufacture: Italy
NSF Certified: No
Recommended Applications: Home
Service provided
Repairs By: Whole Latte Love
Contact Number: 888-411-5282


hazi asked:


 hazi asked:

What is the frequency and voltage of this machine


Answer by Sanfam:

This machine is designed for standard household outlets in the US market.  That is to say, 110-125VAC at 60hz.

Aino Hau asked:


I am sending the email from Malaysia.

I am wondering can you deliver this machine to Malaysia?

How much will the delivery cost & time be?

Please reply me ASAP as I need this urgently :)

Answer by Sanfam:

At this time, we do not ship outside of the Continental United States.

Hey Gang: Do you see some sort of maintenance parts for the Syncrony? Just got up and running for a friend and wondering if I can procure what might be a maintenance kit with especially o-rings (3 i think). Everything else is working...machine is kinda noisy in general, hard to troubleshoot. Just thought that while we have access might do the right thing for it.  justin kagan, badbeard's microroastery and Amici Services (commercial espresso machine repair)

Answer by Nick B:

Hi Justin,

If you give our technical support department a call, they should be able to set you up with the parts that you're looking for. They can be reached at 1-888-411-5282 option 3.

Lisa Genke asked:

I'd like to order another automatic frothing unit that came witht the Gaggia Syncrony Logic RS.....   Where can I order? What other replacement parts should I have on hand, just in case?

Answer by Erik:

You can find that item at this link http://www.wholelattelove.com/products/complete-cappuccinatore-kit

John Pierce asked:

What are the suggested doseage and grind for this machine?

Answer by mjackson:

I would put at a fine grind. Smaller number finer grind - I suggest three or four. Maximum dose or all the way to the plus side.

Shaana Gray asked:

Hi!  Is there a way to remove beans from the hopper/grinder?  I poured in too many beans and would like to switch to a different kind without using all of the beans that I poured in!  Thanks!


Answer by Erik:

There really is no way for these beans to be removed from the hopper other than unplugging the machine and tip it over, being careful of course not to drop it.

does anyone know proper way how burrs in this grinder should be positioned? inner burr have red/blue dot, dont know purpose of the blue dot when everything is marked red. instructions says outer ring on 12, inner at 6. machine came with inner being set to 2 oclock.

Answer by Louis-Jordan:

Looking at the grinder from the front of the machine. The red spot on the outer burr should be in the 12 o’clock position. Place the inner burr in with the red marks in the 6 o’clock position. Rotate the outer collar so that the red mark lines up the red/blue marks on the inner burr at the 6 o’clock position.

I recently purchased a Gaggia Syncrony Logic "Rapid Steam".  When I pull the steam lever, it squirts about an ounce of water for about 15 seconds, sputters for another 10-15 as the boiler finally heats up, then steams.  This is annoying, Seems contrary to advertising.  And requires another container to dispense water into (or into tray with frequent changes).  No answers from support either. Is this normal or do I have a defective unit?  This is no more efficient than my old one burner unit.

Answer by Sanfam:

WIth a rapid steam boiler, most machines (the Syncrony Logic included) start the frothing process with a purge of the water circuit; This totals just about 1-1.2oz of water in most cases.  Other than that, the total warmup time in my experience is typically about 10 seconds including the purge.  You would then close the knob, re-orient the steam wand, and resume frothing into the cup or pitcher.  This lead-up is largely and is largely due to the machine needing to fill the boiler with water such that it can heat up without cracking or fracturing--While this heat-up may match the time it takes for a small-boilered machine to reach operating temeprature, the performance of a rapid steam machine equals to that of a machine with a boiler many times larger.  Additionally, you do not need to cool the boiler down after brewing and can jump immediately from steam to brew with no need to allow the temperature to settle--There's no mandatory post-steam purge or burned/super-bittered coffee to worry about.

scott asked:

The total amount of coffee that ends up in the cup is very inconsistant, with a 2-3 oz variation. I've tried priming and cleaning. We've had the machine for about 5 months and it ran perfectly for the first 4 months.



Answer by ShaneAncefsky-Sales:

Hello Scott,

Please call our tech team at 1-888-411-5282 ext 3.  I have an idea what it could be, but they will know best.  Which is strange because your issue is very rare.


David asked:

I want to froth manually -- what wand do you recommend? I don't want to do latte art or anything. Thanks.

Answer by ShaneAncefsky-Sales:

I would just get the Gaggia Pannarello wand.  Simple to use and clean.

Tom asked:

what is the correct water filter for hte logic rs?

Answer by Erik:

Mavea Inentza http://www.wholelattelove.com/Gaggia/mavea_intenza.cfm

Adriana asked:

I live in an area with very hard water. Even with a filtration system, there is a lot of calcium and other mineral in our drinking water. How hard will it be to clean this machine and remove the hard water buildup?

Answer by mjackson:

If possible buy soft water , that would really help. If not you can descale and I would do it about every 8 - 10 weeks if your water is very hard. Use a product like this http://www.wholelattelove.com/Urnex/urnex-dezcal-activated-scale-remover.cfm

Nesaraj asked:

Is it normal for a small amount of water to fall from the brew group into the drip tray after brewing?

Answer by ShaneAncefsky-Sales:

Thank you for the question. So after it done brewing it is dripping from the spouts. This will be residual water left in the line from brewing. You will get a little bit, but it shouldn't be as big amount.

kevin asked:

what are the dimensions and what is the warrenty

Answer by ShaneAncefsky-Sales:

Hi Kevin,
The dimensions are 15.35in(W) 15in(H) 13in(D). This machine comes with a one year manufacturers warranty.

kevin asked:

what are the dimensions and what is the warrenty

Answer by ShaneAncefsky-Sales:

Hi Kevin,
The dimensions are 15.35in(W) 15in(H) 13in(D). This machine comes with a one year manufacturers warranty.

kevin asked:

what are the dimensions of the machine. What is the warrenty

Answer by ShaneAncefsky-Sales:

Hi Kevin,
The dimensions are 15.35in(W) 15in(H) 13in(D). This machine comes with a one year manufacturers warranty.

Londa asked:

How long does it take to steam/froth manually and or with the Pannarello wand for a 16 oz drink??

Answer by ShaneAncefsky-Sales:

Thanks for the question. I am sure this will help others also. A thing to remember is that when frothing that the milk will expand 1.5 to 2 times its original volume. With this is mind it takes this machine about 85 to 90 second to froth 8ozs of cold milk to the proper temperature. Which with expansion and espresso combined, should be close to a 16oz beverage.

Londa asked:

When you use the Pannarello wand - Part what temperature does the milk get to?

Answer by mjackson:

You can get the milk as hot as you want best suggested temperature will be about 155

Igor asked:

What is the model number? Is it 74884?

Answer by ShaneAncefsky-Sales:

Thank you for the question. Gaggia has updated the model number to Rl9748/46. Have a great day!
