OverviewBack to Top

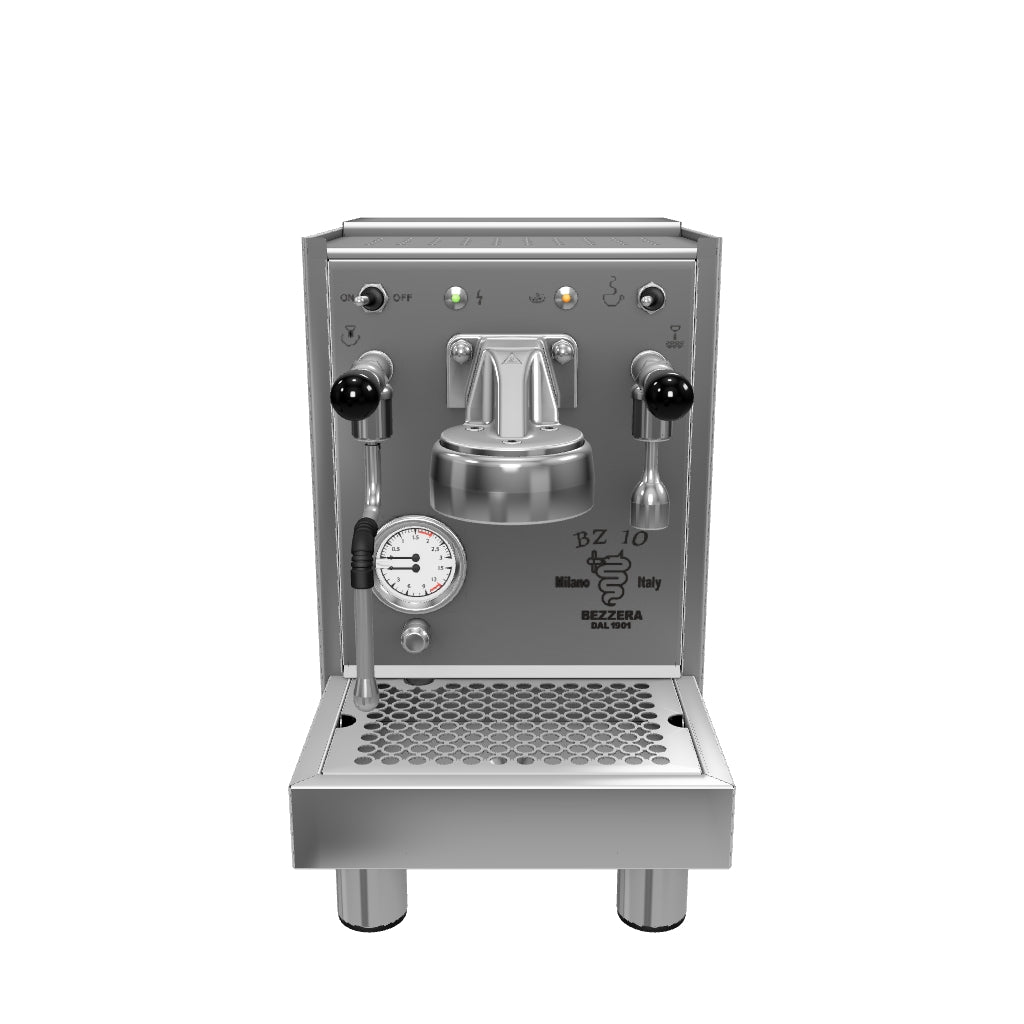

Compact, affordable, and made from quality materials and components, the Bezzera BZ10 espresso machine is ideal for one looking to enter the prosumer market while saving money and counter space. Housed in AISI 304 commercial grade polished steel, the BZ10 is less than 10" wide and one of the smaller prosumer machines we carry. But, don’t let its size fool you, you'll find that the BZ10 is full of surprises. Named for its unique, electrically heated BZ10 group head, the machine impresses inside and out. The group head is monitored and controlled by its own thermostat to ensure that it remains at the proper temperature at all times.
Brewing is handled in combination by the vibration pump and 1.5 liter nickel-plated copper boiler with brass end plates. The boiler has been plated using the Nistla process, an electrolytic method of applying metal plating that meets NSF food safety standards. The BZ10’s boiler also features a heat exchanger, allowing you to brew and steam at the same time, and up to 20 oz of steam can be produced in one session with a recovery time of only 40 seconds.
FeaturesBack to Top
Included with the machine is a double spouted portafilter, single and double shot filter baskets, a backflush disk, a measuring spoon, and a group brush.
Stainless Steel Construction
Beautiful and durable, the BZ10 is housed in AISI 304 commercial grade polished stainless steel with traditional Italian styling.
The BZ10 brews using a 1.5 liter heat exchange boiler, that means that it can both brew and steam at the same time. The boiler is equipped with high limit switch that cuts off power at 266 degrees to prevent overheating. The boiler is plated via and electrolytic process called Nistla and meets NSF standards for food safety. When you’re done brewing, the three-way solenoid valve drains excess water directly into the drip tray.
Dimensions and Weight
The Bezzera BZ10 measures 9.8" W X 14.7" H X 16.7" D and weighs 42 lbs.
Electrically Heated BZ10 Group Head
The namesake of the machine, the BZ10 group head is a specialized and electrically heated group head designed for maximum temperature stability. The group head is heated by two dedicated heating elements and controlled by a thermostat. The dual elements help to provide even heating to the group head to aid in maintaining temperature stability.
Frothing and Hot Water
The machine's steam and hot water wands are both mounted on ball joints for full articulation. Up to 600ml or 20 oz of constant steaming can be produced with a recovery time of only 40 seconds. The BZ10's water reservoir boasts a total capacity of 3 liters, an ample amount for a home use machine.
Just received it. Unpacked. peeled off all protective shrink wrap...filled with water....heated up. coffee side works...steam and water...NOTHING. Pressure dials also idle. HELP
While it's hard to pin down this sort of problem so briefly, I strongly suspect something came loose in shipping. The Bezzera BZ10 is a single boiler heat-exchanger machine, but it also has a set of heating elements in the brew head to help maintain even brew temperature, so this may have produced the sensation of the machine heating up for coffee but not steam/hot water.
Alternatively, there is a high-limit reset switch, a thermostat that would (under normal circumstances) trip if the boiler got too hot too soon. On a new arrival, however, this part may have been jostled somewhat less-than-friendlylike by the freight carrier, and it may have inadvertently reset. This thermostat is found on the bottom of the boiler and can be accessed by way of a service panel on the very bottom of the machine--this is also where I'd first look to check for any loose wires. You can open the panel by removing the four bolts holding it in place.
In the worst case scenario, call technical support! If you bought it from us, that'd be 888-411-5282, Option 3.
?The Bezzera BZ10 has a nickel-plated copper boiler with brass end plates, does this mean the inside of the boiler is nickleplate?
Yes, the inside of the boiler is nickel plated. If you would like to discuss this machine further I am available at 1-888-411-5282 ext 5193
With the small size and home use suggestion, I would guess that this is a 110 unit. Is that correct?
Yes it is 110 Volt
SpecsBack to Top
|Brew Boiler Data|
|Brew Boiler Type:||Heat Exchanger|
|Brew Boiler Watts:||1200|
|Brew boiler Volume (Oz):||1.5 Liter|
|Brew Boiler Material:||Copper|
|Brew Boiler Orientation:||Vertical|
|Brew Boiler Heater Location:||Internal|
|Brew Boiler Auto Fill:||Yes|
|Steam Boiler Data|
|Steam Boiler Type:||One Boiler for the Brew and Steam|
|Maximum Pressure (Bar):||15|
|Brew Pressure Adjustability:||Yes|
|Initial Heat Up (Seconds):||600|
|Recommended Heat Up Time (Seconds):||800|
|Time To Steam 8 Oz Milk (Seconds):||43|
|Hot Water Temp 8 Oz (F):||199|
|Hot Water Recovery Time (Seconds):||0|
|Sound Level - Brewing (Db):||61|
|Back Flush Cleaner Used:||Cafiza|
|Country Of Manufacture:||Italy|
|Repairs By:||Whole Latte Love|
|Dimension - Width (Inches):||9.8|
|Dimension - Height (Inches):||14.9|
|Dimension - Depth (Inches):||16.75|
|Housing Materials:||AISI 304 Stainless Steel|
|Drip Tray Material:||Stainless Steel|
|Drip Tray Cover Material:||Stainless Steel|
|Drip Tray Capacity (Oz):||22|
|Power Cord Length (Inches):||50|
|Steam Wand Style:||Commercial Style|
|Height Off Counter (Inches):||4.5 to 6.25|
|Number Of Holes:||2|
|Reservoir Or Plumbed:||Reservoir|
|Reservoir Capacity (Oz):||100|
|Type Of Controls:||Push Button|
|Pressure Gauges:||Brew and Steam|
|Material:||AISI 304 Stainless Steel|
|Size (Inches):||6 x 9.5|
|Passive / Active:||Passive|
|Material:||Chrome Plated Brass|
|Commercial Filter Baskets Included:||Single & Double|
|Tamper Size (Millimeter):||58|
|Material:||Chrome Plated Brass|
|Back Flush Capable:||Yes|
|Number Of Boilers:||1|
|Brew And Steam Simultaneously:||Yes|
