ECM Mechanika IV Espresso Machine

By ECM

Looking for something?

It looks like you've found one of our old product listings! It had a good run and is enjoying some well deserved rest. Instead, we've put together some excellent alternatives below for your consideration.

Need any help? Talk to one of our experts: 585-924-7170

View full details

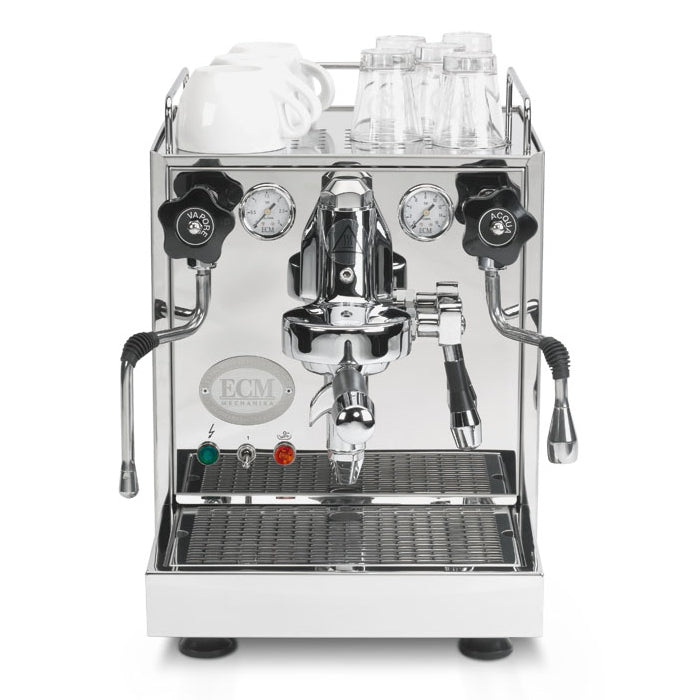

ECM’s reputation for excellence has a tendency to speak for itself, but the Mechanika IV makes an equally audible statement about the quality of their machines. Touted by some as the sister machine of their Technika IV, the Mechanika impresses with both its impressive internal components and external design. Once again ECM has created a competitively priced machine that addresses the needs of a barista who desires prosumer performance and build quality.
Wrapped in a stainless steel exterior, the Mechanika IV is tough as nails, yet it still commands attention with its traditional Italian flare. The railed cup warmer and dual pressure gauges are both functional and stylish while the brew lever and custom designed group head pay homage to its heritage. This version of the Mechanika is built with steam and hot water knobs instead of levers, which are labeled “Vapore” and “Acqua” respectively. On the inside the housing rests on a one-piece steel frame that spans the full length of the machine.
The Mechanika brews with an auto-filling 2.1 liter heat-exchange copper boiler and a high performance vibration pump. In line with all of ECM’s home espresso machines, the water lines are all copper as opposed to plastic. The keystone of the brewing process, the E61 group head rests in the front of the machine, helping to maintain a stable brew temperature from the boiler all the way to your cup.

The water reservoir holds up to 3 liters of and is equipped with an automatic shutoff that triggers in the event of low volume to prevent damage to the boiler. As a heat-exchanger machine, you are able to brew and steam at the same time thanks to the thermosyphon system. Both the steam and hot water wands are made of stainless steel and are designed with no-burn insulation to prevent them from getting too hot too quickly.
The Mechanika comes packaged with two weight balanced, chrome-plated brass portafilters and a single and double shot filter basket.

Balanced Portafilters

One of the first things you'll notice about the portafilters are how balanced they feel in your hand. The weighted end offsets the weight of the basket, keeping you from having to overcompensate with your wrist. On par with commercial grade machines, the Mechanika’s portafilters are made of chrome-plated brass for increased temperature stability.

Durable Stainless Steel Construction

The Mechanika is housed in polished stainless steel that is both tough as nails and easy on the eyes. ECM wasn't content with simply welding the drip tray onto the machine, it's actually part of the frame for enhanced durability and build quality.

Copper Plumbing

As an ECM machine, the Mechanika is fitted with copper water tubing as opposed to teflon or other plastics.

3 Liter Monitored Reservoir

The water reservoir holds an ample 3 liters of water and is fitted with a sensor that shuts off the machine at low volume to keep the machine from running dry.

Insulated Steam and Hot Water Wands

To help prevent accidental burns, both the steam and hot water wands have been insulated to keep them from getting too hot too quickly. The steam wand sports a two-hole tip, ideal for frothing milk for lattes and cappuccinos. The hot water wand can dispense water for tea, cocoa, Americanos, and more.

You may also like

Specifications

Property Value
SKU ECMMECHANIKAIV-WLL
Boiler Configuration Heat Exchanger
Number of Boilers 1
Boiler Features Rapid Steam,Brew & Steam Simultaneously
Brew Boiler Heater Location Internal
Brew Boiler Material Copper
Brew Boiler Orientation Horizontal
Brew Boiler Type Heat Exchanger
Brew Boiler Volume (Oz) 68
Three-Way Valve Manual
Brew Group Material Chrome Plated Brass
Brew Group Type E61
Brew Boiler Wattage 1200
Recommended Application Home / Residential
Display Type Indicator Lights
Controls and Additional Features Low-Water Warning,Power Light,Steam Control
Pressure Gauges Brew Circuit,Steam Boiler
Type of Controls Lever
Cup Height (max, inches) 3.25
Cup Warmer Material Stainless Steel
Cup Warmer Size (L-in x W-in) 10 x 4
Cup Warmer Passively Heated
Drip Tray Capacity (oz) 40
Drip Tray Cover Material Stainless Steel
Drip Tray Material Stainless Steel
Portafilter Baskets Included Single,Double
Frame Material Steel
Dispensing Method Doser
Programmable Grinding Single
Housing Color Stainless Steel
Housing Material Stainless Steel
Recommended Water Filter No Filter Required
Depth (Inches) 17.75
Height (Inches) 15.5
Weight (Lbs) 50
Width (Inches) 12
Hot Water Reheat Time (Typ. Seconds) 0
Property Value
Hot Water Temperature (8oz, Deg. F) 195
Hot Water Time (8oz, Seconds) 11
Time to Steam 8oz of Milk (Seconds) 54
Sound Level while Brewing (dB) 61
Time to Heat (Minimum Seconds) 600
Time to Heat (Recommended Seconds) 900
Filter Diameter (mm) 58
Portafilter Handle Material Bakelite Plastic
Portafilter Material Chrome Plated Brass
Number of Portafilters Included 2
Ground, E.S.E., Pod and Capsule Compatibility Ground Coffee
Portafilter Type Commercial Style
Portafilter Weight (lbs) 1.25
Adjustable Brew Pressure Yes
Pump Pressure (Max. Bar) 15
Pump Type Vibration
Pump Wattage 47
Warranty Service Provider Email support@wholelattelove.com
Warranty Service Provider Whole Latte Love
Warranty Service Provider Phone Number 888-411-5282
Manufacturers Warranty Period 3-Year Parts and Labor Warranty
Volt 110V-120V (US)
Watts 1200
Power Cord Length (inches) 48
Steam Boiler Type Heat Exchanger
Steam Wand Features No-Burn
Height Off Counter (Inches) 6.5
Steam Wand Material Stainless Steel
Steam Wand Movement Type Fully Articulated
Steam Wand Commercial
Steam Wand Usable Length 4
Water Reservoir Access Location Top
Water Reservoir Capacity 100
Water Reservoir Features Removable
Water Reservoir Material Plastic
Water Source Built-In Reservoir
