Heat Exchanger

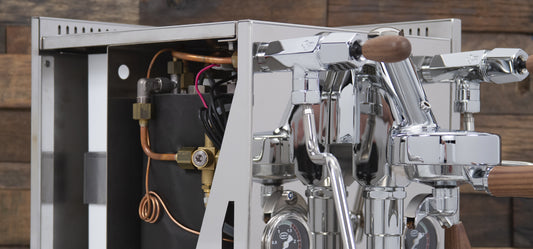

The 1.8 liter (60.9 oz) stainless steel heat exchanger boiler offers better temperature stability compared to single boiler espresso machines. Brew back-to-back coffees or brew and steam at the same time.

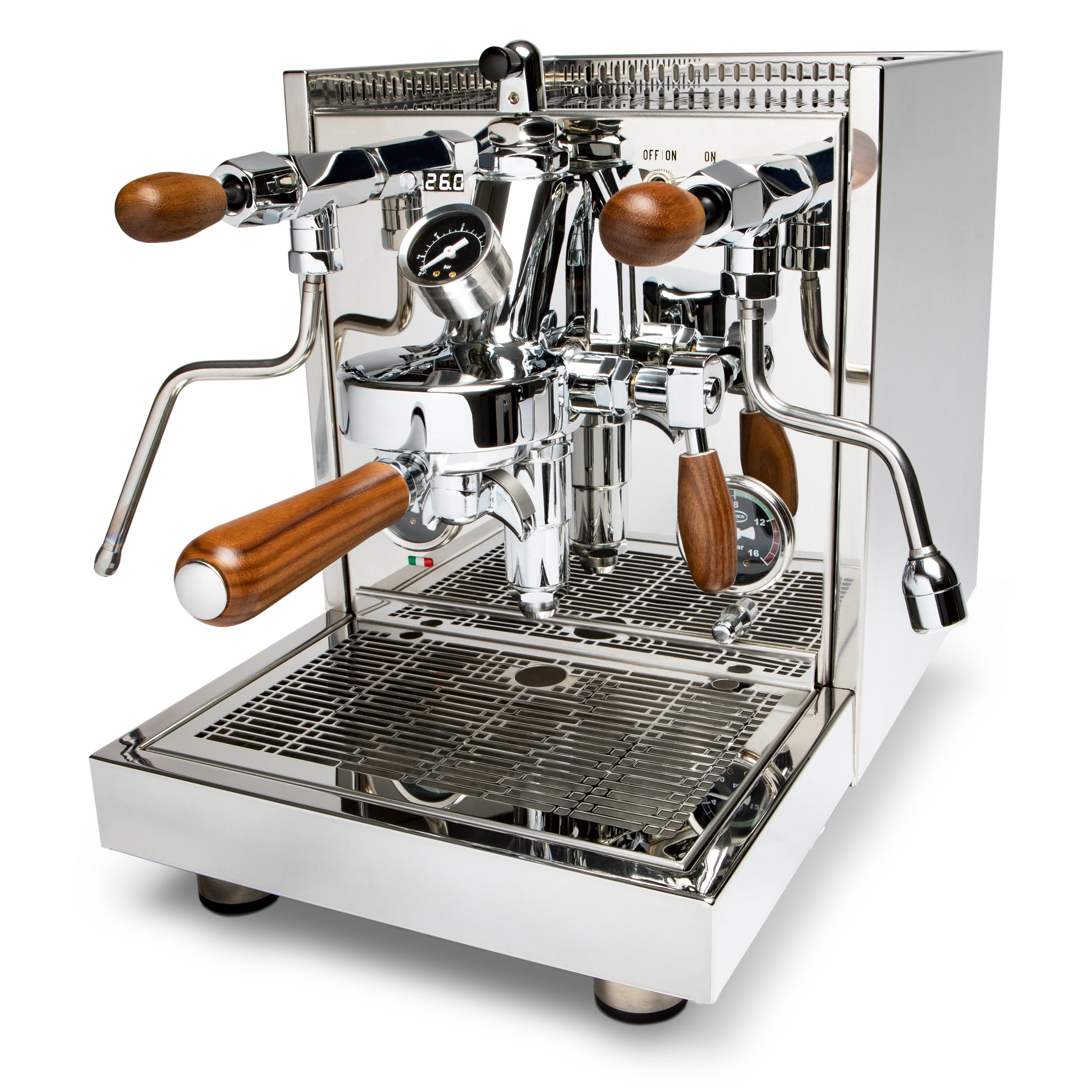

The Quick Mill Arnos is a standout semi-automatic espresso machine with all the features you want in high-end brewing equipment. HX boiler, PID control, a vibration pump, and a timeless appearance with natural wood elegance bring the Arnos to the top of our recommended list.

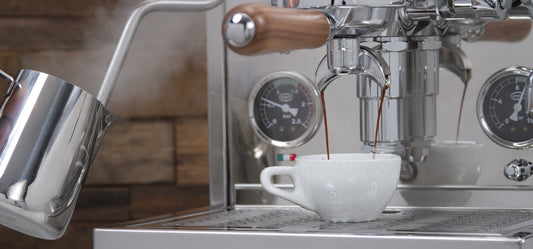

The Quick Mill Arnos features a 1.8 liter stainless steel boiler coupled with an LED PID temperature controller which doubles as a shot timer. Along with the ever-iconic E61 brew group, you can expect rocksteady temperature stability shot to shot. Plus, with the heat exchanger boiler, you can brew and steam at the same time. Brew and steam pressure are monitored by the colorful dual manometer. With the commercial style steam wand, you can froth and texture milk exactly how you like and prepare lattes and cappuccinos just like you would get at a local café.

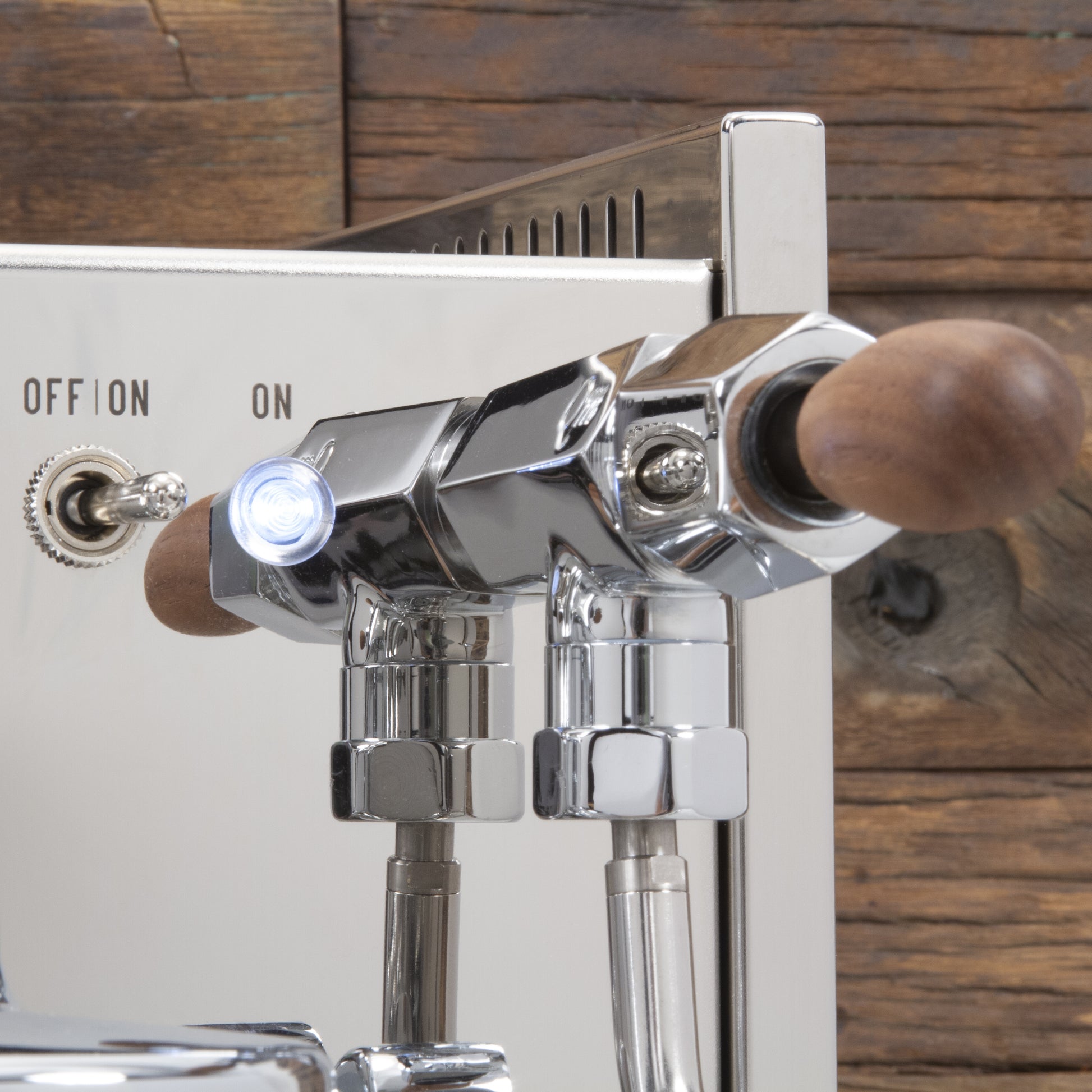

With the Arnos, you can use the 84 oz water reservoir, accessed directly from the top of the machine. For steam and hot water controls, the Arnos features joystick controls to begin dispensing with a flick of the wrist.
The Quick Mill Arnos is a high end machine, there's no two ways about it. If you're a traditionalist who loves top quality espresso and other coffee drinks, you owe it to yourself to get something like this. The temperature stability afforded by PID goes a long way to keep quality consistent and, just as well, the PID controller can be adjusted to bring out the full potential of high-altitude specialty coffees. With shot times appearing on the eye-level display, it's simple to keep an eye on your shot as it extracts.
What's Included
The 1.8 liter (60.9 oz) stainless steel heat exchanger boiler offers better temperature stability compared to single boiler espresso machines. Brew back-to-back coffees or brew and steam at the same time.

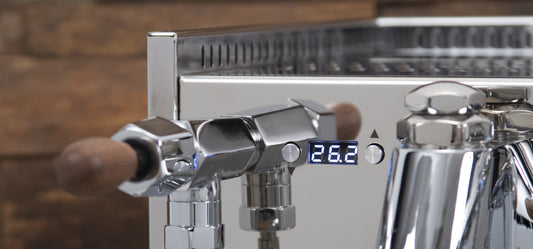

The PID temperature controller helps with temperature stability, turning the boiler's heating elements on and off for moments at a time to keep temperatures exact. The LED screen on the front of the machine offers a readout of brew and steam boiler temperatures, freely adjusted by the adjacent buttons. During extraction, the display doubles as a shot timer.

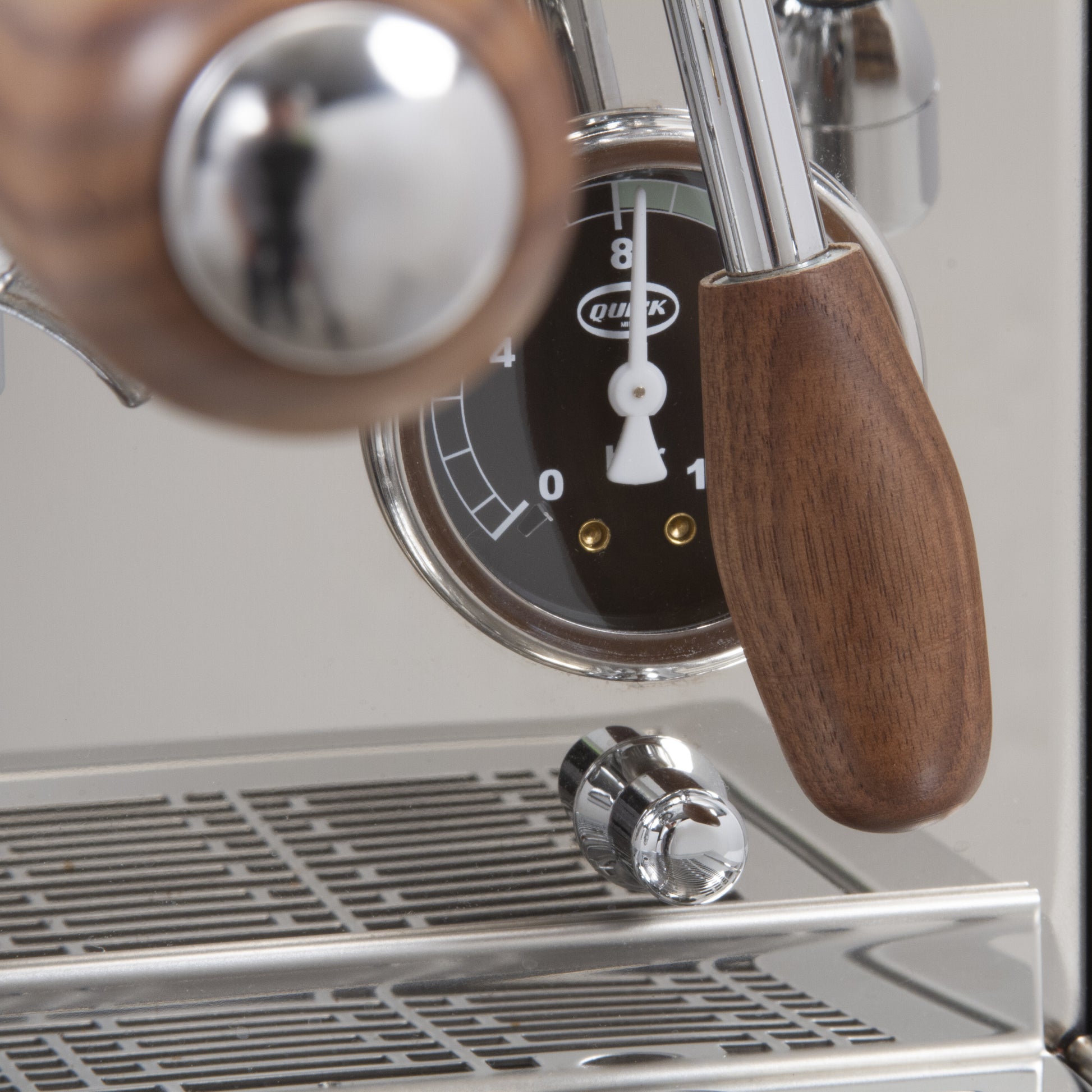

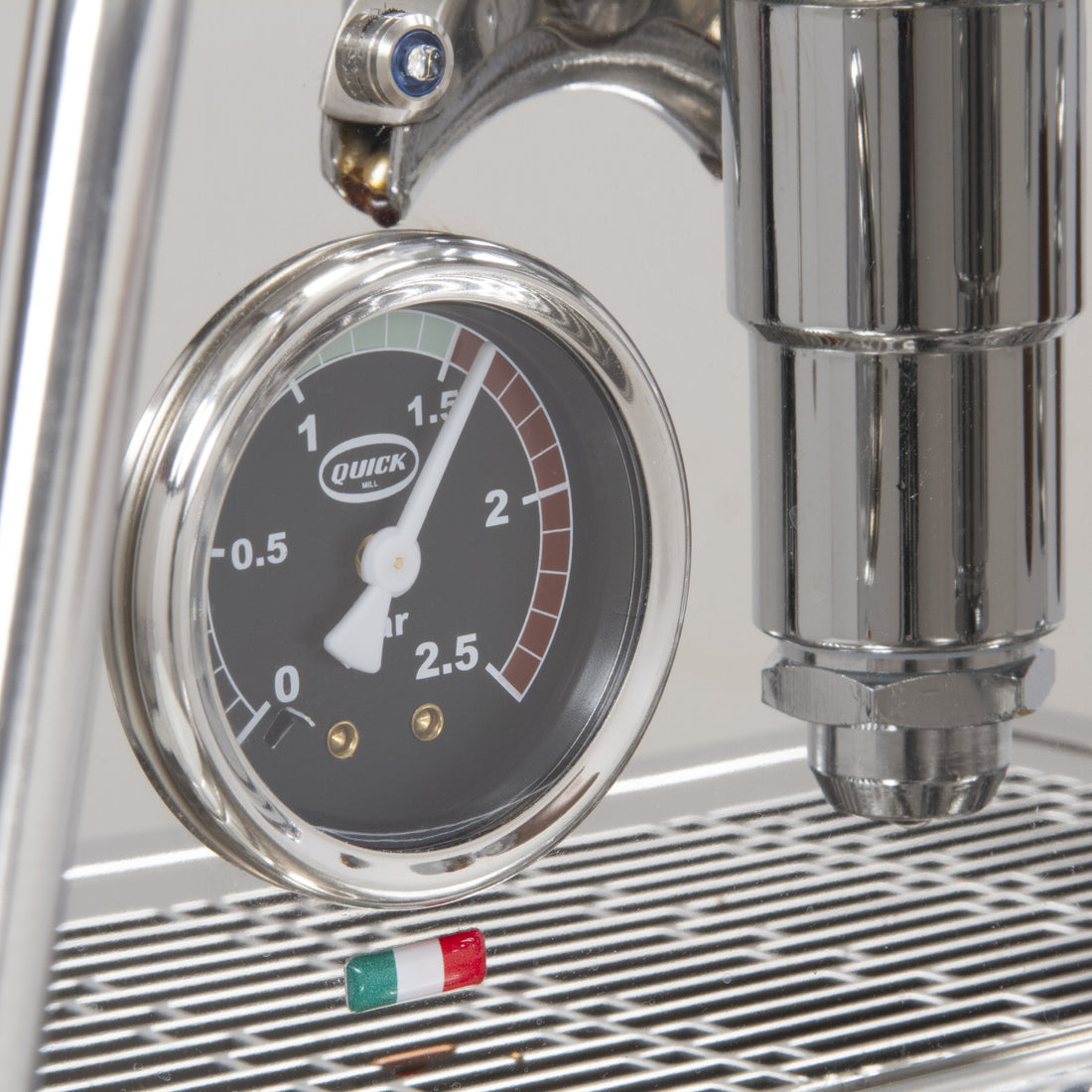

The dual black gauges on the face of the Arnos gives you a live reading of the brew and steam pressure while the machine is in operation and complement the natural look of the walnut.
The Quick Mill Arnos is an all stainless steel beauty, livened up by the natural beauty of real walnut accents. Quality is Quick Mill's first concern, and it shows in the Arnos. You can be sure that whatever company comes to visit, they'll appreciate the look of the machine almost as much as their espresso.
Property | Value |
---|---|
SKU | QMARNOSFCWOOD |
Boiler Configuration | Heat Exchanger |
Number of Boilers | 1 |
Brew Boiler Auto-Fill | Yes |
Brew Boiler Heater Location | Internal |
Brew Boiler Insulation | Yes |
Brew Boiler Material | Steel |
Brew Boiler Orientation | Vertical |
Brew Boiler Volume (Oz) | 60.8 oz |
Brew Unit Material | Chrome-Plated Brass |
Brew Unit Type | E61 |
Three-Way Valve | Manual |
Back Flush Capable | Yes |
Brew Group Type | E61 |
Recommended Application | Home / Residential |
Display Type | PID Control Screen |
Type of Controls | Lever PID |
Cup Warmer Material | Stainless Steel |
Cup Warmer Size (L-in x W-in) | 10.5 x 10.1 |
Cup Warmer | Passively Heated |
Drain Line Adaptable (Plumbable) | No |
Drip Tray Capacity (oz) | 46.5 oz |
Drip Tray Cover Material | Stainless Steel |
Property | Value |
---|---|
Drip Tray Material | Stainless Steel |
Frame Material | Stainless Steel |
Housing Color | Stainless Steel |
Housing Material | Steel |
Depth (Inches) | 19 |
Height (Inches) | 14.3 |
Weight (Lbs) | 48.5 |
Width (Inches) | 11.7 |
Portafilter Handle Material | Plastic |
Number of Portafilters Included | 2 |
Portafilter Type | Commercial Style |
Adjustable Brew Pressure | Yes |
Pump Pressure (Max. Bar) | 16 Bar |
Pump Type | Vibration |
Manufacturers Warranty Period | 2-Year Parts and Labor |
Steam Tip Hole Count | 2 |
Steam Wand Material | Stainless Steel |
Steam Wand Movement Type | Fully Articulated |
Steam Wand | Commercial Style |
Water Reservoir Access Location | Top |
Water Reservoir Capacity | 84 oz |
Water Reservoir Features | Empty Detection |
Water Source | Reservoir |
