Delonghi ECAM22110SB Magnifica XS Super-Automatic Espresso Machine

Latte Rewards: $17.99
Earn Latte Rewards with every purchase which you can use towards future orders. Your account page will display your current balance.

5 out of 5 stars based on 6 customer reviews

Want to preorder this item? Contact Sales.
Estimated In-Stock Date: June 9th, 2015

Seen this item cheaper somewhere else? Ask for a price match!

Notify me when this product is available

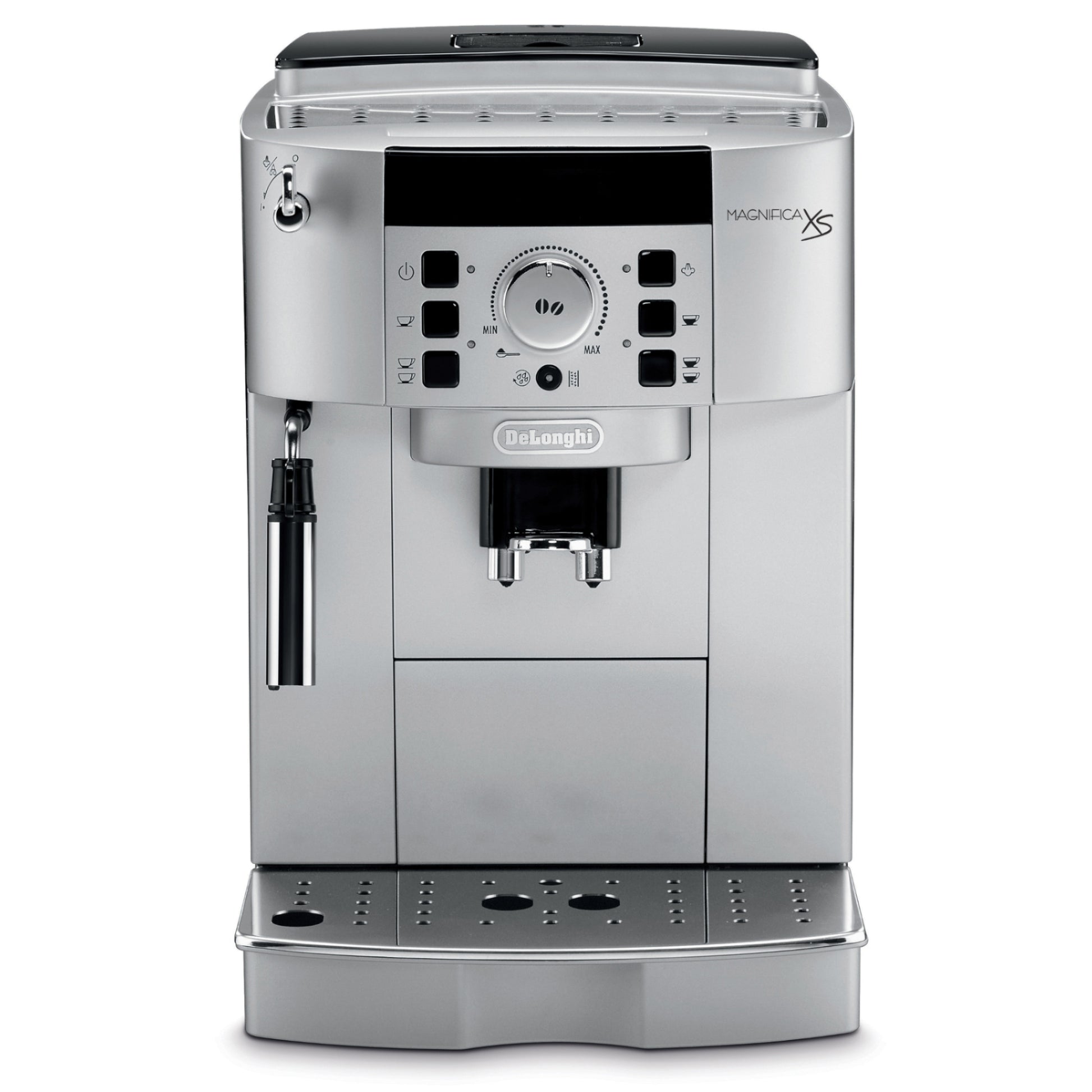

Aptly named, the DeLonghi Magnifica XS Super Automatic, ECAM22110SB, is a compact, feature packed, beautiful espresso machine. Its sleek streamlined appearance belies the many features it encompasses. An easy to navigate control panel and professional quality components will make you an accomplished barista in no time at all! It will grind fresh coffee beans, precisely tamp and pressurize the grounds, brew and then clean itself all in under a minute! The single stainless steel thermoblock boiler design provides energy savings while quickly heating fresh water for brewing and steaming. You will create authentic Italian drinks using the patented cappuccino system frother. Simply place a container with milk under the nozzle to create a rich, creamy froth. With five coffee-strength settings and four cup-size options everyone gets to enjoy their preferred libation. Further the design has incorporated sophisticated controls and user settings to manage power consumption allowing potential savings of 77% over previous designs.

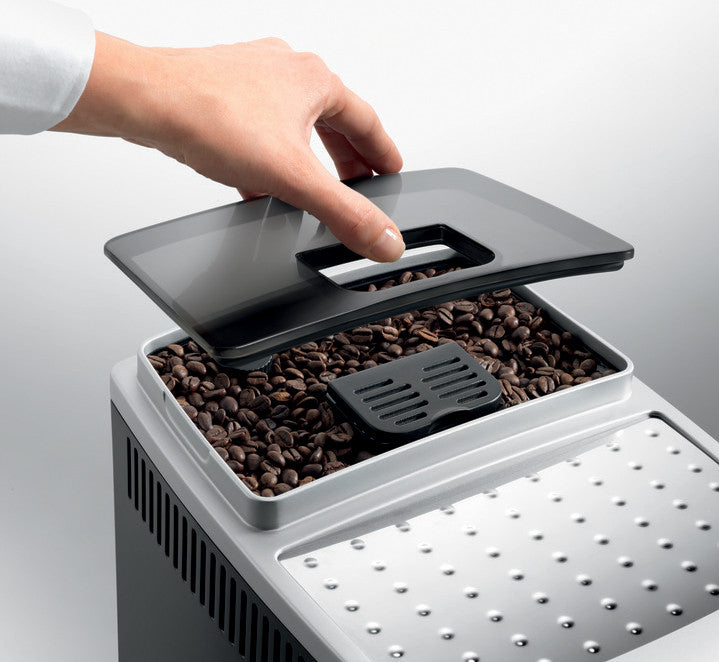

Flavor Saving Bean Container

Enjoy fresh coffee every time thanks to the flavor saving 8.8 oz. bean container with its darkened lid having a special rubber seal. The tinted lid filters out harmful UV rays.

Stainless Steel Boiler

Thermoblock technology ensures water does not become stale sitting in a boiler for an extended period of time, and the stainless steel lining prevents your fresh water from ever acquiring a metal taste. A key feature of this technology is rapid hot water delivery on-demand to provide brewing and steaming power for your coffee drinks with a very fast cycling time.

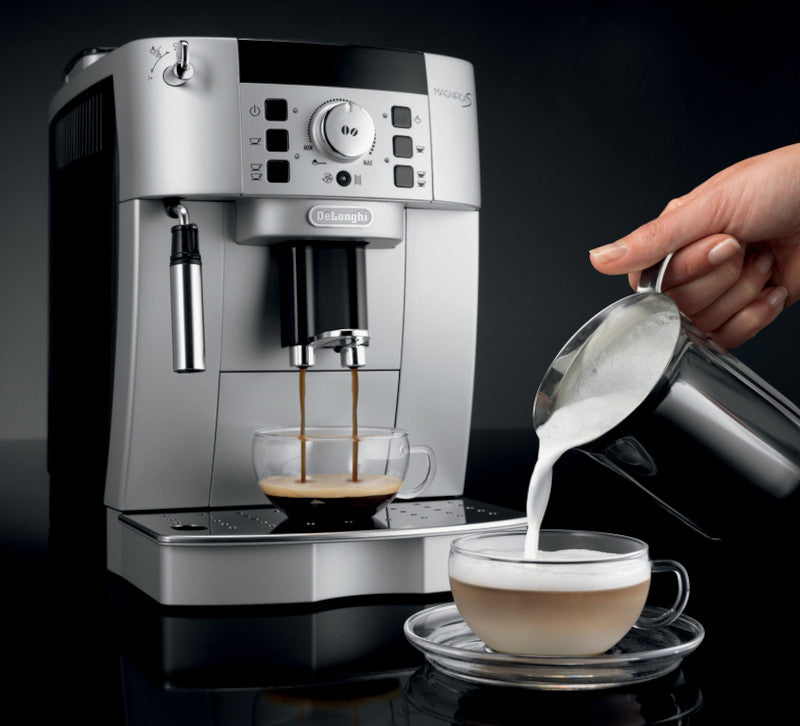

The patented manual steam wand with the special cappuccino tip and frother easily prepares latte and cappuccino. It mixes steam and milk to create a rich, creamy froth for perfect drinks every time.

Front-Mounted Water Tank

The 57 oz. water tank is visible from the side and pulls straight out from the front so you never need to jockey the entire machine around just to fill the water tank.

Cleaning and Descaling

Descaling of the boiler is a critically important process to keeping your machine in tip top condition and brewing great tasting drinks. The Magnifica XS will alert you when you need to descale based on the water hardness level indicated on the provided test strip. The process is fully automated; when the descale light begins flashing, all you must do is add the solution and press a button.

To clean the brewing system, simply turn the power off, open the front door, remove the brew group, rinse under warm water and replace.

Controls & Settings

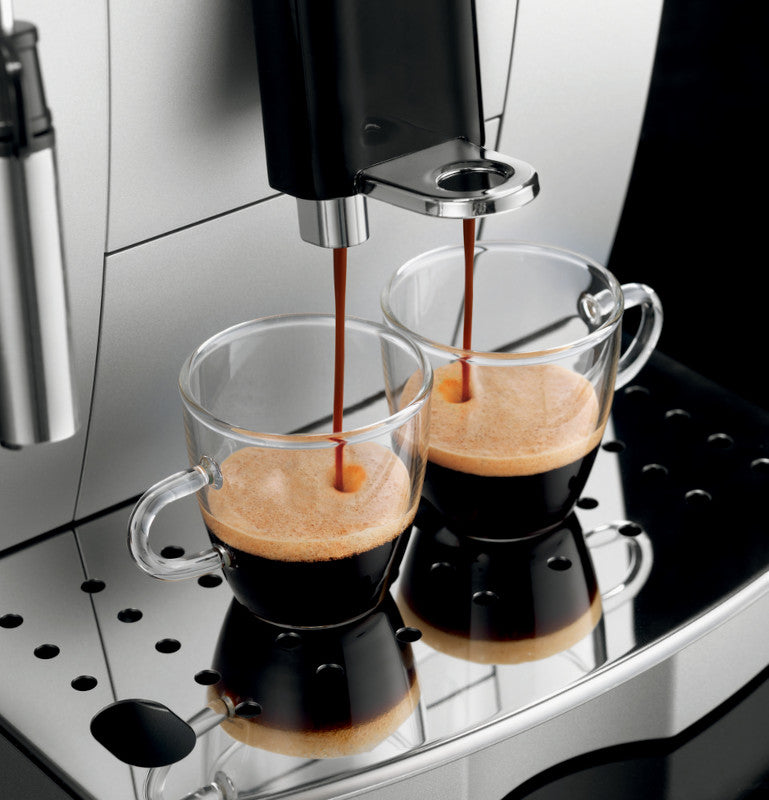

Easy to use rotary and push button control panel includes a convenient selector dial that allows you to choose the strength of your coffee. There are four buttons that are preset for a single shot of espresso, a double, one long coffee, and two long coffees. All four buttons can be reprogrammed to whatever quantity of water you prefer. Additional features include 4 programmable temperature settings, energy-saving auto shut-off, instant reheat, and a counter for the number of cups brewed.

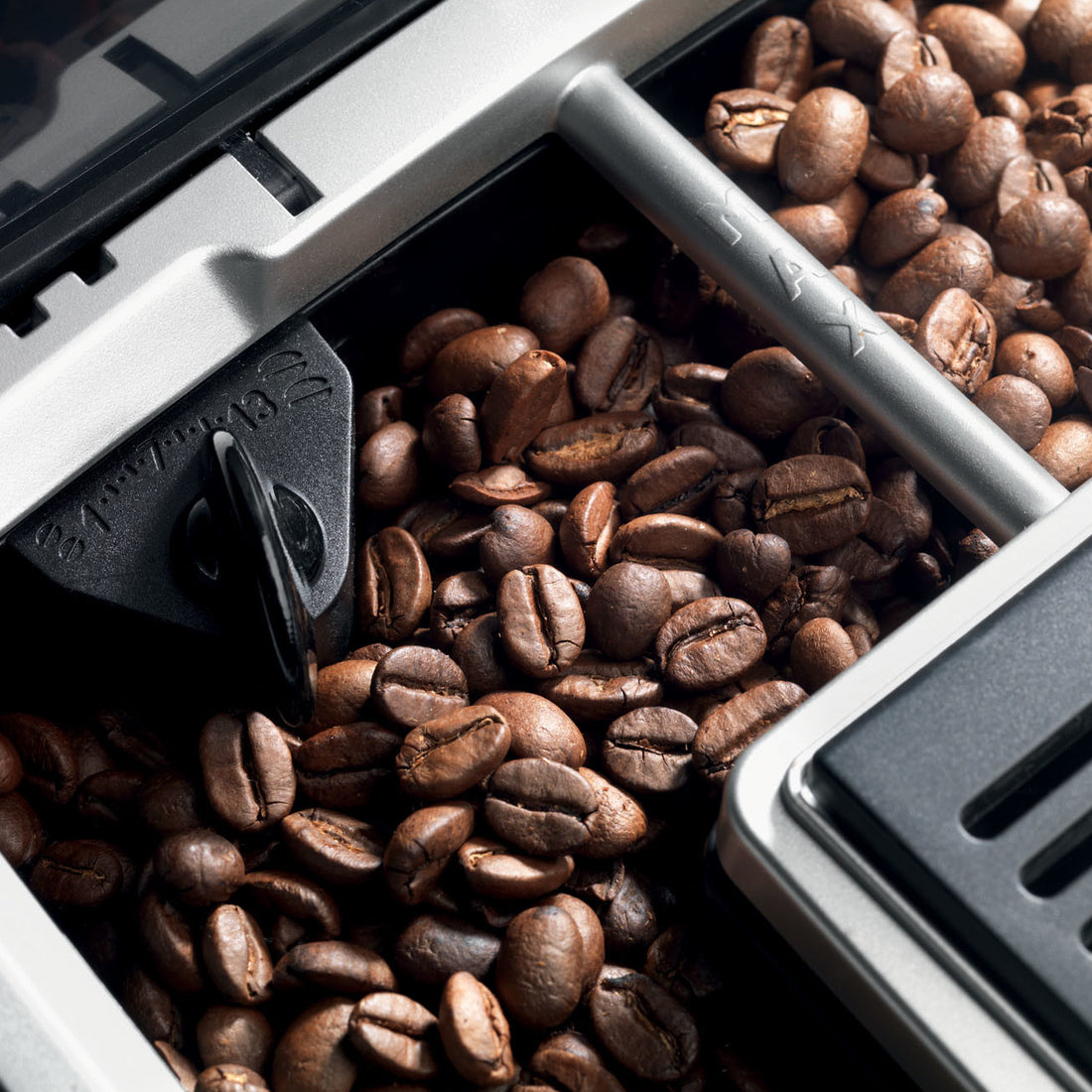

Silent Conical Burr Grinder with 13 Settings

The hardened steel conical burrs rotate at a low speed with minimal noise to produce consistent, fresh, and aromatic espresso and coffee without overheating the grind and destroying flavor.

Other Features

  • Removable drip tray with waste water level indicator.
  • Conveniently use tap water with the built in filtration system.
  • Preheat your cups for best results by using the integrated cup warmer.
  • Always know when it's time to clean the machine with the decalcification indicator.
  • Water filter built into the reservoir.

Tech Specs

  • Input power: 1250 watts
  • Pump pressure: 15 bar
  • Bean hopper: 8.8oz.
  • Water reservoir: 57oz.
  • Height: 13.8"
  • Width: 9.4"
  • Depth: 17"
  • Weight: 18 lbs
  • Color: Silver
  • Origin: Italy

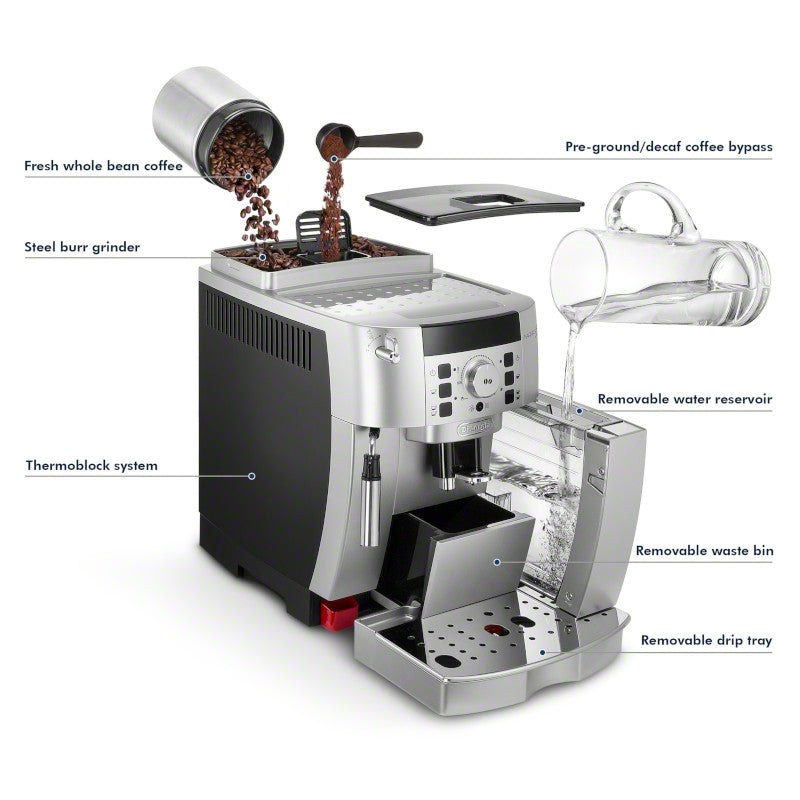

Pre-Ground Coffee Bypass Doser

You can produce that occasional cup of decaf, or experiment with new flavors using the clever pre-ground option so that you do not have to swap out beans from the grinder. Simply add 1 scoop (scoop included) of freshly ground coffee into the funnel and have a custom brew in seconds.


Steam Boiler Data
Insulated: No
Steam Boiler Type: Thermoblock
Steam Boiler Watts: 1250
Steam Boiler Volume (Oz): Low
Steam Boiler Material: Stainless Steel Lined Aluminum
Steam Boiler Heater Location: External
Steam Boiler Auto Fill: Yes
Pump Data
Pump Type: Vibration
Maximum Pressure (Bar): 15
Brew Pressure Adjustability: No
Air Remover: No
Self Priming Pump: Yes
Grinder Data
Number Of Grind Settings: 13
Hopper Capacity (Oz): 8.8
Burr Type: Conical
Burr Material: Steel
Freshness Lid: Yes
Maintenance Alerts: No
Descaler Used: Durgol
Water Filter: Saeco specific
Warranty (Years): 2
Country Of Manufacture: Italy
NSF Certified: No
Recommended Applications: Home Use
Available Internationally: No
Service provided
Repairs By: DeLonghi
Contact Number: 800-322-3848
Misc Data
Manufacturer: DeLonghi
Model: ECAM22110SB
Dimension - Width (Inches): 9.37
Dimension - Height (Inches): 13.3
Dimension - Depth (Inches): 16.9
Weight (lbs): 20
Watts: 1250
Volts: 120
Housing Materials: Metal / Plastic
Bean Hopper Material: Plastic
Drip Tray Material: Plastic
Drip Tray Cover Material: Stainless Steel
Removable Hopper: No
Drip Tray Capacity (Oz): 20
Ground Coffee Container Material: Plastic
Drain Line Adaptable: No
Spent Coffee Capacity (Dregs Drawer): 14
Easy To Rotate: No
Tall Legs: No
Power Cord Length (Inches): 40
Cup Height
Adjustable Height: Yes
High (Inches): 5.5
Low (Inches): 3.25
One Touch cappuccino
One Touch Cappuccino: No
Adjustable Froth Quality: No
Separate Manual Steam Wand: Yes
Programmable: No
Milk Carafe Type: Non-Attachable
Self-Cleaning: No
Frothing Wand
Material: Stainless Steel/Plastic
Steam Wand Style: Pannarello
Wand Movement: Pivot Side to Side
Usable Length (Inches): 2.5
Height Off Counter (Inches): 5 Stars
Optional Cappucinotore: No
Number Of Holes: 1
No Burn Wand: Yes
Optional Steam Tips Or Wands: No
Water Source
Reservoir Or Plumbed: Reservoir
Reservoir Capacity (Oz): 57
Reservoir Material: Plastic
Removable: Yes
Reservoir Access: Front
Reservoir Removable: Yes
Water Level Visible: No
Water Filter: Yes
Adjustable Coffee Strength: Yes
Number Of Grind Settings: 13
Type Of Controls: Push Button
Display Type: Indicator Lights
Programmable Brewing: Yes
Temperature Control: No
Adjustable Coffee Dosage: Yes
Coffee Dosage Quantity: Yes
Cup Volume Control: Yes
Aroma / Flow Control: Yes
Bypass Doser: Yes
Pre-Infusion: Yes
Low Water Warning: Yes
Energy Savings: Yes
Decalcification Warning Indicator: Yes
Multiple Programmability: No
Pressure Gauges: No
Brew Temperature Display: No
Cup Warmer
Material: Metal
Size (Inches): 8.5 x 5
Passive / Active: Passive
Brew Group
Material: Plastic
Type: Automatic
Preheat: No
Removable: Yes
Three-Way Valve: No
Self-Cleaning: No
Boiler Data
Number Of Boilers: 1
Brew And Steam Simultaneously: No
Rapid Steam: Yes
Brew Boiler Data
Brew Boiler Type: Thermoblock
Brew Boiler Watts: 1250
Brew boiler Volume (Oz): Low
Brew Boiler Material: Aluminum
Brew Boiler Heater Location: External
Brew Boiler Auto Fill: Yes
Insulated: No


bobschriner asked:

This machine is immensely frustrating. If I don't have the settings of the grind and amount of coffee just right the machine will not work. If the beans are too fine and/or if I set the dial adjusting the amount per grind over 65% I get the light indication that too much coffee has been used and it cannot handle it. What kind of idiot makes a machine that grinds more coffee than it can use? This piece of crap wastes so much coffee. I'm about to throw the thing in the trash.

Answer by Sanfam:

While we don't offer technical support for this model (all service and support is provided directly by DeLonghi), it would seemt to me that there is either an issue with the overly fine grounds clogging up the brew unit or gumming it up.  I would advise contacting DeLonghi to troubleshoot it, as with many other manufacturers using similarly designed machines, these sort of issues are symptomatic of a brew unit requiring relubrication or a problem in the tamping mechanism.

aussie asked:

Can you please tell me the difference between this model and the Delonghi ECAM23450S  which came 1st in the Australian consumer reports for automatic machines.  The ECAM22110SB came second but there's a big price difference.

Answer by mjackson:

Here is a comparison


The biggest difference is the 23450 will do the milk automatically and the less expensive 22110 you need to steam manually using a steaming pitcher


Here is a comparison chart for the rest


Magnifica S ECAM 23.450.SL



ECAM 23.450.SL

General specifications

Dimensions (l x w x h inches) 9.4 x 16.9 x 13.4
Weight (Lbs) 26
Rated voltage/Frequency (V~Hz) 120~60
Input power (W) 1250
Pump pressure (bar) 15 Bars
IFD System Yes
Removable water reservoir Yes
Removable drip tray with level indicator Yes
Display 2-line with icons
Audio Signal Yes
New silent grinder with 13 setting Yes
Beans container capacity 5.3 oz
Selection for 1 cup Yes
Selection for 2 cups Yes
Descaling, cleaning and rinsing program Yes
Coffee grounds container 14 cups or after 72 hours from first use
Coffee powder use Yes
Maximum cup height 5.75 in
Programmable switch-on Yes
Auto shutOFF Yes
Programmable water hardness Yes
Removable infuser unit Yes
Aroma control Yes
Rapid Steam Yes
Water filter Yes
New, improved Cappuccino System Yes
Energy saving function Yes
Cup holder Yes
Power supply switch Yes
Cup illumination Yes
Stand-by function No

Magnifica ECAM 22.110.SB



General specifications

Dimensions (l x w x h inches) 9.4 x 17.0 x 13.8
Weight (Lbs) 20.1
Rated voltage/Frequency (V~Hz) 110/120
Input power (W) 1250
Pump pressure (bar) 15
IFD System No
Removable water reservoir Yes
Removable drip tray with level indicator Yes
Display No
Audio Signal No
New silent grinder with 13 setting Yes
Beans container capacity 8.8 oz
Selection for 1 cup Yes
Selection for 2 cups Yes
Descaling, cleaning and rinsing program Yes
Coffee grounds container 14 single espresso, 7 double
Coffee powder use Yes
Maximum cup height cup height 3.5" to 5.5"
Programmable switch-on No
Auto shutOFF Yes
Programmable water hardness Yes
Removable infuser unit Yes
Aroma control Yes
Rapid Steam No
Water filter Yes
New, improved Cappuccino System No
Energy saving function Yes
Cup holder Yes
Power supply switch Yes
Cup illumination No
Stand-by function Yes

Alan asked:

I've been using the Delonghi for about 6 months now and don't feel as though I'm getting a sufficiently "thick" pull.  I'd like a double shot to take 30-40 seconds to fill, but it only takes 20 seconds.  If I make the grind finer then I get the error message that its too fine (all the lights blink). There's a crema, but it isn't terribly thick.  Is there a pressure adjustment or other adjustment I can make to improve this?

Answer by ShaneAncefsky-Sales:


Thank you for the question.  Sadly there is no way to make a pressure adjustment.  A super auto is great machine I use one at home.  They do lack though, you are not able to control the shot timing like you would in a semi-automatic.  What coffee are you using?  This also has a big play in how it brews and crema.  Please let me know and I can make some suggestions from there.

Answer by Alan:

Thanks.  I did make some additional adjustments to the amount of coffee and the grind which helped.  Though I'd still like it "thicker."  I'm mostly using Ceremony Coffee's Mass Appeal.

Laurence asked:

Please tell me what the difference is between this machine (the XS) and the Delonghi ECAM23210B Magnifica S. Other than the "S" machine has a clock/timer, I can't see any difference. Oh yeah, one is black and the other is silver. Am I missing something?

Answer by mjackson:

Those are really the only differences.
