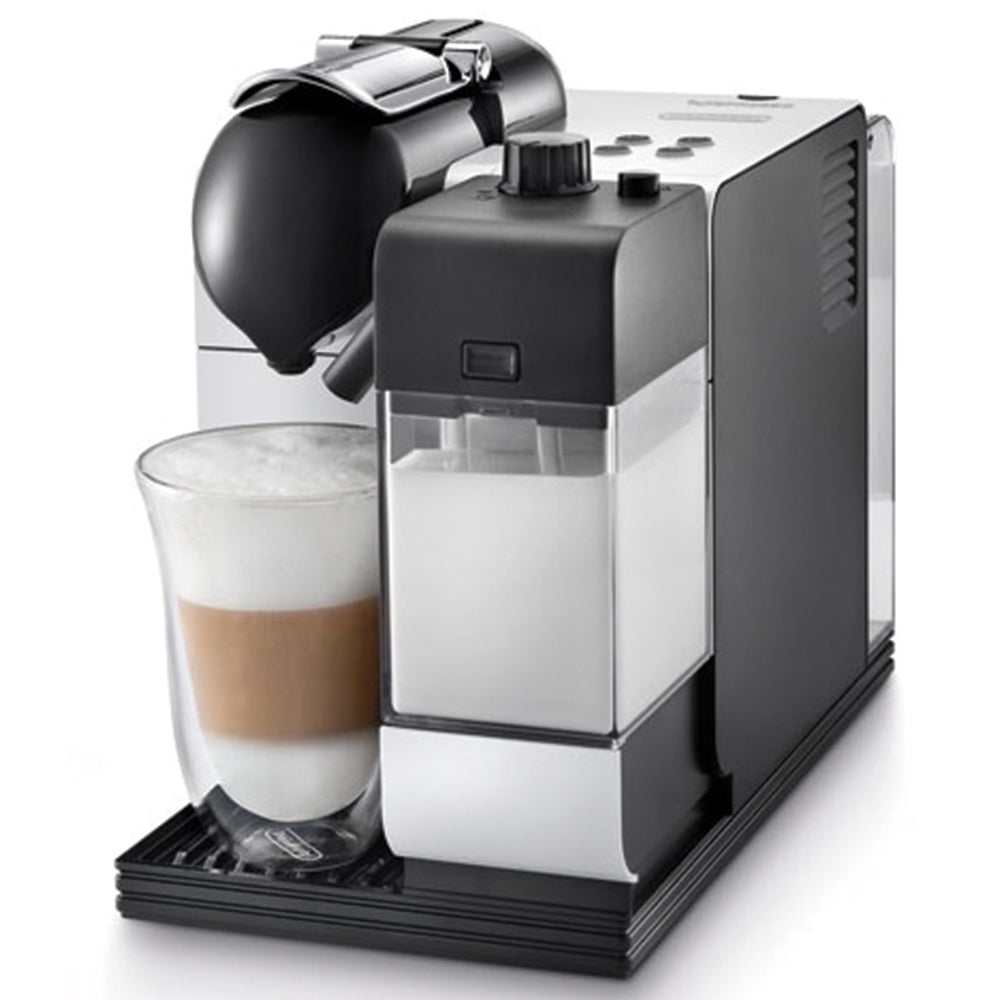

DeLonghi Nespresso Lattissima Plus EN520W

By DeLonghi

Looking for something?

It looks like you've found one of our old product listings! It had a good run and is enjoying some well deserved rest. Instead, we've put together some excellent alternatives below for your consideration.

Need any help? Talk to one of our experts: 585-924-7170

View full details

Owning the DeLonghi Nespresso Lattissima Plus EN520W

The DeLonghi Nespresso Lattissima PLUS EN520W has a clean, compact, functional design, with easy-to-use illuminated controls. A thermoblock heating element and 19-bar high pressure pump produce the perfect extraction for pre-packed, single serving Nespresso capsules. Straightforward programming and multiple brewing options mean you can dispense drinks quickly, simply, and easily without the fuss and mess of grinding, measuring, and tamping grounds. With a 12 oz automated milk system and a 30 oz water reservoir, espresso and milk are dispensed together into your waiting cup, cutting down on time and simplifying the whole process. And while the machine is convenient, this doesn’t mean you run out of options quickly – you can brew cappuccinos, latte macchiatos, short espresso, long espresso, or dispense hot milk.

Why a capsule brewing system? Convenience! – With no grinding, measuring, or tamping involved; all you have to do is select your favorite flavor and place the capsule inside the machine. Nespresso capsules are specially designed so just the right amount of water flows through them during the brew cycle; then they are automatically ejected into an internal dump box after brewing is completed. Capsules store easily and protect the coffee from any harmful effects of moisture, light, and air. The hardest part of brewing on the Lattissima is deciding which Nespresso capsule blend you prefer. Once you’ve made your decision, open the lever located in the center, just over the coffee spout, insert the capsule, and close the lever. Press the espresso or lungo (small or large cup) button, and the button blinks as the machine brews espresso directly into your cup. If you prefer a cappuccino or latte, make sure the milk system is inserted, and press the cappuccino or latte button. Milk and espresso are then dispensed into your cup. Once this is complete, lift the same lever again to eject the capsule into the internal container, and close the lever again. You’re all done! It’s so easy! Place your cup below the coffee spout, and move the milk spout so it is pointed into the cup. Select either the cappuccino or latte macchiato button, and your preference is dispensed into your waiting cup. Knowing how to froth and steam your own milk is undeniably a skill, and not everyone has the time and patience to perfect it. That’s where the patented milk system comes in. Adjust the frother regulator depending on the quantity you want, and the kind of milk you’re using (skim milk produces more froth than whole).

The EN520W is UL approved as well, making it a great fit for home kitchens and small offices alike.

You may also like


Property Value
Number of Boilers 1
Brew Boiler Heater Location External
Brew Boiler Material Stainless Steel-Lined Aluminum
Brew Boiler Type Thermoblock
Brew Group Features Preheat Cycle
Brew Unit Material Plastic
Brew Unit Type Automatic
Brew Boiler Wattage 1200
Carafe Features Anti-Spill Pouring
Recommended Application Home / Residential
Coffee Filter Compatibility Paper (Cone)
Display Type Indicator Lights
Controls and Additional Features Cup Volume Control,Low-Water Warning,Programmable Brewing
Pressure Gauges Brew Circuit
Type of Controls Push Button
Cup Height (max, inches) 6.3
Cup Height (min, inches) 3.5
Drip Tray Capacity (oz) 8
Drip Tray Cover Material Plastic
Drip Tray Material Plastic
Portafilter Baskets Included Single
Dispensing Method Doser
Grinding Method Burr
Programmable Grinding Single
Housing Color Stainless Steel
Property Value
Housing Material ABS Thermoplastic
Recommended Descaler Type Urnex Cleancaf
Recommended Water Filter No Filter Required
Depth (Inches) 12.6
Height (Inches) 10.2
Weight (Lbs) 13
Width (Inches) 6.7
Milk Frother Type Attached Milk Carafe
Time to Heat (Minimum Seconds) 90
Ground, E.S.E., Pod and Capsule Compatibility Ground Coffee
Portafilter Type Commercial Style
Pump Pressure (Max. Bar) 19
Pump Type Vibration Pump
Pump Wattage 1200
Warranty Service Provider Nespresso
Warranty Service Provider Phone Number 888-637-7737
Manufacturers Warranty Period 1-Year Limited Warranty
Volt 110V-120V (US)
Watts 1200
Power Cord Length (inches) 24
Steam Wand Material Plastic
Water Reservoir Access Location Top
Water Reservoir Capacity 30
Water Reservoir Features Removable
Water Reservoir Material Plastic
Water Source Built-In Reservoir
