Heat Exchanger
The Mechanika V Slim is equipped with a 1400 W stainless steel boiler with a capacity of 2.2 L. As a heat exchanger machine, you can expect to brew and steam without waiting, or even at the same time.
ECM Mechanika V Slim Espresso Machine
By ECM
Request a Price Match:
Show us a lower price and we’ll match it!
ECM’s Mechanika V Slim is a compact and modern take on heat exchange espresso machines with a host of cosmetic and mechanical improvements over its previous iteration.
Free shipping on all orders over $50 or more.
Includes a 1-Year Parts and Labor Warranty.
ECM Mechanika V Slim Overview
The ECM Mechanika V Slim brings a measure of truth to "less is more" that our kitchen counter really appreciates. The ECM Mechanika V Slim has slimmed down by more than 2 inches thanks to the vertical reorientation of the boiler, now measuring at under 10” wide.
Features and Performance
The new stainless steel boiler has a slightly increased capacity of 2.2L and features thermal insulation for greater energy efficiency. The redesigned interior also resulted in an update to the OPV which is now accessible from the top of the machine and located underneath the reservoir lid.
As a heat-exchanger machine, you'll need to pay attention to temperature and perform a cooling flush every once in a while if the machine has been on for some time. However, the dual pressure gauges, custom ECM E61 group, and adjustable OPV make for a respectable prosumer espresso machine that can fit in the tightest of spaces.
Why You Should Get It
The ECM Mechanika V Slim packs a lot of power in a small package. If you want great espresso brewing equipment, and you want to save on space, there's no better option. As a heat exchanger espresso machine, you can brew espresso and froth milk at the same time, making it quick and easy to prepare lattes and cappuccinos. With it's compact size, you'll have more space on the counter for the drinks you can make for your guests.
-
-
Compact Design
The Mechanika V Slim, at 9.8 inches wide and 15.5 inches tall, doesn't ask for much space at all, fitting comfortably beneath standard kitchen cabinetry and leaving plenty of room on the counter.
-

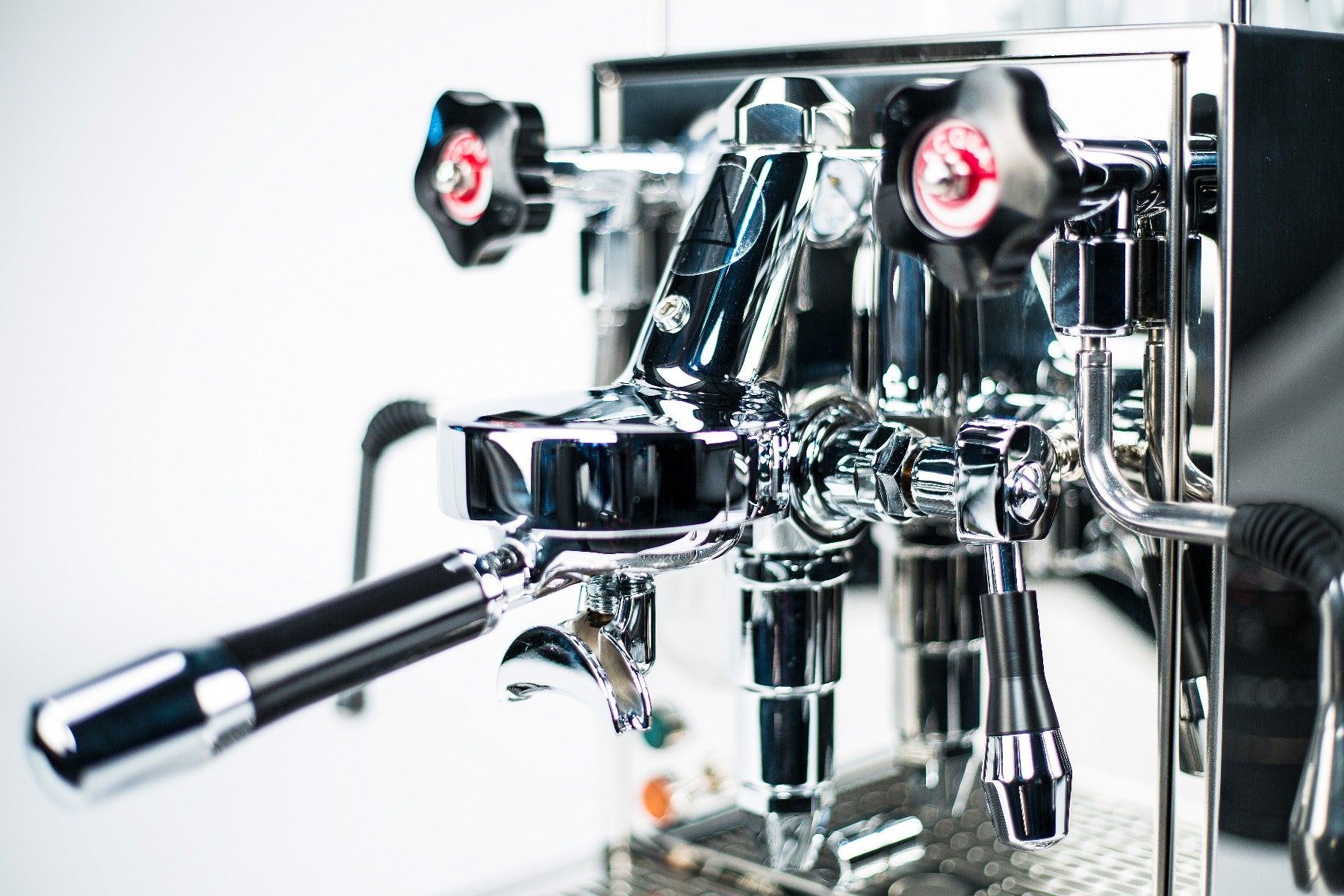

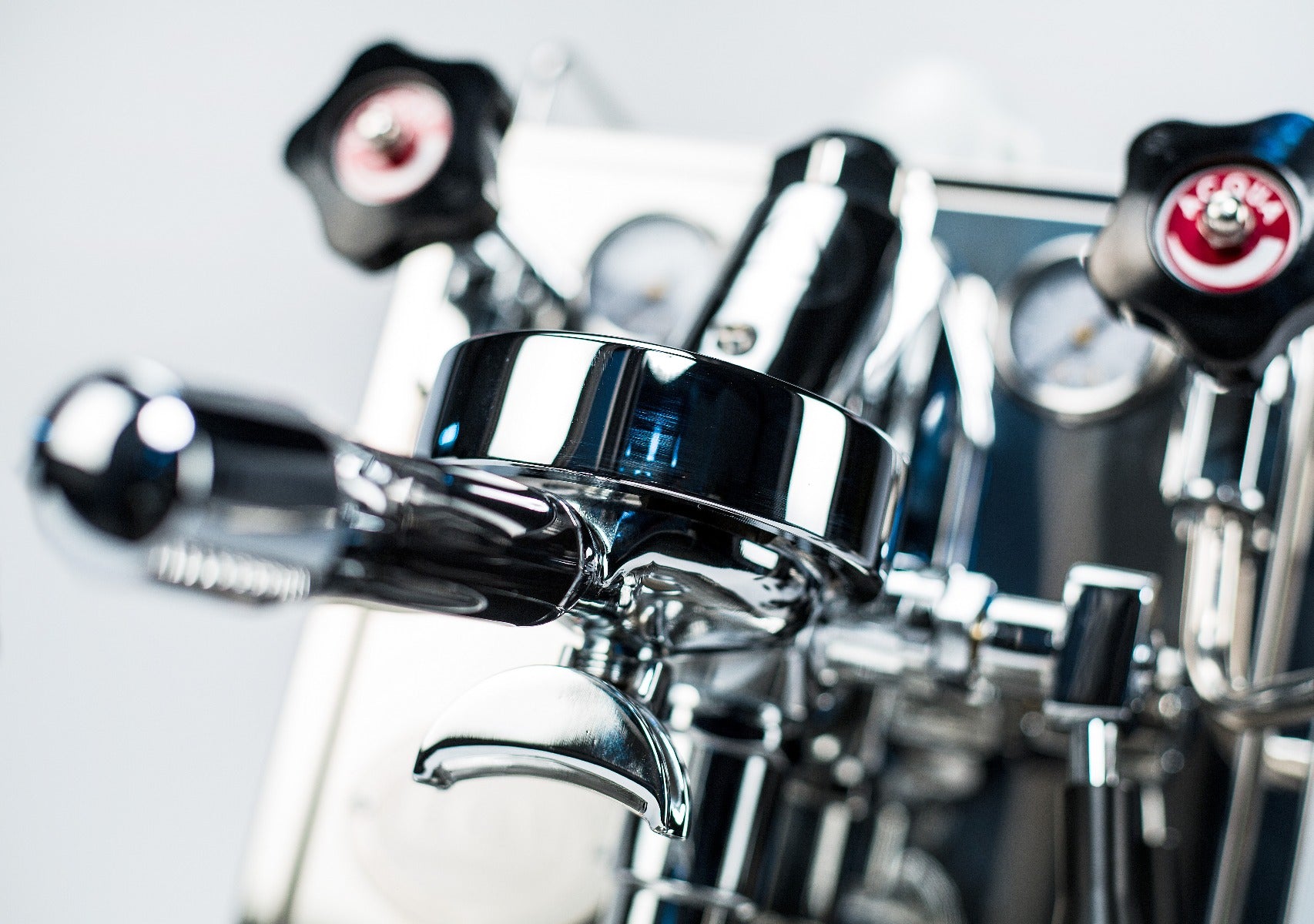

E61 Brew Group
The E61 grouphead is constantly heated with water from the thermosyphon system for temperature stability. It also features a pre-infusion cylinder to aid in the extraction process.
-
Handmade & High-End Construction
The machine is housed in mirror-finished, stainless steel panels. It rests on a one-piece internal steel frame, which protects it from bending or bowing during shipping or as the result of continuous use.
Whats Included
-
ECM Single Spout Portafilter
-
ECM Double Spout Portafilter
-
Single Shot Filter Basket
-
Double Shot Filter Basket
-
Backflush Disc
-
58mm Flat Tamper with Steel Base
-
Brew Group Cleaning Brush
-
User Manual
-
3-year parts and labor warranty provide by Whole Latte Love
Video Resources
Product Reviews (1)
Spotlight (1)
On The Blog
-
Best Espresso Machines of 2023
Cat DeLausIf you’re in the market for a new espresso machine, Whole Latte Love is here to help. We have a multitude of options to choose from, but we know it can be hard to find the best espresso machine to fit your exact needs. Read on to learn more about...
Read More1 of 2 in Articles
Best Espresso Machines of 2023
by Cat DeLausIf you’re in the market for a new espresso machine, Whole Latte Love is here to help. We have a multitude of options to choose from, but we know it can be hard to find the best espresso machine to fit your exact needs. Read on to learn more about...
Read More1 of 2 in Articles
-
Pulling Great Espresso Shots
Marc BuckmanThere is no group of settings which will make the perfect shot. Making the best possible shot depends on a bunch of variables coming together to make an espresso you like! That said, I can give you some basic guidelines.
Read More2 of 2 in Articles
Pulling Great Espresso Shots
by Marc BuckmanThere is no group of settings which will make the perfect shot. Making the best possible shot depends on a bunch of variables coming together to make an espresso you like! That said, I can give you some basic guidelines.
Read More2 of 2 in Articles
-
Temperature Stability On A Heat Exchanger Espresso Machine
by Whole Latte LoveLearn how to achieve proper brew temperature on your heat exchanger espresso machine to avoid burning your coffee.
Read More1 of 1 in Tech Tips
Temperature Stability On A Heat Exchanger Espresso Machine
by Whole Latte LoveLearn how to achieve proper brew temperature on your heat exchanger espresso machine to avoid burning your coffee.
Read More1 of 1 in Tech Tips
-
ECM Mechanika V Slim Review
Jahasia CooperWith all of the positive reviews rolling in, we knew we had to revisit one of many customer favorites among the Prosumers, the ECM Mechanika V Slim.
Read More1 of 1 in Reviews
ECM Mechanika V Slim Review
by Jahasia CooperWith all of the positive reviews rolling in, we knew we had to revisit one of many customer favorites among the Prosumers, the ECM Mechanika V Slim.
Read More1 of 1 in Reviews

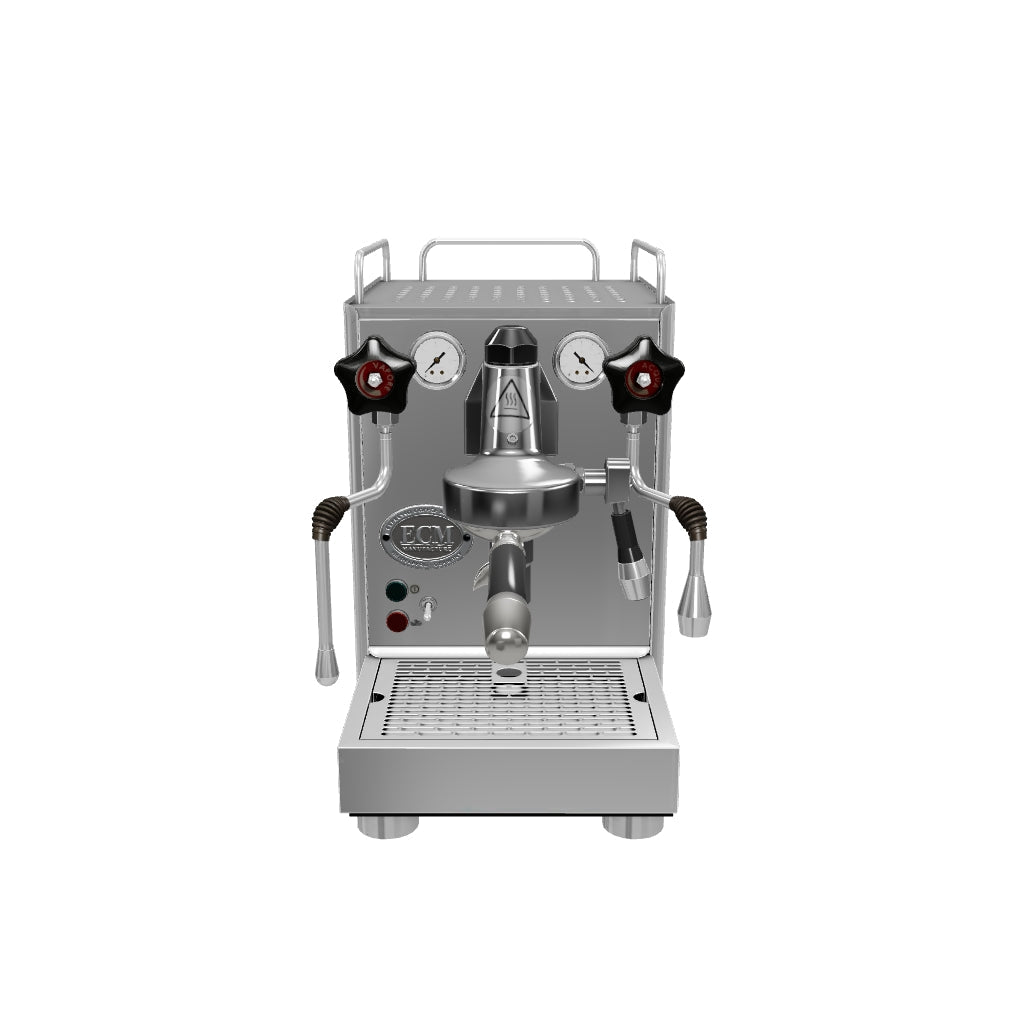

Explore AR/3D
Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
3D Experience
Using your mouse, you can click and drag to rotate the product in any direction. Using the scroll wheel, you can zoom in and out. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
In the 3D viewer, you can tap and drag to rotate the product in any direction. Pinch to zoom in and out. Tap the icon on the bottom right of the viewer to view in full screen and, if your device is compatible, activate Augmented Reality. In Augmented Reality, you can tap and drag to reposition the model, tap and hold and move your camera to reposition the model, and pinch to zoom in and out.
Rotate
Click and Drag in any direction
Zoom
Scroll up and down to zoom in and out
View Full Screen
If you have AR support you can view in Augmented Reality
Rotate
Click and Drag in any direction
Zoom
Scroll up and down to zoom in and out
Select 3D Background
Grey Limbo
Kitchen
Highrise
Lounge
Explore AR/3D
Click the "Launch 3D Viewer" button to open the 3D model viewer and freely rotate or zoom in on a full 3D model of the product. Desktop is limited to the 3D model only, but with a compatible mobile device or tablet, you can get the true experience with Augmented Reality and view the product in your own home.
Disclaimer: All 3d Models and renderings provided by Whole Latte Love are artist's impressions and are intended for entertainment purposes only. Models may not be to scale, color may vary between devices. Augmented Reality (AR) is not compatible with all mobile devices.
Specifications
| Property | Value |
|---|---|
| SKU | ECMMECHVSLIM |
| App Connectivity | No |
| Boiler Configuration | Heat Exchanger |
| Number of Boilers | 1 |
| Boiler Features | Brew & Steam Simultaneously |
| Brew Boiler Auto-Fill | Yes |
| Brew Boiler Heater Location | Internal |
| Brew Boiler Insulation | Yes |
| Brew Boiler Material | Stainless Steel |
| Brew Boiler Orientation | Vertical |
| Three-Way Valve | Manual |
| Back Flush Capable | Yes |
| Brew Group Material | Chrome Plated Brass |
| Brew Group Size (mm) | 58 mm |
| Brew Group Type | E61 |
| Brew Boiler Wattage | 1400 |
| Recommended Application | Home / Residential |
| NSF Certified | No |
| Display Type | Indicator Lights |
| Controls and Additional Features | Pressure Gauge(s) |
| Pressure Gauges | Brew Circuit,Steam Boiler |
| Type of Controls | Lever |
| Cup Warmer Material | Stainless Steel |
| Cup Warmer Size (L-in x W-in) | 10.5 x 9.5 |
| Cup Warmer | Passively Heated |
| Drain Line Adaptable (Plumbable) | No |
| Drip Tray Capacity (oz) | 35 fl-oz |
| Drip Tray Cover Material | Stainless Steel |
| Drip Tray Material | Stainless Steel |
| Removable Drip Tray | Yes |
| Portafilter Baskets Included | Double,Single |
| Housing Color | Stainless Steel |
| Housing Material | Stainless Steel |
| Recommended Water Filter | BWT Bestsave M Anti Scale Filter |
| Capacity (Oz) | 74.4 fl-oz |
| Depth (Inches) | 17.5 |
| Height (Inches) | 15.5 |
| Weight (Lbs) | 55.5 |
| Width (Inches) | 9.8 |
| Property | Value |
|---|---|
| Bottomless Portafilter Available | Yes |
| Filter Diameter (mm) | 58 mm |
| Portafilter Handle Material | Bakelite Plastic,Plastic |
| Portafilter Material | Chrome Plated Brass |
| Number of Portafilters Included | 2 |
| Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
| Portafilter Type | Commercial Style |
| Portafilter Weight (lbs) | 2 lbs |
| Portafilter Diameter | 58 mm |
| Adjustable Brew Pressure | Yes |
| Pump Pressure (Max. Bar) | 15 Bar |
| Pump Type | Vibration |
| Warranty Service Provider Email | support@wholelattelove.com |
| Warranty Service Provider | Whole Latte Love |
| Warranty Service Provider Phone Number | 888-411-5282 |
| Manufacturers Warranty Period | 1-Year Parts and Labor Warranty |
| Amps | 11.6 A |
| Volt | 110V-120V (US) |
| Watts | 1400 Watt |
| Power Cord Length (inches) | 50 in |
| Power Cord Storage | No |
| Steam Boiler Auto-Fill | Yes |
| Steam Boiler Heater Location | Internal |
| Steam Boiler Insulation | Yes |
| Steam Boiler Orientation | Vertical |
| Steam Boiler Volume (Oz) | 74.4 fl-oz |
| Steam Boiler Vacuum Relief Valve | Yes |
| Steam Boiler Wattage | 1400 Watt |
| Steam Wand Features | No-Burn,Swappable Steam Tips |
| Steam Tip Hole Count | 2 |
| Steam Wand Material | Stainless Steel |
| Steam Wand Movement Type | Fully Articulated |
| Steam Wand | Commercial |
| Water Reservoir Access Location | Top |
| Water Reservoir Capacity | 101.4 fl-oz |
| Water Reservoir Features | Removable |
| Water Reservoir Material | Plastic |
| Water Source | Built-In Reservoir |
