Rocket Espresso Giotto Plus V2 Part Diagram REGIOPLUSV2
This is the Rocket Espresso Giotto Plus V2 Part Diagram REGIOPLUSV2. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

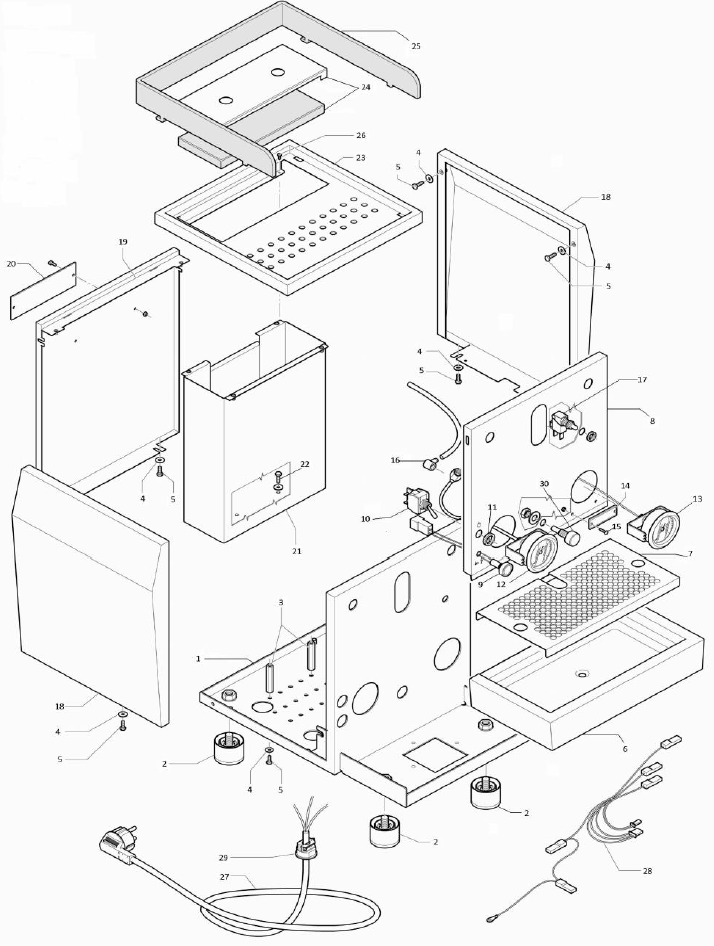

| REGIOPLUSV2-1 | 1 | Chassis Part Number: A009905082 |
$148.64 | View Part | |
| REGIOPLUSV2-1 | 2 | Foot 30mm Part Number: A019904281 |
$10.21 | View Part | |
| REGIOPLUSV2-1 | 3 | Column
Part Number: C220004264 |
|||
| REGIOPLUSV2-1 | 4 | Washer Part Number: A309904532 |
$5.22 | View Part | |
| REGIOPLUSV2-1 | 5 | Screw Part Number: C309900745 |
$1.00 | View Part | |
| REGIOPLUSV2-1 | 6 |
|
Drip tray Part Number: C01L004247 |
$92.75 | View Part |
| REGIOPLUSV2-1 | 7 |
|
Grid Part Number: A019904346 |
$30.00 | View Part |
| REGIOPLUSV2-1 | 8 |
|
Front panel Part Number: A01I004629 |
$83.89 | View Part |
| REGIOPLUSV2-1 | 9 | Green led control lamp
Part Number: A139904519 |
|||
| REGIOPLUSV2-1 | 10 | Stainless steel switch
Part Number: A199904992 |
|||
| REGIOPLUSV2-1 | 11 | Nut
Part Number: A529904289 |
|||
| REGIOPLUSV2-1 | 12 |
|
Boiler pressure gauge Part Number: A299904632 |
$62.20 | View Part |
| REGIOPLUSV2-1 | 13 |
|
Pump pressure gauge Part Number: A299904633 |
$87.23 | View Part |
| REGIOPLUSV2-1 | 14 | Front tag
Part Number: A859905007 |
|||
| REGIOPLUSV2-1 | 15 | Screw
Part Number: A319904306 |
|||
| REGIOPLUSV2-1 | 16 |
|
Rubber connector Part Number: C449900709 |
$4.32 | View Part |
| REGIOPLUSV2-1 | 17 |
|
Microswitch Part Number: C199900306 |
$29.17 | View Part |
| REGIOPLUSV2-1 | 18 |
|
Side panel Part Number: C01L002109 |
$162.21 | View Part |
| REGIOPLUSV2-1 | 19 |
|
Back panel Part Number: C01L004255 |
$117.18 | View Part |
| REGIOPLUSV2-1 | 20 |
|
Rear tag Part Number: A859904400 |
$54.04 | View Part |
| REGIOPLUSV2-1 | 21 | Tank guide
Part Number: A019904451 |
|||
| REGIOPLUSV2-1 | 22 | Screw
Part Number: A309904530 |
|||
| REGIOPLUSV2-1 | 23 | Cups support panel
Part Number: C01L004246 |
|||
| REGIOPLUSV2-1 | 24 | Reservoir cover complete
Part Number: R01L000382 |
|||
| REGIOPLUSV2-1 | 25 | Cupsframe
Part Number: A630004286 |
|||
| REGIOPLUSV2-1 | 26 | Screw
Part Number: A319904431 |
|||
| REGIOPLUSV2-1 | 27 | Power cord CE
Part Number: C199900957 |
|||
| REGIOPLUSV2-1 | Power cord IS
Part Number: A199904518 |
||||
| REGIOPLUSV2-1 | Power cord KR
Part Number: A199904616 |
||||
| REGIOPLUSV2-1 | Power cord UL
Part Number: C199900958 |
||||
| REGIOPLUSV2-1 | Power cord AUS/NZ
Part Number: C199901115 |
||||
| REGIOPLUSV2-1 | Power cord GB
Part Number: C199901116 |
||||
| REGIOPLUSV2-1 | Power cord CH
Part Number: C199901510 |
||||
| REGIOPLUSV2-1 | 28 | Wiring loom V2
Part Number: A199905015 |
|||
| REGIOPLUSV2-1 | 29 | Cable retainer
Part Number: C439900086 |
|||
| REGIOPLUSV2-1 | 30 | Drain Connector
Part Number: A227704363 |
|||

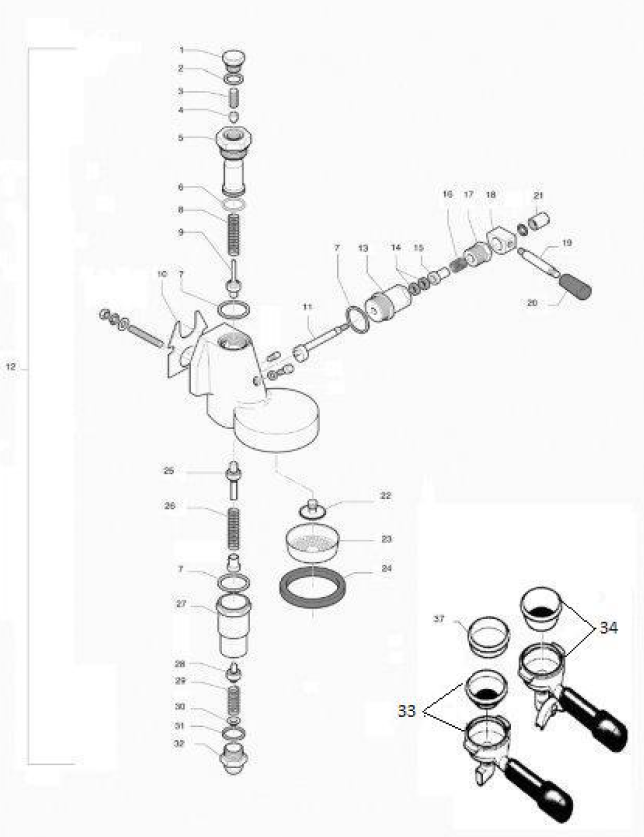

| REGIOPLUSV2-2 | 1 | Rounded nut
Part Number: A229904391 |
|||
| REGIOPLUSV2-2 | 2 | Gasket
Part Number: C469900420 |
|||
| REGIOPLUSV2-2 | 3 | Filter
Part Number: C619900554 |
|||
| REGIOPLUSV2-2 | 4 | Restrictor 0,8
Part Number: C229900549 |
|||
| REGIOPLUSV2-2 | 5 | Group Shaft
Part Number: C229901133 |
|||
| REGIOPLUSV2-2 | 6 | Green gasket
Part Number: C469900422 |
|||
| REGIOPLUSV2-2 | 7 | Teflon gasket
Part Number: C469900421 |
|||
| REGIOPLUSV2-2 | 8 | Spring
Part Number: C219900423 |
|||
| REGIOPLUSV2-2 | 9 | Valve assembly
Part Number: C219900424 |
|||
| REGIOPLUSV2-2 | 10 | Gasket
Part Number: C449900767 |
|||
| REGIOPLUSV2-2 | 11 | Shaft
Part Number: C219900425 |
|||
| REGIOPLUSV2-2 | 12 | Group complete
Part Number: C200002983 Notes: parts n.10-23-24 not included |
|||
| REGIOPLUSV2-2 | 13 | Flange
Part Number: R000002142 |
|||
| REGIOPLUSV2-2 | 14 | Gasket
Part Number: C219900426 |
|||
| REGIOPLUSV2-2 | 15 | Support
Part Number: R000002143 |
|||
| REGIOPLUSV2-2 | 16 | Spring
Part Number: C219900427 |
|||
| REGIOPLUSV2-2 | 17 | Cover
Part Number: R000002144 |
|||
| REGIOPLUSV2-2 | 18 | Shaft
Part Number: R000002145 |
|||
| REGIOPLUSV2-2 | 19 | Lever shaft
Part Number: A829904329 |
|||
| REGIOPLUSV2-2 | 20 | Group handle
Part Number: A839904330 |
|||
| REGIOPLUSV2-2 | 21 | Pin
Part Number: R000002146 |
|||
| REGIOPLUSV2-2 | 22 | Diffuser
Part Number: C229901228 |
|||
| REGIOPLUSV2-2 | 23 | Shower
Part Number: C519900103 |
|||
| REGIOPLUSV2-2 | 24 | Group Gasket
Part Number: C449900229 |
|||
| REGIOPLUSV2-2 | 25 | Drain valve
Part Number: C219900430 |
|||
| REGIOPLUSV2-2 | 26 | Spring
Part Number: A219904309 |
|||
| REGIOPLUSV2-2 | 27 | Cylinder
Part Number: C229901165 |
|||
| REGIOPLUSV2-2 | 28 | Valve
Part Number: C219903081 |
|||
| REGIOPLUSV2-2 | 29 | Spring
Part Number: C219900431 |
|||
| REGIOPLUSV2-2 | 30 | Connector
Part Number: R000002148 |
|||
| REGIOPLUSV2-2 | 31 | Gasket
Part Number: C469900783 |
|||
| REGIOPLUSV2-2 | 32 | Connector
Part Number: R000002149 |
|||
| REGIOPLUSV2-2 | 33 | 1 cup filter holder
Part Number: A699905020 |
|||
| REGIOPLUSV2-2 | 34 | 2 cups filter holder
Part Number: A699905021 |
|||
| REGIOPLUSV2-2 | 7 gr filter basket
Part Number: C610003902 |
||||
| REGIOPLUSV2-2 | 14 gr filter basket
Part Number: C610003901 |
||||
| REGIOPLUSV2-2 | 37 | Blind filter
Part Number: C619900106 |
|||

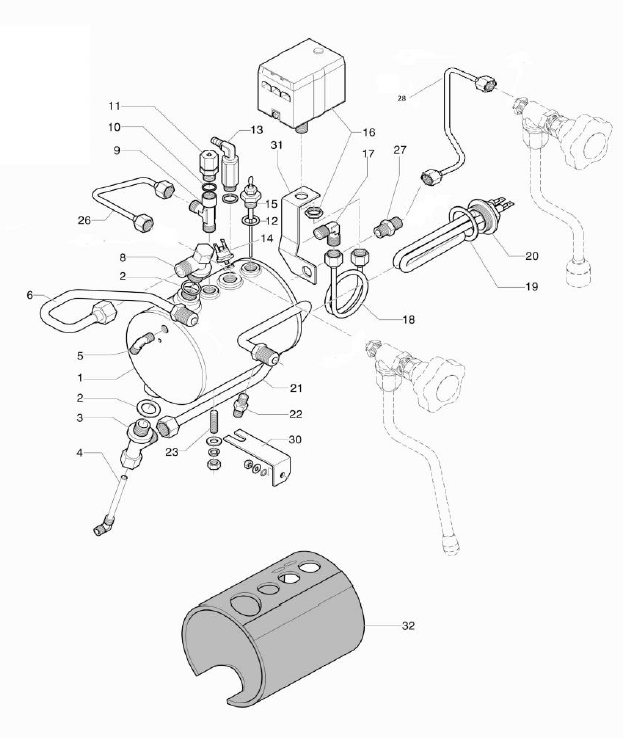

| REGIOPLUSV2-3 | 1 | Boiler
Part Number: A277704278 |
|||
| REGIOPLUSV2-3 | 2 | Copper gasket
Part Number: C479900673 |
|||
| REGIOPLUSV2-3 | 3 | Connector
Part Number: C229900740 |
|||
| REGIOPLUSV2-3 | 4 | Injector
Part Number: C229900393 |
|||
| REGIOPLUSV2-3 | 5 | Connector
Part Number: A229904355 |
|||
| REGIOPLUSV2-3 | 6 | Inlet pipe w. 3mm restrictor
Part Number: A279905173 |
|||
| REGIOPLUSV2-3 | 8 | Connector
Part Number: A229904957 |
|||
| REGIOPLUSV2-3 | 9 | Connector
Part Number: C229900528 |
|||
| REGIOPLUSV2-3 | 10 | Teflon gasket
Part Number: A269904417 |
|||
| REGIOPLUSV2-3 | 11 | Vacuum breaker valve
Part Number: C219900560 |
|||
| REGIOPLUSV2-3 | 12 | Teflon gasket
Part Number: A449904331 |
|||
| REGIOPLUSV2-3 | 13 | Safety valve
Part Number: A299904998 |
|||
| REGIOPLUSV2-3 | 14 | Thermostat 135C
Part Number: C199901550 |
|||
| REGIOPLUSV2-3 | 15 | Boiler level probe
Part Number: C199900839 |
|||
| REGIOPLUSV2-3 | 16 | Pressure switch
Part Number: A199904296 |
|||
| REGIOPLUSV2-3 | 17 | Connector
Part Number: C229900525 |
|||
| REGIOPLUSV2-3 | 18 | Pressure switch pipe
Part Number: A279904292 |
|||
| REGIOPLUSV2-3 | 19 | 3 mm heating element gasket
Part Number: C469900239 |
|||
| REGIOPLUSV2-3 | 20 | Heating element V230
Part Number: C199901551 |
|||
| REGIOPLUSV2-3 | Heating element V115
Part Number: C199901552 |
||||
| REGIOPLUSV2-3 | 21 | Return pipe
Part Number: A279904289 |
|||
| REGIOPLUSV2-3 | 22 | Connector
Part Number: C229900518 |
|||
| REGIOPLUSV2-3 | 23 | Pin
Part Number: C309900131 |
|||
| REGIOPLUSV2-3 | 23A | Copper gasket
Part Number: C479900228 Notes: use till sn D1223 |
|||
| REGIOPLUSV2-3 | 23B | Connector
Part Number: A229904320 Notes: use wth 23A |
|||
| REGIOPLUSV2-3 | 26 | Steam pipe
Part Number: A279904290 |
|||
| REGIOPLUSV2-3 | 27 | Connector
Part Number: C229900520 |
|||
| REGIOPLUSV2-3 | 28 | Water pipe
Part Number: A229905097 Notes: from sn D1223 |
|||
| REGIOPLUSV2-3 | 28A | Water pipe
Part Number: A279904291 Notes: use till sn D1223 |
|||
| REGIOPLUSV2-3 | 28B | Connector
Part Number: C229900595 Notes: use with 28A |
|||
| REGIOPLUSV2-3 | 30 | Boiler support
Part Number: C000004257 |
|||
| REGIOPLUSV2-3 | 31 | Pressure switch support
Part Number: C000004265 |
|||
| REGIOPLUSV2-3 | 32 | Boiler protection
Part Number: A499904995 |
|||

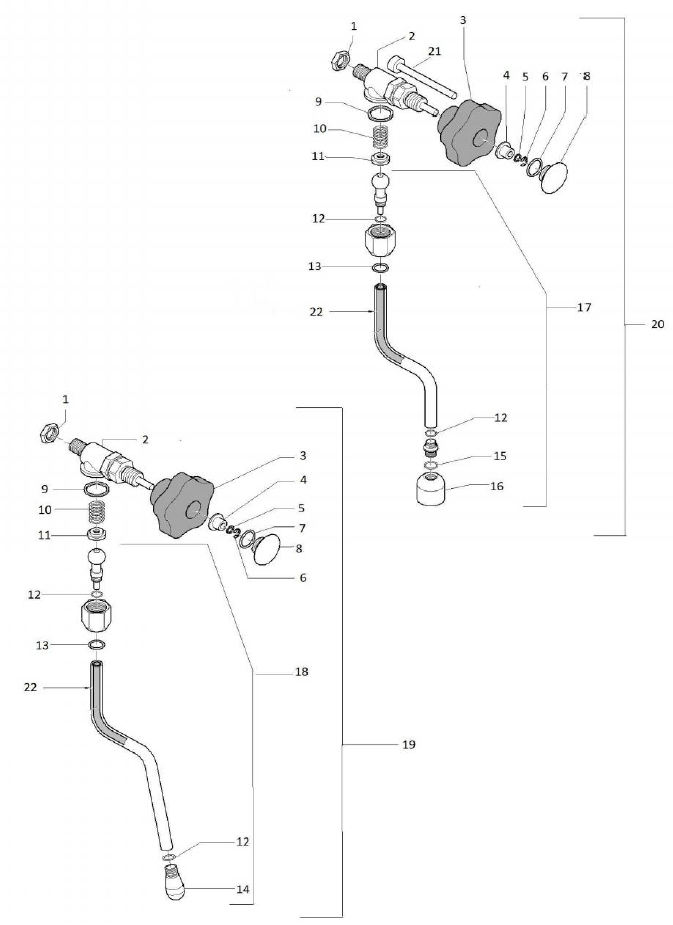

| REGIOPLUSV2-4 | 1 | Half nut 1/4
Part Number: A329905087 |
|||
| REGIOPLUSV2-4 | 2 | Steam/ Hot water valve
Part Number: A229905055 Notes: use from Sn D1224G2V3181 |
|||
| REGIOPLUSV2-4 | 2A | Steam/ Hot water valve
Part Number: A227704280 Notes: use till Sn D1224G2V3181 |
|||
| REGIOPLUSV2-4 | 3 | Steam/water valve handle
Part Number: A430004284 |
|||
| REGIOPLUSV2-4 | 4 | Plate
Part Number: A829904376 |
|||
| REGIOPLUSV2-4 | 5 | Washer
Part Number: A829904375 |
|||
| REGIOPLUSV2-4 | 6 | Handle "clip"
Part Number: A809904377 |
|||
| REGIOPLUSV2-4 | 7 | Oring
Part Number: C400002786 |
|||
| REGIOPLUSV2-4 | 8 | Cover handle
Part Number: A527704283 |
|||
| REGIOPLUSV2-4 | 9 | Teflon gasket
Part Number: A449904331 |
|||
| REGIOPLUSV2-4 | 10 | Spring
Part Number: A209904332 |
|||
| REGIOPLUSV2-4 | 11 | Plate
Part Number: A229904333 |
|||
| REGIOPLUSV2-4 | 12 | Oring
Part Number: C400002022 |
|||
| REGIOPLUSV2-4 | 13 | Oring
Part Number: A449904334 |
|||
| REGIOPLUSV2-4 | 14 | 2 Holes steam nozzle
Part Number: C200002839 |
|||
| REGIOPLUSV2-4 | 15 | Oring
Part Number: C400003008 |
|||
| REGIOPLUSV2-4 | 16 | Hot water nozzle
Part Number: C227700536 |
|||
| REGIOPLUSV2-4 | 17 | Hot water wand
Part Number: R290003612 |
|||
| REGIOPLUSV2-4 | 18 | Steam wand
Part Number: R290003611 |
|||
| REGIOPLUSV2-4 | 19 | Steam wand and tap complete
Part Number: A899904634 |
|||
| REGIOPLUSV2-4 | 20 | Water wand and tap complete
Part Number: A899904635 |
|||
| REGIOPLUSV2-4 | 21 | Steam/hot water valve rod
Part Number: R229905177 |
|||
| REGIOPLUSV2-4 | 22 | Silicon pipe 4x7 no burn
Part Number: C440003449 |
|||

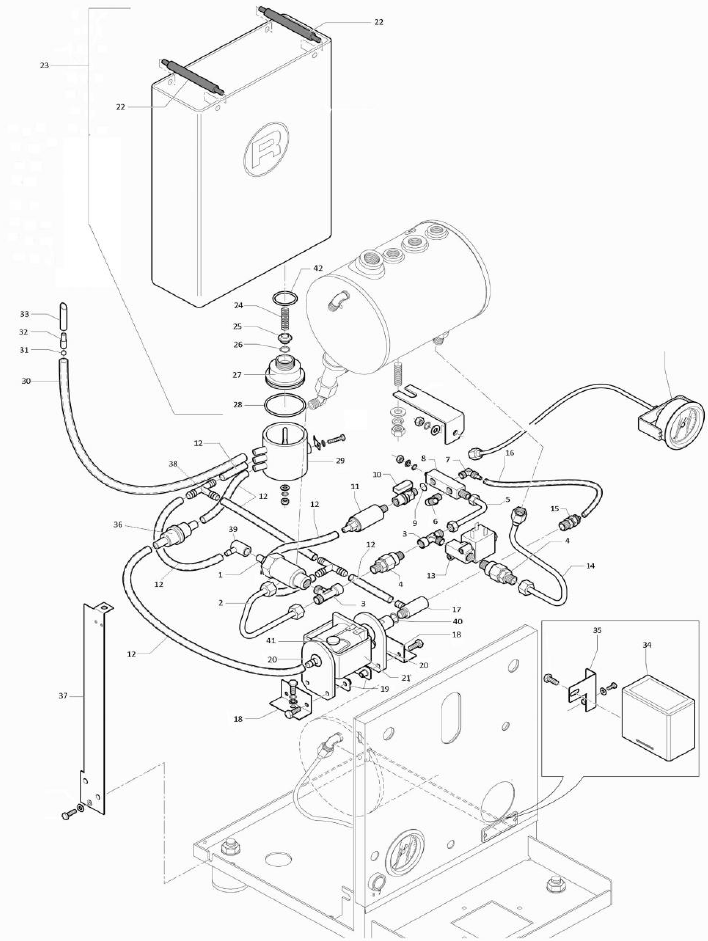

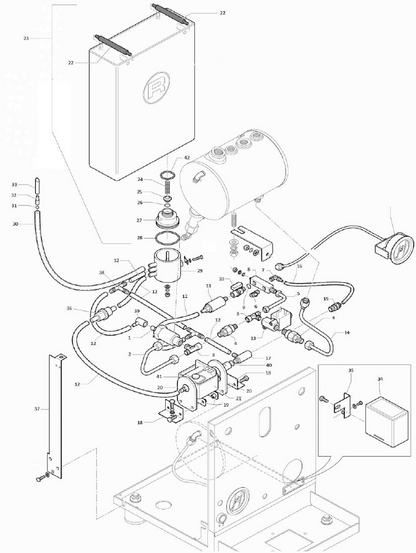

| REGIOPLUSV2-5 | 1 | Expasion valve
Part Number: C229900911 |
|||
| REGIOPLUSV2-5 | 2 | Inlet pipe heat exchanger
Part Number: C229900399 |
|||
| REGIOPLUSV2-5 | 3 | T Connector 1/8M 1/8M 1/8F
Part Number: C229900644 |
|||
| REGIOPLUSV2-5 | 4 | Non return valve
Part Number: C229900540 |
|||
| REGIOPLUSV2-5 | 5 | Valve block pipe
Part Number: A279904991 |
|||
| REGIOPLUSV2-5 | 6 | L Connector 1/8 MM
Part Number: A229904355 |
|||
| REGIOPLUSV2-5 | 7 | L Connector 1/8 6x4 pipe
Part Number: A229904351 |
|||
| REGIOPLUSV2-5 | 8 | Hydraulic block
Part Number: A529904952 |
|||
| REGIOPLUSV2-5 | 9 | 1/8 Copper gasket
Part Number: A479905079 |
|||
| REGIOPLUSV2-5 | 10 | Valve 1/8 MF
Part Number: A299904994 |
|||
| REGIOPLUSV2-5 | 11 | Expansion valve 9 bar 1/8 M
Part Number: A299905143 |
|||
| REGIOPLUSV2-5 | 12 | Silicon pipe 5x8
Part Number: C499900769 |
|||
| REGIOPLUSV2-5 | 13 | Solenoid valve V230
Part Number: C190004066 |
|||
| REGIOPLUSV2-5 | Solenoid valve V115
Part Number: C190004067 |
||||
| REGIOPLUSV2-5 | 14 | Inlet pipe boiler
Part Number: C229900400 |
|||
| REGIOPLUSV2-5 | 15 | Connector 1/8 6x4 pipe
Part Number: C229900708 |
|||
| REGIOPLUSV2-5 | 16 | Teflon pipe 4 x 6
Part Number: C269900300 |
|||
| REGIOPLUSV2-5 | 17 | S2 Valve
Part Number: C200002112 |
|||
| REGIOPLUSV2-5 | 18 | Pump support
Part Number: C000002075 |
|||
| REGIOPLUSV2-5 | 19 | Pump support
Part Number: C000002076 |
|||
| REGIOPLUSV2-5 | 20 | Rubber support
Part Number: C400002077 |
|||
| REGIOPLUSV2-5 | 21 | Vibration pump V230
Part Number: C199900280 |
|||
| REGIOPLUSV2-5 | Vibration pump V115
Part Number: C199900281 |
||||
| REGIOPLUSV2-5 | 22 | Water tank handle
Part Number: A639904956 |
|||
| REGIOPLUSV2-5 | 23 | Water tank complete
Part Number: R899905144 |
|||
| REGIOPLUSV2-5 | 24 | Spring
Part Number: C019900711 |
|||
| REGIOPLUSV2-5 | 25 | Connector
Part Number: C430003482 |
|||
| REGIOPLUSV2-5 | 26 | O ring
Part Number: C449900702 |
|||
| REGIOPLUSV2-5 | 27 | Coupling
Part Number: A439905146 |
|||
| REGIOPLUSV2-5 | 28 | O ring
Part Number: A449904547 |
|||
| REGIOPLUSV2-5 | 29 | Manifold
Part Number: A439905147 Notes: use from D1314G2P1856 |
|||
| REGIOPLUSV2-5 | 29A | Manifold
Part Number: C430004245 Notes: use till D1314G2P1856 |
|||
| REGIOPLUSV2-5 | 29B | Opening valve rod
Part Number: C520003483 Notes: use with 29A |
|||
| REGIOPLUSV2-5 | 29C | O ring
Part Number: C449901159 Notes: use with 29A and 29B |
|||
| REGIOPLUSV2-5 | 30 | Silicon pipe 6 x 9
Part Number: C260003822 |
|||
| REGIOPLUSV2-5 | 31 | Sphere
Part Number: C430003819 |
|||
| REGIOPLUSV2-5 | 32 | Non return connector
Part Number: C220003818 |
|||
| REGIOPLUSV2-5 | 33 | Silicon pipe 4x7
Part Number: C400001928 |
|||
| REGIOPLUSV2-5 | 34 | Plug-in Control box V230
Part Number: A190004524 |
|||
| REGIOPLUSV2-5 | Plug-in Control box V115
Part Number: A190004525 |
||||
| REGIOPLUSV2-5 | 35 | Control Box support
Part Number: A019904449 |
|||
| REGIOPLUSV2-5 | 36 | Filter
Part Number: C439900695 |
|||
| REGIOPLUSV2-5 | 37 | Pipe support
Part Number: C010003852 |
|||
| REGIOPLUSV2-5 | 38 | Rubber T connector
Part Number: C400002827 |
|||
| REGIOPLUSV2-5 | 39 |
|
Rubber connector Part Number: C449900709 |
$4.32 | View Part |
| REGIOPLUSV2-5 | 40 | O ring Viton brown
Part Number: C449900786 |
|||
| REGIOPLUSV2-5 | 41 | Pump thermoprotector
Part Number: C199900969 |
|||
| REGIOPLUSV2-5 | 42 | Oring 4081
Part Number: A449905151 Notes: use from Sn D1308 |
