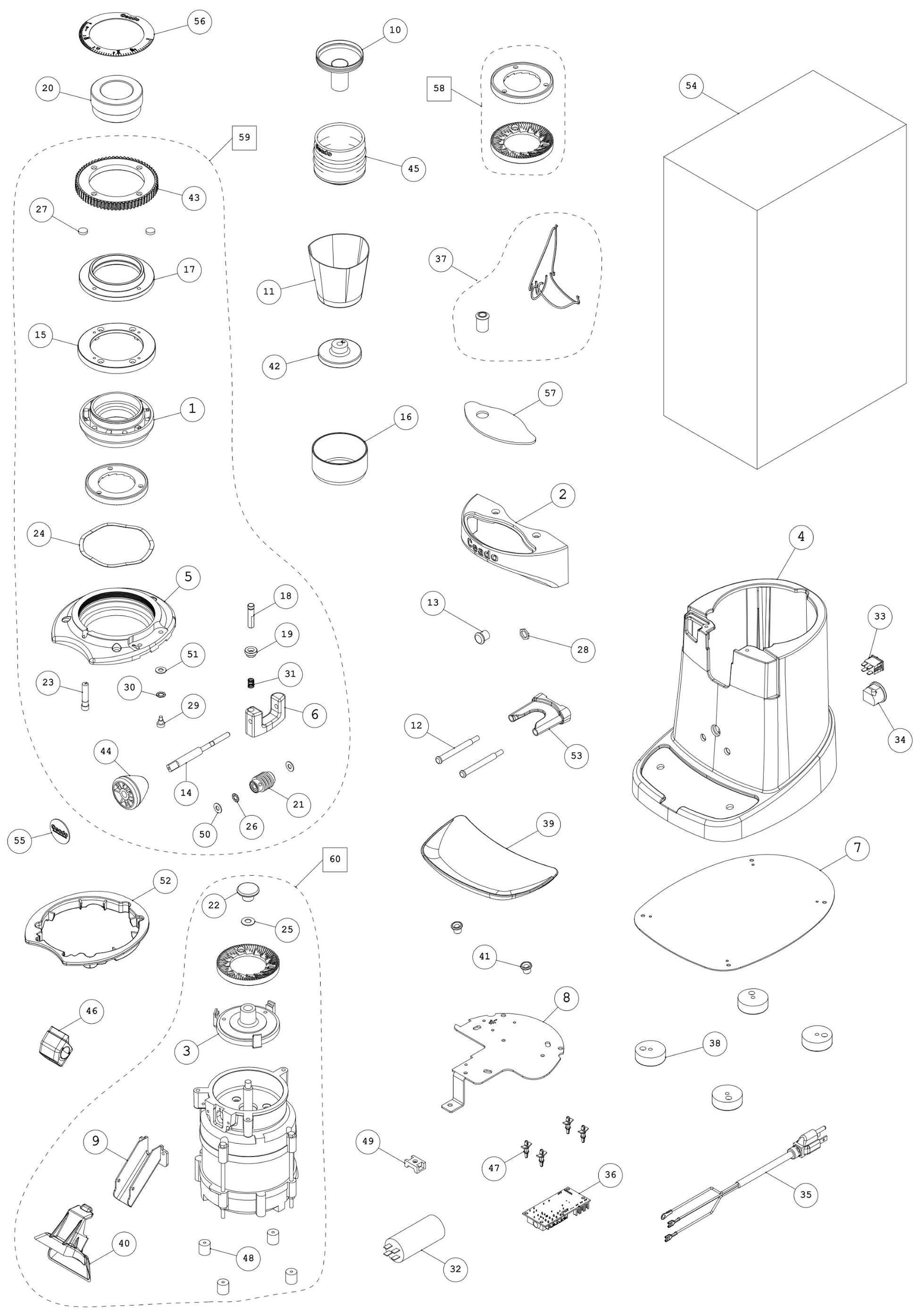

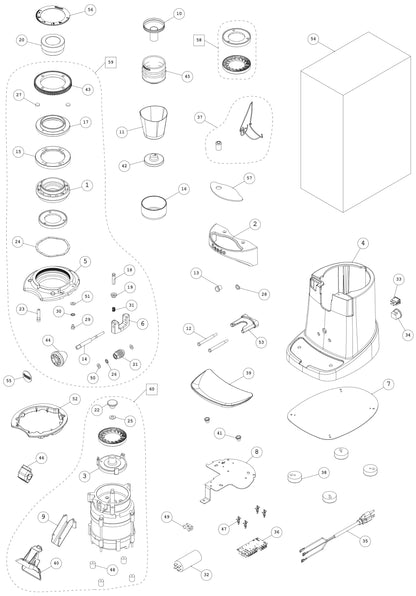

Ceado E37SD Part Diagram CEAE37SD
This is the Ceado E37SD Part Diagram CEAE37SD. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE37SD-1 | 1 | E37S/T GRINDER SUPPORT FOR WORK ADJUSTMENT
Part Number: 10372 |
|||
| CEAE37SD-1 | 2 |
|
DISPLAY SUPPORT E37S/E92 2011 GLOSS Part Number: 10381 |
$85.30 | View Part |
| CEAE37SD-1 | 3 |
|
MACHINED E37S IMPELLER (rev.D) Part Number: 10471 |
$32.32 | View Part |
| CEAE37SD-1 | 4 | E37 S BLACK ELECTRONIC COFFEE GRINDER BODY
Part Number: 10485 |
|||
| CEAE37SD-1 | 5 | E37SD COFFEE GRINDER HEAD WITH POLISH ADJUSTMENT
Part Number: 11370 |
|||
| CEAE37SD-1 | 6 | ADJUSTMENT SCREW SUPPORT E37SD POLISHED
Part Number: 11708 |
|||
| CEAE37SD-1 | 7 | BACKPACK E37S (pressure) (rev.B) Part Number: 20333 |
$15.95 | View Part | |
| CEAE37SD-1 | 8 | E37S ENGINE SUPPORT BRACKET (pressure) (rev.P)
Part Number: 20334 |
|||
| CEAE37SD-1 | 9 | SLIDE E37S/E92 INOX (rev.C)
Part Number: 20387 |
|||
| CEAE37SD-1 | 10 | INTERNAL FUNNEL WITH BELLOWS E37Z
Part Number: 20549 |
|||
| CEAE37SD-1 | 11 | COFFEE COLLECTION GLASS E37SD
Part Number: 20550 |
|||
| CEAE37SD-1 | 12 | RUBBER FILTER HOLDER SUPPORT PIN E37J/S/K/T/Z (Rev.B)
Part Number: 40246 |
|||
| CEAE37SD-1 | 13 | E37J/E37SD CLOSED FILTER HOLDER BUTTON GUIDE
Part Number: 40256 |
|||
| CEAE37SD-1 | 14 |
|
PIN FOR ADJUSTMENT SCREW E37K/E37Z (rev.B) Part Number: 40263 |
$14.66 | View Part |
| CEAE37SD-1 | 15 | ADJUSTING RING E8 TURNED COFFEE GRINDER (rev.C) Part Number: 40287 |
$41.38 | View Part | |
| CEAE37SD-1 | 16 | FILTER FUNNEL E37Z/E37SD (rev.A) Part Number: 40300 |
$8.84 | View Part | |
| CEAE37SD-1 | 17 | PLATIC TOOTHED RING SUPPORT E37S/K/T
Part Number: 40310 |
|||
| CEAE37SD-1 | 18 | E37Z/E37SD SUPPORT ROTATION LOCK BUTTON PIN (rev.A) Part Number: 40311 |
$23.90 | View Part | |
| CEAE37SD-1 | 19 | E37Z/E37SD SUPPORT ROTATION LOCK BUTTON RING (rev.A) Part Number: 40312 |
$21.20 | View Part | |
| CEAE37SD-1 | 20 |
|
E37SD BELLOWS COMPRESSOR SUPPORT Part Number: 40316 |
$68.00 | View Part |
| CEAE37SD-1 | 21 | ENDLESS SCREW ADJUSTMENT ALUMINUM E37S/K/T (rev.A)
Part Number: 40318 |
|||
| CEAE37SD-1 | 22 | GRINDER IMPELLER SAFETY NUT
Part Number: 40319 |
|||
| CEAE37SD-1 | 23 | PAINTED ADJUSTMENT INDICATOR PIN
Part Number: 40414 |
|||
| CEAE37SD-1 | 24 | SPRING WASHER LMKAS 100C
Part Number: 45125 |
|||
| CEAE37SD-1 | 25 | M8 SPRING WASHER FOR IMPELLER
Part Number: 45131 |
|||
| CEAE37SD-1 | 26 | SPRING WASHER LMKAS 10
Part Number: 45150 |
|||
| CEAE37SD-1 | 27 | MAGNET d. 12x3 (REN 35 M.)
Part Number: 45155 |
|||
| CEAE37SD-1 | 28 | NUT M12 X 0.8 (IU0166)
Part Number: 45323 |
|||
| CEAE37SD-1 | 29 | SCREW AISI 303 DIN 923 M5X5 E37Z
Part Number: 45350 |
|||
| CEAE37SD-1 | 30 | WAVY RING Di 7.2 (art.13) E37Z
Part Number: 45351 |
|||
| CEAE37SD-1 | 31 | E37 BUTTON GUIDE SPRING (rev.B)
Part Number: 45514 |
|||
| CEAE37SD-1 | 32 | ALUMINUM CAPACITOR 20uF (MLR25 U 250V) UL DOUBLE F.6.3 TANG
Part Number: 50180 |
|||
| CEAE37SD-1 | 33 | BIPOLAR SWITCH OI M98 (3INGP12H1121M00)
Part Number: 50108 |
|||
| CEAE37SD-1 | 34 | CABLE LOCK PA107 (3MR970590+SCREW)
Part Number: 50161 |
|||
| CEAE37SD-1 | 35 | USA PLUG CABLE SJT 18AWGX3C VW-1 3X1 2MT F4.8x0.8
Part Number: 50223 |
|||
| CEAE37SD-1 | 36 | COFFEE GRINDER CARD E37SD 110V (Dxxxxxxxxx)
Part Number: 50299 |
|||
| CEAE37SD-1 | 37 | E37SD WIRING
Part Number: 50374 |
|||
| CEAE37SD-1 | 38 | RUBBER FEET D.40
Part Number: 70138 |
|||
| CEAE37SD-1 | 39 | COFFEE TRAY SAUCER E37S/E92
Part Number: 70163 |
|||
| CEAE37SD-1 | 40 | E92 SLIDE RUBBER
Part Number: 70165 |
|||
| CEAE37SD-1 | 41 | RUBBER PLATE E37S
Part Number: 70173 |
|||
| CEAE37SD-1 | 42 | PLASTIC TAMPER D.58
Part Number: 70213 |
|||
| CEAE37SD-1 | 43 | PLASTIC TOOTHED RING FOR E37S ADJUSTMENT
Part Number: 70239 |
|||
| CEAE37SD-1 | 44 | PLASTIC ADJUSTMENT KNOB E37S
Part Number: 70240 |
|||
| CEAE37SD-1 | 45 | E37Z BELLOWS COMPRESSOR (BLACK SILICONE 45 SH)
Part Number: 70244 |
|||
| CEAE37SD-1 | 46 | SLIDE COVER RUBBER E37SD (BLACK NBR)
Part Number: 70250 |
|||
| CEAE37SD-1 | 47 | BOARD PIN E37S B210 (LCBS 5-01)
Part Number: 75146 |
|||
| CEAE37SD-1 | 48 | ANTI-VIBRATION DAMPER D.15X15 M5 FF
Part Number: 75158 |
|||
| CEAE37SD-1 | 49 | CONDENSER SUPPORT (6137 AA 00)
Part Number: 75164 |
|||
| CEAE37SD-1 | 50 | WORM SCREW WASHER E37K/E37Z
Part Number: 75176 |
|||
| CEAE37SD-1 | 51 | SCREW SUPPORT ROTATION WASHER WITHOUT E37SD/E37Z
Part Number: 75189 |
|||
| CEAE37SD-1 | 52 | E8 GRINDER RING GASKET
Part Number: 75530 |
|||
| CEAE37SD-1 | 53 | RUBBER FILTER HOLDER SUPPORT 80sh E37J/S/K/T/Z
Part Number: 75548 |
|||
| CEAE37SD-1 | 54 | E6X/E7X/CP150 COFFEE GRINDER BOX (24x39x53h)
Part Number: 80128 |
|||
| CEAE37SD-1 | 55 | E37K/E37Z KNOB SILKSCREEN PRINTING
Part Number: 85130 |
|||
| CEAE37SD-1 | 56 | PADDED SCREEN PRINTING RING E37S/T/K (Rev.A)
Part Number: 85131 |
|||
| CEAE37SD-1 | 57 | PLEXIGLASS E37SD KEYBOARD
Part Number: 85148 |
|||
| CEAE37SD-1 | 58 | GRINDER PAIR KIT D.83 RIV. E37T/E37SD (40258)
Part Number: 90306 |
|||
| CEAE37SD-1 | 59 | COMPLETE E37SD GRINDER HEAD WITH ADJUSTMENT
Part Number: 90330 |
|||
| CEAE37SD-1 | PAIR OF GRINDERS 83 (20-57-45) K110+TIN E37T
Part Number: 40258 |
||||
| CEAE37SD-1 | 60 | COMPLETE ENGINE E37SD 110V
Part Number: 90346 |
|||
| CEAE37SD-1 | PAIR OF GRINDERS 83 (20-57-45) K110+TIN E37T
Part Number: 40258 |
