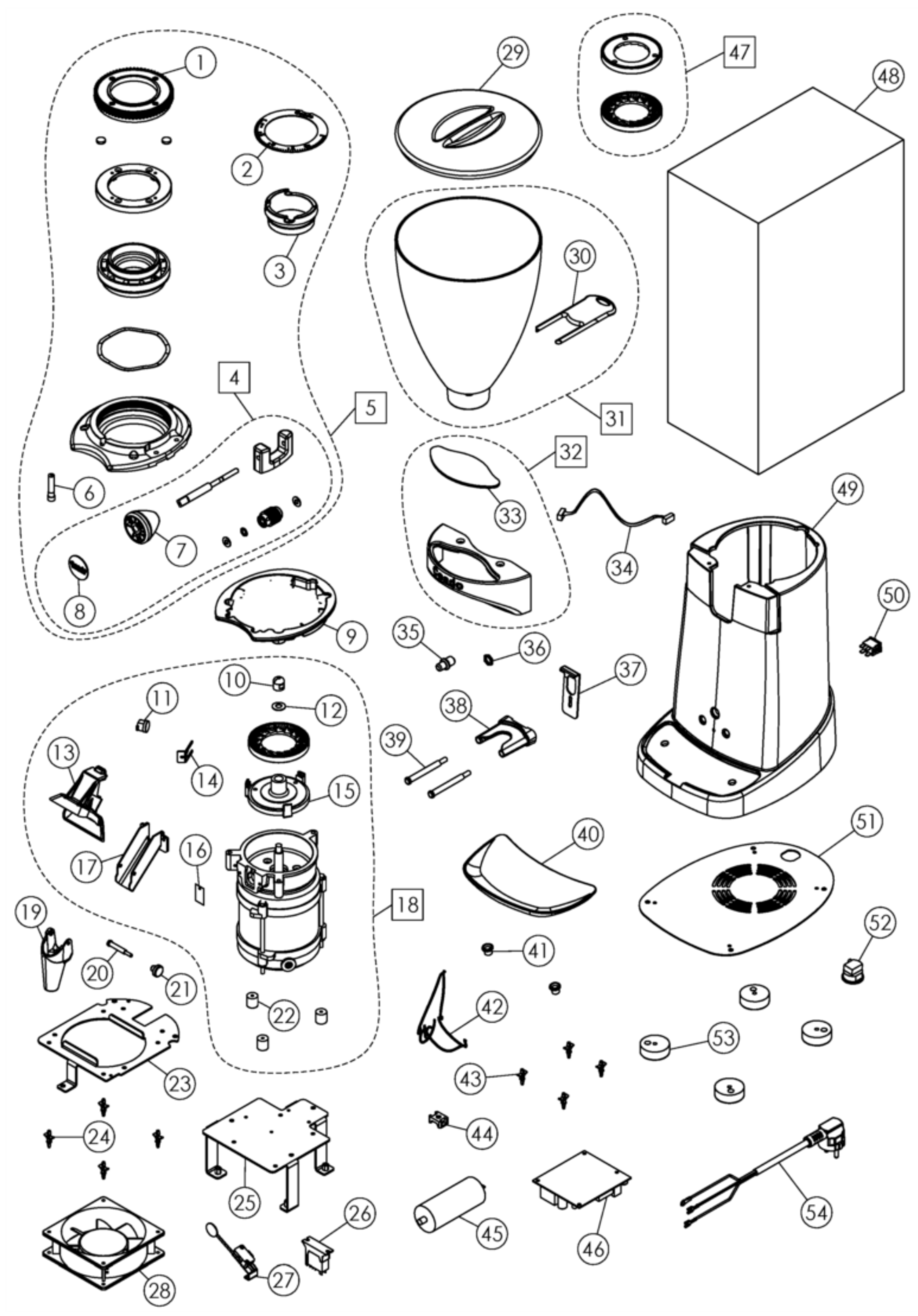

Ceado E37SL Part Diagram CEAE37SL
This is the Ceado E37SL Part Diagram CEAE37SL. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE37SL-1 | 1 |
|
PLASTIC TOOTHED RING RING FOR ADJUSTMENT E37S (rev.A) Part Number: 70239 |
$18.56 | View Part |
| CEAE37SL-1 | 2 | PADDED SCREEN PRINTING RING E37SD/E38 (Rev.D)
Part Number: 85131 |
|||
| CEAE37SL-1 | 3 | KNOB ADJUSTMENT BELL SUPPORT
Part Number: 70245 |
|||
| CEAE37SL-1 | 4 | QUICK SET GEAR ALUMINUM ADJUSTMENT ASSEMBLY
Part Number: 90375 |
|||
| CEAE37SL-1 | 5 |
|
QUICK SET GEAR KIT (rev.E) Part Number: 90342 |
$362.00 | View Part |
| CEAE37SL-1 | 6 | PAINTED ADJUSTMENT INDICATOR PIN
Part Number: 40414 |
|||
| CEAE37SL-1 | 7 | PLASTIC ADJUSTMENT KNOB E37S
Part Number: 70240 |
|||
| CEAE37SL-1 | 8 | CEADO SCREEN PRINTING KNOB E37S/ E37K/E37Z Part Number: 85130 |
$23.90 | View Part | |
| CEAE37SL-1 | 9 | E8 GRINDER RING GASKET (rev.B)
Part Number: 75530 |
|||
| CEAE37SL-1 | 10 | STAINLESS STEEL BLIND NUT M8 SX COFFEE GRINDER
Part Number: 45132 |
|||
| CEAE37SL-1 | 11 | FAN THERMOSTAT 42/31 (rev.B) (3TE1NT01F-8937 )
Part Number: 50236 |
|||
| CEAE37SL-1 | 12 | SPRING WASHER M8 FOR IMPELLER (v.746822)
Part Number: 45131 |
|||
| CEAE37SL-1 | 13 | SLIDE RUBBER (rev.A)
Part Number: 70165 |
|||
| CEAE37SL-1 | 14 | CUP THERMOSTAT BRACKET (rev. B)
Part Number: 20369 |
|||
| CEAE37SL-1 | 15 |
|
MACHINED E37S IMPELLER (rev.D) Part Number: 10471 |
$32.32 | View Part |
| CEAE37SL-1 | 16 |
|
METAL FLAP FAMILY E37 (rev.A) Part Number: 45516 |
$42.49 | View Part |
| CEAE37SL-1 | 17 | SLIDE E37S/E92 INOX (rev.C)
Part Number: 20387 |
|||
| CEAE37SL-1 | 18 | COMPLETE ENGINE E37SL 110V
Part Number: 90344 |
|||
| CEAE37SL-1 | 19 |
|
PLASTIC SLIDE EXTENSION Part Number: 70241 |
$25.02 | View Part |
| CEAE37SL-1 | 20 |
|
PLASTIC SLIDE EXTENSION FIXING PIN Part Number: 40315 |
$62.72 | View Part |
| CEAE37SL-1 | 21 | SLIDE EXTENSION FIXING KNOB (8301121 VBX/17/P M4 stainless steel)
Part Number: 75188 |
|||
| CEAE37SL-1 | 22 | ANTI-VIBRATION DAMPER D.15X15 M5 FF
Part Number: 75158 |
|||
| CEAE37SL-1 | 23 | ENGINE BRACKET E37T/E37SL (rev.D)
Part Number: 20377 |
|||
| CEAE37SL-1 | 24 | GRINDER FAN PIN (LCBS- 6-5-01)
Part Number: 75173 |
|||
| CEAE37SL-1 | 25 | E37SL ENGINE SUPPORT (rev.A)
Part Number: 20447 |
|||
| CEAE37SL-1 | 26 | E37T RELAY (FINDER 466190120040 + 4304605)
Part Number: 50266 |
|||
| CEAE37SL-1 | 27 | COMPLETE MICRO BRACKET FB E37T
Part Number: 90299 |
|||
| CEAE37SL-1 | 28 | FAN 120x120x38 (art. 12031ABWAD -HB) 110V WIRED
Part Number: 50492 |
|||
| CEAE37SL-1 | 29 | LARGE COFFEE GRINDER BELL COVER
Part Number: 70146 |
|||
| CEAE37SL-1 | 30 | COFFEE BELL SHUTTER
Part Number: 70145 |
|||
| CEAE37SL-1 | 31 | LARGE COFFEE GRINDER BELL WITH SHUTTER
Part Number: 90166 |
|||
| CEAE37SL-1 | 32 | FULL E37S/E92 CAPACITIVE DISPLAY SUPPORT
Part Number: 90325 |
|||
| CEAE37SL-1 | 33 | CAPACITIVE KEYBOARD E37S (D530015100)
Part Number: 50271 |
|||
| CEAE37SL-1 | 34 | SERIAL CABLE FOR CAPACITIVE KEYBOARD/CARD L=480mm (D503745200)
Part Number: 50276 |
|||
| CEAE37SL-1 | 35 | E37S/E92 BUTTON KEY COMPLETE
Part Number: 90180 |
|||
| CEAE37SL-1 | 36 | NUT M12 X 0.8 (IU0166)
Part Number: 45323 |
|||
| CEAE37SL-1 | 37 | FILTER HOLDER BRACKET STOPPING CUP E37S/E92 (rev.C)
Part Number: 20365 |
|||
| CEAE37SL-1 | 38 | RUBBER FILTER HOLDER SUPPORT 80sh E37J/S/K/T/Z
Part Number: 75548 |
|||
| CEAE37SL-1 | 39 | RUBBER FILTER HOLDER SUPPORT PIN E37J/S/K/T/Z (Rev.C)
Part Number: 40246 |
|||
| CEAE37SL-1 | 40 | E37 FAMILY COFFEE COLLECTION SAUCER
Part Number: 70163 |
|||
| CEAE37SL-1 | 41 | E37 FAMILY SAUCER RUBBER
Part Number: 70173 |
|||
| CEAE37SL-1 | 42 | WIRING E37T UL (rev.D)
Part Number: 50370 |
|||
| CEAE37SL-1 | 43 | BOARD PIN E37S B210 (LCBS 5-01)
Part Number: 75146 |
|||
| CEAE37SL-1 | 44 | CONDENSER SUPPORT (6137 AA 00)
Part Number: 75164 |
|||
| CEAE37SL-1 | 45 | ALUMINUM CAPACITOR 30uF (416271964) UL DOUBLE F.6.3
Part Number: 50182 |
|||
| CEAE37SL-1 | 46 | COFFEE GRINDER DATA SHEET E37S 2011 (D530013101)
Part Number: 50286 |
|||
| CEAE37SL-1 | 47 | GRINDER PAIR KIT D.83 E37S/E8/E9 (40180)
Part Number: 90303 |
|||
| CEAE37SL-1 | 48 | COFFEE GRINDER BOX E8/E92/E15 (24x39x67h) (rev.A)
Part Number: 80121 |
|||
| CEAE37SL-1 | 49 | COFFEE GRINDER BODY E37K/E37T/E37SL BLACK
Part Number: 11411 |
|||
| CEAE37SL-1 | 50 | BIPOLAR SWITCH OI M98 (3INGP12H1121M00)
Part Number: 50108 |
|||
| CEAE37SL-1 | 51 | BACKPACK E37T/E37SL
Part Number: 20376 |
|||
| CEAE37SL-1 | 52 | CABLE LOCK PA107 (3MR970590+SCREW)
Part Number: 50161 |
|||
| CEAE37SL-1 | 53 | RUBBER FEET D.40
Part Number: 70138 |
|||
| CEAE37SL-1 | 54 | USA PLUG CABLE SJT 18AWGX3C VW-1 3X1 2MT F4.8x0.8
Part Number: 50223 |
