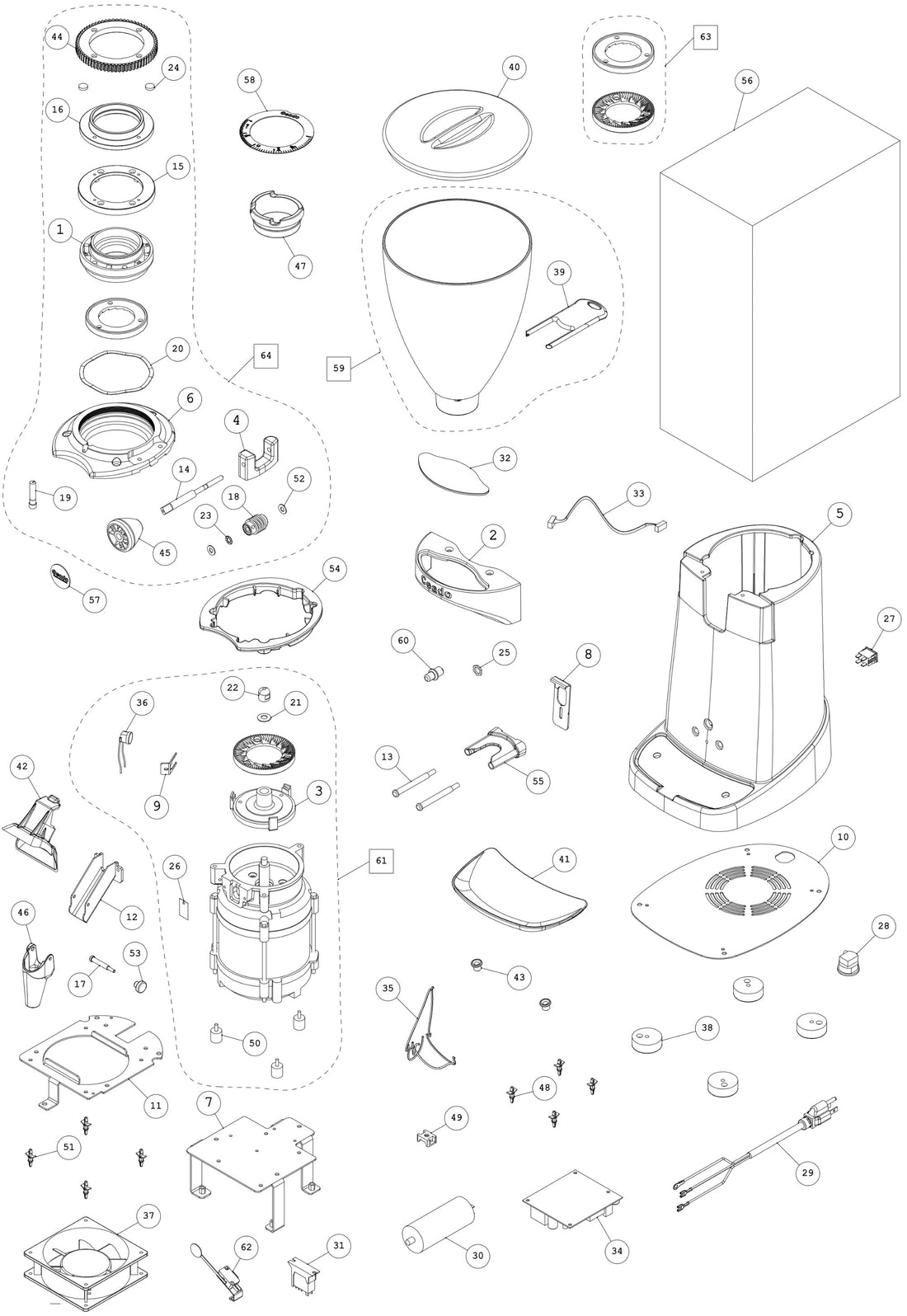

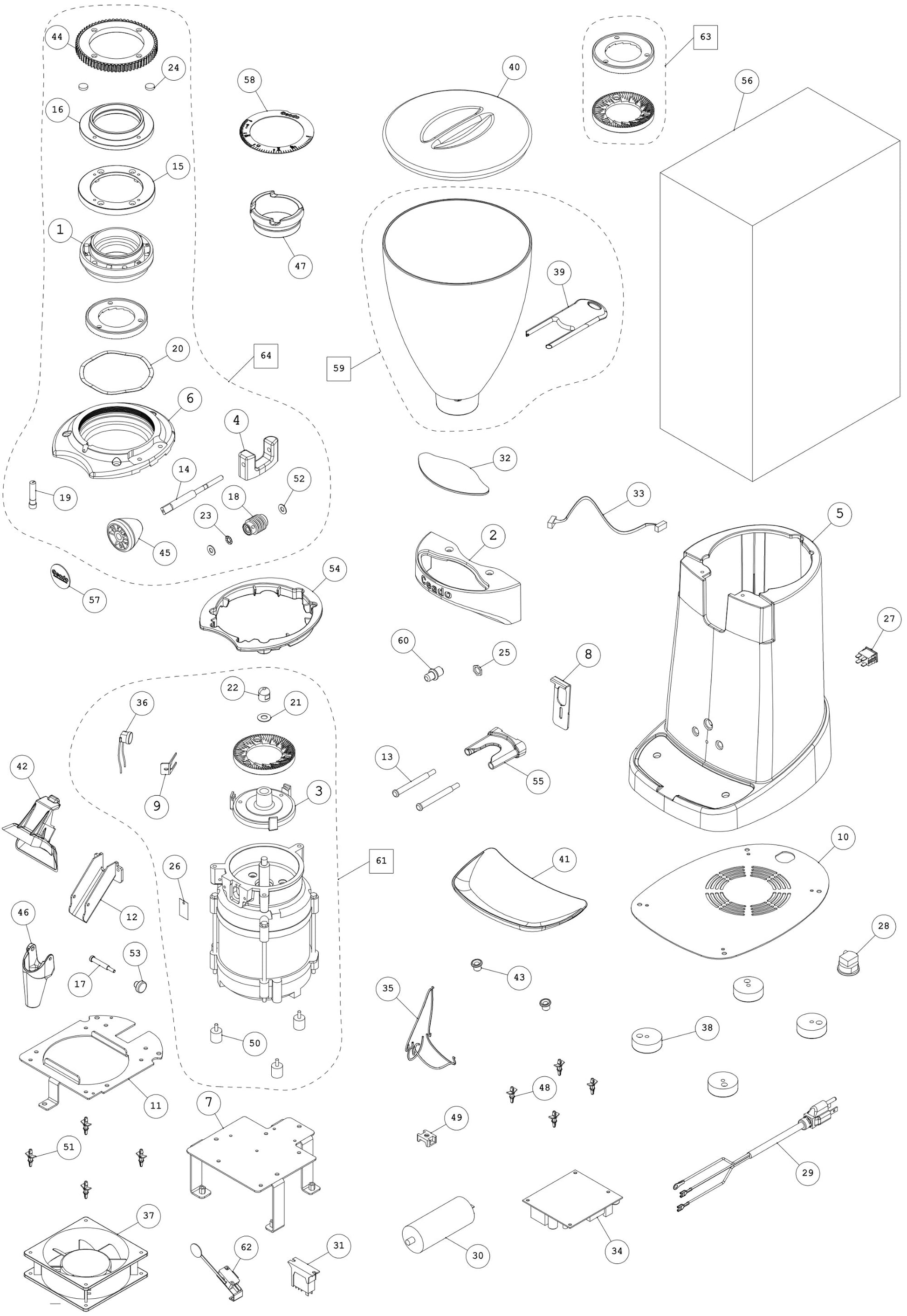

Ceado E37TQ Part Diagram CEAE37TQ
This is the Ceado E37TQ Part Diagram CEAE37TQ. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE37TQ-1 | 1 | E37S/T GRINDER SUPPORT FOR WORK ADJUSTMENT
Part Number: 10372 |
|||
| CEAE37TQ-1 | 2 |
|
DISPLAY SUPPORT E37S/E92 2011 GLOSS Part Number: 10381 |
$85.30 | View Part |
| CEAE37TQ-1 | 3 |
|
MACHINED E37S IMPELLER (rev.A) Part Number: 10471 |
$32.32 | View Part |
| CEAE37TQ-1 | 4 | ADJUSTMENT SCREW SUPPORT E37S/K/T/ POLISHED
Part Number: 11608 |
|||
| CEAE37TQ-1 | 5 | E37T BLACK COFFEE GRINDER BODY
Part Number: 11411 |
|||
| CEAE37TQ-1 | 6 | E37S COFFEE GRINDER HEAD WITH POLISH ADJUSTMENT
Part Number: 11670 |
|||
| CEAE37TQ-1 | 7 | E8D/E37T ENGINE SUPPORT (rev.F)
Part Number: 20349 |
|||
| CEAE37TQ-1 | 8 | FILTER HOLDER BRACKET STOPPING CUP E37S/E92 (rev.B)
Part Number: 20365 |
|||
| CEAE37TQ-1 | 9 | CUP THERMOSTAT BRACKET
Part Number: 20369 |
|||
| CEAE37TQ-1 | 10 | BACKPACK E37T
Part Number: 20376 |
|||
| CEAE37TQ-1 | 11 | E37T ENGINE BRACKET
Part Number: 20377 |
|||
| CEAE37TQ-1 | 12 | SLIDE E37S/E92 INOX (rev.C)
Part Number: 20387 |
|||
| CEAE37TQ-1 | 13 | RUBBER FILTER HOLDER SUPPORT PIN
Part Number: 40246 |
|||
| CEAE37TQ-1 | 14 |
|
PIN FOR ADJUSTMENT SCREW E37K/E37Z (rev.B) Part Number: 40263 |
$14.66 | View Part |
| CEAE37TQ-1 | 15 | ADJUSTING RING E8 TURNED COFFEE GRINDER (rev.C) Part Number: 40287 |
$41.38 | View Part | |
| CEAE37TQ-1 | 16 | PLATIC TOOTHED RING SUPPORT E37S/K/T
Part Number: 40310 |
|||
| CEAE37TQ-1 | 17 |
|
PLASTIC SLIDE EXTENSION FIXING PIN Part Number: 40315 |
$62.72 | View Part |
| CEAE37TQ-1 | 18 | ENDLESS SCREW ADJUSTMENT ALUMINUM E37S/K/T (rev.A)
Part Number: 40318 |
|||
| CEAE37TQ-1 | 19 | PAINTED ADJUSTMENT INDICATOR PIN
Part Number: 40414 |
|||
| CEAE37TQ-1 | 20 | SPRING WASHER LMKAS 100C Part Number: 45125 |
$9.18 | View Part | |
| CEAE37TQ-1 | 21 | M8 SPRING WASHER FOR IMPELLER
Part Number: 45131 |
|||
| CEAE37TQ-1 | 22 | STAINLESS STEEL BLIND NUT M8 SX COFFEE GRINDER
Part Number: 45132 |
|||
| CEAE37TQ-1 | 23 | SPRING WASHER LMKAS 10
Part Number: 45150 |
|||
| CEAE37TQ-1 | 24 | MAGNET d. 12x3 (REN 35 M.)
Part Number: 45155 |
|||
| CEAE37TQ-1 | 25 | NUT M12 X 0.8 (DIN xxx)
Part Number: 45323 |
|||
| CEAE37TQ-1 | 26 | SPRING SCC SHEET METAL E37S (rev.A)
Part Number: 45516 |
|||
| CEAE37TQ-1 | 27 | TWO-POLE SWITCH OI M98
Part Number: 50108 |
|||
| CEAE37TQ-1 | 28 | CABLE LOCK PA107
Part Number: 50161 |
|||
| CEAE37TQ-1 | 29 | USA PLUG CABLE SJT 18AWGX3C VW-1 3X1 2MT F4.8x0.8
Part Number: 50223 |
|||
| CEAE37TQ-1 | 30 | ALUMINUM CAPACITOR 40uF (416272264)
Part Number: 50224 |
|||
| CEAE37TQ-1 | 31 | E37T RELAY (FINDER 466190120040 + 4304605)
Part Number: 50266 |
|||
| CEAE37TQ-1 | 32 | CAPACITIVE KEYBOARD E37S (D530015100)
Part Number: 50271 |
|||
| CEAE37TQ-1 | 33 | SERIAL CABLE FOR CAPACITIVE KEYBOARD/CARD L=480mm (D503745200)
Part Number: 50276 |
|||
| CEAE37TQ-1 | 34 | E37 2011 COFFEE GRINDER DATASHEET
Part Number: 50286 |
|||
| CEAE37TQ-1 | 35 | WIRING E37T UL (rev.D)
Part Number: 50370 |
|||
| CEAE37TQ-1 | 36 | STD+UL COFFEE GRINDER THERMOSTAT WIRING
Part Number: 50369 |
|||
| CEAE37TQ-1 | 37 | FAN 120x120x38 (art. 12031ABWAD -HB) 110V WIRED
Part Number: 50492 |
|||
| CEAE37TQ-1 | 38 | RUBBER FEET D.40
Part Number: 70138 |
|||
| CEAE37TQ-1 | 39 | COFFEE BELL SHUTTER
Part Number: 70145 |
|||
| CEAE37TQ-1 | 40 | COFFEE GRINDER BELL COVER
Part Number: 70146 |
|||
| CEAE37TQ-1 | 41 | COFFEE TRAY SAUCER E37S/E92
Part Number: 70163 |
|||
| CEAE37TQ-1 | 42 | E92 SLIDE RUBBER
Part Number: 70165 |
|||
| CEAE37TQ-1 | 43 | RUBBER PLATE E37S
Part Number: 70173 |
|||
| CEAE37TQ-1 | 44 | PLASTIC TOOTHED RING FOR E37S ADJUSTMENT
Part Number: 70239 |
|||
| CEAE37TQ-1 | 45 | PLASTIC ADJUSTMENT KNOB E37S
Part Number: 70240 |
|||
| CEAE37TQ-1 | 46 | PLASTIC SLIDE EXTENSION
Part Number: 70241 |
|||
| CEAE37TQ-1 | 47 | KNOB ADJUSTMENT BELL SUPPORT
Part Number: 70245 |
|||
| CEAE37TQ-1 | 48 | BOARD PIN E37S B210 (LCBS 5-01)
Part Number: 75146 |
|||
| CEAE37TQ-1 | 49 | CONDENSER SUPPORT (6137 AA 00)
Part Number: 75164 |
|||
| CEAE37TQ-1 | 50 | VIBRATION DAMPER M/F 15X15 (M5X15+M5 SH60)
Part Number: 75165 |
|||
| CEAE37TQ-1 | 51 | GRINDER FAN PIN (LCBS- 6-5-01)
Part Number: 75173 |
|||
| CEAE37TQ-1 | 52 | WORM SCREW WASHER E37K/E37Z
Part Number: 75176 |
|||
| CEAE37TQ-1 | 53 | SLIDE EXTENSION FIXING KNOB (6336000 VB/17/PM4)
Part Number: 75188 |
|||
| CEAE37TQ-1 | 54 | E8 GRINDER RING GASKET
Part Number: 75530 |
|||
| CEAE37TQ-1 | 55 | RUBBER FILTER HOLDER SUPPORT 80sh
Part Number: 75548 |
|||
| CEAE37TQ-1 | 56 | COFFEE GRINDER BOX E8/E92/E15 (24x39x67h) (rev.A)
Part Number: 80121 |
|||
| CEAE37TQ-1 | 57 | E37K/E37Z KNOB SILKSCREEN PRINTING
Part Number: 85130 |
|||
| CEAE37TQ-1 | 58 | PADDED SCREEN PRINTING RING E37S/T/K (Rev.A)
Part Number: 85131 |
|||
| CEAE37TQ-1 | 59 | COFFEE GRINDER BELL WITH SHUTTER
Part Number: 90166 |
|||
| CEAE37TQ-1 | 60 | E37S/E92 BUTTON KEY COMPLETE
Part Number: 90180 |
|||
| CEAE37TQ-1 | 61 | COMPLETE ENGINE E37T 110V
Part Number: 90292 |
|||
| CEAE37TQ-1 | PAIR OF GRINDERS 83 (20-57-45) K110+TIN E37T
Part Number: 40258 |
||||
| CEAE37TQ-1 | 62 | COMPLETE MICRO BRACKET FB E37T
Part Number: 90299 |
|||
| CEAE37TQ-1 | 63 | GRINDER PAIR KIT D.84 RIV. E37T (40258)
Part Number: 90306 |
|||
| CEAE37TQ-1 | 64 | COMPLETE E37T GRINDER HEAD WITH ADJUSTMENT
Part Number: 90333 |
|||
| CEAE37TQ-1 | PAIR OF GRINDERS 83 (20-57-45) K110+TIN E37T
Part Number: 40258 |
