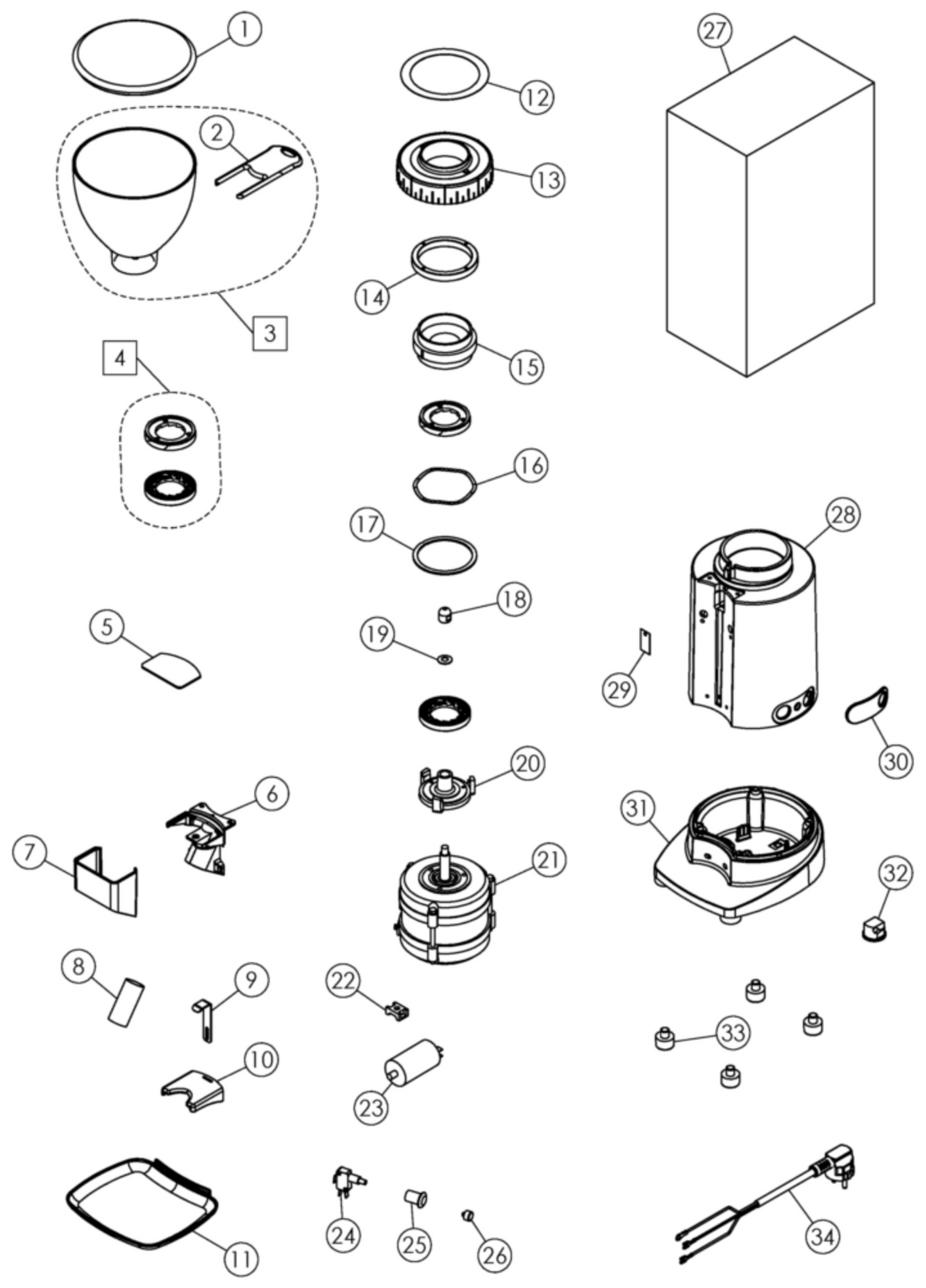

Ceado E5P Part Diagram CEAE5P
This is the Ceado E5P Part Diagram CEAE5P. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please contact us.
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE5P-1 | 1 |
|
2015 SMALL COFFEE GRINDER BELL COVER Part Number: 70203 SKU: 24403 |
$14.62 | View Part |
| CEAE5P-1 | 2 |
|
COFFEE BELL SHUTTER Part Number: 70145 SKU: 25777 |
$9.78 | View Part |
| CEAE5P-1 | 3 | SMALL COFFEE GRINDER BELL WITH SHUTTER 2015 Part Number: 90263 SKU: 24402 |
$33.86 | View Part | |
| CEAE5P-1 | 4 | GRINDER PAIR KIT D.64 E5P/E6P/E6X/E7X/E37J (40229) Part Number: 90300 SKU: 25768 |
$62.74 | View Part | |
| CEAE5P-1 | 5 | PLEXIGLASS E5P KEYBOARD Part Number: 85165 SKU: 41834 |
$52.49 | View Part | |
| CEAE5P-1 | 6 | SLIDE TUBE SUPPORT VERS. DISPLAY
Part Number: 70272 |
|||
| CEAE5P-1 | 7 | SLIDE TUBE SUPPORT CARTER VERS. DISPLAY
Part Number: 70271 |
|||
| CEAE5P-1 | 8 |
|
COFFEE SLIDE TUBE E6P/E37Z Part Number: 40239 SKU: 27617 |
$6.92 | View Part |
| CEAE5P-1 | 9 | PLASTIC FORK HOOK E6P
Part Number: 20346 |
|||
| CEAE5P-1 | 10 | E6P FILTER HOLDER FORK
Part Number: 70189 |
|||
| CEAE5P-1 | 11 |
|
E6X/E7X/E6P GRINDER PLATE Part Number: 70205 SKU: 26162 |
$19.99 | View Part |
| CEAE5P-1 | 12 | GRADUATED SILKSCREEN PRINTING WITHOUT SCREW RING COVER
Part Number: 85167 |
|||
| CEAE5P-1 | 13 |
|
COFFEE GRINDER RING COVER (rev. A) Part Number: 70184 SKU: 24281 |
$9.76 | View Part |
| CEAE5P-1 | 14 |
|
ADJUSTING RING E7 TURNED COFFEE GRINDER (rev. C) Part Number: 40284 SKU: 24287 |
$39.99 | View Part |
| CEAE5P-1 | 15 |
|
UPPER GRINDER SUPPORT E7 WORKED Part Number: 10266 SKU: 27714 |
$35.90 | View Part |
| CEAE5P-1 | 16 | SPRING WASHER LMKAS 80C Part Number: 45124 SKU: 24289 |
$8.24 | View Part | |
| CEAE5P-1 | 17 | E6X ADJUSTMENT SPRING RING DISC
Part Number: 20337 |
|||
| CEAE5P-1 | 18 | STAINLESS STEEL BLIND NUT M8 SX COFFEE GRINDER
Part Number: 45132 |
|||
| CEAE5P-1 | 19 | SPRING WASHER M8 FOR IMPELLER (v.746822)
Part Number: 45131 |
|||
| CEAE5P-1 | 20 | MACHINED E7 IMPELLER (rev.E) Part Number: 10257 SKU: 31077 |
$42.95 | View Part | |
| CEAE5P-1 | 21 | E6X 230V TURNED GRINDER MOTOR
Part Number: 93126 |
|||
| CEAE5P-1 | E6X 110V TURNED GRINDER MOTOR
Part Number: 93226 |
||||
| CEAE5P-1 | 22 | CONDENSER SUPPORT (6137 AA 00)
Part Number: 75164 |
|||
| CEAE5P-1 | 23 | CAPACITOR 8uF (416171264 400V 30.000h) DOUBLE F.6.3
Part Number: 50233 |
|||
| CEAE5P-1 | ALUMINUM CAPACITOR 16uF ( 416271464 30,000h 250V) UL DOUBLE F. 6.3
Part Number: 50234 |
||||
| CEAE5P-1 | 24 | EXTRA TRAVEL BUTTON MICROSWITCH (VRSRB1AA1AF26)
Part Number: 50257 |
|||
| CEAE5P-1 | 25 | SUPPORT D16 ROUND BLACK 111743
Part Number: 50137 |
|||
| CEAE5P-1 | 26 | ROUND GREEN D16 BUTTON (START) 122519
Part Number: 50152 |
|||
| CEAE5P-1 | 27 | BLENDER BOX B98 240X240X500
Part Number: 80105 |
|||
| CEAE5P-1 | 28 | E5P/E6P BLACK COFFEE GRINDER BODY
Part Number: 11406 |
|||
| CEAE5P-1 | E5P/E6P GRAY GRINDER BODY
Part Number: 11606 |
||||
| CEAE5P-1 | 29 | SPRING SCC SHEET E5P/E6P (rev.A)
Part Number: 45519 |
|||
| CEAE5P-1 | 30 | E5P/E6X/E7X AUTOMATIC MASK
Part Number: 70198 |
|||
| CEAE5P-1 | 31 | E6X GRINDER BASE
Part Number: 70196 |
|||
| CEAE5P-1 | 32 | CABLE LOCK PA107 (3MR970590+SCREW)
Part Number: 50161 |
|||
| CEAE5P-1 | 33 | RUBBER FEET D.23
Part Number: 70140 |
|||
| CEAE5P-1 | 34 | USA PLUG CABLE SJT 18AWGX3C VW-1 3X1 2MT (rev.B)
Part Number: 50204 |
|||
| CEAE5P-1 | CABLE H05RN-F 3G1 2MT THICK. AUSTRALIA (rev.A)
Part Number: 50206 |
||||
| CEAE5P-1 | CABLE G22 SP SCHUKO H05RN 3X1 2MT (rev.A)
Part Number: 50207 |
||||
| CEAE5P-1 | CABLE G22 UK PLUG H05RN 3X1 2MT (rev. A)
Part Number: 50208 |
