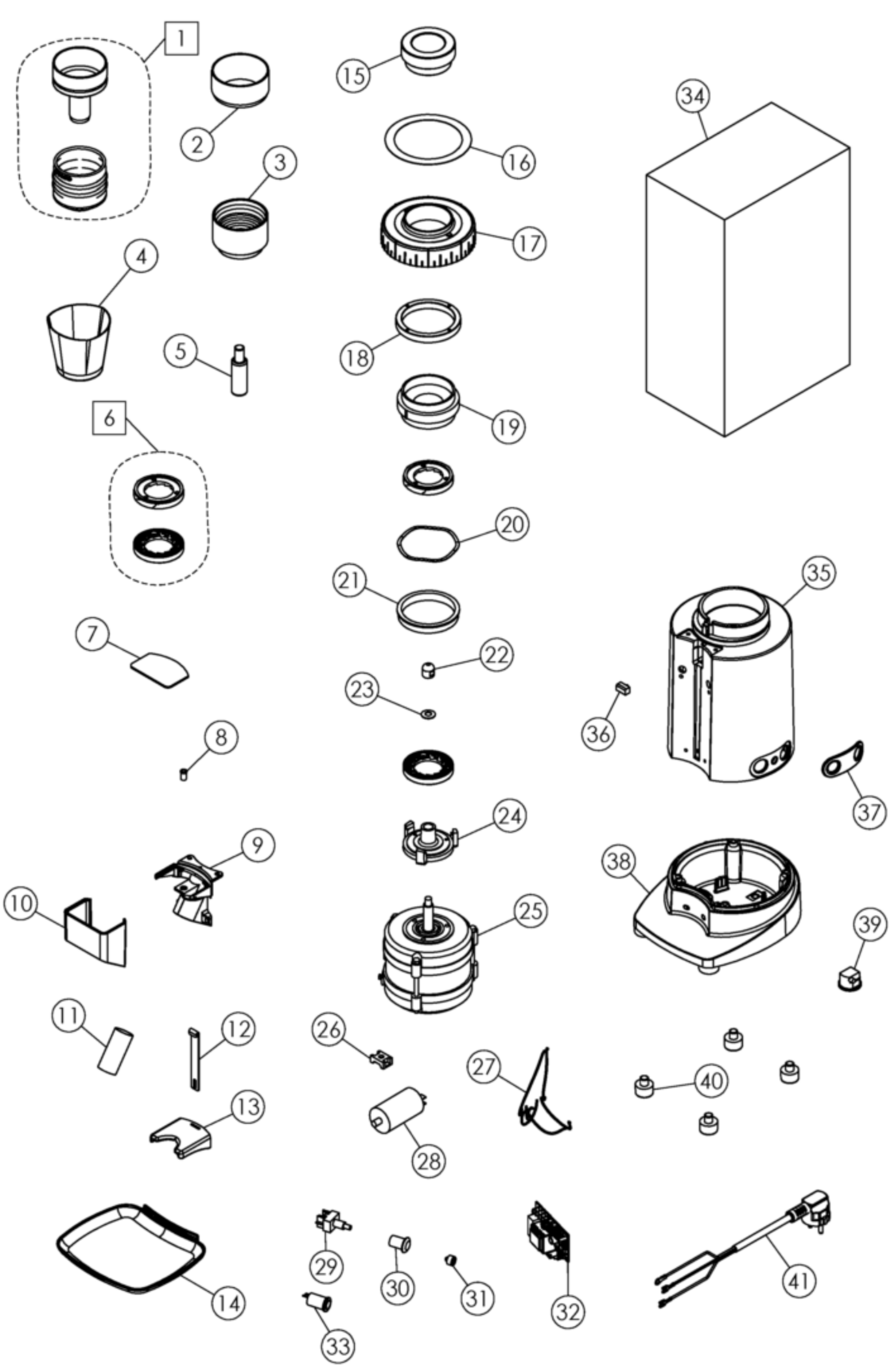

Ceado E5SD Part Diagram CEAE5SD
This is the Ceado E5SD Part Diagram CEAE5SD. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE5SD-1 | 1 | SINGLE DOSE BELLOWS Part Number: 90354 |
$151.28 | View Part | |
| CEAE5SD-1 | 2 | FUNNEL FUNNEL E37Z/E37SD D.58 silk-screened "Ceado"
Part Number: 40400 |
|||
| CEAE5SD-1 | 3 |
|
COFFEE BEAN MIXER E37Z/E37SD Part Number: 40321 |
$59.02 | View Part |
| CEAE5SD-1 | 4 | COFFEE COLLECTION CUP E37Z/E37SD
Part Number: 20550 |
|||
| CEAE5SD-1 | 5 | BOTTLE KIT + SPRAY DISPENSER FOR E37Z
Part Number: 90385 |
|||
| CEAE5SD-1 | 6 |
|
GRINDER PAIR KIT 64 E5SD (40729) Part Number: 90364 |
$215.00 | View Part |
| CEAE5SD-1 | 7 |
|
PLEXIGLASS E5SD KEYBOARD Part Number: 85166 |
$23.00 | View Part |
| CEAE5SD-1 | 8 | E5SD LED SUPPORT (VS.ART. 11501AA01)
Part Number: 50390 |
|||
| CEAE5SD-1 | 9 | SLIDE TUBE SUPPORT VERS. DISPLAY
Part Number: 70272 |
|||
| CEAE5SD-1 | 10 | SLIDE TUBE SUPPORT CARTER VERS. DISPLAY
Part Number: 70271 |
|||
| CEAE5SD-1 | 11 |
|
COFFEE SLIDE TUBE E6P/E37Z Part Number: 40239 |
$6.92 | View Part |
| CEAE5SD-1 | 12 |
|
E5SD CUP FILTER HOLDER BRACKET Part Number: 20461 |
$5.08 | View Part |
| CEAE5SD-1 | 13 | E6P FILTER HOLDER FORK
Part Number: 70189 |
|||
| CEAE5SD-1 | 14 |
|
E6X/E7X/E6P GRINDER PLATE Part Number: 70205 |
$5.50 | View Part |
| CEAE5SD-1 | 15 | E5SD BELLOWS COMPRESSOR SUPPORT
Part Number: 40334 |
|||
| CEAE5SD-1 | 16 | GRADUATED SILKSCREEN PRINTING WITHOUT SCREW RING COVER
Part Number: 85167 |
|||
| CEAE5SD-1 | 17 |
|
COFFEE GRINDER RING COVER (rev. A) Part Number: 70184 |
$9.75 | View Part |
| CEAE5SD-1 | 18 |
|
ADJUSTING RING E7 TURNED COFFEE GRINDER (rev. C) Part Number: 40284 |
$28.32 | View Part |
| CEAE5SD-1 | 19 |
|
UPPER GRINDER SUPPORT E7 WORKED Part Number: 10266 |
$35.00 | View Part |
| CEAE5SD-1 | 20 | SPRING WASHER LMKAS 80C Part Number: 45124 |
$8.23 | View Part | |
| CEAE5SD-1 | 21 | E5SD ADJUSTMENT SPRING RING DISC
Part Number: 40344 |
|||
| CEAE5SD-1 | 22 | STAINLESS STEEL BLIND NUT M8 SX COFFEE GRINDER
Part Number: 45132 |
|||
| CEAE5SD-1 | 23 | SPRING WASHER M8 FOR IMPELLER (v.746822)
Part Number: 45131 |
|||
| CEAE5SD-1 | 24 | MACHINED E7 IMPELLER (rev.E)
Part Number: 10257 |
|||
| CEAE5SD-1 | 25 | E6X 110V TURNED GRINDER MOTOR
Part Number: 93226 |
|||
| CEAE5SD-1 | 26 | CONDENSER SUPPORT (6137 AA 00)
Part Number: 75164 |
|||
| CEAE5SD-1 | 27 | E5SD "STD+UL" WIRING
Part Number: 50385 |
|||
| CEAE5SD-1 | 28 | ALUMINUM CAPACITOR 16uF ( 416271464 30.000h 250V) UL DOUBLE F. 6.3
Part Number: 50234 |
|||
| CEAE5SD-1 | 29 | BEEP SWITCH. GRINDER DOSER (3INDY26KS11E0000)
Part Number: 50170 |
|||
| CEAE5SD-1 | 30 | SUPPORT D16 ROUND BLACK 111743
Part Number: 50137 |
|||
| CEAE5SD-1 | 31 | CHROME ROUND KEY D16 12.1707 (0-1)
Part Number: 50138 |
|||
| CEAE5SD-1 | 32 | COFFEE GRINDER CARD E37SD 110V (D530008412)
Part Number: 50299 |
|||
| CEAE5SD-1 | 33 | E5SD BUTTON (3INP12431100000)
Part Number: 50238 |
|||
| CEAE5SD-1 | 34 | BLENDER BOX B98 240X240X500
Part Number: 80105 |
|||
| CEAE5SD-1 | 35 | E5P/E6P BLACK COFFEE GRINDER BODY
Part Number: 11406 |
|||
| CEAE5SD-1 | 35 | E5P/E6P GRAY GRINDER BODY
Part Number: 11606 |
|||
| CEAE5SD-1 | 35 | E5P/E6P WHITE COFFEE GRINDER BODY
Part Number: 11906 |
|||
| CEAE5SD-1 | 36 | CAP FOR E5SD E5P/E6P PIPE SUPPORT CLOSURE
Part Number: 70270 |
|||
| CEAE5SD-1 | 37 | E5SD 2 HOLES MASK
Part Number: 70299 |
|||
| CEAE5SD-1 | 38 | E6X GRINDER BASE
Part Number: 70196 |
|||
| CEAE5SD-1 | 39 | CABLE LOCK PA107 (3MR970590+SCREW)
Part Number: 50161 |
|||
| CEAE5SD-1 | 40 | RUBBER FEET D.23
Part Number: 70140 |
|||
| CEAE5SD-1 | 41 | USA PLUG CABLE SJT 18AWGX3C VW-1 3X1 2MT (rev.B)
Part Number: 50204 |
