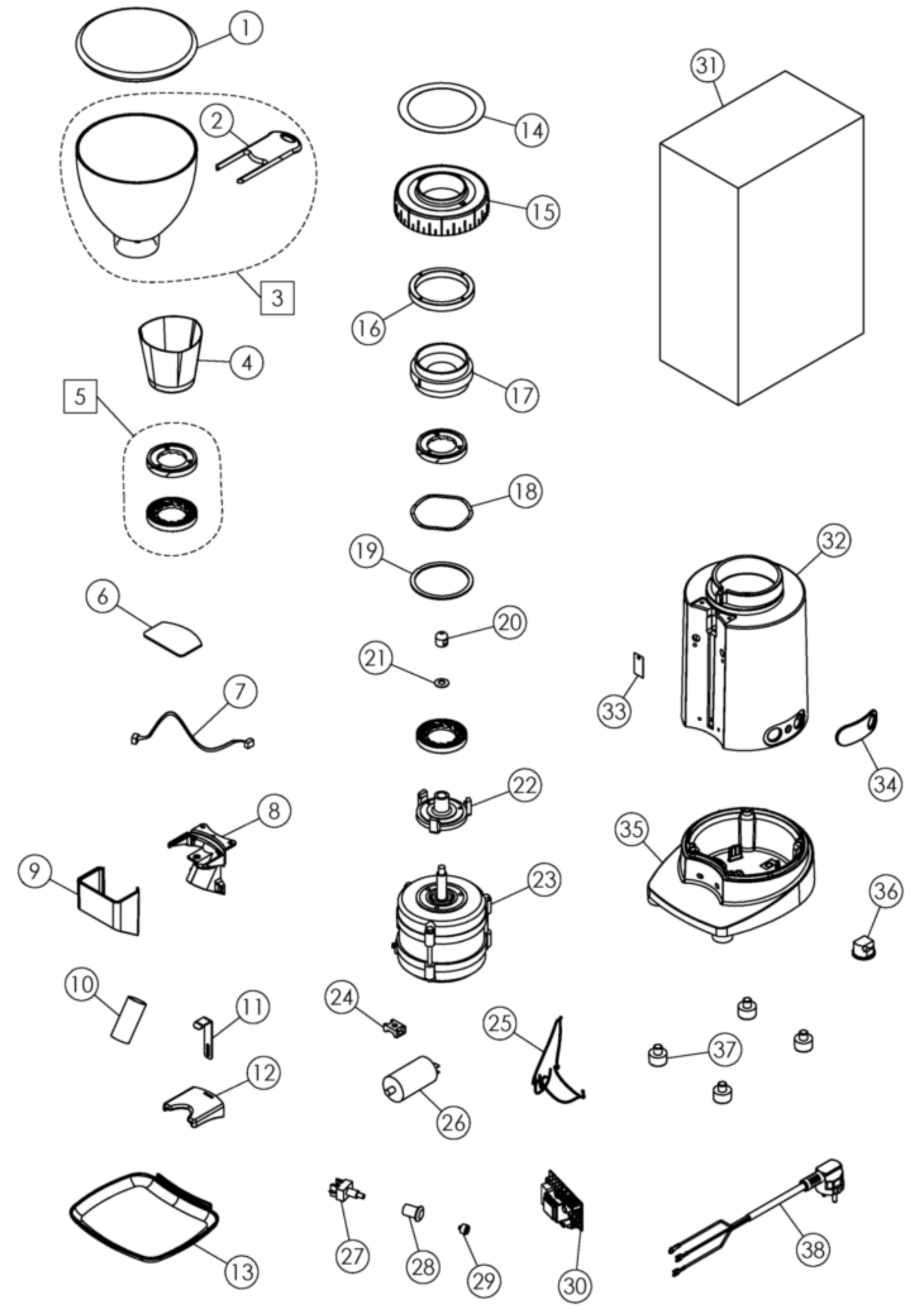

Ceado E6P Part Diagram CEAE6P
This is the Ceado E6P Part Diagram CEAE6P. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE6P-1 | 1 |
|
2015 SMALL COFFEE GRINDER BELL COVER Part Number: 70203 |
$14.20 | View Part |
| CEAE6P-1 | 2 |
|
COFFEE BELL SHUTTER Part Number: 70145 |
$5.15 | View Part |
| CEAE6P-1 | 3 | SMALL COFFEE GRINDER BELL WITH SHUTTER 2015 Part Number: 90263 |
$33.86 | View Part | |
| CEAE6P-1 | 4 | COFFEE COLLECTION CUP E37Z/E37SD
Part Number: 20550 |
|||
| CEAE6P-1 | 5 | GRINDER PAIR KIT D.64 E5P/E6P/E6X/E7X/E37J (40229) Part Number: 90300 |
$62.74 | View Part | |
| CEAE6P-1 | COFFEE GRINDER PAIR KIT 64 FILTER (40732) Part Number: 90359 |
$75.49 | View Part | ||
| CEAE6P-1 | 6 | E6P GRINDER DISPLAY BOARD (D530023200) Part Number: 50381 |
$199.99 | View Part | |
| CEAE6P-1 | 7 | SERIAL CABLE FOR COFFEE GRINDER E6P L=400 (D509023200) Part Number: 50382 |
$12.63 | View Part | |
| CEAE6P-1 | 8 | SLIDE TUBE SUPPORT VERS. DISPLAY
Part Number: 70272 |
|||
| CEAE6P-1 | 9 | SLIDE TUBE SUPPORT CARTER VERS. DISPLAY
Part Number: 70271 |
|||
| CEAE6P-1 | 10 |
|
COFFEE SLIDE TUBE E6P/E37Z Part Number: 40239 |
$6.92 | View Part |
| CEAE6P-1 | 11 | PLASTIC FORK HOOK E6P
Part Number: 20346 |
|||
| CEAE6P-1 |
|
E5SD CUP FILTER HOLDER BRACKET Part Number: 20461 |
$5.08 | View Part | |
| CEAE6P-1 | 12 | E6P FILTER HOLDER FORK
Part Number: 70189 |
|||
| CEAE6P-1 | 13 |
|
E6X/E7X/E6P GRINDER PLATE Part Number: 70205 |
$5.50 | View Part |
| CEAE6P-1 | 14 | GRADUATED SILKSCREEN PRINTING WITHOUT SCREW RING COVER
Part Number: 85167 |
|||
| CEAE6P-1 | 15 |
|
COFFEE GRINDER RING COVER (rev. A) Part Number: 70184 |
$9.75 | View Part |
| CEAE6P-1 | 16 |
|
ADJUSTING RING E7 TURNED COFFEE GRINDER (rev. C) Part Number: 40284 |
$28.32 | View Part |
| CEAE6P-1 | 17 |
|
UPPER GRINDER SUPPORT E7 WORKED Part Number: 10266 |
$35.00 | View Part |
| CEAE6P-1 | 18 | SPRING WASHER LMKAS 80C Part Number: 45124 |
$8.23 | View Part | |
| CEAE6P-1 | 19 | E6X ADJUSTMENT SPRING RING DISC
Part Number: 20337 |
|||
| CEAE6P-1 | 20 | STAINLESS STEEL BLIND NUT M8 SX COFFEE GRINDER
Part Number: 45132 |
|||
| CEAE6P-1 | 21 | SPRING WASHER M8 FOR IMPELLER (v.746822)
Part Number: 45131 |
|||
| CEAE6P-1 | 22 | MACHINED E7 IMPELLER (rev.E)
Part Number: 10257 |
|||
| CEAE6P-1 | 23 | E6X 230V TURNED GRINDER MOTOR
Part Number: 93126 |
|||
| CEAE6P-1 | E6X 110V TURNED GRINDER MOTOR
Part Number: 93226 |
||||
| CEAE6P-1 | E6X GRINDER MOTOR 230V 60Hz TURNED
Part Number: 93326 |
||||
| CEAE6P-1 | 24 | CONDENSER SUPPORT (6137 AA 00)
Part Number: 75164 |
|||
| CEAE6P-1 | 25 | E6P "ST+UL" WIRING (rev.C)
Part Number: 50358 |
|||
| CEAE6P-1 | 26 | CAPACITOR 8uF (416171264 400V 30.000h) DOUBLE F.6.3
Part Number: 50233 |
|||
| CEAE6P-1 | ALUMINUM CAPACITOR 16uF ( 416271464 30,000h 250V) UL DOUBLE F. 6.3
Part Number: 50234 |
||||
| CEAE6P-1 | 27 | BEEP SWITCH. GRINDER DOSER (3INDY26KS11E0000)
Part Number: 50170 |
|||
| CEAE6P-1 | 28 | SUPPORT D16 ROUND BLACK 111743
Part Number: 50137 |
|||
| CEAE6P-1 | 29 | CHROME ROUND KEY D16 12.1707 (0-1)
Part Number: 50138 |
|||
| CEAE6P-1 | 30 | E6P COFFEE GRINDER CARD (D530023100)
Part Number: 50380 |
|||
| CEAE6P-1 | COFFEE GRINDER CARD E6P 110V (D530023110)
Part Number: 50387 |
||||
| CEAE6P-1 | 31 | BLENDER BOX B98 240X240X500
Part Number: 80105 |
|||
| CEAE6P-1 | 32 | E5P/E6P BLACK COFFEE GRINDER BODY
Part Number: 11406 |
|||
| CEAE6P-1 | E5P/E6P GRAY GRINDER BODY
Part Number: 11606 |
||||
| CEAE6P-1 | 33 | SPRING SCC SHEET E5P/E6P (rev.A)
Part Number: 45519 |
|||
| CEAE6P-1 | 34 | E5P/E6X/E7X AUTOMATIC MASK
Part Number: 70198 |
|||
| CEAE6P-1 | 35 | E6X GRINDER BASE
Part Number: 70196 |
|||
| CEAE6P-1 | 36 | CABLE LOCK PA107 (3MR970590+SCREW)
Part Number: 50161 |
|||
| CEAE6P-1 | 37 | RUBBER FEET D.23
Part Number: 70140 |
|||
| CEAE6P-1 | 38 | PLUG CABLE USA SJT 18AWGX3C VW-1 3X1 2MT (rev.B)
Part Number: 50204 |
|||
| CEAE6P-1 | PLUG CABLE H05RN-F 3G1 2MT SP. AUSTRALIA (rev.A)
Part Number: 50206 |
||||
| CEAE6P-1 | PLUG CABLE G22 SP SCHUKO H05RN 3X1 2MT (rev.A)
Part Number: 50207 |
||||
| CEAE6P-1 | PLUG CABLE G22 UK H05RN 3X1 2MT (rev. A)
Part Number: 50208 |
||||
| CEAE6P-1 | PLUG CABLE SWISS H05RN 3X1 2MT (rev.A)
Part Number: 60357 |
