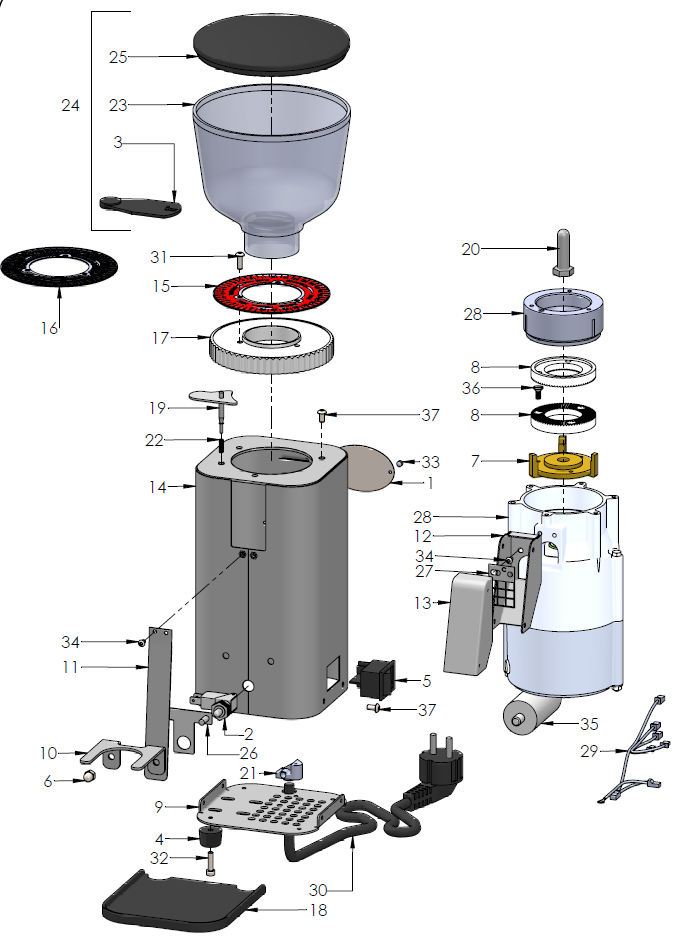

ECM C-Manuale 54 Part Diagram 89050

This is the ECM C-Manuale 54 Part Diagram 89050. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.

If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.

Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.
1 of
Diagram # Pos # Image Description Price
Diagram # Pos # Image Description Price
89050-1 1 Emblem ECM
Part Number: 81200
89050-1 2
C199900306 Microswitch Group
Microswitch
Part Number: C199900306
$29.17 View Part
89050-1 3 Lock slide bean hopper
Part Number: G1014
89050-1 4 Foot
Part Number: G1015
$6.60 View Part
89050-1 5 On/off switch
Part Number: G1021
89050-1 6 Cap nut M5
Part Number: G1034
89050-1 7 Burr bracket holder below 54mm
Part Number: G1036
89050-1 8 Grinding burrs 54mm pair
Part Number: G1039
89050-1 9
Ecm C-Manuale 54 Base Plate - G1071 | ECM ECM-G1071
Base plate
Part Number: G1071
$27.74 View Part
89050-1 10 Rack portafilter
Part Number: G1072
$1.00 View Part
89050-1 11
G1073 Tap Microswitch Ecm C-Manuale 54 - Parts | ECM ECM-G1073
Tap microswitch
Part Number: G1073
$28.54 View Part
89050-1 12 Ejection
Part Number: G1074
89050-1 13 Ejection cover
Part Number: G1074.1
89050-1 14 Body polished
Part Number: G1075
$143.00 View Part
89050-1 15 Dial wheel digit plate red
Part Number: G1076
89050-1 16
G1076.1 Dial Wheel Digit Plate Black | ECM ECM-G1076.1
Dial wheel digit plate black
Part Number: G1076.1
$7.58 View Part
89050-1 17 Plastic ring gear
Part Number: G1077
89050-1 18 Collecting plate coffee powder
Part Number: G1078
89050-1 19 Grinding level holder
Part Number: G1079
$1.00 View Part
89050-1 20 Fastening burr bracket
Part Number: G1081
89050-1 21 Stain relief
Part Number: G1082
89050-1 22 Spring grinding level adjustment
Part Number: G1083
89050-1 23 Bean hopper 0,25 kg
Part Number: G1085
89050-1 24 Bean hopper 0,25kg complete
Part Number: G1085.K
89050-1 25 Lid bean hopper 0,25 kg
Part Number: G1086
89050-1 26 Fastening rack portafilter
Part Number: G1087
89050-1 27 Grid coffee shaft
Part Number: G1196
89050-1 28 Motor 220V-240V / 50Hz with body
Part Number: G1218
89050-1 Motor 110V-120V / 50Hz with body
Part Number: G1219
89050-1 29 Cable loom
Part Number: G1251
89050-1 30 Cable Schuko plug Grinder
Part Number: G1400
89050-1 Cable AUS plug grinder
Part Number: G1401
89050-1 Cable USA plug grinder
Part Number: G1402
89050-1 31 Round-head screw M4x12
Part Number: P1992
89050-1 32 Hexagon socket head cap screw M4x16
Part Number: P1996
89050-1 33 Blindness rivet struss head 2,4x12
Part Number: P1998
89050-1 34 Lens head screw M3x5
Part Number: P2064
89050-1 35 Capacitor 6F 230V
Part Number: P3026.1
89050-1 Capacitor 110V
Part Number: G1244
89050-1 36 Screw counter sunk head slotted M4x10
Part Number: P6110
89050-1 37 Lens head screw M4x8
Part Number: P6114
