ECM Classika PID Part Diagram 81044
This is the ECM Classika PID Part Diagram 81044. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

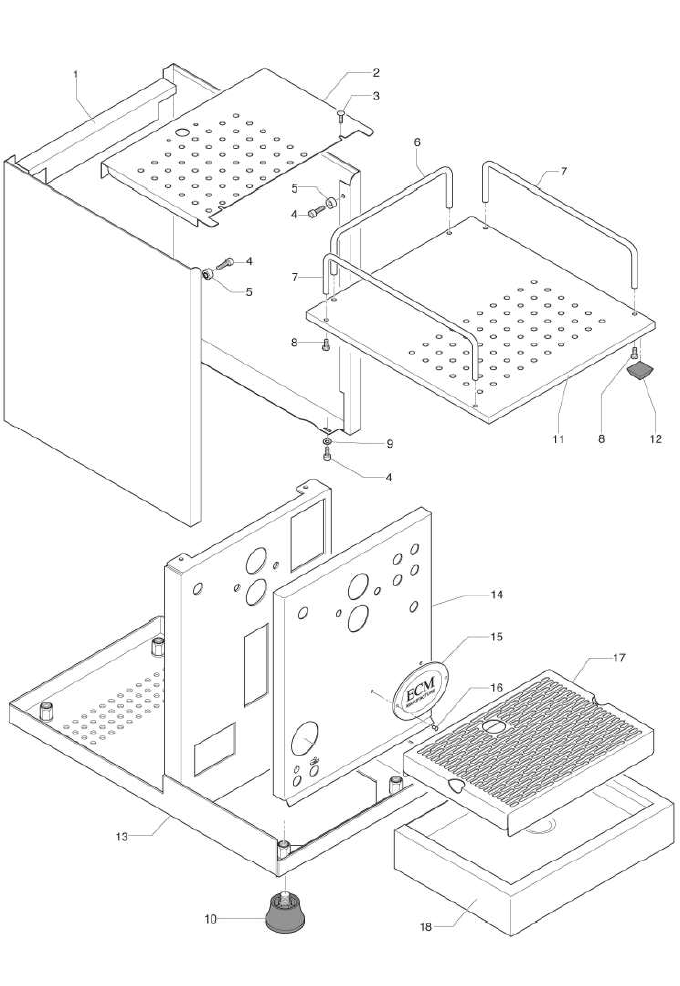

| 81044-1 | 1 | Body Classika II Part Number: P9002 |
$354.80 | View Part | |
| 81044-1 | 2 | Lower cup warmer tray Classika II Part Number: P9008 |
$81.78 | View Part | |
| 81044-1 | 3 |
|
Lens-head screw M4x10A2 polished Part Number: P2022 |
$5.37 | View Part |
| 81044-1 | 4 |
|
Screw cylinder M4x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 81044-1 | 5 |
|
Nut Part Number: B5220818 |
$6.43 | View Part |
| 81044-1 | 6 | Rail short Classika Part Number: P9028 |
$16.88 | View Part | |
| 81044-1 | 7 |
|
Rail straight Part Number: P3002 |
$38.66 | View Part |
| 81044-1 | 8 |
|
Screw cylinder M4x6 VA Part Number: B7826212 |
$5.51 | View Part |
| 81044-1 | 9 | Washer A2 0 4 UNI 6592
Part Number: P2009 |
|||
| 81044-1 | 10 |
|
Foot M10 Part Number: B7474216 |
$7.44 | View Part |
| 81044-1 | 11 |
|
Cup warmer tray Classika II Part Number: P9001 |
$58.80 | View Part |
| 81044-1 | 12 |
|
Foot cup warmer tray Part Number: B7474212 |
$7.35 | View Part |
| 81044-1 | 13 | Base chassis Classika II Part Number: P9005 |
$317.63 | View Part | |
| 81044-1 | 14 | Front panel Classika II
Part Number: P9006 |
|||
| 81044-1 | 15 | Label ECM Classika Part Number: E81000 |
$36.52 | View Part | |
| 81044-1 | 16 |
|
Blind rivet truss head 3x8 Part Number: P1999 |
$5.14 | View Part |
| 81044-1 | 17 |
|
Grid drip tray Classika II Part Number: P9004 |
$50.42 | View Part |
| 81044-1 | 18 |
|
Drip tray Classika II Part Number: P9003 |
$142.42 | View Part |

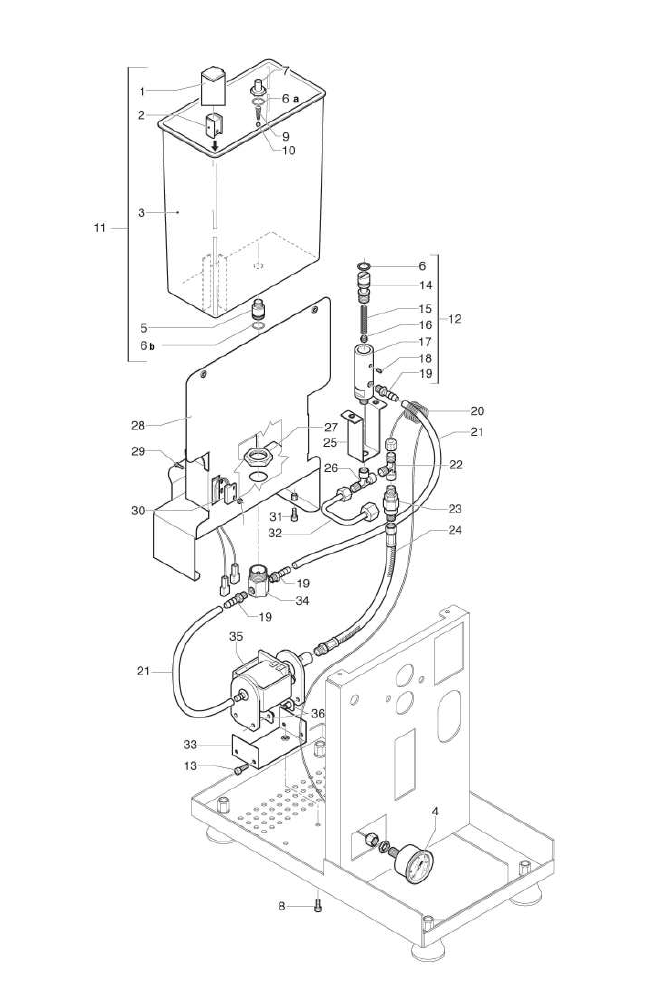

| 81044-2 | 1 |
|
Water tank plug Part Number: P6016 |
$11.29 | View Part |
| 81044-2 | 2 | Reed floater Part Number: P6021 |
$18.26 | View Part | |
| 81044-2 | 3 | Water tank Casa/Classika
Part Number: P9010 |
|||
| 81044-2 | 4 | Pump pressure gauge
Part Number: B7432517 |
|||
| 81044-2 | 5 | Upper water tank adapter stainl. steel
Part Number: P6017 |
|||
| 81044-2 | Upper water tank adapter plastics (no.2)
Part Number: P6020.K2 |
||||
| 81044-2 | 6a | OR exp. valve 9.92x2.62 OR112 stainl. steel
Part Number: P7000.5 |
|||
| 81044-2 | OR water tank adapter 13.94x2.62 plastics
Part Number: P6020.3 |
||||
| 81044-2 | 6b | Gasket OR 112 EPDM 70 SH
Part Number: B7496076 |
|||
| 81044-2 | 7 | Water tank adapter middle stainl. steel
Part Number: P6020 |
|||
| 81044-2 | Water tank adapter middle plastics (no. 1)
Part Number: P6020.K1 |
||||
| 81044-2 | 8 |
|
Screw cylinder M4x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 81044-2 | 9 | Spring water tank
Part Number: P6023 |
|||
| 81044-2 | 10 | Ball 7/32" AISI 304
Part Number: B5471509 |
|||
| 81044-2 | 11 | Water tank Classika complete stain.steel
Part Number: P9010K1 |
|||
| 81044-2 | Water tank Classika II complete plastics
Part Number: P9010K1.K |
||||
| 81044-2 | 12 | Expansion valve complete
Part Number: P7000 |
|||
| 81044-2 | 13 | Screw cylinder In M5x10
Part Number: P2007 |
|||
| 81044-2 | 14 | Pressure adjustment expansion valve
Part Number: P7000.2 |
|||
| 81044-2 | 15 | Spring expansion valve
Part Number: P7000.3 |
|||
| 81044-2 | 16 | Rubber plug for expansion valve
Part Number: P7000.4 |
|||
| 81044-2 | 17 | Body expansion valve
Part Number: P7000.1 |
|||
| 81044-2 | 18 | Grub screw M3x6 hexagon socket
Part Number: P7000.6 |
|||
| 81044-2 | 19 | Connector silicone 1/8"x6
Part Number: P6052 |
|||
| 81044-2 | 20 | Capill. tube pump p. gauge 1m 1/8"-1/8"
Part Number: P6051 |
|||
| 81044-2 | 21 | Tube silicone per metre
Part Number: C499900769 |
|||
| 81044-2 | 22 | T connector 1/8"MMF
Part Number: C229900644 |
|||
| 81044-2 | 23 | Non-return valve 1/8"MM
Part Number: C229900548 |
|||
| 81044-2 | 24 | Metal tube flex. 17 cm 1/8"M-1/8"F
Part Number: P8012 |
|||
| 81044-2 | 25 | Metal fitting expansion valve
Part Number: P9026 |
|||
| 81044-2 | 26 | T connector 1/8"MFF
Part Number: E2113001 |
|||
| 81044-2 | 27 | Nut water tank adapter stainl. steel
Part Number: P6018 |
|||
| 81044-2 | Nut M20 water tank plastics (no. 3)
Part Number: P6020.K3 |
||||
| 81044-2 | 28 | Water tank guide Classika
Part Number: P9007 |
|||
| 81044-2 | 29 | Lens-head screw M3x10 A2
Part Number: P2021 |
|||
| 81044-2 | 30 | Reed sensor
Part Number: P6022 |
|||
| 81044-2 | 31 |
|
Screw cylinder M4x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 81044-2 | 32 | Feed pipe Classika
Part Number: P9118 |
|||
| 81044-2 | 33 | Metal fitting pump Classika
Part Number: P9027 |
|||
| 81044-2 | 34 | Lower water tank adapter inox (no. 4)
Part Number: P6019 |
|||
| 81044-2 | Fitting water tank M20 Kunststoff (no. 4)
Part Number: P6020.K4 |
||||
| 81044-2 | 35 | Pump ULKA EX5 230V/50hz
Part Number: C199900280 |
|||
| 81044-2 | 35 | Pump US Ulka EAX5 120V/60Hz 52W
Part Number: US1001 |
|||
| 81044-2 | 36 | Metal clamp pump fitting
Part Number: P3004 |
|||
| 81044-2 | Water tank adapter complete plastics (set including P6020.K1 to P6020.K4)
Part Number: P6020.K |
||||

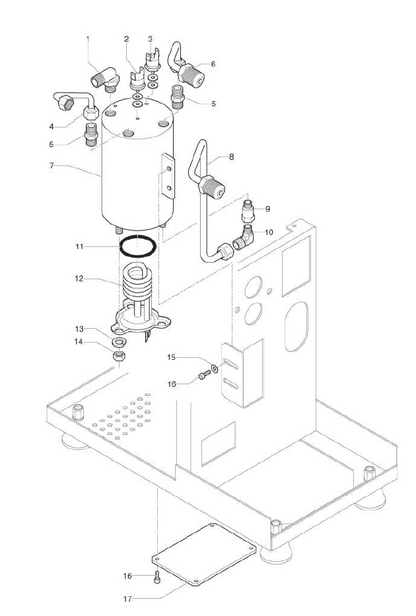

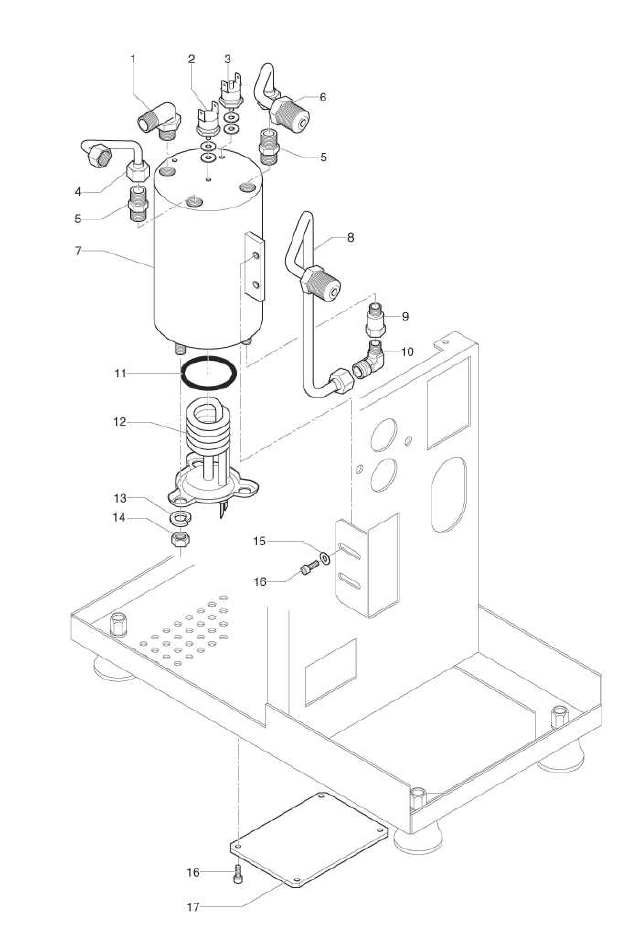

| 81044-3 | 1 | Angle heat exchanger 1/4"-1/4"
Part Number: P2040 |
|||
| 81044-3 | 2 | Thermostat 135C steam
Part Number: C100001816 |
|||
| 81044-3 | 3 | Safety thermostat 165
Part Number: C199901549 |
|||
| 81044-3 | 4 | Tube steam/hot water
Part Number: P9022 |
|||
| 81044-3 | 5 | Fitting 1/4"-1/4"
Part Number: C229900520 |
|||
| 81044-3 | 6 | Inlet pipe group
Part Number: P9020 |
|||
| 81044-3 | 7 | Boiler Classika II
Part Number: P9012 |
|||
| 81044-3 | 8 | Return pipe group
Part Number: P9021 |
|||
| 81044-3 | 9 | Extension MF 1/8"
Part Number: P2047 |
|||
| 81044-3 | 10 | L connector 1/8"MM
Part Number: P9015 |
|||
| 81044-3 | 11 | Gasket heating Classika
Part Number: P9013 |
|||
| 81044-3 | 12 | Heating Classika II
Part Number: P9011 |
|||
| 81044-3 | 12 | Heating Classika II 110 V
Part Number: US1003 |
|||
| 81044-3 | 13 | Washer open A2 0 8 UNI1751
Part Number: P2011 |
|||
| 81044-3 | 14 | Hexagon nut M8 V2
Part Number: C309900127 |
|||
| 81044-3 | 15 | Washer A2 0 4 UNI 6592
Part Number: P2009 |
|||
| 81044-3 | 16 |
|
Screw cylinder M4x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 81044-3 | 17 | Cover sheet heating
Part Number: P9009 |
|||

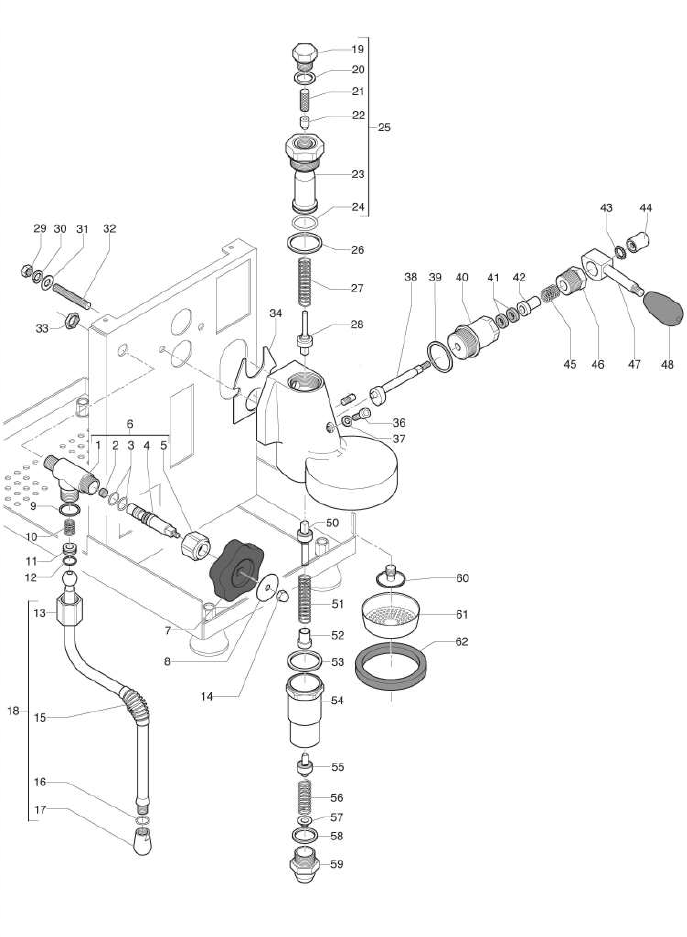

| 81044-4 | 1 | Steam/hot water valve body
Part Number: P6000.1 |
|||
| 81044-4 | 2 | Gasket D9x6.5
Part Number: P6000.2 |
|||
| 81044-4 | 3 | OR gasket D9.92x2.62 EPDM
Part Number: P6000.3 |
|||
| 81044-4 | 4 | Spindle steam/hot water valve
Part Number: P6000.4 |
|||
| 81044-4 | 5 | Nut 3/8"G
Part Number: P6000.5 |
|||
| 81044-4 | 6 | Steam/hot water valve
Part Number: P6000 |
|||
| 81044-4 | 7 | Steam/hot water handle 7x7
Part Number: B7371509 |
|||
| 81044-4 | 8 | Disc steam/hot water handle
Part Number: B5522057 |
|||
| 81044-4 | 9 | Gasket teflon for valve
Part Number: P6015 |
|||
| 81044-4 | 10 | Spring P6000 valve
Part Number: P6011 |
|||
| 81044-4 | 11 | Teflon disc
Part Number: P6010 |
|||
| 81044-4 | 12 | Lower OR steam/water nut
Part Number: C449900719 |
|||
| 81044-4 | 13 | Spanner socket steam/hot water pipe
Part Number: P6002.5 |
|||
| 81044-4 | 14 | Bow nut
Part Number: P6000.6 |
|||
| 81044-4 | 15 | Rubber insulation steam pipe
Part Number: P6002.2 |
|||
| 81044-4 | 16 | OR steam nozzle
Part Number: P6002.1 |
|||
| 81044-4 | 17 | Steam nozzle two holes
Part Number: P6002.4 |
|||
| 81044-4 | 18 | Steam pipe for P6000 valve
Part Number: P6002 |
|||
| 81044-4 | 19 | Plug brew group cylinder
Part Number: R000002141 |
|||
| 81044-4 | 20 | Gasket plug gigleur
Part Number: C469900420 |
|||
| 81044-4 | 21 | Inox filter 0.8
Part Number: C619900554 |
|||
| 81044-4 | 22 | Gigleur 0.8
Part Number: C229900549 |
|||
| 81044-4 | 23 | Upper sleave assy
Part Number: C229901133 |
|||
| 81044-4 | 24 | Gasket socket brewing unit
Part Number: C469900422 |
|||
| 81044-4 | 25 | Socket group complete
Part Number: C2299001133.K |
|||
| 81044-4 | 26 | Gasket axis 35x30x2
Part Number: C469900421 |
|||
| 81044-4 | 27 | Upper delivery valve spring
Part Number: C219900423 |
|||
| 81044-4 | 28 | Upper valve E61 group
Part Number: C219900424 |
|||
| 81044-4 | 29 | Hexagonal nut M8 V2
Part Number: C309900127 |
|||
| 81044-4 | 30 | Washer open A2 0 8 UNI1751
Part Number: P2011 |
|||
| 81044-4 | 31 | Plain washer A2 0 8 UNI6592
Part Number: P2010 |
|||
| 81044-4 | 32 | Grub screw M8x31 ASTM a193
Part Number: C309900131 |
|||
| 81044-4 | 33 | Half nut 1/4"
Part Number: C329900682 |
|||
| 81044-4 | 34 | Gasket group/front panel
Part Number: C449900767 |
|||
| 81044-4 | 36 | Screw cylinder M6x10
Part Number: C309900164 |
|||
| 81044-4 | 37 | Teflon gasket 10x6x1
Part Number: C469901132 |
|||
| 81044-4 | 38 | E61-axis
Part Number: C219900425 |
|||
| 81044-4 | 39 | Gasket axis 35x30x2
Part Number: C469900421 |
|||
| 81044-4 | 40 | Cam flange
Part Number: R000002142 |
|||
| 81044-4 | 41 | Flat washer axis
Part Number: C219900426 |
|||
| 81044-4 | 42 | Bushing
Part Number: R000002143 |
|||
| 81044-4 | 43 | Lock washer 0.8
Part Number: B7479947 |
|||
| 81044-4 | 44 | Cap M6 x diam. 15
Part Number: R000002146 |
|||
| 81044-4 | 45 | Spring axis group
Part Number: C219900427 |
|||
| 81044-4 | 46 | Plug axis group
Part Number: R000002144 |
|||
| 81044-4 | 47 | Lever axis group upper w/bolt
Part Number: P1000.2 |
|||
| 81044-4 | 48 | Lever knob M8
Part Number: C439900840 |
|||
| 81044-4 | 50 | Valve E61 group middle
Part Number: C219903081 |
|||
| 81044-4 | 51 | Upper delivery valve spring
Part Number: C219900423 |
|||
| 81044-4 | 52 | Spring guide group
Part Number: B7479942 |
|||
| 81044-4 | 53 | Gasket axis 35x30x2
Part Number: C469900421 |
|||
| 81044-4 | 54 | Lower sleeve assy
Part Number: C229901165 |
|||
| 81044-4 | 55 | Lower valve E61 group
Part Number: C219900430 |
|||
| 81044-4 | 56 | Lower spring
Part Number: C219900431 |
|||
| 81044-4 | 57 | Lower sprayer
Part Number: R000002148 |
|||
| 81044-4 | 58 | Lower gasket teflon E61 group
Part Number: C469900783 |
|||
| 81044-4 | 59 | Lower tube fitting
Part Number: R000002149 |
|||
| 81044-4 | 60 | Sprayer
Part Number: C229901128 |
|||
| 81044-4 | 61 | Shower screen E61
Part Number: C519900103 |
|||
| 81044-4 | 62 | Group gasket H=0.8mm
Part Number: C449900229 |
|||

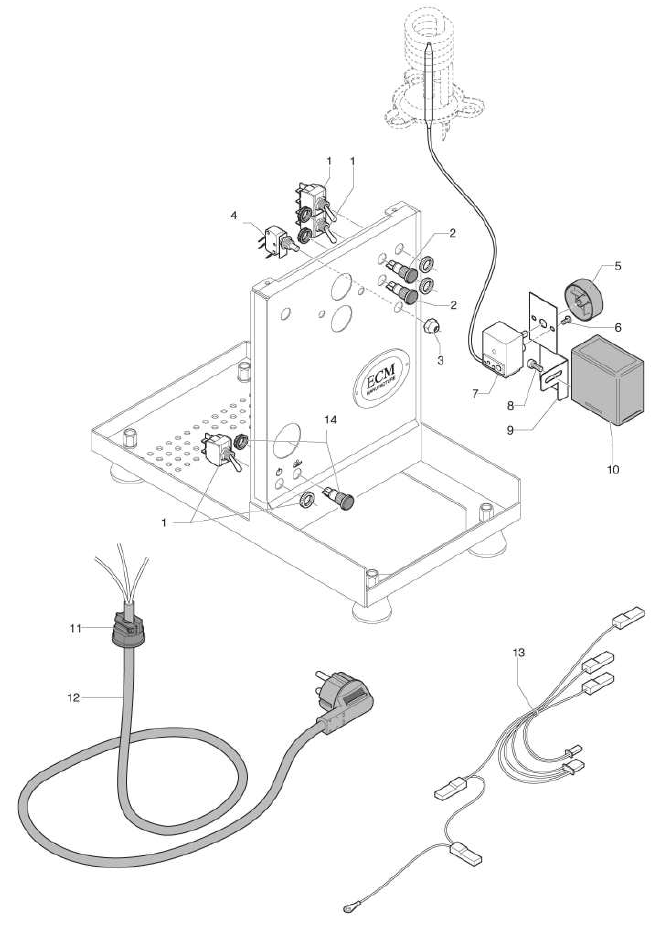

| 81044-5 | 1 | ON/OFF switch metal
Part Number: C199900087 |
|||
| 81044-5 | 2 | Control lamp orange MIII 220-240V
Part Number: B7633617 |
|||
| 81044-5 | 3 | Nut micro switch 10x0.75
Part Number: B5221875CM |
|||
| 81044-5 | 4 | Micro switch group NR6K5
Part Number: C199900306 |
|||
| 81044-5 | 5 | Hand wheel thermostat
Part Number: B7434012 |
|||
| 81044-5 | 6 | Lens-head screw M4x6
Part Number: P2055 |
|||
| 81044-5 | 7 | Thermostat Classika
Part Number: B7434011 |
|||
| 81044-5 | 8 | Screw cylinder A2 M5x10
Part Number: P2007 |
|||
| 81044-5 | 9 | Metal fitting thermostat Classika II
Part Number: P9023 |
|||
| 81044-5 | 10 | Electronics box Classika II
Part Number: P9025 |
|||
| 81044-5 | Elektronics Box Cl. II 240V 50Hz
Part Number: P9025.AU |
||||
| 81044-5 | Electronics box Classika II 115V
Part Number: US1009 |
||||
| 81044-5 | 11 | Cable anchorage/cable clip
Part Number: C439900086 |
|||
| 81044-5 | 12 | Cable connection 3x1.5
Part Number: C199900957 |
|||
| 81044-5 | UK power cord 3x1.5 1.80m long
Part Number: P2035 |
||||
| 81044-5 | AUS power cord 3x1.5 1.80m long
Part Number: P2036 |
||||
| 81044-5 | US power cord 3x1.5 1.80m long
Part Number: P2034 |
||||
| 81044-5 | 13 | Cable loom Classika II
Part Number: P9024 |
|||
| 81044-5 | 14 | Control lamp green MIII 220-240V
Part Number: B7633618 |
|||

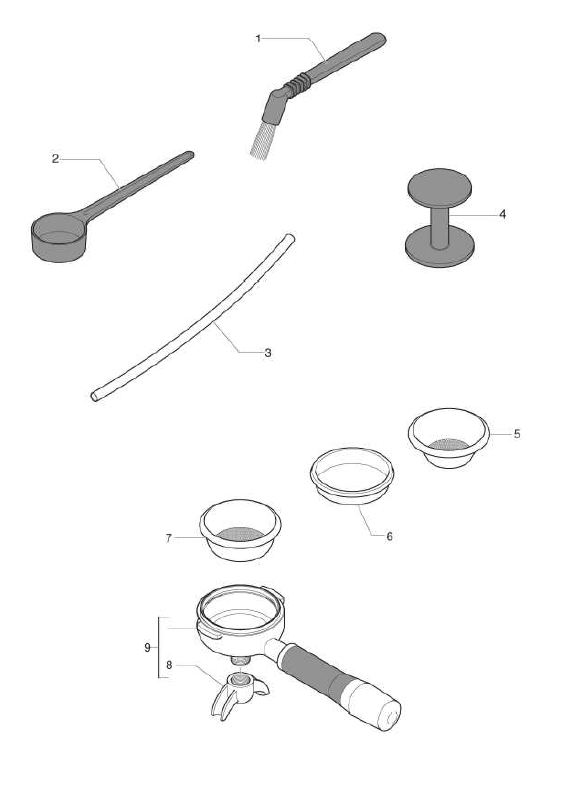

| 81044-6 | 1 | Cleaning brush for shower screen
Part Number: R210 |
|||
| 81044-6 | 2 | Measuring spoon
Part Number: C639900710 |
|||
| 81044-6 | 3 | Silicone tube per metre
Part Number: C499900769 |
|||
| 81044-6 | 4 | Tamper plastics
Part Number: C639900764 |
|||
| 81044-6 | 5 | Filter 7g
Part Number: C619900104 |
|||
| 81044-6 | 6 | Blind filter
Part Number: C619900106 |
|||
| 81044-6 | 7 | Filter 14g
Part Number: C619900105 |
|||
| 81044-6 | 8 | Double spout small
Part Number: P9120 |
|||
| 81044-6 | 9 | Filter holder 2 spouts mini chromed/black
Part Number: 89423 |
