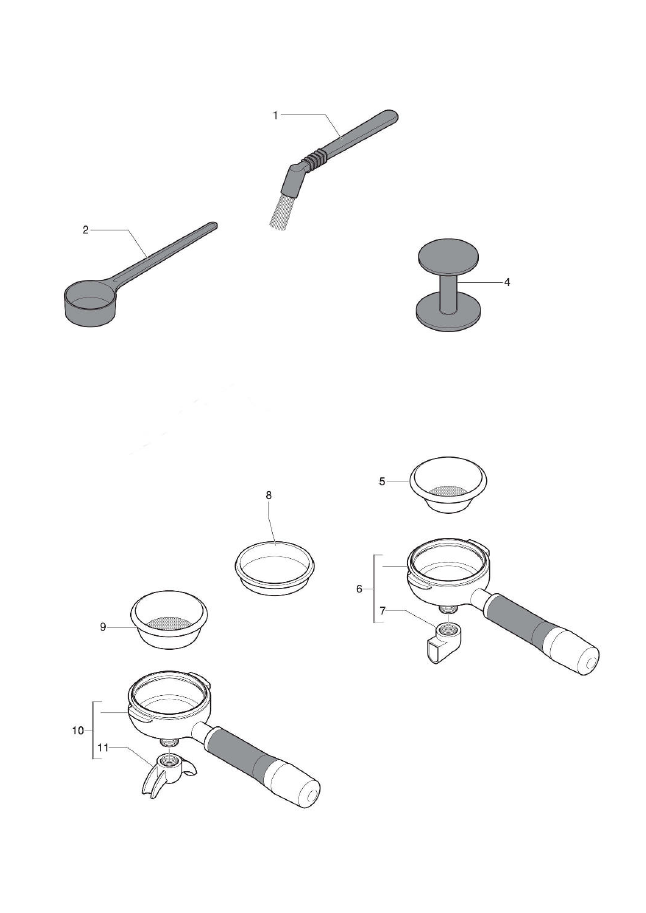

ECM Elektronika II Profi Part Diagram 84274
This is the ECM Elektronika II Profi Part Diagram 84274. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

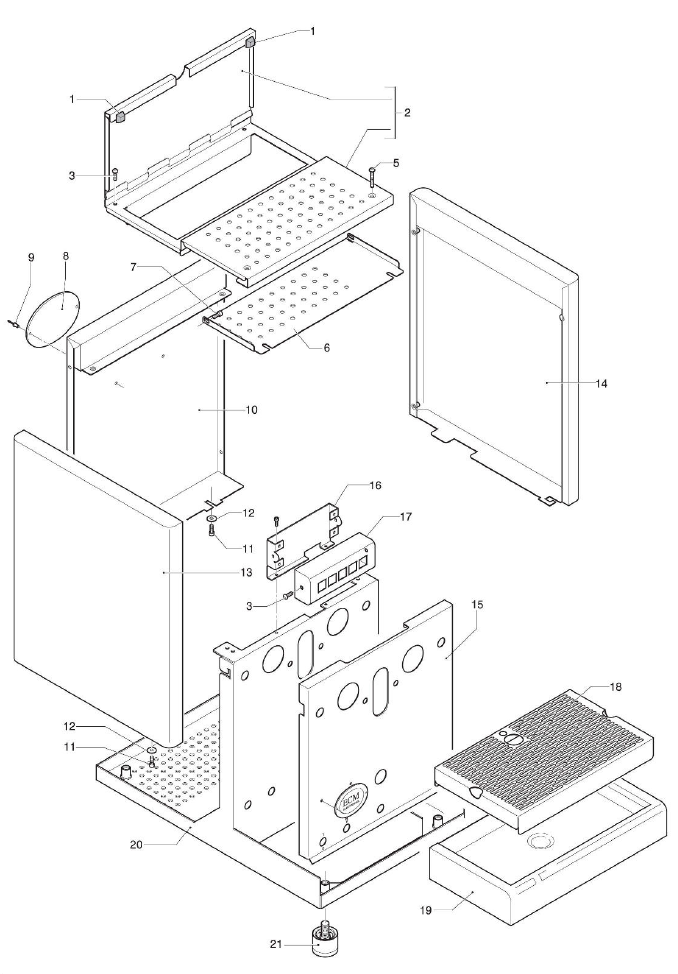

| 84274-1 | 1 | Foot heater grid Part Number: B7474217 |
$6.79 | View Part | |
| 84274-1 | 2 | Cup warming tray Part Number: P3011.E1 |
$114.14 | View Part | |
| 84274-1 | 3 |
|
Lens-head screw M4x10A2 polished Part Number: P2022 |
$5.37 | View Part |
| 84274-1 | 5 | Lens-head screw M4x25 Part Number: B7819911 |
$5.46 | View Part | |
| 84274-1 | 6 | Lower cup warming tray
Part Number: P3012 |
|||
| 84274-1 | 7 |
|
Screw cylinder M4x6 Part Number: B7826212 |
$5.51 | View Part |
| 84274-1 | 8 | Label backside Part Number: ER8285 |
$21.13 | View Part | |
| 84274-1 | 9 |
|
Blind rivet truss head 3x8 Part Number: P1999 |
$5.14 | View Part |
| 84274-1 | 10 | Rear panel Part Number: P3010 |
$273.60 | View Part | |
| 84274-1 | 11 |
|
Screw cylinder M4x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 84274-1 | 12 | Washer
Part Number: P6100 |
|||
| 84274-1 | 13 | Side panel left Part Number: P3009 |
$307.60 | View Part | |
| 84274-1 | 14 | Side panel right Part Number: P3008 |
$307.60 | View Part | |
| 84274-1 | 15 |
|
Front panel Part Number: P3032 |
$101.90 | View Part |
| 84274-1 | 16 |
|
Fitting control panel Part Number: P3031 |
$93.00 | View Part |
| 84274-1 | 17 | Cover control panel
Part Number: P3030 |
|||
| 84274-1 | 18 | Grid drip tray Part Number: P3023.4 |
$19.00 | View Part | |
| 84274-1 | 19 |
|
Drip tray Part Number: M3024.4 |
$168.80 | View Part |
| 84274-1 | 20 | Base chassis
Part Number: P3001.5 |
|||
| 84274-1 | 21 |
|
Foot inox Part Number: P7025 |
$28.46 | View Part |

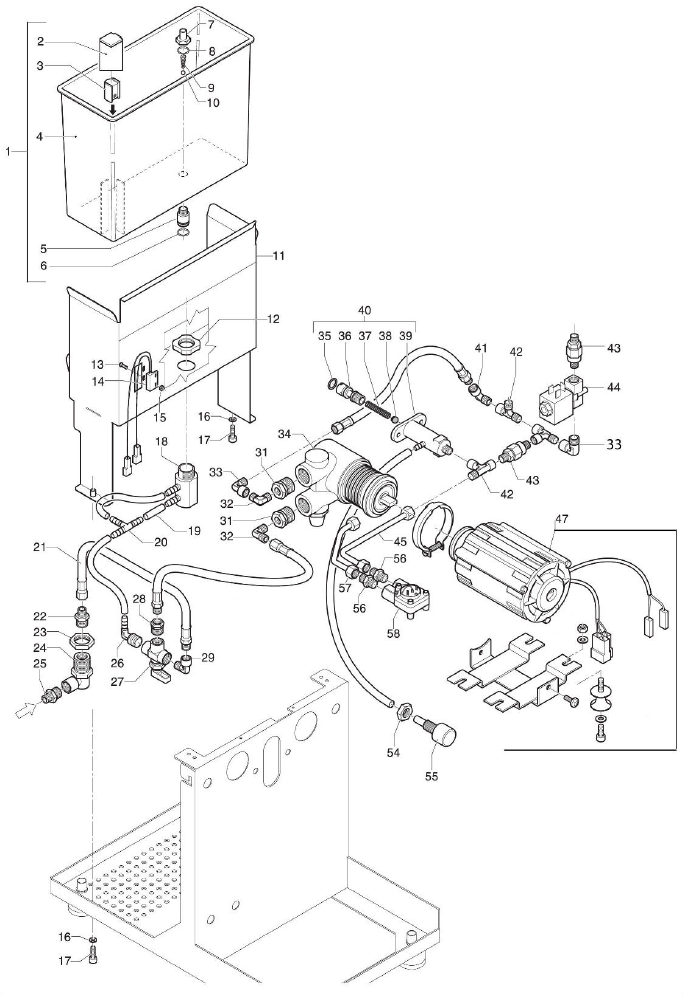

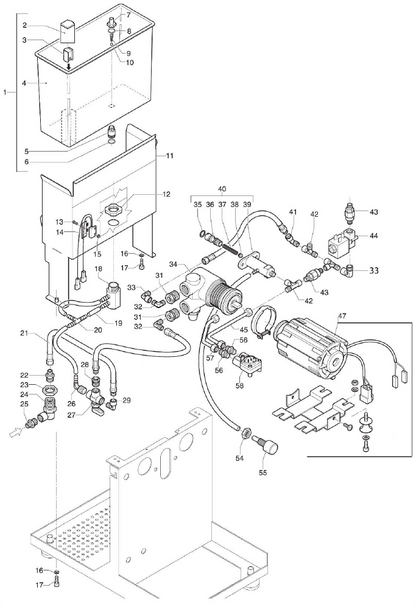

| 84274-2 | 1 | Water tank with guide rail reed complete
Part Number: P6014.K.K |
|||
| 84274-2 | 2 | Water tank plug
Part Number: P6016 |
|||
| 84274-2 | 3 | Reed swimmer
Part Number: P6021 |
|||
| 84274-2 | 4 | Water tank base
Part Number: P6014 |
|||
| 84274-2 | 5 | Water tank adapter no2 plastic
Part Number: P6020.K2 |
|||
| 84274-2 | 6 | Seal OR 112
Part Number: B7496076 |
|||
| 84274-2 | 7 | Water tank adapter no1 plastic
Part Number: P6020.K1 |
|||
| 84274-2 | 8 | OR water tank adapter plastic
Part Number: P6020.3 |
|||
| 84274-2 | 9 | Sping water tank
Part Number: P6023 |
|||
| 84274-2 | 10 | Ball 7/32" AISI 304
Part Number: B5471509 |
|||
| 84274-2 | 11 | Water tank guide rail, closed
Part Number: M3006.5 |
|||
| 84274-2 | 12 | Nut M20 water tank plastic no3
Part Number: P6020.K3 |
|||
| 84274-2 | 13 | Screw lens M3x10 A2
Part Number: P2021 |
|||
| 84274-2 | 14 | Reed sensor
Part Number: P6022 |
|||
| 84274-2 | 15 | Nut M3
Part Number: P2019 |
|||
| 84274-2 | 16 | Washer 0 4
Part Number: P2009 |
|||
| 84274-2 | 17 |
|
Screw cylinder M4x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 84274-2 | 18 | Fitting water tank M20 no4 plastic
Part Number: P6020.K4 |
|||
| 84274-2 | 19 | Silicone hose 8x5
Part Number: C499900769 |
|||
| 84274-2 | 20 | Connector T-fitting plastic
Part Number: C400001932 |
|||
| 84274-2 | 21 | Metal hose flex 17 cm
Part Number: P8012 |
|||
| 84274-2 | 22 | Dowel 1/4" 1/8"
Part Number: C229900519 |
|||
| 84274-2 | 23 | Run FF 1/4" 1/4" Part Number: P3023 |
$19.00 | View Part | |
| 84274-2 | 24 | Rot. elbow 382/S 1/4"M-1/4"F
Part Number: P3527 |
|||
| 84274-2 | 26 | Connector silicone L 1/4" x 6
Part Number: P6057 |
|||
| 84274-2 | 27 | Three-way valve manual 1/4"
Part Number: P3528 |
|||
| 84274-2 | 28 | Reducer 1/4"M-1/8"F
Part Number: P2030 |
|||
| 84274-2 | 29 | L-connector 1/4"M 1/8"F
Part Number: P6058 |
|||
| 84274-2 | 31 | Reducer 3/8"M-1/8"F
Part Number: P3024 |
|||
| 84274-2 | 32 | L-connector 1/8"M 1/8"M
Part Number: C229900579 |
|||
| 84274-2 | 33 | L-connector 1/8"M 1/8"F
Part Number: P9014 |
|||
| 84274-2 | 34 | Rotary pump
Part Number: P3025 |
|||
| 84274-2 | 35 | Expansion valve
Part Number: P7000.5 |
|||
| 84274-2 | 36 | Pressure adjustment expansion valve
Part Number: P7000.2 |
|||
| 84274-2 | 37 | Spring expansion valve
Part Number: P7000.3 |
|||
| 84274-2 | 38 | Rubber plug expansion valve
Part Number: P7000.4 |
|||
| 84274-2 | 39 | Base hull expansion valve
Part Number: P7000.1 |
|||
| 84274-2 | 40 | Expansion valve complete
Part Number: P7000 |
|||
| 84274-2 | 42 | T-connector 1/8" MMF
Part Number: C229900644 |
|||
| 84274-2 | 43 | Recoil valve 1/8" MM
Part Number: C229900548 |
|||
| 84274-2 | 44 | Solenoid valve 230V
Part Number: C199900275 |
|||
| 84274-2 | 44 | Solenoid valve 110V 2 ways 1/8"-1/8"
Part Number: US1005 |
|||
| 84274-2 | 45 | Downtake tube M/T Rota.
Part Number: P1905 |
|||
| 84274-2 | 47 | Motor RPM 220V/50 120W
Part Number: P3026 |
|||
| 84274-2 | 47 | Motor RPM 110V/60 120W
Part Number: US1016 |
|||
| 84274-2 | 54 | Half nut M10 A2
Part Number: P6103 |
|||
| 84274-2 | 55 | Discharge nozzle
Part Number: C227700898 |
|||

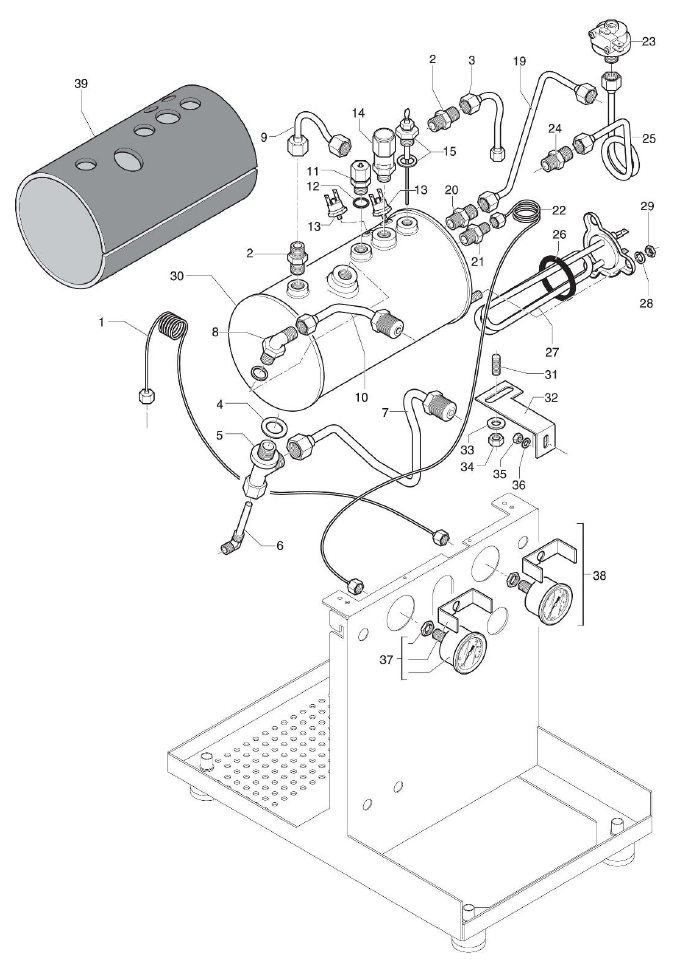

| 84274-3 | 1 | Capillary tube pump p. gauge 1m 1/8"-1/8
Part Number: P6051 |
|||
| 84274-3 | 2 | Dowel 1/4"- 1/4"
Part Number: C229900520 |
|||
| 84274-3 | 3 | Boiler loading tube
Part Number: P1904 |
|||
| 84274-3 | 4 | Copper gasket 3/8" heat exchanger
Part Number: P2045 |
|||
| 84274-3 | 5 | Connection injection pipe
Part Number: C229900740 |
|||
| 84274-3 | 6 | Injection pipe
Part Number: C229900393 |
|||
| 84274-3 | 7 | Pipe return flow group
Part Number: P1901 |
|||
| 84274-3 | 8 | Angle boiler/heat exchanger 1/4"
Part Number: P2040 |
|||
| 84274-3 | 9 | Wand steam extraction
Part Number: P1902 |
|||
| 84274-3 | 10 | Entry pipe group
Part Number: P1900 |
|||
| 84274-3 | 11 | Vacuum valve long
Part Number: C219900561 |
|||
| 84274-3 | 12 | Copper gasket 1/4"
Part Number: P2049 |
|||
| 84274-3 | 13 | Safety thermostat 135 C
Part Number: C199901550 |
|||
| 84274-3 | 14 | Safety valve 3/8"
Part Number: C229900559 |
|||
| 84274-3 | 15 | Fill lever probe L: 80 mm
Part Number: C199900839 |
|||
| 84274-3 | 19 | Hot water wand
Part Number: P1903 |
|||
| 84274-3 | 20 | Dowel 1/4"- 1/4"
Part Number: C229900520 |
|||
| 84274-3 | 21 | Dowel 1/4" 1/8"
Part Number: C229900519 |
|||
| 84274-3 | 22 | Capillary tube boiler
Part Number: B7400902 |
|||
| 84274-3 | 23 | Pressure switch
Part Number: C199900294 |
|||
| 84274-3 | 24 | Dowel 1/4" - 1/4"
Part Number: C229900520 |
|||
| 84274-3 | 25 | Copper pipe gange boiler
Part Number: C229901576 |
|||
| 84274-3 | 26 | Seal heater
Part Number: P9013 |
|||
| 84274-3 | 27 | Heating 230 V 1400W for Rota
Part Number: P7014.1 |
|||
| 84274-3 | 27 | Heating 110 V 1400W for Rota
Part Number: US1000 |
|||
| 84274-3 | 28 | Washer 0 8
Part Number: P2010 |
|||
| 84274-3 | 29 | Hex nut M8 V2
Part Number: C309900127 |
|||
| 84274-3 | 30 | Boiler Inox
Part Number: P7014.2 |
|||
| 84274-3 | 31 | Threat pin M8 x 16 VA flat
Part Number: P6104 |
|||
| 84274-3 | 32 | Boiler bracket
Part Number: P3003.1 |
|||
| 84274-3 | 33 | Washer 0 8
Part Number: P2010 |
|||
| 84274-3 | 34 | Hex nut M8 V2
Part Number: C309900127 |
|||
| 84274-3 | 35 | Nut M5 A2
Part Number: P6102 |
|||
| 84274-3 | 36 | Waher D5,3
Part Number: P2043 |
|||
| 84274-3 | 38 | Pump pressure gauge with ECM
Part Number: B7432517 |
|||
| 84274-3 | 37 | Boiler pressure gauge with ECM
Part Number: B7432516 |
|||
| 84274-3 | 39 | Boiler insulation
Part Number: P7050 |
|||

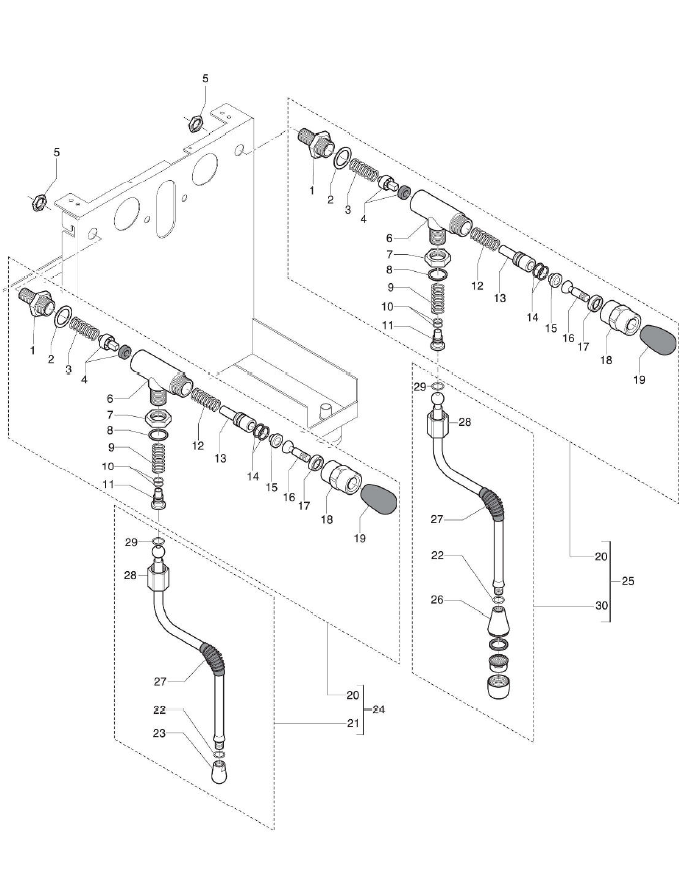

| 84274-4 | 1 | Adapter QS
Part Number: P6003.11 |
|||
| 84274-4 | 2 | Gasket teflon PTFE 24x19x2
Part Number: P6003.10 |
|||
| 84274-4 | 3 | Spring V QS
Part Number: P6003.7 |
|||
| 84274-4 | 4 | Plug valve QS
Part Number: P6003.9 |
|||
| 84274-4 | 5 | Nut (half) 1/4"
Part Number: C329900682 |
|||
| 84274-4 | 6 | Corpus QS
Part Number: P6003.8 |
|||
| 84274-4 | 7 | Counter nut QS
Part Number: P6003.12 |
|||
| 84274-4 | 8 | Teflon gasket for valve
Part Number: P6015 |
|||
| 84274-4 | 9 | Spring F QS
Part Number: P6003.13 |
|||
| 84274-4 | 10 | Gasket OR-6 7,2x1,9
Part Number: P6003.15 |
|||
| 84274-4 | 11 | Ball pan QS
Part Number: P6003.14 |
|||
| 84274-4 | 12 | Spring V QS
Part Number: P6003.7 |
|||
| 84274-4 | 13 | Nozzle QS valve
Part Number: P6003.5 |
|||
| 84274-4 | 14 | OR 113
Part Number: P6003.6 |
|||
| 84274-4 | 15 | Knob QS
Part Number: P6003.4 |
|||
| 84274-4 | 16 | Inox lever QS
Part Number: P6003.3 |
|||
| 84274-4 | 17 | Gasket inox QS
Part Number: P6003.2 |
|||
| 84274-4 | 18 | Nut lever valve QS
Part Number: P6003.1 |
|||
| 84274-4 | 19 | Lever handle M8
Part Number: C439900840 |
|||
| 84274-4 | 20 | Steam/Hotwater valve
(not included 8, 9, 10, 11, 19)
Part Number: P6003 |
|||
| 84274-4 | 21 | Steam wand for serie IV
Part Number: P6002 |
|||
| 84274-4 | 22 | OR steam nozzle
Part Number: P6002.1 |
|||
| 84274-4 | 23 | Steam nozzle 2 holes
Part Number: P6002.4 |
|||
| 84274-4 | 23 | Steam nozzle 4 holes
Part Number: P6002.6 |
|||
| 84274-4 | 23 | Steam nozzle 5 holes
Part Number: P6002.3 |
|||
| 84274-4 | 24 | Steam valve QS complete
Part Number: P6003.KD |
|||
| 84274-4 | 25 | Hot water valve QS complete
Part Number: P6003.KH |
|||
| 84274-4 | 26 | Hot water discharge complete
Part Number: P6001.1 |
|||
| 84274-4 | 27 | Rubber insulating steam/hot water wand
Part Number: P6002.2 |
|||
| 84274-4 | 28 | Nut steam-/hot water wand
Part Number: P6002.5 |
|||
| 84274-4 | 29 | Lower OR nut steam-/hot water nut
Part Number: C449900719 |
|||
| 84274-4 | 30 | Hot water wand for serie IV
Part Number: P6001 |
|||

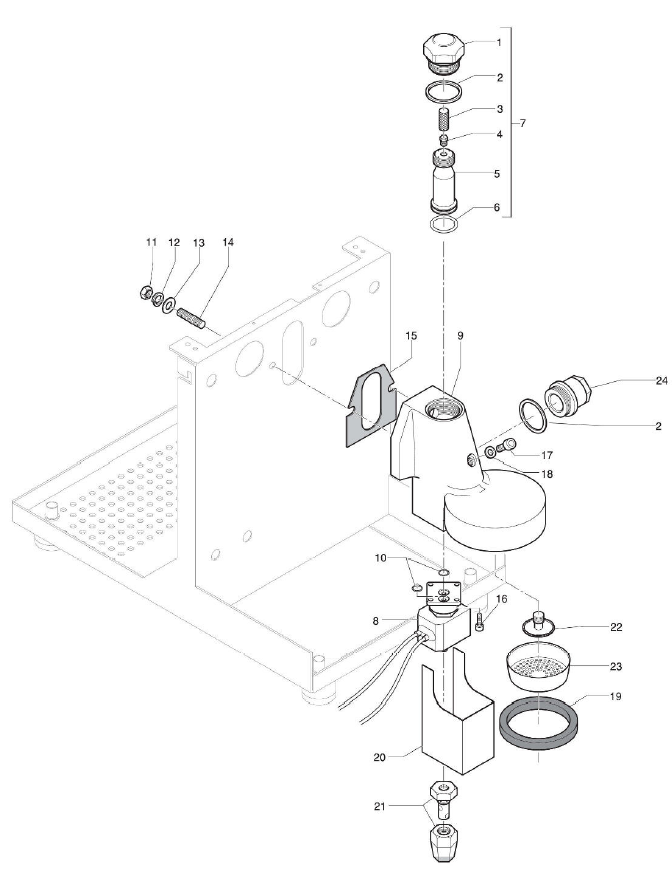

| 84274-5 | 1 | Upper fitting group cylinder
Part Number: P1000.2 |
|||
| 84274-5 | 2 | Gasket plug gigleur
Part Number: C469900420 |
|||
| 84274-5 | 3 | Inox filter 0,8
Part Number: C619900554 |
|||
| 84274-5 | 4 | Flow restrictor 0,8
Part Number: C229900549 |
|||
| 84274-5 | 5 | Upper sleave assembly
Part Number: P1000.3 |
|||
| 84274-5 | 6 | Gasket socket brew unit
Part Number: C469900422 |
|||
| 84274-5 | 7 | Socket group stainless steel complete
Part Number: P1000.1 |
|||
| 84274-5 | 8 | 3way solenoid valve V230/50-60
Part Number: C100001891 |
|||
| 84274-5 | 8 | 3way solenoid valve V110
Part Number: US1007 |
|||
| 84274-5 | 9 | Brew group body
Part Number: P1007 |
|||
| 84274-5 | 10 | OR 2025 Viton 6.07x1.78
Part Number: C449900786 |
|||
| 84274-5 | 11 | Hex-nut M8 V2
Part Number: C309900127 |
|||
| 84274-5 | 12 | Plain washer open 0,8
Part Number: P2011 |
|||
| 84274-5 | 13 | Plain washer 0,8
Part Number: P2010 |
|||
| 84274-5 | 14 | Allen screw M8x31 ASTM a193
Part Number: C309900131 |
|||
| 84274-5 | 15 | Housing gasket brew group
Part Number: C449900767 |
|||
| 84274-5 | 16 | Srew cylinder M4x10 A2
Part Number: B7817004 |
|||
| 84274-5 | 17 | Screw cylinder M6x10
Part Number: C309900164 |
|||
| 84274-5 | 18 | Teflon gasket 10x6x1
Part Number: C469901132 |
|||
| 84274-5 | 19 | Group gasket H=0,8mm
Part Number: C449900229 |
|||
| 84274-5 | 20 | Cover brew group
Part Number: P3545 |
|||
| 84274-5 | 21 | Discharge brew group
Part Number: P6512 |
|||
| 84274-5 | 22 | Sprayer brew group
Part Number: C229901128 |
|||
| 84274-5 | 23 | Shower screen E61
Part Number: C519900103 |
|||
| 84274-5 | 24 | Cap brew group
Part Number: P1006 |
|||

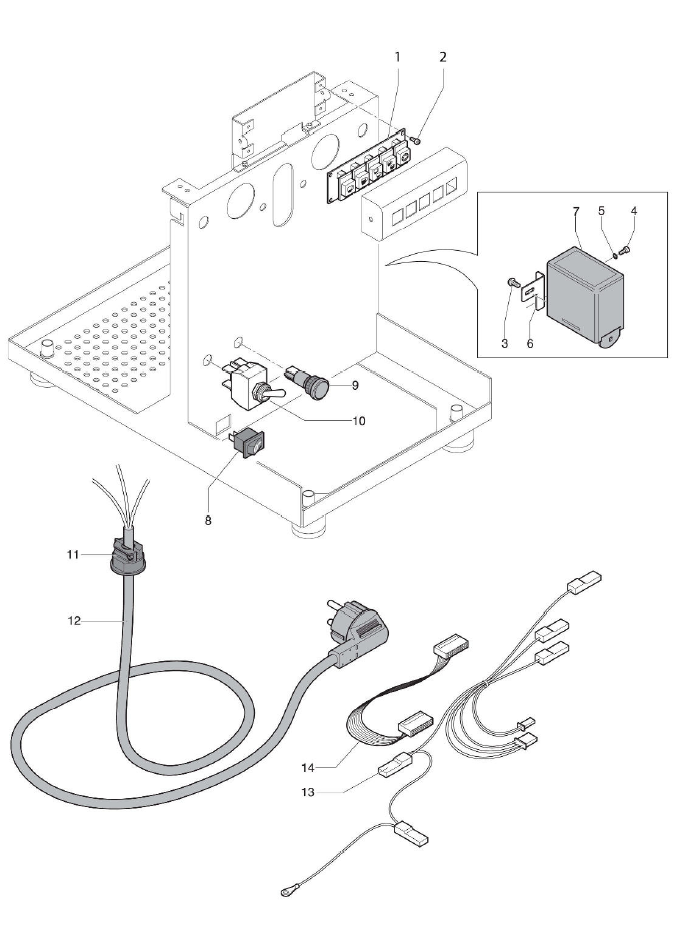

| 84274-6 | 1 | Keypad for Elektronika
Part Number: P4006 |
|||
| 84274-6 | 2 | Lens-head srew M3x6 A2
Part Number: P6106 |
|||
| 84274-6 | 3 | Srew cylinder M5x10
Part Number: P2008 |
|||
| 84274-6 | 4 |
|
Screw lens M4x10 A2 Part Number: P2022 |
$5.37 | View Part |
| 84274-6 | 5 | Lock washer 0,4
Part Number: P2004 |
|||
| 84274-6 | 6 | Sheetmetal holder for controlbox Elektro.
Part Number: P3005 |
|||
| 84274-6 | 7 | Controlbox
Part Number: P4007 |
|||
| 84274-6 | 7 | Controlbox
Part Number: US1006 |
|||
| 84274-6 | 8 | Switch water tank/fixed water
Part Number: P9114 |
|||
| 84274-6 | 9 | Control lamp green 220/240V
Part Number: B7633618 |
|||
| 84274-6 | 10 | On/off switch metal
Part Number: C199900087 |
|||
| 84274-6 | 11 | Cable brace/cable clip
Part Number: C439900086 |
|||
| 84274-6 | 12 | UK power cord 3x1.5 1.80m long
Part Number: P2035 |
|||
| 84274-6 | 12 | AUS power cord 3x1.5 1.80m long
Part Number: P2036 |
|||
| 84274-6 | 12 | US power cord 3x1.5 1.80m long
Part Number: P2034 |
|||
| 84274-6 | 12 | Cable connection 3x1.5
Part Number: C199900957 |
|||
| 84274-6 | 13 | Cable loom Elektronika Profi II
Part Number: P6053.1 |
|||
| 84274-6 | 14 | Flat band cable
Part Number: C199900270 |
|||
| 84274-7 | 1 | Cleaning brush for shower screen
Part Number: R210 |
|||
| 84274-7 | 2 | Measuring spoon
Part Number: C639900710 |
|||
| 84274-7 | 4 | Tamper plastic
Part Number: C639900764 |
|||
| 84274-7 | 5 | Filter 7g
Part Number: C619900104 |
|||
| 84274-7 | 6 | Filter holder 1 spout chrome/black
Part Number: 89424 |
|||
| 84274-7 | 7 | Spout 1 cup
Part Number: C229900562 |
|||
| 84274-7 | 8 | Blind filter
Part Number: C619900106 |
|||
| 84274-7 | 9 | Filter 14g
Part Number: C619900105 |
|||
| 84274-7 | 10 | Filter holder 2 spouts chrome/black
Part Number: 89425 |
|||
| 84274-7 | 11 | Spout 2 cups wide
Part Number: C229900566 |
