ECM Mechanika Max Part Diagram 82295
This is the ECM Mechanika Max Part Diagram 82295. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

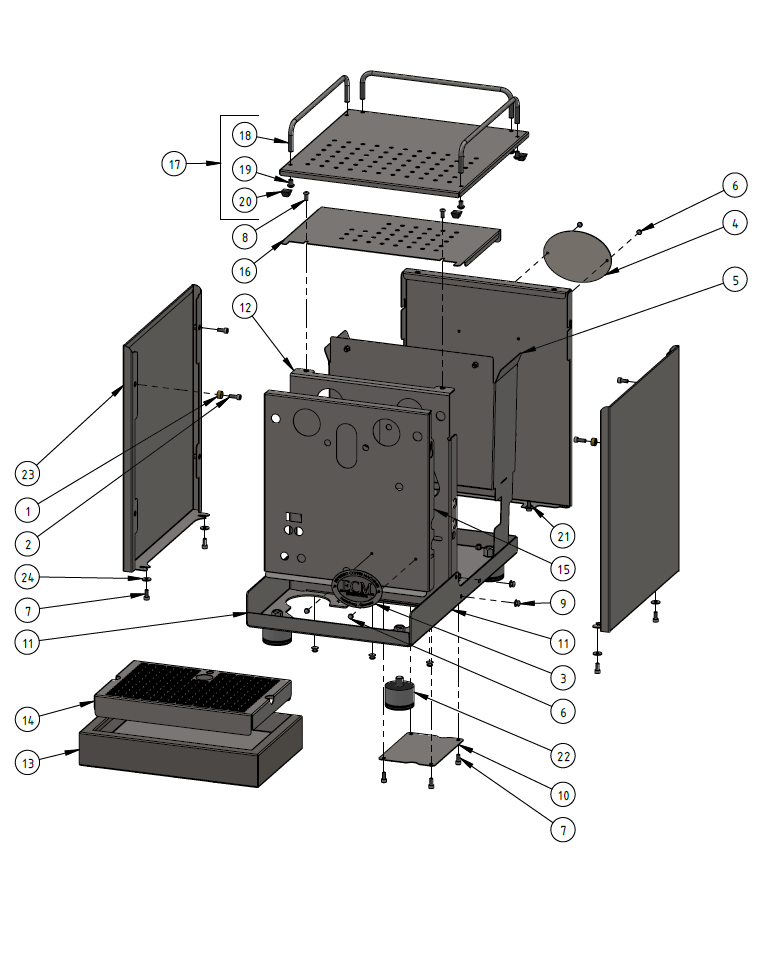

| 82295-1 | 1 |
|
Connector bushing 10x4,7x7 Part Number: B5220818 |
$6.43 | View Part |
| 82295-1 | 2 | Hex socket head cap screw M4 x 12 A2
Part Number: B7819901 |
|||
| 82295-1 | 3 | Emblem ECM Front panel Part Number: E81100 |
$33.46 | View Part | |
| 82295-1 | 4 | Emblem back panel ECM Part Number: ER8285 |
$21.13 | View Part | |
| 82295-1 | 5 | Water tank guide Mechanika MAX
Part Number: M3006.6 |
|||
| 82295-1 | 6 |
|
Blind rivet truss head 3,2x8 Part Number: P1999 |
$5.14 | View Part |
| 82295-1 | 7 |
|
Hex socket head cap screw M4 x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 82295-1 | 8 |
|
Hex socket button head screw M4 x 10 A2 Part Number: P2022 |
$5.37 | View Part |
| 82295-1 | 9 | Blind rivet inox 4.8
Part Number: P2076 |
|||
| 82295-1 | 10 | Maintenance cover
Part Number: P2127 |
|||
| 82295-1 | 11 | Base Frame bottom Mechanika MAX
Part Number: P2715.2 |
|||
| 82295-1 | 12 | Base frame front Mechanika MAX
Part Number: P2715.1 |
|||
| 82295-1 | 13 | Drip Tray Mechanika MAX
Part Number: P2716 |
|||
| 82295-1 | 14 | Grid watertray Mechanika MAX
Part Number: P2717 |
|||
| 82295-1 | 15 | Front Panel Mechanika MAX
Part Number: P2718 |
|||
| 82295-1 | 16 | Lower Cup Warming Tray Mechanika MAX
Part Number: P2719 |
|||
| 82295-1 | 17 | Cup Warming Tray Mechanika MAX Part Number: P2720 |
$68.60 | View Part | |
| 82295-1 | 18 |
|
Reiling straight Part Number: P3002 |
$38.66 | View Part |
| 82295-1 | 19 | Hex socket button head screw M5 x 8 - A2
Part Number: P2008 |
|||
| 82295-1 | 20 |
|
Adhesive foot for cup warming tray Part Number: B7474212 |
$7.35 | View Part |
| 82295-1 | 21 | Back panel Mechanika MAX
Part Number: P2722 |
|||
| 82295-1 | 22 | Appliance feet Inoc H30mm M10
Part Number: P7025 |
|||
| 82295-1 | 23 | Side panel left / right Mechanika Slim/MAX
Part Number: P9029 |
|||
| 82295-1 | 24 | Washer M4 A2 - A=12mm
Part Number: P6100 |
|||

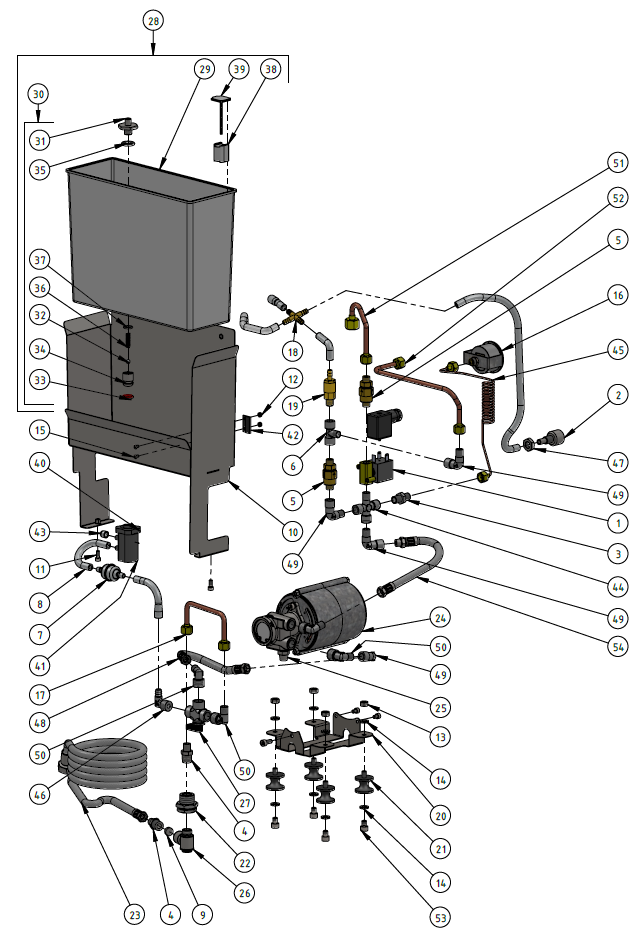

| 82295-2 | 1 | Solenoid valve 2/2-ways G1/8" F-F 230V/50Hz
Part Number: C199900275 |
|||
| 82295-2 | Solenoid valve 2/2-ways G1/8" F-F 115V/60Hz
Part Number: US1005 |
||||
| 82295-2 | 2 | Drain nozzle
Part Number: C227700898 |
|||
| 82295-2 | 3 | Nipples G1/8" M - G1/8" M
Part Number: C229900518 |
|||
| 82295-2 | 4 | Nipple G1/4"M - G1/8"M
Part Number: C229900519 |
|||
| 82295-2 | 5 | Check valve 1/8" MM
Part Number: C229900548 |
|||
| 82295-2 | 6 | T-connector 1/8"FMF
Part Number: C229900703 |
|||
| 82295-2 | 7 | Filter water tank operation
Part Number: C439900695 |
|||
| 82295-2 | 8 | Silicone hose transparent
Part Number: C499900769 |
|||
| 82295-2 | 9 | Filter fixed water inlet
Part Number: C519900369 |
|||
| 82295-2 | 10 | Water tank guide Mechanika MAX
Part Number: M3006.6 |
|||
| 82295-2 | 11 |
|
Hex socket head cap screw M4 x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 82295-2 | 12 | Hexagon Nut M3 A2
Part Number: P2019 |
|||
| 82295-2 | 13 | Hex nut M6 A2
Part Number: P2051 |
|||
| 82295-2 | 14 | Washer M6 A2
Part Number: P2052 |
|||
| 82295-2 | 15 | Hex socket button head screw M3 x 5 A2
Part Number: P2064 |
|||
| 82295-2 | 16 | ECM Pump pressure gauge white 40mm 0-16Bar
Part Number: P2450 |
|||
| 82295-2 | 17 | Pipe water mains / valve
Part Number: P2520 |
|||
| 82295-2 | 18 | Cross fitting brass hose
Part Number: P2559 |
|||
| 82295-2 | 19 | Expansionvalve 14 Bar Rota
Part Number: P2567 |
|||
| 82295-2 | 20 | Bracket Motor Mechanika MAX
Part Number: P2724 |
|||
| 82295-2 | 21 | Foot motor rotation pump
Part Number: P3015.1 |
|||
| 82295-2 | 22 | Straight-through fitting G1/4" F - F
Part Number: P3023 |
|||
| 82295-2 | 23 | Flex hose G1/8"F - G3/8"F 150cm
Part Number: P3036 |
|||
| 82295-2 | 24 | Motor compact Mechanika MAX 230V
Part Number: P3042 |
|||
| 82295-2 | Motor compact Mechanika MAX 115V
Part Number: P3043 |
||||
| 82295-2 | 25 | Pump 50 l/h mini stainless steel
Part Number: P3044 |
|||
| 82295-2 | 26 | Elbow 360 rotary G1/4" M - F
Part Number: P3527 |
|||
| 82295-2 | 27 | Valve 3-ways manual G1/4" FFF
Part Number: P3528 |
|||
| 82295-2 | 28 | Watertank complete
Part Number: P6014.K |
|||
| 82295-2 | 29 | Water tank blank
Part Number: P6014 |
|||
| 82295-2 | 30 | Watertank adapter complete
Part Number: P6020.NK |
|||
| 82295-2 | 31 | Water tank adapter screw fitting
Part Number: P6020 |
|||
| 82295-2 | 32 | Ball water tank lock
Part Number: B5471509 |
|||
| 82295-2 | 33 | Seal water tank adapter lower
Part Number: B7496076 |
|||
| 82295-2 | 34 | Water tank adapter union
Part Number: P6017 |
|||
| 82295-2 | 35 | Seal water tank adapter upper
Part Number: P6020.3 |
|||
| 82295-2 | 36 | Spring water tank lock
Part Number: P6023 |
|||
| 82295-2 | 37 | Seal water tank adapter middle
Part Number: P6025 |
|||
| 82295-2 | 38 | Reed swimmer
Part Number: P6021 |
|||
| 82295-2 | 39 | Floater cap water tank
Part Number: P6016 |
|||
| 82295-2 | 40 | Watertank adapter connector nut M20
Part Number: P6020.K3 |
|||
| 82295-2 | 41 | Water tank adapter connector
Part Number: P6020.K4 |
|||
| 82295-2 | 42 | Reed sensor low water switch-off
Part Number: P6022 |
|||
| 82295-2 | 43 | Closure cap WT-connector silicone
Part Number: P6026 |
|||
| 82295-2 | 44 | Cross fitting 1/8" MFFF
Part Number: P6047 |
|||
| 82295-2 | 45 | Capillary pipe pump pressure gauge
Part Number: P6051 |
|||
| 82295-2 | 46 | Elbow 1/4"M 6mm silicone tube
Part Number: P6057 |
|||
| 82295-2 | 47 | Hex thin nut chamfered M10 A2
Part Number: P6103 |
|||
| 82295-2 | 48 | Flexible metal hose G1/8" F - F 250mm
Part Number: P8016 |
|||
| 82295-2 | 49 | Elbow G1/8" M - G1/8" F
Part Number: P9014 |
|||
| 82295-2 | 50 | Elbow G1/4"M - G1/8"M
Part Number: P9015 |
|||
| 82295-2 | 51 | Boiler filling pipe Mechanika MAX
Part Number: P9423 |
|||
| 82295-2 | 52 | Downtake pipe Mechanika Max
Part Number: P9424 |
|||
| 82295-2 | 53 | Hex socket head cap screw M6 x 8 A2
Part Number: P2077 |
|||
| 82295-2 | 54 | Flexible metal hose G1/8" M - F 180mm
Part Number: P8012 |
|||

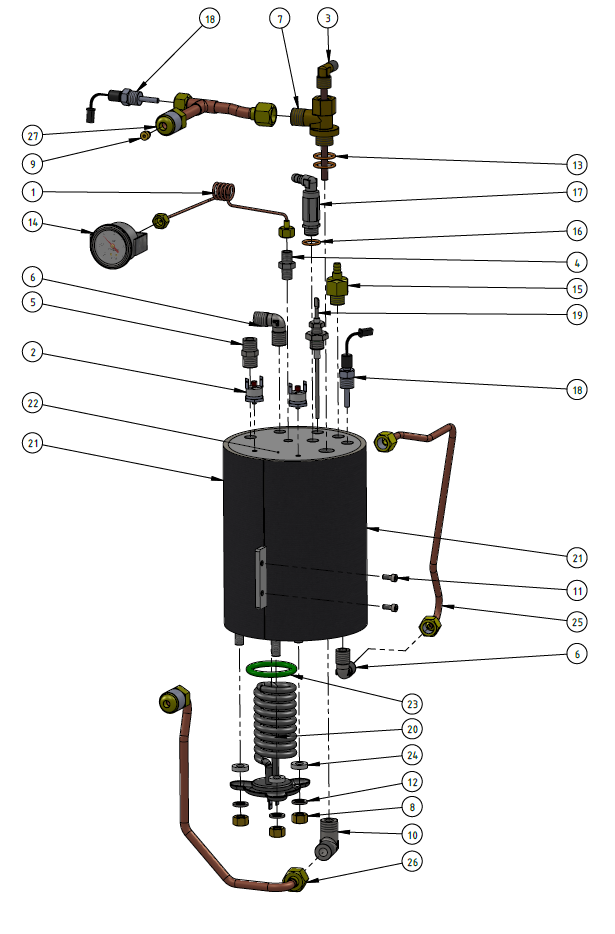

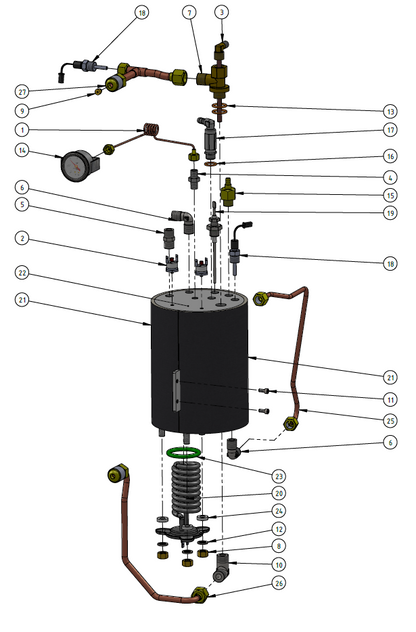

| 82295-3 | 1 | Capillary pipe boiler gauge
Part Number: B7400902 |
|||
| 82295-3 | 2 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| 82295-3 | 3 | Injection pipe
Part Number: C229900393 |
|||
| 82295-3 | 4 | Nipples G1/8" M - G1/8" M
Part Number: C229900518 |
|||
| 82295-3 | 5 | Nipple G1/4"M - G1/4"M
Part Number: C229900520 |
|||
| 82295-3 | 6 | Elbow 1/4"MM conical-conical
Part Number: C229900525 |
|||
| 82295-3 | 7 | Connection injection pipe
Part Number: C229900740 |
|||
| 82295-3 | 8 | Hex nut M8 brass
Part Number: C309900127.2 |
|||
| 82295-3 | 9 | Press-fit nozzle 2,5mm
Part Number: P1910.1 |
|||
| 82295-3 | 10 | Elbow boiler/heat exchanger G3/8 "M - G3/8 "M
Part Number: P1930 |
|||
| 82295-3 | 11 |
|
Hex socket head cap screw M4 x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 82295-3 | 12 | Spring washer M8 A2
Part Number: P2011 |
|||
| 82295-3 | 13 | Copper sealing ring G3/8"
Part Number: P2045 |
|||
| 82295-3 | 14 | ECM Boiler pressure gauge white 40mm 0-3Bar
Part Number: P2451 |
|||
| 82295-3 | 15 | Anti-vacuum valve with drain 1/4"
Part Number: P2561 |
|||
| 82295-3 | 16 | Copper sealing ring 1/4"
Part Number: P2049 |
|||
| 82295-3 | 17 | Safety relief valve 2,5 bar w. drain G1/4"
Part Number: P2661 |
|||
| 82295-3 | 18 | Temperature probe G1/4"
Part Number: P6037 |
|||
| 82295-3 | 19 | Level control probe 97mm
Part Number: P6310 |
|||
| 82295-3 | 20 | Heating element stainless steel boiler 230V 1400W
Part Number: P7014.1 |
|||
| 82295-3 | Heating element stainless steel boiler 230V 1400W
Part Number: US1000 |
||||
| 82295-3 | 21 | Boiler insulation
Part Number: P7049 |
|||
| 82295-3 | 22 | Boiler Inox heat exchanger
Part Number: P7081 |
|||
| 82295-3 | 23 | Seal heating element stainless steel boiler
Part Number: P9013 |
|||
| 82295-3 | 24 | Washer Teflon 7,8 x 15,8 x 4mm
Part Number: P9033 |
|||
| 82295-3 | 25 | Water extraction pipe Mechanika MAX
Part Number: P9421 |
|||
| 82295-3 | 26 | Return pipe Mechanika MAX
Part Number: P9426 |
|||
| 82295-3 | 27 | Entry pipe with sensor connection G1/4"
Part Number: P9427 |
|||

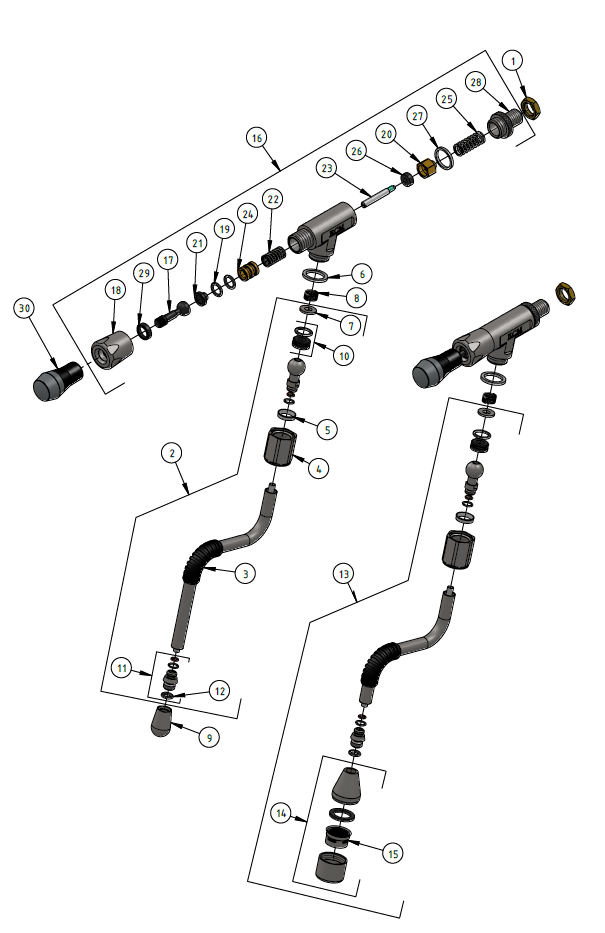

| 82295-4 | 1 | Half nut 1/4"
Part Number: C329900682 |
|||
| 82295-4 | 2 | Steam lance No-Burn ECM
Part Number: P6005 |
|||
| 82295-4 | 3 | Rubber insulation
Part Number: P6002.2 |
|||
| 82295-4 | 4 | Nut steam-/hot water lance
Part Number: P6005.5 |
|||
| 82295-4 | 5 | Ball socket teflon
Part Number: P6010 |
|||
| 82295-4 | 6 | Teflon gasket for valve
Part Number: P6015 |
|||
| 82295-4 | 7 | Washer valve P6000
Part Number: P6012 |
|||
| 82295-4 | 8 | Spring Valve P6000
Part Number: P6011 |
|||
| 82295-4 | 9 | 2-hole Steam-nozzle no burn
Part Number: P6002.4 |
|||
| 82295-4 | 10 | Ball socket teflon
Part Number: P6010 |
|||
| 82295-4 | 11 | Adaptor steam-/hotwater nozzle
Part Number: P6006.1 |
|||
| 82295-4 | 12 | OR Steam nozzle
Part Number: P6002.1 |
|||
| 82295-4 | 13 | Hot water lance no-burn
Part Number: P6006 |
|||
| 82295-4 | 14 | Perlator hot water pipe complete
Part Number: P6001.1 |
|||
| 82295-4 | 15 | Strainer hot water outlet
Part Number: P6001.2 |
|||
| 82295-4 | 16 | QS-valve small ECM G1/4"
Part Number: P6080 |
|||
| 82295-4 | 17 | Lever QS-valve small
Part Number: P6080.3 |
|||
| 82295-4 | 18 | Union nut QS valve small
Part Number: P6080.1 |
|||
| 82295-4 | 19 | O-Ring valve piston
Part Number: P6080.5 |
|||
| 82295-4 | 20 | Holder valve seat seal
Part Number: P6080.11 |
|||
| 82295-4 | 21 | Button locking element valve
Part Number: P6080.4 |
|||
| 82295-4 | 22 | Valvespring front
Part Number: P6080.7 |
|||
| 82295-4 | 23 | Valve tappet
Part Number: P6080.9 |
|||
| 82295-4 | 24 | Valve piston radial sealing
Part Number: P6080.6 |
|||
| 82295-4 | 25 | Valvespring rearside
Part Number: P6080.13 |
|||
| 82295-4 | 26 | Valve sealing element EPDM
Part Number: P6080.10 |
|||
| 82295-4 | 27 | Flat ring seal PTFE
Part Number: P6080.12 |
|||
| 82295-4 | 28 | Valve fitting stainless steel G1/4"
Part Number: P6080.14 |
|||
| 82295-4 | 29 | Insert ring valve nut
Part Number: P6080.2 |
|||
| 82295-4 | 30 | Handle M8 quick steam valve
Part Number: P1019 |
|||

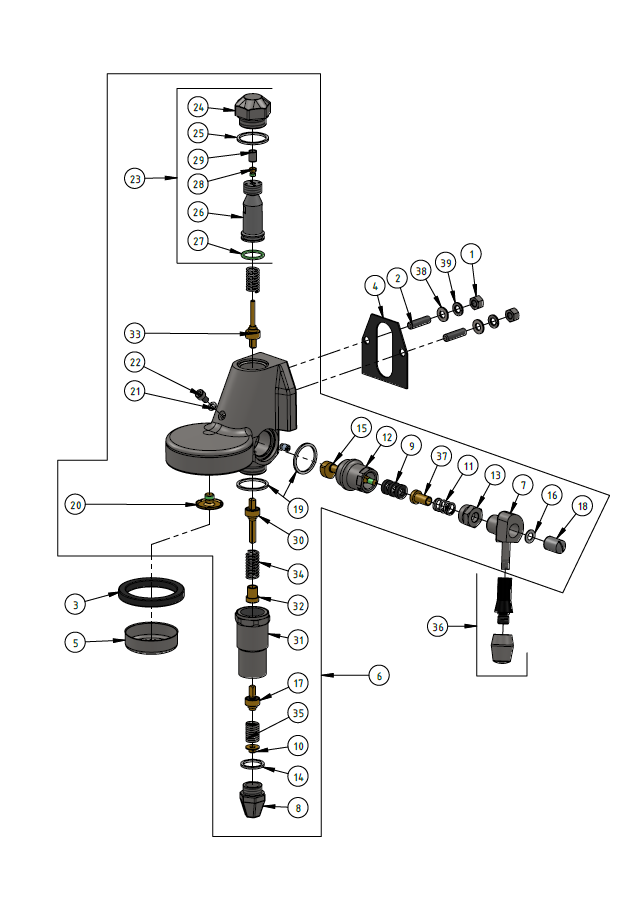

| 82295-5 | 1 | Hex nut M8 A2
Part Number: C309900127 |
|||
| 82295-5 | 2 | Socket set screw flat point M8 x 30 A2
Part Number: C309900131 |
|||
| 82295-5 | 3 | Group gasket H=8,5mm
Part Number: P1021 |
|||
| 82295-5 | 4 | Gasket brew group/front panel E61
Part Number: C449900767 |
|||
| 82295-5 | 5 | Shower screen E-61
Part Number: C519900103 |
|||
| 82295-5 | 6 | Brewgroup ECM E61
Part Number: P1016 |
|||
| 82295-5 | 7 | Camlever short
Part Number: P1000.2 |
|||
| 82295-5 | 8 | Outlet brew group bottom
Part Number: P1000.5 |
|||
| 82295-5 | 9 | Sealing camshaft brewgroup E61
Part Number: C219900426 |
|||
| 82295-5 | 10 | Sprayer lower
Part Number: R000002148 |
|||
| 82295-5 | 11 | Spring axis group
Part Number: C219900427 |
|||
| 82295-5 | 12 | Flange
Part Number: R000002142 |
|||
| 82295-5 | 13 | Screw joint axis group
Part Number: R000002144 |
|||
| 82295-5 | 14 | Teflon gasket 26x21x2
Part Number: C469900783 |
|||
| 82295-5 | 15 | Camshaft brewgroup E61
Part Number: C219900425 |
|||
| 82295-5 | 16 | Lock washer M8
Part Number: B7479947 |
|||
| 82295-5 | 17 | Valve group E61 lower
Part Number: C219900430 |
|||
| 82295-5 | 18 | Bolt lever
Part Number: R000002146 |
|||
| 82295-5 | 19 | Gasket axis 35x30x2
Part Number: C469900421 |
|||
| 82295-5 | 20 | Sprayer brew group
Part Number: C229901128 |
|||
| 82295-5 | 21 | Teflon gasket 10x6x1
Part Number: C469901132 |
|||
| 82295-5 | 22 | Hex socket head cap screw M6 x 10 A2
Part Number: P2057 |
|||
| 82295-5 | 23 | E61 Inox Mushroom assembly
Part Number: P1000.1 |
|||
| 82295-5 | 24 | Screw plug brew group cylinder ECM
Part Number: P1000.4 |
|||
| 82295-5 | 25 | Gasket axis 35x30x2
Part Number: C469900421 |
|||
| 82295-5 | 26 | Brewgroup cylinder
Part Number: P1000.3 |
|||
| 82295-5 | 27 | Gasket socket brew group
Part Number: C469900422 |
|||
| 82295-5 | 28 | Flow restrictor 0,8
Part Number: C229900549 |
|||
| 82295-5 | 29 | Metal filter Gigleur
Part Number: P1025.4 |
|||
| 82295-5 | 30 | Valve group E61 middle
Part Number: C219903081 |
|||
| 82295-5 | 31 | Sleeve assembly
Part Number: C229901165 |
|||
| 82295-5 | 32 | Spring guide group
Part Number: B7479942 |
|||
| 82295-5 | 33 | Valvestem upper brewgroup E61
Part Number: C219900424 |
|||
| 82295-5 | 34 | Spring upper/middle
Part Number: C219900423 |
|||
| 82295-5 | 35 | Spring lower
Part Number: C219900431 |
|||
| 82295-5 | 36 | Lever E61 M8 chrome
Part Number: P1002 |
|||
| 82295-5 | 37 | Grouting piece gland seal
Part Number: P1004 |
|||
| 82295-5 | 38 | Washer metric size 8 A2
Part Number: P2010 |
|||
| 82295-5 | 39 | Spring washer M8 A2
Part Number: P2011 |
|||

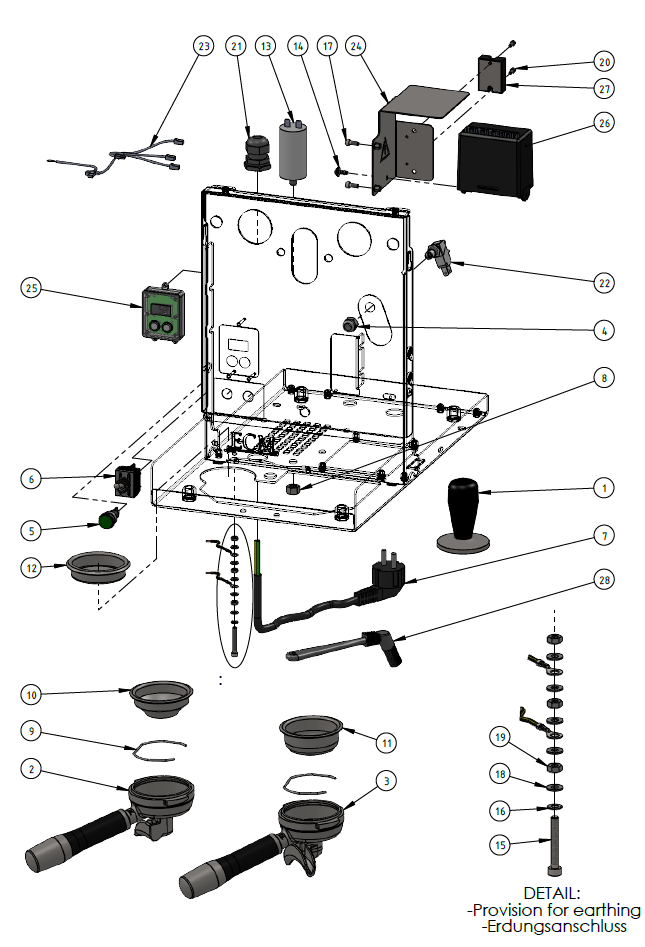

| 82295-6 | 1 | Neutral Tamper
Part Number: 89410 |
|||
| 82295-6 | 2 | ECM Portafiltre 1 spout
Part Number: 89424 |
|||
| 82295-6 | 3 | ECM Portafiltre 2 spouts
Part Number: 89425 |
|||
| 82295-6 | 4 | Hexagon nut microswitch
Part Number: B5221875CM |
|||
| 82295-6 | 5 | Control lamp green 230V
Part Number: B7633618 |
|||
| 82295-6 | 6 | Toggle switch I/O
Part Number: C199900087 |
|||
| 82295-6 | 7 | Power cord-set
Part Number: C199900957 |
|||
| 82295-6 | Power cord US-plug
Part Number: P2034 |
||||
| 82295-6 | Power cord UK-plug
Part Number: P2035 |
||||
| 82295-6 | Power cord AU/CN-plug
Part Number: P2036 |
||||
| 82295-6 | Power cord CH-plug
Part Number: P2037 |
||||
| 82295-6 | Power cord JP-plug
Part Number: P2096 |
||||
| 82295-6 | 8 | Hex nut M8 A2
Part Number: C309900127 |
|||
| 82295-6 | 9 | Locking spring portafilter
Part Number: C619900098 |
|||
| 82295-6 | 10 | Filter for 1 cup 7g coffee
Part Number: C619900104 |
|||
| 82295-6 | 11 | Filter for 2 cups 14g coffee
Part Number: C619900105 |
|||
| 82295-6 | 12 | Blind filter
Part Number: C619900106 |
|||
| 82295-6 | 13 | Condensator motor 6F
Part Number: G1239 |
|||
| 82295-6 | Condensator motor 25F
Part Number: G1241 |
||||
| 82295-6 | 14 | Fastening screw control / power supply unit
Part Number: P1968 |
|||
| 82295-6 | 15 | Hex socket head cap screw M4 x 30 A2
Part Number: P1983 |
|||
| 82295-6 | 16 | Serrated lock wascher M4 A2
Part Number: P2004 |
|||
| 82295-6 | 17 |
|
Hex socket head cap screw M4 x10 A2 Part Number: P2006 |
$5.41 | View Part |
| 82295-6 | 18 | Washer M4 A2
Part Number: P2009 |
|||
| 82295-6 | 19 | Hex nut M4 A2
Part Number: P2026 |
|||
| 82295-6 | 20 | Hex socket head cap screw M3 x 8 - A2
Part Number: P2068 |
|||
| 82295-6 | 21 | Cable gland with nut
Part Number: P2070 |
|||
| 82295-6 | 22 | Microswitch with wheel
Part Number: P2081 |
|||
| 82295-6 | 23 | Cable harness Mechanika MAX
Part Number: P2579 |
|||
| 82295-6 | 24 | Bracket electronic and relay
Part Number: P2723 |
|||
| 82295-6 | 25 | Seven-segment display Mechanika MAX
Part Number: P2801 |
|||
| 82295-6 | 26 | Control Box Mechanika MAX
Part Number: P2810 |
|||
| 82295-6 | 27 | Solid state relay
Part Number: P6029 |
|||
| 82295-6 | 28 | Cleaning brush coffee machine
Part Number: R210 |
