It looks like you've found one of our old product listings! It had a good run and is enjoying some well deserved rest. Instead, we've put together some excellent alternatives below for your consideration.
Need any help? Talk to one of our experts: 585-924-7170

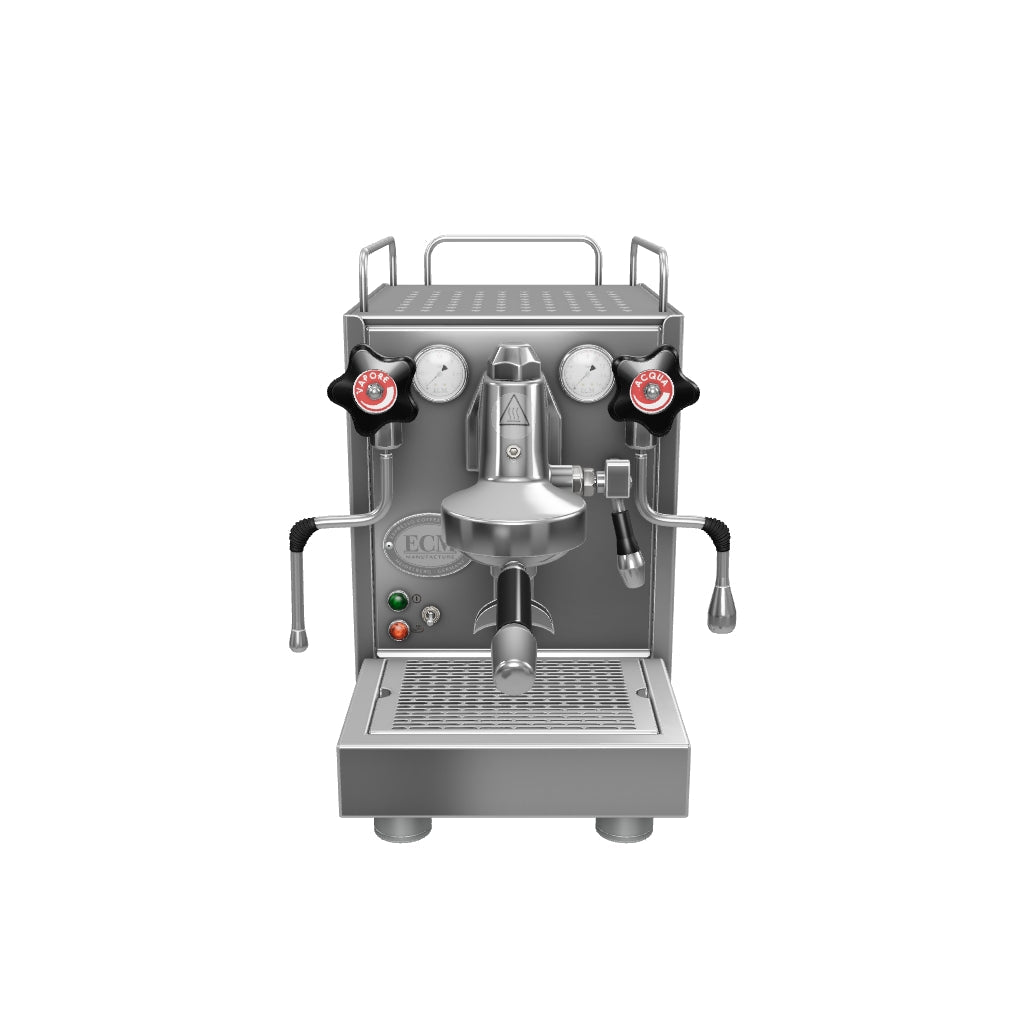

With a width of less than 10 inches, the ECM Mechanika VI Slim is a heat exchanger espresso machine that retains the sleek stylings and 2.2L boiler of previous Mechanika versions, while improving upon its predecessors with updates like an all-new three-position control switch to easily select one of three preset boiler temperatures, as well as the ability to turn pre-infusion and ECO mode on or off.
The Mechanika VI Slim utilizes returning features like dual pressure gauges, a custom ECM E61 brew group, and a PID to help alleviate the constant monitoring of temperature and the need to perform periodic cooling flushes that are required of heat exchanger machines.
New to this version of the Mechanika line of machines is the three-position switch. Located on the right side of the bottom of the machine, the switch allows for easy adjustment between three preset boiler temperatures, as well as the ability to turn pre-infusion and ECO mode on or off.
Inside the mirror-finished, stainless steel exterior is an intuitive interior layout that allows the machine to utilize its signature compact design. The 2.2L stainless steel boiler is vertically oriented to allow for the minimal width, and features thermal insulation for greater energy efficiency. The OPV also remains accessible from the top of the machine, located underneath the reservoir lid.
When it comes to modern heat exchanger espresso machines, the ECM Mechanika VI Slim raises the bar. Not only is the Mechanika VI Slim staggeringly compact, it also houses best-in-class features to maximize the quality of your coffee, as well as minimize the typical maintenance and care required of heat exchanger machines. The addition of a three-position switch for easy adjustment of essential settings like temperature, preinfusion, and ECO mode is truly a game changer in this regard.
Located on the right side of the bottom of the machine, the all-new three-position switch allows for easy adjustment between three preset boiler temperatures, as well as the ability to turn pre-infusion and ECO mode on or off.
With a width of 9.8 inches, a depth of 17.5 inches, and a height of 15.6 inches, the Mechanika VI Slim doesn't ask for much space at all, fitting comfortably beneath standard kitchen cabinetry and leaving plenty of room on the counter.
The Mechanika VI Slim is equipped with a 1400W stainless steel boiler with a capacity of 2.2L. As a heat exchanger machine, you can expect to brew and steam without waiting, or even at the same time.
The E61 grouphead is constantly heated with water from the thermosyphon system for temperature stability. It also features a pre-infusion cylinder to aid in the extraction process.
| Property | Value |
|---|---|
| SKU | 40368 |
| App Connectivity | No |
| Boiler Configuration | Heat Exchanger |
| Number of Boilers | 1 |
| Boiler Features | Brew & Steam Simultaneously |
| Brew Boiler Auto-Fill | Yes |
| Brew Boiler Heater Location | Internal |
| Brew Boiler Insulation | Yes |
| Brew Boiler Material | Stainless Steel |
| Brew Boiler Orientation | Vertical |
| Brew Boiler Volume (Oz) | 74.4 fl-oz |
| Three-Way Valve | Manual |
| Back Flush Capable | Yes |
| Brew Group Material | Chrome Plated Brass |
| Brew Group Size (mm) | 58 mm |
| Brew Group Type | E61 |
| Brew Boiler Wattage | 1400 |
| Recommended Application | Home / Residential |
| NSF Certified | No |
| Display Type | Indicator Lights |
| Controls and Additional Features | Pressure Gauge(s) |
| Pressure Gauges | Brew Circuit,Steam Boiler |
| Type of Controls | Lever, Temperature Switch |
| Cup Warmer Material | Stainless Steel |
| Cup Warmer Size (L-in x W-in) | 10.5 x 9.5 |
| Cup Warmer | Passively Heated |
| Drain Line Adaptable (Plumbable) | No |
| Drip Tray Capacity (oz) | 35 fl-oz |
| Drip Tray Cover Material | Stainless Steel |
| Drip Tray Material | Stainless Steel |
| Removable Drip Tray | Yes |
| Portafilter Baskets Included | Double,Single |
| Housing Color | Stainless Steel |
| Housing Material | Stainless Steel |
| Recommended Water Filter | BWT Bestsave M Anti Scale Filter |
| Depth (Inches) | 17.5 |
| Height (Inches) | 15.5 |
| Weight (Lbs) | 55.5 |
| Width (Inches) | 9.8 |
| Property | Value |
|---|---|
| Bottomless Portafilter Available | Yes |
| Filter Diameter (mm) | 58 mm |
| Portafilter Handle Material | Bakelite Plastic,Plastic |
| Portafilter Material | Chrome Plated Brass |
| Number of Portafilters Included | 2 |
| Ground, E.S.E., Pod and Capsule Compatibility | Ground Coffee |
| Portafilter Type | Commercial Style |
| Portafilter Weight (lbs) | 2 lbs |
| Portafilter Diameter | 58 mm |
| Adjustable Brew Pressure | Yes |
| Pump Pressure (Max. Bar) | 15 Bar |
| Pump Type | Vibration |
| Warranty Service Provider Email | support@wholelattelove.com |
| Warranty Service Provider | Whole Latte Love |
| Warranty Service Provider Phone Number | 888-411-5282 |
| Manufacturers Warranty Period | 3-Year Parts and Labor Warranty |
| Amps | 11.6 A |
| Volt | 110V-120V (US) |
| Watts | 1400 Watt |
| Power Cord Length (inches) | 50 in |
| Power Cord Storage | No |
| Steam Boiler Auto-Fill | Yes |
| Steam Boiler Heater Location | Internal |
| Steam Boiler Insulation | Yes |
| Steam Boiler Orientation | Vertical |
| Steam Boiler Volume (Oz) | 74.4 fl-oz |
| Steam Boiler Vacuum Relief Valve | Yes |
| Steam Boiler Wattage | 1400 Watt |
| Steam Wand Features | No-Burn,Swappable Steam Tips |
| Steam Tip Hole Count | 2 |
| Steam Wand Material | Stainless Steel |
| Steam Wand Movement Type | Fully Articulated |
| Steam Wand | Commercial |
| Water Reservoir Access Location | Top |
| Water Reservoir Capacity | 101.4 fl-oz |
| Water Reservoir Features | Removable |
| Water Reservoir Material | Plastic |
| Water Source | Built-In Reservoir |
