ECM Puristika Part Diagram 81025
This is the ECM Puristika Part Diagram 81025. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

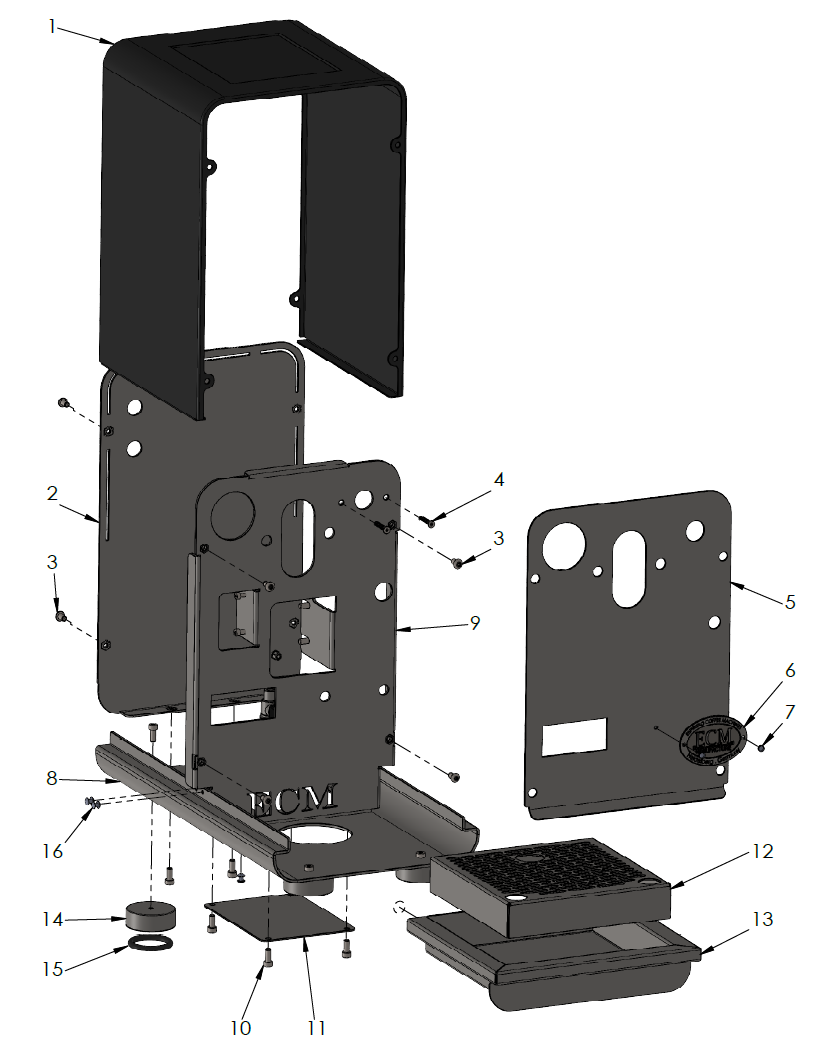

| 81025-1 | 1 | U-Body Puristika
Part Number: P2183 |
|||
| 81025-1 | 2 | Rear panel Puristika
Part Number: P2182 |
|||
| 81025-1 | 3 | Button head screw M4x8
Part Number: P1969 |
|||
| 81025-1 | 4 | Countersunk head screw M4x3
Part Number: P6111 |
|||
| 81025-1 | 5 | Front panel Puristika
Part Number: P2181 |
|||
| 81025-1 | 6 | Emblem ECM 40 x 60 mm
Part Number: 81200 |
|||
| 81025-1 | 7 | Blind rivet struss Head 2,4x8
Part Number: P1998 |
|||
| 81025-1 | 8 | Chassis bottom Puristika
Part Number: P2180.1 |
|||
| 81025-1 | 9 | Chassis front Puristika
Part Number: P2180.2 |
|||
| 81025-1 | 10 |
|
Cylinder head screw Part Number: P2006 |
$5.41 | View Part |
| 81025-1 | 11 | Chassis cover
Part Number: P2127 |
|||
| 81025-1 | 12 | Grid trip tray Puristika
Part Number: P2185 |
|||
| 81025-1 | 13 | Drip tray Puristika
Part Number: P2184 |
|||
| 81025-1 | 14 | Foot Puristika
Part Number: P7031 |
|||
| 81025-1 | 15 |
|
O-Ring Puristika foot Part Number: B7474216.1 |
$5.56 | View Part |
| 81025-1 | 16 | Blind rivet struss Head 3.2x11.5
Part Number: P1967 |
|||

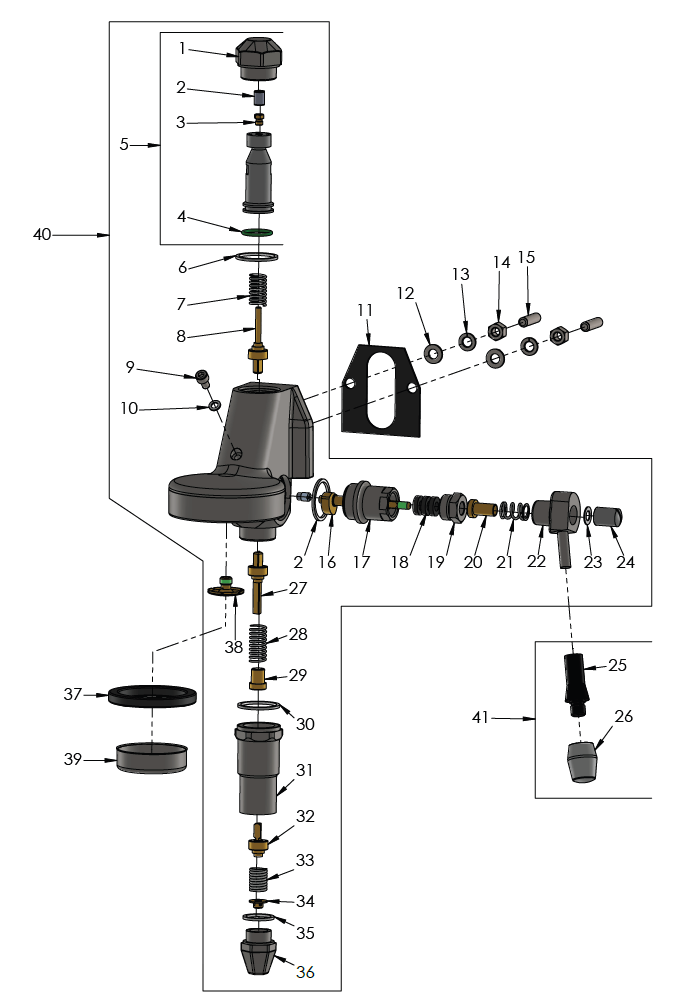

| 81025-2 | 1 | Screwing brewgroup cylinder
Part Number: P1000.4 |
|||
| 81025-2 | 2 | Filter flow restrictor Part Number: P1025.2 |
$10.49 | View Part | |
| 81025-2 | 3 |
|
Flow restrictor 0,8 Part Number: C229900549 |
$8.30 | View Part |
| 81025-2 | 4 |
|
Gasket axis Part Number: C469900421 |
$7.30 | View Part |
| 81025-2 | 5 | Group E61 Inox Bell
Part Number: P1009 |
|||
| 81025-2 | 6 | Gasket socket brew group
Part Number: C469900422 |
|||
| 81025-2 | 7 | Spring upper/middle
Part Number: C219900423 |
|||
| 81025-2 | 8 | Valve brew group E61 upper
Part Number: C219900424 |
|||
| 81025-2 | 9 | Cylinder head screw M6x8 A2
Part Number: P2077 |
|||
| 81025-2 | 10 | Gasket brewgroup front
Part Number: C469901132 |
|||
| 81025-2 | 11 | Gasket brew group/front panel E61
Part Number: C449900767 |
|||
| 81025-2 | 12 | Washer metric 8
Part Number: P2010 |
|||
| 81025-2 | 13 | Spring ring metric 8
Part Number: P2011 |
|||
| 81025-2 | 14 | Hex nut M8
Part Number: C309900127 |
|||
| 81025-2 | 15 | Allen screw M8x31
Part Number: C309900131 |
|||
| 81025-2 | 16 | Camshaft Group E61
Part Number: C219900425 |
|||
| 81025-2 | 17 | Flange
Part Number: R000002142 |
|||
| 81025-2 | 18 | Washer axis group E61
Part Number: C219900426 |
|||
| 81025-2 | 19 | Screw joint axis group
Part Number: R000002144 |
|||
| 81025-2 | 20 | Axle Support group E61
Part Number: P1004 |
|||
| 81025-2 | 21 | Spring axis group
Part Number: C219900427 |
|||
| 81025-2 | 22 | Lever group axle short
Part Number: P1000.2 |
|||
| 81025-2 | 23 | Lock washer metric 8
Part Number: B7479947 |
|||
| 81025-2 | 24 | Bolt lever
Part Number: R000002146 |
|||
| 81025-2 | 25 | Brewlever M8
Part Number: P1002.1 |
|||
| 81025-2 | 26 | Lever endcap chrome
Part Number: P1002.9 |
|||
| 81025-2 | 27 | Valve group E61 middle
Part Number: C219903081 |
|||
| 81025-2 | 28 | Spring upper/middle
Part Number: C219900423 |
|||
| 81025-2 | 29 | Spring guide group
Part Number: B7479942 |
|||
| 81025-2 | 30 |
|
Gasket axis Part Number: C469900421 |
$7.30 | View Part |
| 81025-2 | 31 | Pre-brewing cylinder
Part Number: C229901165 |
|||
| 81025-2 | 32 | Valve group E61 lower
Part Number: C219900430 |
|||
| 81025-2 | 33 | Spring group E61 lower
Part Number: C219900431 |
|||
| 81025-2 | 34 | Sprayer lower
Part Number: R000002148 |
|||
| 81025-2 | 35 | Teflon gasket E61 lower
Part Number: C469900783 |
|||
| 81025-2 | 36 | Drain screw E61 lower
Part Number: P1000.5 |
|||
| 81025-2 | 37 | Group gasket H=8mm
Part Number: C449900229 |
|||
| 81025-2 | 38 | Sprayer brew group
Part Number: C229901128 |
|||
| 81025-2 | 39 | Shower screen E61
Part Number: C519900103 |
|||
| 81025-2 | 40 | Brewgroup E61 ECM
Part Number: P1016 |
|||
| 81025-2 | 41 | Brewgroup lever M8 chrome
Part Number: P1002 |
|||

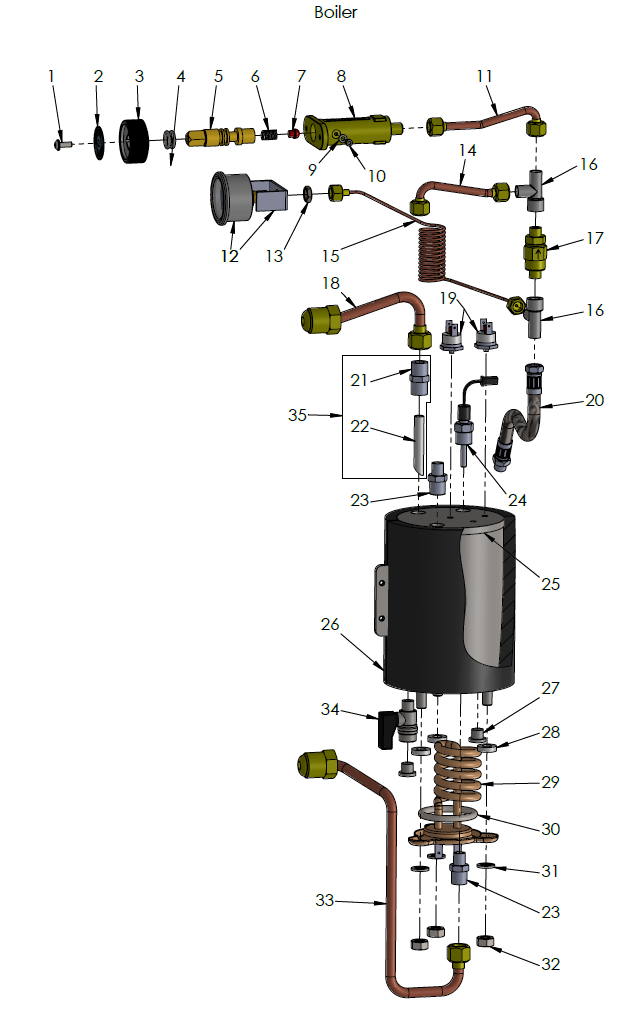

| 81025-3 | 1 | Button head screw M4x8
Part Number: P1969 |
|||
| 81025-3 | 2 | Valveplate grip
Part Number: P7000.9 |
|||
| 81025-3 | 3 | Handle expansion valve inox
Part Number: P7000.8 |
|||
| 81025-3 | 4 | OR Expansionvalve
Part Number: P7000.5 |
|||
| 81025-3 | 5 | Press.-adjustment grip
Part Number: P7000.7 |
|||
| 81025-3 | 6 | Spring expansion valve
Part Number: P7000.3 |
|||
| 81025-3 | 7 | Rubber plug
Part Number: P7000.4 |
|||
| 81025-3 | 8 | Valve
Part Number: P7000.1 |
|||
| 81025-3 | 9 | Washer metric 3 Nylon
Part Number: P1993 |
|||
| 81025-3 | 10 | Socket head cap screw M3x5 A2
Part Number: P1994 |
|||
| 81025-3 | 11 | Pipe expansion valve Puristika
Part Number: P9420 |
|||
| 81025-3 | 12 | Pump pressure gauge blue
Part Number: P2440 |
|||
| 81025-3 | 13 | Halfnut
Part Number: P2067 |
|||
| 81025-3 | 14 | Boiler filling tube Puristika
Part Number: P9419 |
|||
| 81025-3 | 15 | Capillary tube pump pressure gauge
Part Number: P6051 |
|||
| 81025-3 | 16 | T-connector
Part Number: C229900644 |
|||
| 81025-3 | 17 | Check-valve
Part Number: C229900548 |
|||
| 81025-3 | 18 | Inlet pipe brewing group
Part Number: P9417 |
|||
| 81025-3 | 19 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| 81025-3 | 20 | Flex hose
Part Number: P8012 |
|||
| 81025-3 | 21 | Nipple 1/4" MM
Part Number: C229900520 |
|||
| 81025-3 | 22 | Teflon-hose cut 8x6 50mm
Part Number: P6314.1 |
|||
| 81025-3 | 23 | Nipple 1/4" - 1/8" MM
Part Number: C229900519 |
|||
| 81025-3 | 24 | Temperature sensor 1/4" NTC
Part Number: P6037 |
|||
| 81025-3 | 25 | Stainless steel boiler
Part Number: P9012 |
|||
| 81025-3 | 26 | Insulation stainless steel boiler
Part Number: P7051 |
|||
| 81025-3 | 27 | Screw plug
Part Number: P2058 |
|||
| 81025-3 | 28 | Washer Teflon
Part Number: P9033 |
|||
| 81025-3 | 29 | Heating element stainless steel boiler
Part Number: P9011 |
|||
| 81025-3 | 30 | Gasket heating element inox-boiler
Part Number: P9013 |
|||
| 81025-3 | 31 | Washer metric 8
Part Number: P2010 |
|||
| 81025-3 | 32 | Hexagon nut M8 brass
Part Number: C309900127.2 |
|||
| 81025-3 | 33 | Pipe return flow group Puristika
Part Number: P9418 |
|||
| 81025-3 | 34 | Shut off valve boiler draining
Part Number: P3029 |
|||
| 81025-3 | 35 | Catcher complete Puristika
Part Number: P6314.K |
|||

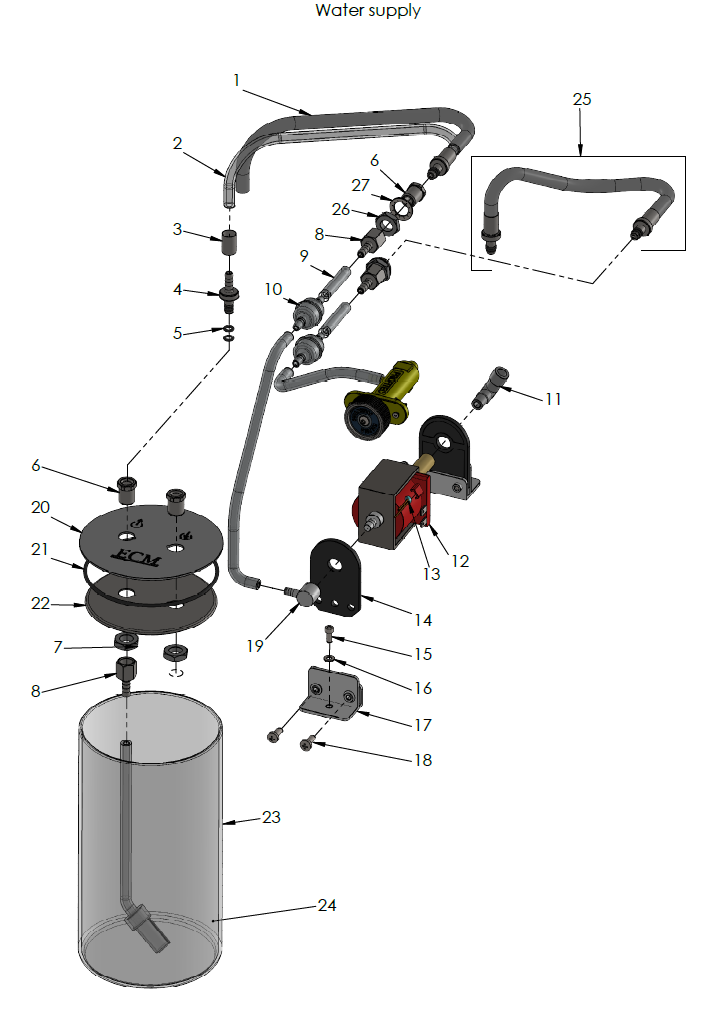

| 81025-4 | 1 | Hosespring silicone hose
Part Number: P6903 |
|||
| 81025-4 | 2 | Silicone hose transparent
Part Number: C499900769 |
|||
| 81025-4 | 3 | sleeve stainless steel srping hose
Part Number: P6902 |
|||
| 81025-4 | 4 | Adpater Tank Male Puristika
Part Number: P6904 |
|||
| 81025-4 | 5 | OR Adapter Puristika
Part Number: P6907 |
|||
| 81025-4 | 6 | Adpater Tank Female Puristika
Part Number: P6905 |
|||
| 81025-4 | 7 | Halfnut nickel plated
Part Number: C329900683 |
|||
| 81025-4 | 8 | Hoseconnector Fitting
Part Number: P6906 |
|||
| 81025-4 | 9 | Silicone hose transparent
Part Number: C499900769 |
|||
| 81025-4 | 10 | Filter water tank operation
Part Number: C439900695 |
|||
| 81025-4 | 11 | Elbow
Part Number: P9014 |
|||
| 81025-4 | 12 | Pump ULKA EX5 230V/ 50hz
Part Number: C199900286 |
|||
| 81025-4 | 13 | Thermal cuttoff Pump
Part Number: C199900969 |
|||
| 81025-4 | 14 | Pump Holder Rubber
Part Number: C249900770 |
|||
| 81025-4 | 15 |
|
Socket head cap screw M4 x 10 Part Number: P2006 |
$5.41 | View Part |
| 81025-4 | 16 | Washer metric 4 A2
Part Number: P2009 |
|||
| 81025-4 | 17 | Lower pump bracket
Part Number: P3006.K |
|||
| 81025-4 | 18 | thread forming screw
Part Number: P3019 |
|||
| 81025-4 | 19 | Rubber ellbow fitting (pump)
Part Number: C449900709 |
|||
| 81025-4 | 20 | Lid watertank Puristika upper
Part Number: P6901.1 |
|||
| 81025-4 | 21 | OR Adaptor Puristika
Part Number: P6901.3 |
|||
| 81025-4 | 22 | Lid watertank Puristika lower
Part Number: P6901.2 |
|||
| 81025-4 | 23 | Watertank glas Puristika
Part Number: P6900 |
|||
| 81025-4 | 24 | Filter silicon pipe
Part Number: C639900933 |
|||
| 81025-4 | 25 | Puristika Hose complete
Part Number: P6908.K |
|||
| 81025-4 | 26 | Halfnut
Part Number: C329900682 |
|||
| 81025-4 | 27 | Serrated lock washer
Part Number: P1988 |
|||

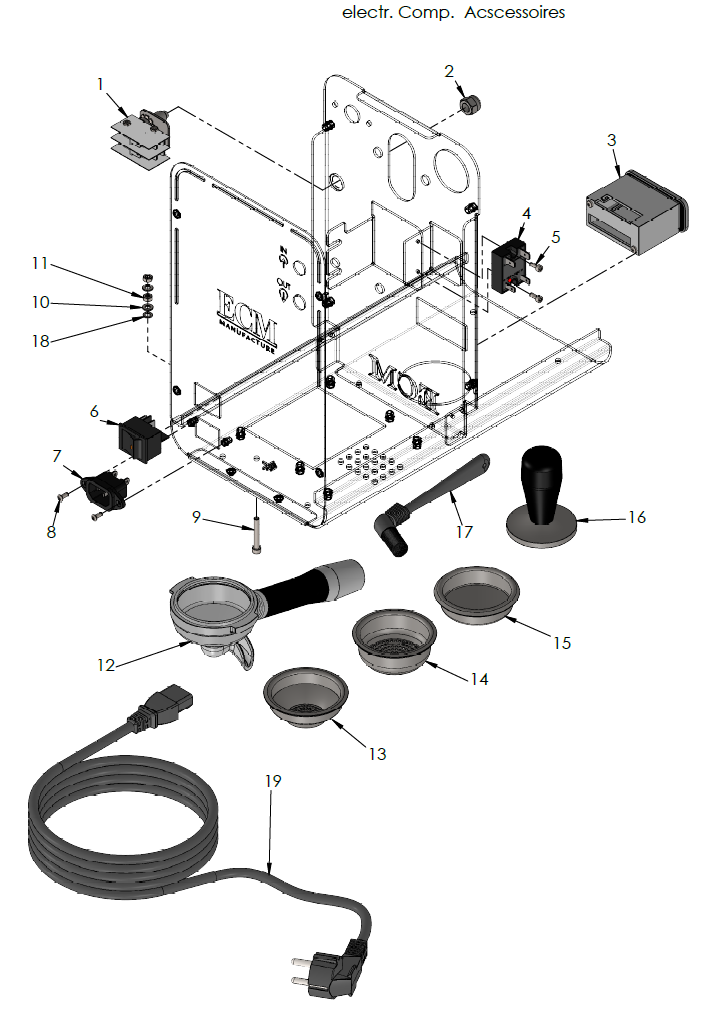

| 81025-5 | 1 | Micro switch double
Part Number: P2080 |
|||
| 81025-5 | 2 | Hexagon nut microswitch
Part Number: B5221875CM |
|||
| 81025-5 | 3 | PID- Controller Puristika
Part Number: P6064 |
|||
| 81025-5 | 4 | Solid state relay
Part Number: P6029 |
|||
| 81025-5 | 5 | Screw cylinder head M3x10
Part Number: P1995 |
|||
| 81025-5 | 6 | On-/Off switch 230VAC
Part Number: G1021 |
|||
| 81025-5 | 7 | Power Socket C14
Part Number: P2190 |
|||
| 81025-5 | 8 | Socket button head screw M3x8 A2
Part Number: P6101 |
|||
| 81025-5 | 9 | Socket head cap screw M4x30 A2
Part Number: P1983 |
|||
| 81025-5 | 10 | Flat washer metric 4 A2
Part Number: P2009 |
|||
| 81025-5 | 11 | Hex nut M4 A2
Part Number: P2026 |
|||
| 81025-5 | 12 | ECM Portafiltre 2 Spouts mini
Part Number: 89427 |
|||
| 81025-5 | 13 | Filter for 1 cup 7g coffee
Part Number: C619900104 |
|||
| 81025-5 | 14 | Filter for 2 cups 14g coffee
Part Number: C619900105 |
|||
| 81025-5 | 15 | Blind filter for brew group cleaning
Part Number: C619900106 |
|||
| 81025-5 | 16 | Neutral Tamper
Part Number: 89410 |
|||
| 81025-5 | 17 | Cleaning brush coffee machine
Part Number: R210 |
|||
| 81025-5 | 18 | Lock washer M4
Part Number: P2004 |
