ECM Synchronika Part Diagram 86274
This is the ECM Synchronika Part Diagram 86274. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

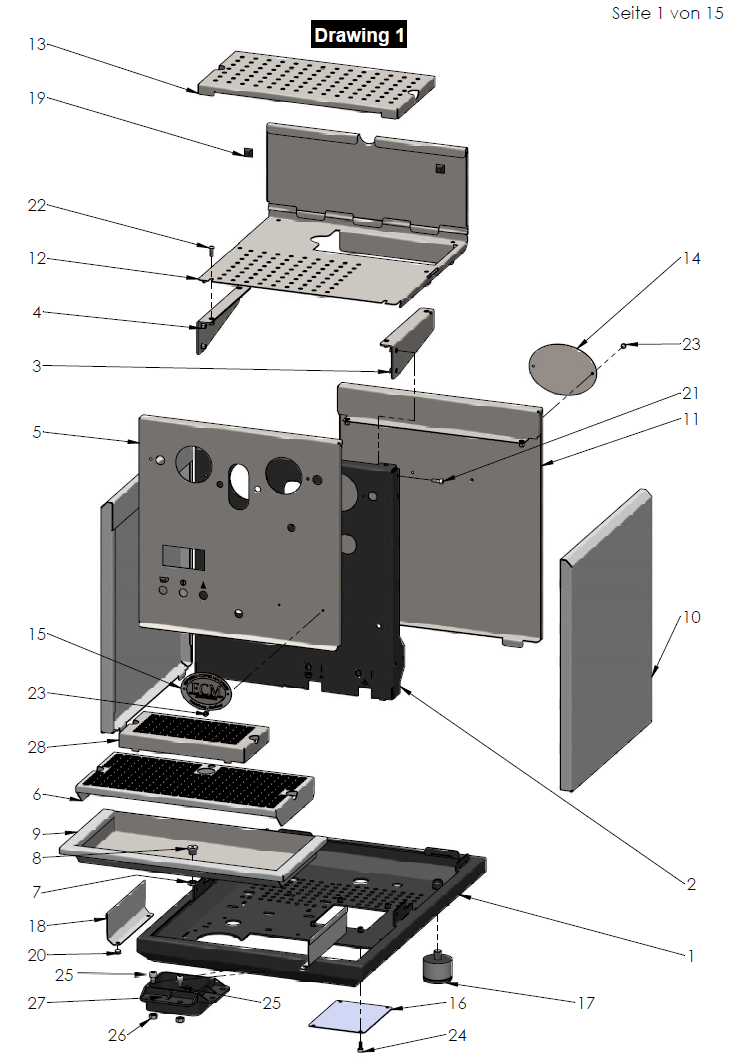

| 86274-1 | 1 | Base frame anthracite Part Number: P2281 |
$203.00 | View Part | |
| 86274-1 | 2 | Frame front anthracite Part Number: P2282 |
$43.50 | View Part | |
| 86274-1 | 3 | Bracket cup warming tray right
Part Number: P2283 |
|||
| 86274-1 | 4 | Bracket cup warming tray left
Part Number: P2284 |
|||
| 86274-1 | 5 | Front panel Part Number: P2285 |
$43.50 | View Part | |
| 86274-1 | 6 | Grid drip tray Part Number: P2286 |
$34.59 | View Part | |
| 86274-1 | 7 |
|
Half nut 1/8 Part Number: P2067 |
$6.20 | View Part |
| 86274-1 | 8 |
|
Plug 1/8" Part Number: P2058 |
$7.16 | View Part |
| 86274-1 | 9 | Drip tray Part Number: P2287 |
$148.48 | View Part | |
| 86274-1 | 10 | Side panel polished
Part Number: P2288 |
|||
| 86274-1 | Side panel antracite
Part Number: P2288A |
||||
| 86274-1 | 11 | Rear panel polished Part Number: P2289 |
$114.26 | View Part | |
| 86274-1 | Rear panel antracite Part Number: P2289A |
$63.00 | View Part | ||
| 86274-1 | 12 | Cup tray lid Part Number: P2290 |
$148.00 | View Part | |
| 86274-1 | 13 |
|
Cup tray Part Number: P2291 |
$63.80 | View Part |
| 86274-1 | 14 | Emblem rear panel Part Number: ER8285 |
$21.13 | View Part | |
| 86274-1 | 15 | Emblem ECM Part Number: E81100 |
$33.46 | View Part | |
| 86274-1 | 16 | Chassis cover
Part Number: P2127 |
|||
| 86274-1 | 17 |
|
Foot H30, M10 Part Number: P7025 |
$28.46 | View Part |
| 86274-1 | 18 | Support drip tray
Part Number: P2292 |
|||
| 86274-1 | 19 | Foot for cup warming tray
Part Number: B7474217 |
|||
| 86274-1 | 20 | Blind rivet 4,8mm
Part Number: P2076 |
|||
| 86274-1 | 21 | Screw cylinder head M4x12
Part Number: B7819901 |
|||
| 86274-1 | 22 | Screw lense head M4x12
Part Number: P1992 |
|||
| 86274-1 | 23 | Blind rivet truss head 3x8
Part Number: P1999 |
|||
| 86274-1 | 24 | Screw cylinder head M4x10
Part Number: P2006 |
|||
| 86274-1 | 25 | Screw cylinder head M6x14
Part Number: P2074 |
|||
| 86274-1 | 26 | Hexagon nut M6
Part Number: P2051 |
|||
| 86274-1 | 27 | Drainage pan
Part Number: P2505 |
|||
| 86274-1 | 28 | High grid Synchronika
Part Number: P2293 |
|||

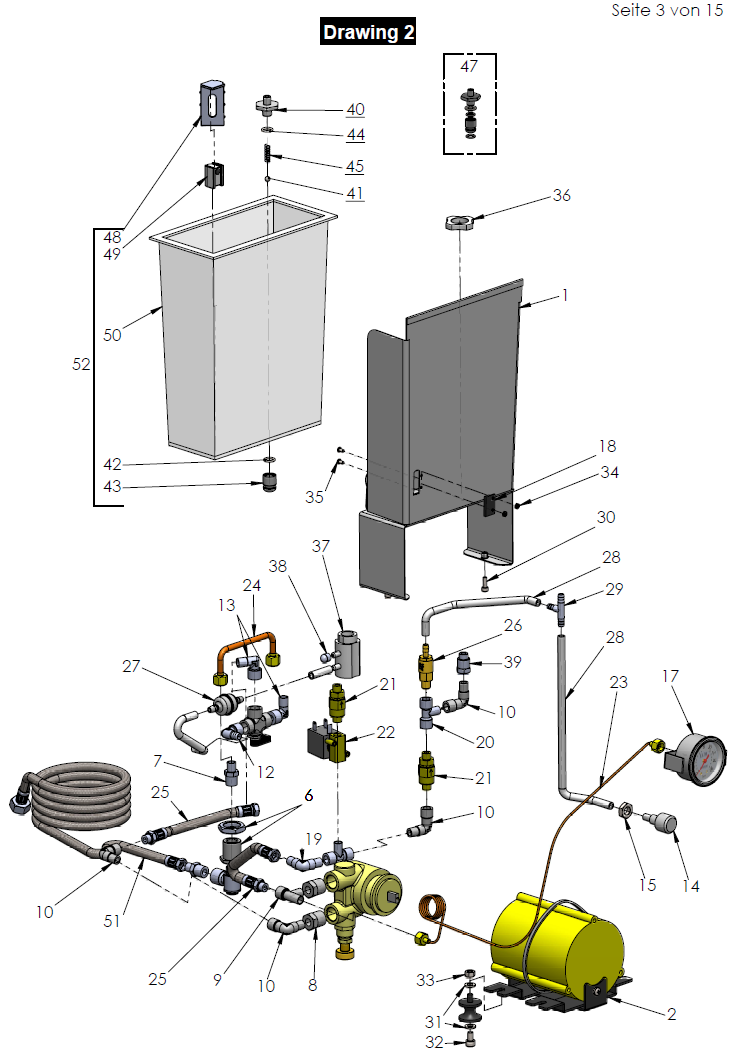

| 86274-2 | 1 | Water tank guide rail
Part Number: P2120 |
|||
| 86274-2 | 2 | Motor rotation pump 220V/50Hz/120W
Part Number: P3026 |
|||
| 86274-2 | Motor rotation pump 110V/60Hz/120W
Part Number: US1016 |
||||
| 86274-2 | 3 | Foot motor rotary pump
Part Number: P3015 |
|||
| 86274-2 | 4 | Rotary pump 50l/h
Part Number: P3025 |
|||
| 86274-2 | 5 | Elbow 360 rotary 1/4"MF
Part Number: P3527 |
|||
| 86274-2 | 6 | Connector 1/4"FF
Part Number: P3023 |
|||
| 86274-2 | 7 | Nipple 1/4" - 1/8" MM
Part Number: C229900519 |
|||
| 86274-2 | 8 | Reducer 3/8"M 1/8"F
Part Number: P3024 |
|||
| 86274-2 | 9 | T-connector 1/8 MMF
Part Number: C229900644 |
|||
| 86274-2 | 10 | Elbow 1/8" MF
Part Number: P9014 |
|||
| 86274-2 | 11 | Valve 3-ways manual 1/4"FFF
Part Number: P3528 |
|||
| 86274-2 | 12 | Elbow 1/4"Mx6
Part Number: P6057 |
|||
| 86274-2 | 13 | Elbow 1/4"M - 1/8"M
Part Number: P9015 |
|||
| 86274-2 | 14 | Drain nozzle
Part Number: C227700898 |
|||
| 86274-2 | 15 | Hex nut (half) M10
Part Number: P6103 |
|||
| 86274-2 | 16 | Filter water entry
Part Number: C519900369 |
|||
| 86274-2 | 17 | Boiler pressure gauge "retro"
Part Number: P6049 |
|||
| 86274-2 | 18 | Reed sensor low water switch-off
Part Number: P6022 |
|||
| 86274-2 | 19 | Elbow 1/8"M 1/8"M
Part Number: C229900579 |
|||
| 86274-2 | 20 | T-connector 1/8" FMF
Part Number: C229900703 |
|||
| 86274-2 | 21 | Non-return valve 1/8" MM
Part Number: C229900548 |
|||
| 86274-2 | 22 | Solenoid valve 2-ways 1/8"FF 230V/50Hz
Part Number: C199900275 |
|||
| 86274-2 | Solenoid valve 2-ways 1/8"FF 110V/60Hz
Part Number: US1005 |
||||
| 86274-2 | 23 | Capillary tube pump pressure gauge
Part Number: P6051 |
|||
| 86274-2 | 24 | Tube direct water connection->valve
Part Number: P2520 |
|||
| 86274-2 | 25 | Flex hose
Part Number: P8012 |
|||
| 86274-2 | 26 | Expansion valve 14.0 bar
Part Number: P2567 |
|||
| 86274-2 | 27 | Filter watertank
Part Number: C439900695 |
|||
| 86274-2 | 28 | Silicone tube 5x8
Part Number: C499900769 |
|||
| 86274-2 | 29 | T-fitting plastic
Part Number: C400001933 |
|||
| 86274-2 | 30 | Screw cylinder head M4x12
Part Number: B7819901 |
|||
| 86274-2 | 31 | Washer M6
Part Number: P2052 |
|||
| 86274-2 | 32 | Screw cylinder head M6x10
Part Number: P2057 |
|||
| 86274-2 | 33 | Hexagon nut M6
Part Number: P2051 |
|||
| 86274-2 | 34 | Hexagon nut M3
Part Number: P2019 |
|||
| 86274-2 | 35 | Screw lens head M3x5
Part Number: P2064 |
|||
| 86274-2 | 36 | Water tank adapter nut M20
Part Number: P6020.K3 |
|||
| 86274-2 | 37 | Water tank adapter M20
Part Number: P6020.K4 |
|||
| 86274-2 | 38 | Closure cap WT-connector
Part Number: P6026 |
|||
| 86274-2 | 39 | Extension 1/8M 1/8F 22mm
Part Number: P2047 |
|||
| 86274-2 | 40 | Watertank adapter mounting nut
Part Number: P6020.N |
|||
| 86274-2 | 41 | Ball watertank lock
Part Number: B5471509 |
|||
| 86274-2 | 42 | Gasket watertank adapter lower
Part Number: B7496076 |
|||
| 86274-2 | 43 | Water tank adapter union
Part Number: P6017.N |
|||
| 86274-2 | 44 | Gasket water tank adapter upper
Part Number: P6020.3 |
|||
| 86274-2 | 45 | Spring water tank lock
Part Number: P6023 |
|||
| 86274-2 | 46 | Gasket water tank adapter middle
Part Number: P6025 |
|||
| 86274-2 | 47 | Water tank adapter complete
Part Number: P6020.NK |
|||
| 86274-2 | 48 | Cap floater water tank
Part Number: P6016 |
|||
| 86274-2 | 49 | Reed swimmer
Part Number: P6021 |
|||
| 86274-2 | 50 | Watertank blank
Part Number: P9010 |
|||
| 86274-2 | 51 | Flex hose 1/8"F 3/8"F 150cm
Part Number: P3020 |
|||
| 86274-2 | 52 | Watertank complete
Part Number: P9010K1 |
|||

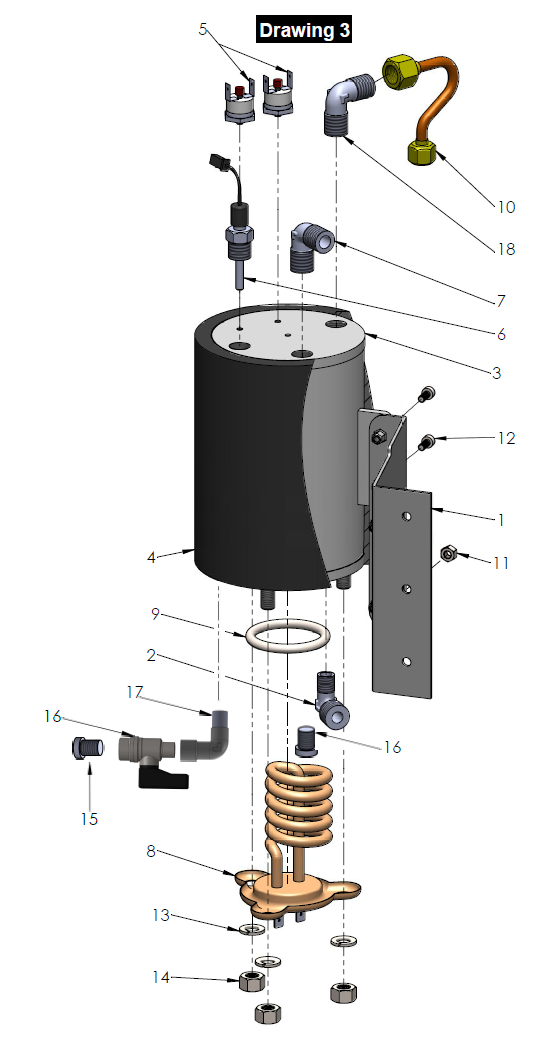

| 86274-3 | 1 | Bracket boiler
Part Number: P2121 |
|||
| 86274-3 | 2 | Elbow 1/4"M - 1/8"M
Part Number: P9015 |
|||
| 86274-3 | 3 | Coffee boiler
Part Number: P9012 |
|||
| 86274-3 | 4 | Isolation coffee boiler
Part Number: P7051 |
|||
| 86274-3 | 5 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| 86274-3 | 6 | Temperature sensor 1/4"
Part Number: P6037 |
|||
| 86274-3 | 7 | Elbow 1/4" MM
Part Number: C229900525 |
|||
| 86274-3 | 8 | Heating element boiler 1000W 230V
Part Number: P9011 |
|||
| 86274-3 | Heating element boiler 1000W 110V
Part Number: US1008 |
||||
| 86274-3 | 9 | Gasket heating element
Part Number: P9013 |
|||
| 86274-3 | 10 | Boiler loading tube rota
Part Number: P1904 |
|||
| 86274-3 | 11 | Hexagon nut M5
Part Number: P6102 |
|||
| 86274-3 | 12 | Screw cylinder head M4x10
Part Number: P2006 |
|||
| 86274-3 | 13 | Spring ring M8
Part Number: P2011 |
|||
| 86274-3 | 14 | Hex nut M8 zinc-plated
Part Number: C309900127.1 |
|||
| 86274-3 | 15 |
|
Plug 1/8" Part Number: P2058 |
$7.16 | View Part |
| 86274-3 | 16 | Boiler drainage valve 1/8" MF
Part Number: P3029 |
|||
| 86274-3 | 17 | Elbow 1/8"MF
Part Number: P9014 |
|||
| 86274-3 | 18 | Elbow with Teflon 1/4" MM
Part Number: P2040 |
|||

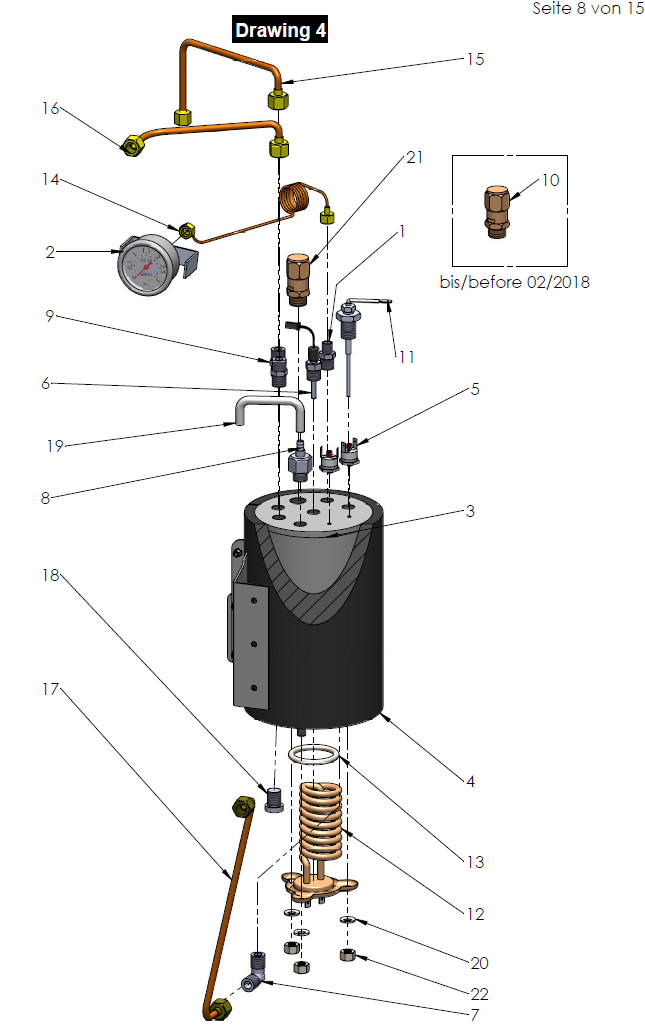

| 86274-4 | 1 | Nipple 1/4" - 1/8" MM
Part Number: C229900519 |
|||
| 86274-4 | 2 | Boiler pressure gauge "retro"
Part Number: P6050 |
|||
| 86274-4 | 3 | Steam-/hot water boiler
Part Number: P9232 |
|||
| 86274-4 | 4 | Isolation steam-/hot water boiler
Part Number: P7052 |
|||
| 86274-4 | 5 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| 86274-4 | 6 | Temperature sensor 1/4"
Part Number: P6037 |
|||
| 86274-4 | 7 | Elbow 1/4" M 1/4" M
Part Number: C229900525 |
|||
| 86274-4 | 8 | Anti-vacuum valve 1/4" M with drain
Part Number: P2561 |
|||
| 86274-4 | 9 | Nipple 1/4" - 1/4" MM
Part Number: C229900520 |
|||
| 86274-4 | 10 | Safety valve 3/8" M 2bar
Part Number: C229900559 |
|||
| 86274-4 | 11 | Filling level control plate
Part Number: C199900214 |
|||
| 86274-4 | 12 | Heating element 230V 1400W
Part Number: P7014.1 |
|||
| 86274-4 | Heating element 110V 1400W
Part Number: US1000 |
||||
| 86274-4 | 13 | Gasket heating element
Part Number: P9013 |
|||
| 86274-4 | 14 | Capillary tube pressure gauge 1/8"FF
Part Number: P6051 |
|||
| 86274-4 | 15 | Steam-/hot water boiler loading tube
Part Number: P2521 |
|||
| 86274-4 | 16 | Steam extraction tube
Part Number: P2522 |
|||
| 86274-4 | 17 | Hot water extraction tube
Part Number: P2523 |
|||
| 86274-4 | 18 | Plug 1/4"
Part Number: P2060 |
|||
| 86274-4 | 19 | Silicone tube transparent 5x8
Part Number: C499900769 |
|||
| 86274-4 | 20 | Spring ring M8
Part Number: P2011 |
|||
| 86274-4 | 21 | Safety valve 3/8" M 2.5bar
Part Number: P2536 |
|||
| 86274-4 | 22 | Hex nut M8 zinc-plated
Part Number: C309900127.1 |
|||

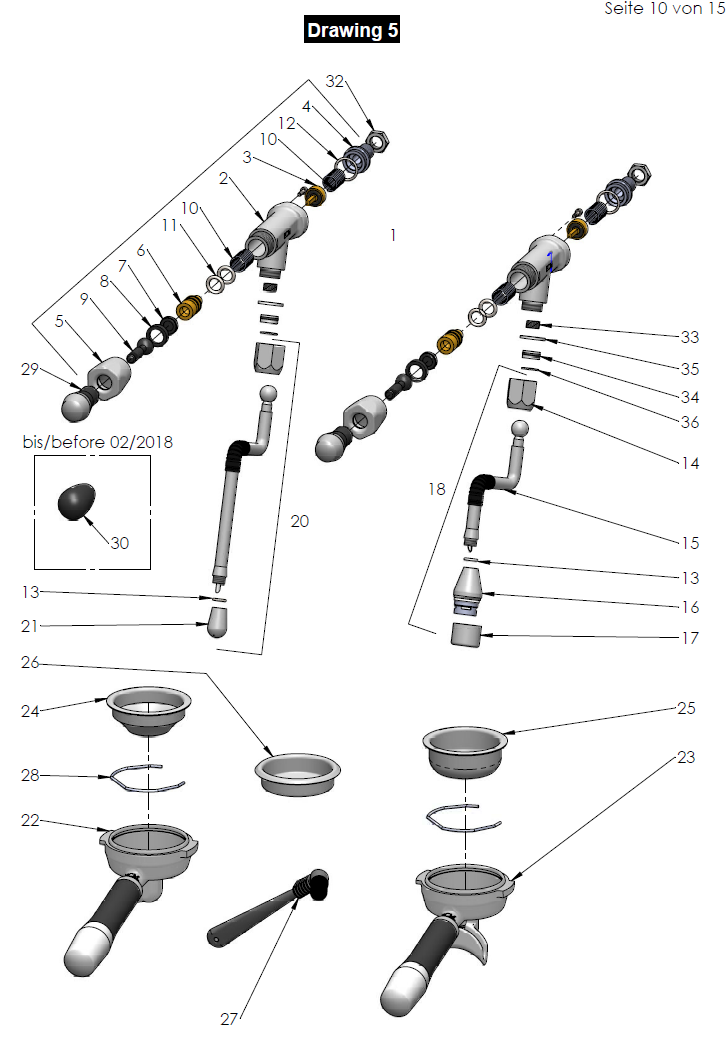

| 86274-5 | 1 | Steam/hot water valve
Part Number: P6070 |
|||
| 86274-5 | 2 | Valve corpus
Part Number: P6070.1 |
|||
| 86274-5 | 3 | Plug QS-valve
Part Number: P6003.9 |
|||
| 86274-5 | 4 | Connector
Part Number: P6070.3 |
|||
| 86274-5 | 5 | Nut valve corpus
Part Number: P6070.2 |
|||
| 86274-5 | 6 | Nozzle QS valve
Part Number: P6003.5 |
|||
| 86274-5 | 7 | Knob QS
Part Number: P6003.4 |
|||
| 86274-5 | 8 | Gasket inox QS
Part Number: P6003.2 |
|||
| 86274-5 | 9 | Inox lever QS
Part Number: P6003.3 |
|||
| 86274-5 | 10 | Spring valve QS
Part Number: P6003.7 |
|||
| 86274-5 | 11 | O-ring 113
Part Number: P6003.6 |
|||
| 86274-5 | 12 | Gasket valve corpus/connection
Part Number: P6070.4 |
|||
| 86274-5 | 13 | Gasket
Part Number: P6002.1 |
|||
| 86274-5 | 14 | Nut steam with teflon-ring
Part Number: P6005.5 |
|||
| 86274-5 | 15 | Rubber isolation
Part Number: P6002.2 |
|||
| 86274-5 | 16 | Hot water outlet
Part Number: P6001.1 |
|||
| 86274-5 | 17 | Strainer hot water outlet
Part Number: P6001.2 |
|||
| 86274-5 | 18 | Hot water tube complete
Part Number: P6006 |
|||
| 86274-5 | 19 | Rubber isolation
Part Number: P6002.2 |
|||
| 86274-5 | 20 | Steam lance compl. with 2-hole nozzle
Part Number: P6005 |
|||
| 86274-5 | 21 | 2-hole steam nozzle
Part Number: P6002.4 |
|||
| 86274-5 | 3-hole steam nozzle
Part Number: P6002.7 |
||||
| 86274-5 | 4-hole steam nozzle
Part Number: P6002.6 |
||||
| 86274-5 | 5-hole steam nozzle
Part Number: P6002.3 |
||||
| 86274-5 | 22 | Portafilter 1 outlet chrome/black
Part Number: 89424 |
|||
| 86274-5 | 23 | Portafilter 2 outlets chrome/black
Part Number: 89425 |
|||
| 86274-5 | 24 | Cup filter 7g
Part Number: C619900104 |
|||
| 86274-5 | 25 | Cup filter 14g
Part Number: C619900105 |
|||
| 86274-5 | 26 | Blind filter
Part Number: C619900106 |
|||
| 86274-5 | 27 | Cleaning brush
Part Number: R210 |
|||
| 86274-5 | 28 | Locking spring portafilter
Part Number: C619900098 |
|||
| 86274-5 | 29 | Lever handleM8 quick steam valve
Part Number: P1019 |
|||
| 86274-5 | 30 | Lever handle
Part Number: C439900840 |
|||
| 86274-5 | 32 | Nut (half) 1/4"
Part Number: C329900682 |
|||
| 86274-5 | 33 | Spring
Part Number: P6011 |
|||
| 86274-5 | 34 | Socket Teflon
Part Number: P6010 |
|||
| 86274-5 | 35 | Gasket nut valve
Part Number: P6015 |
|||
| 86274-5 | 36 | Washer socket
Part Number: P6012 |
|||

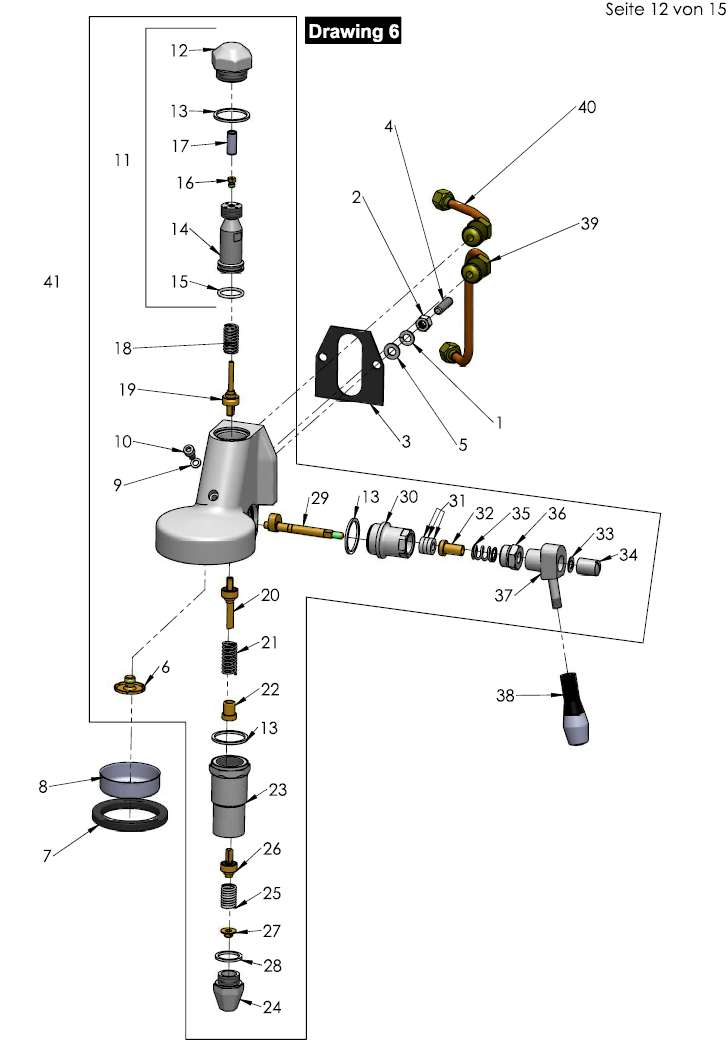

| 86274-6 | 1 | Spring ring M8
Part Number: P2011 |
|||
| 86274-6 | 2 | Hex nut M8
Part Number: C309900127 |
|||
| 86274-6 | 3 | Gasket brew group / front panel E61
Part Number: C449900767 |
|||
| 86274-6 | 4 | Screw allen M8 x 31
Part Number: C309900131 |
|||
| 86274-6 | 5 | Washer M8
Part Number: P2010 |
|||
| 86274-6 | 6 | Sprayer brew group lower
Part Number: C229901128 |
|||
| 86274-6 | 7 | Group gasket
Part Number: C449900229 |
|||
| 86274-6 | 8 | Shower screen
Part Number: C519900103 |
|||
| 86274-6 | 9 | Teflon gasket 10x6x1
Part Number: C469901132 |
|||
| 86274-6 | 10 | Screw cylinder head M6 x 10
Part Number: C309900164 |
|||
| 86274-6 | 11 | Socket group stainless steel complete
Part Number: P1000.1 |
|||
| 86274-6 | 12 | Fitting group cylinder ECM
Part Number: P1000.4 |
|||
| 86274-6 | 13 | Gasket teflon 35x30x2
Part Number: C469900421 |
|||
| 86274-6 | 14 | Lower brew group cylinder
Part Number: P1000.3 |
|||
| 86274-6 | 15 | Gasket socket brewing group
Part Number: C469900422 |
|||
| 86274-6 | 16 | Flow restrictor 0,8
Part Number: C229900549 |
|||
| 86274-6 | 17 | Inox filter gigleur
Part Number: C619900554 |
|||
| 86274-6 | 18 | Spring brew group E61
Part Number: C219900423 |
|||
| 86274-6 | 19 | Valve brew group E61 upper
Part Number: C219900424 |
|||
| 86274-6 | 20 | Valve brewing group E61 middle
Part Number: C219903081 |
|||
| 86274-6 | 21 | Spring brew group E61
Part Number: C219900423 |
|||
| 86274-6 | 22 | Spring guide group
Part Number: B7479942 |
|||
| 86274-6 | 23 | Lower sleeve assembly
Part Number: C229901165 |
|||
| 86274-6 | 24 | Lower discharge group
Part Number: P1000.5 |
|||
| 86274-6 | 25 | Spring lower
Part Number: C219900431 |
|||
| 86274-6 | 26 | Valve group E61 lower
Part Number: C219900430 |
|||
| 86274-6 | 27 | Sprayer brew group lower
Part Number: R000002148 |
|||
| 86274-6 | 28 | Teflon gasket brew group E61 lower
Part Number: C469900783 |
|||
| 86274-6 | 29 | Axis brew group E61
Part Number: C219900425 |
|||
| 86274-6 | 30 | Flange
Part Number: R000002142 |
|||
| 86274-6 | 31 | Washer axis brew group E61
Part Number: C219900426 |
|||
| 86274-6 | 32 | Spring holder brewing group
Part Number: P1004 |
|||
| 86274-6 | 33 | Lock washer M8
Part Number: B7479947 |
|||
| 86274-6 | 34 | Bolt lever
Part Number: R000002146 |
|||
| 86274-6 | 35 | Spring axis brew group E61
Part Number: C219900427 |
|||
| 86274-6 | 36 | Screw joint axis group
Part Number: R000002144 |
|||
| 86274-6 | 37 | Lever axis group
Part Number: P1000.2 |
|||
| 86274-6 | 38 | Brewing group handle
Part Number: P1002 |
|||
| 86274-6 | 39 | Pipe return group
Part Number: P2525 |
|||
| 86274-6 | 40 | Pipe inlet group
Part Number: P2524 |
|||
| 86274-6 | 41 | Brew group E61 ECM
Part Number: P1016 |
|||

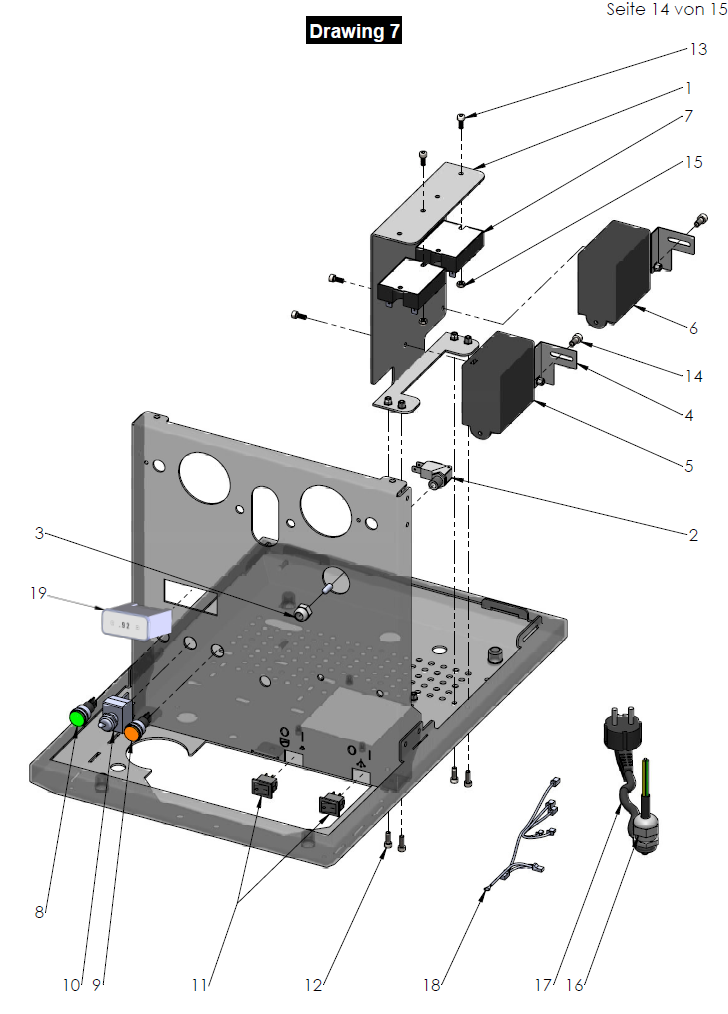

| 86274-7 | 1 | Electronics sheet
Part Number: P2112 |
|||
| 86274-7 | 2 | Microswitch
Part Number: C199900306 |
|||
| 86274-7 | 3 | Hexagon nut microswitch M10 x 0,75
Part Number: B5221875CM |
|||
| 86274-7 | 4 | Bracket electronic
Part Number: P3005 |
|||
| 86274-7 | 5 | Power supply 220V-240V
Part Number: P6032 |
|||
| 86274-7 | Power supply 115V
Part Number: US1020 |
||||
| 86274-7 | 6 | Controlbox 240V
Part Number: M2004 |
|||
| 86274-7 | Controlbox 115V 16 pins
Part Number: US1004 |
||||
| 86274-7 | 7 | Static relais
Part Number: P6031 |
|||
| 86274-7 | 8 | Control lamp green
Part Number: B7633618 |
|||
| 86274-7 | 9 | Control lamp orange
Part Number: B7633617 |
|||
| 86274-7 | 10 | Power switch metal
Part Number: C199900087 |
|||
| 86274-7 | 11 | Switch direct water/watertank
Part Number: P9114 |
|||
| 86274-7 | 12 | Screw cylinder head M4x12
Part Number: B7819901 |
|||
| 86274-7 | 13 | Screw cylinder head M4x10
Part Number: P2006 |
|||
| 86274-7 | 14 | Screw cylinder head M5x10
Part Number: P2007 |
|||
| 86274-7 | 15 | Nut M4
Part Number: P2026 |
|||
| 86274-7 | 16 | Cable fixing with nut
Part Number: P2070 |
|||
| 86274-7 | 17 | Power cable schuko plug
Part Number: C199900957 |
|||
| 86274-7 | Power cable AU-plug
Part Number: P2036 |
||||
| 86274-7 | Power cable US-plug
Part Number: P2034 |
||||
| 86274-7 | Power cable UK-plug
Part Number: P2035 |
||||
| 86274-7 | Power cable CH-plug
Part Number: P2037 |
||||
| 86274-7 | 18 | Cable loom
Part Number: P2580 |
|||
| 86274-7 | 19 | Thermo PID 3 stainless steel
Part Number: P6046 |
