ECM V-Titan 64 Part Diagram 89250
This is the ECM V-Titan 64 Part Diagram 89250. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

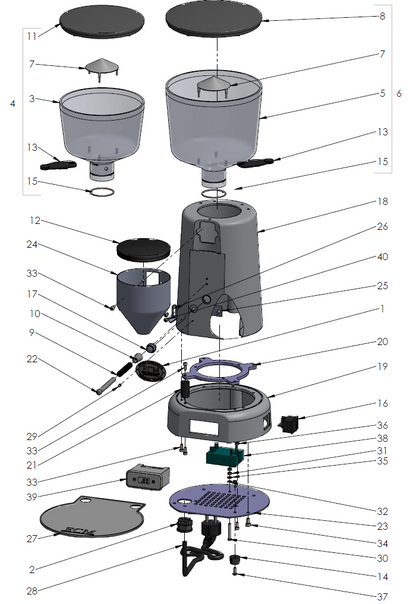

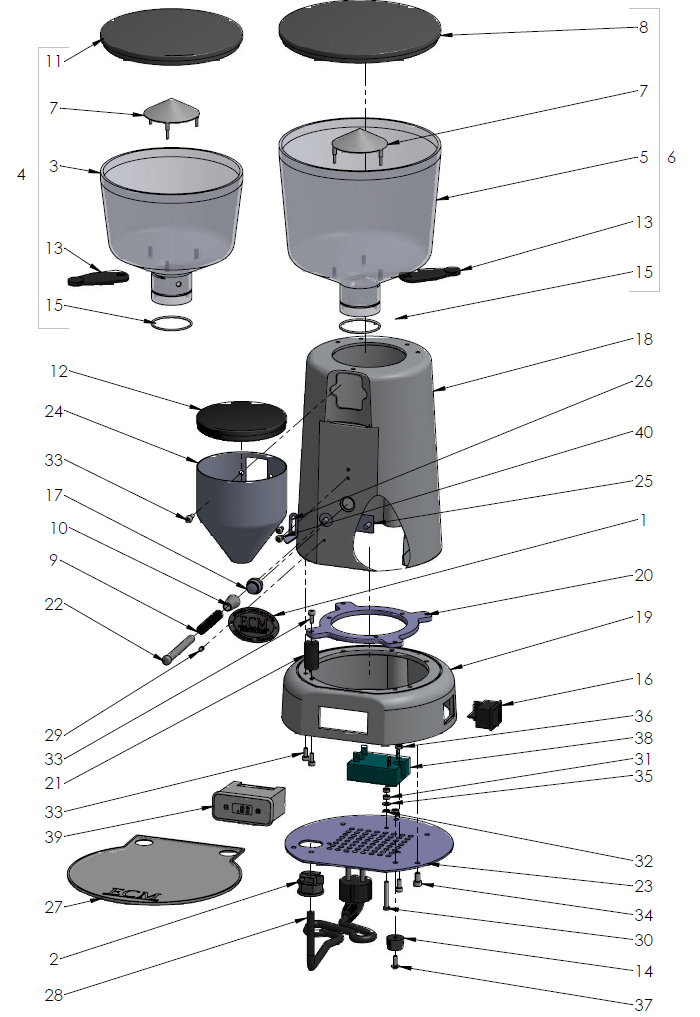

| 89250-1 | 1 | Emblem ECM
Part Number: 81200 |
|||
| 89250-1 | 2 | Cable clamp Part Number: C439900086 |
$10.28 | View Part | |
| 89250-1 | 3 | Bean hopper (filling quantity 500g)
Part Number: G1000 |
|||
| 89250-1 | 4 | Optional: Bean hopper (hilling quantity 500g, complete) Part Number: G1000.K |
$64.62 | View Part | |
| 89250-1 | 5 | Bean hopper (filling quantity 1000g)
Part Number: G1001 |
|||
| 89250-1 | 6 | Bean hopper (filling quantity 1000g), komplett Part Number: G1001.K |
$125.00 | View Part | |
| 89250-1 | 7 | Safety cap bean hopper
Part Number: G1002 |
|||
| 89250-1 | 8 | Lid bean hopper (filling quantity 1000g) Part Number: G1004 |
$1.00 | View Part | |
| 89250-1 | 9 | Rack coating filterholder
Part Number: G1005 |
|||
| 89250-1 | 10 | Rack filterholder
Part Number: G1007 |
|||
| 89250-1 | 11 | Lid bean hopper (filling quantity 500g)
Part Number: G1009 |
|||
| 89250-1 | 12 | Lid coffee funnel
Part Number: G1013 |
|||
| 89250-1 | 13 | Lock slide bean hopper
Part Number: G1014 |
|||
| 89250-1 | 14 | Foot grinder Part Number: G1015 |
$6.60 | View Part | |
| 89250-1 | 15 |
|
Gasket bean hopper Part Number: G1017 |
$7.68 | View Part |
| 89250-1 | 16 | On/Off switch grinder
Part Number: G1021 |
|||
| 89250-1 | 17 | Button Filterholder V-Titan
Part Number: G1022 |
|||
| 89250-1 | 18 | Body V-Titan upper chrome
Part Number: G1059 |
|||
| 89250-1 | 19 | Body V-Titan lower chrome
Part Number: G1060 |
|||
| 89250-1 | 20 | Bracket motor V-Titan
Part Number: G1061 |
|||
| 89250-1 | 21 | Fastener rubber motor V-Titan
Part Number: G1070 |
|||
| 89250-1 | 22 | Rack filterholder
Part Number: G1108 |
|||
| 89250-1 | 23 | Bottom plate V-Titan
Part Number: G1117 |
|||
| 89250-1 | 24 | Coffee funnel
Part Number: G1119 |
|||
| 89250-1 | 25 | Bracket
Part Number: G1129 |
|||
| 89250-1 | 26 | Holding for filterholder
Part Number: G1194 |
|||
| 89250-1 | 27 | Collecting plate coffee grind
Part Number: G1195 |
|||
| 89250-1 | 28 | Power cable Schuko grinder ECM 1,50m
Part Number: G1400 |
|||
| 89250-1 | 28 | US power cord 3x1.5 1.80m long
Part Number: P2034 |
|||
| 89250-1 | 28 | UK power cord 3x1,5 1,80 m long
Part Number: P2035 |
|||
| 89250-1 | 28 | AU power cord 3x1,5 1,80 m lang
Part Number: P2036 |
|||
| 89250-1 | 29 | Blind rivet truss head
Part Number: P1999 |
|||
| 89250-1 | 30 | Screw brass M4x30
Part Number: P2001 |
|||
| 89250-1 | 31 | Nut brass M4
Part Number: P2002 |
|||
| 89250-1 | 32 | Lock washer 0,4
Part Number: P2004 |
|||
| 89250-1 | 33 | Screw cylinder M4x10
Part Number: P2006 |
|||
| 89250-1 | 34 | Screw cylinder M5x10
Part Number: P2007 |
|||
| 89250-1 | 35 | Washer 04
Part Number: P2009 |
|||
| 89250-1 | 36 | Nut M4
Part Number: P2026 |
|||
| 89250-1 | 37 | Lens head srew with collar M4x12
Part Number: P2075 |
|||
| 89250-1 | 38 | Static relay
Part Number: P6031 |
|||
| 89250-1 | 39 | Electronic 230 V
Part Number: P6043 |
|||
| 89250-1 | 39 | Electronic 115V US-Version
Part Number: US1049 |
|||
| 89250-1 | 40 | Screw M4x8
Part Number: P6114 |
|||

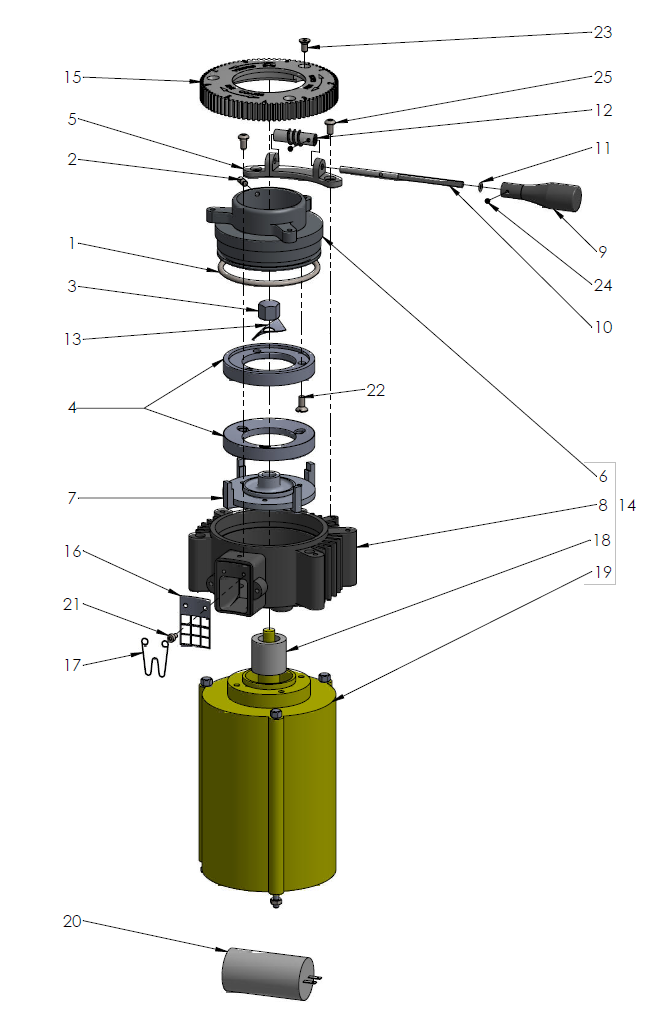

| 89250-2 | 1 | Gasket burr bracket
Part Number: G1016 |
|||
| 89250-2 | 2 | Safety screw bean hopper
Part Number: G1029 |
|||
| 89250-2 | 3 | Cup nut M8
Part Number: G1033 |
|||
| 89250-2 | 4 | Titan Burr, d=64 mm (pair)
Part Number: G1042 |
|||
| 89250-2 | 5 | Bracket worm
Part Number: G1053 |
|||
| 89250-2 | 6 | Burr holder upper, inset
Part Number: G1054 |
|||
| 89250-2 | 7 | Burr bracket lower - 4 wings
Part Number: G1056 |
|||
| 89250-2 | 8 | Body grinder
Part Number: G1057 |
|||
| 89250-2 | 9 | Handle worm
Part Number: G1101 |
|||
| 89250-2 | 10 | Axis worm
Part Number: G1102 |
|||
| 89250-2 | 11 | Gasket axis worm
Part Number: G1102.1 |
|||
| 89250-2 | 12 | Screw worm
Part Number: G1103 |
|||
| 89250-2 | 13 | Bracket filterholder
Part Number: G1113 |
|||
| 89250-2 | 14 | Motor assembly for grinder 230V
Part Number: G1123 |
|||
| 89250-2 | 14 | Motor assembly for grinder 115V
Part Number: G1124 |
|||
| 89250-2 | 15 | Stainless steel grinding adjustment 64
Part Number: G1140 |
|||
| 89250-2 | 16 | Grid coffee shaft
Part Number: G1192 |
|||
| 89250-2 | 17 | Optional: Grid coffee shaft
Part Number: G1193 |
|||
| 89250-2 | 18 | Distancing motor shaft
Part Number: G1199 |
|||
| 89250-2 | 19 | Motor grinder 220V-240V/50Hz 400W
Part Number: G1220 |
|||
| 89250-2 | 19 | Motor grinder 110V-120V/60Hz 400W
Part Number: G1221 |
|||
| 89250-2 | 20 | Capacitor motor grinder 220V-240V
Part Number: G1240 |
|||
| 89250-2 | 20 | Capacitor motor grinder 110V-120V
Part Number: G1241 |
|||
| 89250-2 | 21 | Screw cylinder M3x5
Part Number: P1994 |
|||
| 89250-2 | 22 | Screw counter sunk head slotted M4x10
Part Number: P6110 |
|||
| 89250-2 | 23 | Screw gully M4x8
Part Number: P6111 |
|||
| 89250-2 | 24 | Allen Screw M3x3
Part Number: P6112 |
|||
| 89250-2 | 25 | Lens screw M4x8
Part Number: P6114 |
