Gaggia Accademia 2022 SUP052 Part Diagram EG3004
This is the Gaggia Accademia 2022 SUP052 Parts Diagram EG3004. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

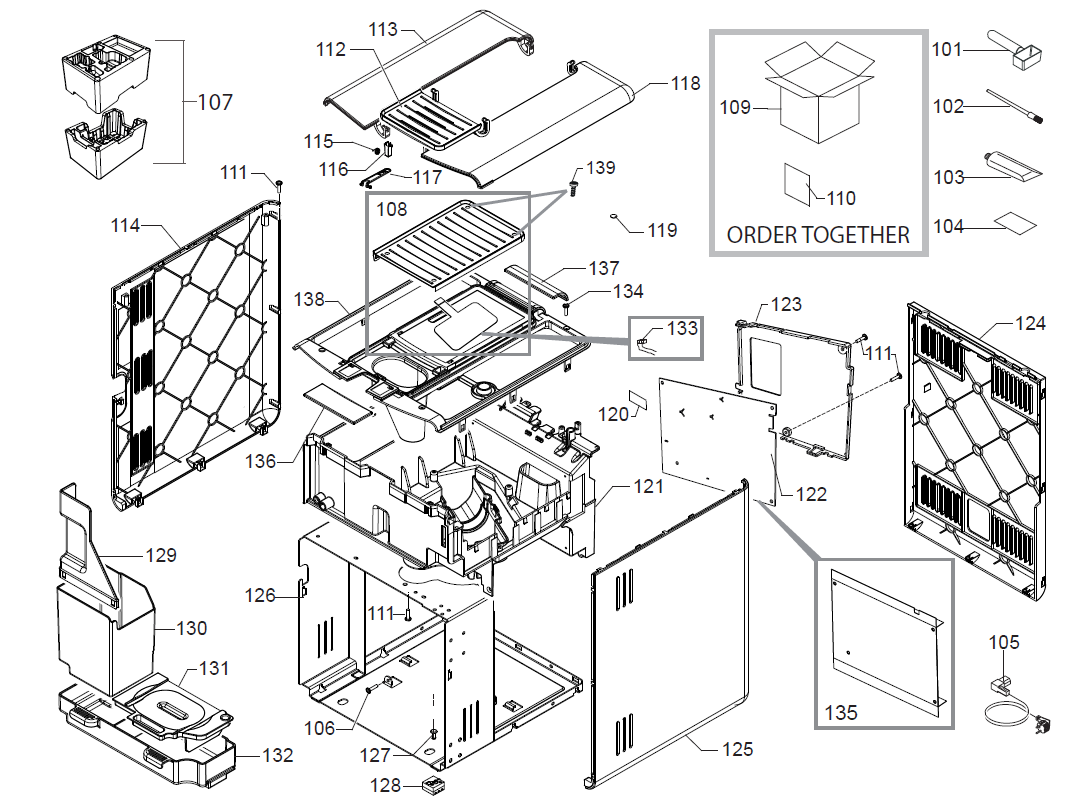

| EG3004-1 | 101 | COFFEE SPOON OMN
Part Number: 421944086411 |
|||
| EG3004-1 | 102 |
|
BRUSH FOR CLEANING Part Number: 996530011867 |
$6.55 | View Part |
| EG3004-1 | 103 | KLUBERLUB V2 NH1 11-222 TUBE 5GR.
Part Number: 421945031791 |
|||
| EG3004-1 | 104 | STICKER FOR WATER HARDNESS TEST
Part Number: 996530039604 |
|||
| EG3004-1 | 105 | BLK POWER CABLE SCHUKO L=1200
Part Number: 996530025808 |
|||
| EG3004-1 |
|
BLK POWER CABLE SJT3 USA UL L=1200 Part Number: 996530025843 |
$15.72 | View Part | |
| EG3004-1 | 106 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-NI
Part Number: 421944016761 |
|||
| EG3004-1 | 107 | KIT INSERT POLIST GAG.AC22
Part Number: 421946509291 |
|||
| EG3004-1 | 108 | KIT COVER CASING + HEAT.-ELEM. GAG.AC22
Part Number: 421946509301 |
|||
| EG3004-1 | 109 | DISPLAY BOX FLEXO GAG.AC22 + GAG.CAD.
Part Number: 421946508461 Notes: WITH PART 110 |
|||
| EG3004-1 | 110 | GAG.AC22 BOX A5 STICKER
Part Number: 421946508861 Notes: WITH PART 109 |
|||
| EG3004-1 | 111 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| EG3004-1 | 112 | SB/SS GROUND CON.DOOR COV.S/S.V2 MYB9 AS
Part Number: 421941229272 |
|||
| EG3004-1 | 113 | BLK WATER CON.COV AC22 ASSY Part Number: 421946508941 Notes: RI9781 |
$70.26 | View Part | |
| EG3004-1 | WATER CON.COV SS9/28 AC22 ASSY
Part Number: 421946508931 Notes: RI9782 |
||||
| EG3004-1 | 114 | BLK LEFT PANEL AC22 ASSY
Part Number: 421946508831 Notes: RI9781 |
|||
| EG3004-1 | LEFT PANEL SS 9/28 AC22 ASSY
Part Number: 421946507651 Notes: RI9782 |
||||
| EG3004-1 | 115 |
|
SS SPRING FOR WATER CONTAINER LEVER MYB9 Part Number: 996530007365 |
$6.18 | View Part |
| EG3004-1 | 116 |
|
BLACK PUSH-PUSH MYB9 Part Number: 996530008019 |
$11.19 | View Part |
| EG3004-1 | 117 |
|
YELLOW LEVER FOR WATER CONTAIN.S/SC.MYB9 Part Number: 996530007364 |
$11.24 | View Part |
| EG3004-1 | 118 | BLK BEAN CON.COV AC22 ASSY
Part Number: 421946508981 Notes: RI9781 |
|||
| EG3004-1 | BEAN CON.COV SS9/28 AC22 ASSY
Part Number: 421946508971 Notes: RI9782 |
||||
| EG3004-1 | 119 | TRANSP.ROUND ADHESIVE FOOT SJ-5382
Part Number: 996530008026 |
|||
| EG3004-1 | 120 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
| EG3004-1 | 121 | BLK HOR.MOUNT.PLATE AC22 ASSY
Part Number: 421946507611 |
|||
| EG3004-1 | 122 | MAIN+SW HIGH END 230V ASSY
Part Number: 421946504921 |
|||
| EG3004-1 | MAIN+SW HIGH END 120V ASSY
Part Number: 421946504911 |
||||
| EG3004-1 | 123 | BLK PWR BOARD COVER AC22
Part Number: 421946507761 |
|||
| EG3004-1 | 124 | BLK REAR PANEL GAGGIA AC22
Part Number: 421946507771 |
|||
| EG3004-1 | 125 | BLK RIGHT PANEL AC22 ASSY
Part Number: 421946508841 Notes: RI9781 |
|||
| EG3004-1 | RIGHT PANEL SS 9/28 AC22 ASSY
Part Number: 421946507681 Notes: RI9782 |
||||
| EG3004-1 | 126 | BLACK STEEL CASING MYB9 ASSY.
Part Number: 996530006676 |
|||
| EG3004-1 | 127 | BLACK RIGID FOOT FIXING PIN MYB9
Part Number: 996530007136 |
|||
| EG3004-1 | 128 | BLACK/TRANSP.RIGID FOOT MYB9
Part Number: 996530007156 |
|||
| EG3004-1 | 129 | BLACK DUMP BOX PROTECTION MYB9
Part Number: 996530007397 |
|||
| EG3004-1 | 130 | BLACK DUMP BOX MYB9 ASSY.
Part Number: 996530006815 |
|||
| EG3004-1 | 131 | BLK DRIP TRAY COFF.BREW UNIT COVER MYB9
Part Number: 996530007247 |
|||
| EG3004-1 | 132 | BLACK COFFEE UNIT DRIP TRAY V2 MYB9
Part Number: 996530071992 |
|||
| EG3004-1 | 133 | 6P CONN. 1 ELECTROV. + CUP WARM 24V
Part Number: 421946506261 |
|||
| EG3004-1 | 134 | SCREW TCBR TORX 10 3,5X12 PLAST.SS
Part Number: 996530070321 |
|||
| EG3004-1 | 135 | PWR ELECTR.BOARD INSULATE SHEET AC22
Part Number: 421941218802 Notes: Only 120V |
|||
| EG3004-1 | 136 | BLK FRONT COV.INS AC22 ASSY
Part Number: 421946509011 Notes: RI9781 |
|||
| EG3004-1 | FRONT COV. SS9/28 AC22 ASSY
Part Number: 421946509021 Notes: RI9782 |
||||
| EG3004-1 | 137 | BLK REAR COV. AC22 ASSY
Part Number: 421946509051 Notes: RI9781 |
|||
| EG3004-1 | REAR COV. SS9/28 AC22 ASSY
Part Number: 421946509061 Notes: RI9782 |
||||
| EG3004-1 | 138 | BLK TOP COVER CASING AC22 ASSY
Part Number: 421946507631 |
|||
| EG3004-1 | 139 | SCREW TSP TORX 10 AB 3,5X9,5 SHEET SS
Part Number: 996530012898 |
|||

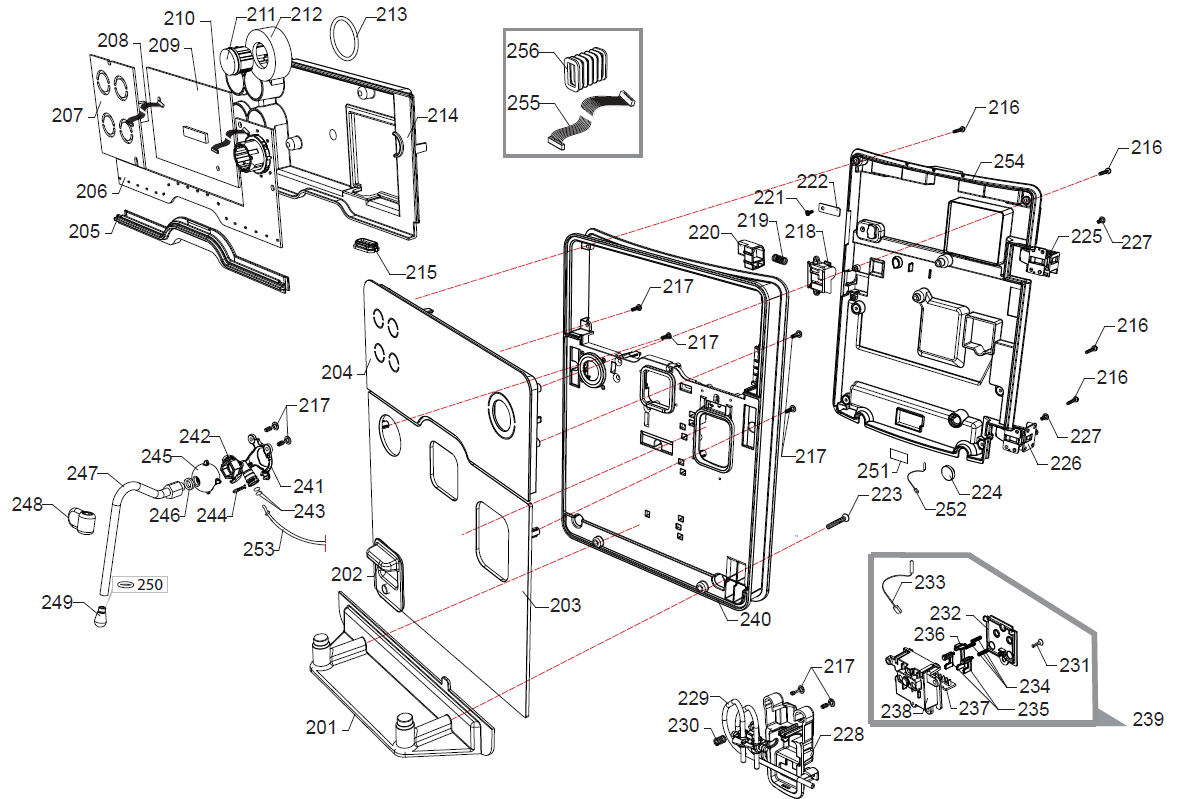

| EG3004-2 | 201 | B/DRIP TRAY SUP. AC22 ASSY
Part Number: 421946506891 |
|||
| EG3004-2 | 202 | B/CON.CAP.CARAFE AC22 ASSY
Part Number: 421946506941 |
|||
| EG3004-2 | 203 | GLASS LOWER PANEL AC22 ASSY
Part Number: 421946506761 Notes: RI9781 |
|||
| EG3004-2 | SS9/28 LOW.PANEL AC22 ASSY
Part Number: 421946509621 Notes: RI9782 |
||||
| EG3004-2 | 204 | F/CA.TFT/ROTARY AC22 ASSY
Part Number: 421946506801 |
|||
| EG3004-2 | 205 | RED LED STRIP AC22
Part Number: 421946506931 |
|||
| EG3004-2 | 206 | BOARD KNOB HIGH-END
Part Number: 421946505411 |
|||
| EG3004-2 | 207 | BOARD KEY_TOUCH HIGH-END
Part Number: 421946505441 |
|||
| EG3004-2 | 208 | 10P CONN. KEY-TOUCH BOARD FLAT CABLE UL
Part Number: 421946507971 |
|||
| EG3004-2 | 209 | UI HW+SW HIGH 230V END ASSY
Part Number: 421946504871 |
|||
| EG3004-2 | UI HW+SW HIGH 120V END ASSY
Part Number: 421946504881 |
||||
| EG3004-2 | 210 | 16 POLES FLAT CABLE L=65MM
Part Number: 421946506241 |
|||
| EG3004-2 | 211 | ROTARY KNOB BUT.S/SCR AC22
Part Number: 421946506881 |
|||
| EG3004-2 | 212 | SS ROTARY KNOB AC22 ASSY
Part Number: 421946506841 |
|||
| EG3004-2 | 213 | OR ORM 0270-25 FKM VITON 70/80 SH
Part Number: 421940223441 |
|||
| EG3004-2 | 214 | BACK COVER TFT/ROTARY AC22
Part Number: 421946506831 |
|||
| EG3004-2 | 215 | YLW WIRING GUIDE SEAL V2 CST/BT
Part Number: 421944025962 |
|||
| EG3004-2 | 216 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||
| EG3004-2 | 217 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| EG3004-2 | 218 | BLK COVER BUTTON FOR DOOR REL.V2 MYB9
Part Number: 421944085991 |
|||
| EG3004-2 | 219 | SPRING FOR DOOR RELEASE BUTTON MYB9
Part Number: 996530007128 |
|||
| EG3004-2 | 220 | BLK BUTTON FOR DOOR RELEASE V2 MYB9
Part Number: 421944085961 |
|||
| EG3004-2 | 221 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 996530013156 |
|||
| EG3004-2 | 222 | STEEL PLATE FOR DOOR CLOSURE MYB9
Part Number: 996530007207 |
|||
| EG3004-2 | 223 | SCREW TSP TORX 10 5X35 PLAST.SS
Part Number: 996530008039 |
|||
| EG3004-2 | 224 | BLACK INSIDE COVER FRONT PANEL CAP GMYB
Part Number: 996530009573 |
|||
| EG3004-2 | 225 | ZAMA DOOR UPPER HINGE V2 MYB9
Part Number: 996530009584 |
|||
| EG3004-2 | 226 | DOOR LOWER HINGE V2 MYB9
Part Number: 996530009581 |
|||
| EG3004-2 | 227 | SCREW TCBR TORX 20 4X10 PLAST.SS
Part Number: 996530008051 |
|||
| EG3004-2 | 228 | BLACK FRONTAL PANEL INSERT MDS
Part Number: 996530007629 |
|||
| EG3004-2 | 229 | PRF TEF.T CARAFE AC22 ASSY
Part Number: 421946509101 |
|||
| EG3004-2 | 230 | TWO WAY TEFLON TUBES SUPPORT SPRING MYB9
Part Number: 996530009559 |
|||
| EG3004-2 | 231 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 |
|||
| EG3004-2 | 232 | BLK CARAFFE BOARD COVER MYB9
Part Number: 996530006745 |
|||
| EG3004-2 | 233 | 5P.CONN.MILK CARAFE MDS UL ASSY.
Part Number: 421941216721 |
|||
| EG3004-2 | 234 | SS CARAFE MICRO INSERT SPRING MYB9
Part Number: 996530009566 |
|||
| EG3004-2 | 235 | BLK CARAFE MICRO INSERT V3 MYB9
Part Number: 421944085181 |
|||
| EG3004-2 | 236 | BLK PRESENCE CARAFE MICRO INSERT V3 MYB9
Part Number: 421944085191 |
|||
| EG3004-2 | 237 | MILKCARAFFE BOARD V2 MYB9
Part Number: 996530006754 |
|||
| EG3004-2 | 238 | BLK CARAFE BOARD SUPPORT V4 MYB9 ASSY.
Part Number: 996530007602 |
|||
| EG3004-2 | 239 | BLK CARAFFE BOARD SUPPORT GEN.MDS ASSY.
Part Number: 996530067487 |
|||
| EG3004-2 | 240 | DOOR FRAME ASSY AC22
Part Number: 421946509151 |
|||
| EG3004-2 | 241 | S/TUBE DOOR FIXING AC22
Part Number: 421946506531 |
|||
| EG3004-2 | 242 | UTPUT S/TUBE CONNECT AC22
Part Number: 421946506521 |
|||
| EG3004-2 | 243 | OR 2015 IN SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| EG3004-2 | 244 | SS FORK FOR TUBE D.4
Part Number: 996530048885 |
|||
| EG3004-2 | 245 | SPHERIC S/TUBE SUPPORT AC22
Part Number: 421946506511 |
|||
| EG3004-2 | 246 | OR ORM 0080-20 SILICONE PTFE/FDA
Part Number: 996530013445 |
|||
| EG3004-2 | 247 | SS STEAM TUBE AC22 ASSY
Part Number: 421946506481 |
|||
| EG3004-2 | 248 | B/STEAM TUBE HANDGRIP AC22
Part Number: 421946506501 |
|||
| EG3004-2 | 249 | 1 HOLE STEAM SPRAYER AC22
Part Number: 421946506491 |
|||
| EG3004-2 | 250 | OR D = 5x1,2 MM SILICONE FDA
Part Number: 421946504621 Notes: WITH OR |
|||
| EG3004-2 | 251 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
| EG3004-2 | 252 | 3P.CONN.WATER LEVEL MYB9 UL
Part Number: 996530006636 |
|||
| EG3004-2 | 253 | WHT TEF T.2X4 L=610MM ASSY
Part Number: 421946509141 |
|||
| EG3004-2 | 254 | S/SCR.BLK COVER.F PANEL AC22
Part Number: 421946508521 |
|||
| EG3004-2 | 255 | 10P.FLAT CABLE CPU-UI FTR UL
Part Number: 421946034791 |
|||
| EG3004-2 | 256 | BELLOW F/CABLES TUBES AC22
Part Number: 421946506551 |
|||

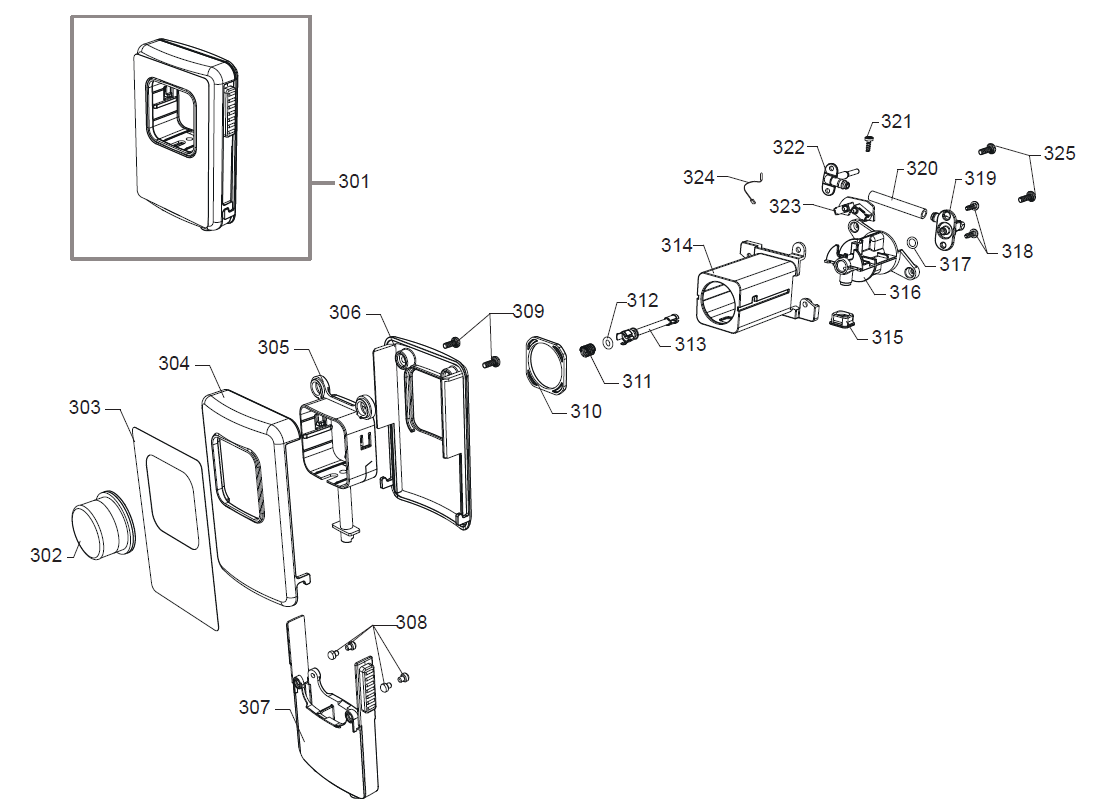

| EG3004-3 | 301 | CHROME COF.DISPENSER AC22 ASSY
Part Number: 421946506621 |
|||
| EG3004-3 | 302 | SS SBS KNOB AC22 ASSY
Part Number: 421946507841 |
|||
| EG3004-3 | 303 | ADHESIVE LOGO COF.DIS AC22
Part Number: 421946506631 |
|||
| EG3004-3 | 304 | CHROME FRONT C/COF.DIS AC22
Part Number: 421946506611 |
|||
| EG3004-3 | 305 | BLK INNER BODY COF.DIS AC22
Part Number: 421946506581 |
|||
| EG3004-3 | 306 | BLACK REAR COVER COFFEE DISPENSER MYB9
Part Number: 996530006579 |
|||
| EG3004-3 | 307 | BLK COF.DISPENSER EXT.MOBIL.PART MYB9
Part Number: 996530006581 |
|||
| EG3004-3 | 308 | WHT COFFEE DISPENSER SLIDER MYB9
Part Number: 996530006614 |
|||
| EG3004-3 | 309 | SCREW TCB TORX 10 M3X8 AUTOFORMING SS
Part Number: 996530012907 |
|||
| EG3004-3 | 310 | BLACK CREAM ADJUSTMENT KNOB RING MYB9
Part Number: 996530006743 |
|||
| EG3004-3 | 311 | SS CREAM ADJUSTMENT SHAFT SPRING
Part Number: 996530011711 |
|||
| EG3004-3 | 312 | OR ORM 0040-20 BLACK EPDM
Part Number: 996530013546 |
|||
| EG3004-3 | 313 | WHT COFFEE CREAM ADJUSTMENT SHAFT
Part Number: 996530013621 |
|||
| EG3004-3 | 314 | BLK COF.DISPENSER SUP.AC22
Part Number: 421946507831 |
|||
| EG3004-3 | 315 | BLK COF.DISPENS.SEAL V2 MYB9
Part Number: 421944057391 |
|||
| EG3004-3 | 316 | BLK COF/DISPENSER TUBE AC22
Part Number: 421946507741 |
|||
| EG3004-3 | 317 | OR ORM 0060-15 SILICONE
Part Number: 996530007732 |
|||
| EG3004-3 | 318 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| EG3004-3 | 319 | BLK COFFEE DISPENSER CONNECTOR V2 GMYB
Part Number: 421944085221 |
|||
| EG3004-3 | 320 | SILICONE TUBE 5X8 70SH
Part Number: 996530018269 Notes: IN ROLL |
|||
| EG3004-3 | 321 | SCREW TCB TORX 10 3X8 PLAST.ZN-N
Part Number: 421944080591 |
|||
| EG3004-3 | 322 | BLK DISPENSER COFF.INLET CONNECT.V2 GMYB
Part Number: 421944085231 |
|||
| EG3004-3 | 323 | BOARD SBS HIGH-END
Part Number: 421946505431 |
|||
| EG3004-3 | 324 | 4P.CONN. SBS BOARD NHE
Part Number: 421946507211 |
|||
| EG3004-3 | 325 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||

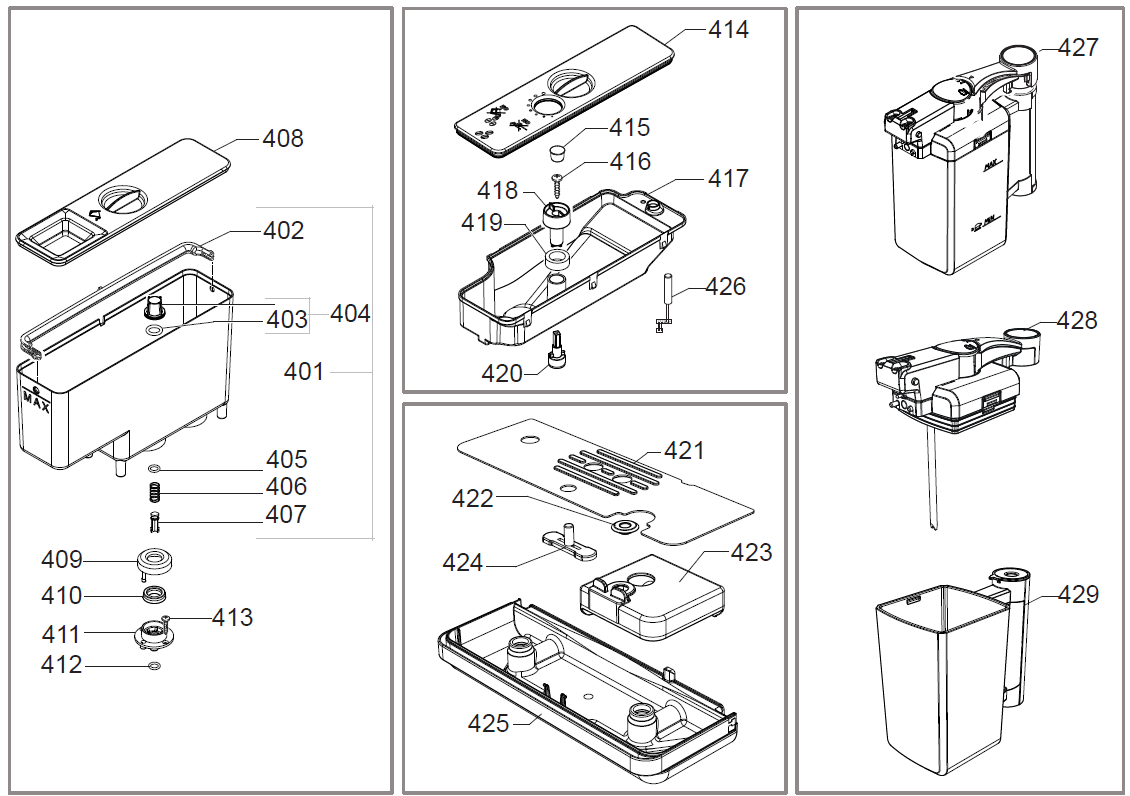

| EG3004-4 | 401 | NAT/GREY WATER CONTAINER MYB9 ASSY.
Part Number: 996530006692 |
|||
| EG3004-4 | 402 | BLACK HANDLE WATER CONTAINER LID MYB9
Part Number: 996530006509 |
|||
| EG3004-4 | 403 | OR ORM 0190-10 EPDM
Part Number: 996530013571 |
|||
| EG3004-4 | 404 | WHITE WATER CONTAINER EXT.FILTER ASSY.
Part Number: 996530029115 |
|||
| EG3004-4 | 405 | OR ORM 0060-30 SILICONE
Part Number: 996530013507 |
|||
| EG3004-4 | 406 | SS WATER CONTAINER VALVE SPRING
Part Number: 996530011626 |
|||
| EG3004-4 | 407 | GREY WATER VALVE V2 CONTAINER PISTON
Part Number: 421941089692 |
|||
| EG3004-4 | 408 | NAT GREY WATER CONTAINER LID N S SC.MYB9
Part Number: 996530006507 |
|||
| EG3004-4 | 409 | GREY WATER VALVE GACO DIM 14 SEAL COVER
Part Number: 996530044417 |
|||
| EG3004-4 | 410 | NBR WATER CONT.VALVE GACO DIM14 SEAL
Part Number: 996530015823 |
|||
| EG3004-4 | 411 | GREY WATER VALVE GACO DIM 14 SEAL CONT.
Part Number: 996530044404 |
|||
| EG3004-4 | 412 | OR ORM 0080-20 TERMOIL
Part Number: 996530013446 |
|||
| EG3004-4 | 413 | SCREW TSP TORX 10 AB 3,5X9,5 SHEET SS
Part Number: 996530012898 |
|||
| EG3004-4 | 414 | NAT/GREY BEAN COFF.CONT.LID V2 MYB9 ASSY
Part Number: 996530066734 |
|||
| EG3004-4 | 415 | GREY CAP FOR KNOBS BEAN CONTAINER
Part Number: 996530018116 |
|||
| EG3004-4 | 416 | SCREW TCB TORX 10 3X12 PLAST.ZN-B
Part Number: 996530013164 |
|||
| EG3004-4 | 417 | BLACK BEAN CONTAINER V2 MYB9
Part Number: 996530066733 |
|||
| EG3004-4 | 418 | BLACK GRIND.ADJUSTMENT KNOB MBY9
Part Number: 996530006551 |
|||
| EG3004-4 | 419 | GREY GRIND.ADJUSTMENT KNOB WASHER MYB9
Part Number: 996530007398 |
|||
| EG3004-4 | 420 | BLK INSERT GRIND.ADJUSTMENT KNOB SMART1
Part Number: 996530016123 |
|||
| EG3004-4 | 421 | SS DRIP TRAY GRATE AC22
Part Number: 421946506671 |
|||
| EG3004-4 | 422 | BLACK GRATE SEAL V3 MYB9/H-P
Part Number: 996530066732 |
|||
| EG3004-4 | 423 | BLACK DRIP TRAY COVER AC22
Part Number: 421946506691 |
|||
| EG3004-4 | 424 | RED/3003 FLOAT FOR DRIP TRAY XSM
Part Number: 421941304791 |
|||
| EG3004-4 | 425 | BLK DRIP TRAY AC22 ASSY
Part Number: 421946506641 |
|||
| EG3004-4 | 426 | 4 POLES CONN. 1 REED 1 MICRO UL ASSY
Part Number: 421946506251 |
|||
| EG3004-4 | 427 | BLACK CARAFE AC22 ASSY
Part Number: 421946508021 |
|||
| EG3004-4 | 428 | KIT SPARE CARAFE UPPER PART ACC22
Part Number: 421946509811 |
|||
| EG3004-4 | 429 | KIT SPARE CARAFE & HANDLE ACC22
Part Number: 421946509821 |
|||

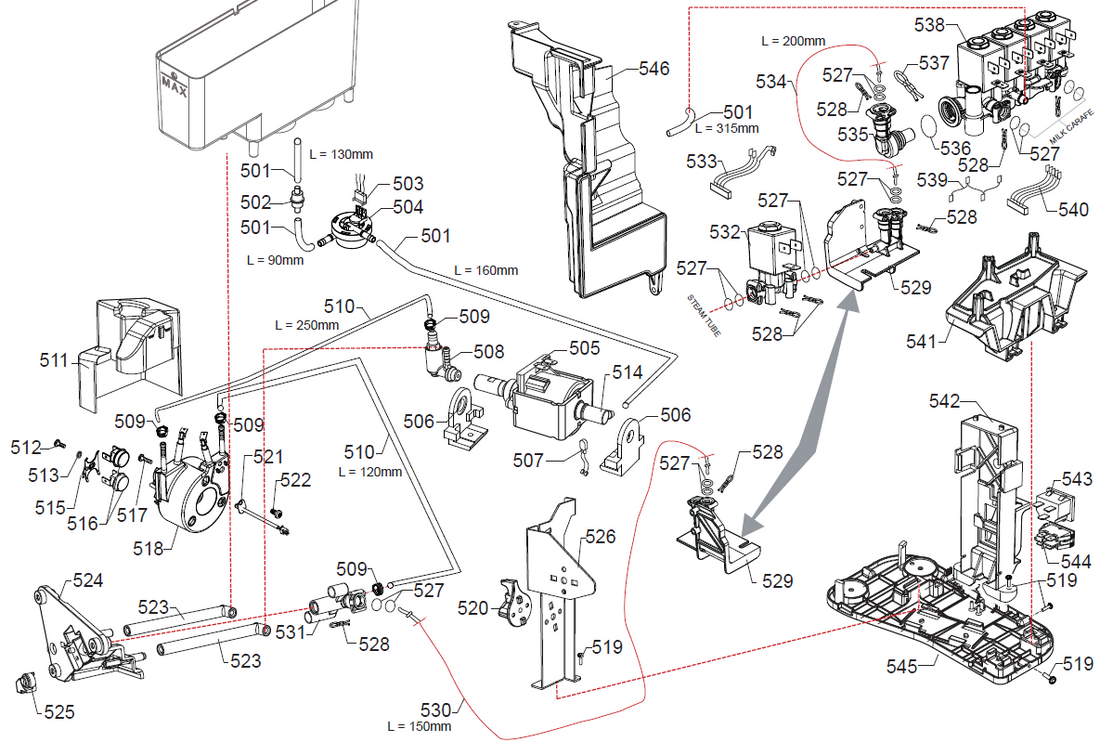

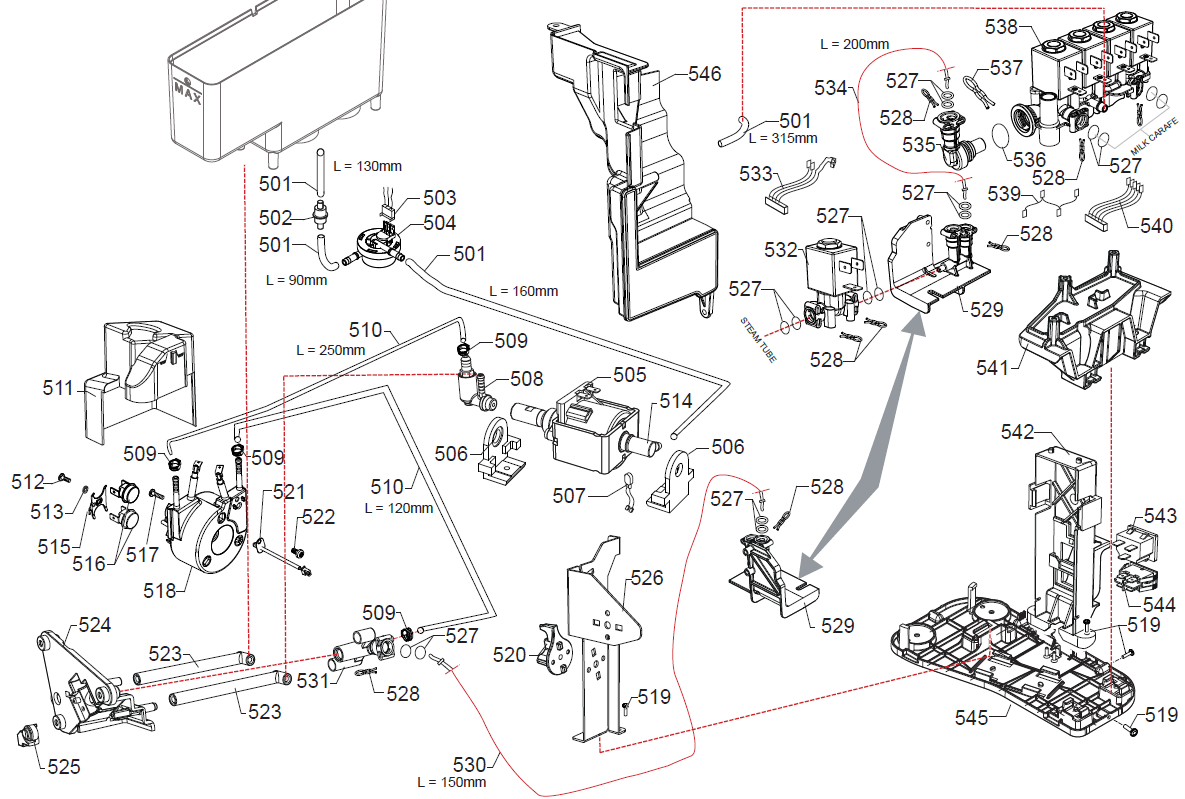

| EG3004-5 | 501 | SILICONE TUBE 5X10 60SH L EQUAL 1000 MM
Part Number: 996530002093 |
|||
| EG3004-5 | 502 | TRANSP/WHT ASPIRATION FILTER MDS
Part Number: 996530067498 |
|||
| EG3004-5 | 503 | 3 POLES CONN. FLOWMETER NHE UL ASSY
Part Number: 421946505861 |
|||
| EG3004-5 | 504 | TURBINE D=1,2 932-8521/90 ASSY.
Part Number: 996530007887 |
|||
| EG3004-5 | 505 | ULKA PUMP EP5FMGW 230V-50HZ
Part Number: 421941305991 |
|||
| EG3004-5 | ULKA PUMP EFP5/S 120V-60HZ
Part Number: 421944081531 |
||||
| EG3004-5 | 506 | BLACK PUMP SUPPORT GMYB
Part Number: 996530007468 |
|||
| EG3004-5 | 507 | 2POLES CONNECTOR COFFEE PUMP MYB9 UL
Part Number: 996530006607 |
|||
| EG3004-5 | 508 | L-F/BR.SAFETY VALVE 16-18 BAR ASSY.
Part Number: 996530068178 |
|||
| EG3004-5 | 509 | OETIKER CLAMP D EQUALS 9 5 15400022
Part Number: 996530007742 |
|||
| EG3004-5 | 510 | PINK 5X8,9 SILICONE TUBE
Part Number: 996530009505 Notes: IN ROLL |
|||
| EG3004-5 | 511 | BLK COVER BOILER AC22
Part Number: 421946506591 |
|||
| EG3004-5 | 512 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 996530069758 |
|||
| EG3004-5 | 513 | GALV.WASHER UNI 8842 A4
Part Number: 996530012341 |
|||
| EG3004-5 | 514 | 90 INLET PUMP CONNECTOR
Part Number: 996530017348 |
|||
| EG3004-5 | 515 | TUB.BOILER V3 UPPER THERM.FIXING SPRING
Part Number: 996530000997 |
|||
| EG3004-5 | 516 | THERMOSTAT OPEN/CLOSE 190/-35DEGC B
Part Number: 262279998757 |
|||
| EG3004-5 | 517 | SCREW TSP TORX 10 5X20 PLAST.ZN-B
Part Number: 996530008024 |
|||
| EG3004-5 | 518 | TUB.BOILER XS4 ASSY.
Part Number: 421944028841 Notes: 1900W 230V |
|||
| EG3004-5 | TUB.BOILER XS4 ASSY.
Part Number: 421944046121 Notes: 1300W 120V |
||||
| EG3004-5 | 519 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| EG3004-5 | 520 | B/TUB.BOILER SUPPORT AC22
Part Number: 421946507751 |
|||
| EG3004-5 | 521 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 996530026997 |
|||
| EG3004-5 | 522 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 996530069758 |
|||
| EG3004-5 | 523 | WATER DRAIN CONNECTOR MYB9
Part Number: 996530006375 |
|||
| EG3004-5 | 524 | B/BLOWDOWN VALVE SUP AC22
Part Number: 421946507581 |
|||
| EG3004-5 | 525 | BLACK MOUNTING PLATE COVER SEAL MYB9
Part Number: 996530006796 |
|||
| EG3004-5 | 526 | STEEL SLIM TUB.BOILER SUPPORT MYB9
Part Number: 996530067888 |
|||
| EG3004-5 | 527 | OR 2015 IN SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| EG3004-5 | 528 | SS FORK FOR TUBE D.4
Part Number: 996530048885 |
|||
| EG3004-5 | 529 | CON/BOILER PIN-VALVES AC22
Part Number: 421946506441 |
|||
| EG3004-5 | 530 | TEFLON TUBE 2X4 L=150 MM ASSY
Part Number: 996530073864 |
|||
| EG3004-5 | 531 | PIN BOILER FAST CONNECT AC22
Part Number: 421946506431 |
|||
| EG3004-5 | 532 | 2WAY PLASTIC VALVE D2 24V R2A
Part Number: 421944090341 |
|||
| EG3004-5 | 533 | 6P CONN. 1 ELECTROV. + CUP WARM 24V
Part Number: 421946506261 |
|||
| EG3004-5 | 534 | TEFLON TUBE ASS. 4X2 L.200 7-7
Part Number: 996530051521 |
|||
| EG3004-5 | 535 | CONNECTOR FAST LOCK 90 STLR
Part Number: 421945018231 |
|||
| EG3004-5 | 536 | OR 2031 SILICONE FDA
Part Number: 421940219621 |
|||
| EG3004-5 | 537 | SS FORK SPRING FOR BLOWDOWN VALVE P0049
Part Number: 996530002744 |
|||
| EG3004-5 | 538 | EV GENERAL ASSEMBLY AC22
Part Number: 421946509171 |
|||
| EG3004-5 | 539 | 3 WIR.CAB.JUMP.GROUP VAL.COM V2 STLR U
Part Number: 421945015172 |
|||

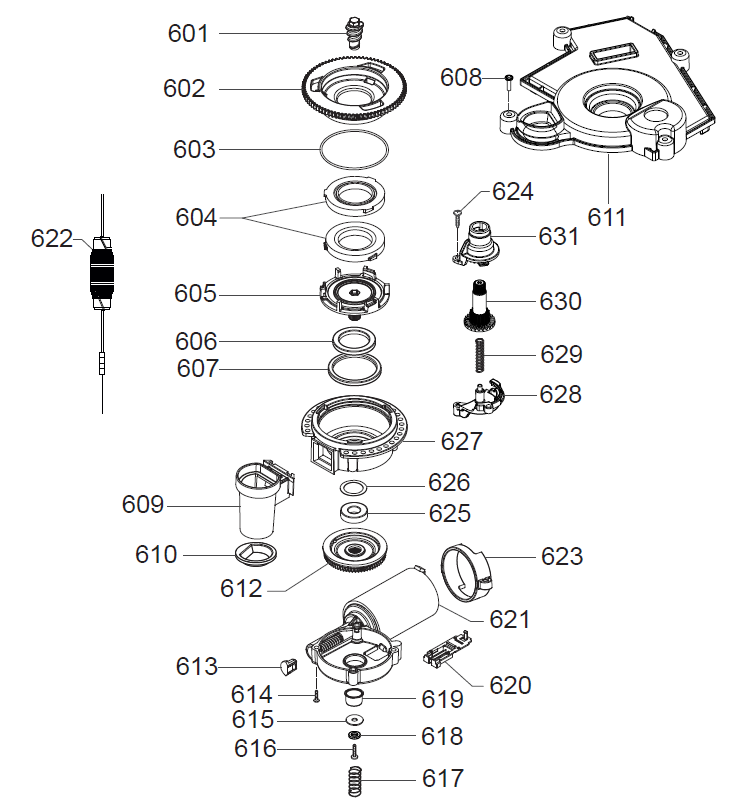

| EG3004-6 | 601 | GRIVORY INCREASE SCREW GRINDER V3
Part Number: 421944032693 |
|||
| EG3004-6 | 602 | BLK COF.GRINDER UPPER GRINDER SUPPORT V2
Part Number: 421941094152 |
|||
| EG3004-6 | 603 | OR ORM 0530-15 NBR FDA
Part Number: 996530013577 |
|||
| EG3004-6 | 604 | BAKED CLAY GRINDER 48X28
Part Number: 996530016342 |
|||
| EG3004-6 | 605 | BLK LOWER COFFEEGRINDER GRINDER SUPPORT
Part Number: 996530017952 |
|||
| EG3004-6 | 606 | AXIAL BEARING EKKO 342.35252
Part Number: 996530011183 |
|||
| EG3004-6 | 607 | FELT RING 45,4X39,4X4
Part Number: 996530013597 |
|||
| EG3004-6 | 608 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| EG3004-6 | 609 | BLK GROUND COFF.OUTLET CONV. V2 ASSY.
Part Number: 421941230122 |
|||
| EG3004-6 | 610 | GRY GROUND COFFEE CONT.LOWER SEAL SMART1
Part Number: 996530072511 |
|||
| EG3004-6 | 611 | BLK COF.GRIND.SOUNDP.V2 MYB9
Part Number: 421941203632 |
|||
| EG3004-6 | 612 | GRY GEAR SX Z=38 FOR GRINDER MOTION
Part Number: 421945006091 |
|||
| EG3004-6 | 613 | MC V3 MOD=1,25 WORM SCREW CENTRING CAP
Part Number: 996530018139 |
|||
| EG3004-6 | 614 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 996530012992 |
|||
| EG3004-6 | 615 | STEEL FLAT WASHER DI=4,3 DE=14 SP=1,5
Part Number: 996530012375 |
|||
| EG3004-6 | 616 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 996530012928 |
|||
| EG3004-6 | 617 | STEEL COF.GRINDER SUPPORT SPRING P124
Part Number: 996530000376 |
|||
| EG3004-6 | 618 | GALV.WASHER UNI 8842 A4
Part Number: 996530012341 |
|||
| EG3004-6 | 619 | INSULATOR BUSH V2 FOR GRINDER MOTOR
Part Number: 421941154362 |
|||
| EG3004-6 | 620 | BLK SENSOR SUPPORT FOR COF.GRINDER MOTOR
Part Number: 996530017963 |
|||
| EG3004-6 | 621 | MOTOR COFFEEGRINDER V3.2 DOMEL ASSY
Part Number: 421944078831 Notes: 230V |
|||
| EG3004-6 | MOTOR COFFEEGRINDER V3.2 WZN ASSY
Part Number: 421944084071 Notes: 120V |
||||
| EG3004-6 | 622 | 2 POLES CONN. GRINDER MOTOR FTR UL
Part Number: 421946035831 |
|||
| EG3004-6 | 623 | BLK COFFEEGRINDER MOTOR SUPP.P124 V2
Part Number: 421941142172 |
|||
| EG3004-6 | 624 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 996530013165 |
|||
| EG3004-6 | 625 | RADIAL BEARING 61900.2RS1
Part Number: 996530011182 |
|||
| EG3004-6 | 626 | STEEL CRINKLE WASHER 21,8X14X0,25
Part Number: 996530012374 |
|||
| EG3004-6 | 627 | BLK UPPER BODY WITH COFFEE GROUND OUT.V2
Part Number: 421941082802 |
|||
| EG3004-6 | 628 | LOWER GEAR SUPPORT COFFEEGRINDER SMART
Part Number: 996530017976 |
|||
| EG3004-6 | 629 | SPRING FOR ADJUSTMENT GRINDING GEAR
Part Number: 996530011715 |
|||
| EG3004-6 | 630 | COFFEE GRINDING ADJUSTMENT GEAR SMART
Part Number: 996530016264 |
|||
| EG3004-6 | 631 | UPPER GEAR SUPPORT COFFEEGRINDER SMART
Part Number: 996530017975 |
|||
| EG3004-6 | GEN.COF.GRINDER MOTOR AC22 ASSY.
Part Number: 421946508411 Notes: 230V |
||||
| EG3004-6 | GEN.COF.GRINDER MOTOR AC22 ASSY.
Part Number: 421946508421 Notes: 120V |
||||

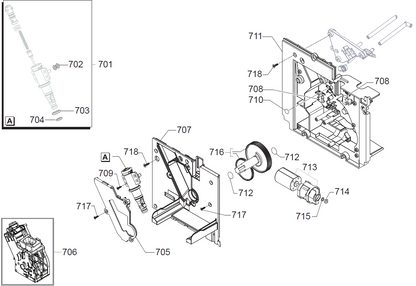

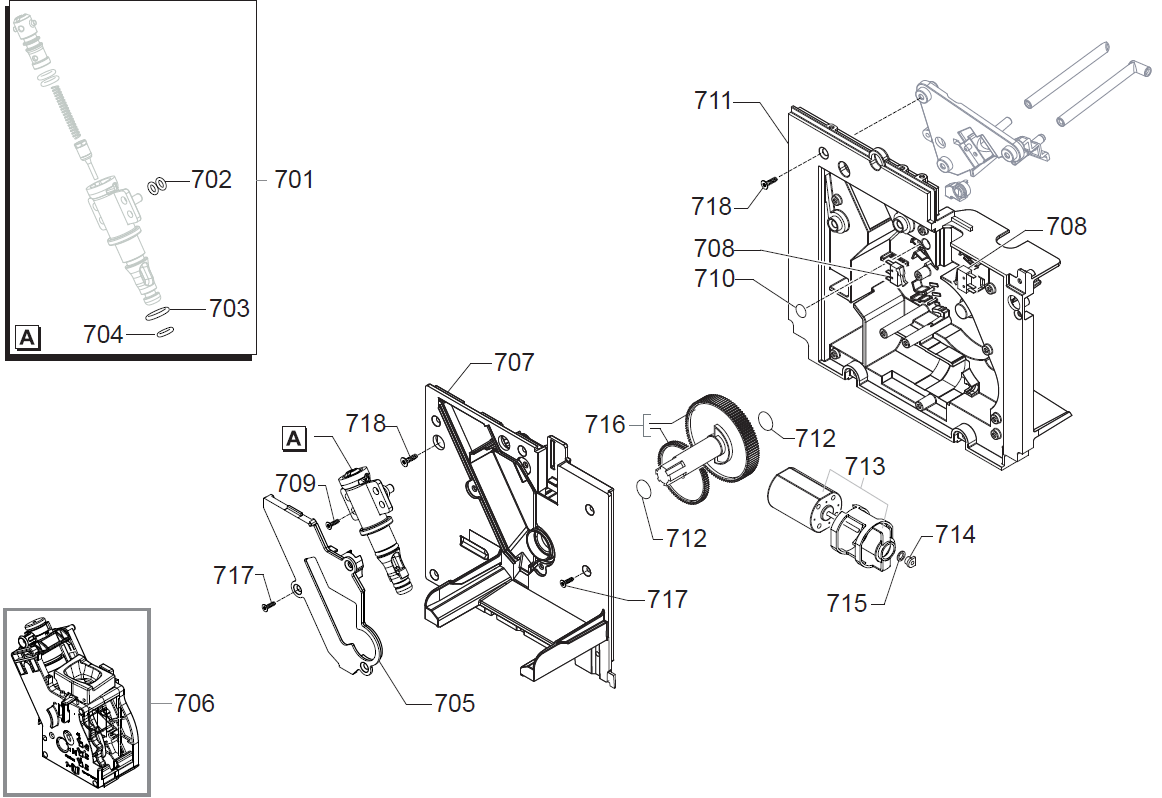

| EG3004-7 | 701 | PIN FOR BOILER OMN ASSY V3
Part Number: 421945045521 |
|||
| EG3004-7 | 702 | OR 2015 SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| EG3004-7 | 703 | OR ORM 0090-20 RED MG8037R70P
Part Number: 421945039071 |
|||
| EG3004-7 | 704 | OR ORM 0050-20 IN SILICONE
Part Number: 996530059419 |
|||
| EG3004-7 | 705 | BLACK COVER FOR BOILER VAIN P119 UL
Part Number: 996530005403 |
|||
| EG3004-7 | 706 | BLK/YLW BREW UNIT 8GR.SBS AC22
Part Number: 421946508511 |
|||
| EG3004-7 | 707 | BLK COV. MOUNT.PLATE AC22
Part Number: 421946506561 |
|||
| EG3004-7 | 708 | MICRO+REED+MOTOR BREWUNIT V9 MYB9 UL AS.
Part Number: 421946046501 |
|||
| EG3004-7 | 709 | SCREW TCBR TORX 10 3,5X14 PLAST.ZN-N
Part Number: 996530013147 |
|||
| EG3004-7 | 710 | OR ORM 0070-20 SILICONE
Part Number: 996530013526 |
|||
| EG3004-7 | 711 | BLK MOUNT.PLATE WITH PIN V3 P119 UL ASSY
Part Number: 421941264282 |
|||
| EG3004-7 | 712 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 996530050569 |
|||
| EG3004-7 | 713 | MOTOR FOR RATIOMOTOR P124 ASSY.
Part Number: 996530002796 |
|||
| EG3004-7 | 714 | BRONZE SINTERED BUSH FOR MOTOR RATIOMOT.
Part Number: 996530049898 |
|||
| EG3004-7 | 715 | BAKELIZZATE WASHER D=5,5
Part Number: 996530017424 |
|||
| EG3004-7 | 716 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 996530009913 |
|||
| EG3004-7 | 717 | SCREW TSP TORX 10 3,5X14 PLAST.ZN-NI
Part Number: 421944016781 |
|||
| EG3004-7 | 718 | SCREW TSP TORX 10 5X20 PLAST.ZN-B
Part Number: 996530008024 |
|||

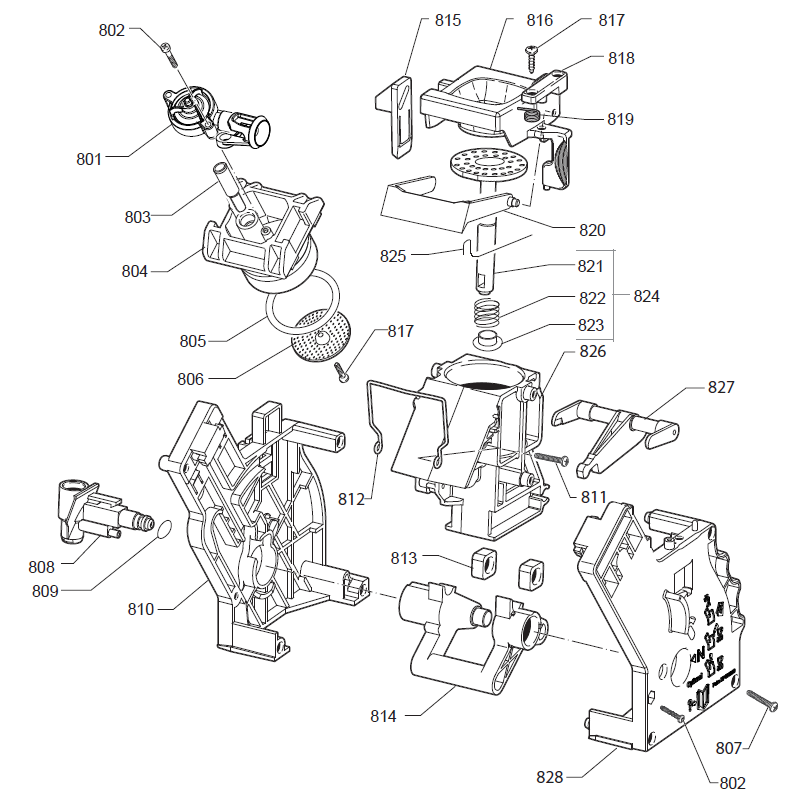

| EG3004-8 | 801 | SBS VALVE STD ASSY.
Part Number: 996530005823 |
|||
| EG3004-8 | 802 | SCREW TCB TORX 10 3X25 PLAST.SS
Part Number: 996530007838 |
|||
| EG3004-8 | 803 | BLK BREW UN.COUNTER PISTON TUBE V2 S0053
Part Number: 421944079291 |
|||
| EG3004-8 | 804 | BLK BREW UNIT 8GR.COUNTER PISTON V2 P124
Part Number: 421944079991 |
|||
| EG3004-8 | 805 | OR ORM 0320-40 SILICONE PTFE/FDA
Part Number: 996530059406 |
|||
| EG3004-8 | 806 | PERCOLATOR DE=35,8 V2
Part Number: 421945025332 |
|||
| EG3004-8 | 807 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||
| EG3004-8 | 808 | BREW UN.WATER INLET SLEEVE V2 SMR
Part Number: 421944050641 |
|||
| EG3004-8 | 809 | OR 2025 IN TERMOIL
Part Number: 996530059441 |
|||
| EG3004-8 | 810 | BLACK BREW UNIT REAR PLATE SMART
Part Number: 996530050832 |
|||
| EG3004-8 | 811 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 996530013148 |
|||
| EG3004-8 | 812 | SS BREW UNIT SPRING H=49 SMART
Part Number: 421944025811 |
|||
| EG3004-8 | 813 | BLACK BREW UNIT DRILLED BLOCK
Part Number: 996530050539 |
|||
| EG3004-8 | 814 | YLW BREW UNIT ELBOW SHAFT V2 M5000
Part Number: 421944079201 |
|||
| EG3004-8 | 815 | YLW BREW UNIT COUPLING PLATE V3 SMART
Part Number: 421944046932 |
|||
| EG3004-8 | 816 | BLK BREW UNIT V3 SMART1 HOPPER DOSER
Part Number: 421941095982 |
|||
| EG3004-8 | 817 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 |
|||
| EG3004-8 | 818 | BLK BREWUNIT HOPPER BLOCKING PLATE SMART
Part Number: 996530050829 |
|||
| EG3004-8 | 819 | SS HOPPER SPRING FOR BREW UNIT SMART
Part Number: 996530050838 |
|||
| EG3004-8 | 820 | BLK BREW UNIT SCRAPER V2 M5000
Part Number: 421944079261 |
|||
| EG3004-8 | 821 | GRY BREW UNIT INTEGR.PISTON 8GR.V4 ASSY
Part Number: 421944079491 |
|||
| EG3004-8 | 822 | SS.8GR.BREW UNIT PISTON SPRING
Part Number: 996530050627 |
|||
| EG3004-8 | 823 | WHITE 8GR.-12GR.BREW UNIT PISTON BUSH
Part Number: 996530050618 |
|||
| EG3004-8 | 824 | GRY BREW UNIT 8GR.INT.PISTON GEN.V3 ASSY
Part Number: 421944065811 |
|||
| EG3004-8 | 825 | SS SCRAPER SPRING FOR BREW UNIT
Part Number: 996530050455 |
|||
| EG3004-8 | 826 | BLK COF.CONTAIN.BREW UNIT V4 M5000 ASSY
Part Number: 421944079431 |
|||
| EG3004-8 | 827 | BLACK CONNECTING ROD BREW UNIT 8GR.
Part Number: 996530001452 |
|||
| EG3004-8 | 828 | BLACK BREW UNIT FRONT PLATE S/SCR.SMART
Part Number: 996530003228 |
|||
| EG3004-8 | BLK/YLW BREW UNIT 8GR.SBS AC22
Part Number: 421946508511 |
