Gaggia Accademia SUP038G Part Diagram E74148
This is the Gaggia Accademia SUP038G Parts Diagram E74148. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

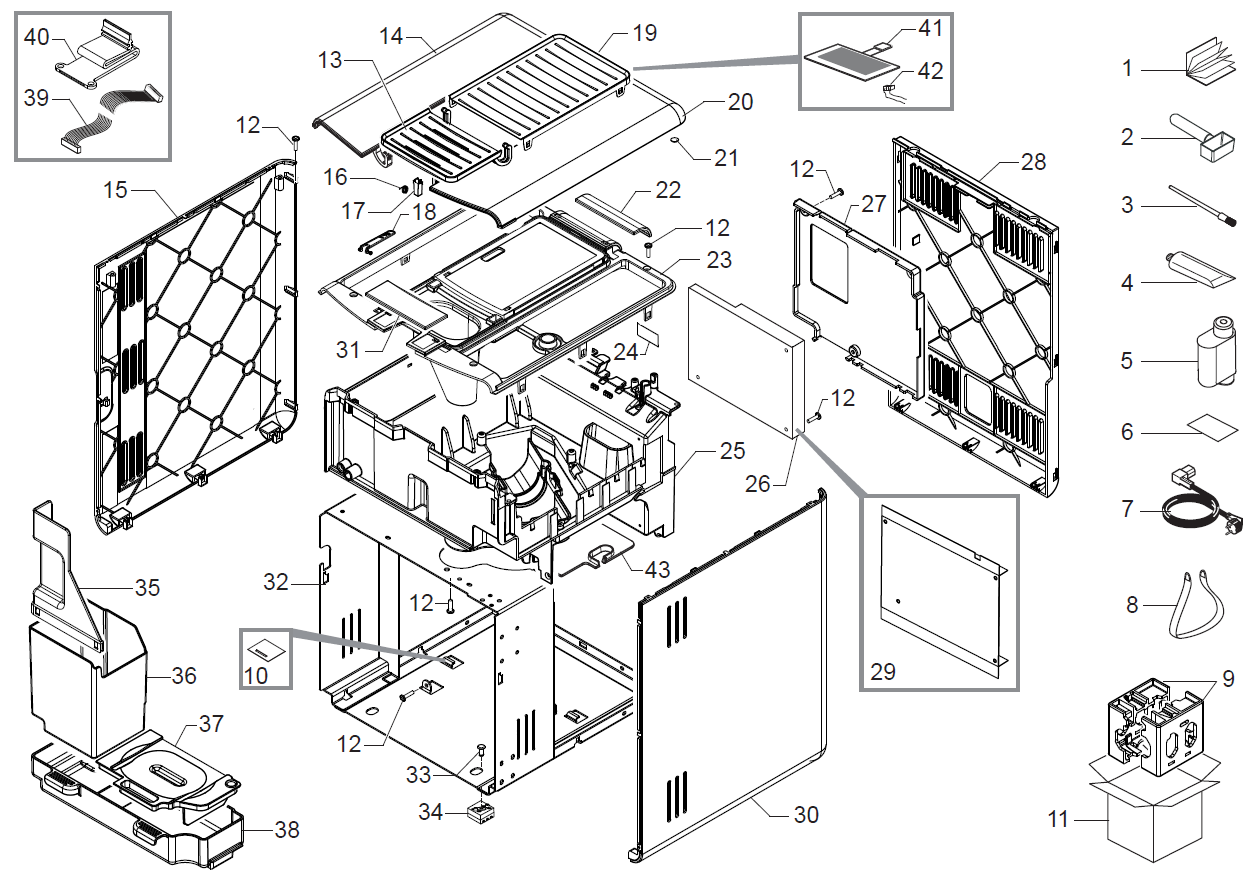

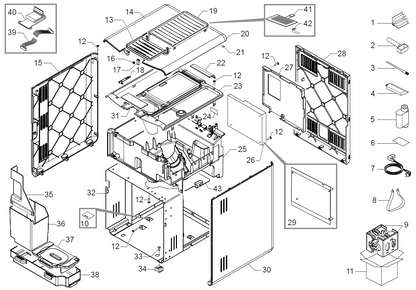

| E74148-1 | 1 | MANUAL GAG SUP038G GMYB/H D/I
Part Number: 15001992 |
|||
| E74148-1 | 1 | MANUAL GAG SUP038G GMYB/H GB/F
Part Number: 15001993 |
|||
| E74148-1 | 1 | MANUAL GAG SUP038G GMYB/H E/P
Part Number: 15001994 |
|||
| E74148-1 | 1 | MANUAL GAG SUP038G GMYB/H NL/PL
Part Number: 15001995 |
|||
| E74148-1 | 1 | MANUAL GAG SUP038G GMYB/H GB/CHN
Part Number: 15002625 |
|||
| E74148-1 | 1 |
Part Number: 15002627 |
|||
| E74148-1 | 2 |
|
BLACK COFFEE MEASURE SMART Part Number: 146680850 |
$8.16 | View Part |
| E74148-1 | 3 |
|
BRUSH FOR CLEANING Part Number: 127390100 |
$6.55 | View Part |
| E74148-1 | 4 |
|
GAGGIA KLUBER TRIBOSTAR SIL 2 TUBE 5GR. Part Number: 11022867 |
$9.99 | View Part |
| E74148-1 | 5 | ACC GAG BRITA UNI.WAT.FILTERX1 EUR-ASIA
Part Number: 21001419 |
|||
| E74148-1 | 5 | ACC GAG MAVEA UNI.WAT.FILTERX1 USA
Part Number: 21001711 |
|||
| E74148-1 | 6 |
|
STICKER FOR WATER HARDNESS TEST Part Number: 0301.961 |
$6.08 | View Part |
| E74148-1 | 7 | BLACK POWER CABLE RVV 3X1 CHINA L=1200
Part Number: 11004247 |
|||
| E74148-1 | 7 | BLACK POWER CABLE BRAZIL L=1200
Part Number: 17800019 |
|||
| E74148-1 | 7 | BLACK POWER CABLE SCHUKO L=1200
Part Number: 183911050 |
|||
| E74148-1 | 7 |
|
POWER CABLE SJT3 USA BLACK UL L=1200 Part Number: 183921950 |
$15.72 | View Part |
| E74148-1 | 7 | POWER CABLE CH BLACK 3X1 H05VV-F L=1200
Part Number: 183930650 |
|||
| E74148-1 | 7 | BLACK POWER CABLE AUSTRALIA L=1200
Part Number: 183940650 |
|||
| E74148-1 | 7 | BLACK POWER CABLE UK L=1200
Part Number: 183970350 |
|||
| E74148-1 | 8 | BAND FOR LIFTING L=1800MM H=300MM
Part Number: 13001097 |
|||
| E74148-1 | 9 | KIT PS-E INSERT FOR BOX GMYB
Part Number: 20006919 |
|||
| E74148-1 | 10 | COMPONENTS SUPPORT INSULATE SHEET MYB9
Part Number: 17000007 |
|||
| E74148-1 | 11 | DISPLAY BOX GMYB GAG ACCADEMIA
Part Number: 13001095 |
|||
| E74148-1 | 12 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| E74148-1 | 13 | SB/SS GROUND CONT.DOOR COVER S/S.MYB9 AS
Part Number: 11025978 |
|||
| E74148-1 | 13 | SB/SS GROUND CONT.DOOR COVER S/S.MYB9 AS
Part Number: 11013210 |
|||
| E74148-1 | 14 | MATT/BLK WATER CONT.DOOR COVER MYB9 ASSY
Part Number: 11023991 |
|||
| E74148-1 | 14 | MATT/BLK WATER CONT.DOOR COV.V2 MYB9 ASS
Part Number: 11029407 |
|||
| E74148-1 | 15 | M/BLK LEFT SIDE PANEL V2 MYB9/H-T ASSY.
Part Number: 11024525 |
|||
| E74148-1 | 16 | SS SPRING FOR WATER CONTAINER LEVER MYB9
Part Number: 11022426 |
|||
| E74148-1 | 17 | BLACK PUSH-PUSH MYB9
Part Number: 12001263 |
|||
| E74148-1 | 18 | YELLOW LEVER FOR WATER CONTAIN.S/SC.MYB9
Part Number: 11022425 |
|||
| E74148-1 | 19 | SB/SS CUP WARMING LID V2 MYB9
Part Number: 11025965 |
|||
| E74148-1 | 19 | SB/SS CUP WARMING LID V2 MYB9
Part Number: 17000059 |
|||
| E74148-1 | 20 | MATT/BLK BEAN CONT.DOOR COV.V2 MYB9 ASSY
Part Number: 11029389 |
|||
| E74148-1 | 20 | MATT BLK BEAN CONT.DOOR COVER MYB9 ASSY.
Part Number: 11023992 |
|||
| E74148-1 | 21 | TRANSP.ROUND ADHESIVE FOOT SJ-5382
Part Number: 12001330 |
|||
| E74148-1 | 22 | MATT/BLK REAR COVER CASING INS.MYB9 ASSY
Part Number: 11022822 |
|||
| E74148-1 | 23 | BLACK COVER CASING W/PROTECT.V2 MYB9/H-T
Part Number: 17000205 |
|||
| E74148-1 | 24 | WATER LEVEL SENSOR BOARD P124
Part Number: 11000651 |
|||
| E74148-1 | 25 | BLACK HORIZONTAL MOUNTING PLATE MYB9 ASS
Part Number: 11014017 |
|||
| E74148-1 | 26 | PWR BOARD MYB9/MDS 120V
Part Number: 11021342 |
|||
| E74148-1 | 26 | PWR BOARD MDS 230V
Part Number: 11024263 |
|||
| E74148-1 | 27 | BLACK PWR BOARD COVER MYB9
Part Number: 11012035 |
|||
| E74148-1 | 28 | BLK REAR PANEL WHIT LOGO GAGGIA V2 GMYB
Part Number: 17000126 |
|||
| E74148-1 | 29 | PWR ELECTR.BOARD INSULATE SHEET MYB9
Part Number: 11023304 |
|||
| E74148-1 | 30 | M/BLK RIGHT SIDE PANEL V2 MYB9/H-T ASSY.
Part Number: 11024521 |
|||
| E74148-1 | 31 | MATT/BLK FRONT COV.CASIN.INS.MYB9/H-P AS
Part Number: 11022808 |
|||
| E74148-1 | 32 | BLACK STEEL CASING MYB9 ASSY.
Part Number: 11013170 |
|||
| E74148-1 | 33 | BLACK RIGID FOOT FIXING PIN MYB9
Part Number: 11021769 |
|||
| E74148-1 | 34 | BLACK/TRANSP.RIGID FOOT MYB9
Part Number: 11021829 |
|||
| E74148-1 | 35 | BLACK DUMP BOX PROTECTION MYB9
Part Number: 11022527 |
|||
| E74148-1 | 36 | BLACK DUMP BOX MYB9 ASSY.
Part Number: 11013595 |
|||
| E74148-1 | 37 | BLK DRIP TRAY COFF.BREW UNIT COVER MYB9
Part Number: 11022169 |
|||
| E74148-1 | 38 | BLACK COFFEE UNIT DRIP TRAY MYB9
Part Number: 11012777 |
|||
| E74148-1 | 38 | BLACK COFFEE UNIT DRIP TRAY V2 MYB9
Part Number: 17001901 |
|||
| E74148-1 | 39 | 40POLES FLAT CABLE BOARDS LINK MYB9 UL
Part Number: 11013128 |
|||
| E74148-1 | 40 | BLACK FLAT-CABLE PROTECTION MYB9
Part Number: 11013806 |
|||
| E74148-1 | 41 | ADHESIVE HEATING-ELEMENT 120V
Part Number: 11000791 |
|||
| E74148-1 | 41 | ADHESIVE HEATING-ELEMENT 230V
Part Number: WGA4316031000 |
|||
| E74148-1 | 42 | 2POLES CONNECT.SUPPLY CUPWARMING
Part Number: 11008844 |
|||
| E74148-1 | 43 | G0053UL
BLACK SLIM BOILER PROTECTION MYB9
Part Number: 17000420 |
|||

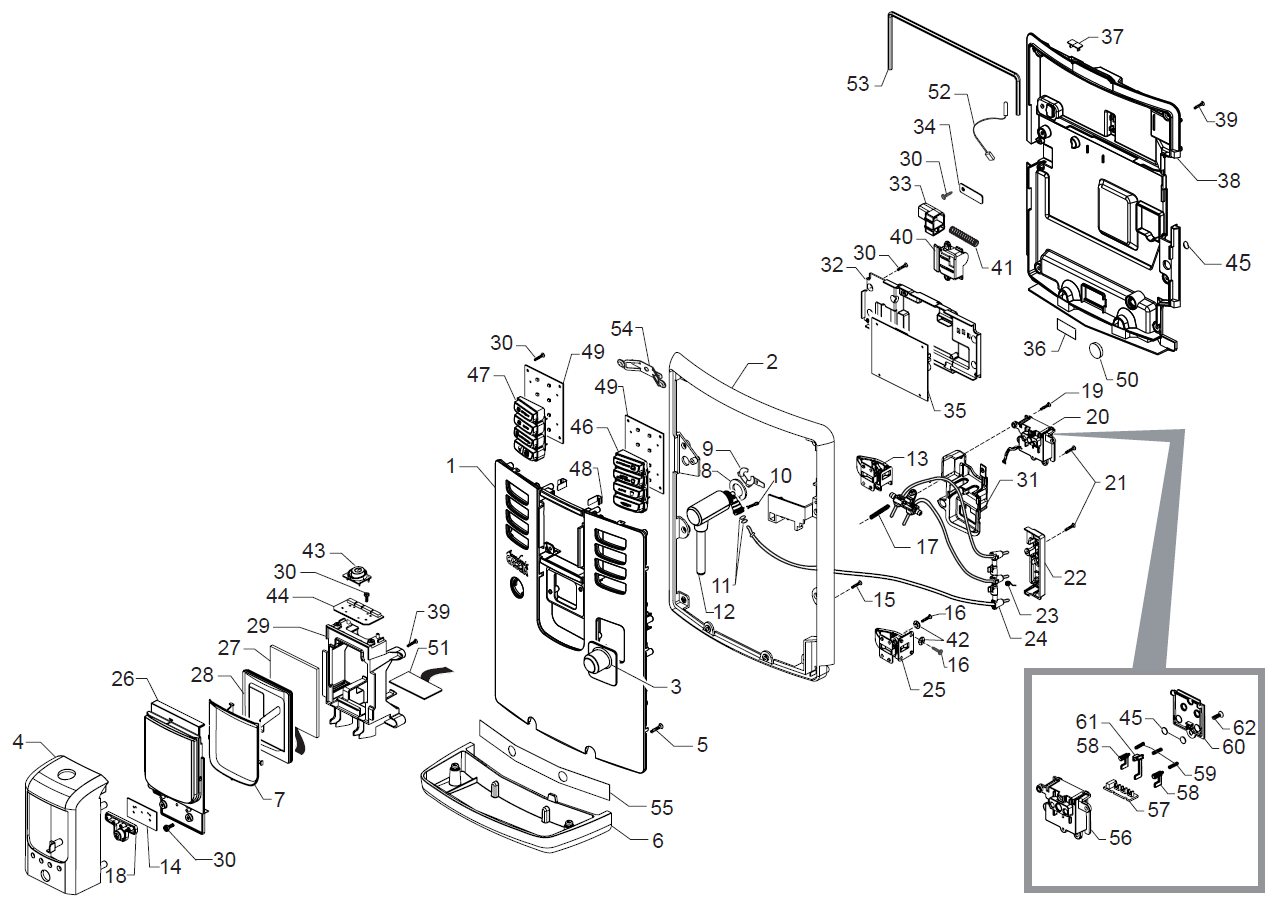

| E74148-2 | 1 | SB/SS FRONTAL PANEL S/SCREEN GMYB ASSY.
Part Number: 11022399 |
|||
| E74148-2 | 2 | CHROM.ZAMA FRONT FRAME GMYB
Part Number: 11014003 |
|||
| E74148-2 | 3 | CHROM.CONNEC.CAP FOR CARAFE V2 MYB9 ASSY
Part Number: 11024247 |
|||
| E74148-2 | 4 | CHROM.FRONT PANEL GMYB
Part Number: 11022411 |
|||
| E74148-2 | 5 | SCREW TCBD TORX 20 M4X12 SS
Part Number: 12001421 |
|||
| E74148-2 | 6 | CHROMED DRIP TRAY SUPPORT GMYB ASSY.
Part Number: 11013999 |
|||
| E74148-2 | 7 | BLACK DISPLAY INSERT V2 GMYB
Part Number: 11023351 |
|||
| E74148-2 | 8 | BLACK STEAM TUBE WASHER P0049
Part Number: 11001624 |
|||
| E74148-2 | 9 | FOLK SPRING MYB9 ASSY.
Part Number: 17000043 |
|||
| E74148-2 | 10 | SS FORK FOR TUBE D=4
Part Number: 9011.144 |
|||
| E74148-2 | 11 | OR 2015 SILICONE PTFE/FDA
Part Number: 140328059 |
|||
| E74148-2 | 12 | TF/CHROM.- CHROM.STEAM TUBE MYB9 ASSY.
Part Number: 11013244 |
|||
| E74148-2 | 13 | DOOR UPPER HINGE V2 MYB9
Part Number: 17000106 |
|||
| E74148-2 | 14 | KEYBOARD MENU GMYB
Part Number: 11022458 |
|||
| E74148-2 | 15 | SCREW TCBR TORX 20 4X10 PLAST.SS
Part Number: 12001430 |
|||
| E74148-2 | 16 | TCB SCREW M4X8 UNI 7687 SS
Part Number: 129823821 |
|||
| E74148-2 | 17 | TWO WAY TEFLON TUBES SUPPORT SPRING MYB9
Part Number: 17000006 |
|||
| E74148-2 | 18 | BLACK TOUCH PANEL 5 BUTTONS S/SCR.GMYB
Part Number: 11021789 |
|||
| E74148-2 | 19 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| E74148-2 | 20 | BLK CARAFFE BOARD SUPP.GEN.V2 MYB9 ASSY.
Part Number: 11023423 |
|||
| E74148-2 | 21 | SCREW TCB TORX 10 3X12 PLAST.SS
Part Number: 12001431 |
|||
| E74148-2 | 22 | BLACK TEFLON TUBES SUPPORT COVER MYB9
Part Number: 11013784 |
|||
| E74148-2 | 23 | STEEL TEFLON TUBES SUPPORT SPRING MYB9
Part Number: 11013785 |
|||
| E74148-2 | 24 | WHT PREFORM.TEFLON TUBES SUPP.MYB9 ASSY.
Part Number: 11023352 |
|||
| E74148-2 | 25 | DOOR LOWER HINGE V2 MYB9
Part Number: 17000094 |
|||
| E74148-2 | 26 | TRANSPARENT GLASS FOR DISPLAY GMYB
Part Number: 11021786 |
|||
| E74148-2 | 27 | DISPLAY 320x240 NO TOUCH BRIGHTNESS+MYB9
Part Number: 12001261 |
|||
| E74148-2 | 28 | BLACK DISPLAY SEAL GMYB
Part Number: 11022039 |
|||
| E74148-2 | 29 | BLACK DISPLAY SUPPORT GMYB
Part Number: 11021803 |
|||
| E74148-2 | 30 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 129913202 |
|||
| E74148-2 | 31 | BLACK FRONTAL PANEL INSERT MYB9
Part Number: 11023251 |
|||
| E74148-2 | 32 | BLACK CPU BOARD COVER GMYB
Part Number: 11022080 |
|||
| E74148-2 | 33 | BLACK BUTTON FOR DOOR RELEASE MYB9
Part Number: 11014215 |
|||
| E74148-2 | 34 | STEEL PLATE FOR DOOR CLOSURE MYB9
Part Number: 11021976 |
|||
| E74148-2 | 35 | CPU+SW GMYB9 ASSY.
Part Number: 11022452 |
|||
| E74148-2 | 36 | WATER LEVEL SENSOR BOARD P124
Part Number: 11000651 |
|||
| E74148-2 | 37 | TRANSP.INFRAREDS PLATE P0049
Part Number: 11001339 |
|||
| E74148-2 | 38 | BLK INSIDE COVER FRONT.PANEL S/SCR.GMYB
Part Number: 11024065 |
|||
| E74148-2 | 39 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 129912521 |
|||
| E74148-2 | 40 | BLACK COVER BUTTON FOR DOOR RELEASE GMYB
Part Number: 17000008 |
|||
| E74148-2 | 41 | SPRING FOR DOOR RELEASE BUTTON MYB9
Part Number: 11021747 |
|||
| E74148-2 | 42 | GALV.WASHER UNI 8842 A4
Part Number: 128310402 |
|||
| E74148-2 | 43 | WHITE TOUCH PANEL 1 BUTTON S/SCR.GMYB
Part Number: 11021800 |
|||
| E74148-2 | 44 | KBD+SW STAND-BY GMYB ASSY.
Part Number: 11022454 |
|||
| E74148-2 | 45 | TRANSP.ROUND ADHESIVE FOOT SJ-5382
Part Number: 12001330 |
|||
| E74148-2 | 46 | BLACK RIGHT BUTTONS S/SCR.GMYB ASSY.
Part Number: 11021333 |
|||
| E74148-2 | 47 | BLACK LEFT BUTTON S/SCR.GMYB ASSY.
Part Number: 11021326 |
|||
| E74148-2 | 48 | BRONZE FRONT FRAME SPRING GMYB
Part Number: 17000023 |
|||
| E74148-2 | 49 | KEYBOARD BEVERAGE GMYB
Part Number: 11022457 |
|||
| E74148-2 | 50 | BLACK INSIDE COVER FRONT PANEL CAP GMYB
Part Number: 17000025 |
|||
| E74148-2 | 51 | DISPLAY KEYBOARD GMYB
Part Number: 11022508 |
|||
| E74148-2 | 52 | 2POLES CONNECT.SENSOR REED DOOR MYB9UL
Part Number: 11013127 |
|||
| E74148-2 | 53 | ADHES.TAPE ROLL 4959 W/EPDM H=5MM SP=2MM
Part Number: 16000890 |
|||
| E74148-2 | 54 | BRONZE SPRING FOR FRONT CASING G0053
Part Number: 11006740 |
|||
| E74148-2 | 55 | DRIP TRAY SUPPORT BIADHESIVE STRIP GMYB
Part Number: 17000050 |
|||
| E74148-2 | 56 | AS.SUPP.SCHEDA CARAF.V4 MYB9 NER.
Part Number: 11023238 |
|||
| E74148-2 | 57 | MILKCARAFFE BOARD V2 MYB9
Part Number: 11013368 |
|||
| E74148-2 | 58 | BLACK CARAFE MICRO INSERT V2 MYB9
Part Number: 17000002 |
|||
| E74148-2 | 59 | SS CARAFE MICRO INSERT SPRING MYB9
Part Number: 17000019 |
|||
| E74148-2 | 60 | BLACK CARAFFE BOARD COVER MYB9
Part Number: 11013328 |
|||
| E74148-2 | 61 | BLK PRESENCE CARAFE MICRO INSERT V2 MYB9
Part Number: 17000045 |
|||
| E74148-2 | 62 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 12000895 |
|||

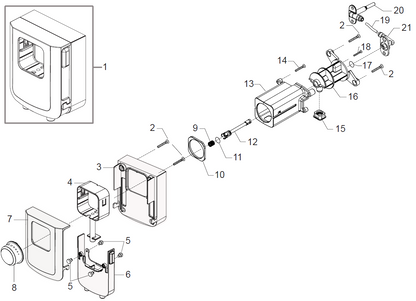

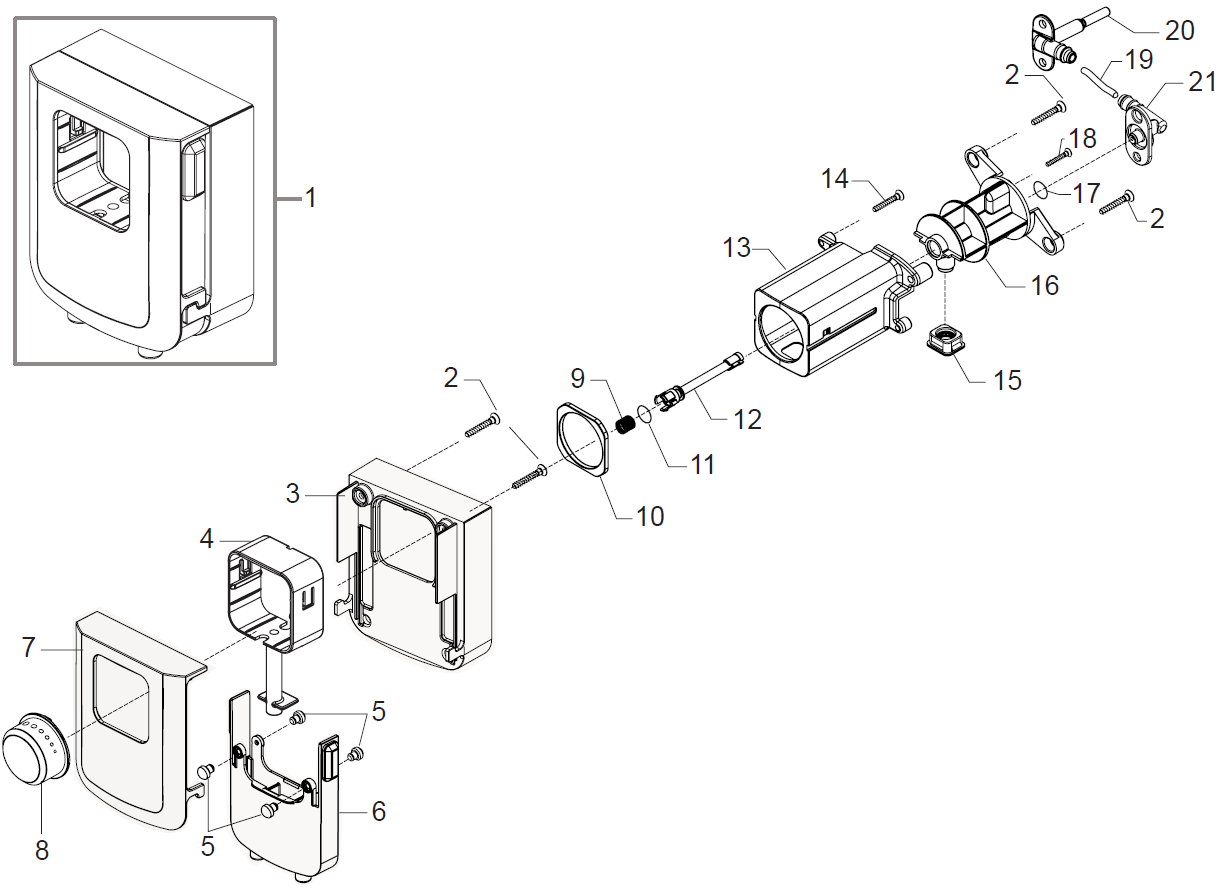

| E74148-3 | 1 | CHROM.COFFEE DISPENSER GMYB ASSY.
Part Number: 11022403 |
|||
| E74148-3 | 2 | SCREW TCB TORX 10 M3X8 AUTOFORMING SS
Part Number: 129570721 |
|||
| E74148-3 | 3 | CHROM.REAR COVER COFFEE DISPENSER GMYB
Part Number: 11022283 |
|||
| E74148-3 | 4 | BLACK INNER BODY COFFEE DISPENS.GMYB
Part Number: 11021746 |
|||
| E74148-3 | 5 | WHITE COFFEE DISPENSER SLIDER MYB9
Part Number: 11013085 |
|||
| E74148-3 | 6 | BLACK EXT.MOBILE PART COF.DISPENSER GMYB
Part Number: 11021389 |
|||
| E74148-3 | 7 | CHROM.FRONT COFFEE DISPENSER COVER GMYB
Part Number: 11022402 |
|||
| E74148-3 | 8 | NAT/GREY WATER CONTAINER LID MYB9
Part Number: 11012736 |
|||
| E74148-3 | 9 | SS COFF.CREAM ADJUSTMENT SHAFT SPRING
Part Number: 126772518 |
|||
| E74148-3 | 10 | BLACK CREAM ADJUSTMENT KNOB RING MYB9
Part Number: 11013324 |
|||
| E74148-3 | 11 | BLACK OR METRIC 0040-20 IN EPDM
Part Number: 140326661 |
|||
| E74148-3 | 12 | WHITE COFFEE CREAM ADJUSTMENT SHAFT
Part Number: 140640200 |
|||
| E74148-3 | 13 | CHROM.COFFEE DISPENSER SUPPORT MYB9
Part Number: 11013323 |
|||
| E74148-3 | 14 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 12000897 |
|||
| E74148-3 | 15 | BLACK SEAL FOR COFFEE DISPENSER MYB9
Part Number: 11013072 |
|||
| E74148-3 | 16 | BLACK COFFEE DISPENSER TUBE MYB9
Part Number: 11013013 |
|||
| E74148-3 | 17 | OR METRIC 0060-15 IN SILICONE
Part Number: 12000070 |
|||
| E74148-3 | 18 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| E74148-3 | 19 | SILICONE TUBE 5X8 70SR IN ROLL
Part Number: 149360200 |
|||
| E74148-3 | 20 | BLACK DISPENSER COFF.INLET CONNECT.GMYB
Part Number: 11021967 |
|||
| E74148-3 | 21 | BLACK COFFEE DISPENSER CONNECTOR GMYB
Part Number: 11021966 |
|||

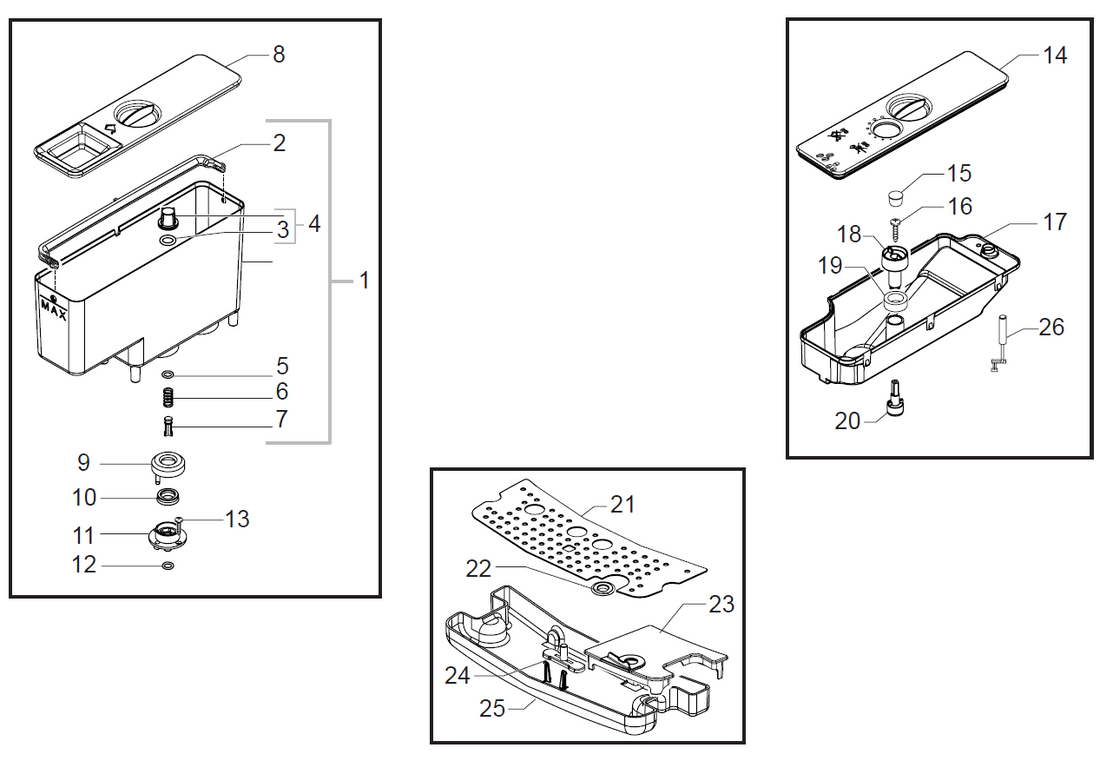

| E74148-4 | 1 | NAT/GREY WATER CONTAINER MYB9 ASSY.
Part Number: 11013212 |
|||
| E74148-4 | 2 | BLACK HANDLE WATER CONTAINER LID MYB9
Part Number: 11012738 |
|||
| E74148-4 | 3 | EPDM OR METRIC 0190-10
Part Number: 140328461 |
|||
| E74148-4 | 4 | WHITE WATER CONTAINER EXT.FILTER ASSY.
Part Number: 224640200 |
|||
| E74148-4 | 5 | OR METRIC 0060-30 IN SILICONE
Part Number: 140324362 |
|||
| E74148-4 | 6 | SS WATER CONTAINER VALVE SPRING
Part Number: 126764718 |
|||
| E74148-4 | 7 | GREY PISTON FOR WATER CONTAINER VALVE
Part Number: 147660562 |
|||
| E74148-4 | 8 | NAT/GREY WATER CONTAINER LID S/SCR.MYB9
Part Number: 11022127 |
|||
| E74148-4 | 9 | GREY WATER VALVE GACO DIM 14 SEAL COVER
Part Number: 0701.031.150 |
|||
| E74148-4 | 10 | NBR WATER CONT.VALVE GACO DIM14 SEAL
Part Number: 145842900 |
|||
| E74148-4 | 11 | GREY WATER VALVE GACO DIM 14 SEAL CONT.
Part Number: 0701.014.150 |
|||
| E74148-4 | 12 | OR ORM 0080-20 IN TERMOIL
Part Number: 140320461 |
|||
| E74148-4 | 13 | SCREW TSP TORX 10 AB 3,5X9,5 SHEET SS
Part Number: 129535721 |
|||
| E74148-4 | 14 | NAT/GREY BEAN COFF.CONT.LID V2 MYB9 ASSY
Part Number: 17000202 |
|||
| E74148-4 | 15 | GREY CAP FOR KNOBS BEAN CONTAINER
Part Number: 149213059 |
|||
| E74148-4 | 16 | SCREW TCB TORX 10 3X12 PLAST.ZN-B
Part Number: 129913902 |
|||
| E74148-4 | 17 | BLACK BEAN CONTAINER V2 MYB9
Part Number: 17000194 |
|||
| E74148-4 | 18 | BLACK GRIND.ADJUSTMENT KNOB MBY9
Part Number: 11012852 |
|||
| E74148-4 | 19 | GREY GRIND.ADJUSTMENT KNOB WASHER MYB9
Part Number: 11022528 |
|||
| E74148-4 | 20 | BLK INSERT GRIND.ADJUSTMENT KNOB SMART1
Part Number: 145897300 |
|||
| E74148-4 | 21 | BA/SS DRIP TRAY GRATE GMYB
Part Number: 11013997 |
|||
| E74148-4 | 22 | BLACK GRATE SEAL V3 MYB9/H-P
Part Number: 17000147 |
|||
| E74148-4 | 23 | BLACK DRIP TRAY COVER GMYB
Part Number: 11022418 |
|||
| E74148-4 | 24 | RED FLOAT FOR DRIP TRAY XSM
Part Number: 11013184 |
|||
| E74148-4 | 25 | BLACK DRIP TRAY GMYB
Part Number: 11021796 |
|||
| E74148-4 | 26 | 5POLES CONNECTOR MC SENSORS V2 MYB9 UL
Part Number: 17800061 |
|||

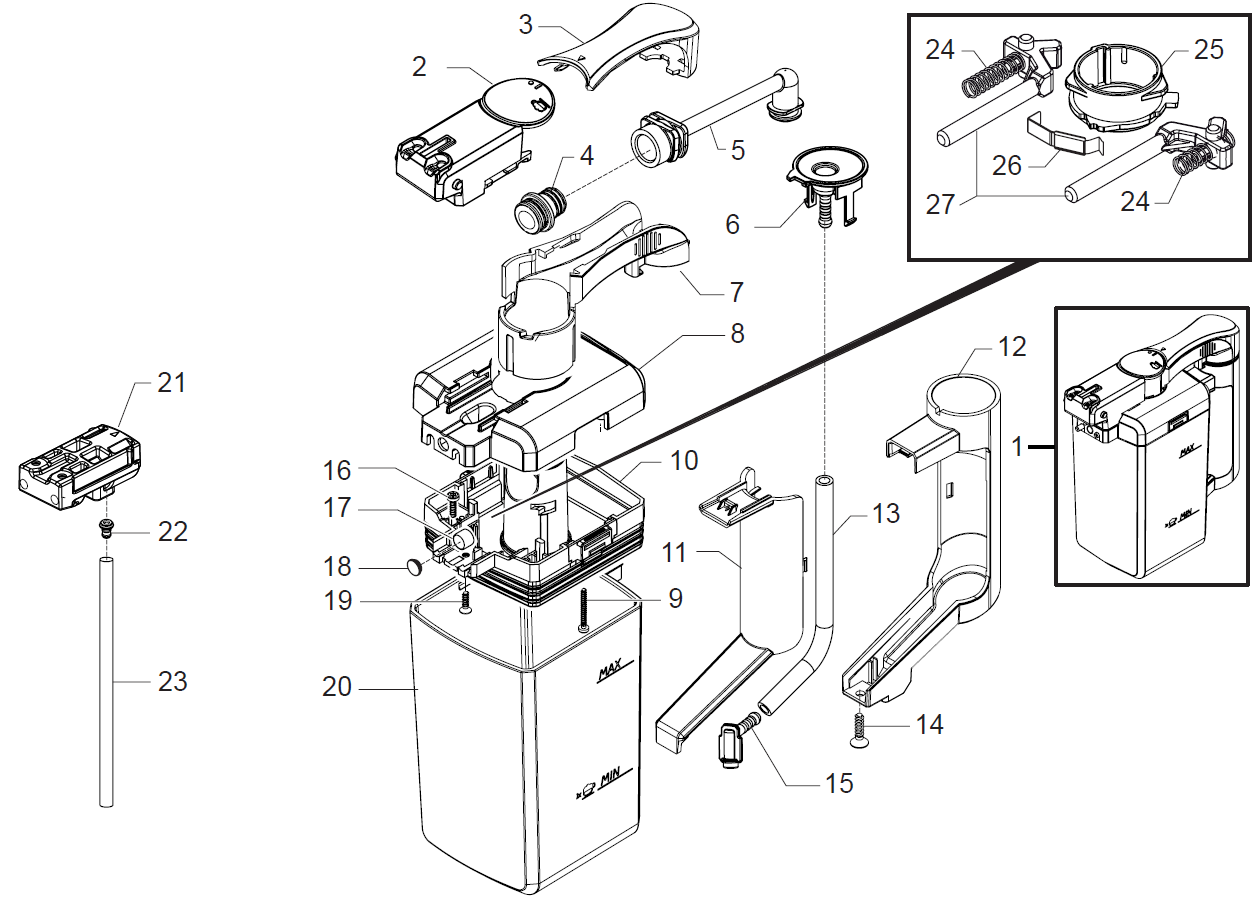

| E74148-5 | 1 | TRANSP//CHROM.GENERAL CARAFE GMYB ASSY.
Part Number: 11022167 |
|||
| E74148-5 | 2 | CHR.CARAFE CAPP.COVER V2 S/SC.MYB9 ASSY.
Part Number: 11023235 |
|||
| E74148-5 | 3 | CHROM.UPPER CARAFE SUPPORT S/SCREEN GMYB
Part Number: 11022578 |
|||
| E74148-5 | 4 | VENTURI TUBE FOR CAPPUCCINATORE MYB9
Part Number: 11012812 |
|||
| E74148-5 | 5 | BLACK CARAFE MILK DISPENSER TUBE GMYB
Part Number: 11022825 |
|||
| E74148-5 | 6 | BLACK UPPER TUBE CARAFE CONNECT.GMYB
Part Number: 11022408 |
|||
| E74148-5 | 7 | CHROM.CARAFE LOWER DISPENSER SUPP.GMYB
Part Number: 11022576 |
|||
| E74148-5 | 8 | BLACK UPPER COVER PART CARAFE MYB9
Part Number: 11012816 |
|||
| E74148-5 | 9 | SCREW TCB TORX 10 3X25 PLAST.SS
Part Number: 12000550 |
|||
| E74148-5 | 10 | BLACK LOWER COVER PART CARAFE MYB9 ASSY.
Part Number: 11021893 |
|||
| E74148-5 | 11 | CHROM.CARAFE REAR PART HANDLE GMYB
Part Number: 11022580 |
|||
| E74148-5 | 12 | CHROM.CARAFE FRONT PART HANDLE GMYB
Part Number: 11022579 |
|||
| E74148-5 | 13 | SILICONE TUBE 5X8 70SR IN ROLL
Part Number: 149360200 |
|||
| E74148-5 | 14 | SCREW TSP TORX 4X16 PLAST STEEL
Part Number: 129911721 |
|||
| E74148-5 | 15 | BLACK LOWER TUBE CARAFE CONNECT.MYB9
Part Number: 11013164 |
|||
| E74148-5 | 16 | SCREW TCB TORX 10 3X10 SS
Part Number: 129910921 |
|||
| E74148-5 | 17 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 9161.111 |
|||
| E74148-5 | 18 | SS.INSERT FOR MAGNET MYB9
Part Number: 11014016 |
|||
| E74148-5 | 19 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 12000895 |
|||
| E74148-5 | 20 | TRANSP.CARAFE V3 S/SCREEN MYB9
Part Number: 11024104 |
|||
| E74148-5 | 21 | BLK CARAFE CAPPUCCIN.CASING W/CAPS MYB9
Part Number: 17000004 |
|||
| E74148-5 | 22 | WHITE MILK TUBE CONNECTOR V2 MYB9
Part Number: 11026779 |
|||
| E74148-5 | 23 | SILICONE TUBE 3,5X6 L=140 MM
Part Number: 11012814 |
|||
| E74148-5 | 24 | STEEL SPRING FOR CARAFE LEVER MYB9
Part Number: 11013765 |
|||
| E74148-5 | 25 | BLACK CAM FOR CARAFE LEVERS GMYB
Part Number: 11022752 |
|||
| E74148-5 | 26 | CARAFE SPRING WITH INSERT MYB9 ASSY.
Part Number: 11013832 |
|||
| E74148-5 | 27 | BLACK LEVER FOR CARAFE CAM V3 MYB9
Part Number: 17000131 |
|||

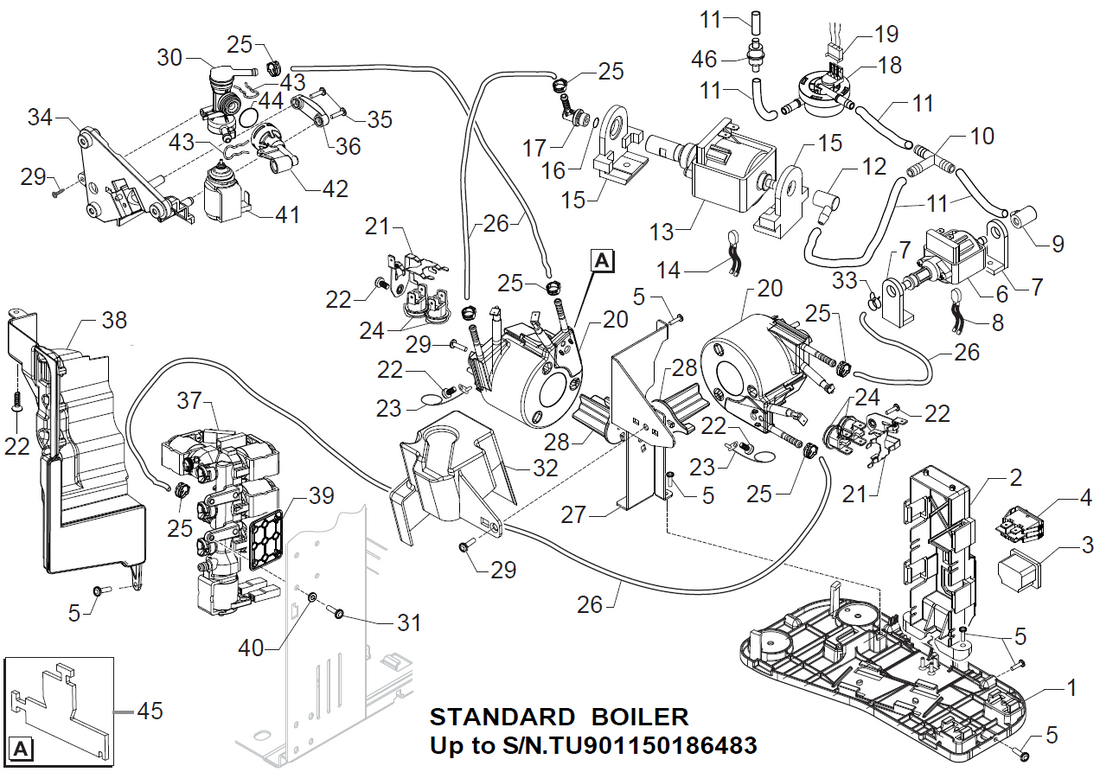

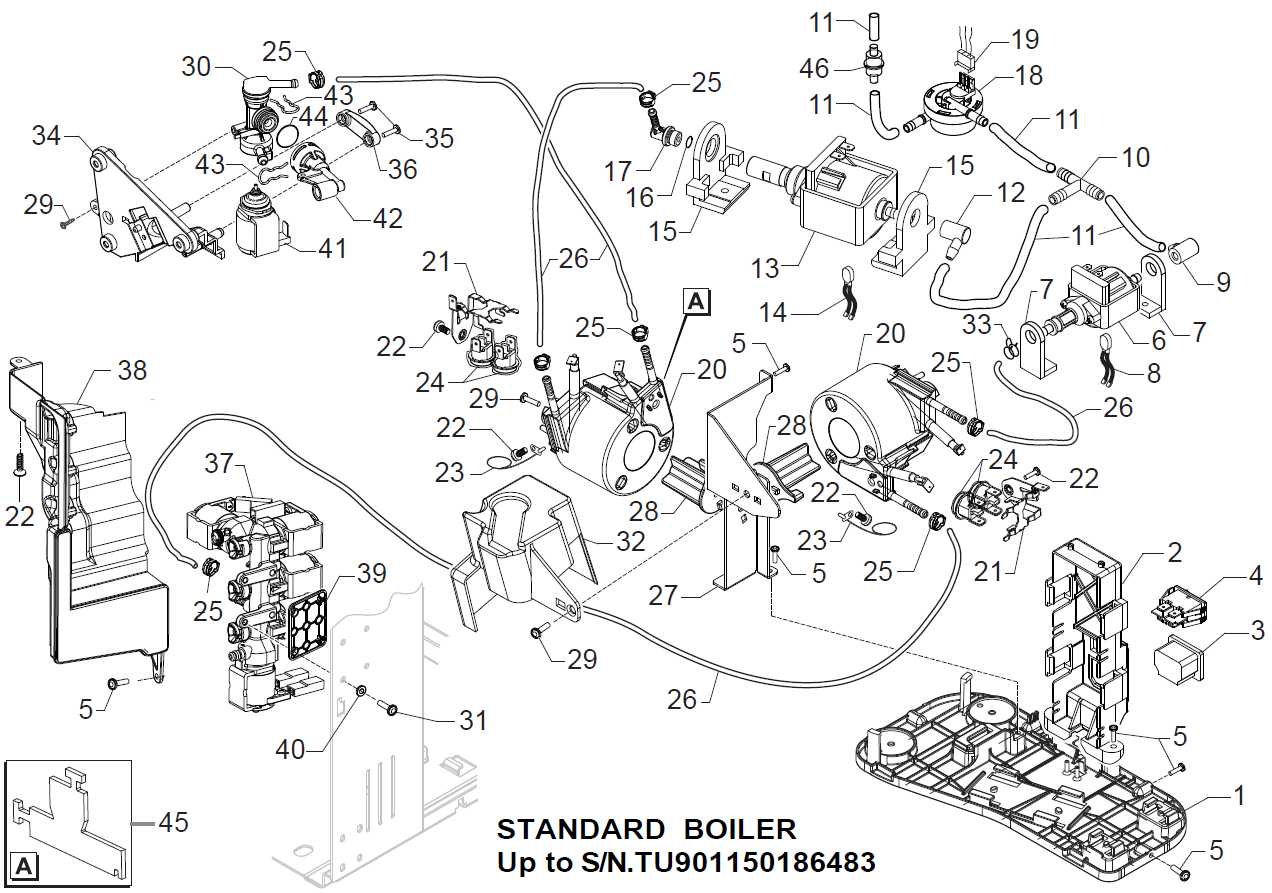

| E74148-6 | 1 | BLACK COMPONENTS SUPPORT MYB9
Part Number: 11012205 |
|||
| E74148-6 | 2 | BLACK SOCKET-SWITCH SUPPORT MYB9
Part Number: 11012412 |
|||
| E74148-6 | 2 | BLACK SOCKET-SWITCH SUPPORT MYB9 UL
Part Number: 11023406 |
|||
| E74148-6 | 3 | CUP SOCKET V2 EN 60320 C 13
Part Number: 12001645 |
|||
| E74148-6 | 4 | BIPOLAR SWITCH FUSIT C1250AR
Part Number: NE03.038 |
|||
| E74148-6 | 5 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| E74148-6 | 6 | ULKA PUMP MF 230V-50HZ
Part Number: 12001212 |
|||
| E74148-6 | 6 | ULKA PUMP MF 120V-60HZ
Part Number: 12001346 |
|||
| E74148-6 | 6 | ULKA PUMP MF 220V-50/60HZ
Part Number: 12001348 |
|||
| E74148-6 | 7 | BLACK/SBR ULKA MF PUMP SUPPORT
Part Number: 11012194 |
|||
| E74148-6 | 8 | 2POLES CONNECTOR STEAM PUMP MYB9 UL
Part Number: 11013116 |
|||
| E74148-6 | 9 | 90 INLET CONNECTOR FOR PUMP ULKA MF
Part Number: 11012193 |
|||
| E74148-6 | 10 | TRANS.CONNECTOR D=8 ART.80.26.047 KA.461
Part Number: 147920300 |
|||
| E74148-6 | 11 | SILICONE TUBE 5X10 60SH IN ROLL
Part Number: JS01.022 |
|||
| E74148-6 | 12 | 90 INLET PUMP CONNECTOR
Part Number: 147920150 |
|||
| E74148-6 | 13 | ULKA PUMP EP5/S GW 230V-50HZ
Part Number: 12000140 |
|||
| E74148-6 | 13 | ULKA PUMP EAP5/S 120V-60HZ
Part Number: 12000142 |
|||
| E74148-6 | 13 | ULKA PUMP EP5/S GW 220V-60HZ
Part Number: 12000182 |
|||
| E74148-6 | 14 | 2POLES CONNECTOR COFFEE PUMP MYB9 UL
Part Number: 11013076 |
|||
| E74148-6 | 15 | BLACK PUMP SUPPORT GMYB
Part Number: 11022857 |
|||
| E74148-6 | 16 | OR 2031 IN TERMOIL
Part Number: 140321961 |
|||
| E74148-6 | 17 | BLK PUMP OUTLET 90 CONNECTOR P0049/B
Part Number: 11001054 |
|||
| E74148-6 | 18 | TURBINE D=1,2 932-8521/90 ASSY.
Part Number: 12000781 |
|||
| E74148-6 | 19 | 6POLES CONNECTOR FLOWMETER MYB9 UL
Part Number: 11013122 |
|||
| E74148-6 | 20 | V4 TUB.BOILER 1300W 230V ASSY.
Part Number: 11011341 |
|||
| E74148-6 | 20 | V4 TUB.BOILER 1300W 120V ASSY.
Part Number: 11011342 |
|||
| E74148-6 | 21 | TUB.BOILER V6 SIDE THERMOS.FIXING SPRING
Part Number: 11010164 |
|||
| E74148-6 | 22 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 12001715 |
|||
| E74148-6 | 23 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 190800100 |
|||
| E74148-6 | 24 | THERMOSTAT ONE SHOT 175
Part Number: 12001034 |
|||
| E74148-6 | 25 | OETIKER CLAMP D=9,5 16700004
Part Number: 12000892 |
|||
| E74148-6 | 26 | 5X8,9 SILICONE TUBE IN ROLL
Part Number: 16000380 |
|||
| E74148-6 | 27 | STEEL SLIM TUB.BOILER SUPPORT MYB9
Part Number: 17000143 |
|||
| E74148-6 | 28 | BLACK TUB.BOILERS SUPPORT MYB9
Part Number: 11012214 |
|||
| E74148-6 | 29 | SCREW TSP TORX 10 5X20 PLAST.ZN-B
Part Number: 12001280 |
|||
| E74148-6 | 30 | BLOWDOWN VALVE CASING MYB9 ASSY.
Part Number: 20006558 |
|||
| E74148-6 | 31 | SCREW TORX M4X10 TESTA D=8X1,5 GALV
Part Number: 129914302 |
|||
| E74148-6 | 32 | BLK COF.BOILER INSULATING COVER MYB9/H-T
Part Number: 11022428 |
|||
| E74148-6 | 33 | SPRING HOSE CLAMP D=9,5MM
Part Number: 184320200 |
|||
| E74148-6 | 34 | BLACK BLOWDOWN VALVE SUPPORT MYB9
Part Number: 11012206 |
|||
| E74148-6 | 35 | SCREW TCB TORX 10 3X12 PLAST.ZN-B
Part Number: 129913902 |
|||
| E74148-6 | 36 | BLACK VALVE FIXING FLANGE MYB9
Part Number: 11013711 |
|||
| E74148-6 | 37 | DIFFUSER VALVE MYB9 ASSY.
Part Number: 11013165 |
|||
| E74148-6 | 38 | BLACK DIFFUSER PROTECT.VALVE MYB9 ASSY.
Part Number: 11013528 |
|||
| E74148-6 | 39 | SOLENOID VALVE CONNECT.INSUL.PLATE MYB9
Part Number: 11021841 |
|||
| E74148-6 | 40 | SOLENOID VALVE CONNECT.INSUL.WASHER MYB9
Part Number: 11021842 |
|||
| E74148-6 | 41 | BLOWDOWN VALVE COIL P0049 230V ASSY.
Part Number: 20000590 |
|||
| E74148-6 | 41 | BLOWDOWN VALVE COIL P0049 120V ASSY.
Part Number: 20000680 |
|||
| E74148-6 | 41 | BLOWDOWN VALVE COIL P0049 220V-60HZ ASSY
Part Number: 20000920 |
|||
| E74148-6 | 42 | BLACK BLOWDOWN VALVE CONNECTOR V2 P0049
Part Number: 11007565 |
|||
| E74148-6 | 43 | SS FORK SPRING FOR BLOWDOWN VALVE P0049
Part Number: 11005096 |
|||
| E74148-6 | 44 | OR ORM 0130-20 IN EPDM
Part Number: 12000620 |
|||
| E74148-6 | 45 | TUB.BOILER STD C1 INSULATING
Part Number: 11021450 |
|||
| E74148-6 | 46 | ASPIRATION FILTER GAUZE NET 500 (NEW)
Part Number: 144650300 |
|||
| E74148-6 | 100 | BLOWDOWN VALVE V2 MYB9 120V ASSY.
Part Number: 11022038 |
|||
| E74148-6 | 100 | BLOWDOWN VALVE V2 MYB9 230V ASSY.
Part Number: 11006995 |
|||
| E74148-6 | 100 | TUB.BOILER STD C1 1300W 230V ASSY.
Part Number: 11009776 |
|||
| E74148-6 | 100 | TUB.BOILER STD C1 1300W 120V ASSY.
Part Number: 11009778 |
|||

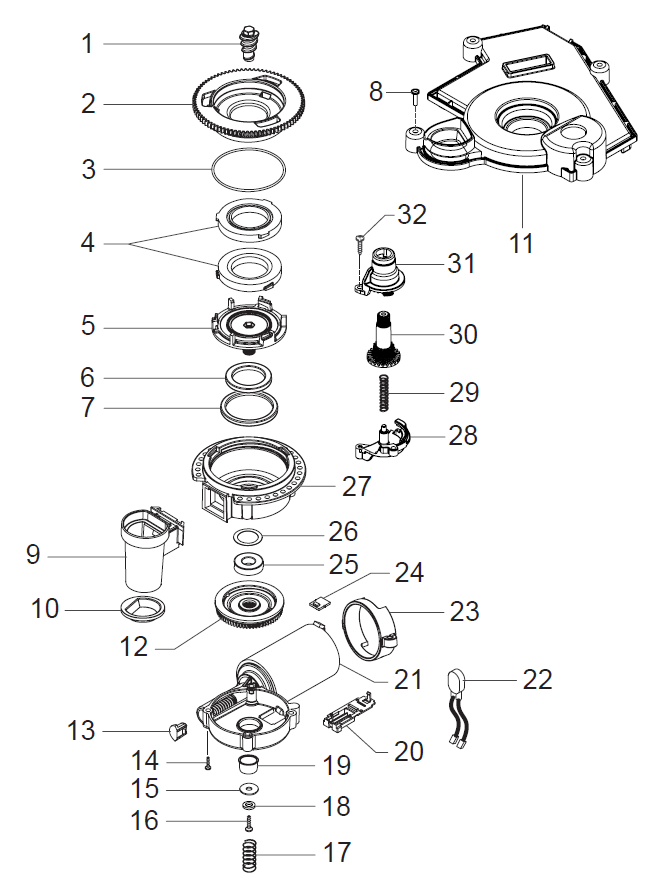

| E74148-7 | 1 | TEA ZAMA INCREASE SCREW GRINDER
Part Number: 11011205 |
|||
| E74148-7 | 2 | BLK UPPER COFFEEGRINDER GRINDER SUPPORT
Part Number: 149198250 |
|||
| E74148-7 | 3 | NBR FDA OR METRIC 0530-15
Part Number: 140328960 |
|||
| E74148-7 | 4 | BAKED CLAY GRINDER 48X28
Part Number: 146520100 |
|||
| E74148-7 | 5 | BLK LOWER COFFEEGRINDER GRINDER SUPPORT
Part Number: 149198350 |
|||
| E74148-7 | 6 | AXIAL BEARING EKKO 342.35252
Part Number: 123030300 |
|||
| E74148-7 | 7 | FELT RING 45,4X39,4X4
Part Number: 140360500 |
|||
| E74148-7 | 8 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| E74148-7 | 9 | BLK GROUND COFF.OUTLET CONVEYOR V4 ASSY.
Part Number: 11026355 |
|||
| E74148-7 | 10 | GRY GROUND COFFEE CONT.LOWER SEAL SMART1
Part Number: 11030459 |
|||
| E74148-7 | 11 | COFFEE GRINDER SOUNDPROOFING COVER MYB9
Part Number: 11012856 |
|||
| E74148-7 | 12 | GEAR SX Z=38 FOR GRINDER MOTION ASSY.
Part Number: 226000300 |
|||
| E74148-7 | 13 | MC V3 MOD=1,25 WORM SCREW CENTRING CAP
Part Number: 149214800 |
|||
| E74148-7 | 14 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 129661702 |
|||
| E74148-7 | 15 | STEEL FLAT WASHER DI=4,3 DE=14 SP=1,5
Part Number: 128381902 |
|||
| E74148-7 | 16 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 129574802 |
|||
| E74148-7 | 17 | COFFEE GRINDER SUPPORT SPRING P124
Part Number: 11000597 |
|||
| E74148-7 | 18 | GALV.WASHER UNI 8842 A4
Part Number: 128310402 |
|||
| E74148-7 | 19 | INSULATOR BUSH FOR GRINDER MOTOR P124
Part Number: 11002873 |
|||
| E74148-7 | 20 | BLK SENSOR SUPPORT FOR COF.GRINDER MOTOR
Part Number: 149199050 |
|||
| E74148-7 | 21 | MOTOR COFFEEGRINDER V3.1 120V ASSY.
Part Number: 11000511 |
|||
| E74148-7 | 21 | MOTOR COFFEEGRINDER V3.1 230V ASSY.
Part Number: 11000513 |
|||
| E74148-7 | 22 | 2POLES CONNECTOR GRINDER MOTOR MYB9 UL
Part Number: 11013079 |
|||
| E74148-7 | 23 | BLACK COFFEEGRINDER MOTOR SUPPORT P124
Part Number: 11000194 |
|||
| E74148-7 | 24 | ELECTR.BOARD WITH SENSOR HAL506 SF-K
Part Number: 181540900 |
|||
| E74148-7 | 25 | RADIAL BEARING 61900.2RS1
Part Number: 123030200 |
|||
| E74148-7 | 26 | STEEL CRINKLE WASHER 21,8X14X0,25
Part Number: 128381800 |
|||
| E74148-7 | 27 | BLK UPPER BODY WITH COFFEE GROUND OUTLET
Part Number: 142905450 |
|||
| E74148-7 | 28 | LOWER GEAR SUPPORT COFFEEGRINDER SMART
Part Number: 149199850 |
|||
| E74148-7 | 29 | SPRING FOR ADJUSTMENT GRINDING GEAR
Part Number: 126772918 |
|||
| E74148-7 | 30 | COFFEE GRINDING ADJUSTMENT GEAR SMART
Part Number: 146002150 |
|||
| E74148-7 | 31 | UPPER GEAR SUPPORT COFFEEGRINDER SMART
Part Number: 149199750 |
|||
| E74148-7 | 32 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 129914002 |
|||
| E74148-7 | 100 | GEN.MOTOR COFFEE GRINDER MYB9 230V ASSY.
Part Number: 11013147 |
|||
| E74148-7 | 100 | GEN.MOTOR COFFEE GRINDER MYB9 120V ASSY.
Part Number: 11022036 |
|||

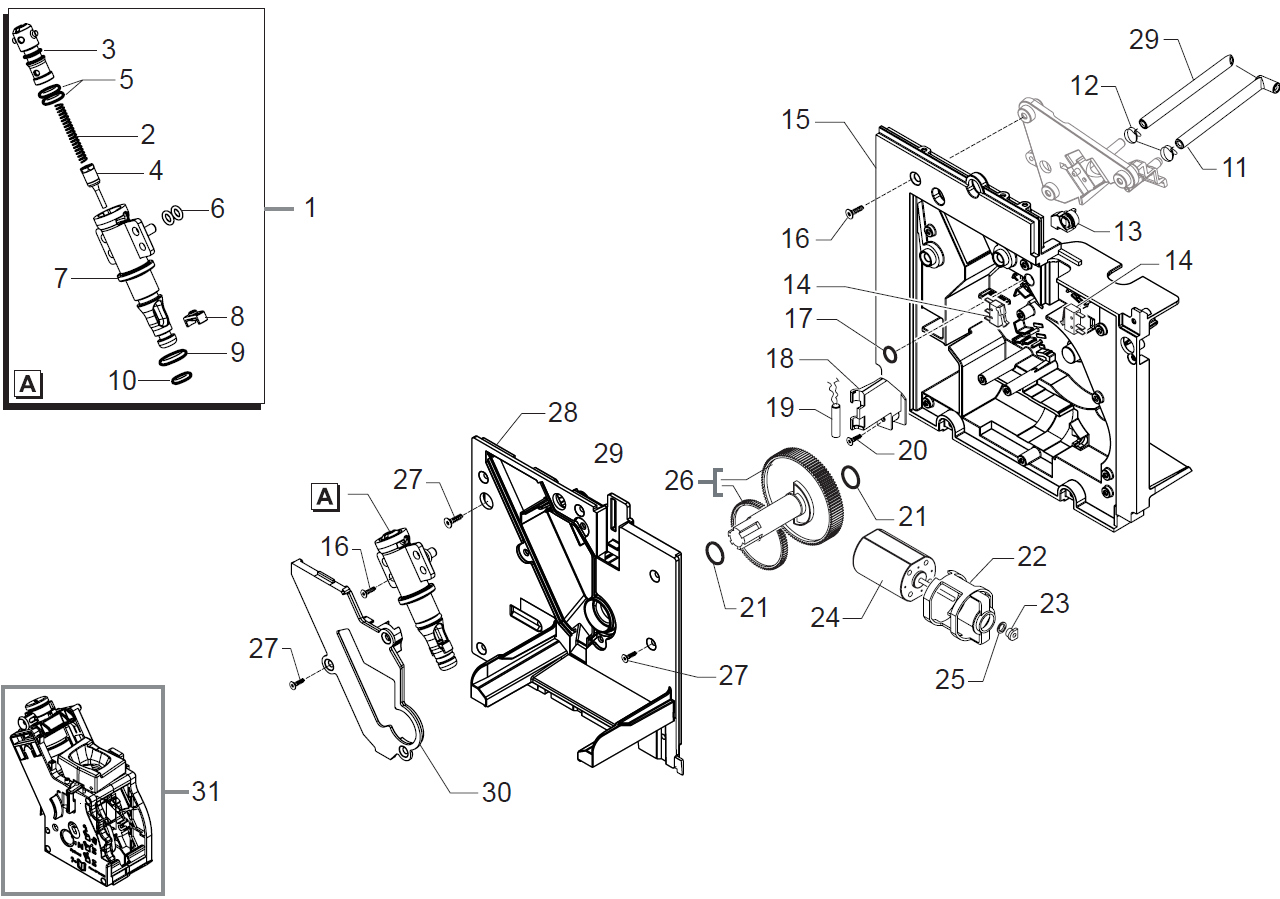

| E74148-8 | 1 | PIN V2 FOR BOILER P119 ASSY.
Part Number: 11005060 |
|||
| E74148-8 | 2 | SS SPRING FOR PIN
Part Number: 9011.132 |
|||
| E74148-8 | 3 | BLACK CAP V2 FOR PIN BOILER P119
Part Number: 11003820 |
|||
| E74148-8 | 4 | TEA/BRASS PISTON L=20,9 ASSY.
Part Number: 11009019 |
|||
| E74148-8 | 5 | OR ORM 0060-20 SILICONE PTFE/FDA
Part Number: 140324459 |
|||
| E74148-8 | 6 | OR 2015 SILICONE PTFE/FDA
Part Number: 140328059 |
|||
| E74148-8 | 7 | NAT.PIN V2 FOR BOILER P119
Part Number: 11003801 |
|||
| E74148-8 | 8 | NATURAL CURSOR V2 FOR BOILER P119
Part Number: 11005099 |
|||
| E74148-8 | 9 | OR ORM 0090-20 SILICONE
Part Number: NM01.035 |
|||
| E74148-8 | 10 | OR ORM 0050-20 IN SILICONE
Part Number: NM01.057 |
|||
| E74148-8 | 11 | WATER DRAIN CONNECTOR MYB9
Part Number: 11012337 |
|||
| E74148-8 | 12 | BAND D=11/11,6
Part Number: NV99.087 |
|||
| E74148-8 | 13 | BLACK MOUNTING PLATE COVER SEAL MYB9
Part Number: 11013514 |
|||
| E74148-8 | 14 | MICROSWITCH SAIA XCG5-81-P5
Part Number: NE05.038 |
|||
| E74148-8 | 15 | BLACK MOUNTING PLATE WITH PIN P119 ASSY.
Part Number: 227533550 |
|||
| E74148-8 | 16 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| E74148-8 | 17 | OR METRIC 0070-20 IN SILICONE
Part Number: 140325462 |
|||
| E74148-8 | 18 | BLACK SENSOR SUPPORT MYB9
Part Number: 11012976 |
|||
| E74148-8 | 19 | REED SENSOR MK3-1A66-BV16451
Part Number: 11003661 |
|||
| E74148-8 | 20 | SCREW TCB TORX 10 3X12 PLAST.ZN-B
Part Number: 129913902 |
|||
| E74148-8 | 21 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 9161.132 |
|||
| E74148-8 | 22 | ANTIVIBRATION FOR MOTOR
Part Number: 9121.044 |
|||
| E74148-8 | 23 | BRONZE SINTERED BUSH FOR MOTOR RATIOMOT.
Part Number: 9121.046 |
|||
| E74148-8 | 24 | MOTOR FOR RATIOMOTOR P124 ASSY.
Part Number: 11005214 |
|||
| E74148-8 | 25 | BAKELIZZATE WASHER D=5,5
Part Number: 148380200 |
|||
| E74148-8 | 26 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 20000900 |
|||
| E74148-8 | 27 | SCREW TSP TORX 10 3,5X14 PLAST.SS
Part Number: 12001860 |
|||
| E74148-8 | 28 | BLACK MOUNTING PLATE COVER MYB9
Part Number: 11013513 |
|||
| E74148-8 | 29 | SILICONE TUBE 5X10 60SH IN ROLL
Part Number: JS01.022 |
|||
| E74148-8 | 30 | BLACK COVER FOR BOILER VAIN P119
Part Number: 142856550 |
|||
| E74148-8 | 31 | BLACK BREW UNIT 8GR.SBS MYB9
Part Number: 11012810 |
|||

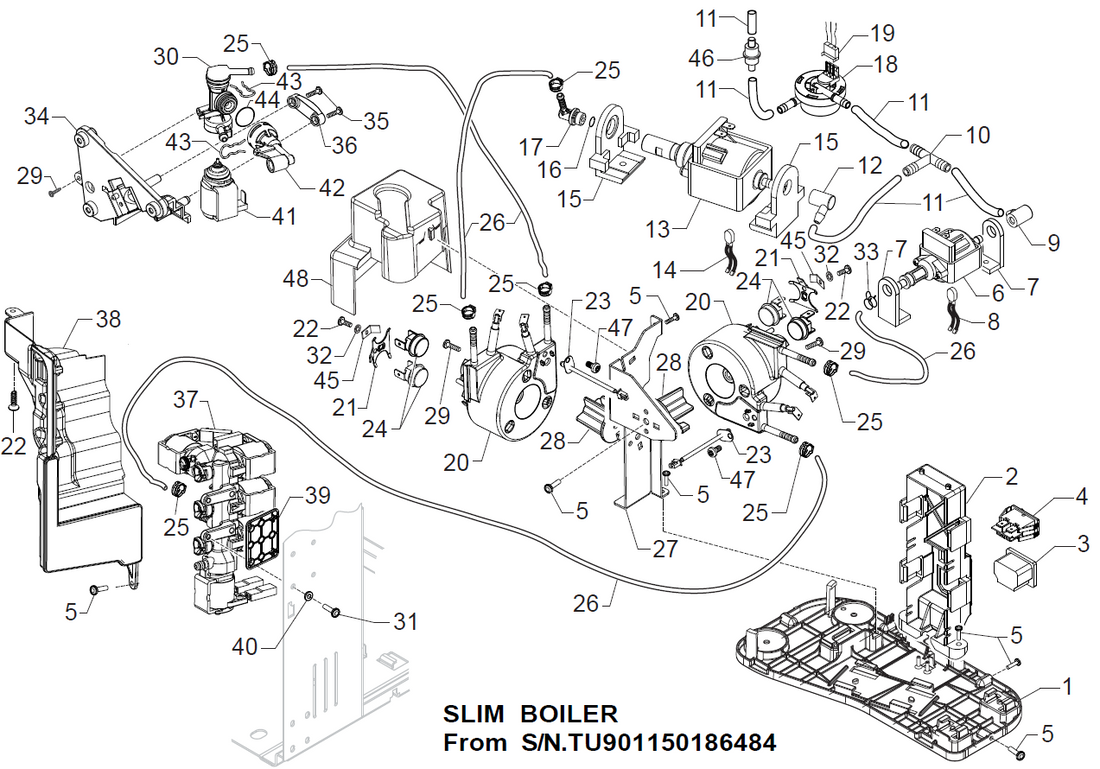

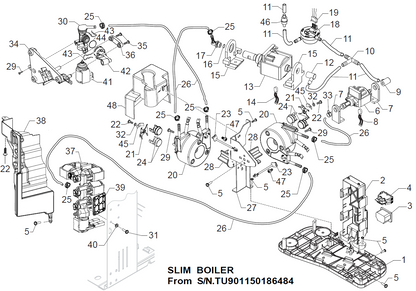

| E74148-9 | 1 | BLACK COMPONENTS SUPPORT MYB9
Part Number: 11012205 |
|||
| E74148-9 | 2 | BLACK SOCKET-SWITCH SUPPORT MYB9 UL
Part Number: 11023406 |
|||
| E74148-9 | 3 | CUP SOCKET EN 60320 C 13
Part Number: 12000280 |
|||
| E74148-9 | 4 | BIPOLAR SWITCH FUSIT C1250AR
Part Number: NE03.038 |
|||
| E74148-9 | 5 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| E74148-9 | 6 | ULKA PUMP MF 230V-50HZ
Part Number: 12001212 |
|||
| E74148-9 | 6 | ULKA PUMP MF 120V-60HZ
Part Number: 12001346 |
|||
| E74148-9 | 7 | BLACK/SBR ULKA MF PUMP SUPPORT
Part Number: 11012194 |
|||
| E74148-9 | 8 | 2POLES CONNECTOR STEAM PUMP MYB9 UL
Part Number: 11013116 |
|||
| E74148-9 | 9 | 90 INLET CONNECTOR FOR PUMP ULKA MF
Part Number: 11012193 |
|||
| E74148-9 | 10 | TRANS.CONNECTOR D=8 ART.80.26.047 KA.461
Part Number: 147920300 |
|||
| E74148-9 | 11 | SILICONE TUBE 5X10 60SH IN ROLL
Part Number: JS01.022 |
|||
| E74148-9 | 12 | 90 INLET PUMP CONNECTOR
Part Number: 147920150 |
|||
| E74148-9 | 13 | ULKA PUMP EP5/S GW 230V-50HZ
Part Number: 12000140 |
|||
| E74148-9 | 13 | ULKA PUMP EAP5/S 120V-60HZ
Part Number: 12000142 |
|||
| E74148-9 | 14 | 2POLES CONNECTOR COFFEE PUMP MYB9 UL
Part Number: 11013076 |
|||
| E74148-9 | 15 | BLACK PUMP SUPPORT GMYB
Part Number: 11022857 |
|||
| E74148-9 | 16 | OR 2031 IN TERMOIL
Part Number: 140321961 |
|||
| E74148-9 | 17 | BLK PUMP OUTLET 90 CONNECTOR P0049/B
Part Number: 11001054 |
|||
| E74148-9 | 18 | TURBINE D=1,2 932-8521/90 ASSY.
Part Number: 12000781 |
|||
| E74148-9 | 19 | 6POLES CONNECTOR FLOWMETER MYB9 UL
Part Number: 11013122 |
|||
| E74148-9 | 20 | SLIM TUB.BOILER 1300W 230V ASSY.
Part Number: 11013735 |
|||
| E74148-9 | 20 | SLIM TUB.BOILER 1300W 120V ASSY.
Part Number: 11023153 |
|||
| E74148-9 | 21 | TUB.BOILER V3 UPPER THERM.FIXING SPRING
Part Number: 11001751 |
|||
| E74148-9 | 22 | TUB.BOILER V3 UPPER THERM.FIXING SPRING
Part Number: 11001751 |
|||
| E74148-9 | 22 | SCREW TAPT M4X10 DIN 7985 GALV
Part Number: 129573402 |
|||
| E74148-9 | 23 | SCREW TAPT M4X10 DIN 7985 GALV
Part Number: 129573402 |
|||
| E74148-9 | 23 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 190800100 |
|||
| E74148-9 | 24 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 190800100 |
|||
| E74148-9 | 24 | THERMOSTAT ONE SHOT 190
Part Number: 12001033 |
|||
| E74148-9 | 25 | THERMOSTAT ONE SHOT 190
Part Number: 12001033 |
|||
| E74148-9 | 25 | OETIKER CLAMP D=9,5 16700004
Part Number: 12000892 |
|||
| E74148-9 | 26 | OETIKER CLAMP D=9,5 16700004
Part Number: 12000892 |
|||
| E74148-9 | 26 | 5X8,9 SILICONE TUBE IN ROLL
Part Number: 16000380 |
|||
| E74148-9 | 27 | 5X8,9 SILICONE TUBE IN ROLL
Part Number: 16000380 |
|||
| E74148-9 | 27 | STEEL SLIM TUB.BOILER SUPPORT MYB9
Part Number: 17000143 |
|||
| E74148-9 | 28 | BLACK SLIM TUB.BOILERS SUPPORT MYB9
Part Number: 11023282 |
|||
| E74148-9 | 29 | SCREW TSP TORX 10 5X35 PLAST.SS
Part Number: 12001369 |
|||
| E74148-9 | 30 | BLOWDOWN VALVE CASING MYB9 ASSY.
Part Number: 20006558 |
|||
| E74148-9 | 31 | SCREW TORX M4X10 TESTA D=8X1,5 GALV
Part Number: 129914302 |
|||
| E74148-9 | 32 | GALV.WASHER UNI 8842 A4
Part Number: 128310402 |
|||
| E74148-9 | 33 | SPRING HOSE CLAMP D=9,5MM
Part Number: 184320200 |
|||
| E74148-9 | 34 | BLACK BLOWDOWN VALVE SUPPORT MYB9
Part Number: 11012206 |
|||
| E74148-9 | 35 | SCREW TCB TORX 10 3X12 PLAST.ZN-B
Part Number: 129913902 |
|||
| E74148-9 | 36 | BLACK VALVE FIXING FLANGE MYB9
Part Number: 11013711 |
|||
| E74148-9 | 37 | DIFFUSER VALVE MYB9 ASSY.
Part Number: 11013165 |
|||
| E74148-9 | 38 | BLACK DIFFUSER PROTECT.VALVE MYB9 ASSY.
Part Number: 11013528 |
|||
| E74148-9 | 39 | SOLENOID VALVE CONNECT.INSUL.PLATE MYB9
Part Number: 11021841 |
|||
| E74148-9 | 40 | SOLENOID VALVE CONNECT.INSUL.WASHER MYB9
Part Number: 11021842 |
|||
| E74148-9 | 41 | BLOWDOWN VALVE COIL P0049 230V ASSY.
Part Number: 20000590 |
|||
| E74148-9 | 41 | BLOWDOWN VALVE COIL P0049 120V ASSY.
Part Number: 20000680 |
|||
| E74148-9 | 42 | BLACK BLOWDOWN VALVE CONNECTOR V2
Part Number: 11007565 |
|||
| E74148-9 | 43 | P0049
SS FORK SPRING FOR BLOWDOWN VALVE P0049
Part Number: 11005096 |
|||
| E74148-9 | 44 | OR ORM 0130-20 IN EPDM
Part Number: 12000620 |
|||
| E74148-9 | 45 | BRASS BENT FASTON 45 6,3X0,8
Part Number: 124390520 |
|||
| E74148-9 | 46 | ASPIRATION FILTER GAUZE NET 500 (NEW)
Part Number: 144650300 |
|||
| E74148-9 | 47 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 12001715 |
|||
| E74148-9 | 48 | BLK COFF.BOILER INSULATING COVER MYB9/P
Part Number: 17000042 |
|||
| E74148-9 | 100 | SLIM TUB.BOIL.STD C2 T190 1300W 230V AS
Part Number: 11026313 |
|||
| E74148-9 | 100 | SLIM TUB.BOIL.STD C2 T190 1300W 120V AS
Part Number: 11026314 |
|||
| E74148-9 | 100 | BLOWDOWN VALVE V2 MYB9 230V ASSY.
Part Number: 11006995 |
|||
| E74148-9 | 100 | BLOWDOWN VALVE V2 MYB9 120V ASSY.
Part Number: 11022038 |
