Gaggia Anima Deluxe Part Diagram E74220
This is the Gaggia Anima Deluxe Parts Diagram E74220. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.Diagram # | Pos # | Image | Description | Price |
---|
Diagram # | Pos # | Image | Description | Price | |
---|---|---|---|---|---|

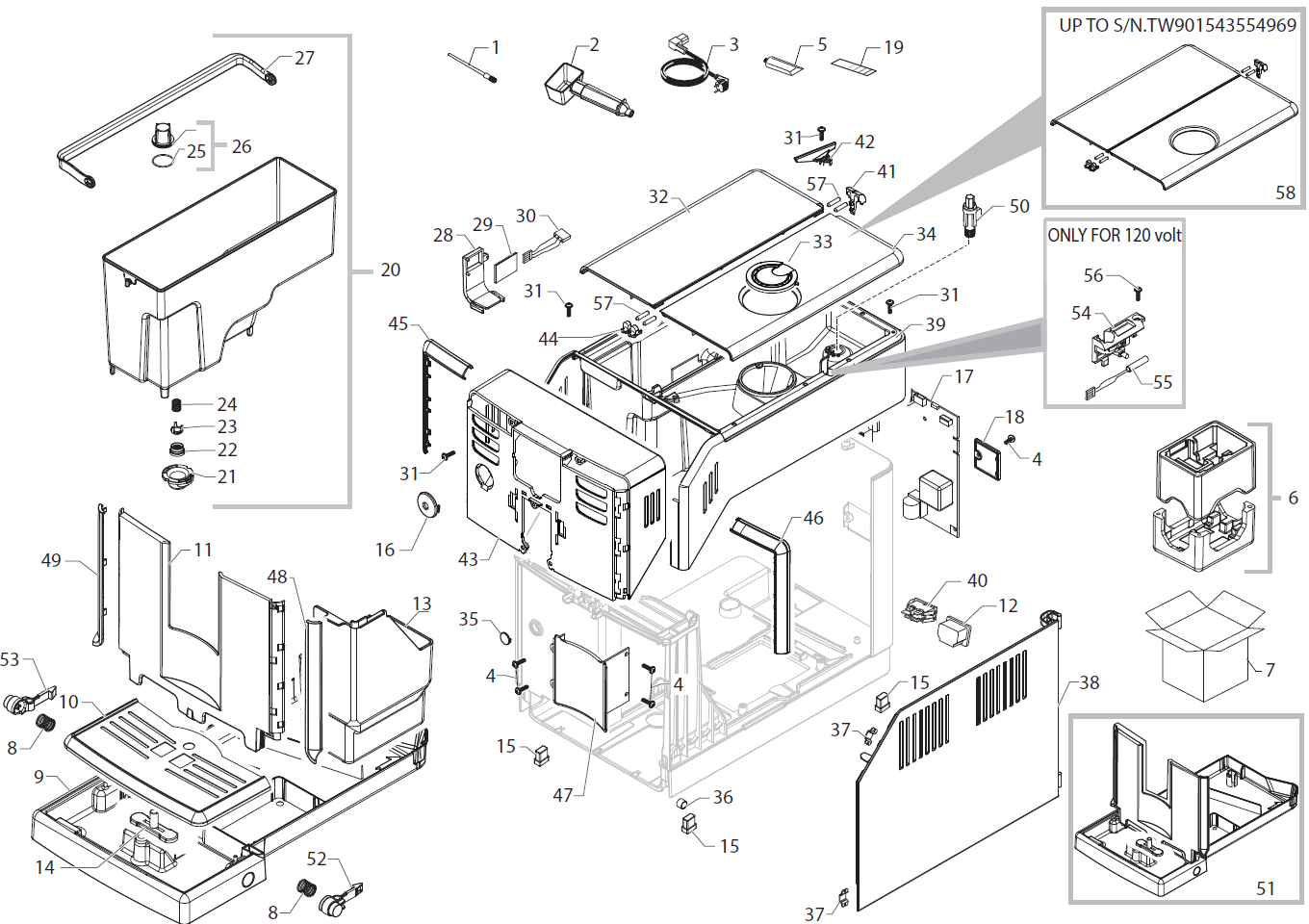

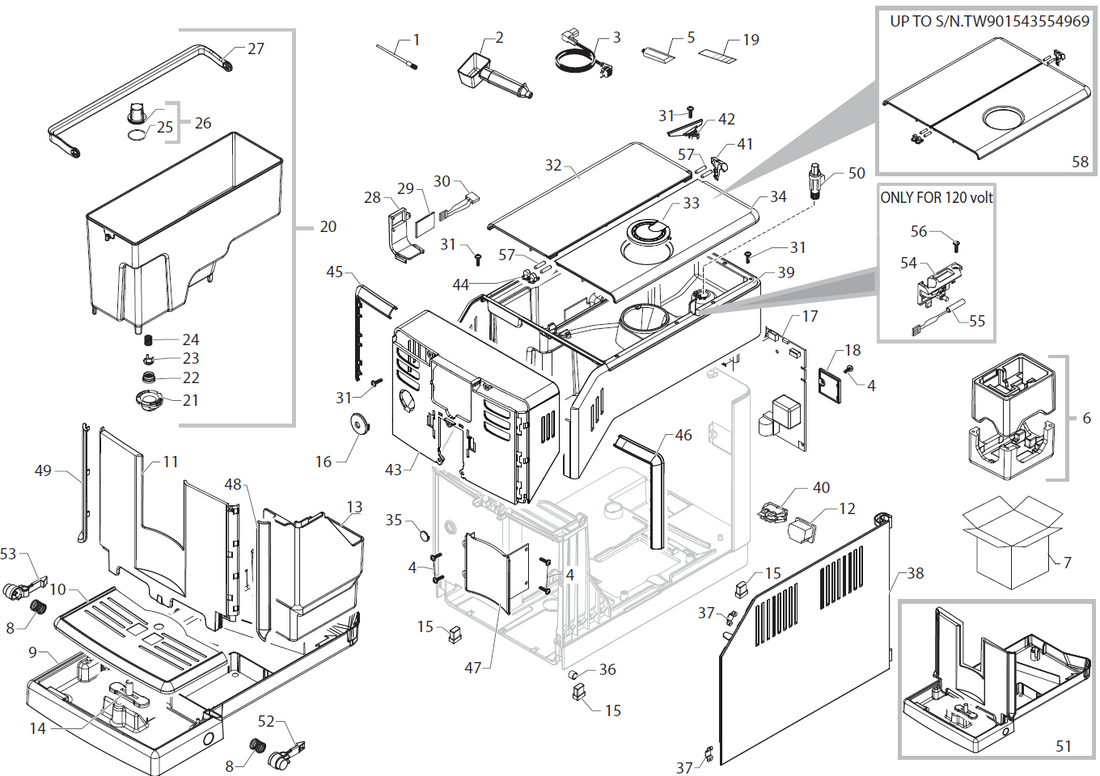

E74220-1 | 1 | BRUSH FOR CLEANING Part Number: 127390100 |
$3.73 | View Part | |
E74220-1 | 2 | BLK ABS COFFEE MEASURE SMART Part Number: 421944033301 |
$8.16 | View Part | |
E74220-1 | 3 | BLK POWER CABLE SCHUKO L=800
Part Number: 421946001591 |
|||
E74220-1 | 3 | BLACK POWER CABLE RVV 3X1 CHINA L=1200
Part Number: 11004247 |
|||
E74220-1 | 3 | BLACK POWER CABLE BRAZIL L=1200
Part Number: 17800019 |
|||
E74220-1 | 3 | BLACK POWER CABLE BRAZIL L=1200
Part Number: 17800330 |
|||
E74220-1 | 3 | POWER CABLE SJT3 USA BLACK UL L=1200 Part Number: 183921950 |
$15.72 | View Part | |
E74220-1 | 3 | BLACK POWER CABLE UK L=1200
Part Number: 183970350 |
|||
E74220-1 | 4 | SCREW TCB TORX 10 3X8 PLAST.ZN-B Part Number: 129913202 |
$5.08 | View Part | |
E74220-1 | 5 | KLUBERLUB NH1 11-222 TUBE 5GR. Part Number: 421946017941 |
$9.99 | View Part | |
E74220-1 | 6 | KIT PS-E INSERT FOR BOX SMRG
Part Number: 421941308001 |
|||
E74220-1 | 7 | DISPL.BOX SMRG/P-H-T GAG GIGI
Part Number: 421946021561 |
|||
E74220-1 | 8 | HOT WATER TUBE SPRING P124
Part Number: 11000759 |
|||
E74220-1 | 9 | G/BLK DRIP TRAY SMRG/P-H
Part Number: 421944055201 |
|||
E74220-1 | 9 | G/ANM DRIP TRAY SMRG/P-H
Part Number: 421944050601 |
|||
E74220-1 | 10 | SS GRATE FOR DRIP TRAY SMRG/P-H Part Number: 421944043551 |
$20.56 | View Part | |
E74220-1 | 11 | STEEL DRIP TRAY INSERT SMRG ASSY Part Number: 421944043651 |
$36.54 | View Part | |
E74220-1 | 11 | DEEP/BLK DRIP TRAY INSERT SMRG/P Part Number: 421944034801 |
$17.82 | View Part | |
E74220-1 | 12 | CUP SOCKET EN 60320 C 13 Part Number: 12000280 |
$6.06 | View Part | |
E74220-1 | 13 | BLK DUMP BOX SMRG Part Number: 421944042991 |
$18.84 | View Part | |
E74220-1 | 14 | RED/3003 FLOAT FOR DRIP TRAY XSM
Part Number: 421941304791 |
|||
E74220-1 | 15 | TRANSP.SILICONE FOOT SMR
Part Number: 17001556 |
|||
E74220-1 | 16 | MATT/BLACK FRONT PANEL CAP SMR
Part Number: 17001025 |
|||
E74220-1 | 17 | CPR GAG SMRG/P-H 230V ASSY.
Part Number: 421941308331 |
|||
E74220-1 | 17 | CPR GAG SMRG/P-H 120V ASSY.
Part Number: 421941308371 |
|||
E74220-1 | 17 | CPR GAG SMRG-BRA/P REV01 ASSY
Part Number: 421941309291 |
|||
E74220-1 | 18 | MATT/BLK REAR CASING PROGRAM.INSERT NPR
Part Number: 17001484 |
|||
E74220-1 | 19 | STICKER FOR WATER HARDNESS TEST
Part Number: 0301.961 |
|||
E74220-1 | 20 | NAT/GREY WATER CONTAINER SMR ASSY.
Part Number: 17001363 |
|||
E74220-1 | 21 | BLACK LID FOR DUCKBILL VALVE SMR
Part Number: 17001366 |
|||
E74220-1 | 22 | TRANSP.VALVE FOR WATER CONTAINER P0049
Part Number: 11003671 |
|||
E74220-1 | 23 | GRY WATER CONTAINER VALVE INSERT P0049
Part Number: 421941157852 |
|||
E74220-1 | 24 | SS SPRING FOR WATER CONTAIN.VALVE P0049
Part Number: 11003672 |
|||
E74220-1 | 25 | OR ORM 0190-10 EPDM
Part Number: 140328461 |
|||
E74220-1 | 26 | WHITE WATER CONTAINER EXT.FILTER ASSY.
Part Number: 224640200 |
|||
E74220-1 | 27 | BLACK WATER CONTAINER HANDLE SMR
Part Number: 17001322 |
|||
E74220-1 | 28 | BLACK WATER LEVEL SENSOR SUPPORT SMR
Part Number: 17001474 |
|||
E74220-1 | 29 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
E74220-1 | 30 | 3P.CONN.WATER LEVEL SMR UL ASSY.
Part Number: 421946000021 |
|||
E74220-1 | 31 | SCREW TCBR TORX 10 3,5X12 PLAST.SS
Part Number: 12001728 |
|||
E74220-1 | 32 | SS WATER CONTAINER LID V2 SMRG ASSY
Part Number: 421944043732 |
|||
E74220-1 | 32 | DEEP/BLK WATER CONTAINER LID V2 SMRG/P
Part Number: 421944036032 |
|||
E74220-1 | 33 | TRANSP/GRY GROUND COF.HOPPER LID SMRA
Part Number: 421944040481 |
|||
E74220-1 | 34 | DEEP/BLK BEAN COF.CONT.LID V2 SMRG/P
Part Number: 421944035972 |
|||
E74220-1 | 34 | BLK BEAN COF.CONT.LID V2 SMRG/P-H ASSY
Part Number: 421944052852 |
|||
E74220-1 | 34 | SS BEAN COF.CONT.LID V2 SMRG ASSY
Part Number: 421944043722 |
|||
E74220-1 | 34 | SS BEAN COF.CONT.LID V2 SMRG 120V ASSY
Part Number: 421944056162 |
|||
E74220-1 | 35 | BLACK INFRAREDS PLATE RYL
Part Number: 11031523 |
|||
E74220-1 | 36 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 9161.111 |
|||
E74220-1 | 37 | STEEL PLATE FOR DOOR MAGNET XSM
Part Number: 11013220 |
|||
E74220-1 | 38 | MATT/BLACK RIGHT SIDE DOOR SMR
Part Number: 17001065 |
|||
E74220-1 | 39 | BLK UPP.CASING COV.SMRG
Part Number: 421944033071 |
|||
E74220-1 | 39 | BLK UPP.CASING COV.W/SENS.SMRG
Part Number: 421944059171 |
|||
E74220-1 | 40 | SWI POW 2P 12A 250V FASTON GP12H B
Part Number: 242212625104 |
|||
E74220-1 | 40 | SWI POW 2P 10A 250V FASTON 8500 B
Part Number: 242212625106 |
|||
E74220-1 | 41 | DEEP/BLK REAR LID FIXING INSERT V2 SMRG
Part Number: 421944056212 |
|||
E74220-1 | 42 | BLK CONT.SEP.INSERT SMR
Part Number: 421944040451 |
|||
E74220-1 | 43 | UPP.CAS.COVER INS.S/SCR GAG SMRG/H ASSY
Part Number: 421944045051 |
|||
E74220-1 | 43 | UPP.CAS.COVER INS.S/SCR GAG SMRG/P
Part Number: 421944045061 |
|||
E74220-1 | 44 | DEEP/BLK FRONT LID FIXING INSERT V2 SMRG
Part Number: 421944056222 |
|||
E74220-1 | 45 | CHR.UPPER LEFT FRAME SMRG
Part Number: 421944043781 |
|||
E74220-1 | 46 | CHR.UPPER RIGHT FRAME SMRG
Part Number: 421944043771 |
|||
E74220-1 | 47 | SS LOWER FRONT INSERT SMRG ASSY
Part Number: 421944043711 |
|||
E74220-1 | 47 | DEEP/BLK CASING INSERT SMRG/P
Part Number: 421944036371 |
|||
E74220-1 | 48 | CHR.LOWER RIGHT FRAME SMRG
Part Number: 421944043801 |
|||
E74220-1 | 49 | CHR.LOWER LEFT FRAME SMRG
Part Number: 421944043791 |
|||
E74220-1 | 50 | YLW BEAN COFFEE GRINDER INSERT SMR
Part Number: 421944025161 |
|||
E74220-1 | 51 | KIT SPARES M/BLK DRIP TRAY SMR/P
Part Number: 421941308141 |
|||
E74220-1 | 51 | KIT SPARES M/BLK DRIP TRAY SMRG/H
Part Number: 421941308151 |
|||
E74220-1 | 52 | BLK DRIP TRAY LOCKING RIGHT INSERT SMR/T
Part Number: 17001506 |
|||
E74220-1 | 53 | BLK DRIP TRAY LOCKING LEFT INSERT SMR/T
Part Number: 17001507 |
|||
E74220-1 | 54 | BLK REED SUPPORT SMR
Part Number: 421944009411 |
|||
E74220-1 | 55 | 2POLES CONNECT.SENSOR REED DUMP BOX CST
Part Number: 17800442 |
|||
E74220-1 | 56 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 12000895 |
|||
E74220-1 | 57 | SS CYL.PIN D=3.4 L=15.3
Part Number: 421944061701 |
|||
E74220-1 | 58 | KIT SPARES CONTAINERS LIDS (A)
Part Number: 421941309461 |
|||
E74220-1 | 58 | KIT SPARES CONTAINERS LIDS (B)
Part Number: 421941309471 |
|||
E74220-1 | 58 | KIT SPARES CONTAINERS LIDS (C)
Part Number: 421941309481 |
|||
E74220-1 | 58 | KIT SPARES CONTAINERS LIDS (D)
Part Number: 421941309491 |
|||

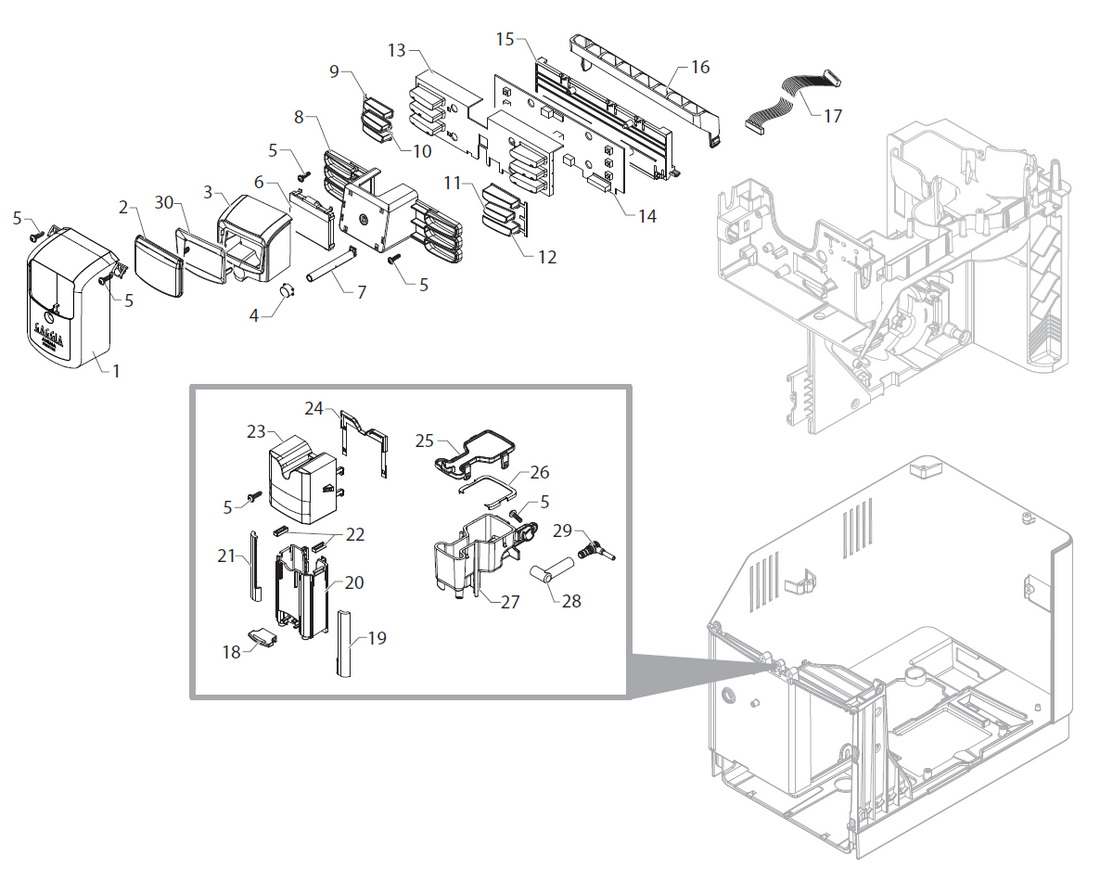

E74220-2 | 1 | GAG S/SCR CHR.DISPLAY COVER SMRG
Part Number: 421944043691 |
|||
E74220-2 | 1 | GAG S/SCR CHR.DISPLAY COVER SMRG/H
Part Number: 421944055891 |
|||
E74220-2 | 2 | TRANSP.GLASS FOR DISPLAY SMRG
Part Number: 421944036591 |
|||
E74220-2 | 3 | BLK FRONT PANEL MEMBRANE SMRG/H-P-T
Part Number: 421944032671 |
|||
E74220-2 | 4 | TRANSP.STAND-BY BUTTON S/SCR.SMRG
Part Number: 421944043621 |
|||
E74220-2 | 5 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
E74220-2 | 6 | DISPLAY LCD 128X64 SMRG
Part Number: 421941307111 |
|||
E74220-2 | 7 | BLK STAND-BY BUTTON LIGHT GUIDE SMRG
Part Number: 421944036581 |
|||
E74220-2 | 8 | BLK DISPLAY SUPPORT SMRG
Part Number: 421944036541 |
|||
E74220-2 | 9 | CHR.LEFT BUTT.S/SCR SMRG
Part Number: 421944043761 |
|||
E74220-2 | 10 | CHROM.INTERMED.RIGHT LEFT.S/SCR SMRG
Part Number: 421944050181 |
|||
E74220-2 | 11 | CHROM.INTERMED.RIGHT BUTT.S/SCR SMRG/P-H
Part Number: 421944049871 |
|||
E74220-2 | 12 | CHR.RIGHT BUTT.S/SCR SMRG CMF
Part Number: 421944050161 |
|||
E74220-2 | 12 | CHR.RIGHT BUTT.S/SCR SMRG AMF
Part Number: 421944044131 |
|||
E74220-2 | 13 | SILIC.KEY V2 SMRG
Part Number: 421944052721 |
|||
E74220-2 | 14 | KIT SPARES KYB - DISPLAY SMRG/P/H/T
Part Number: 421941308731 |
|||
E74220-2 | 15 | BLK DISPLAY KEYB.-INTERFACE SUPPORT SMRG
Part Number: 421944036531 |
|||
E74220-2 | 16 | BLOCK KEY SUPP. SMRG
Part Number: 421944034431 |
|||
E74220-2 | 17 | 16P.CPU-USER INTERF.FLATCABLE SMRG
Part Number: 421946020421 |
|||
E74220-2 | 18 | CHR.COFFEE SPOUT HANDLE SMRG
Part Number: 421944043831 |
|||
E74220-2 | 19 | CHR.RIGHT FRAME COF.DISP.MOB.PART SMRG
Part Number: 421944043821 |
|||
E74220-2 | 20 | M/BLK COF.DISPEN.MOBILE PART V2 SMRG AS.
Part Number: 421944056791 |
|||
E74220-2 | 21 | CHR.LEFT FRAME COF.DISP.MOB.PART SMRG
Part Number: 421944043811 |
|||
E74220-2 | 22 | BLK MOBILE SPOUT INSERT V2 SMGR
Part Number: 421944057331 |
|||
E74220-2 | 23 | BLK COFFEE DISPENSER LID V2 SMRG
Part Number: 421944056581 |
|||
E74220-2 | 24 | SEAL FOR MOBILE SPOUT SUPP.SMGR
Part Number: 421944046151 |
|||
E74220-2 | 25 | BLK COFFEE DISPENSER BODY LID SMRG
Part Number: 421944034321 |
|||
E74220-2 | 26 | WHT COFFEE DISPENSER BODY SEAL SMR
Part Number: 421944017651 |
|||
E74220-2 | 27 | BLK COFFEE DISPENSER BODY SMRG
Part Number: 421944034141 |
|||
E74220-2 | 28 | TRANS.BREW UNIT COF.OUTLET CONN.TUBE SMR
Part Number: 17000955 |
|||
E74220-2 | 29 | BLK BREW UNIT COFFEE OUTLET CONNECT.SMR
Part Number: 17001849 |
|||
E74220-2 | 30 | BLK DISPLAY FRAME SMRG
Part Number: 421944036611 |
|||

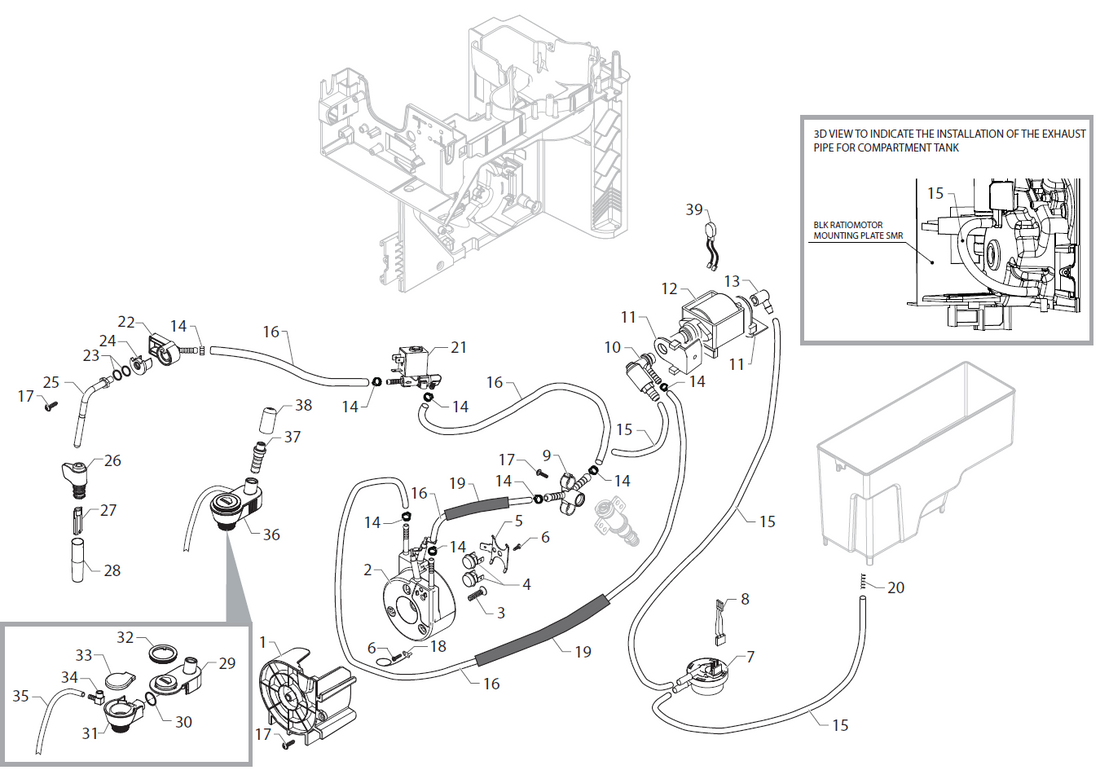

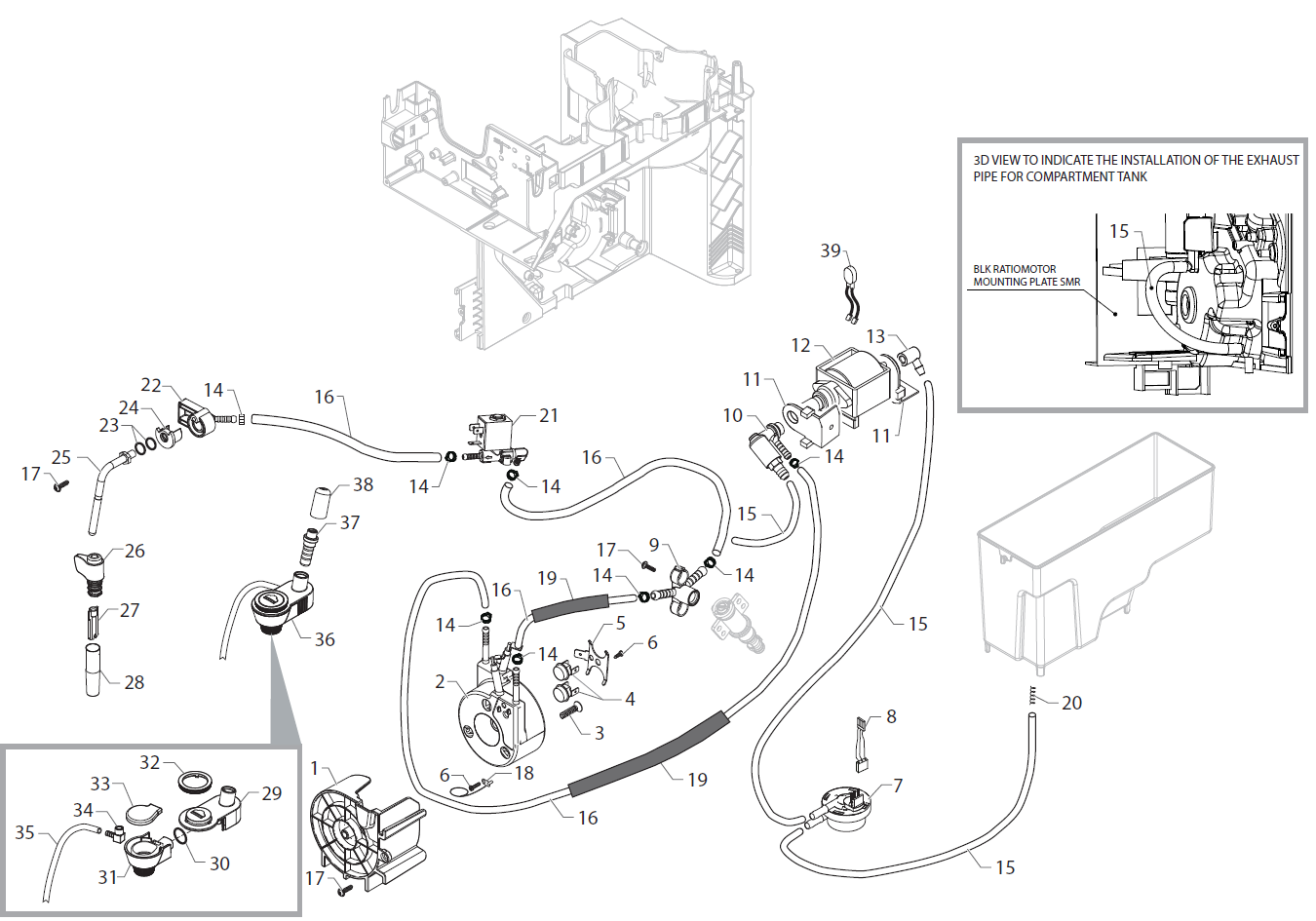

E74220-3 | 1 | BLK SLIM TUB.BOILER SUPPORT V2 SMR
Part Number: 421944040831 |
|||
E74220-3 | 2 | TUB.BOILER XS4 1300W 120V ASSY.
Part Number: 421944046121 |
|||
E74220-3 | 2 | TUB.BOILER XS4 1900W 230V ASSY.
Part Number: 421944028841 |
|||
E74220-3 | 3 | SCREW TSP TORX 10 5X20 PLAST.ZN-B
Part Number: 12001280 |
|||
E74220-3 | 4 | THERMOSTAT ONE SHOT 190
Part Number: 12001033 |
|||
E74220-3 | 5 | TUB.BOILER V3 UPPER THERM.FIXING SPRING
Part Number: 11001751 |
|||
E74220-3 | 6 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 12001715 |
|||
E74220-3 | 7 | TURBINE D=1,2 932-8521/00 ASSY.
Part Number: NV99.099 |
|||
E74220-3 | 8 | 3POLES CONNECTOR FLOWMETER SMR UL
Part Number: 17800686 |
|||
E74220-3 | 9 | BLACK CONNECTOR FOR PIN BOILER SMR
Part Number: 17000727 |
|||
E74220-3 | 10 | TEA/BRASS SAFETY VALVE 16-18 BAR ASSY.
Part Number: 11004689 |
|||
E74220-3 | 11 | BLACK TYPE ULKA PUMP W/BEVEL SUPPORT
Part Number: 149205850 |
|||
E74220-3 | 12 | ULKA PUMP EP5/S GW 230V-50HZ
Part Number: 12000140 |
|||
E74220-3 | 12 | ULKA PUMP EAP5/S 120V-60HZ
Part Number: 12000142 |
|||
E74220-3 | 12 | ULKA PUMP EP5/S GW 220V-60HZ
Part Number: 12000182 |
|||
E74220-3 | 13 | BLACK PUMP OUTLET 90 CONNECTOR P0049/A
Part Number: 11002149 |
|||
E74220-3 | 14 | OETIKER CLAMP D=9,5 16700004
Part Number: 12000892 |
|||
E74220-3 | 15 | SILICONE TUBE 5X10 60SH IN ROLL
Part Number: JS01.022 |
|||
E74220-3 | 16 | 5X8,9 SILICONE TUBE IN ROLL
Part Number: 16000380 |
|||
E74220-3 | 17 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
E74220-3 | 18 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 190800100 |
|||
E74220-3 | 18 | TEMPERATURE SENSOR NTC UL L=550MM
Part Number: 17800628 |
|||
E74220-3 | 19 | TRANSPAR.11X12,8 SILICONE TUBE IN ROLL
Part Number: 16000540 |
|||
E74220-3 | 20 | SPRING FOR TUBE PRODUCT 1
Part Number: 0701.081 |
|||
E74220-3 | 21 | SOLENOID VALVES V2 SMR/T 24V ASSY.
Part Number: 421944029371 |
|||
E74220-3 | 22 | STEAM TUBE SUPPORT SMR
Part Number: 17001029 |
|||
E74220-3 | 23 | OR ORM 0060-20 TERMOIL
Part Number: 140324461 |
|||
E74220-3 | 24 | BLACK BUSH FOR STEAM TUBE SMR
Part Number: 17001028 |
|||
E74220-3 | 25 | TF/CHROM.STEAM TUBE SMR ASSY.
Part Number: 11030926 |
|||
E74220-3 | 26 | BLK/SIL.STEAM TUBE HANDGRIP G0053
Part Number: 421941300671 |
|||
E74220-3 | 27 | BLACK PANNARELLO INNER TUBE P0049
Part Number: 11001620 |
|||
E74220-3 | 28 | SS PANNARELLO COVER P0049
Part Number: 11001621 |
|||
E74220-3 | 29 | BLK CAPPUC.CASING COV.V3 S/SCR.SMR/H AS.
Part Number: 421944031431 |
|||
E74220-3 | 30 | O-RING 106 SILICONE
Part Number: NM01.028 |
|||
E74220-3 | 31 | BLK CAPPUC.CASING V3 SMR/H
Part Number: 421944022461 |
|||
E74220-3 | 32 | BLK CAPPUC.CASING COVER RING SMR/H
Part Number: 421941301121 |
|||
E74220-3 | 33 | BLK CAPPUC.CASING SEAL SMR/H
Part Number: 421941301131 |
|||
E74220-3 | 34 | BLACK CONNECTOR 90 FOR SPHERIC.CAPPUC.
Part Number: 147922350 |
|||
E74220-3 | 35 | SILICONE TUBE 3,5X6 L=350 MM DS
Part Number: 9972.045 |
|||
E74220-3 | 36 | CHR CAPPUC.V3 SMR/H ASSY.
Part Number: 421944031491 |
|||
E74220-3 | 37 | BLK STEAM TUBE INSERT V3 SMR/H
Part Number: 421941301143 |
|||
E74220-3 | 38 | CHROMED STEAM TUBE INSERT COVER SMR/H
Part Number: 421944031451 |
|||
E74220-3 | 39 | 2POLES CONNECTOR PUMP SMR UL
Part Number: 17800635 |
|||
E74220-3 | 100 | GEN.TUB.BOILER XS4 1900W 230V ASSY.
Part Number: 421944046301 |
|||
E74220-3 | 100 | GEN.TUB.BOILER XS4 GAG 1300W 120V ASSY
Part Number: 421944055941 |
|||

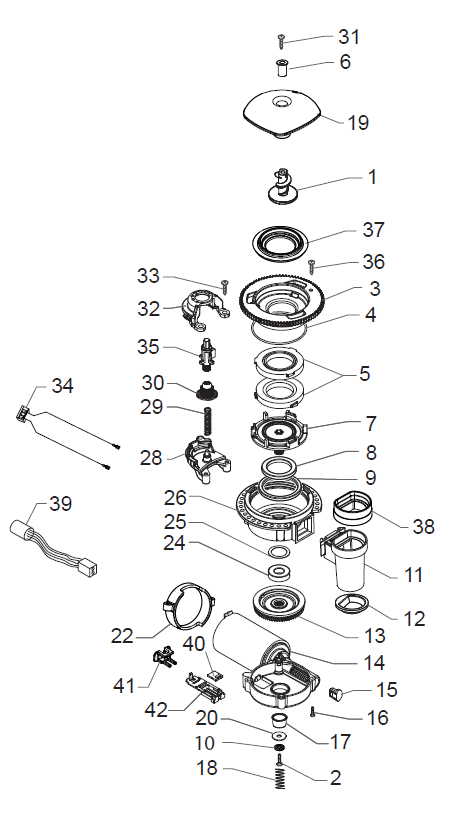

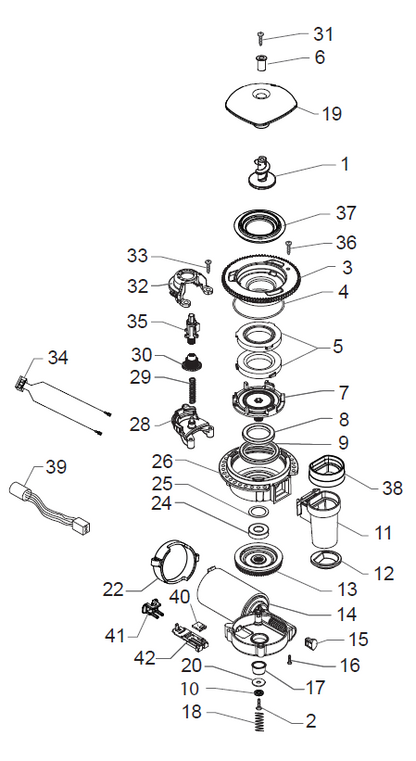

E74220-4 | 1 | TEA/ZAMA INCREASE SCREW GRINDER
Part Number: 11010031 |
|||
E74220-4 | 2 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 129574802 |
|||
E74220-4 | 3 | BLK COF.GRINDER UPPER GRINDER SUPPORT V3
Part Number: 421944053581 |
|||
E74220-4 | 4 | OR ORM 0530-15 NBR FDA
Part Number: 140328960 |
|||
E74220-4 | 5 | BAKED CLAY GRINDER 48X28
Part Number: 146520100 |
|||
E74220-4 | 6 | BRASS BUSH BEAN CONT.FINGER PROTEC.P0057
Part Number: 11012466 |
|||
E74220-4 | 7 | BLK LOWER COFFEEGRINDER GRINDER SUPPORT
Part Number: 149198350 |
|||
E74220-4 | 8 | AXIAL BEARING EKKO 342.35252
Part Number: 123030300 |
|||
E74220-4 | 9 | FELT RING 45,4X39,4X4
Part Number: 140360500 |
|||
E74220-4 | 10 | GALV.WASHER UNI 8842 A4
Part Number: 128310402 |
|||
E74220-4 | 11 | BLK GROUND COFF.OUTLET CONVEYOR V4 ASSY.
Part Number: 11026355 |
|||
E74220-4 | 12 | GRY GROUND COF.CONT.LOWER SEAL V2 SMART1
Part Number: 421944060561 |
|||
E74220-4 | 13 | GEAR SX Z=38 FOR GRINDER MOTION ASSY.
Part Number: 226000300 |
|||
E74220-4 | 14 | MOTOR COFFEEGRINDER V3.1 120V ASSY.
Part Number: 421941305001 |
|||
E74220-4 | 14 | MOTOR COFFEEGRINDER V3.2 230V ASSY.
Part Number: 421944049151 |
|||
E74220-4 | 15 | MC V3 MOD=1,25 WORM SCREW CENTRING CAP
Part Number: 149214800 |
|||
E74220-4 | 16 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 129661702 |
|||
E74220-4 | 17 | INSULATOR BUSH FOR GRINDER MOTOR P124
Part Number: 11002873 |
|||
E74220-4 | 18 | STEEL COF.GRINDER SUPPORT SPRING P124
Part Number: 11000597 |
|||
E74220-4 | 19 | TRANS.BEAN CONTAIN.FINGER PROTECT.SMR UL
Part Number: 17001008 |
|||
E74220-4 | 20 | STEEL FLAT WASHER DI=4,3 DE=14 SP=1,5
Part Number: 128381902 |
|||
E74220-4 | 22 | BLACK COFFEEGRINDER MOTOR SUPPORT P124
Part Number: 11000194 |
|||
E74220-4 | 24 | RADIAL BEARING 61900.2RS1
Part Number: 123030200 |
|||
E74220-4 | 25 | STEEL CRINKLE WASHER 21,8X14X0,25
Part Number: 128381800 |
|||
E74220-4 | 26 | BLK UPPER BODY WITH COFFEE GROUND OUTLET
Part Number: 142905450 |
|||
E74220-4 | 28 | LOWER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 11002613 |
|||
E74220-4 | 29 | COFFEEGRINDER REGULATION SPRING P124
Part Number: 11002572 |
|||
E74220-4 | 30 | COFFEE GRINDING ADJUSTMENT GEAR P0049
Part Number: 11003784 |
|||
E74220-4 | 31 | ZN-B TCB TORX 20 M4X16 ZN-B
Part Number: U043.004 |
|||
E74220-4 | 32 | UPPER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 11002508 |
|||
E74220-4 | 33 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 129914002 |
|||
E74220-4 | 34 | 2POLES CONNET.COFFEEGRINDER MOTOR SMR UL
Part Number: 17800688 |
|||
E74220-4 | 35 | YLW BEAN COFFEE GRINDER INSERT SMR
Part Number: 421944025161 |
|||
E74220-4 | 36 | SCREW TCB TORX B 3,5X9,5 SCHEET NIK
Part Number: 12001622 |
|||
E74220-4 | 37 | COFFEE GRINDER SEAL P119 GRY 7035
Part Number: 421941085872 |
|||
E74220-4 | 38 | BLK GROUND COFFEE CONT.UPPER SEAL SMART1
Part Number: 145854360 |
|||
E74220-4 | 39 | 3POLES CONNECTOR MC SENSOR SMR UL
Part Number: 17800687 |
|||
E74220-4 | 40 | ELECTR.BOARD WITH SENSOR HAL506 SF-K
Part Number: 181540900 |
|||
E74220-4 | 41 | BLK WIRING FIX INSERT FOR GRINDER BOARD
Part Number: 17001921 |
|||
E74220-4 | 42 | BLK SENSOR SUPPORT FOR COF.GRINDER MOTOR
Part Number: 149199050 |
|||
E74220-4 | 100 | GEN.MOT.COF.GRINDER V2 SMR/H-P-T 120V AS
Part Number: 421944054601 |
|||
E74220-4 | 100 | GEN.MOTOR COF.GRINDER V2 SMR/B 230V ASSY
Part Number: 421944054631 |
|||

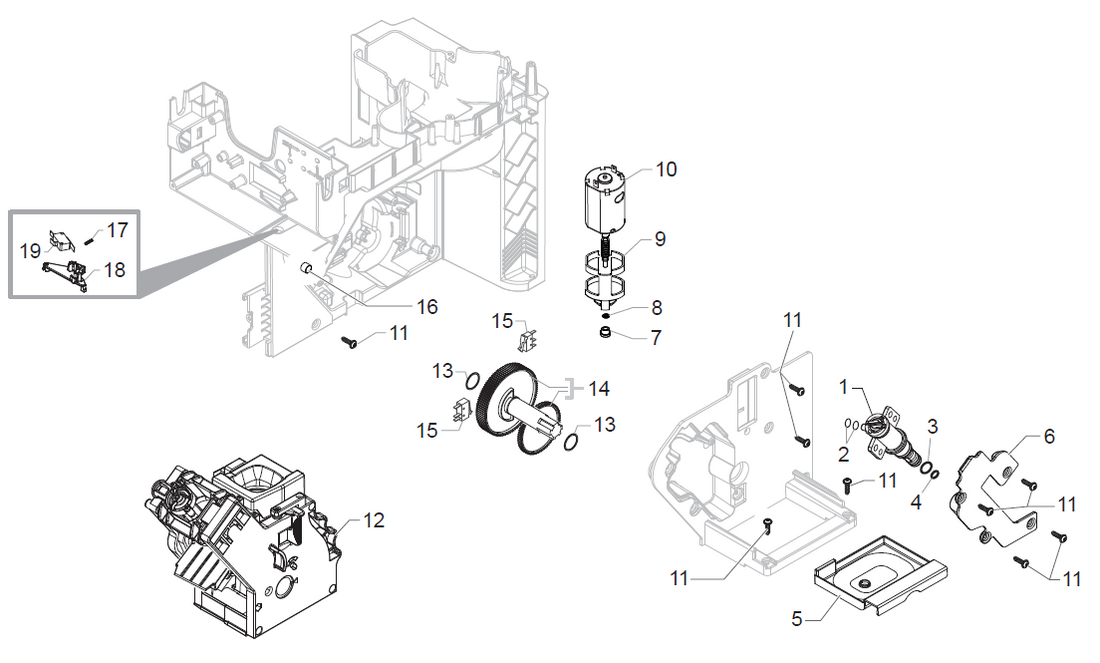

E74220-5 | 1 | BLK PIN FOR BOILER VALVE 4BAR ASSY.
Part Number: 421946011491 |
|||
E74220-5 | 2 | OR 2015 SILICONE PTFE/FDA
Part Number: 140328059 |
|||
E74220-5 | 3 | OR ORM 0090-20 SILICONE
Part Number: NM01.035 |
|||
E74220-5 | 4 | OR ORM 0050-20 IN SILICONE
Part Number: NM01.057 |
|||
E74220-5 | 5 | BLK BREW UNIT DRAWER COFFEE SMR
Part Number: 421944008911 |
|||
E74220-5 | 6 | BLACK BOILER SEAT PIN COVER SMR
Part Number: 17000730 |
|||
E74220-5 | 7 | BRONZE SINTERED BUSH FOR MOTOR RATIOMOT.
Part Number: 9121.046 |
|||
E74220-5 | 8 | BAKELIZZATE WASHER D=5,5
Part Number: 148380200 |
|||
E74220-5 | 9 | ANTIVIBRATION FOR MOTOR
Part Number: 9121.044 |
|||
E74220-5 | 10 | MOTOR FOR RATIOMOTOR P124 ASSY.
Part Number: 11005214 |
|||
E74220-5 | 11 | SCREW TCBR TORX 10 3,5X12 PLAST.SS
Part Number: 12001728 |
|||
E74220-5 | 12 | BLK/YLW BREW UNIT 8GR.5BAR SMR
Part Number: 421944052401 |
|||
E74220-5 | 13 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 9161.132 |
|||
E74220-5 | 14 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 20000900 |
|||
E74220-5 | 15 | MICROSWITCH XC/SM1
Part Number: 12001841 |
|||
E74220-5 | 16 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 9161.111 |
|||
E74220-5 | 17 | STEEL SPRING FOR MICRO COMPENSATOR SMR
Part Number: 421944006861 |
|||
E74220-5 | 18 | BLACK MICRO COMPENSATOR SMR
Part Number: 17001508 |
|||
E74220-5 | 19 | MICROSWITCH XG/V3D
Part Number: 12001890 |
|||

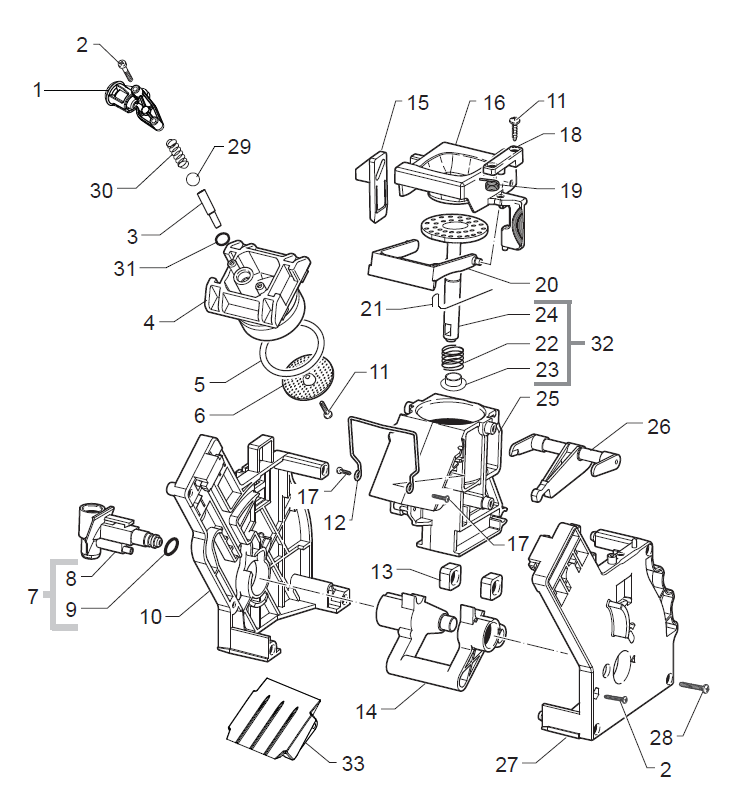

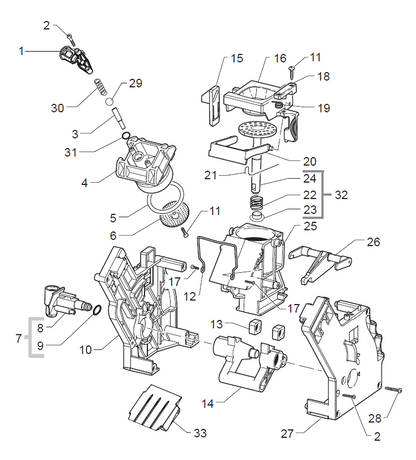

E74220-6 | 1 | BLK BREW UNIT COF.OUTLET SLEEVE SMR ASSY
Part Number: 421944065221 |
|||
E74220-6 | 2 | SCREW TCB TORX 10 3X25 PLAST.SS
Part Number: 12000550 |
|||
E74220-6 | 3 | BLK COUNTER PISTON TUBE BREW UNIT S0053
Part Number: 11009276 |
|||
E74220-6 | 4 | BLACK COUNTER PISTON BREW UNIT 8GR.P124
Part Number: 11001840 |
|||
E74220-6 | 5 | OR ORM 0320-40 SILICONE PTFE/FDA
Part Number: NM01.044 |
|||
E74220-6 | 6 | PERCOLATOR DE=35,8 ELFO
Part Number: 9161.268 |
|||
E74220-6 | 7 | BLACK WATER INLET SLEEVE BREW UNIT ASSY.
Part Number: 20000440 |
|||
E74220-6 | 8 | BLACK WATER INLET SLEEVE BREW UNIT ROYAL
Part Number: 9161.064.050 |
|||
E74220-6 | 9 | OR 2025 IN TERMOIL
Part Number: NM02.007 |
|||
E74220-6 | 10 | BLACK BREW UNIT REAR PLATE SMART
Part Number: 9161.375.050 |
|||
E74220-6 | 11 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 12000895 |
|||
E74220-6 | 12 | SS BREW UNIT SPRING H=49 SMART
Part Number: 11001556 |
|||
E74220-6 | 13 | BLACK BREW UNIT DRILLED BLOCK
Part Number: 9161.094.050 |
|||
E74220-6 | 14 | YLW BREW UNIT ELBOW SHAFT M5000
Part Number: 421944051231 |
|||
E74220-6 | 15 | YLW BREW UNIT COUPLING PLATE V2 SMART
Part Number: 421944046931 |
|||
E74220-6 | 16 | BLACK HOPPER DOSER BREW UNIT SMART1
Part Number: 149261350 |
|||
E74220-6 | 17 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 129912521 |
|||
E74220-6 | 18 | YLW BREWUNIT HOPPER BLOCKING PLATE SMART
Part Number: 421944050711 |
|||
E74220-6 | 19 | SS HOPPER SPRING FOR BREW UNIT SMART
Part Number: 9161.378 |
|||
E74220-6 | 20 | BLACK SCRAPER FOR BREW UNIT M5000
Part Number: 11004161 |
|||
E74220-6 | 21 | SS SCRAPER SPRING FOR BREW UNIT
Part Number: 9161.046 |
|||
E74220-6 | 22 | SS.8GR.BREW UNIT PISTON SPRING
Part Number: 9161.198 |
|||
E74220-6 | 23 | WHITE 8GR.-12GR.BREW UNIT PISTON BUSH
Part Number: 9161.191 |
|||
E74220-6 | 24 | BLK BREW UNIT INTEGR.PISTON 8GR.V3 ASSY.
Part Number: 421944025621 |
|||
E74220-6 | 25 | BLK BREW UNIT COFFEE CONT.V2 P124 ASSY.
Part Number: 421944040801 |
|||
E74220-6 | 26 | BLACK CONNECTING ROD BREW UNIT 8GR.
Part Number: 11003078 |
|||
E74220-6 | 27 | BLACK BREW UNIT FRONT PLATE S/SCR.SMART
Part Number: 11005920 |
|||
E74220-6 | 28 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 12000897 |
|||
E74220-6 | 29 | BOROSILICATE SPHERE D.5 MM
Part Number: 421944034451 |
|||
E74220-6 | 30 | SS COFFEE UNIT CONTERPISTON SPRING S0053
Part Number: 11012095 |
|||
E74220-6 | 31 | OR ORM 0060-15 TERMOIL
Part Number: 140328761 |
|||
E74220-6 | 32 | BLK BREW UNIT 8GR.INT.PISTON GEN.V3 ASSY
Part Number: 421944029791 |
|||
E74220-6 | 33 | BLACK BREW UNIT CONVEYOR SLIDE L=56,3
Part Number: 17000737 |
|||
E74220-6 | 100 | BLK/YLW BREW UNIT 8GR.5BAR SMR
Part Number: 421944052401 |
