Gaggia Babila Part Diagram E74236
This is the Gaggia Babila Part Diagram E74236. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

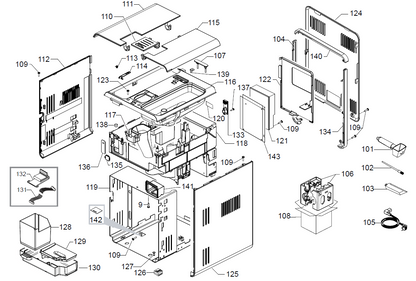

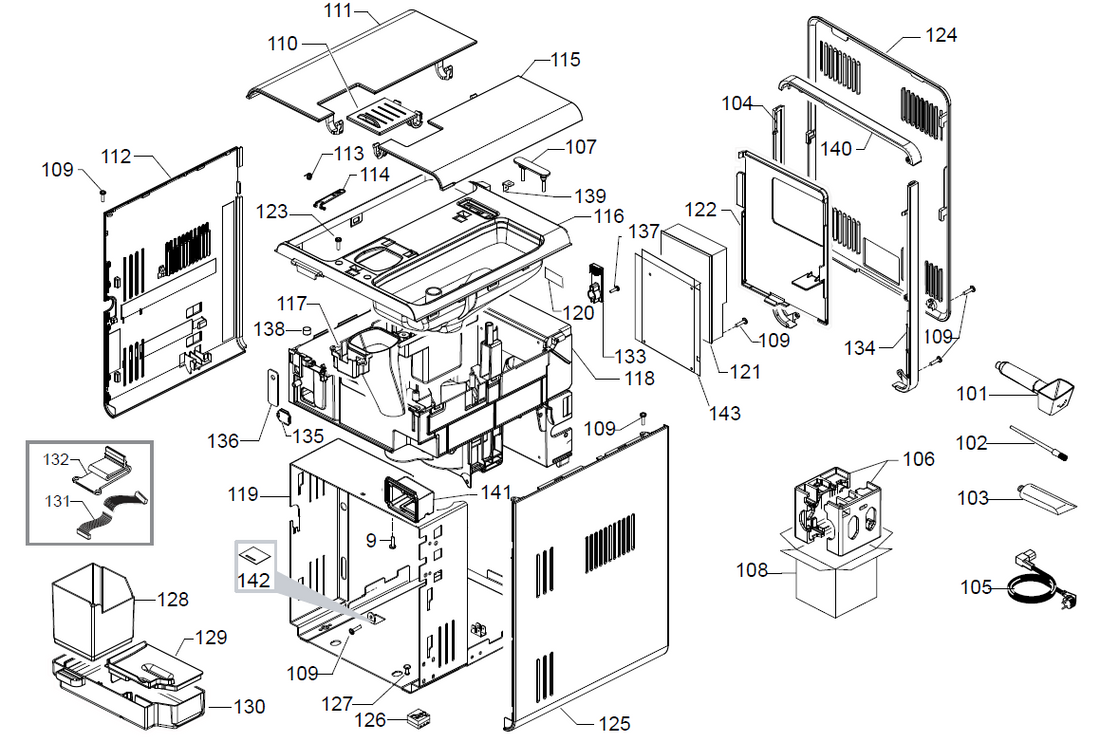

| E74236-1 | 101 |
|
BLK ABS COFFEE MEASURE SMART Part Number: 421944033301 |
$8.16 | View Part |
| E74236-1 | 102 |
|
BRUSH FOR CLEANING Part Number: 996530011867 |
$6.55 | View Part |
| E74236-1 | 103 |
|
KLUBERLUB NH1 11-222 TUBE 5GR. Part Number: 421946017941 |
$9.99 | View Part |
| E74236-1 | 104 |
|
CHROM.LEFT LATERAL REAR FRAME INS.MDS Part Number: 996530070517 |
$15.96 | View Part |
| E74236-1 | 105 | BLK POWER CABLE SCHUKO L=800
Part Number: 421946001591 |
|||
| E74236-1 |
|
POWER CABLE SJT3 USA BLACK UL L=1200 Part Number: 996530025843 |
$15.72 | View Part | |
| E74236-1 | 106 | KIT PS-E INSERT FOR BOX V2 MDS
Part Number: 421941309071 |
|||
| E74236-1 | 107 | BLACK COVER CONDUCTING SEAL MDS
Part Number: 996530067464 |
|||
| E74236-1 | 108 | DISPL.BOX MDG/T GAG BABILA
Part Number: 421946036441 |
|||
| E74236-1 | 109 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| E74236-1 | 110 |
|
SB/SS GROUND CONT.DOOR COVER MDS/H ASSY. Part Number: 996530070513 |
$53.88 | View Part |
| E74236-1 | 111 | SB/SS WATER CONT.DOOR COVER MDS/H ASSY.
Part Number: 996530070521 |
|||
| E74236-1 | 112 | G/ANM LEFT SIDE PANEL MDS/P Part Number: 421944048731 |
$48.68 | View Part | |
| E74236-1 | 113 | SS SPRING FOR WATER CONTAINER LEVER MDS
Part Number: 996530007549 |
|||
| E74236-1 | 114 |
|
YELLOW LEVER FOR WATER CONTAIN.S/SC.MYB9 Part Number: 996530007364 |
$11.24 | View Part |
| E74236-1 | 115 | SB/SS BEAN CONTAIN.DOOR COVER MDS/H ASSY Part Number: 996530070511 |
$81.36 | View Part | |
| E74236-1 | 116 | BLACK COVER CASING V2 MDS Part Number: 996530067474 |
$17.10 | View Part | |
| E74236-1 | 117 | BLACK GROUND COFFEE HOPPER PLATE MDS
Part Number: 996530007507 |
|||
| E74236-1 | 118 | BLACK HORIZONTAL MOUNTING PLATE MDS Part Number: 996530007567 |
$28.24 | View Part | |
| E74236-1 | 119 | BLACK STEEL CASING MDS ASSY. Part Number: 996530067532 |
$32.46 | View Part | |
| E74236-1 | 120 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
| E74236-1 | 121 | PWR BOARD MDS
Part Number: 996530067506 |
|||
| E74236-1 | PWR BOARD MYB9/MDS
Part Number: 996530007079 Notes: 120V |
||||
| E74236-1 | 122 | BLACK PWR BOARD COVER MDS
Part Number: 996530007568 |
|||
| E74236-1 | 123 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 996530013165 |
|||
| E74236-1 | 124 | BLK REAR PANEL NO LOGO V2 MDG/T
Part Number: 421944071391 |
|||
| E74236-1 | 125 | G/ANM RIGHT SIDE PANEL MDS/P
Part Number: 421944048721 |
|||
| E74236-1 | 126 | BLACK/TRANSP.RIGID FOOT MYB9
Part Number: 996530007156 |
|||
| E74236-1 | 127 | BLACK RIGID FOOT FIXING PIN MYB9
Part Number: 996530007136 |
|||
| E74236-1 | 128 | BLACK DUMP BOX MDS ASSY.
Part Number: 996530073497 |
|||
| E74236-1 | 129 | BLK DRIP TRAY COFF.BREW UNIT COVER MDS
Part Number: 996530007547 |
|||
| E74236-1 | 130 | BLACK COFFEE UNIT DRIP TRAY V2 MDS
Part Number: 996530073075 |
|||
| E74236-1 | 131 | 40POLES FLAT CABLE BOARDS LINK MDS UL
Part Number: 996530007589 |
|||
| E74236-1 | 132 | BLACK FLAT-CABLE PROTECTION MYB9
Part Number: 996530006864 |
|||
| E74236-1 | 133 | BLK CAPACIT.SENSOR DEADLOCK INSERT XSM
Part Number: 996530067437 |
|||
| E74236-1 | 134 | CHROM.RIGHT LATERAL REAR FRAME INS.MDS
Part Number: 996530070514 |
|||
| E74236-1 | 135 | TRANSP.INFRAREDS PLATE MDS
Part Number: 996530009605 |
|||
| E74236-1 | 136 | STEEL PLATE FOR DOOR CLOSURE MYB9
Part Number: 996530007207 |
|||
| E74236-1 | 137 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 996530013156 |
|||
| E74236-1 | 138 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 996530050555 |
|||
| E74236-1 | 139 | BENT TABS 6,3 D=3,3 <=90 4001851000
Part Number: 996530026185 |
|||
| E74236-1 | 140 | CHROM.UPPER REAR FRAME INSERT MDS
Part Number: 996530070516 |
|||
| E74236-1 | 141 | BLACK DOOR UPPER HINGE COVER MDS
Part Number: 996530073349 |
|||
| E74236-1 | 142 | COMPONENTS SUPPORT INSULATE SHEET MYB9
Part Number: 996530066726 |
|||
| E74236-1 | 143 | PWR ELECTR.BOARD INSULATE SHEET MYB9
Part Number: 996530007613 |
|||

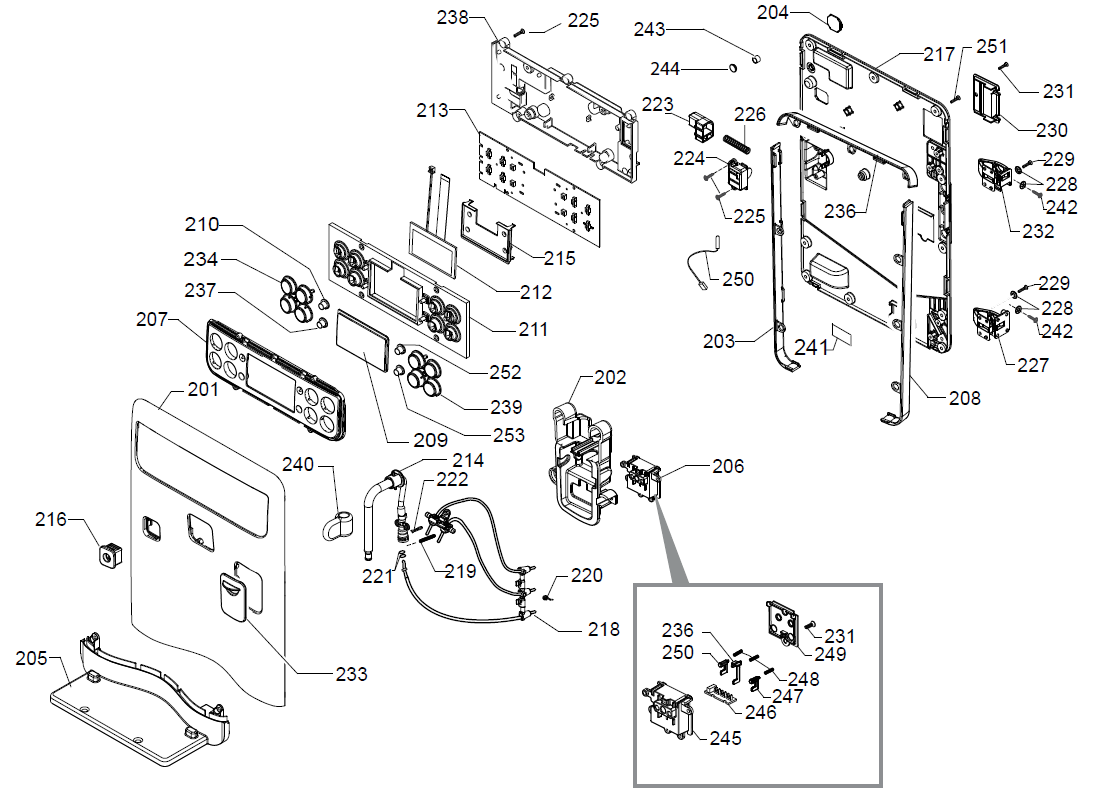

| E74236-2 | 201 | SB/SS FRONT.PANEL S/SCR.MDG GAG ASSY
Part Number: 421944072511 |
|||
| E74236-2 | 202 | BLACK FRONTAL PANEL INSERT MDS
Part Number: 996530007629 |
|||
| E74236-2 | 203 | CHROM.LEFT LATERAL FRONT FRAME INS.MDS
Part Number: 996530070528 |
|||
| E74236-2 | 204 | TRANSP.INFRAREDS PLATE MDS
Part Number: 996530009605 |
|||
| E74236-2 | 205 | BLACK DRIP TRAY SUPPORT V2 MDS
Part Number: 996530070524 |
|||
| E74236-2 | 206 | BLK CARAFFE BOARD SUPPORT GEN.MDS ASSY.
Part Number: 996530067487 |
|||
| E74236-2 | 207 | CHR.TOUCH PANEL SUPPORT S/SCR.V5 MDSE
Part Number: 421944055821 |
|||
| E74236-2 | 208 | CHROM.RIGHT LATERAL FRONT FRAME INS.MDS
Part Number: 996530070527 |
|||
| E74236-2 | 209 | TRANSP.GLASS FOR DISPLAY S/SCR.MDSE
Part Number: 996530072616 |
|||
| E74236-2 | 210 | CRC OK BUTTON S/SCR.V2 MDSE
Part Number: 421944048652 |
|||
| E74236-2 | 211 | TRANSP.TOUCH PANEL MDSE
Part Number: 996530072586 |
|||
| E74236-2 | 212 | DISPLAY OLED 128X64 MDSE
Part Number: 996530072599 |
|||
| E74236-2 | 213 | CPU+SW MDG/T ASSY.
Part Number: 421941310181 |
|||
| E74236-2 | 214 | TF/CHROM.STEAM TUBE V2 MDS ASSY
Part Number: 421944060431 |
|||
| E74236-2 | 215 | BLACK DISPLAY SUPPORT MDSE
Part Number: 996530072565 |
|||
| E74236-2 | 216 | CHROM.EXTERNAL STEAM TUBE INSERT MDS
Part Number: 996530007542 |
|||
| E74236-2 | 217 | BLK INSIDE COVER FRONT PANEL V3 MDS
Part Number: 996530072409 |
|||
| E74236-2 | 218 | WHT PREFORM.TEFLON TUBES SUPP.MDS ASSY.
Part Number: 996530067476 |
|||
| E74236-2 | 219 | TWO WAY TEFLON TUBES SUPPORT SPRING MYB9
Part Number: 996530009559 |
|||
| E74236-2 | 220 | STEEL TEFLON TUBES SUPPORT SPRING MDS
Part Number: 996530072574 |
|||
| E74236-2 | 221 | OR 2015 SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| E74236-2 | 222 | SS FORK FOR TUBE D=4
Part Number: 996530048885 |
|||
| E74236-2 | 223 | BLACK BUTTON FOR DOOR RELEASE MYB9
Part Number: 996530007042 |
|||
| E74236-2 | 224 | BLACK COVER BUTTON FOR DOOR RELEASE MYB9
Part Number: 996530007043 |
|||
| E74236-2 | 225 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| E74236-2 | 226 | SPRING FOR DOOR RELEASE BUTTON MYB9
Part Number: 996530007128 |
|||
| E74236-2 | 227 | DOOR LOWER HINGE V2 MYB9
Part Number: 996530009581 |
|||
| E74236-2 | 228 | GALV.WASHER UNI 8842 A4
Part Number: 996530012341 |
|||
| E74236-2 | 229 | SCREW TCBR TORX 10 3,5X12 PLAST.SS
Part Number: 996530070321 |
|||
| E74236-2 | 230 | BLACK FLAT-CABLE COVER MDS
Part Number: 996530067469 |
|||
| E74236-2 | 231 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 |
|||
| E74236-2 | 232 | DOOR UPPER HINGE V2 MYB9
Part Number: 996530009584 |
|||
| E74236-2 | 233 | CHROM.CONNECT.CAP FOR CARAFE MDS ASSY.
Part Number: 996530007622 |
|||
| E74236-2 | 234 | CRC LEFT BUTTONS S/SCR.V2 MDSE ASSY.
Part Number: 421944048141 |
|||
| E74236-2 | 235 | CHROM.UPPER FRONT FRAME INSERT MDS
Part Number: 996530070525 |
|||
| E74236-2 | 236 | BLK PRESENCE CARAFE MICRO INSERT V2 MYB9
Part Number: 996530009578 |
|||
| E74236-2 | 237 | CRC EXIT BUTTON S/SCR.V2 MDSE
Part Number: 421944048672 |
|||
| E74236-2 | 238 | BLACK INSIDE DISPLAY COVER MDSE
Part Number: 996530072569 |
|||
| E74236-2 | 239 | CRC RIGHT BUTTONS S/SCR.V2 MDSE ASSY.
Part Number: 421944048221 |
|||
| E74236-2 | 240 | BLACK STEAM TUBE HANDGRIP MDS
Part Number: 996530067454 |
|||
| E74236-2 | 241 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
| E74236-2 | 242 | TCB SCREW M4X8 UNI 7687 SS
Part Number: 996530013079 |
|||
| E74236-2 | 243 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 996530050555 |
|||
| E74236-2 | 244 | SS.INSERT FOR MAGNET MYB9
Part Number: 996530006968 |
|||
| E74236-2 | 245 | AS.SUPP.SCHEDA CARAF.V4 MYB9 NER.
Part Number: 996530007602 |
|||
| E74236-2 | 246 | MILKCARAFFE BOARD V2 MYB9
Part Number: 996530006754 |
|||
| E74236-2 | 247 | BLACK CARAFE MICRO INSERT V2 MYB9
Part Number: 996530009555 |
|||
| E74236-2 | 248 | SS CARAFE MICRO INSERT SPRING MYB9
Part Number: 996530009566 |
|||
| E74236-2 | 249 | BLACK CARAFFE BOARD COVER MYB9
Part Number: 996530006745 |
|||
| E74236-2 | 250 | 2POLES CONN.SENSOR REED DOOR V2 P0049 UL
Part Number: 996530074212 |
|||
| E74236-2 | 251 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 996530013148 |
|||
| E74236-2 | 252 | CRC AROMA BUTTON S/SCR.V2 MDSE
Part Number: 421944048662 |
|||
| E74236-2 | 253 | CRC OK MENU S/SCR.V2 MDSE
Part Number: 421944048682 |
|||

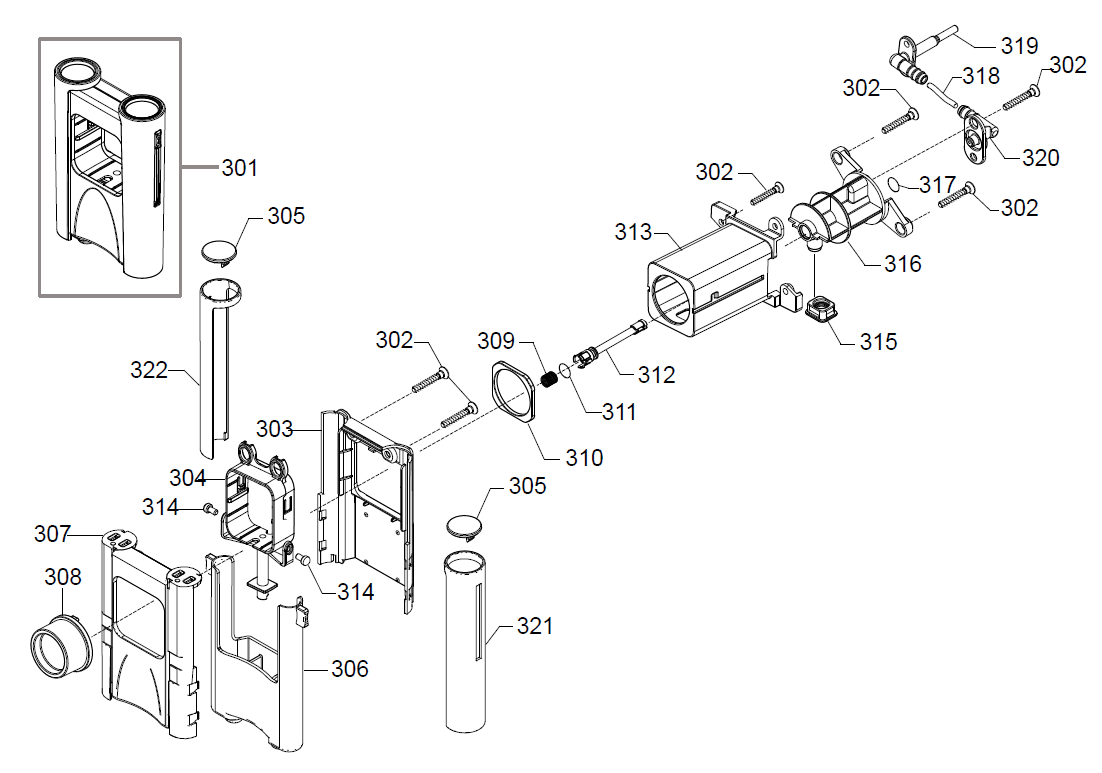

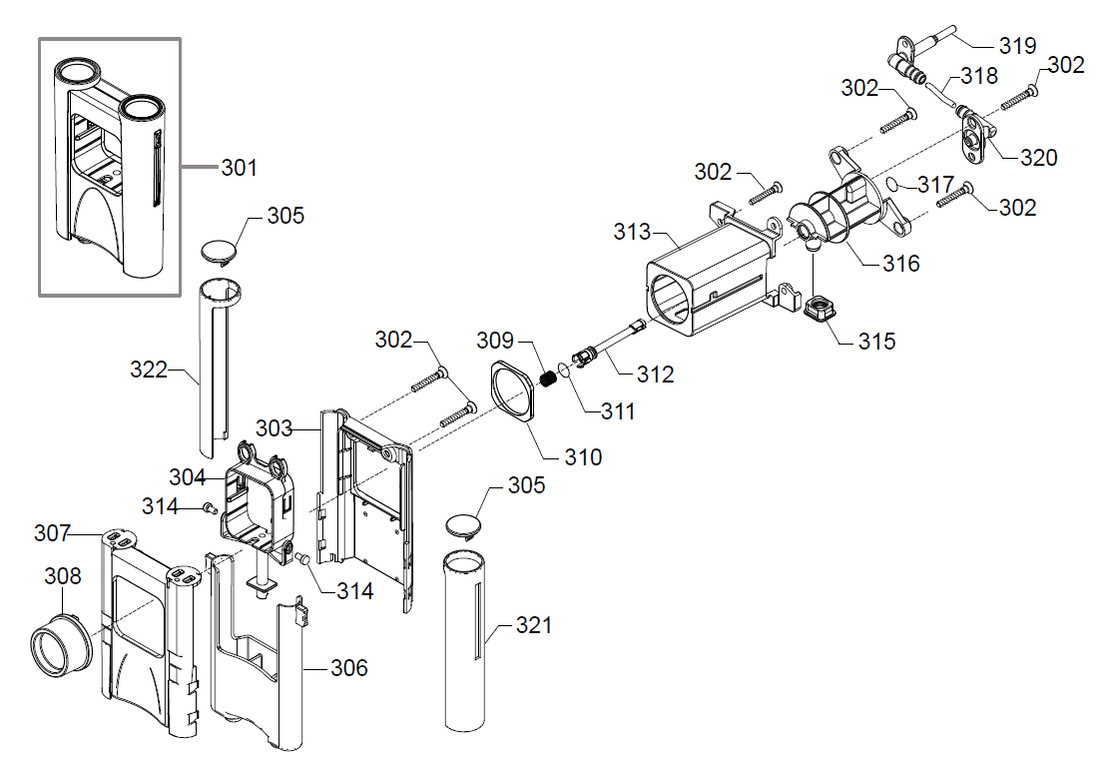

| E74236-3 | 301 | CRC COFFEE DISPENSER MDSE ASSY.
Part Number: 996530072545 |
|||
| E74236-3 | 302 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| E74236-3 | 303 | BLACK.REAR COVER COFFEE DISPENSER MDSE
Part Number: 996530072628 |
|||
| E74236-3 | 304 | BLACK COFFEE DISPENSER INNER BODY MDSE
Part Number: 996530072589 |
|||
| E74236-3 | 305 | CHROM.COFFEE DISPENSER CAP V2 MDSE
Part Number: 996530073251 |
|||
| E74236-3 | 306 | BLACK EXT.MOBILE PART COF.DISPENSER MDSE
Part Number: 996530072624 |
|||
| E74236-3 | 307 | CRC FRONT COVER COFFEE DISPENSER MDSE
Part Number: 996530072598 |
|||
| E74236-3 | 308 | CHR.CREAM ADJUSTMENT KNOB S/SCR.V3 MDSE
Part Number: 421946024292 |
|||
| E74236-3 | 309 | SS COFF.CREAM ADJUSTMENT SHAFT SPRING
Part Number: 996530011711 |
|||
| E74236-3 | 310 | BLACK CREAM ADJUSTMENT KNOB RING MYB9
Part Number: 996530006743 |
|||
| E74236-3 | 311 | OR ORM 0040-20 BLACK EPDM
Part Number: 996530013546 |
|||
| E74236-3 | 312 | WHITE COFFEE CREAM ADJUSTMENT SHAFT
Part Number: 996530013621 |
|||
| E74236-3 | 313 | CHROM.COFFEE DISP.SUPPORT S/SCR MDS
Part Number: 421944047891 |
|||
| E74236-3 | 314 | WHITE COFFEE DISPENSER SLIDER MYB9
Part Number: 996530006614 |
|||
| E74236-3 | 315 | BLK COF.DISPENS.SEAL V2 MYB9
Part Number: 421944057391 |
|||
| E74236-3 | 316 | BLACK COFFEE DISPENSER TUBE V2 MYB9
Part Number: 421944043111 |
|||
| E74236-3 | 317 | OR ORM 0060-15 SILICONE
Part Number: 996530007732 |
|||
| E74236-3 | 318 | SILICONE TUBE 5X8 70SR
Part Number: 996530018269 Notes: IN ROLL |
|||
| E74236-3 | 319 | BLK DISPENSER COF.INLET CONNECT.V2 MYB9
Part Number: 421944002701 |
|||
| E74236-3 | 320 | BLACK COFFEE DISPENSER CONNECTOR MYB9
Part Number: 996530006575 |
|||
| E74236-3 | 321 | CHROM.LEFT SIDE INSERT COF.DISPENS.MDSE
Part Number: 996530073252 |
|||
| E74236-3 | 322 | CHROM.RIGHT SIDE INSERT COF.DISPENS.MDSE
Part Number: 996530073253 |
|||

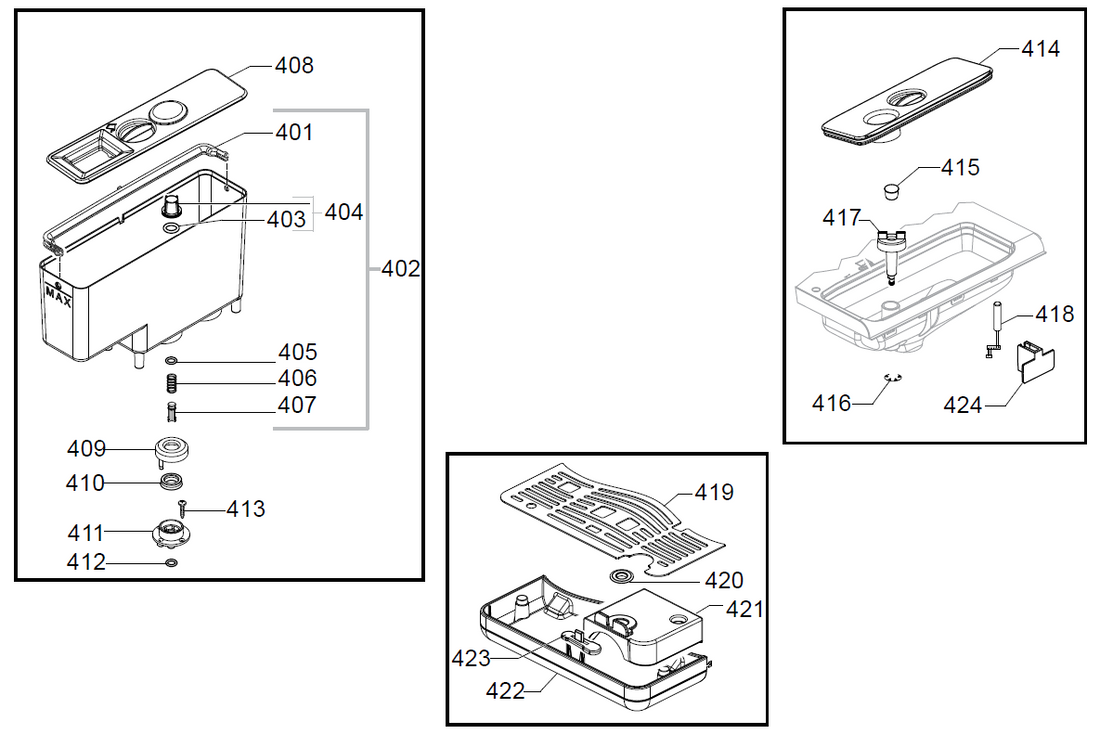

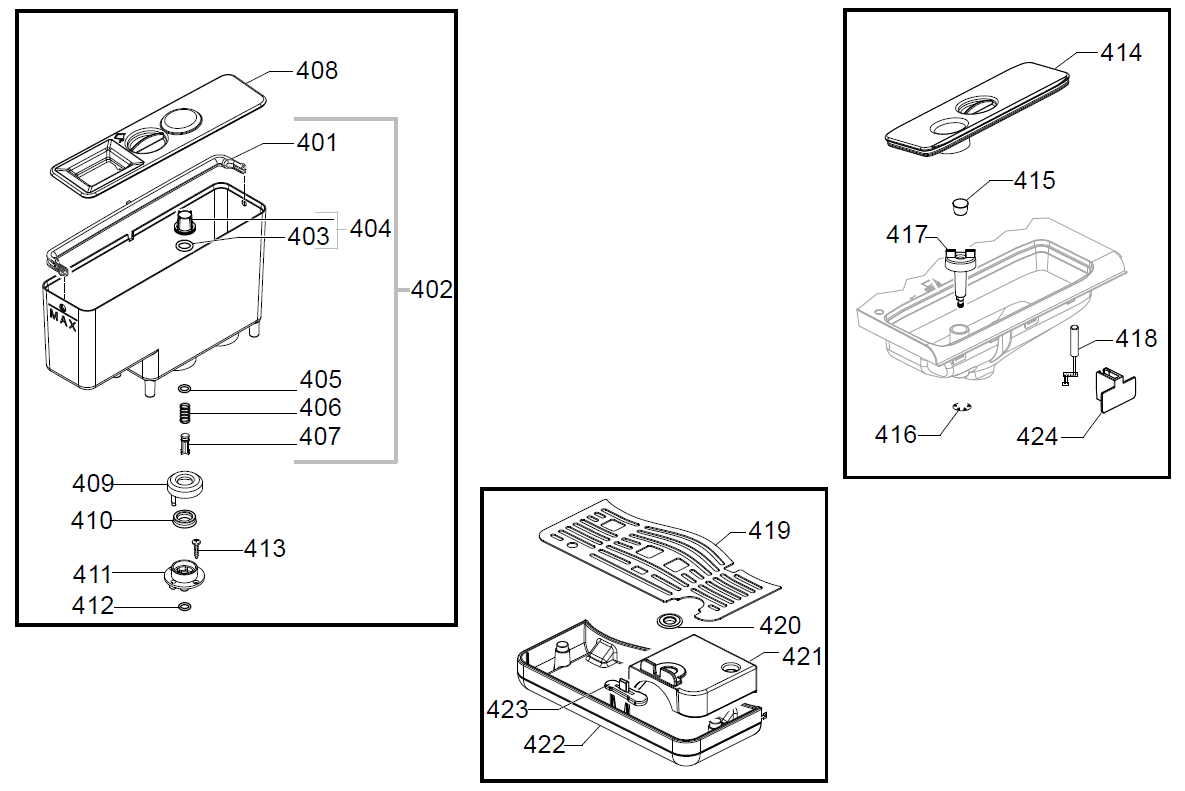

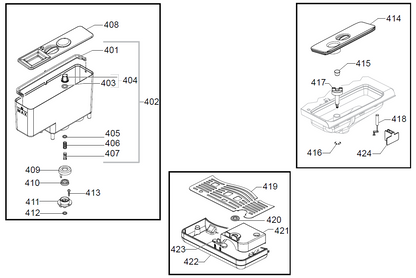

| E74236-4 | 401 | BLACK WATER CONTAINER HANDLE MDS
Part Number: 996530007587 |
|||
| E74236-4 | 402 | NAT/GRY WATER CONT.LONGEVITY MDS ASSY
Part Number: 421944055841 |
|||
| E74236-4 | 403 | OR ORM 0190-10 EPDM
Part Number: 996530013571 |
|||
| E74236-4 | 404 | WHITE WATER CONTAINER EXT.FILTER ASSY.
Part Number: 996530029115 |
|||
| E74236-4 | 405 | OR ORM 0060-30 SILICONE
Part Number: 996530013507 |
|||
| E74236-4 | 406 | SS WATER CONTAINER VALVE SPRING
Part Number: 996530011626 |
|||
| E74236-4 | 407 | GREY PISTON FOR WATER CONTAINER VALVE
Part Number: 996530016894 |
|||
| E74236-4 | 408 | NAT/GREY WATER CONTAINER LID MDS
Part Number: 996530007553 |
|||
| E74236-4 | 409 | GREY WATER VALVE GACO DIM 14 SEAL COVER
Part Number: 996530044417 |
|||
| E74236-4 | 410 | NBR WATER CONT.VALVE GACO DIM14 SEAL
Part Number: 996530015823 |
|||
| E74236-4 | 411 | GREY WATER VALVE GACO DIM 14 SEAL CONT.
Part Number: 996530044404 |
|||
| E74236-4 | 412 | OR ORM 0080-20 TERMOIL
Part Number: 996530013446 |
|||
| E74236-4 | 413 | SCREW TSP TORX 10 AB 3,5X9,5 SHEET SS
Part Number: 996530012898 |
|||
| E74236-4 | 414 | NAT/GRY BEAN COF.CONT.LID S/SC.V2 MDS AS
Part Number: 421944055871 |
|||
| E74236-4 | 415 | GREY CAP FOR KNOBS BEAN CONTAINER
Part Number: 996530018116 |
|||
| E74236-4 | 416 | SHAFT 6 UNI 7434
Part Number: 996530010768 |
|||
| E74236-4 | 417 | BLACK GRIND.ADJUSTMENT KNOB MDS
Part Number: 996530007508 |
|||
| E74236-4 | 418 | 5POLES CONNECTOR MC SENSORS V2 MDS UL
Part Number: 996530073402 |
|||
| E74236-4 | 419 | SS DRIP TRAY GRATE MDS
Part Number: 996530007543 |
|||
| E74236-4 | 420 | BLACK GRATE SEAL V3 MYB9/H-P
Part Number: 996530066732 |
|||
| E74236-4 | 421 | BLACK DRIP TRAY COVER MDS
Part Number: 996530007545 |
|||
| E74236-4 | 422 | SM/SS-BLACK DRIP TRAY MDS ASSY.
Part Number: 996530067463 |
|||
| E74236-4 | 423 | RED FLOAT FOR DRIP TRAY MDS
Part Number: 996530009554 |
|||
| E74236-4 | 424 | BLACK REED SENSOR SUPPORT MDS
Part Number: 996530067529 |
|||

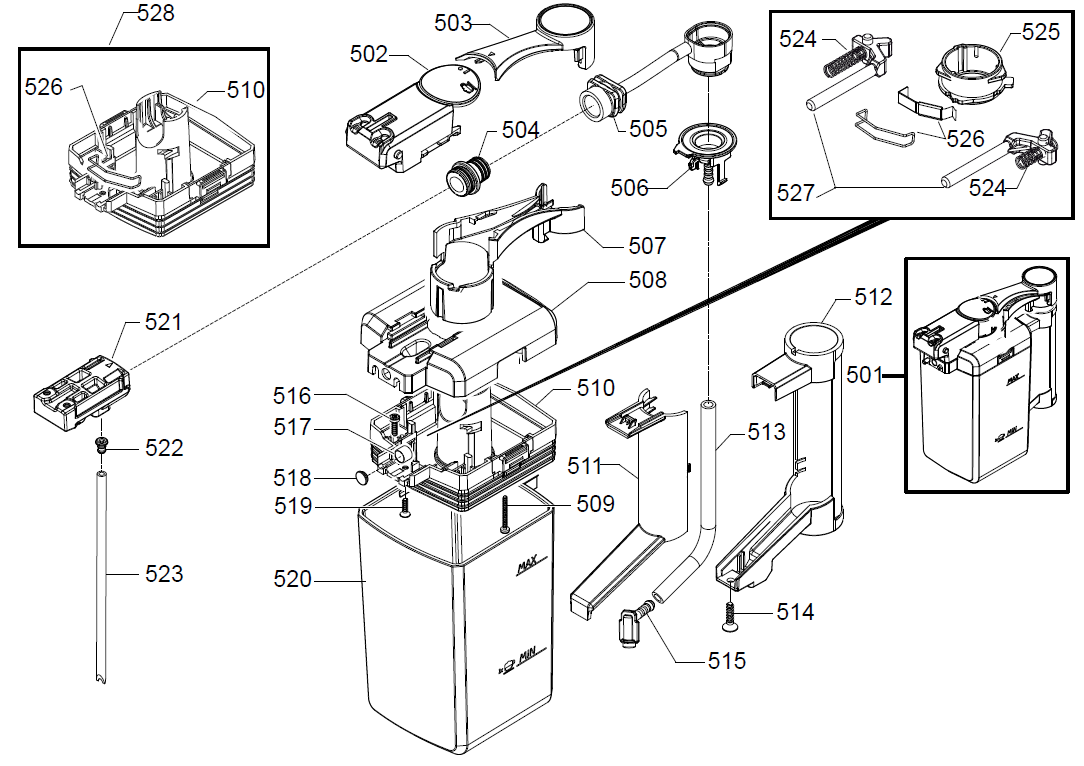

| E74236-5 | 501 | TRANSP/CHROM.GEN.CARAFE MDS/P ASSY.
Part Number: 421941300151 |
|||
| E74236-5 | 502 | CHR.CARAFE CAPP.COVER V2 S/SC.MYB9 ASSY
Part Number: 996530007599 |
|||
| E74236-5 | 503 | CHROM.CARAFE UP.DISP.SUPP.S/S.MDSE ASSY.
Part Number: 421941300231 |
|||
| E74236-5 | 504 | VENTURI TUBE FOR CAPPUCCINATORE MYB9
Part Number: 996530006527 |
|||
| E74236-5 | 505 | BLACK CARAFE MILK DISPENSER TUBE V2 MDSE
Part Number: 996530073248 |
|||
| E74236-5 | 506 | BLACK UPPER TUBE CARAFE CONNECT.MDSE
Part Number: 996530072547 |
|||
| E74236-5 | 507 | CHROM.CARAFE LOWER DISPENSER SUPP.MDSE
Part Number: 421941300171 |
|||
| E74236-5 | 508 | MATT/BLACK UPPER COVER PART CARAFE MYB9
Part Number: 996530072575 |
|||
| E74236-5 | 509 | SCREW TCB TORX 10 3X25 PLAST.SS
Part Number: 996530007838 |
|||
| E74236-5 | 510 | BLK LOWER COVER PART CARAFE V2 MYB9 ASSY
Part Number: 421944012821 |
|||
| E74236-5 | 511 | CHROM.CARAFE REAR PART HANDLE MDSE
Part Number: 421941300271 |
|||
| E74236-5 | 512 | CHROM.CARAFE FRONT PART HANDLE MDS/P
Part Number: 421941300251 |
|||
| E74236-5 | 513 | SILICONE TUBE 5X8 70SR
Part Number: 996530018269 Notes: IN ROLL |
|||
| E74236-5 | 514 | SCREW TSP TORX 4X16 PLAST STEEL
Part Number: 996530013137 |
|||
| E74236-5 | 515 | BLACK LOWER TUBE CARAFE CONNECT.MYB9
Part Number: 996530006669 |
|||
| E74236-5 | 516 | SCREW TCB TORX 10 3X10 SS
Part Number: 996530013128 |
|||
| E74236-5 | 517 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 996530050555 |
|||
| E74236-5 | 518 | SS.INSERT FOR MAGNET MYB9
Part Number: 996530006968 |
|||
| E74236-5 | 519 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 |
|||
| E74236-5 | 520 | TRANSP.CARAFE V3 S/SCREEN MYB9
Part Number: 996530007705 |
|||
| E74236-5 | 521 | BLK CARAFE CAPPUCCIN.CASING W/CAPS MYB9
Part Number: 996530009557 |
|||
| E74236-5 | 522 | GREY MILK TUBE CONNECTOR MDSE
Part Number: 996530072552 |
|||
| E74236-5 | 523 | SILICONE TUBE 3,5X6 L=140 MM
Part Number: 996530067584 |
|||
| E74236-5 | 524 | STEEL SPRING FOR CARAFE LEVER MYB9
Part Number: 996530006849 |
|||
| E74236-5 | 525 | BLACK CAM FOR CARAFE LEVERS MDSE
Part Number: 996530072607 |
|||
| E74236-5 | 526 | CARAFE SPRING WITH INSERT MYB9 ASSY
Part Number: 421944007011 |
|||
| E74236-5 | 527 | BLACK LEVER FOR CARAFE CAM V3 MYB9
Part Number: 996530067459 |
|||
| E74236-5 | 528 | KIT SPARES LOW.COVER PART CARAFE V2 MYB9
Part Number: 421940813091 |
|||

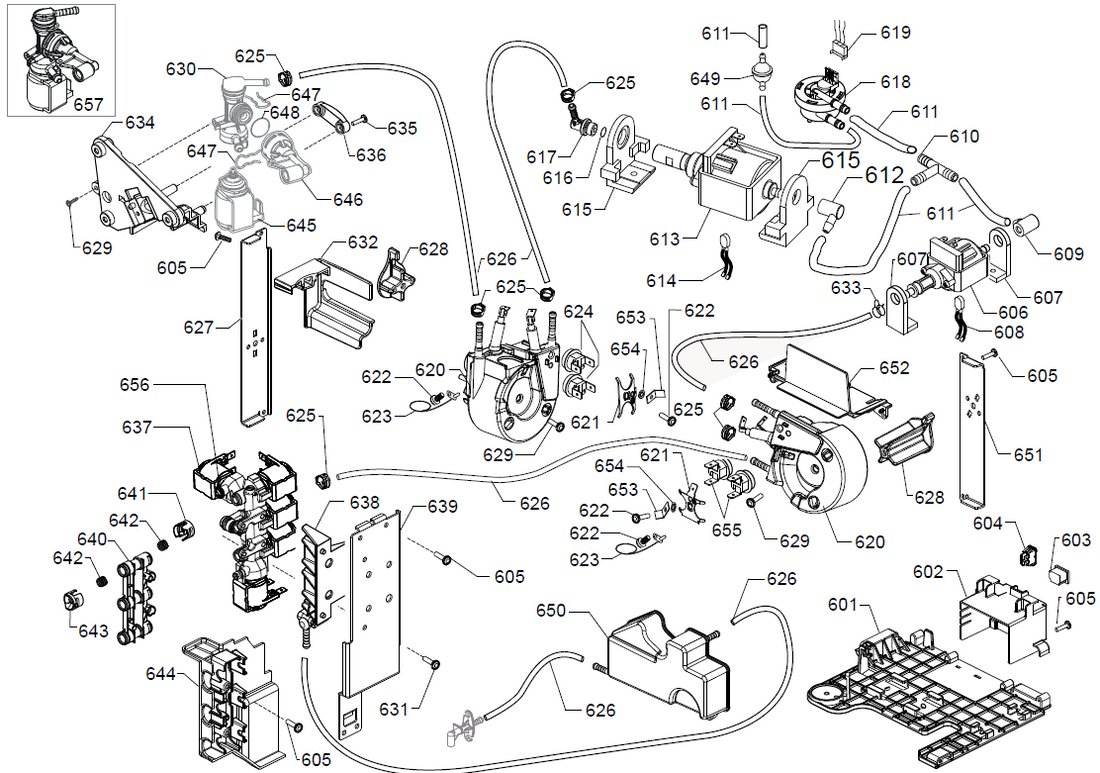

| E74236-6 | 601 | BLACK COMPONENTS SUPPORT MDS
Part Number: 996530007572 |
|||
| E74236-6 | 602 | BLACK SOCKET-SWITCH SUPPORT MDS
Part Number: 996530067449 |
|||
| E74236-6 | 603 | CUP SOCKET V3 EN 60320 C 13
Part Number: 996530072437 |
|||
| E74236-6 | 604 | BIPOLAR SWITCH FUSIT C1250AR
Part Number: 996530058836 |
|||
| E74236-6 | 605 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| E74236-6 | 606 | ULKA PUMP MF
Part Number: 996530008003 Notes: 230V-50HZ |
|||
| E74236-6 | ULKA PUMP MF
Part Number: 996530008028 Notes: 120V-60HZ |
||||
| E74236-6 | 607 | BLACK/SBR ULKA MF PUMP SUPPORT
Part Number: 996530006315 |
|||
| E74236-6 | 608 | 2POLES CONNECTOR STEAM PUMP MDS UL
Part Number: 996530007481 |
|||
| E74236-6 | 609 | 90 INLET CONNECTOR FOR PUMP ULKA MF
Part Number: 996530006314 |
|||
| E74236-6 | 610 | TRANS.CONNECTOR D=8 ART.80.26.047 KA.461
Part Number: 996530017351 |
|||
| E74236-6 | 611 | SILICONE TUBE 5X10 60SH
Part Number: 996530057357 Notes: IN ROLL |
|||
| E74236-6 | 612 | 90 INLET PUMP CONNECTOR
Part Number: 996530017348 |
|||
| E74236-6 | 613 | ULKA PUMP EP5FMGW
Part Number: 421941305991 Notes: 230V-50HZ |
|||
| E74236-6 | ULKA PUMP EAP5/S
Part Number: 996530007754 Notes: 120V-60HZ |
||||
| E74236-6 | 614 | 2POLES CONNECTOR COFFEE PUMP MDS UL
Part Number: 996530007477 |
|||
| E74236-6 | 615 | BLACK PUMP SUPPORT GMYB
Part Number: 996530007468 |
|||
| E74236-6 | 616 | O-RING 2031 TERMOIL
Part Number: 996530013471 |
|||
| E74236-6 | 617 | BLK PUMP OUTLET 90 CONNECTOR P0049/B
Part Number: 996530000624 |
|||
| E74236-6 | 618 | TURBINE D=1,2 932-8521/00 ASSY.
Part Number: 996530059843 |
|||
| E74236-6 | 619 | 6POLES CONNECTOR FLOWMETER MDS UL
Part Number: 996530007494 |
|||
| E74236-6 | 620 | TUB.BOILER XS4 ASSY.
Part Number: 421944024121 Notes: 230V-1300W |
|||
| E74236-6 | TUB.BOILER XS4 ASSY.
Part Number: 421944046121 Notes: 120V-1300W |
||||
| E74236-6 | 621 | TUB.BOILER V3 UPPER THERM.FIXING SPRING
Part Number: 996530000997 |
|||
| E74236-6 | 622 | SCREW TAPT M4X10 DIN 7985 GALV
Part Number: 996530012923 |
|||
| E74236-6 | 623 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 996530026997 |
|||
| E74236-6 | 624 | KIT SPARES COFFEE BOILER THERMOSTATS
Part Number: 421940812991 |
|||
| E74236-6 | 625 | OETIKER CLAMP D=9,5 16700004
Part Number: 996530007947 |
|||
| E74236-6 | 626 | 5X8,9 SILICONE TUBE
Part Number: 996530009505 Notes: IN ROLL |
|||
| E74236-6 | 627 | STEEL COFFEE TUBOL.BOILER SUPPORT V2 MDS
Part Number: 996530073079 |
|||
| E74236-6 | 628 | NEU SLIM TUB.BOILERS SUPPORT V2 MYB9
Part Number: 421944057621 |
|||
| E74236-6 | 629 | SCREW TSP TORX 10 5X20 PLAST.ZN-B
Part Number: 996530008024 |
|||
| E74236-6 | 630 | SEE POS 657
Part Number: NOT AVAILABLE |
|||
| E74236-6 | 631 | SCREW TORX M4X10 TESTA D=8X1,5 GALV
Part Number: 996530013168 |
|||
| E74236-6 | 632 | BLK COFFEE BOILER INSULATING COVER MDS
Part Number: 996530007575 |
|||
| E74236-6 | 633 | SPRING HOSE CLAMP D=9,5MM
Part Number: 996530025907 |
|||
| E74236-6 | 634 | BLACK BLOWDOWN VALVE SUPPORT MYB9
Part Number: 996530006317 |
|||
| E74236-6 | 635 | SCREW TCB TORX 10 3X12 PLAST.ZN-B
Part Number: 996530013164 |
|||
| E74236-6 | 636 | BLACK VALVE FIXING FLANGE MYB9
Part Number: 996530006834 |
|||
| E74236-6 | 637 | DIFFUSER VALVE V3 MDS ASSY
Part Number: 421944060611 |
|||
| E74236-6 | 638 | BLACK DIFFUSER VALVE SUPPORT V2 MDS
Part Number: 996530072561 |
|||
| E74236-6 | 639 | BLACK STEEL DIFFUSER VALVE SUPPORT MDS
Part Number: 996530067495 |
|||
| E74236-6 | 640 | WHT DOOR TUBES COUPLING CONNECT.PPS MDS
Part Number: 421944059431 |
|||
| E74236-6 | 641 | BLACK EV CONNECTOR INSERT MDS
Part Number: 996530007561 |
|||
| E74236-6 | 642 | BLACK EV CONNECTOR SEAL MYB9
Part Number: 996530006858 |
|||
| E74236-6 | 643 | BLACK EV CONNECTOR INSERT MYB9
Part Number: 996530006857 |
|||
| E74236-6 | 644 | BLACK DOOR TUBES COUPLING PROTECTION MDS
Part Number: 996530007565 |
|||
| E74236-6 | 645 | SEE POS 657
Part Number: NOT AVAILABLE |
|||
| E74236-6 | 646 | SEE POS 657
Part Number: NOT AVAILABLE |
|||
| E74236-6 | 647 | SEE POS 657
Part Number: NOT AVAILABLE |
|||
| E74236-6 | 648 | SEE POS 657
Part Number: NOT AVAILABLE |
|||
| E74236-6 | 649 | TRANSP/WHITE ASPIRATION FILTER MDS
Part Number: 996530067498 |
|||
| E74236-6 | 650 | BLACK STEAM BLOWDOWN CONDENSER MDS ASSY.
Part Number: 996530009606 |
|||
| E74236-6 | 651 | STEEL STEAM TUBOL.BOILER SUPPORT MDS
Part Number: 996530007574 |
|||
| E74236-6 | 652 | BLK HORIZONTAL MOUNTING PLATE INSERT MDS
Part Number: 996530067501 |
|||
| E74236-6 | 653 | BRASS BENT FASTON 45 6,3X0,8
Part Number: 996530011326 |
|||
| E74236-6 | 654 | GALV.WASHER UNI 8842 A4
Part Number: 996530012341 |
|||
| E74236-6 | 655 | KIT SPARES STEAM BOILER THERMOSTATS
Part Number: 421940813001 |
|||
| E74236-6 | 656 | BLACK MILK-AIR FLOW SELECTOR MYB9
Part Number: 996530006868 |
|||
| E74236-6 | 657 | BLOWDOWN VALVE V3 MYB9 ASSY
Part Number: 421944039871 Notes: 230V |
|||
| E74236-6 | BLOWDOWN VALVE V3 MYB9 ASSY
Part Number: 421944039911 Notes: 120V |
||||
| E74236-6 | SLIM T.BOIL.V2 C2 T150-204 AS
Part Number: 421941302132 Notes: 230V-1300W - WITH PART 620-621-622-623-624-629-653-654 |
||||
| E74236-6 | CAF.BOIL.V2 C2 T150-204 1300W 120V AS
Part Number: 421944075261 Notes: 120V-1300W - WITH PART 620-621-622-623-624-629-653-654 |
||||
| E74236-6 | SLIM T.BOIL.V2 C2 T170-204 AS
Part Number: 421941302102 Notes: 230V-1300W - WITH PART 620-621-622-623-629-653-654-655 |
||||
| E74236-6 | VAP.BOIL.V2 C2 T170-204 1300W 120V ASSY
Part Number: 421944075281 Notes: 120V-1300W - WITH PART 620-621-622-623-629-653-654-655 |
||||

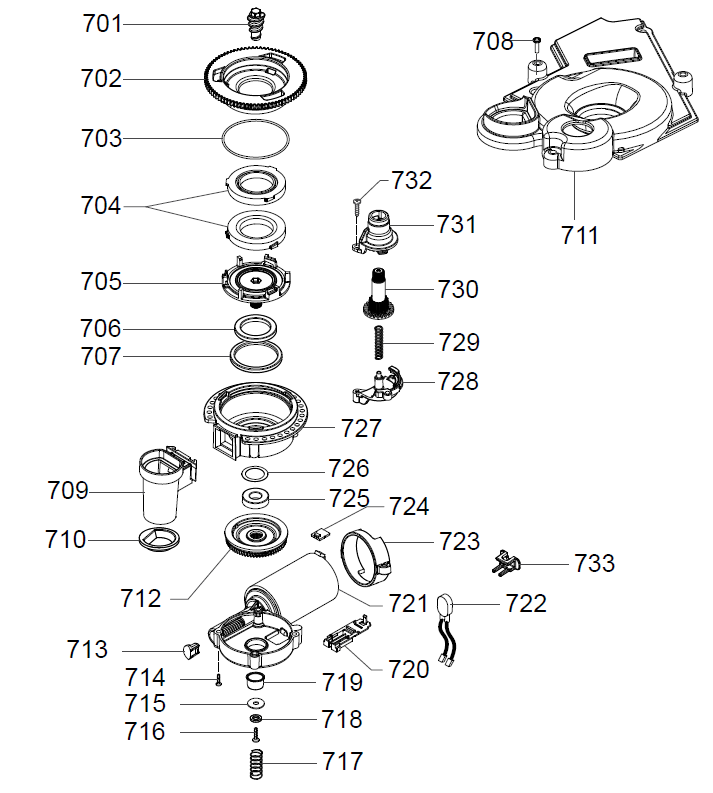

| E74236-7 | 701 | TEA ZAMA INCREASE SCREW GRINDER
Part Number: 996530005991 |
|||
| E74236-7 | 702 | BLK COF.GRINDER UPPER GRINDER SUPPORT V2
Part Number: 421941094152 |
|||
| E74236-7 | 703 | OR ORM 0530-15 NBR FDA
Part Number: 996530013577 |
|||
| E74236-7 | 704 | BAKED CLAY GRINDER 48X28
Part Number: 996530016342 |
|||
| E74236-7 | 705 | BLK LOWER COFFEEGRINDER GRINDER SUPPORT
Part Number: 996530017952 |
|||
| E74236-7 | 706 | AXIAL BEARING EKKO 342.35252
Part Number: 996530011183 |
|||
| E74236-7 | 707 | FELT RING 45,4X39,4X4
Part Number: 996530013597 |
|||
| E74236-7 | 708 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| E74236-7 | 709 | BLK GROUND COFF.OUTLET CONVEYOR V4 ASSY.
Part Number: 996530068049 |
|||
| E74236-7 | 710 | GRY GROUND COFFEE CONT.LOWER SEAL SMART1
Part Number: 996530072511 |
|||
| E74236-7 | 711 | COFFEE GRINDER SOUNDPROOFING COVER MDS
Part Number: 996530007569 |
|||
| E74236-7 | 712 | GEAR SX Z=38 FOR GRINDER MOTION ASSY.
Part Number: 996530029609 |
|||
| E74236-7 | 713 | MC V3 MOD=1,25 WORM SCREW CENTRING CAP
Part Number: 996530018139 |
|||
| E74236-7 | 714 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 996530012992 |
|||
| E74236-7 | 715 | STEEL FLAT WASHER DI=4,3 DE=14 SP=1,5
Part Number: 996530012375 |
|||
| E74236-7 | 716 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 996530012928 |
|||
| E74236-7 | 717 | COFFEE GRINDER SUPPORT SPRING P124
Part Number: 996530000376 |
|||
| E74236-7 | 718 | GALV.WASHER UNI 8842 A4
Part Number: 996530012341 |
|||
| E74236-7 | 719 | INSULATOR BUSH FOR GRINDER MOTOR P124
Part Number: 996530001389 |
|||
| E74236-7 | 720 | BLK SENSOR SUPPORT FOR COF.GRINDER MOTOR
Part Number: 996530017963 |
|||
| E74236-7 | 721 | MOTOR COFFEEGRINDER V3.1 ASSY.
Part Number: 996530000317 Notes: 230V |
|||
| E74236-7 | MOTOR COFFEEGRINDER V3.1 ASSY.
Part Number: 421941305001 Notes: 120V |
||||
| E74236-7 | 722 | 2POLES CONNECTOR GRINDER MOTOR MDS UL
Part Number: 996530009633 |
|||
| E74236-7 | 723 | BLACK COFFEEGRINDER MOTOR SUPPORT P124
Part Number: 996530000115 |
|||
| E74236-7 | 724 | ELECTR.BOARD WITH SENSOR HAL506 SF-K
Part Number: 996530022784 |
|||
| E74236-7 | 725 | RADIAL BEARING 61900.2RS1
Part Number: 996530011182 |
|||
| E74236-7 | 726 | STEEL CRINKLE WASHER 21,8X14X0,25
Part Number: 996530012374 |
|||
| E74236-7 | 727 | BLK UPPER BODY WITH COFFEE GROUND OUTLET
Part Number: 996530015258 |
|||
| E74236-7 | 728 | LOWER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 996530001314 |
|||
| E74236-7 | 729 | COFFEEGRINDER REGULATION SPRING P124
Part Number: 996530001308 |
|||
| E74236-7 | 730 | COFFEE GRINDING ADJUSTMENT GEAR P0049
Part Number: 996530001907 |
|||
| E74236-7 | 731 | UPPER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 996530001296 |
|||
| E74236-7 | 732 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 996530013165 |
|||
| E74236-7 | 733 | BLK WIRING FIX INSERT FOR GRINDER BOARD
Part Number: 996530072477 |
|||
| E74236-7 | GEN.COFFEE GRINDER MOTOR MDS ASSY.
Part Number: 996530067517 Notes: 230V |
||||
| E74236-7 | GEN.COFFEE GRINDER MOTOR MDS ASSY.
Part Number: 996530069907 Notes: 120V |
||||

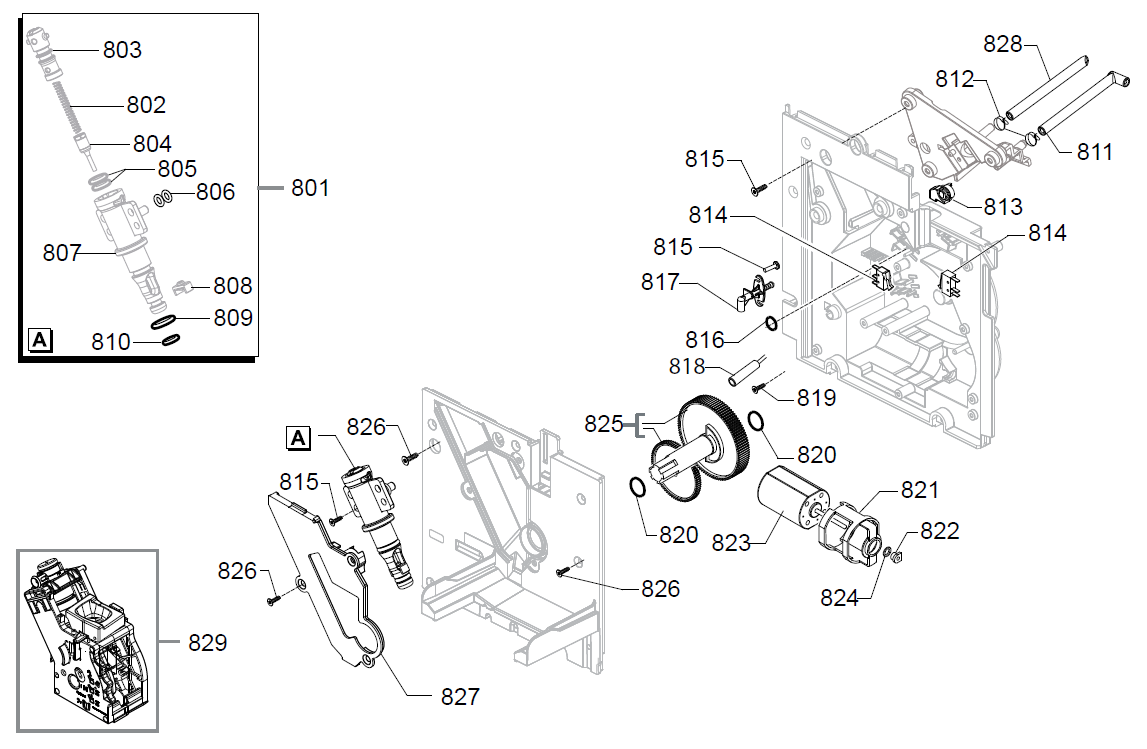

| E74236-8 | 801 | PIN V2 FOR BOILER P119 ASSY.
Part Number: 996530002717 |
|||
| E74236-8 | 802 | SEE POS 801
Part Number: NOT AVAILABLE |
|||
| E74236-8 | 803 | SEE POS 801
Part Number: NOT AVAILABLE |
|||
| E74236-8 | 804 | SEE POS 801
Part Number: NOT AVAILABLE |
|||
| E74236-8 | 805 | SEE POS 801
Part Number: NOT AVAILABLE |
|||
| E74236-8 | 806 | OR 2015 SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| E74236-8 | 807 | SEE POS 801
Part Number: NOT AVAILABLE |
|||
| E74236-8 | 808 | SEE POS 801
Part Number: NOT AVAILABLE |
|||
| E74236-8 | 809 | OR ORM 0090-20 SILICONE
Part Number: 996530059399 |
|||
| E74236-8 | 810 | OR ORM 0050-20 IN SILICONE
Part Number: 996530059419 |
|||
| E74236-8 | 811 | WATER DRAIN CONNECTOR MYB9
Part Number: 996530006375 |
|||
| E74236-8 | 812 | BAND D=11/11,6
Part Number: 996530059836 |
|||
| E74236-8 | 813 | BLACK MOUNTING PLATE COVER SEAL MYB9
Part Number: 996530006796 |
|||
| E74236-8 | 814 | MICROSWITCH XC/SM1 V2
Part Number: 421946025541 |
|||
| E74236-8 | 815 |
|
SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N Part Number: 996530007819 |
$5.92 | View Part |
| E74236-8 | 816 | OR ORM 0070-20 SILICONE
Part Number: 996530013526 |
|||
| E74236-8 | 817 | BLACK STEAM BLOWDOWN 90 CONNECTOR MDS
Part Number: 996530007566 |
|||
| E74236-8 | 818 | REED SENSOR MK3-1A66-BV16451
Part Number: 996530001819 |
|||
| E74236-8 | 819 | SCREW TCB TORX 10 3X12 PLAST.ZN-B
Part Number: 996530013164 |
|||
| E74236-8 | 820 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 996530050569 |
|||
| E74236-8 | 821 | ANTIVIBRATION FOR MOTOR
Part Number: 996530049896 |
|||
| E74236-8 | 822 | BRONZE SINTERED BUSH FOR MOTOR RATIOMOT.
Part Number: 996530049898 |
|||
| E74236-8 | 823 | MOTOR FOR RATIOMOTOR P124 ASSY.
Part Number: 996530002796 |
|||
| E74236-8 | 824 | BAKELIZZATE WASHER D=5,5
Part Number: 996530017424 |
|||
| E74236-8 | 825 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 996530009913 |
|||
| E74236-8 | 826 | SCREW TSP TORX 10 3,5X14 PLAST.ZN-NI
Part Number: 421944016781 |
|||
| E74236-8 | 827 | BLACK COVER FOR BOILER VAIN P119
Part Number: 996530015064 |
|||
| E74236-8 | 828 | SILICONE TUBE 5X10 60SH IN ROLL
Part Number: 996530057357 |
|||
| E74236-8 | 829 | BLK/YLW BREW UNIT 8GR.SBS V3 MYB9
Part Number: 421944059501 |
|||

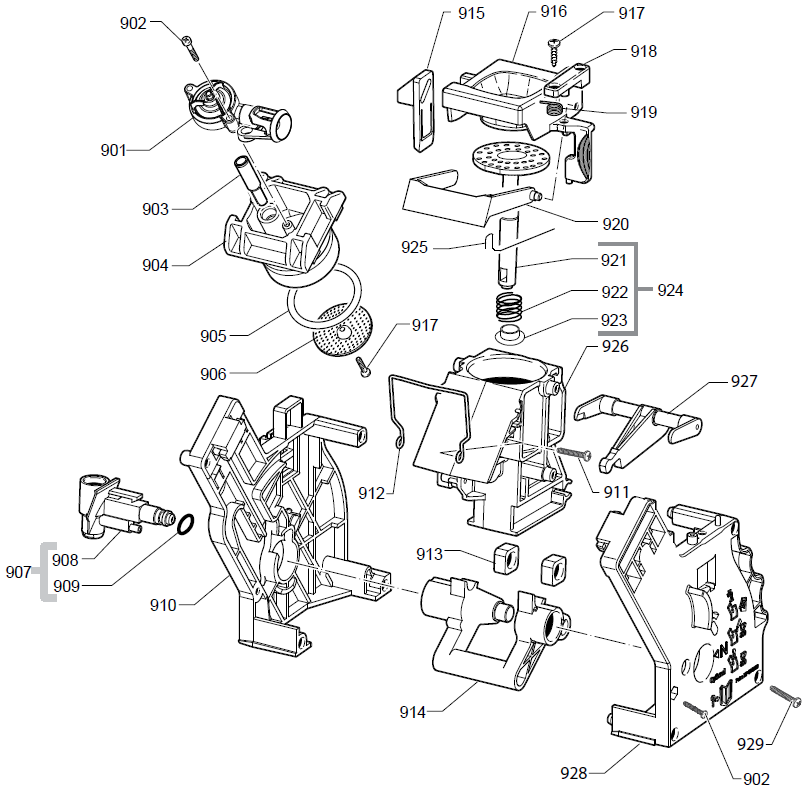

| E74236-9 | 901 | SBS VALVE STD ASSY.
Part Number: 996530005823 |
|||
| E74236-9 | 902 | SCREW TCB TORX 10 3X25 PLAST.SS
Part Number: 996530007838 |
|||
| E74236-9 | 903 | BLK COUNTER PISTON TUBE BREW UNIT S0053
Part Number: 996530005372 |
|||
| E74236-9 | 904 | BLACK COUNTER PISTON BREW UNIT 8GR.P124
Part Number: 996530001046 |
|||
| E74236-9 | 905 | OR ORM 0320-40 SILICONE PTFE/FDA
Part Number: 996530059406 |
|||
| E74236-9 | 906 | PERCOLATOR DE=35,8 ELFO
Part Number: 996530050709 |
|||
| E74236-9 | 907 | BLACK WATER INLET SLEEVE BREW UNIT ASSY.
Part Number: 996530009825 |
|||
| E74236-9 | 908 | BLACK WATER INLET SLEEVE BREW UNIT ROYAL
Part Number: 996530050488 |
|||
| E74236-9 | 909 | OR 2025 IN TERMOIL
Part Number: 996530059441 |
|||
| E74236-9 | 910 | BLACK BREW UNIT REAR PLATE SMART
Part Number: 996530050832 |
|||
| E74236-9 | 911 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 996530013148 |
|||
| E74236-9 | 912 | SS BREW UNIT SPRING H=49 SMART
Part Number: 996530000898 |
|||
| E74236-9 | 913 | BLACK BREW UNIT DRILLED BLOCK
Part Number: 996530050539 |
|||
| E74236-9 | 914 | YLW BREW UNIT ELBOW SHAFT M5000
Part Number: 421944051231 |
|||
| E74236-9 | 915 | YLW BREW UNIT COUPLING PLATE V2 SMART
Part Number: 421944046931 |
|||
| E74236-9 | 916 | BLACK HOPPER DOSER BREW UNIT SMART1
Part Number: 996530018241 |
|||
| E74236-9 | 917 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 |
|||
| E74236-9 | 918 | YLW BREWUNIT HOPPER BLOCKING PLATE SMART
Part Number: 421944050711 |
|||
| E74236-9 | 919 | SS HOPPER SPRING FOR BREW UNIT SMART
Part Number: 996530050838 |
|||
| E74236-9 | 920 | BLACK SCRAPER FOR BREW UNIT M5000
Part Number: 996530002096 |
|||
| E74236-9 | 921 | BLK BREW UNIT INTEGR.PISTON 8GR.V3 ASSY.
Part Number: 421944025621 |
|||
| E74236-9 | 922 | SS.8GR.BREW UNIT PISTON SPRING
Part Number: 996530050627 |
|||
| E74236-9 | 923 | WHITE 8GR.-12GR.BREW UNIT PISTON BUSH
Part Number: 996530050618 |
|||
| E74236-9 | 924 | BLK BREW UNIT 8GR.INT.PISTON GEN.V3 ASSY
Part Number: 421944029791 |
|||
| E74236-9 | 925 | SS SCRAPER SPRING FOR BREW UNIT
Part Number: 996530050455 |
|||
| E74236-9 | 926 | BLK COF.CONTAIN.BREW UNIT V2 M5000 ASSY.
Part Number: 421944014611 |
|||
| E74236-9 | 927 | BLACK CONNECTING ROD BREW UNIT 8GR.
Part Number: 996530001452 |
|||
| E74236-9 | 928 | BLACK BREW UNIT FRONT PLATE S/SCR.SMART
Part Number: 996530003228 |
|||
| E74236-9 | 929 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||
| E74236-9 | BLK/YLW BREW UNIT 8GR.SBS V3 MYB9
Part Number: 421944059501 |
