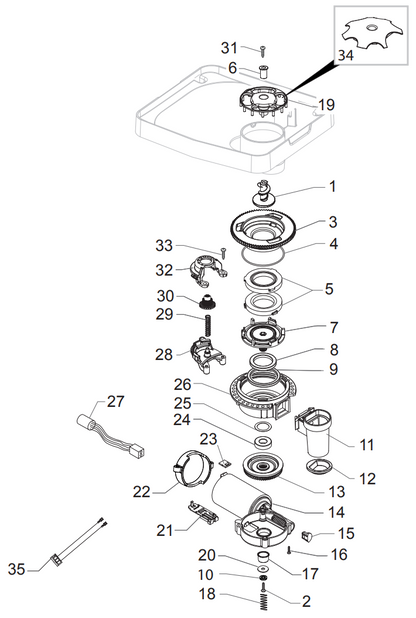

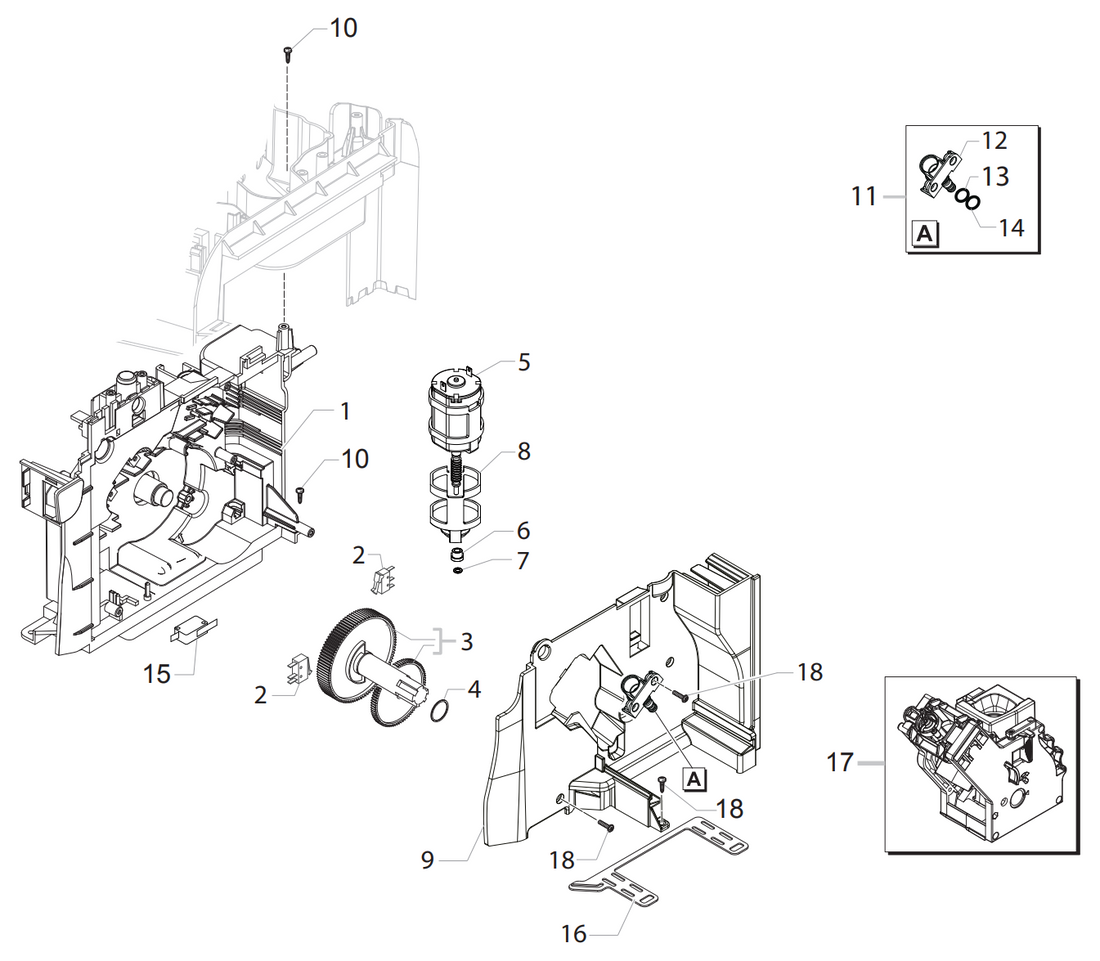

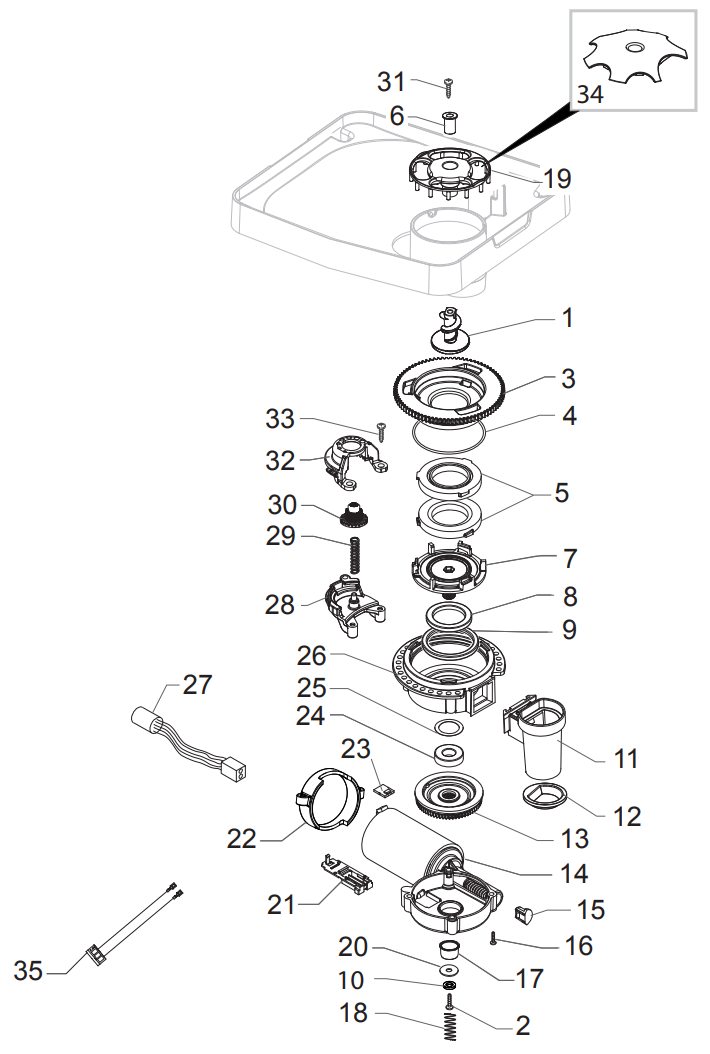

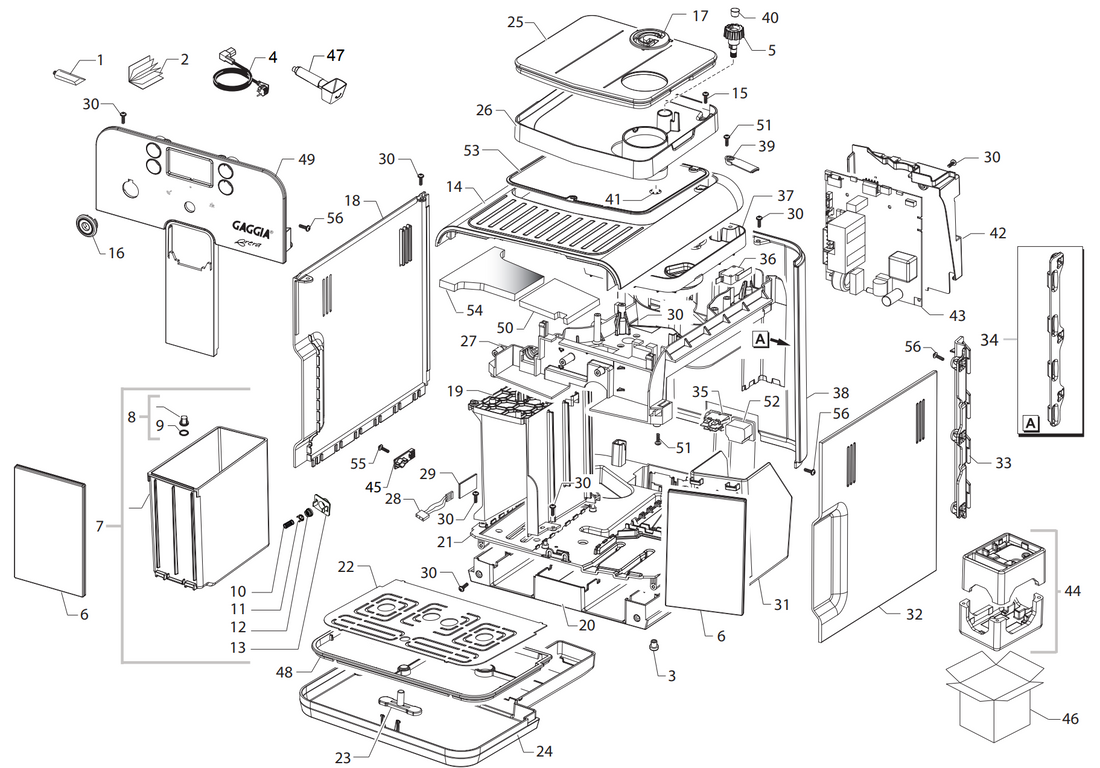

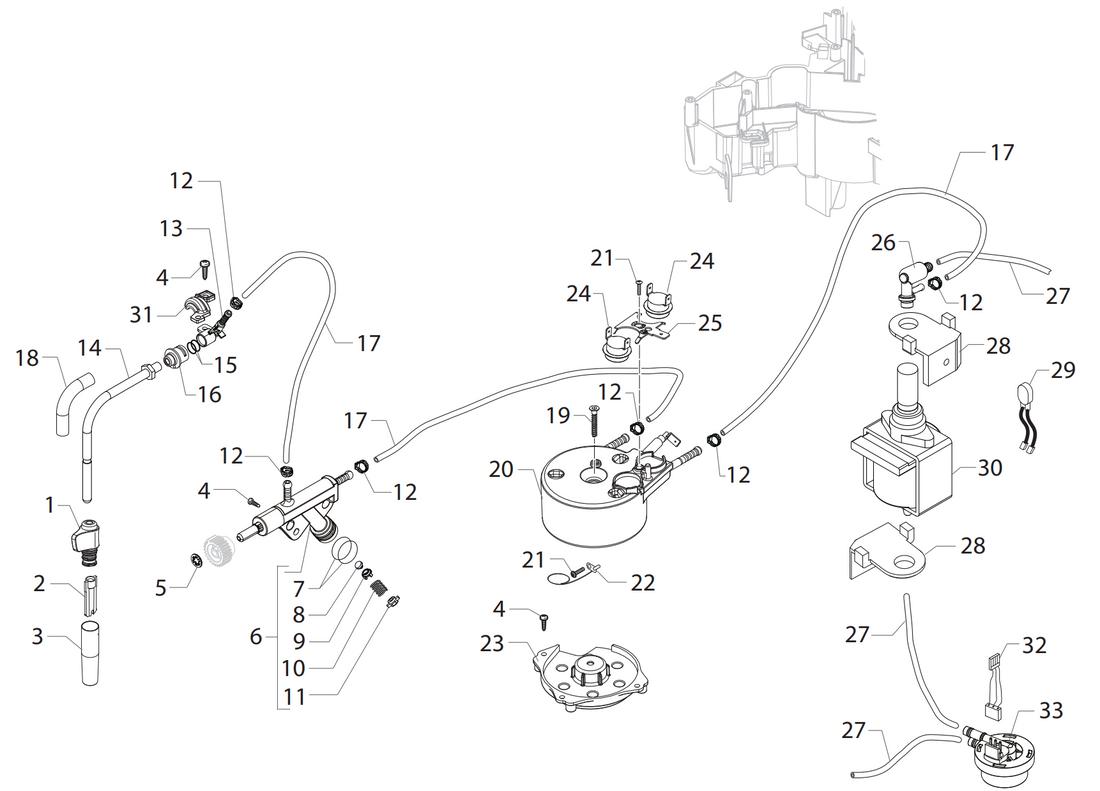

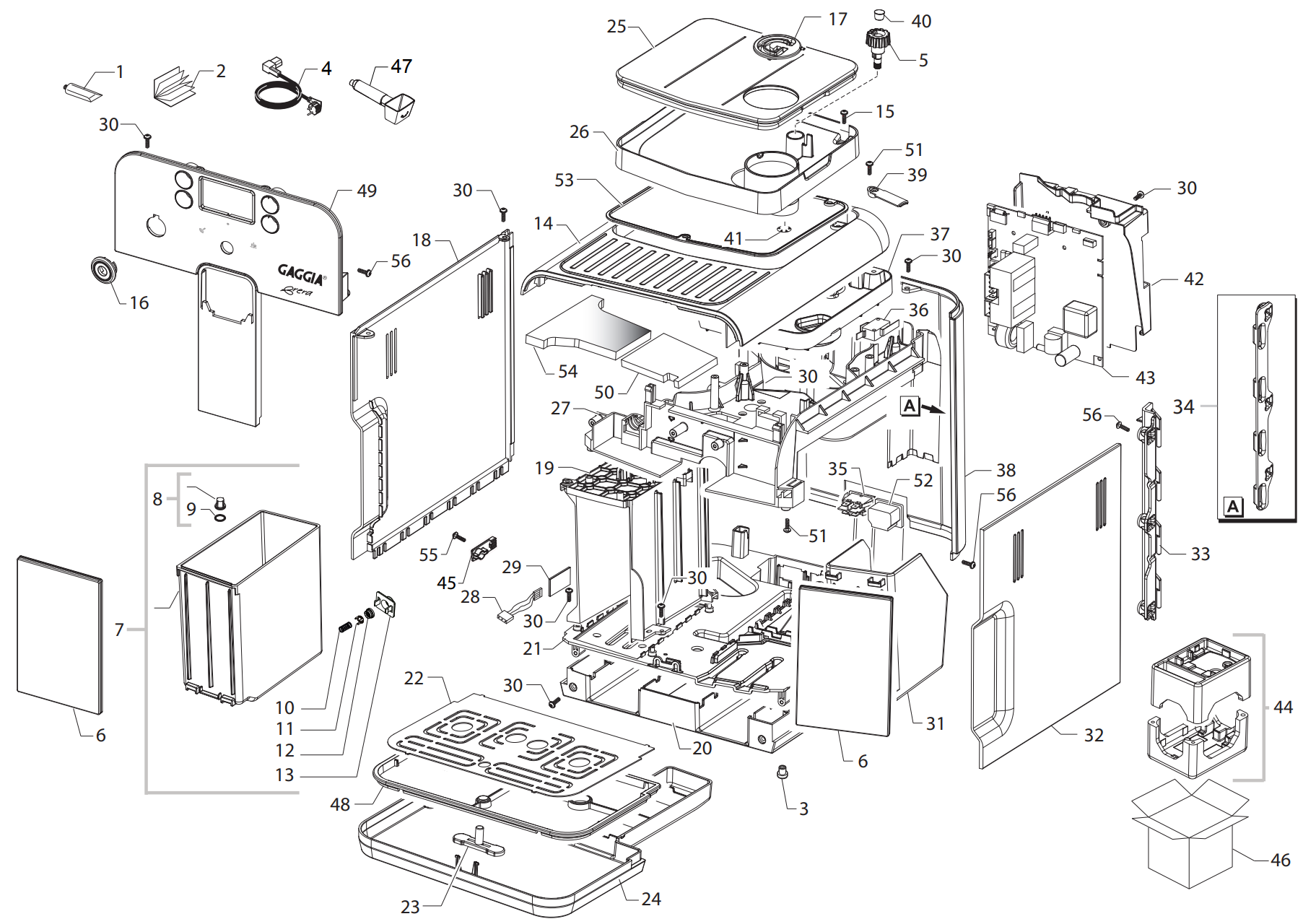

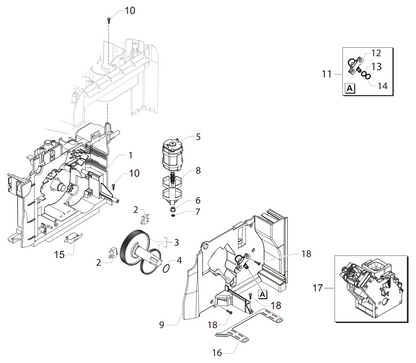

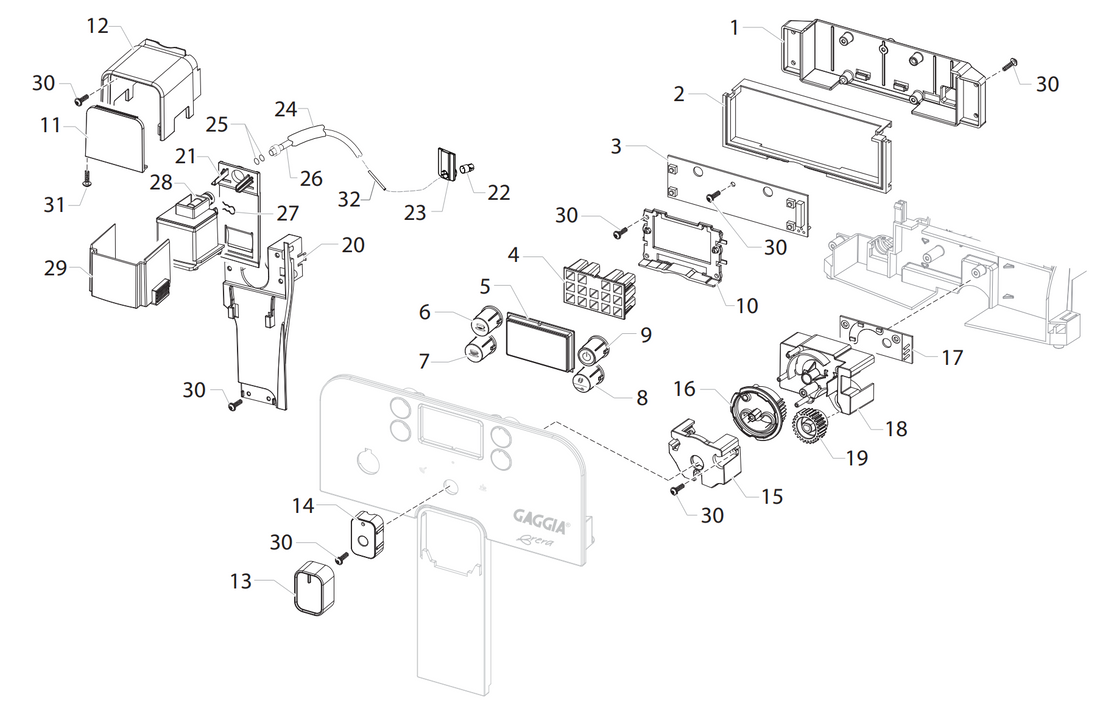

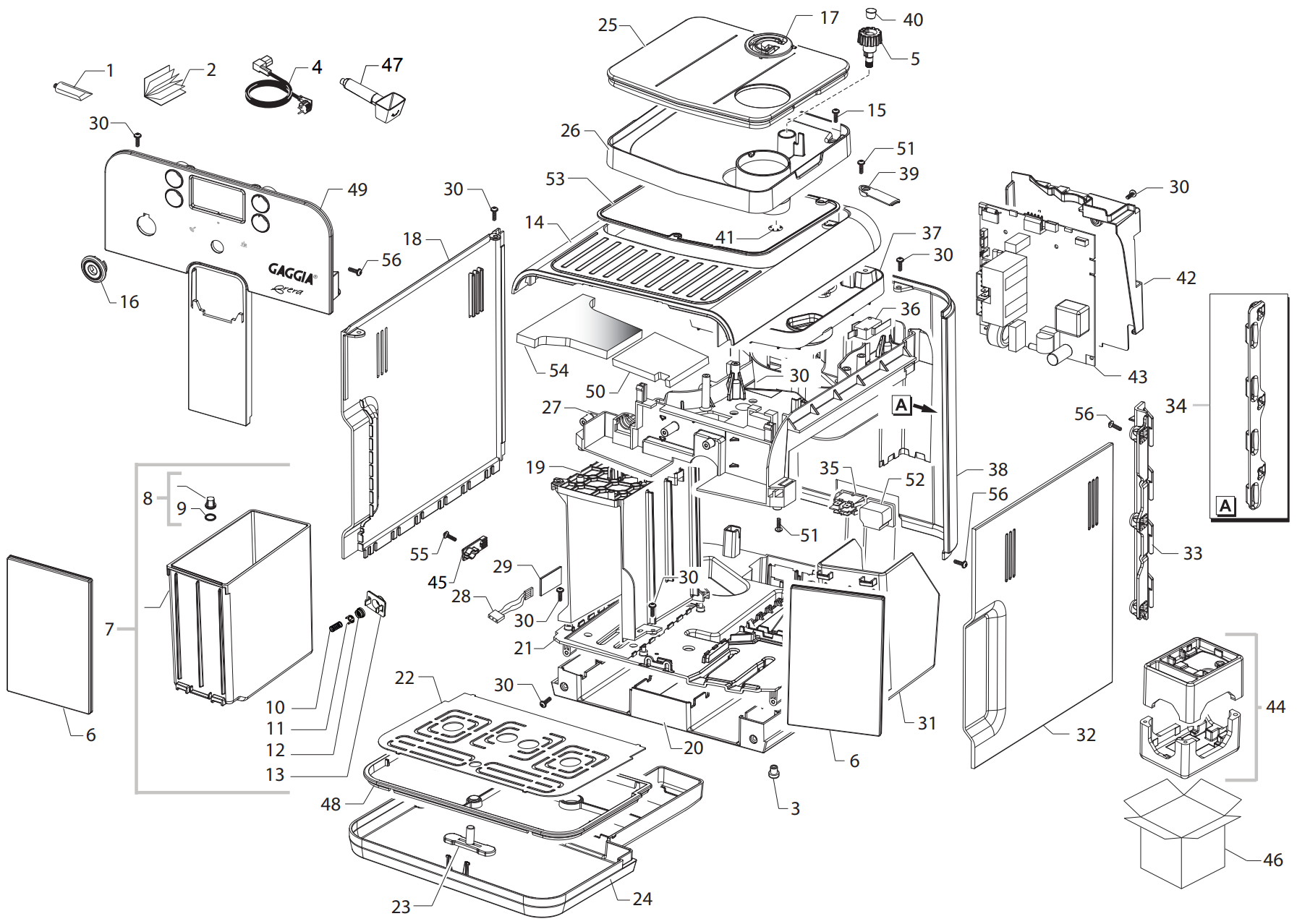

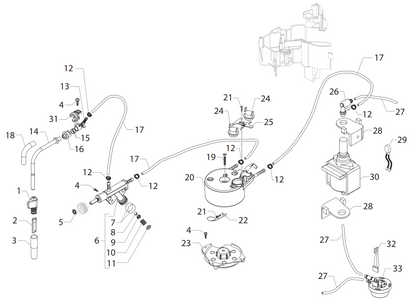

Gaggia Brera Part Diagram ER0286
This is the Gaggia Brera Part Diagram ER0286. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| ER0286-1A | 01 |
|
GAGGIA KLUBER TRIBOSTAR SIL 2 TUBE 5GR. Part Number: 11022867 |
$9.99 | View Part |
| ER0286-1A | 02 | MANUAL GAG SUP037RG GXSM GB/I/D/F/E Part Number: 15001876 |
$9.96 | View Part | |
| ER0286-1A | MANUAL GAG SUP037RG GXSM P/NL/PL/RUS Part Number: 15001877 |
$9.72 | View Part | ||
| ER0286-1A | MANUAL GAG SUP037RG GXSM GB/P
Part Number: 15002617 |
||||
| ER0286-1A | MANUAL GAG SUP037RG GXSM CHN
Part Number: 15002618 |
||||
| ER0286-1A | MANUAL GAG SUP037RG GXSM KOR
Part Number: 15002702 |
||||
| ER0286-1A | 03 |
|
TRANSPARENT SILICONE FOOT Part Number: 147622800 |
$7.82 | View Part |
| ER0286-1A | 04 | BLACK POWER CABLE SCHUKO L=1200MM
Part Number: 183911050 |
|||
| ER0286-1A |
|
POWER CABLE SJT3 USA BLACK UL L=1200 Part Number: 183921950 |
$15.72 | View Part | |
| ER0286-1A | PO.CABL.CH BLACK 3X1 H05VV-F L=1200
Part Number: 183930650 |
||||
| ER0286-1A | BLK POWER CABLE 3X1 H05VV-F UK L=1200MM
Part Number: 183970350 |
||||
| ER0286-1A | BLACK POWER CABLE RVV 3X1 CHINA L=1200MM
Part Number: 11004247 |
||||
| ER0286-1A | BLACK POWER CABLE AUSTRALIA L=1200
Part Number: 183940650 |
||||
| ER0286-1A | BLACK POWER CABLE BRAZIL L=1200
Part Number: 17800019 |
||||
| ER0286-1A | BLACK POWER CABLE KOREA L=1200
Part Number: 11001985 |
||||
| ER0286-1A | 05 |
|
BLACK GRIND.ADJUSTMENT KNOB XSM Part Number: 11013206 |
$5.52 | View Part |
| ER0286-1A | 06 |
|
BLACK/SS CONTAINERS COVER GXSM ASSY. Part Number: 11021742 |
$39.62 | View Part |
| ER0286-1A | 07 |
|
NATUR/GREY WATER CONTAINER XSM ASSY. Part Number: 11013093 |
$30.08 | View Part |
| ER0286-1A | 08 | EXTERNAL FILTER FOR WATER CONTAINER ASSY Part Number: 224640200 |
$5.60 | View Part | |
| ER0286-1A | 09 |
|
EPDM OR METRIC 0190-10 Part Number: 140328461 |
$5.24 | View Part |
| ER0286-1A | 10 | SPRING FOR WATER CONTAINER VALVE P0049
Part Number: 11003672 |
|||
| ER0286-1A | 11 | GREY WATER CONTAINER VALVE INSERT P0049
Part Number: 11003673 |
|||
| ER0286-1A | 12 | TRANSP.VALVE FOR WATER CONTAINER P0049
Part Number: 11003671 |
|||
| ER0286-1A | 13 | BLACK LID FOR DUCKBILL VALVE P0049
Part Number: 11001298 |
|||
| ER0286-1A | 14 | GREY UPPER CASING COVER GXSM
Part Number: 11022932 |
|||
| ER0286-1A | BLACK UPPER CASING COVER GXSM
Part Number: 11013882 |
||||
| ER0286-1A | 15 | PANELVIT TCB SCREW 3,5X18 D.7505 Z
Part Number: 129660102 |
|||
| ER0286-1A | 16 | CHROMED FRONTAL PANEL CAP GXSM
Part Number: 11021337 Notes: UP TO S/N. TU9011029097424 |
|||
| ER0286-1A | CHROM.FRONTAL PANEL CAP V2 GXSM
Part Number: 11027517 Notes: FROM S/N. TU9011029097425 |
||||
| ER0286-1A | 17 | NATUR/GREY GROUND COFFEE HOPPER LID GXSM
Part Number: 11013876 |
|||
| ER0286-1A | 18 | GREY CASING LEFT SIDE GXSM
Part Number: 11022930 |
|||
| ER0286-1A | BLACK CASING LEFT SIDE GXSM
Part Number: 11013880 |
||||
| ER0286-1A | 19 | BLACK INSERT FOR CASING BOTTOM XSM
Part Number: 11012708 |
|||
| ER0286-1A | 20 | GREY CASING BOTTOM COVER XSM
Part Number: 11022419 |
|||
| ER0286-1A | BLACK CASING BOTTOM COVER XSM
Part Number: 11012681 |
||||
| ER0286-1A | 21 | BLACK CASING BOTTOM XSMC
Part Number: 17000432 |
|||
| ER0286-1A | 22 | STAINL.STEEL GRATE FOR DRIP TRAY GXSM
Part Number: 11013857 |
|||
| ER0286-1A | 23 | RED FLOAT FOR DRIP TRAY XSM
Part Number: 11013184 |
|||
| ER0286-1A | 24 | GREY DRIP TRAY GXSM
Part Number: 11022931 |
|||
| ER0286-1A | BLACK DRIP TRAY GXSM
Part Number: 11013883 |
||||
| ER0286-1A | 25 | NATUR/GREY BEAN COFF.CONTAINER LID GXSM
Part Number: 11022854 |
|||
| ER0286-1B | 26 | NATUR/GREY BEAN CONTAINER XSM
Part Number: 11012724 |
|||
| ER0286-1B | 27 | BLACK COFFEE GRINDER PLATE XSM
Part Number: 11012642 |
|||
| ER0286-1B | 28 | 3POLES CONNECTOR WATER LEVEL XSM UL
Part Number: 11013709 |
|||
| ER0286-1B | 29 | WATER LEVEL SENSOR BOARD P124
Part Number: 11000651 |
|||
| ER0286-1B | 30 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| ER0286-1B | 31 | BLACK DUMP BOX XSM
Part Number: 11012709 |
|||
| ER0286-1B | 32 | GMS DOOR RIGHT SIDE GXSM ASSY.
Part Number: 11030760 |
|||
| ER0286-1B | 901510/BLK DOOR RIGHT SIDE GXSM ASSY.
Part Number: 11030759 |
||||
| ER0286-1B | 33 | BLACK HINGE FOR DOOR RIGHT SIDE XSM
Part Number: 11012713 |
|||
| ER0286-1B | 34 | BLACK HINGE FOR REAR CASING XSM
Part Number: 11012714 |
|||
| ER0286-1B | 35 | BIPOLAR SWITCH FUSIT C1250AR
Part Number: NE03.038 |
|||
| ER0286-1B | 36 | MICROSWITCH
Part Number: NE05.013 |
|||
| ER0286-1B | 37 | SOUNDPROOFING COVER FOR COFGRINDER XSMC
Part Number: 17000431 |
|||
| ER0286-1B | 38 | BLACK REAR CASING GXSM
Part Number: 11014196 |
|||
| ER0286-1B | 39 | GREY COVER INFRAREDS ACCESS GXSM
Part Number: 11022934 |
|||
| ER0286-1B | BLACK COVER INFRAREDS ACCESS GXSM
Part Number: 11014031 |
||||
| ER0286-1B | 40 | TRANSP.CAP FOR KNOBS BEAN CONTAINER
Part Number: 149213000 |
|||
| ER0286-1B | 41 | SHAFT 6 UNI 7434
Part Number: 120350604 |
|||
| ER0286-1B | 42 | BLACK PWR/CPU BOARD PROTECTION P0057
Part Number: 11012301 |
|||
| ER0286-1B | 43 | AS.CPU+SW XSM SLIM 230V
Part Number: 11027925 Notes: 230V |
|||
| ER0286-1B | AS.CPU+SW XSM/H V3 120V
Part Number: 11026608 Notes: 120 UL - 127 BRA |
||||
| ER0286-1B | 44 | KIT PS-E UPPER INSERT FOR BOX GXSM
Part Number: 20007054 |
|||
| ER0286-1B | 45 | BLK CAPACIT.SENSOR DEADLOCK INSERT XSM
Part Number: 17000064 |
|||
| ER0286-1B | 46 | DISPLAY BOX GAGGIA BRERA LED
Part Number: 13000999 |
|||
| ER0286-1B | 47 | BLACK COFFEE MEASURE SMART
Part Number: 146680850 |
|||
| ER0286-1B | 48 | GREY DRIP TRAY GRATE SUPPORT GXSM
Part Number: 11022933 |
|||
| ER0286-1B | BLACK DRIP TRAY GRATE SUPPORT GXSM
Part Number: 11013858 |
||||
| ER0286-1B | 49 | BLACK/SS FRONTAL PANEL S/SCR.GXSM ASSY.
Part Number: 11021744 |
|||
| ER0286-1B | 50 | UPPER COVER CASING INSUL.PROTECT.GXSM UL
Part Number: 17000119 Notes: 120 UL - 127 BRA |
|||
| ER0286-1B | 51 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 129912521 |
|||
| ER0286-1B | 52 | CUP SOCKET EN 60320 C 13
Part Number: 12000280 |
|||
| ER0286-1B | CUP SOCKET V2 EN 60320 C 13
Part Number: 12001645 Notes: 120V |
||||
| ER0286-1B | 53 | BLACK BEAN COFFEE CONTAIN.SEAL GXSM
Part Number: 11023102 |
|||
| ER0286-1B | 54 | UPPER COVER CASING INSUL.PROTECTION GXSM
Part Number: 11023103 |
|||
| ER0286-1B | 55 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 129913202 |
|||
| ER0286-1B | 56 | SCREW TCBR TORX 10 3,5X12 PLAST.SS
Part Number: 12001728 |
|||
| ER0286-2 | 1 | BLACK CPU BOARD SUPPORT GXSM,
Part Number: 11013856 |
|||
| ER0286-2 | 2 | NEUTER TOUCH PANEL SEAL GXSM,
Part Number: 11013859 |
|||
| ER0286-2 | 3 | INTERFACE LED BOARDS+UL CABL.GXSM/P ASSY,
Part Number: 11021372 |
|||
| ER0286-2 | 4 | WHITE GUIDE LIGHT SUPPORT GXSM,
Part Number: 11023369 |
|||
| ER0286-2 | 5 | TRANSPARENT GLASS FOR LED GXSM,
Part Number: 11013893 |
|||
| ER0286-2 | 6 | BLACK SHORT COFFEE CUP BUTTON GXSM,
Part Number: 11021887 |
|||
| ER0286-2 | 7 | BLACK LONG COFFEE CUP BUTTON GXSM,
Part Number: 11021886 |
|||
| ER0286-2 | 8 | BLACK AROMA COFFEE BUTTON GXSM,
Part Number: 11021888 |
|||
| ER0286-2 | 9 | BLACK ON/OFF BUTTON GXSM,
Part Number: 11021889 |
|||
| ER0286-2 | 10 | BLACK CPU BOARD RETAINING INSERT GXSM,
Part Number: 11013889 |
|||
| ER0286-2 | 11 | CHROM.COFFEE DISPENSER FRONT PLATE GXSM,
Part Number: 11021362 |
|||
| ER0286-2 | 12 | CHROMED COFFEE DISPENSER SUPPORT GXSM,
Part Number: 11021339 |
|||
| ER0286-2 | 13 | CHROMED CONTROL KNOB COVER GXSM,
Part Number: 11021338 |
|||
| ER0286-2 | 14 | NATURAL CONTROL KNOB GXSM,
Part Number: 11013886 |
|||
| ER0286-2 | 15 | BLACK CONTROL KNOB SUPPORT COVER GXSM,
Part Number: 11014090 |
|||
| ER0286-2 | 16 | BLACK CONTROL KNOB SUPPORT XSM ASSY.,
Part Number: 11013117 |
|||
| ER0286-2 | 17 | KEYBOARD TAP SENSOR GXSM,
Part Number: 11014029 |
|||
| ER0286-2 | 18 | BLACK KNOB ELECTR.BOARD SUPPORT XSM,
Part Number: 11012704 |
|||
| ER0286-2 | 19 | BLACK STEAM/WATER GEAR Z=26 P0057,
Part Number: 11004120 |
|||
| ER0286-2 | 20 | BLACK FRONT PANEL SUPPORT XSM,
Part Number: 11012707 |
|||
| ER0286-2 | 21 | BLACK COF.DISPENSER MOBILEPART SUPP.GXSM,
Part Number: 11013829 |
|||
| ER0286-2 | 22 | BUSH FOR 4X2 TEFLON TUBE P124,
Part Number: 11005101 |
|||
| ER0286-2 | 23 | PLATE FOR 4X2 TEFLON TUBE P124,
Part Number: 11005100 |
|||
| ER0286-2 | 24 | BLACK SILICONE TUBE 7,5X9,3 IN ROLL,
Part Number: 149361200 Notes: IN ROLL |
|||
| ER0286-2 | 25 | OR 2015 IN SILICONE PTFE/FDA,
Part Number: 140328059 |
|||
| ER0286-2 | 26 | TEFLON TUBE 2X4 L=250 MM ASSY,
Part Number: 11004132 |
|||
| ER0286-2 | 27 | FORK FOR TUBE D.4,
Part Number: 9011.144 |
|||
| ER0286-2 | 28 | BLACK COFFEE DISPENSER XSM ASSY.,
Part Number: 11013070 |
|||
| ER0286-2 | 29 | BLACK COF.DISPENSER MOBILE PART GXSM,
Part Number: 11013828 |
|||
| ER0286-2 | 30 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N,
Part Number: 12000450 |
|||
| ER0286-2 | 31 | SCREW TCB TORX 10 2,9X6,5 SHEET ZN-B,
Part Number: 129912902 |
|||
| ER0286-2 | 32 | SS.L=22,6MM INT.BUSH FOR TEFLON TUBE D4
Part Number: 17000266 |
|||
| ER0286-3 | 1 | BLACK STEAM TUBE HANDGRIP G0053
Part Number: 11007194 |
|||
| ER0286-3 | 2 | BLACK PANNARELLO INTERNAL TUBE P0049
Part Number: 11001620 |
|||
| ER0286-3 | 3 | SS PANNARELLO COVER P0049
Part Number: 11001621 |
|||
| ER0286-3 | 4 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| ER0286-3 | 5 | ELASTIC WASHER FOR SHAFT D=6MM
Part Number: 128210600 |
|||
| ER0286-3 | 6 | FLOW SELECTOR FAUCET V2 P0057
Part Number: 11012381 |
|||
| ER0286-3 | 7 | OR METRIC 0120-20 IN EPDM
Part Number: 12000893 |
|||
| ER0286-3 | 8 | MUSHROOM VALVE FOR FLOW SELECTOR P0057
Part Number: 11008104 |
|||
| ER0286-3 | 9 | SUPPORT VALVE FOR FLOW SELECTOR P0057
Part Number: 11008105 |
|||
| ER0286-3 | 10 | SPRING FOR VALVE FLOW SELECTOR P0057
Part Number: 11008077 |
|||
| ER0286-3 | 11 | VALVE CAP FOR FLOW SELECTOR P0057
Part Number: 11008106 |
|||
| ER0286-3 | 12 | OETIKER CLAMP D=9,5 16700004
Part Number: 12000892 |
|||
| ER0286-3 | 13 | STEAM TUBE SUPPORT P0057
Part Number: 11005757 |
|||
| ER0286-3 | 14 | TF/CHROMED STEAM TUBE GXSM ASSY.
Part Number: 11014042 |
|||
| ER0286-3 | 15 | OR ORM 0060-20 IN TERMOIL
Part Number: 140324461 |
|||
| ER0286-3 | 16 | BLACK PA6 BUSH FOR STEAM TUBE P0057
Part Number: 11011127 |
|||
| ER0286-3 | 17 | 5X8,9 SILICONE TUBE
Part Number: 16000380 Notes: IN ROLL |
|||
| ER0286-3 | 18 | CHROMED STEAM TUBE PROTECTION XSM
Part Number: 11012923 Notes: UP TO S/N. TU9011029097424 |
|||
| ER0286-3 | 19 | SCREW TSP TORX 10 5X35 PLAST.SS
Part Number: 12001369 |
|||
| ER0286-3 | 20 | SLIM TUB.BOILER ASSY.
Part Number: 11013735 Notes: 230V - 1300W |
|||
| SLIM TUB.BOILER ASSY.
Part Number: 11023153 Notes: 120V - 1300W |
|||||
| ER0286-3 | 21 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 12001715 |
|||
| ER0286-3 | 22 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 190800100 |
|||
| ER0286-3 | 23 | BLACK SLIM/EXSL BOILER SUPPORT
Part Number: 11022791 |
|||
| ER0286-3 | 24 | THERMOSTAT ONE SHOT 190?
Part Number: 12001033 |
|||
| ER0286-3 | 25 | THERMOSTATES SPRING FOR BOILER
Part Number: 11001751 |
|||
| ER0286-3 | 26 | TEA/BRASS SAFETY VALVE 16-18 BAR ASSY.
Part Number: 11004689 Notes: IN ROLL |
|||
| ER0286-3 | 27 | SILICONE TUBE 5X10 60 SHORE IN ROLL
Part Number: JS01.022 |
|||
| ER0286-3 | 28 | BLACK PUMP SUPPORT TYPE ULKA
Part Number: 149205850 |
|||
| ER0286-3 | 29 | 2POLES CONNECTOR PUMP P0057 UL
Part Number: 11009747 Notes: 230V-50HZ |
|||
| ER0286-3 | 30 | ULKA PUMP EP5/S GW
Part Number: 12000140 Notes: 120V-60HZ |
|||
| ER0286-3 | ULKA PUMP EAP5/S
Part Number: 12000142 Notes: 220V-60HZ |
||||
| ER0286-3 | ULKA PUMP EP5/S GW
Part Number: 12000182 |
||||
| ER0286-3 | 31 | BLACK FORK FOR STEAM TUBE GXSM
Part Number: 11013894 |
|||
| ER0286-3 | 32 | 3POLES CONNECTOR FLOWMETER P0057
Part Number: 11005948 |
|||
| ER0286-3 | 33 | TURBINE D=1,2 932-8521/00 ASSY.
Part Number: NV99.099 |
|||
| ER0286-3 | SLIM TUB.BOILER STD C1 T190? ASSY.
Part Number: 11026683 Notes: 230V - 1300W |
||||
| ER0286-3 | SLIM TUB.BOILER STD C1 T190? ASSY.
Part Number: 11026684 Notes: 120V - 1300W |
||||
| ER0286-4 | 1 | TEA/ZAMA INCREASE SCREW GRINDER
Part Number: 11010031 |
|||
| ER0286-4 | TEA SHORT ZAMA INCREASE SCREW GRINDER
Part Number: 11024208 Notes: USA UL |
||||
| ER0286-4 | 2 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 129574802 |
|||
| ER0286-4 | 3 | UPPER GRINDER SUPPORT COFFEE GRINDER
Part Number: 149198250 |
|||
| ER0286-4 | 4 | NBR FDA OR METRIC 0530-15
Part Number: 140328960 |
|||
| ER0286-4 | 5 | BAKED CLAY GRINDER 48X28
Part Number: 146520100 |
|||
| ER0286-4 | 6 | BRASS BUSH BEAN CONT.FINGER PROTEC.P0057
Part Number: 11012466 |
|||
| ER0286-4 | 7 | LOWER GRINDER SUPPORT COFFEEGRINDER
Part Number: 149198350 |
|||
| ER0286-4 | 8 | AXIAL BEARING EKKO 342.35252
Part Number: 123030300 |
|||
| ER0286-4 | 9 | FELT RING 45,4X39,4X4
Part Number: 140360500 |
|||
| ER0286-4 | 10 | GALV.WASHER UNI 8842 A4
Part Number: 128310402 |
|||
| ER0286-4 | 11 | BLK GROUND COFF.OUTLET CONVEYOR V4 ASSY.
Part Number: 11026355 |
|||
| ER0286-4 | 12 | GRY GROUND COFFEE CONT.LOWER SEAL SMART1
Part Number: 11030459 |
|||
| ER0286-4 | 13 | GEAR SX Z=38 FOR GRINDER MOTION ASSY.
Part Number: 226000300 |
|||
| ER0286-4 | 14 | MOTOR COFFEEGRINDER/V3.1 ASSY
Part Number: 11000513 Notes: 230V |
|||
| ER0286-4 | AS.MOTORE MC/V3.1 MOD=1,25 SX
Part Number: 11000511 Notes: 120V |
||||
| ER0286-4 | 15 | CAP FOR WORM SCREW MC/V3 CENTRING
Part Number: 149214800 |
|||
| ER0286-4 | 16 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 129661702 |
|||
| ER0286-4 | 17 | INSULATOR BUSH FOR GRINDER MOTOR P124
Part Number: 11002873 |
|||
| ER0286-4 | 18 | COFFEE GRINDER SUPPORT SPRING P124
Part Number: 11000597 |
|||
| ER0286-4 | 19 | BLK V2 BEAN CONTAIN.FINGER PROTECT.P0057
Part Number: 11014285 Notes: EXCEPT USA |
|||
| ER0286-4 | 20 | GALVAN.FLAT WASH.DI=4,3 DE=14 SP=1,5
Part Number: 128381902 |
|||
| ER0286-4 | 21 | SENSOR SUPPORT FOR COFF.GRIND.MOTOR
Part Number: 149199050 |
|||
| ER0286-4 | 22 | BLACK GRINDER MOTOR SUPPORT P124
Part Number: 11000194 |
|||
| ER0286-4 | 23 | ELECTRONIC BOARD WITH SENSOR HAL506
Part Number: 181540900 |
|||
| ER0286-4 | 24 | RADIAL BEARING 61900.2RS1
Part Number: 123030200 |
|||
| ER0286-4 | 25 | CRINKLE WASHER 21,8X15,8X0,2
Part Number: 128381800 |
|||
| ER0286-4 | 26 | UPPER BODY WITH COFFE.GROUND OUTLET
Part Number: 142905450 |
|||
| ER0286-4 | 27 | 3 POLES CONNECTOR MC SENSOR S0053 UL
Part Number: 11008871 |
|||
| ER0286-4 | 28 | LOWER GEAR SUPPORT COFFEEGRINDER P124
Part Number: 11002613 |
|||
| ER0286-4 | 29 | GRINDER REGULATION SPRING P124
Part Number: 11002572 |
|||
| ER0286-4 | 30 | COFFEE GRINDING ADJUSTMENT GEAR P0049
Part Number: 11003784 |
|||
| ER0286-4 | 31 | ZN-B TCB SCREW M4X16
Part Number: U043.004 |
|||
| ER0286-4 | 32 | UPPER GEAR SUPPORT COFFEEGRINDER P124
Part Number: 11002508 |
|||
| ER0286-4 | 33 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 129914002 |
|||
| ER0286-4 | 34 | TRANS.BEAN CONTAIN.FINGER PROTECT.XSM
Part Number: 11022841 Notes: USA UL |
|||
| ER0286-4 | 35 | 2P.CONNECT.COFFEE GRINDER MOTOR S0053
Part Number: 11008869 |
|||
| ER0286-4 | GENERAL MOTOR MC P0057 STD ASSY.
Part Number: 11006059 Notes: 230V |
||||
| ER0286-4 | MC GENERAL MOTOR V3 P0057 ASSY.
Part Number: 11024242 Notes: 120V UL |
||||
| ER0286-5 | 1 | BLACK RATIOMOTOR MOUNTING PLATE XSMC AS.
Part Number: 17000366 |
|||
| ER0286-5 | 2 | MICROSWITCH
Part Number: NE05.038 |
|||
| ER0286-5 | 3 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 20000900 |
|||
| ER0286-5 | 4 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 9161.132 |
|||
| ER0286-5 | 5 | MOTOR FOR RATIOMOTOR P124 ASSY.
Part Number: 11005214 |
|||
| ER0286-5 | 6 | SINTERED BUSH FOR MOTOR
Part Number: 9121.046 |
|||
| ER0286-5 | 7 | WASHER BAKELIZZATE D=5,5
Part Number: 148380200 |
|||
| ER0286-5 | 8 | ANTIVIBRATION FOR MOTOR
Part Number: 9121.044 |
|||
| ER0286-5 | 9 | BLACK COVER FOR MOUNTING PLATE P0057
Part Number: 11003754 |
|||
| ER0286-5 | 10 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 12000450 |
|||
| ER0286-5 | 11 | PIN FOR FLOW SELECTOR FAUCET P0057 ASSY.
Part Number: 11013531 |
|||
| ER0286-5 | 12 | V2 PIN FOR FLOW SELECTOR FAUCET P0057
Part Number: 11013530 |
|||
| ER0286-5 | 13 | OR ORM 0090-20 SILICONE
Part Number: NM01.035 |
|||
| ER0286-5 | 14 | OR ORM 0050-20 SILICONE
Part Number: NM01.057 |
|||
| ER0286-5 | 15 | MICROSWITCH
Part Number: NE05.013 |
|||
| ER0286-5 | 16 | SEAL FOR RATIOMOTOR PLATE XSM
Part Number: 11013205 |
|||
| ER0286-5 | 17 | BLACK BREW UNIT 8GR.5BAR P0057
Part Number: 11012382 |
|||
|
|
SEE EXP.CODE E90067 |
$9.99 | View Part | ||
| ER0286-5 | 18 | SCREW TCBR TORX 10 3,5X12 PLAST.SS
Part Number: 12001728 |
