Gaggia Cadorna Plus Part Diagram EG2002
This is the Gaggia Cadorna Plus Part Diagram EG2002. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

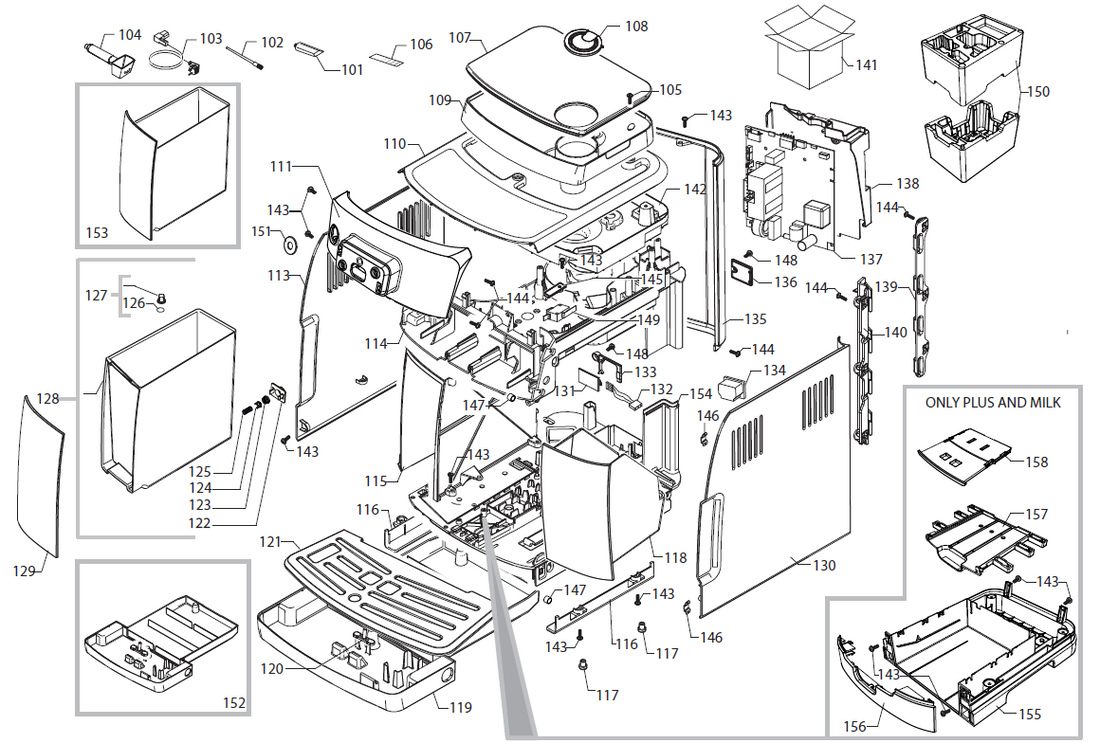

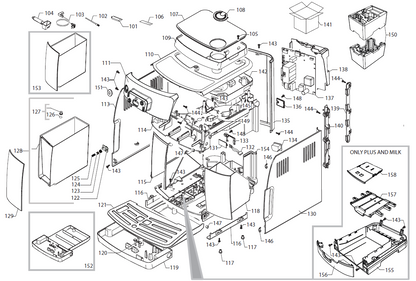

| EG2002-1 | 101 |
|
KLUBERLUB NH1 11-222 TUBE 5GR. Part Number: 421946017941 |
$9.99 | View Part |
| EG2002-1 | 102 |
|
BRUSH FOR CLEANING Part Number: 996530011867 |
$6.55 | View Part |
| EG2002-1 | 103 | BLK POWER CABLE SCHUKO L=1200
Part Number: 996530025808 |
|||
| EG2002-1 |
|
POWER CABLE SJT3 USA BLACK UL L=1200 Part Number: 996530025843 |
$15.72 | View Part | |
| EG2002-1 | 104 |
|
BLK ABS COFFEE MEASURE SMART Part Number: 421944033301 |
$8.16 | View Part |
| EG2002-1 | 105 |
|
SCREW TCB TORX 10 3,5X16 PLAST.ZN-B Part Number: 996530013165 Notes: RI9600 |
$5.10 | View Part |
| EG2002-1 | 106 | STICKER FOR WATER HARDNESS TEST
Part Number: 996530039604 |
|||
| EG2002-1 | 107 | NAT/GR BEAN COFF.CONT.LID V2 NPR/H-T Part Number: 421944063381 |
$26.84 | View Part | |
| EG2002-1 | 108 |
|
TRANSP/GRY GROUND COF.HOPPER LID SMRA Part Number: 421944040481 |
$11.64 | View Part |
| EG2002-1 | 109 | TRANSP/GRY BEAN COFFEE CONTAINER NPR Part Number: 421944053291 |
$18.92 | View Part | |
| EG2002-1 | 110 | M/BLK UPPER CASING COVER V2 NPR/B-P
Part Number: 421941301461 |
|||
| EG2002-1 | 111 |
|
M/BLK FRONT PANEL S/SCR. CAD. STYLE CMF Part Number: 421945005951 Notes: RI9600 |
$22.49 | View Part |
| EG2002-1 | M/BLK FRONT PANEL S/SCR. CAD.PLUS CMF Part Number: 421945003121 Notes: RI9601 |
$15.70 | View Part | ||
| EG2002-1 | M/BLK FRONT PANEL S/SCR. CAD. MILK Part Number: 421945005961 Notes: RI9603 |
$18.54 | View Part | ||
| EG2002-1 | 112 |
Part Number: NOT AVAILABLE |
|||
| EG2002-1 | 113 | BLACK LEFT SIDE CASING NPR Part Number: 996530068729 |
$17.70 | View Part | |
| EG2002-1 | 114 |
|
BLK COFFEE GRINDER SUPP.PLATE V3 NPR/T Part Number: 421941264382 |
$22.49 | View Part |
| EG2002-1 | 115 | BLK CASING BOTTOM INSERT V3 NPR
Part Number: 421941282513 |
|||
| EG2002-1 | 116 | BLACK DRIP TRAY GUIDE NPR Part Number: 996530068723 Notes: RI9600 |
$8.34 | View Part | |
| EG2002-1 | 117 |
|
TRANSPARENT SILICONE FOOT Part Number: 421324705256 |
$5.14 | View Part |
| EG2002-1 | 118 | MATT/BLACK DUMP BOX NPR/H-P
Part Number: 996530072525 |
|||
| EG2002-1 | 119 | BLACK DRIP TRAY V2 NPR/H-P
Part Number: 996530072533 |
|||
| EG2002-1 | 120 | RED/3003 FLOAT FOR DRIP TRAY XSM
Part Number: 421941304791 |
|||
| EG2002-1 | 121 | SB/SA GRATE FOR DRIP TRAY V2 NPR/H-P
Part Number: 421944053231 |
|||
| EG2002-1 | 122 | BLK LID FOR WATER CONT.VALVE V2 P0049
Part Number: 421944040061 |
|||
| EG2002-1 | 123 | BLK GASKET FOR WATER CONT.VALVE V2 P0049
Part Number: 421944040781 |
|||
| EG2002-1 | 124 | BLK WATER CONT.VALVE INSERT V2 P0049
Part Number: 421944040071 |
|||
| EG2002-1 | 125 | SS SPRING FOR WATER CONTAIN.VALVE P0049
Part Number: 996530001831 |
|||
| EG2002-1 | 126 | OR ORM 0190-10 EPDM
Part Number: 996530013571 |
|||
| EG2002-1 | 127 | WHITE WATER CONTAINER EXT.FILTER ASSY.
Part Number: 996530029115 |
|||
| EG2002-1 | 128 | NAT/GRY WATER CONTAINER V2 NPR ASSY
Part Number: 421944056301 |
|||
| EG2002-1 | 129 | MATT/BLACK WATER TANK FRONT COVER NPR
Part Number: 996530072456 |
|||
| EG2002-1 | 130 | M/BLK RIGHT SIDE DOOR V4 NPR
Part Number: 421944040591 |
|||
| EG2002-1 | 131 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
| EG2002-1 | 132 | 3P.CONN.WATER LEVEL V2 CLP UL ASSY.
Part Number: 421946000081 |
|||
| EG2002-1 | 133 | BLK CAPACIT.SENSOR LOCKING INSERT NPR
Part Number: 996530068749 |
|||
| EG2002-1 | 134 | CUP SOCKET V3 EN 60320 C 13
Part Number: 996530072437 |
|||
| EG2002-1 | 135 | M/BLK REAR CASING V2 NPR
Part Number: 421945010741 |
|||
| EG2002-1 | 136 | BLACK REAR CASING PROGRAM.INSERT NPR
Part Number: 996530068728 |
|||
| EG2002-1 | 137 | MAIN+SW CAD 230V ASSY
Part Number: 421945001752 |
|||
| EG2002-1 | MAIN+SW CAD 120V ASSY
Part Number: 421946500321 |
||||
| EG2002-1 | 138 | BLK PWR/CPU BOARD PROTECTION V2 P0057
Part Number: 421944017971 Notes: 230V |
|||
| EG2002-1 | GRY PWR/CPU BOARD PROTECTION V2 P0057/UL
Part Number: 421944050551 Notes: 120V |
||||
| EG2002-1 | 139 | BLK HINGE FOR REAR CASING XSM.
Part Number: 421944022751 |
|||
| EG2002-1 | 140 | BLK HINGE FOR DOOR RIGHT SIDE XSM
Part Number: 421944022731 |
|||
| EG2002-1 | 141 | DISPL.BOX GAG.CADORNA
Part Number: 421945004371 |
|||
| EG2002-1 | 142 | BLK COF.GRINDER SOUNDPROOFING COV.V3 NPR
Part Number: 421944058831 |
|||
| EG2002-1 | 143 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2002-1 | 144 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-NI
Part Number: 421944016761 |
|||
| EG2002-1 | 145 | BLK CAPACIT.SENSOR DEADLOCK INSERT XSM
Part Number: 996530067437 |
|||
| EG2002-1 | 146 | STEEL PLATE FOR DOOR MAGNET XSM
Part Number: 996530069857 |
|||
| EG2002-1 | 147 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 996530050555 |
|||
| EG2002-1 | 148 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 996530013156 |
|||
| EG2002-1 | 149 | DOOR MICROSWITCH V3 NPR UL ASSY.
Part Number: 421946000111 |
|||
| EG2002-1 | 150 | KIT PS-E INSERT FOR CAD.PLUS MILK PREST
Part Number: 421946500481 Notes: RI9601-RI9603 |
|||
| EG2002-1 | KIT PS-E INSERT FOR CADORNA STYLE
Part Number: 421946500461 Notes: RI9600 |
||||
| EG2002-1 | 151 | MATT/BLACK FRONT PANEL CAP NPR/H-P
Part Number: 996530072903 |
|||
| EG2002-1 | 152 | KIT SPARES BLK DRIP TRAY NPR/H-P
Part Number: 421941310491 |
|||
| EG2002-1 | 153 | SPARES KIT WATER CONT+MATT/BLK FRONT ASS
Part Number: 996530073256 |
|||
| EG2002-1 | 154 | BLK CASING BOTTOM V6C NPR/E
Part Number: 421944026522 |
|||
| EG2002-1 | 155 | M/BLK CASING BOTTOM CAD.
Part Number: 421945003051 Notes: RI9601-RI9603 |
|||
| EG2002-1 | 156 | M/BLK. CASING BOTTOM COVER CAD.
Part Number: 421945003031 Notes: RI9601-RI9603 |
|||
| EG2002-1 | 157 | M/BLK BOX REST CUPS CAD.
Part Number: 421945003041 Notes: RI9601-RI9603 |
|||
| EG2002-1 | 158 | REST CUPS ASSY CAD.
Part Number: 421945002991 Notes: RI9601-RI9603 |
|||

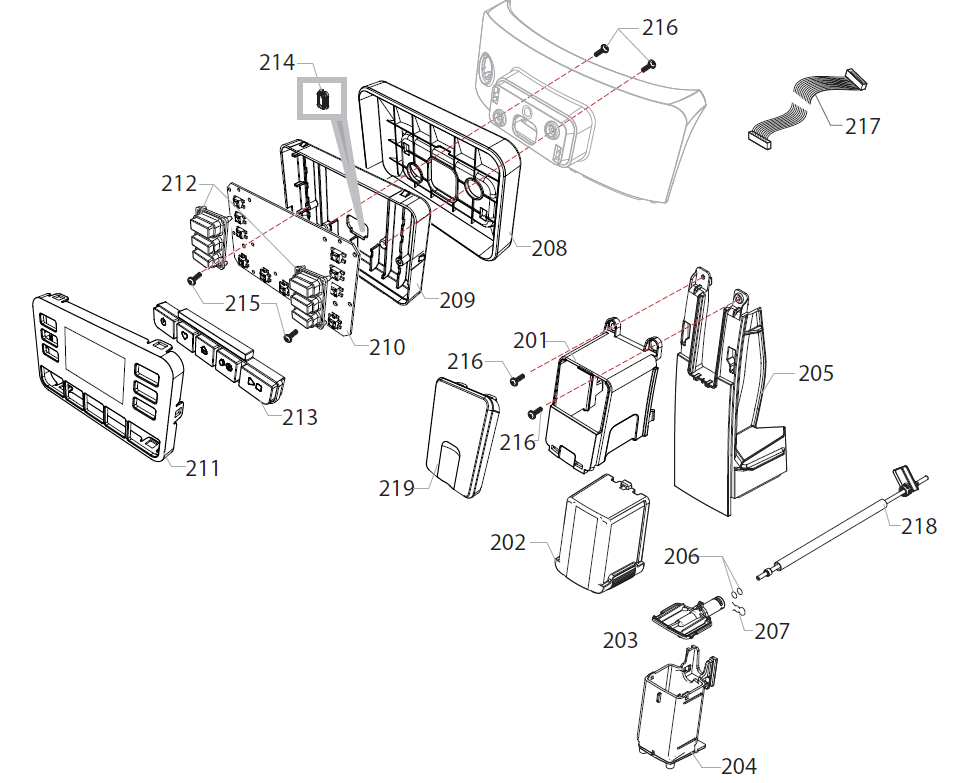

| EG2002-2 | 201 | M/BLK COFF.DISPENSER EXTERNAL BODY CAD.
Part Number: 421945003061 |
|||
| EG2002-2 | 202 | BLACK COFFEE DISPENSER MOBILE PART NPR
Part Number: 996530068698 |
|||
| EG2002-2 | 203 | BLK COFFEE DISPENSER BODY LID V2 NPR
Part Number: 421944086481 |
|||
| EG2002-2 | 204 | BLK COFFEE DISPENSER BODY V3 NPR
Part Number: 421944086511 |
|||
| EG2002-2 | 205 | MATT/BLACK FRONT CASING COVER V2 NPR
Part Number: 996530072527 |
|||
| EG2002-2 | 206 | OR 2015 SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| EG2002-2 | 207 | SS FORK FOR TUBE D=4
Part Number: 996530048885 |
|||
| EG2002-2 | 208 | SILVER REAR SUPPORT FRAME CAD.
Part Number: 421946500071 |
|||
| EG2002-2 | 209 | BOX
Part Number: 421945003161 |
|||
| EG2002-2 | 210 | UI_TFT+SW CAD PLUS AND STYLE 230V ASSY
Part Number: 421945000843 Notes: RI9600-RI9601 |
|||
| EG2002-2 | UI_TFT+SW CAD MILK 230V ASSY
Part Number: 421945006113 Notes: RI9603 |
||||
| EG2002-2 | UI_TFT+SW CAD. PLUS AND STYLE 120V ASSY
Part Number: 421946501041 Notes: RI9600-RI9601 |
||||
| EG2002-2 | UI_TFT+SW CAD. MILK 120V ASSY
Part Number: 421946501031 Notes: RI9603 |
||||
| EG2002-2 | 211 | KIT FRAME+TFT CAD
Part Number: 421945008041 |
|||
| EG2002-2 | 212 | BLK UPPER KEYBOARD CAD.
Part Number: 421945003261 |
|||
| EG2002-2 | 213 | BLK LOWER KEYBOARD S/SCR. CAD.
Part Number: 421945003251 |
|||
| EG2002-2 | 214 | YLW WIRING GUIDE SEAL V2 CST/BT
Part Number: 421944025962 |
|||
| EG2002-2 | 215 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 996530013156 |
|||
| EG2002-2 | 216 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2002-2 | 217 | FLAT CABLE 10P.CPU-INTERF.UTENTE FTR UL
Part Number: 421946034791 |
|||
| EG2002-2 | 218 | TEFL.TUBE 2X4 L=235+PLATE+2BUSH NPR ASSY
Part Number: 996530073357 |
|||
| EG2002-2 | 219 | CHROM COFF.DISPENSER FRONT INSERT CAD.
Part Number: 421945003071 |
|||

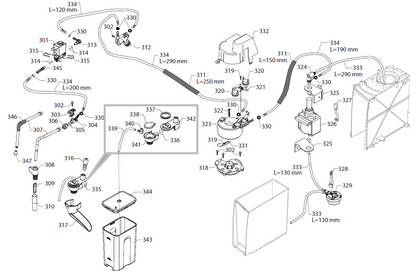

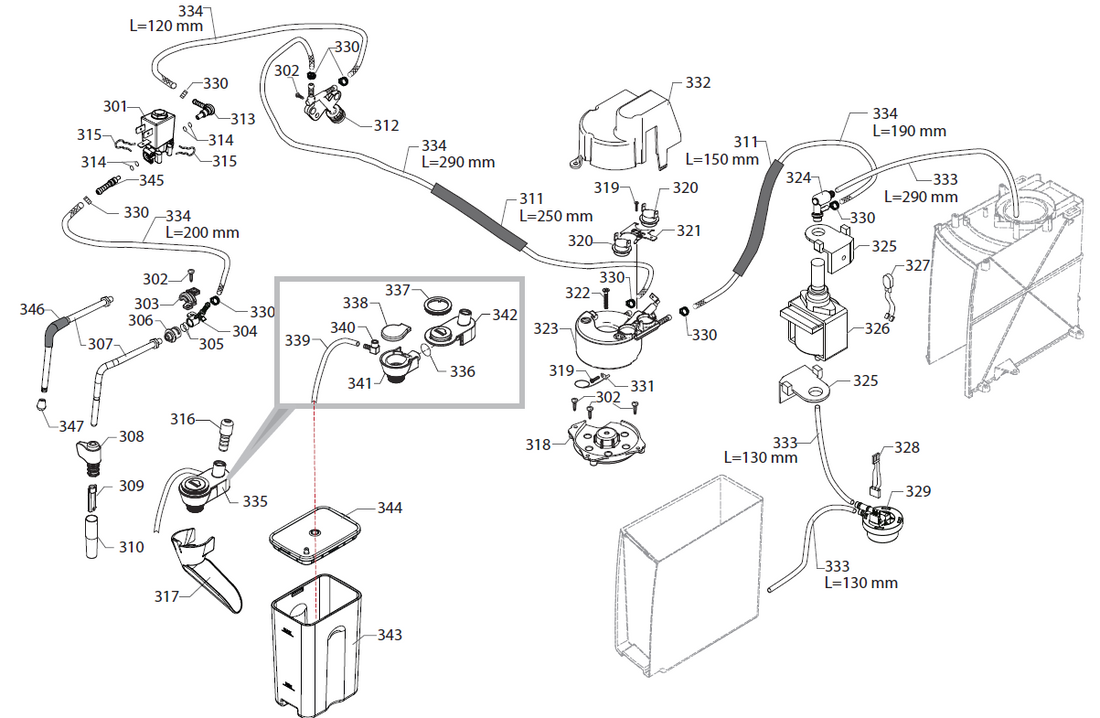

| EG2002-3 | 301 | 2WAY PLASTIC VALVE D2 24V R2A
Part Number: 421944090341 |
|||
| EG2002-3 | 302 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2002-3 | 303 | BLK FORK FOR STEAM TUBE GXSM
Part Number: 996530006914 |
|||
| EG2002-3 | 304 | STEAM TUBE SUPPORT PPS P0057
Part Number: 421944028161 |
|||
| EG2002-3 | 305 | OR ORM 0060-20 NBR FDA
Part Number: 996530013509 |
|||
| EG2002-3 | 306 | BLK PA6 BUSH FOR STEAM TUBE 45 CAD
Part Number: 421945007511 |
|||
| EG2002-3 | 307 | SS STEAM TUBE CAD ASSY
Part Number: 421945007481 Notes: Except RI9601/47 |
|||
| EG2002-3 | SS STEAM TUBE CAD PLUS ASSY
Part Number: 421945007521 Notes: Only RI9601/47 |
||||
| EG2002-3 | 308 | BLK/SIL.STEAM TUBE HANDGRIP G0053
Part Number: 421941300671 Notes: RI9600/01-47-RI9601/01 |
|||
| EG2002-3 | 309 | BLACK PANNARELLO INTERNAL TUBE V2 P0049
Part Number: 421944085601 Notes: RI9600/01-47-RI9601/01 |
|||
| EG2002-3 | 310 | BLACK PANNARELLO COVER V2 P0049
Part Number: 421944085161 Notes: RI9600/01-47 |
|||
| EG2002-3 | SS PANNARELLO COVER P0049
Part Number: 996530000926 Notes: RI9601/01 |
||||
| EG2002-3 | 311 | TRANSPAR.10,5X12,3 SILICONE TUBE
Part Number: 996530009523 Notes: IN ROLL |
|||
| EG2002-3 | 312 | FLOW SELECTOR FAUCET NPR
Part Number: 996530068077 |
|||
| EG2002-3 | 313 | WHT CONNECT.FAST LOCK 90 SILIC.TUBE PPS
Part Number: 421944059391 |
|||
| EG2002-3 | 314 | OR 2015 SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| EG2002-3 | 315 | SS FORK FOR TUBE D=4
Part Number: 996530048885 |
|||
| EG2002-3 | 316 | BLK STEAM TUBE INSERT V2 SMR/H
Part Number: 421941301142 Notes: RI9603 |
|||
| EG2002-3 | 317 | M/BLK READYINCAP
Part Number: 421945003241 Notes: RI9603 |
|||
| EG2002-3 | 318 | BLK SLIM/EXSL TUB.BOILER SUPPORT V2
Part Number: 421941215942 |
|||
| EG2002-3 | 319 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 996530069758 |
|||
| EG2002-3 | 320 | THERMOSTAT OPEN/CLOSE 190
Part Number: 262279998757 |
|||
| EG2002-3 | 321 | TUB.BOILER V3 UPPER THERM.FIXING SPRING
Part Number: 996530000997 |
|||
| EG2002-3 | 322 | SCREW TSP TORX 10 5X20 PLAST.ZN-B
Part Number: 996530008024 |
|||
| EG2002-3 | 323 | TUB.BOILER XS4 ASSY.
Part Number: 421944028841 Notes: 230V-1900W |
|||
| EG2002-3 | TUB.BOILER XS4 ASSY.
Part Number: 421944046121 Notes: 120V-1300W |
||||
| EG2002-3 | 324 | L-F/BR.SAFETY VALVE 16-18 BAR ASSY.
Part Number: 996530068178 |
|||
| EG2002-3 | 325 | BLACK TYPE ULKA PUMP W/BEVEL SUPPORT
Part Number: 996530018056 |
|||
| EG2002-3 | 326 | ULKA PUMP EP5FMGW
Part Number: 421941305991 |
|||
| EG2002-3 | ULKA PUMP EFP5/S
Part Number: 421944081531 |
||||
| EG2002-3 | 327 | 2P.CONN.PUMP SMR UL ASSY.
Part Number: 996530074282 |
|||
| EG2002-3 | 328 | 3P.CONN.FLOWMETER SMR UL ASSY.
Part Number: 996530073488 |
|||
| EG2002-3 | 329 | TURBINE D=1,2 932-8521/00 ASSY.
Part Number: 996530059843 |
|||
| EG2002-3 | 330 | OETIKER CLAMP D=9,5 15400022
Part Number: 996530007742 |
|||
| EG2002-3 | 331 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 996530026997 |
|||
| EG2002-3 | 332 | GRY BOILER INSULATING COVER NPR
Part Number: 421941284802 |
|||
| EG2002-3 | 333 | S/TUBE 5X10 60SH
Part Number: 996530002093 Notes: L=1 METRE |
|||
| EG2002-3 | 334 | 5X8,9 SILICONE TUBE
Part Number: 996530009505 Notes: IN ROLL |
|||
| EG2002-3 | 335 | BLK CAPPUC.V3 SMR/H ASSY.
Part Number: 421944023801 Notes: RI9603 |
|||
| EG2002-3 | 336 | O-RING 106 RED SILICONE
Part Number: 996530059392 Notes: RI9603 |
|||
| EG2002-3 | 337 | BLK CAPPUC.CASING COVER RING SMR/H
Part Number: 421941301121 Notes: RI9603 |
|||
| EG2002-3 | 338 | BLK CAPPUC.CASING SEAL SMR/H
Part Number: 421941301131 Notes: RI9603 |
|||
| EG2002-3 | 339 | SILICONE TUBE 3,5X6 L=350 MM DS
Part Number: 996530051237 Notes: RI9603 |
|||
| EG2002-3 | 340 | BLK CONNECTOR 90 V2 FOR SPHERIC.CAPPUC.
Part Number: 421944086351 Notes: RI9603 |
|||
| EG2002-3 | 341 | BLK CAPPUC.CASING V3 SMR/H
Part Number: 421944022461 Notes: RI9603 |
|||
| EG2002-3 | 342 | BLK CAPPUC.CASING COVER V5 SMR/H ASSY.
Part Number: 421944023812 Notes: RI9603 |
|||
| EG2002-3 | 343 | TRANSP.CARAFE HGO/T SAN LURAN
Part Number: 421944067741 Notes: RI9603 |
|||
| EG2002-3 | 344 | BLK CARAFE LID XS4/H
Part Number: 421944063851 Notes: RI9603 |
|||
| EG2002-3 | 345 | WHITE CONNECTOR FAST LOCK-SILICONE TUBE
Part Number: 421945006631 |
|||
| EG2002-3 | 346 | RUBBER BURN BLOCKS 6X32
Part Number: 421944093511 |
|||
| EG2002-3 | 347 | 1HOLE STEAM SPRAYER CAD PLUS
Part Number: 421945007551 Notes: Only RI9601/47 |
|||
| EG2002-3 | GEN.TUB.BOILER FTR/B 1900W 230V ASSY
Part Number: 421944079601 Notes: COMPLETE |
||||
| EG2002-3 |
|
WITH PART N319-320-321-323-331 |
$9.99 | View Part | |
| EG2002-3 | GEN.TUB.BOILER V2 XS4 1300W 120V ASSY
Part Number: 421944069101 Notes: COMPLETE |
||||
| EG2002-3 |
|
WITH PART N319-320-321-323-331 |
$9.99 | View Part | |

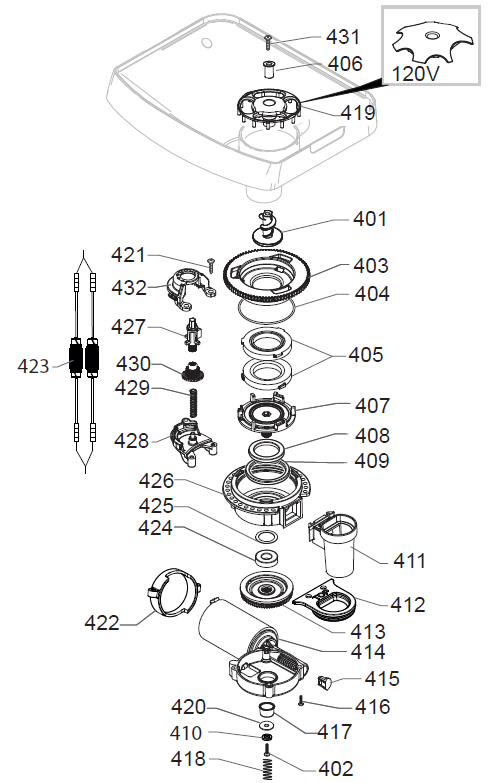

| EG2002-4 | 401 | GRIVORY INCREASE SCREW GRINDER V2
Part Number: 421944032692 |
|||
| EG2002-4 | 402 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 996530012928 |
|||
| EG2002-4 | 403 | BLK COF.GRINDER UPPER GRINDER SUPPORT V2
Part Number: 421941094152 |
|||
| EG2002-4 | 404 | OR ORM 0530-15 NBR FDA
Part Number: 996530013577 |
|||
| EG2002-4 | 405 | MACINA PIANA 48X28 IN CERAMICA COORSTEK
Part Number: 421944078641 |
|||
| EG2002-4 | 406 | BRASS BUSH BEAN CONT.FINGER PROTEC.P0057
Part Number: 996530006412 Notes: 230V |
|||
| EG2002-4 | 407 | BLK LOWER COFFEEGRINDER GRINDER SUPPORT
Part Number: 996530017952 |
|||
| EG2002-4 | 408 | AXIAL BEARING EKKO 342.35252
Part Number: 996530011183 |
|||
| EG2002-4 | 409 | FELT RING 45,4X39,4X4
Part Number: 996530013597 |
|||
| EG2002-4 | 410 | GALV.WASHER UNI 8842 A4
Part Number: 996530012341 |
|||
| EG2002-4 | 411 | BLK GROUND COFF.OUTLET CONVEYOR V4 ASSY.
Part Number: 996530068049 |
|||
| EG2002-4 | 412 | GRY GROUND COF.CONT.LOWER SEAL V2 SMART1
Part Number: 421944060561 |
|||
| EG2002-4 | 413 | GEAR SX Z=38 FOR GRINDER MOTION ASSY.
Part Number: 996530029609 Notes: 230V |
|||
| EG2002-4 | GRY GEAR SX Z=38 FOR GRINDER MOTION
Part Number: 421945006091 Notes: 120V |
||||
| EG2002-4 | 414 | MOTOR COFFEEGRINDER V3.2 230V ASSY.
Part Number: 421944049151 Notes: 230V |
|||
| EG2002-4 | MOTOR COFFEEGRINDER V3.2 WZN 120V ASSY
Part Number: 421944084071 Notes: 120V |
||||
| EG2002-4 | 415 | MC V3 MOD=1,25 WORM SCREW CENTRING CAP
Part Number: 996530018139 |
|||
| EG2002-4 | 416 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 996530012992 |
|||
| EG2002-4 | 417 | INSULATOR BUSH FOR GRINDER MOTOR P124
Part Number: 996530001389 |
|||
| EG2002-4 | 418 | COFFEE GRINDER SUPPORT SPRING P124
Part Number: 996530000376 |
|||
| EG2002-4 | 419 | BLK V2 BEAN CONTAIN.FINGER PROTECT.P0057
Part Number: 996530007058 Notes: 230V |
|||
| EG2002-4 | TRANS.BEAN CONT.FINGER PROTECT.V3 NPR UL
Part Number: 421944001511 Notes: 120V |
||||
| EG2002-4 | 420 | STEEL FLAT WASHER DI=4,3 DE=14 SP=1,5
Part Number: 996530012375 |
|||
| EG2002-4 | 421 |
|
SCREW TCB TORX 10 3,5X16 PLAST.ZN-B Part Number: 996530013165 |
$5.10 | View Part |
| EG2002-4 | 422 | BLK COFFEEGRINDER MOTOR SUPP.P124 V2
Part Number: 421941142172 |
|||
| EG2002-4 | 423 | 2 POLES CONN. GRINDER MOTOR FTR UL
Part Number: 421946035831 |
|||
| EG2002-4 | 424 | RADIAL BEARING 61900.2RS1
Part Number: 996530011182 |
|||
| EG2002-4 | 425 | STEEL CRINKLE WASHER 21,8X14X0,25
Part Number: 996530012374 |
|||
| EG2002-4 | 426 | BLK UPPER BODY WITH COFFEE GROUND OUTLET
Part Number: 996530015258 |
|||
| EG2002-4 | 427 | YLW BEAN COFFEE GRINDER INSERT SMR
Part Number: 421944025161 |
|||
| EG2002-4 | 428 | LOWER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 996530001314 |
|||
| EG2002-4 | 429 | COFFEEGRINDER REGULATION SPRING P124
Part Number: 996530001308 |
|||
| EG2002-4 | 430 | COFFEE GRINDING ADJUSTMENT GEAR P0049
Part Number: 996530001907 |
|||
| EG2002-4 | 431 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 996530012992 |
|||
| EG2002-4 | 432 | UPPER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 996530001296 |
|||
| EG2002-4 | GEN.MOTOR COF.GRINDER CAD 230V ASSY
Part Number: 421945009061 Notes: 230V |
||||
| EG2002-4 | GEN.MOTOR COF.GRINDER FTR/B 120V ASSY
Part Number: 421944084051 Notes: 120V |
||||

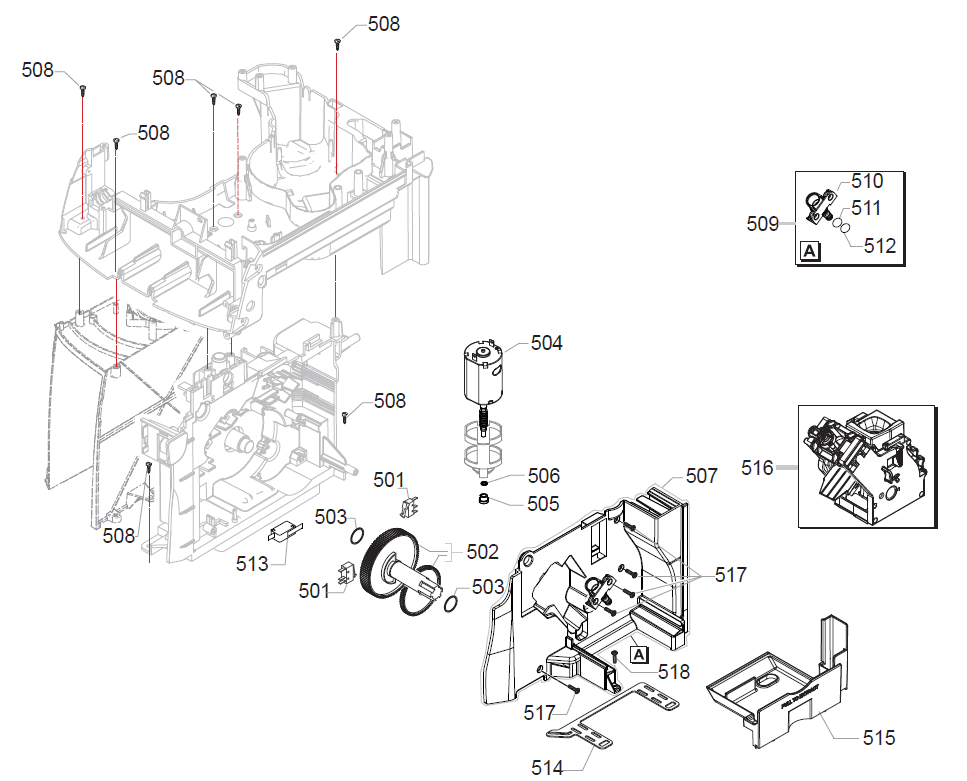

| EG2002-5 | 501 | MICRO+REED+MOTOR BREWUN.V10 NPR UL ASSY
Part Number: 421946046491 |
|||
| EG2002-5 | 502 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 996530009913 |
|||
| EG2002-5 | 503 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 996530050569 |
|||
| EG2002-5 | 504 | MOTOR FOR RATIOMOTOR P124 ASSY.
Part Number: 996530002796 |
|||
| EG2002-5 | 505 | BRONZE SINTERED BUSH FOR MOTOR RATIOMOT.
Part Number: 996530049898 |
|||
| EG2002-5 | 506 | BAKELIZZATE WASHER D=5,5
Part Number: 996530017424 |
|||
| EG2002-5 | 507 | BLK RATIOMOT.MOUNTING PLATE COVER P0057
Part Number: 996530001899 |
|||
| EG2002-5 | 508 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2002-5 | 509 | PIN FOR FLOW SEL.FAUCET V2 PPS P0057 AS
Part Number: 421944060181 |
|||
| EG2002-5 | 510 | PIN FOR FLOW SELECT.FAUCET PPS V2 P0057
Part Number: 421944059371 |
|||
| EG2002-5 | 511 | OR ORM 0090-20 SILICONE
Part Number: 996530059399 |
|||
| EG2002-5 | 512 | OR ORM 0050-20 IN SILICONE
Part Number: 996530059419 |
|||
| EG2002-5 | 513 | DOOR MICROSWITCH V3 NPR UL ASSY.
Part Number: 421946000111 |
|||
| EG2002-5 | 514 | BLACK SEAL FOR RATIOMOTOR PLATE NPR
Part Number: 996530072515 |
|||
| EG2002-5 | 515 | GREY BREW UNIT DRAWER COFFEE NPR
Part Number: 996530068732 |
|||
| EG2002-5 | 516 | GRUP.CAF.8GR.5BAR V2 FTR/B NER.
Part Number: 421944085731 |
|||
| EG2002-5 | 517 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-NI
Part Number: 421944016761 |
|||
| EG2002-5 | 518 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||

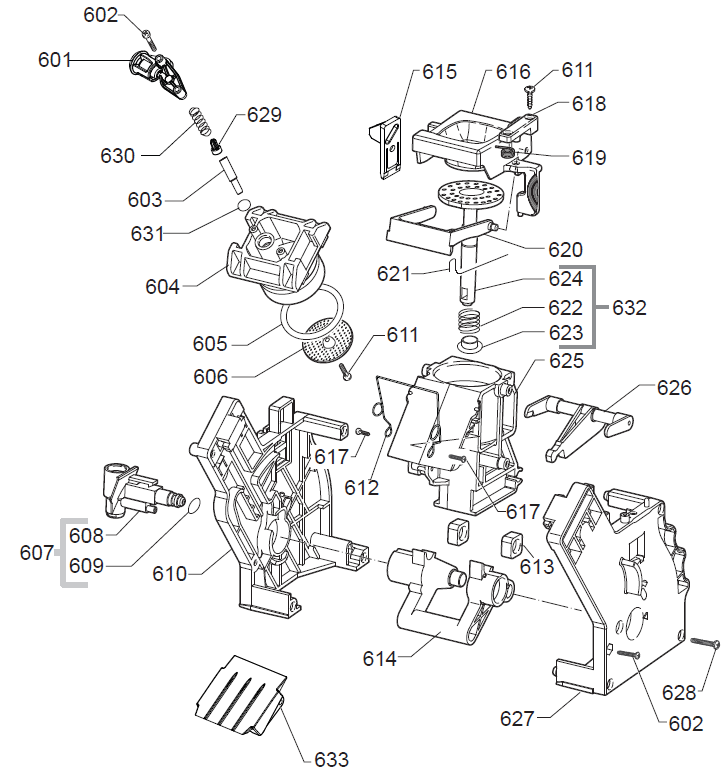

| EG2002-6 | 601 | BLK BREW UNIT COF.OUT.SLEEVE V2 SMR ASSY
Part Number: 421944065222 |
|||
| EG2002-6 | 602 | SCREW TCB TORX 10 3X25 PLAST.SS
Part Number: 996530007838 |
|||
| EG2002-6 | 603 | BLK BREW UN.COUNTER PISTON TUBE V2 S0053
Part Number: 421944079291 |
|||
| EG2002-6 | 604 | BLK BREW UNIT 8GR.COUNTER PISTON V2 P124
Part Number: 421944079991 |
|||
| EG2002-6 | 605 | OR ORM 0320-40 RED SILICONE PTFE/FDA
Part Number: 996530059406 |
|||
| EG2002-6 | 606 | PERCOLATOR DE=35,8 ELFO
Part Number: 996530050709 |
|||
| EG2002-6 | 607 |
|
PARTICULAR NOT AVAILABLE |
$9.99 | View Part |
| EG2002-6 | 608 | BREW UN.WATER INLET SLEEVE V2 SMR
Part Number: 421944050641 |
|||
| EG2002-6 | 609 | OR 2025 NBR FDA
Part Number: 996530059441 |
|||
| EG2002-6 | 610 | BLK BREW UNIT REAR PLATE SMART
Part Number: 996530050832 |
|||
| EG2002-6 | 611 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 |
|||
| EG2002-6 | 612 | SS BREW UNIT SPRING H=49 PK
Part Number: 421944025811 |
|||
| EG2002-6 | 613 | BLK BREW UNIT DRILLED BLOCK
Part Number: 996530050539 |
|||
| EG2002-6 | 614 | YLW BREW UNIT ELBOW SHAFT V2 M5000
Part Number: 421944079201 |
|||
| EG2002-6 | 615 | YLW BREW UNIT COUPLING PLATE V3 SMART
Part Number: 421944046932 |
|||
| EG2002-6 | 616 | BLK BREW UNIT SMART1 HOPPER DOSER
Part Number: 996530018241 |
|||
| EG2002-6 | 617 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 996530013148 |
|||
| EG2002-6 | 618 | BLK BREWUNIT HOPPER BLOCKING PLATE SMART
Part Number: 996530050829 |
|||
| EG2002-6 | 619 | SS BREW UNIT HOPPER SPRING SMART
Part Number: 996530050838 |
|||
| EG2002-6 | 620 | BLK BREW UNIT SCRAPER V2 M5000
Part Number: 421944079261 |
|||
| EG2002-6 | 621 | SS BREW UNIT SCRAPER SPRING
Part Number: 996530050455 |
|||
| EG2002-6 | 622 | SS BREW UNIT 8GR.PISTON SPRING
Part Number: 996530050627 |
|||
| EG2002-6 | 623 | WHT BREW UNIT 8GR.-12GR.PISTON BUSH
Part Number: 996530050618 |
|||
| EG2002-6 | 624 | GRY BREW UNIT INTEGR.PISTON 8GR.V4 ASSY
Part Number: 421944079491 |
|||
| EG2002-6 | 625 | BLK COF.CONTAIN.BREW UNIT V4 M5000 ASSY
Part Number: 421944079431 |
|||
| EG2002-6 | 626 | BLK BREW UNIT 8GR.CONNECTING ROD
Part Number: 996530001452 |
|||
| EG2002-6 | 627 | BLK BREW UNIT FRONT PLATE S/SCR.SMART
Part Number: 996530003228 |
|||
| EG2002-6 | 628 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||
| EG2002-6 | 629 | BREW UNIT VALVE FTR/B
Part Number: 421944081491 |
|||
| EG2002-6 | 630 | SS.CONICAL SPRING
Part Number: 996530050657 |
|||
| EG2002-6 | 631 | OR ORM 0060-10 NBR
Part Number: 996530059489 |
|||
| EG2002-6 | 632 | GRY BREW UNIT 8GR.INT.PISTON GEN.V3 ASSY
Part Number: 421944065811 |
|||
| EG2002-6 | 633 | BLK BREW UNIT CONVEYOR SLIDE L=56,3 V2
Part Number: 421944079341 |
|||
| EG2002-6 | BLK/YLW BREW UNIT 8GR.5BAR V2 FTR/B
Part Number: 421944085731 |
