Gaggia Classic Evo Pro Part Diagram EG1003
This is the Gaggia Classic Evo Pro Parts Diagram EG1003. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please contact us.
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

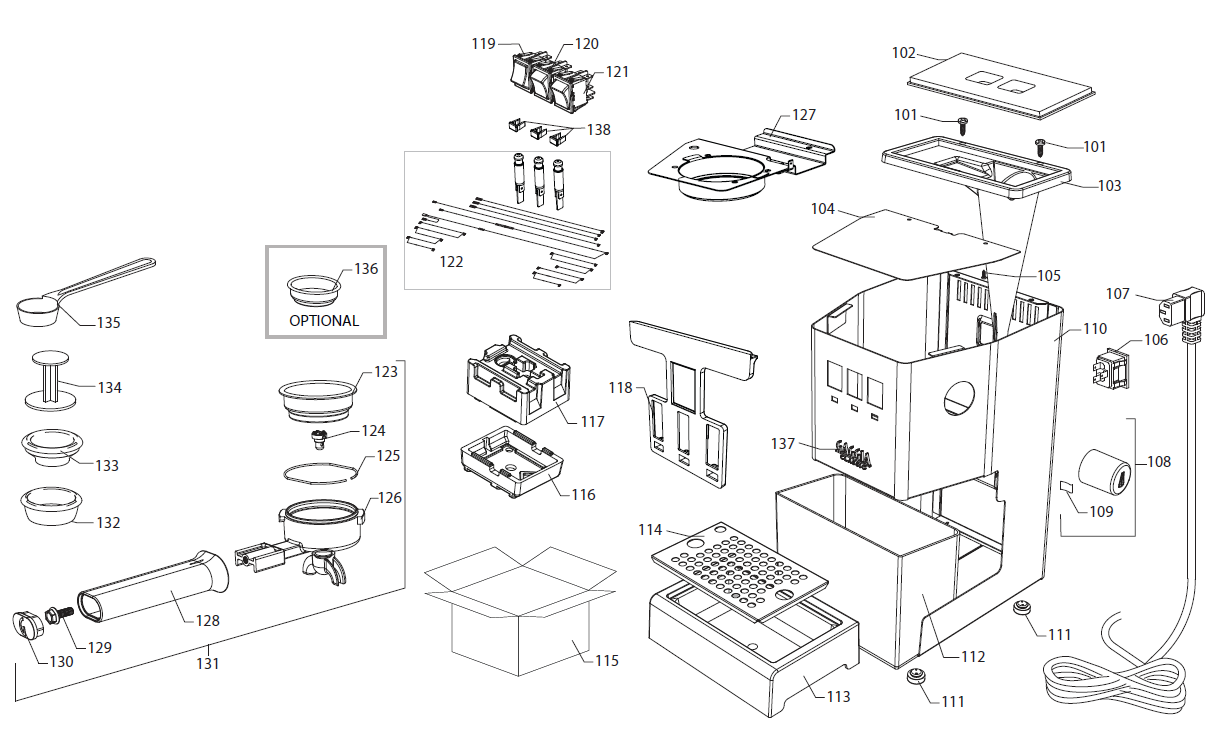

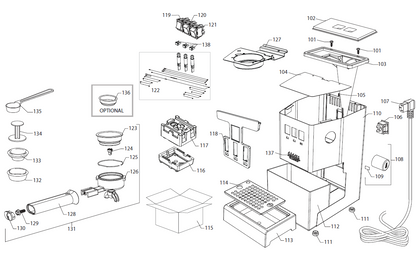

| EG1003-1 | 101 | SCREW TCB 3,5X9,5 DIN 7981 INOX A2
Part Number: 421946504681 |
|||
| EG1003-1 | 102 | LID NEW CLASSIC 2019
Part Number: 421946500141 |
|||
| EG1003-1 | 103 | FUNNEL NEW CLASSIC 2019 Part Number: 421946500171 SKU: 27177 |
$13.44 | View Part | |
| EG1003-1 | 104 |
|
TOP COVER V2 W/O HOLES Part Number: 421944026211 SKU: 27176 |
$18.32 | View Part |
| EG1003-1 | 105 |
|
STAIN STEEL 2,9X6,5THREAD SCRE Part Number: 996530054164 SKU: 20573 |
$5.64 | View Part |
| EG1003-1 | 106 |
|
CUP SOCKET EN 60320 C 13 Part Number: 996530007788 SKU: 20852 Notes: RI9481 |
$10.80 | View Part |
| EG1003-1 | CUP SOCKET V3 EN 60320 C 13 Part Number: 996530072437 SKU: 30527 Notes: RI9380 |
$9.64 | View Part | ||
| EG1003-1 | 107 | BLACK POWER CABLE SCHUKO L=1200MM
Part Number: 996530025808 SKU: 30527 Notes: 230V |
|||
| EG1003-1 | BLK POWER CABLE UK L=1200
Part Number: 996530025882 SKU: 30527 Notes: UK |
||||
| EG1003-1 |
|
BLK POWER CABLE SJT3 USA UL L=1200 Part Number: 996530025843 SKU: 10711 Notes: 120V |
$15.72 | View Part | |
| EG1003-1 | BLK POWER CABLE VCTF JAPPON L=1200
Part Number: 996530009632 SKU: 10711 Notes: 100V |
||||
| EG1003-1 | BLK POWER CABLE AUSTRALIA V3 L=1200
Part Number: 421946041742 SKU: 10711 Notes: AU |
||||
| EG1003-1 | 108 |
|
STEAM KNOB ASSEMBLY Part Number: 996530053249 SKU: 549 |
$17.68 | View Part |
| EG1003-1 | 109 |
|
SS SPRING FOR KNOB TYMER Part Number: 996530054358 SKU: 20946 |
$6.16 | View Part |
| EG1003-1 | 110 | CASING
Part Number: NOT AVAILABLE SKU: 20946 |
|||
| EG1003-1 | 111 |
|
BLACK RUBBER FOOT Part Number: 996530052943 SKU: 7260 |
$6.52 | View Part |
| EG1003-1 | 112 |
|
TRANSPARENT WATER TANK S/SCREEN Part Number: 996530053223 SKU: 7735 |
$31.14 | View Part |
| EG1003-1 | 113 |
|
DRIP TRAY V2 Part Number: 421944088351 SKU: 27039 |
$23.44 | View Part |
| EG1003-1 | 114 |
|
GRID Part Number: 996530053226 SKU: 27040 |
$42.99 | View Part |
| EG1003-1 | 115 | DISPL.BOX FLEXO V4 GAG CLASSIC
Part Number: 421946502571 SKU: 27040 |
|||
| EG1003-1 | 116 | PS-E LOWER INTERNAL PACKING CLASSIC
Part Number: 996530053385 SKU: 27040 |
|||
| EG1003-1 | 117 | PS-E UPPER INTERNAL PACKING CLASSIC
Part Number: NOT AVAILABLE SKU: 27040 |
|||
| EG1003-1 | 118 | COVER FIXING BRACKET V3
Part Number: NOT AVAILABLE SKU: 27040 |
|||
| EG1003-1 | 119 | BLK ON-OFF BUTTON CLASSIC V2 LSB S/SCR.
Part Number: 421944090531 SKU: 27040 Notes: 230V |
|||
| EG1003-1 | BLK ON-OFF BUTTON CLASSIC V2 S/SCR.
Part Number: 421944090521 SKU: 27040 Notes: 100-120-AU |
||||
| EG1003-1 | 120 | BLK COFF.BUTTON CLASSIC V2 S/SCR.
Part Number: 421944090541 SKU: 27040 |
|||
| EG1003-1 | 121 | BLK STEAM BUTTON CLASSIC V2 S/SCR.
Part Number: 421944090551 SKU: 27040 |
|||
| EG1003-1 | 122 | WIRING CLASSIC EVO S.O.230V ASS
Part Number: 421946046263 SKU: 27040 Notes: 230V |
|||
| EG1003-1 | WIRING CLASSIC EVO 100-120V ASS
Part Number: 421946046273 SKU: 27040 Notes: 100-120V |
||||
| EG1003-1 | WIRING CLASSIC EVO 220-230V ASSY
Part Number: 421946046283 SKU: 27040 Notes: AU |
||||
| EG1003-1 | 123 | PERFECT CREMA FILTER D.0,6 MM.
Part Number: 996530004004 SKU: 27040 |
|||
| EG1003-1 | 124 | BLACK TWO WAY PIN
Part Number: 996530036551 SKU: 27040 |
|||
| EG1003-1 | 125 | RETAINING - FILTER SPRING
Part Number: 996530047192 SKU: 27040 |
|||
| EG1003-1 | 126 | SS FILTER HOLDER ASSY
Part Number: 421946507071 SKU: 27040 |
|||
| EG1003-1 | 127 | SS C/PLATE N.CLASSIC ASSY
Part Number: 421946506391 SKU: 27040 |
|||
| EG1003-1 | 128 | KNOB FILTER HOLDER
Part Number: 996530037144 SKU: 27040 |
|||
| EG1003-1 | 129 | GALV.SPECIAL SCREW M6X16
Part Number: 996530063942 SKU: 27040 |
|||
| EG1003-1 | 130 | CHROM. CAP KNOB FILTER HOLDER
Part Number: 421944090761 SKU: 27040 |
|||
| EG1003-1 | 131 | SS FILTER HOLDER/KNOB ASSY
Part Number: 421946510601 SKU: 27040 |
|||
| EG1003-1 | 132 | TWO CUPS FILTER 12/14 GRS.
Part Number: 996530059134 SKU: 27040 |
|||
| EG1003-1 | 133 | 1-CUP FILTER 5.5/6.5 GRS.
Part Number: 996530059133 SKU: 27040 |
|||
| EG1003-1 | 134 | SEPARATOR
Part Number: 996530063423 SKU: 27040 |
|||
| EG1003-1 | 135 | MEASURE
Part Number: 996530063928 SKU: 27040 |
|||
| EG1003-1 | 136 | PERFECT CREMA FILTER
Part Number: 996530006133 SKU: 27040 |
|||
| EG1003-1 | 137 | BLENDE CLASSIC GAGGIA V2
Part Number: NOT AVAILABLE SKU: 27040 |
|||
| EG1003-1 | 138 | RED RECTANGULAR LENS CLASSIC V2
Part Number: 421944091431 SKU: 27040 |
|||

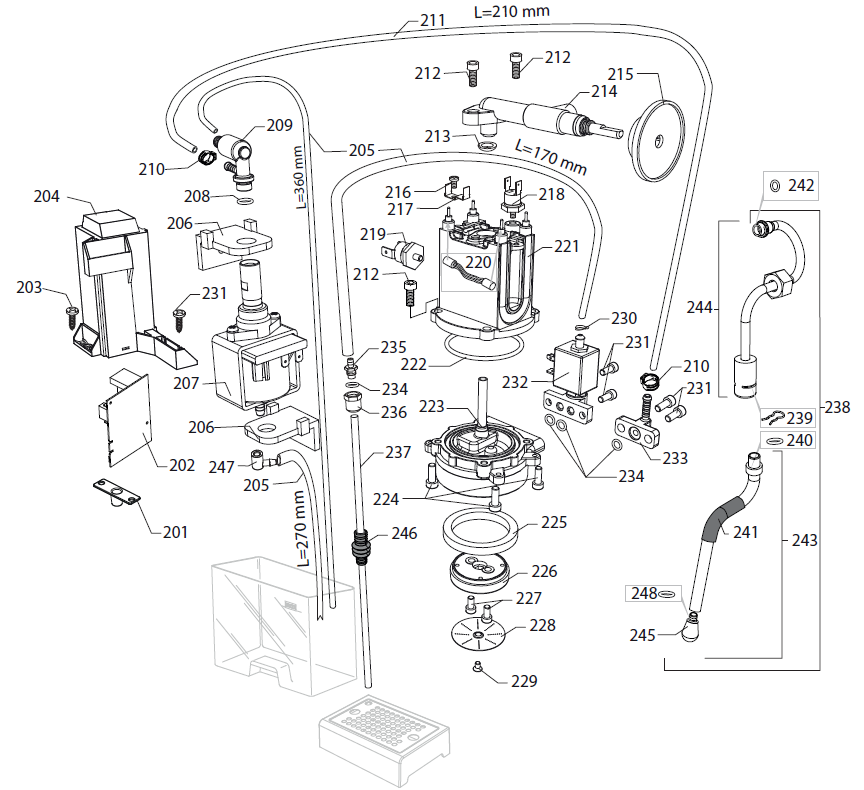

| EG1003-2 | 201 | PUMP-CPU/PWR BOARD SUPP.CAP CLASSIC SO
Part Number: 421944026351 SKU: 27040 Notes: RI9481 |
|||
| EG1003-2 | 202 | CPU+SW ECO-SWITCH RELE 20MIN 230V ASSY
Part Number: 421941312261 SKU: 27040 Notes: 230V-UK only |
|||
| EG1003-2 | 203 | SELF-T.SCREWS 3.5X9.5 NICKEL-PLATED
Part Number: 996530054154 SKU: 27040 |
|||
| EG1003-2 | 204 | PU/CPU/PWR.SUPP.V2 CLASSIC
Part Number: 421946507981 SKU: 27040 |
|||
| EG1003-2 | 205 | TRANSP.SILICONE TUBE 5X9 65SH
Part Number: 996530018281 SKU: 27040 |
|||
| EG1003-2 | 206 | BLACK PUMP SUPPORT TYPE ULKA
Part Number: 996530017711 SKU: 27040 |
|||
| EG1003-2 | 207 | ULKA PUMP EP5FMGW 230V-50HZ
Part Number: 421941305991 SKU: 27040 Notes: RI9481 |
|||
| EG1003-2 | ULKA PUMP EFP5/S 120V-60HZ
Part Number: 421944081531 SKU: 27040 Notes: 120V |
||||
| EG1003-2 | ULKA PUMP EP5/S GW 100V-50/60HZ
Part Number: 996530007749 SKU: 27040 Notes: 100V |
||||
| EG1003-2 | 208 | O-RING 2031 TERMOIL
Part Number: 996530013471 SKU: 27040 |
|||
| EG1003-2 | 209 | L-F/BR.SAFETY VALVE 11 BAR ASSY.
Part Number: 421944028581 SKU: 27040 |
|||
| EG1003-2 | L-F/BR.SAFE.VALVE 8 BAR ASSY
Part Number: 642001000692 SKU: 27040 Notes: 120V only |
||||
| EG1003-2 | 210 | OETIKER CLAMP D EQUALS 9 5 15400022
Part Number: 996530007742 SKU: 27040 |
|||
| EG1003-2 | 211 | PINK 5X8,9 SILICONE TUBE
Part Number: 996530009505 SKU: 27040 |
|||
| EG1003-2 | 212 | 6X16 GALV. SCREW
Part Number: 996530062189 SKU: 27040 |
|||
| EG1003-2 | 213 | O-RING 112 IN EPDM 70SH
Part Number: 996530054245 SKU: 27040 |
|||
| EG1003-2 | 214 | BRASS 57 TM4 FAUCET ASSY.
Part Number: 421946500241 SKU: 27040 |
|||
| EG1003-2 | 215 | PROTECTION
Part Number: 996530052926 SKU: 27040 |
|||
| EG1003-2 | 216 | SCREW M 4X5 GALV.W/KNURLED HEAD
Part Number: 996530055023 SKU: 27040 |
|||
| EG1003-2 | 217 | BRACKET FOR THERMOFUSE
Part Number: 996530056298 SKU: 27040 |
|||
| EG1003-2 | 218 | THERMOSTAT 145C M4X0.7 PLASTIC CASE
Part Number: 421946504771 SKU: 27040 Notes: RI9481 |
|||
| EG1003-2 | STEAM TEMPERATURE SWITCH
Part Number: 996530054612 SKU: 27040 Notes: RI9380 |
||||
| EG1003-2 | 219 | THERMOSTAT 107C M4X0.7 PLASTIC CASE
Part Number: 421946504761 SKU: 27040 Notes: RI9481 |
|||
| EG1003-2 | COFFEE TEMPERATURE SWITCH
Part Number: 996530054556 SKU: 27040 Notes: RI9380 |
||||
| EG1003-2 | 220 | CAB. 1 WIRE SILIC. GREY 70MM
Part Number: 421946046321 SKU: 27040 Notes: RI9481 |
|||
| EG1003-2 | 221 | COATED ALU.BOILER ASSY
Part Number: 421946509241 SKU: 27040 Notes: only Jap |
|||
| EG1003-2 | COATED AL.BOILER 100V C.EVO ASSY
Part Number: 421946510621 SKU: 27040 Notes: only Jap |
||||
| EG1003-2 | 222 | O-RING 167 IN EPDM 70SH
Part Number: 996530054246 SKU: 27040 |
|||
| EG1003-2 | 223 | CW510L GROUP BODY + DIP TUBE TG
Part Number: 421946510051 SKU: 27040 |
|||
| EG1003-2 | 224 | 5X12 S.S. SCREW
Part Number: 996530062179 SKU: 27040 |
|||
| EG1003-2 | 225 | FILTER HOLDER SILICONE GASKET
Part Number: 421946504641 SKU: 27040 |
|||
| EG1003-2 | 226 | AISI SHOWER HOLDER
Part Number: 421946502701 SKU: 27040 |
|||
| EG1003-2 | 227 | 6X12 S.S. SCREW
Part Number: 996530062187 SKU: 27040 |
|||
| EG1003-2 | 228 | SHOWER
Part Number: 996530054322 SKU: 27040 |
|||
| EG1003-2 | 229 | SCREW TSP M5X8 UNI 7688 DIN 965 INOX
Part Number: 996530054229 SKU: 27040 |
|||
| EG1003-2 | 230 | TUBE-TIGHTENING CLAMP D=9.8/10.6
Part Number: 996530059832 SKU: 27040 |
|||
| EG1003-2 | 231 | 5X12 GALV. SCREW
Part Number: 996530062182 SKU: 27040 |
|||
| EG1003-2 | 232 | BRASS 57 SOLENOID VALVE V2 230V 50HZ
Part Number: 421944093701 SKU: 27040 Notes: 230V-UK-AU |
|||
| EG1003-2 | BRASS 57 SOLENOID VALVE V2 120V 60HZ
Part Number: 421944093711 SKU: 27040 Notes: 120V |
||||
| EG1003-2 | 3 WAY SOLENOID VALVE 100V 50-60HZ
Part Number: 421946046651 SKU: 27040 Notes: Jap |
||||
| EG1003-2 | 233 | BRASS 57 INLET CONNECTOR
Part Number: 421944093241 SKU: 27040 |
|||
| EG1003-2 | 234 | Gasket OR 2025
Part Number: 996530063887 SKU: 27040 |
|||
| EG1003-2 | 235 | OUTLET FITTING - RUBBER
Part Number: 996530053238 SKU: 27040 |
|||
| EG1003-2 | 236 | NUT FOR OUTLET FITTING
Part Number: 996530053239 SKU: 27040 |
|||
| EG1003-2 | 237 | OUTLET TUBING
Part Number: 996530053235 SKU: 27040 |
|||
| EG1003-2 | 238 | STEAM UPP /LOW TUBE ASSY.
Part Number: 421944090571 SKU: 27040 |
|||
| EG1003-2 | 239 | FORK SPRING FOR VALVE P0049
Part Number: 996530002744 SKU: 27040 |
|||
| EG1003-2 | 240 | OR ORM 0080-20 IN SILICONE PTFE FDA
Part Number: 996530013445 SKU: 27040 |
|||
| EG1003-2 | 241 | RUBBER BURN BLOCKS 8X40
Part Number: 421944091401 SKU: 27040 |
|||
| EG1003-2 | 242 | OR 2018 IN VITON 70SH
Part Number: 996530063888 SKU: 27040 |
|||
| EG1003-2 | 243 | AISI STEAM LOWER TUBE ASSY V2
Part Number: 421944090582 SKU: 27040 |
|||
| EG1003-2 | 244 | STEAM UPPER TUBE ASSY.
Part Number: 421944088631 SKU: 27040 |
|||
| EG1003-2 | 245 | 2 HOLE STEAM SPRAYER
Part Number: 421944091411 SKU: 27040 |
|||
| EG1003-2 | 246 | RUBBER BURN BLOCKS 6X32
Part Number: 421944093511 SKU: 27040 |
|||
| EG1003-2 | 247 | 90 INLET CONNECTOR PUMP
Part Number: 996530017348 SKU: 27040 |
|||
| EG1003-2 | 248 | OR D = 5x1,2 MM SILICONE FDA
Part Number: 421946504621 SKU: 27040 |
