Gaggia Magenta Plus Part Diagram EG2004
This is the Gaggia Magenta Plus Parts Diagram EG2004. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

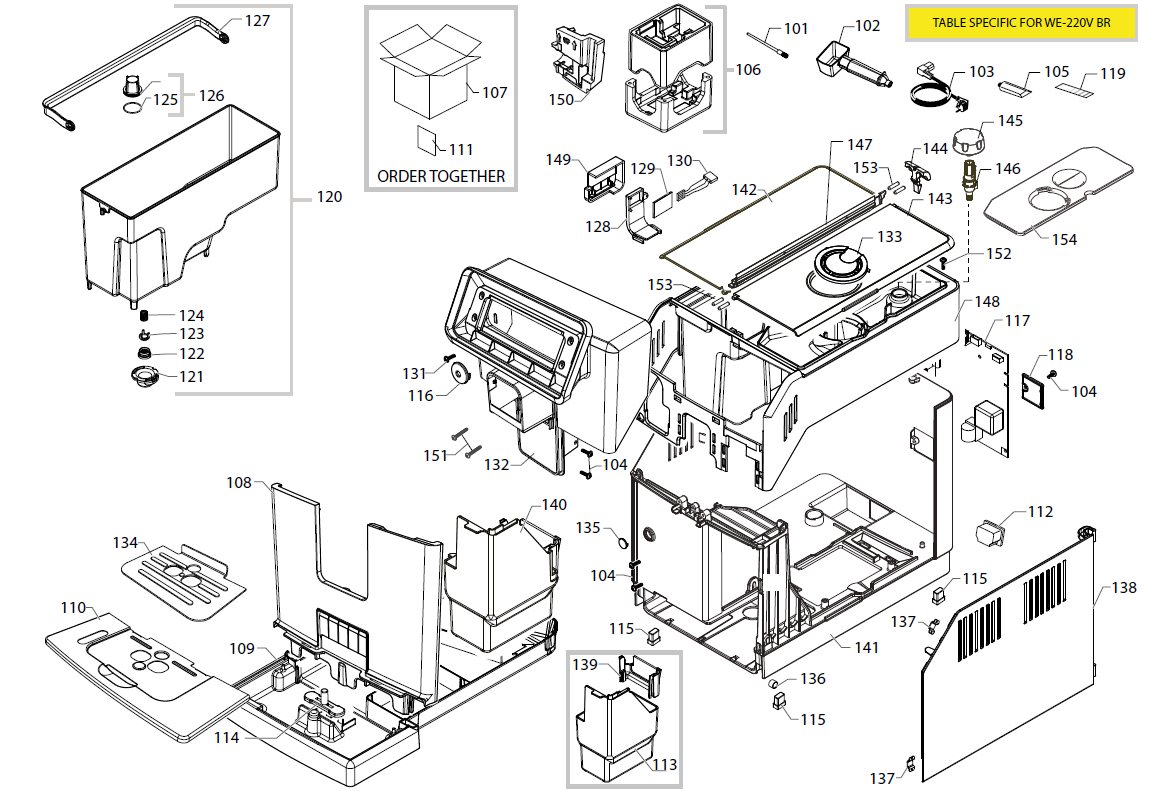

| EG2004-1A | 101 |
|
BRUSH FOR CLEANING Part Number: 996530011867 |
$6.55 | View Part |
| EG2004-1A | 102 |
|
BLK ABS COFFEE MEASURE SMART Part Number: 421944033301 |
$8.16 | View Part |
| EG2004-1A | 103 | BLK POWER CABLE SCHUKO L=1200
Part Number: 996530025808 |
|||
| EG2004-1A | BLK POWER CABLE BRAZIL L=1200
Part Number: 996530009627 Notes: RI8700/42-RI8701/42 |
||||
| EG2004-1A | 104 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 996530013156 |
|||
| EG2004-1A | 105 |
|
KLUBERLUB NH1 11-222 TUBE 5GR. Part Number: 421946017941 |
$9.99 | View Part |
| EG2004-1A | 106 | KIT PS-E INSERT FOR BOX MAGENTA
Part Number: 421946504081 |
|||
| EG2004-1A | 107 | DISPL.BOX FLEX NEUTRAL GAG.ANIMA
Part Number: 421946500541 |
|||
| EG2004-1A | 108 |
|
BLK DRIP TRAY INSERT MAG Part Number: 421946501371 |
$16.76 | View Part |
| EG2004-1A | 109 | G/BLK DRIP TRAY MAG ASSY
Part Number: 421946504151 |
|||
| EG2004-1A | 110 | SS GRATE FOR DRIP TRAY MAG. Part Number: 421946500941 |
$34.49 | View Part | |
| EG2004-1A | 111 | GAG.MAGENTA BOX A5 STICKER
Part Number: 421946502361 |
|||
| EG2004-1A | 112 |
|
CUP SOCKET EN 60320 C 13 Part Number: 996530007788 Notes: 230V |
$10.80 | View Part |
| EG2004-1A | 113 |
|
BLK DUMP BOX V2 SMRG Part Number: 421944067551 |
$18.84 | View Part |
| EG2004-1A | 114 |
|
RED/3003 FLOAT FOR DRIP TRAY XSM Part Number: 421941304791 |
$5.51 | View Part |
| EG2004-1A | 115 | TRANSP.SILICONE FOOT SMR
Part Number: 996530073468 |
|||
| EG2004-1A | 116 | FRONT PANEL CAP SIL/B MAG.
Part Number: 421946501391 |
|||
| EG2004-1A | 117 | MAIN+SW MAG. ASSY
Part Number: 421946503131 Notes: WE-HK-220VBR-KR |
|||
| EG2004-1A | 118 | M/BLK REAR CASING PROGRAM.INSERT NPR Part Number: 996530068728 |
$6.52 | View Part | |
| EG2004-1A | 119 | STICKER FOR WATER HARDNESS TEST
Part Number: 996530039604 |
|||
| EG2004-1A | 120 | NAT/GRY WATER CONTAINER SMR V2 ASSY.
Part Number: 421944093681 |
|||
| EG2004-1A | 121 | BLK LID FOR DUCKBILL VALVE SMR
Part Number: 996530073463 |
|||
| EG2004-1A | 122 | BLK.VALVE FOR WATER CONTAINER P0049
Part Number: 996530001829 |
|||
| EG2004-1A | 123 | GRY WATER CONTAINER VALVE INSERT P0049
Part Number: 421941157852 |
|||
| EG2004-1A | 124 | SS SPRING FOR WATER CONTAIN. VALVE P0049
Part Number: 996530001831 |
|||
| EG2004-1A | 125 | OR ORM 0190-10 EPDM
Part Number: 996530013571 |
|||
| EG2004-1A | 126 | WHT WATER CONTAINER EXT.FILTER ASSY
Part Number: 996530029115 |
|||
| EG2004-1A | 127 | TRASP. WATER CONTAINER HANDLE SMR V2
Part Number: 421944093611 |
|||
| EG2004-1A | 128 | BLK WATER LEVEL SENSOR SUPPORT SMR
Part Number: 996530073436 |
|||
| EG2004-1A | 129 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
| EG2004-1A | 130 | 3P.CONN.WATER LEVEL V2 SMR UL ASSY
Part Number: 421946035161 |
|||
| EG2004-1A | 131 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2004-1A | 132 | BLK FRONT PANEL MAG. CMF ASSY
Part Number: 421946501361 |
|||
| EG2004-1A | 133 | TRANSP/GRY GROUND COF.HOPPER LID SMRA
Part Number: 421944040481 |
|||
| EG2004-1A | 134 | SS GRATE FOR ESPRESSO MAG.
Part Number: 421946500961 |
|||
| EG2004-1A | 135 | BLK INFRAREDS PLATE RYL
Part Number: 996530073462 |
|||
| EG2004-1A | 136 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 996530050555 |
|||
| EG2004-1A | 137 | STEEL PLATE FOR DOOR MAGNET XSM
Part Number: 996530069857 |
|||
| EG2004-1A | 138 | M/BLK RIGHT SIDE DOOR SMR
Part Number: 421945007701 |
|||
| EG2004-1A | 139 | BLK DUMP BOX INSERT V3 NPR
Part Number: 421944063132 |
|||
| EG2004-1A | 140 | KIT BLK D.BOX V2 SMRG + D.BOX INS.V2 NPR
Part Number: 421941309971 |
|||
| EG2004-1A | 141 | M/BLK CASING V3 SMRG ASSY
Part Number: 421944063681 |
|||
| EG2004-1A | 142 | M/BLK WATER CONTAINER LID V3 SMRG/P
Part Number: 421944069061 Notes: WE-220VBR |
|||
| EG2004-1A | 143 | M/BLK BEAN COF.CONT.LID V3 SMRG/P
Part Number: 421944069051 Notes: WE-220VBR |
|||
| EG2004-1A | 144 | BLK REAR LID FIXING INSERT V4 SMRG
Part Number: 421944086131 Notes: WE-220VBR |
|||
| EG2004-1A | 145 | BLK GRIND.ADJUST.KNOB 5 POS. SMR
Part Number: 421944075131 Notes: WE-220VBR |
|||
| EG2004-1A | 146 | BLW BEAN COFFEE GRINDER INSERT V2 SMR
Part Number: 421944052341 Notes: WE-220VBR |
|||
| EG2004-1A | 147 | BLK SEAL CONT.LIDS V2 SMRG
Part Number: 421944072821 Notes: WE-220VBR |
|||
| EG2004-1A | 148 | BLK UPP.CASING COV.V3 SMRG
Part Number: 421944094571 Notes: WE-220VBR |
|||
| EG2004-1A | 149 | GRY WATER LEVEL SENSOR COVER SMR
Part Number: 421944006871 |
|||
| EG2004-1A | 150 | PS-E GLASS INSERT FOR BOX GAG. MAG.
Part Number: 421946503231 Notes: SUP051P |
|||
| EG2004-1A | 151 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||
| EG2004-1A | 152 | SCREW TCBR TORX 10 3,5X12 PLAST.SS
Part Number: 996530070321 |
|||
| EG2004-1A | 153 | SS CYL.PIN D=3.4 L=15.3
Part Number: 421944061701 |
|||
| EG2004-1A | 154 | TR.INN.BEAN COF.C.LID W/SEAL S/SC.V2 SMR
Part Number: 421944070662 |
|||

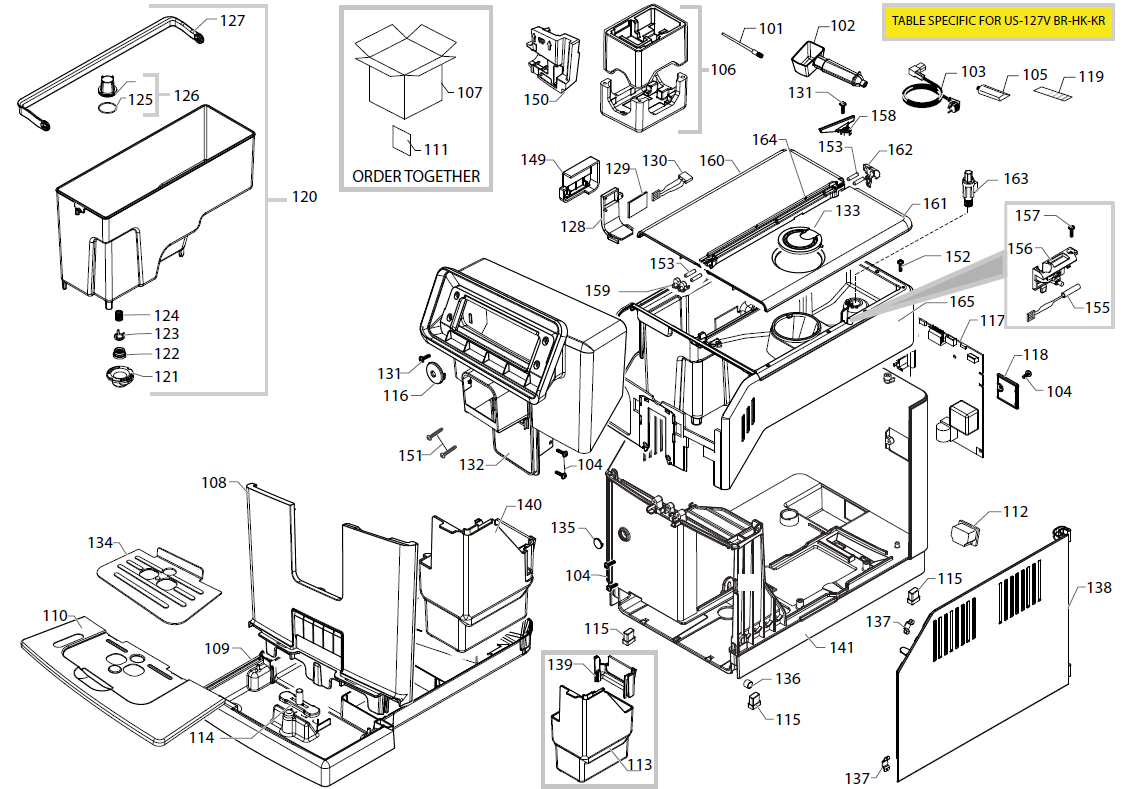

| EG2004-1B | 101 |
|
BRUSH FOR CLEANING Part Number: 996530011867 |
$6.55 | View Part |
| EG2004-1B | 102 |
|
BLK ABS COFFEE MEASURE SMART Part Number: 421944033301 |
$8.16 | View Part |
| EG2004-1B | 103 | BLK POWER CABLE SCHUKO L=1200
Part Number: 996530025808 |
|||
| EG2004-1B | BLK POWER CABLE SJT3 USA UL L=1200
Part Number: 996530025843 |
||||
| EG2004-1B | BLK POWER CABLE KOREA L=1200
Part Number: 996530001089 |
||||
| EG2004-1B | BLK POWER CABLE BRAZIL L=1200
Part Number: 996530069926 Notes: RI8700/41-RI8701/41 |
||||
| EG2004-1B | 104 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 996530013156 |
|||
| EG2004-1B | 105 |
|
KLUBERLUB NH1 11-222 TUBE 5GR. Part Number: 421946017941 |
$9.99 | View Part |
| EG2004-1B | 106 | KIT PS-E INSERT FOR BOX MAGENTA
Part Number: 421946504081 |
|||
| EG2004-1B | 107 | DISPL.BOX FLEX NEUTRAL GAG.ANIMA
Part Number: 421946500541 |
|||
| EG2004-1B | 108 |
|
BLK DRIP TRAY INSERT MAG Part Number: 421946501371 |
$16.76 | View Part |
| EG2004-1B | 109 | G/BLK DRIP TRAY MAG ASSY
Part Number: 421946504151 |
|||
| EG2004-1B | 110 | SS GRATE FOR DRIP TRAY MAG. Part Number: 421946500941 |
$34.49 | View Part | |
| EG2004-1B | 111 | GAG.MAGENTA BOX A5 STICKER
Part Number: 421946502361 |
|||
| EG2004-1B | 112 |
|
CUP SOCKET EN 60320 C 13 Part Number: 996530007788 Notes: 230V |
$10.80 | View Part |
| EG2004-1B | 113 |
|
BLK DUMP BOX V2 SMRG Part Number: 421944067551 |
$18.84 | View Part |
| EG2004-1B | 114 |
|
RED/3003 FLOAT FOR DRIP TRAY XSM Part Number: 421941304791 |
$5.51 | View Part |
| EG2004-1B | 115 | TRANSP.SILICONE FOOT SMR
Part Number: 996530073468 |
|||
| EG2004-1B | 116 | FRONT PANEL CAP SIL/B MAG.
Part Number: 421946501391 |
|||
| EG2004-1B | 117 | MAIN+SW MAG. ASSY
Part Number: 421946503131 Notes: WE-HK-220VBR-KR |
|||
| EG2004-1B | MAIN+SW MAG. ASSY
Part Number: 421946503151 Notes: US-1207VBR |
||||
| EG2004-1B | 118 | M/BLK REAR CASING PROGRAM.INSERT NPR Part Number: 996530068728 |
$6.52 | View Part | |
| EG2004-1B | 119 | STICKER FOR WATER HARDNESS TEST
Part Number: 996530039604 |
|||
| EG2004-1B | 120 | NAT/GRY WATER CONTAINER SMR V2 ASSY.
Part Number: 421944093681 |
|||
| EG2004-1B | 121 | BLK LID FOR DUCKBILL VALVE SMR
Part Number: 996530073463 |
|||
| EG2004-1B | 122 | BLK.VALVE FOR WATER CONTAINER P0049
Part Number: 996530001829 |
|||
| EG2004-1B | 123 | GRY WATER CONTAINER VALVE INSERT P0049
Part Number: 421941157852 |
|||
| EG2004-1B | 124 | SS SPRING FOR WATER CONTAIN. VALVE P0049
Part Number: 996530001831 |
|||
| EG2004-1B | 125 | OR ORM 0190-10 EPDM
Part Number: 996530013571 |
|||
| EG2004-1B | 126 | WHT WATER CONTAINER EXT.FILTER ASSY
Part Number: 996530029115 |
|||
| EG2004-1B | 127 | TRASP. WATER CONTAINER HANDLE SMR V2
Part Number: 421944093611 |
|||
| EG2004-1B | 128 | BLK WATER LEVEL SENSOR SUPPORT SMR
Part Number: 996530073436 |
|||
| EG2004-1B | 129 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
| EG2004-1B | 130 | 3P.CONN.WATER LEVEL V2 SMR UL ASSY
Part Number: 421946035161 |
|||
| EG2004-1B | 131 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2004-1B | 132 | BLK FRONT PANEL MAG. CMF ASSY
Part Number: 421946501361 |
|||
| EG2004-1B | 133 | TRANSP/GRY GROUND COF.HOPPER LID SMRA
Part Number: 421944040481 |
|||
| EG2004-1B | 134 | SS GRATE FOR ESPRESSO MAG.
Part Number: 421946500961 |
|||
| EG2004-1B | 135 | BLK INFRAREDS PLATE RYL
Part Number: 996530073462 |
|||
| EG2004-1B | 136 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 996530050555 |
|||
| EG2004-1B | 137 | STEEL PLATE FOR DOOR MAGNET XSM
Part Number: 996530069857 |
|||
| EG2004-1B | 138 | M/BLK RIGHT SIDE DOOR SMR
Part Number: 421945007701 |
|||
| EG2004-1B | 139 | BLK DUMP BOX INSERT V3 NPR
Part Number: 421944063132 |
|||
| EG2004-1B | 140 | KIT BLK D.BOX V2 SMRG + D.BOX INS.V2 NPR
Part Number: 421941309971 |
|||
| EG2004-1B | 141 | M/BLK CASING V3 SMRG ASSY
Part Number: 421944063681 |
|||
| EG2004-1B | 143 | M/BLK BEAN COF.CONT.LID V3 SMRG/P
Part Number: 421944069051 Notes: WE-220VBR |
|||
| EG2004-1B | 149 | GRY WATER LEVEL SENSOR COVER SMR
Part Number: 421944006871 |
|||
| EG2004-1B | 150 | PS-E GLASS INSERT FOR BOX GAG. MAG.
Part Number: 421946503231 Notes: SUP051P |
|||
| EG2004-1B | 151 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||
| EG2004-1B | 152 | SCREW TCBR TORX 10 3,5X12 PLAST.SS
Part Number: 996530070321 |
|||
| EG2004-1B | 153 | SS CYL.PIN D=3.4 L=15.3
Part Number: 421944061701 |
|||
| EG2004-1B | 155 | 2P.CONN.SENS.REED DUMP BOX CST UL ASSY.
Part Number: 996530073661 Notes: US-127V BR |
|||
| EG2004-1B | 156 | BLK REED SUPPORT SMR
Part Number: 421944009411 Notes: US-127V BR |
|||
| EG2004-1B | 157 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 Notes: US-127V BR |
|||
| EG2004-1B | 158 | BLK CONT.SEP.INSERT SMR
Part Number: 421944040451 Notes: US-127VBR-HK-KR |
|||
| EG2004-1B | 159 | DEEP/BLK FRONT LID FIXING INSERT V3 SMRG
Part Number: 421944085591 Notes: US-127VBR-HK-KR |
|||
| EG2004-1B | 160 | DEEP/BLK WATER CONTAINER LID V2 SMRG/P
Part Number: 421944036032 Notes: US-127VBR-HK-KR |
|||
| EG2004-1B | 161 | BLK BEAN COF.CONT.LID V4 SMRG/P-H ASSY
Part Number: 421944052853 Notes: US-127VBR |
|||
| EG2004-1B | DEEP/BLK BEAN COF.CONT.LID V3 SMRG/P
Part Number: 421944035973 Notes: KR-HK |
||||
| EG2004-1B | 162 | DEEP/BLK REAR LID FIXING INSERT V3 SMRG
Part Number: 421944085291 Notes: US-127VBR-HK-KR |
|||
| EG2004-1B | 163 | YLW BEAN COFFEE GRINDER INSERT SMR
Part Number: 421944025161 Notes: US-127VBR-HK-KR |
|||
| EG2004-1B | 164 | BLK SEAL CONT.LIDS SMRG
Part Number: 421944067621 Notes: US-127VBR-HK-KR |
|||
| EG2004-1B | 165 | BLK UPP.CASING COV.W/SENS.SMRG
Part Number: 421944059171 Notes: US-127V BR |
|||
| EG2004-1B | 165 | BLK UPP.CASING COV.SMRG
Part Number: 421944033071 Notes: HK-KR |
|||

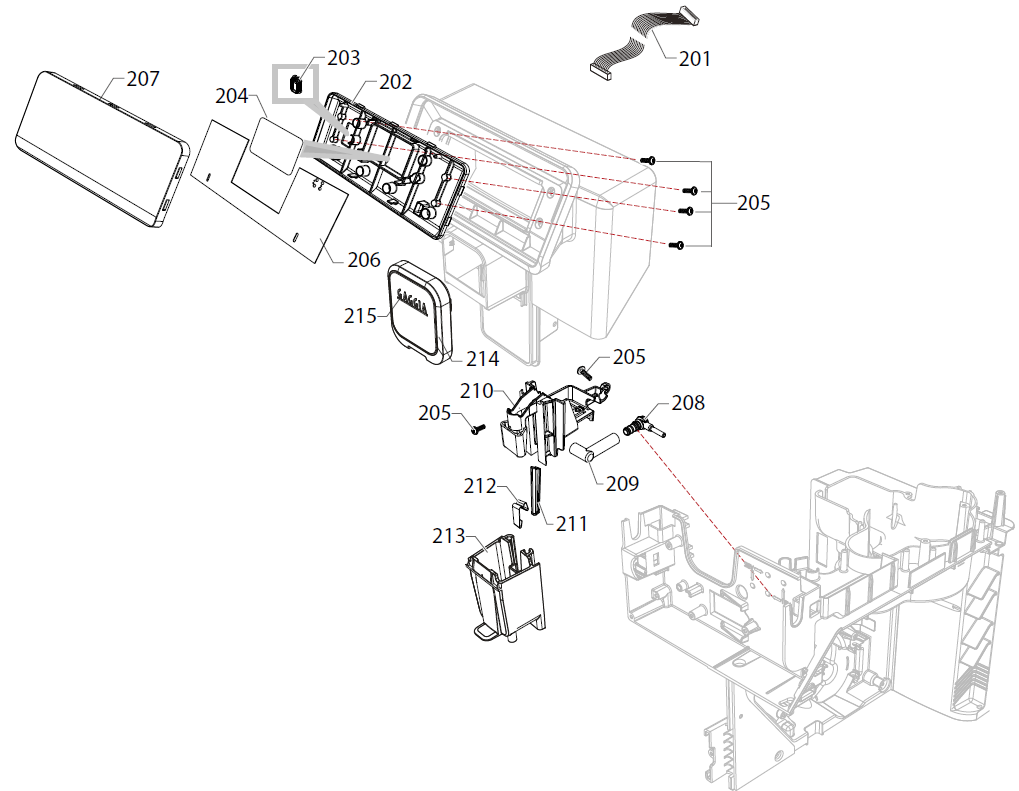

| EG2004-2 | 201 | 10P.FLAT CABLE CPU-UI FTR UL
Part Number: 421946034791 |
|||
| EG2004-2 | 202 | DISPLAY SUPPORT MAG.
Part Number: 421946501171 |
|||
| EG2004-2 | 203 | YLW WIRING GUIDE SEAL V2 CST/BT
Part Number: 421944025962 |
|||
| EG2004-2 | 204 | DISPLAY TFT 2.4 IPS
Part Number: 421945012661 |
|||
| EG2004-2 | 205 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2004-2 | 206 | UI HW+SW MAGENTA PLUS ASSY
Part Number: 421946502461 Notes: SUP051-SUP051W 230V |
|||
| EG2004-2 | UI HW+SW MAGENTA MILK ASSY
Part Number: 421946500761 Notes: SUP051P 230V |
||||
| EG2004-2 | UI HW+SW MAGENTA PLUS ASSY
Part Number: 421946502892 Notes: SUP051-SUP051W 120V |
||||
| EG2004-2 | UI HW+SW MAGENTA MILK ASSY
Part Number: 421946502912 Notes: SUP051P 120V |
||||
| EG2004-2 | UI HW+SW MAGENTA PLUS ASSY
Part Number: 421945031041 Notes: SUP051-SUP051W 220V |
||||
| EG2004-2 | UI HW+SW MAGENTA MILK ASSY
Part Number: 421945031051 Notes: SUP051P 220V |
||||
| EG2004-2 | 207 | BLK FRAME FRONT SUPPORT S/SCR MAG.
Part Number: 421946501211 |
|||
| EG2004-2 | 208 | BLK BREW UN.COFFEE OUTLET CONNECT.V2 SMR
Part Number: 421944079401 |
|||
| EG2004-2 | 209 | TRASP.SIL.COFFEE DISPENSER TUBE SMR
Part Number: 421944065131 |
|||
| EG2004-2 | 210 | COFF. DISP_. BODY V5 SMRG
Part Number: 421945013131 |
|||
| EG2004-2 | 211 | INSERT BODY SPOUT
Part Number: 421944090141 |
|||
| EG2004-2 | 212 | SPRING SPOUT SMRG
Part Number: 421944078761 |
|||
| EG2004-2 | 213 | BLK COF.DISPEN.MOBILE PART MAG.
Part Number: 421946501221 |
|||
| EG2004-2 | 214 | CHROM COFF.DISPENSER FRONT INSERT MAG.
Part Number: 421946501261 Notes: Together pos.215 |
|||
| EG2004-2 | 215 | MAGENTA ADHESIVE LOGO
Part Number: 421946502071 Notes: Together pos.214 |
|||

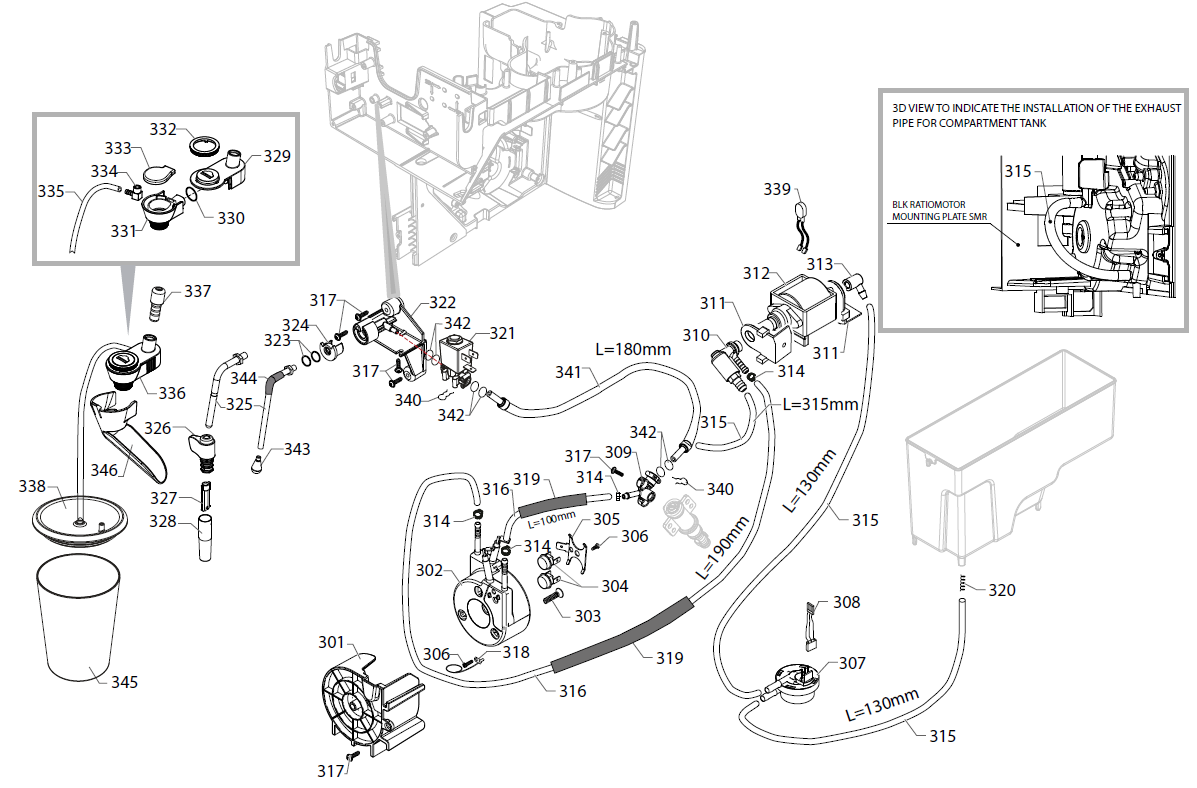

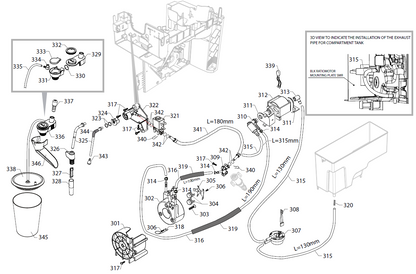

| EG2004-3 | 301 | BLK SLIM TUB.BOILER SUPPORT V2 SMR
Part Number: 421944040831 |
|||
| EG2004-3 | 302 | TUB.BOILER XS4 ASSY.
Part Number: 421944028841 Notes: 220-230V |
|||
| EG2004-3 | TUB.BOILER XS4 ASSY.
Part Number: 421944046121 Notes: 120-127V |
||||
| EG2004-3 | 303 | SCREW TSP TORX 10 5X20 PLAST.ZN-B
Part Number: 996530008024 |
|||
| EG2004-3 | 304 | THERMOSTAT OPEN/CLOSE 190/-35DEGC B
Part Number: 262279998757 |
|||
| EG2004-3 | 305 | TUB.BOILER V3 UPPER THERM.FIXING SPRING
Part Number: 996530000997 |
|||
| EG2004-3 | 306 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 996530069758 |
|||
| EG2004-3 | 307 | TURBINE D=1,2 932-9521/B ASSY.
Part Number: 996530059843 |
|||
| EG2004-3 | 308 | 3P.CONN.FLOWMETER SMR UL ASSY.
Part Number: 996530073488 |
|||
| EG2004-3 | 309 | FAST CONNECTOR FOR PIN BOILER MAG.
Part Number: 421946500921 |
|||
| EG2004-3 | 310 | L-F/BR.SAFETY VALVE 16-18 BAR ASSY.
Part Number: 996530068178 |
|||
| EG2004-3 | 311 | BLACK PUMP SUPPORT TYPE ULKA
Part Number: 996530018056 |
|||
| EG2004-3 | 312 | ULKA PUMP EP5/S GW
Part Number: 996530007753 Notes: 230V |
|||
| EG2004-3 | ULKA PUMP EFP5/S
Part Number: 421944081531 Notes: 120-127V |
||||
| EG2004-3 | ULKA PUMP EP5 S GW
Part Number: 996530007782 Notes: 220V |
||||
| EG2004-3 | 313 | 90 INLET CONNECTOR PUMP
Part Number: 996530017348 |
|||
| EG2004-3 | 314 | OETIKER CLAMP D=9,5 15400022
Part Number: 996530007742 |
|||
| EG2004-3 | 315 | S/TUBE 5X10 60SH
Part Number: 996530002093 |
|||
| EG2004-3 | 316 | PINK 5X8,9 SILICONE TUBE IN ROLL
Part Number: 996530009505 |
|||
| EG2004-3 | 317 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2004-3 | 318 | TEMPERATURE SENSOR NTC UL L=550MM
Part Number: 996530073428 |
|||
| EG2004-3 | 319 | TRANSPAR.10,5X12,3 SILICONE TUBE IN ROLL
Part Number: 996530009523 |
|||
| EG2004-3 | 320 | SPRING FOR TUBE PRODUCT 1
Part Number: 996530073439 |
|||
| EG2004-3 | 321 | 2WAY PLASTIC VALVE D2 24V R2A
Part Number: 421944090341 |
|||
| EG2004-3 | 322 | STEAM PIPE VALVE SUPPORT MAG.
Part Number: 421946500931 |
|||
| EG2004-3 | 323 | OR ORM 0060-20 NBR FDA
Part Number: 996530013509 |
|||
| EG2004-3 | 324 | BLK BUSH FOR STEAM TUBE SMR
Part Number: 996530073456 |
|||
| EG2004-3 | 325 | SS STEAM TUBE MAG PLUS ASSY
Part Number: 421946501471 Notes: SUP051W |
|||
| EG2004-3 | SS STEAM TUBE SMR ASSY
Part Number: 421944077961 Notes: SUP051-SUP051P |
||||
| EG2004-3 | 326 | BLK/SIL.STEAM TUBE HANDGRIP G0053
Part Number: 421941300671 Notes: SUP051 |
|||
| EG2004-3 | 327 | BLACK PANNARELLO INTERNAL TUBE V2 P0049
Part Number: 421944085601 Notes: SUP051 |
|||
| EG2004-3 | 328 | STAINLESS STEEL PANNARELLO COVER P0049
Part Number: 996530000926 Notes: SUP051 |
|||
| EG2004-3 | 329 | BLK CAPPUC.CASING COVER V5 SMR/H ASSY.
Part Number: 421944023812 Notes: SUP051P |
|||
| EG2004-3 | 330 | O-RING 106 RED SILICONE
Part Number: 996530059392 Notes: SUP051P |
|||
| EG2004-3 | 331 | BLK CAPPUC.CASING V3 SMR/H
Part Number: 421944022461 Notes: SUP051P |
|||
| EG2004-3 | 332 | BLK CAPPUC.CASING COVER RING SMR/H
Part Number: 421941301121 Notes: SUP051P |
|||
| EG2004-3 | 333 | BLK CAPPUC.CASING SEAL SMR/H
Part Number: 421941301131 Notes: SUP051P |
|||
| EG2004-3 | 334 | BLK CONNECTOR 90 V2 FOR SPHERIC.CAPPUC.
Part Number: 421944086351 Notes: SUP051P |
|||
| EG2004-3 | 335 | SILICONE TUBE 3,5X6 L=350 MM DS
Part Number: 996530051237 Notes: SUP051P |
|||
| EG2004-3 | 336 | BLK CAPPUC.V3 SMR/H ASSY.
Part Number: 421944023801 Notes: SUP051P |
|||
| EG2004-3 | 337 | BLK STEAM TUBE INSERT V2 SMR/H
Part Number: 421941301142 Notes: SUP051P |
|||
| EG2004-3 | 338 | BLK CARAFE LID MAG.
Part Number: 421946502291 Notes: SUP051P |
|||
| EG2004-3 | 339 | 2P.CONN.PUMP SMRL UL ASSY
Part Number: 421946040481 |
|||
| EG2004-3 | 340 | SS FORK FOR TUBE D.4
Part Number: 996530048885 |
|||
| EG2004-3 | 341 | TEFLON TUBE ASS. 4X2 L.180 7-7
Part Number: 996530051543 |
|||
| EG2004-3 | 342 | OR 2015 IN SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| EG2004-3 | 343 | 1 HOLE STEAM SPRAYER CAD PLUS US
Part Number: 421945007551 Notes: SUP051W |
|||
| EG2004-3 | 344 | RUBBER BURN BLOCKS 6X32
Part Number: 421944093511 Notes: SUP051W |
|||
| EG2004-3 | 345 | TRANSPARENT GLASS CARAFE MAG.
Part Number: 421946502311 Notes: SUP051P |
|||
| EG2004-3 | 346 | M/BLK READYINCAP
Part Number: 421945003241 Notes: SUP051P |
|||
| EG2004-3 | GEN.TUB.BOILER V2 XS4 ASSY
Part Number: 421944082241 Notes: 220-230V |
||||
| EG2004-3 | GEN.TUB.BOIL.XS4 GAG V2 ASSY
Part Number: 421944092481 Notes: 120-127V |
||||
| EG2004-4 | 401 | GRIVORY INCREASE SCREW GRINDER V2
Part Number: 421944032692 |
|||
| EG2004-4 | 402 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 996530012928 |
|||
| EG2004-4 | 403 | BLK COF.GRINDER UPPER GRINDER SUPPORT V3
Part Number: 421944053581 |
|||
| EG2004-4 | 404 | OR ORM 0530-15 NBR FDA
Part Number: 996530013577 |
|||
| EG2004-4 | 405 | MACINA PIANA 48X28 IN CERAMICA COORSTEK
Part Number: 421944078641 |
|||
| EG2004-4 | 406 | BRASS BUSH BEAN CONT.FINGER PROTEC.P0057
Part Number: 996530006412 Notes: only 220-230V |
|||
| EG2004-4 | 407 | BLK COF.GRINDER LOWER GRINDER SUPPORT V3
Part Number: 996530017952 |
|||
| EG2004-4 | 408 | AXIAL BEARING EKKO 342.35252
Part Number: 996530011183 |
|||
| EG2004-4 | 409 | FELT RING 45,4X39,4X4
Part Number: 996530013597 |
|||
| EG2004-4 | 410 | GALV.WASHER UNI 8842 A4
Part Number: 996530012341 |
|||
| EG2004-4 | 411 | BLK GROUND COFF.OUTLET CONVEYOR V4 ASSY.
Part Number: 996530068049 |
|||
| EG2004-4 | 412 | GRY GROUND COF.CONT.LOWER SEAL V2 SMART1
Part Number: 421944060561 |
|||
| EG2004-4 | 413 | GRY GEAR SX Z=38 FOR GRINDER MOTION
Part Number: 421945006091 |
|||
| EG2004-4 | 414 | MOTOR COFFEEGRINDER V3.2 ASSY.
Part Number: 421944049151 Notes: 220-230V |
|||
| EG2004-4 | MOTOR COFFEEGRINDER V3.2 WZN ASSY
Part Number: 421944084071 Notes: 120-127V |
||||
| EG2004-4 | 415 | MC V3 MOD=1,25 WORM SCREW CENTRING CAP
Part Number: 996530018139 |
|||
| EG2004-4 | 416 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 996530012992 |
|||
| EG2004-4 | 417 | INSULATOR BUSH FOR GRINDER MOTOR P124
Part Number: 996530001389 |
|||
| EG2004-4 | 418 | STEEL COF.GRINDER SUPPORT SPRING P124
Part Number: 996530000376 |
|||
| EG2004-4 | 419 | BLK BEAN COF.CONT.FINGER PROTECT.SMR UL
Part Number: 996530073467 |
|||
| EG2004-4 | 420 | STEEL FLAT WASHER DI=4,3 DE=14 SP=1,5
Part Number: 996530012375 |
|||
| EG2004-4 | 421 | BLK COFFEEGRINDER MOTOR SUPP.P124 V2
Part Number: 421941142172 |
|||
| EG2004-4 | 422 | RADIAL BEARING 61900.2RS1
Part Number: 996530011182 |
|||
| EG2004-4 | 423 | WAVY WASHER 3 PART 14,5X21,7X0,30
Part Number: 996530012374 |
|||
| EG2004-4 | 424 | LLK UPPER BODY WITH COFFEE GROUND OUT.V2
Part Number: 421941082802 |
|||
| EG2004-4 | 425 | LOWER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 996530001314 |
|||
| EG2004-4 | 426 | COFFEEGRINDER REGULATION SPRING P124
Part Number: 996530001308 |
|||
| EG2004-4 | 427 | COFFEE GRINDING ADJUSTMENT GEAR P0049
Part Number: 996530001907 |
|||
| EG2004-4 | 428 | BLK SENSOR SUPPORT FOR COF.GRINDER MOTOR
Part Number: 996530017963 |
|||
| EG2004-4 | 429 | UPPER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 996530001296 |
|||
| EG2004-4 | 430 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 996530013165 |
|||
| EG2004-4 | 431 | 2P.CONN.COF.GRINDER MOTOR SMR UL ASSY.
Part Number: 421946040471 |
|||
| EG2004-4 | 432 | BLW BEAN COFFEE GRINDER INSERT V2 SMR
Part Number: 421944052341 Notes: WE-220VBR |
|||
| EG2004-4 | YLW BEAN COFFEE GRINDER INSERT SMR
Part Number: 421944025161 Notes: US-127VBR-HK-KR |
||||
| EG2004-4 | 433 | BLK GRIND.ADJUST.KNOB 5 POS. SMR
Part Number: 421944075131 Notes: WE-220VBR |
|||
| EG2004-4 | 434 | COFFEE GRINDER SEAL P119 GRY 7035
Part Number: 421941085872 |
|||
| EG2004-4 | 435 | BLK GROUND COF.CONT.UPPER SEAL SMART1
Part Number: 996530015958 |
|||
| EG2004-4 | 436 | SCREW TCB TORX B 3,5X9,5 SHEET BLK ZINC
Part Number: 996530068586 |
|||
| EG2004-4 | GEN.MOTOR COF.GRINDER MAGENTA ASSY
Part Number: 421946502451 Notes: 220-230V |
||||
| EG2004-4 | GEN.MOTOR COF.GRINDER MAGENTA ASSY
Part Number: 421946502871 Notes: 120-127V |
||||

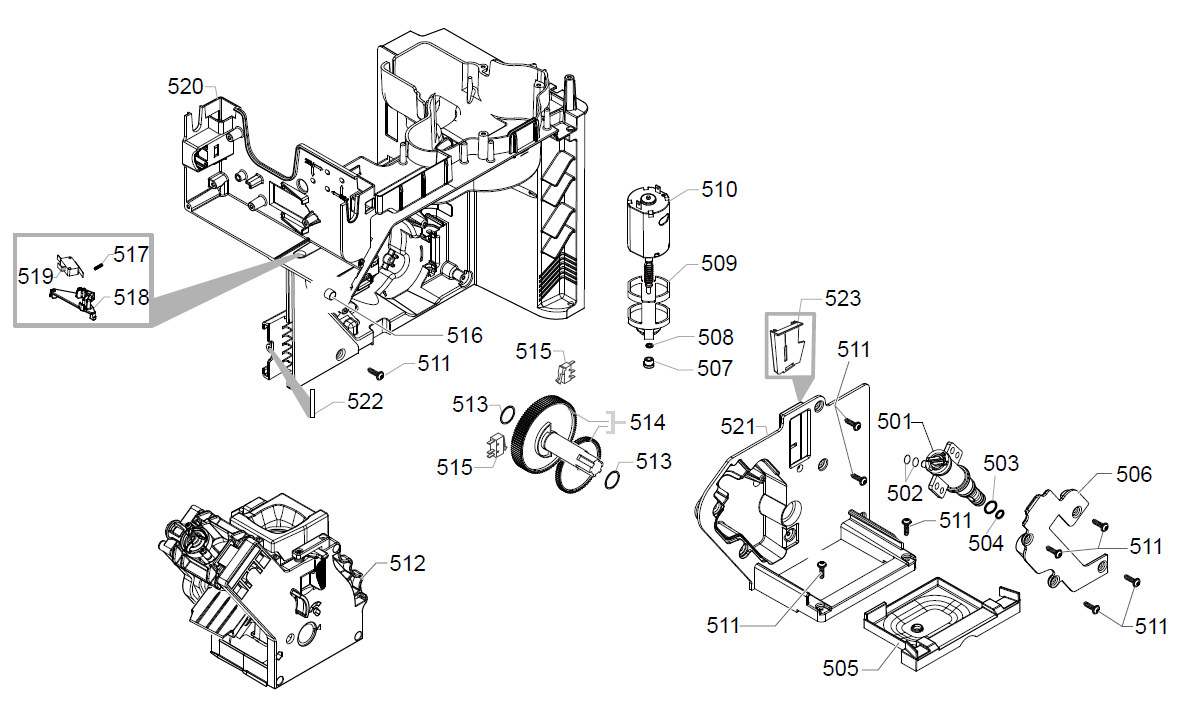

| EG2004-5 | 501 | PIN FOR BOILER SMR ASSY
Part Number: 421945000221 |
|||
| EG2004-5 | 502 | OR 2015 IN SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| EG2004-5 | 503 | OR ORM 0090-20 RED SILICONE
Part Number: 996530059399 |
|||
| EG2004-5 | 504 | OR ORM 0050-20 IN RED SILICONE
Part Number: 996530059419 |
|||
| EG2004-5 | 505 | BLK BREW UNIT DRAWER COFFEE V3 SMR
Part Number: 421945008981 |
|||
| EG2004-5 | 506 | BLK BOILER SEAT PIN COVER SMR
Part Number: 996530074054 |
|||
| EG2004-5 | 507 | BRONZE SINTERED BUSH FOR MOTOR RATIOMOT.
Part Number: 996530049898 |
|||
| EG2004-5 | 508 | BAKELIZZATE WASHER D=5,5
Part Number: 996530017424 |
|||
| EG2004-5 | 510 | MOTOR FOR RATIOMOTOR P124 ASSY.
Part Number: 996530002796 |
|||
| EG2004-5 | 511 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| EG2004-5 | 512 | BLK/YLW BREW UNIT 8GR.5BAR V2 FTR/B
Part Number: 421944085731 |
|||
| EG2004-5 | 513 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 996530050569 |
|||
| EG2004-5 | 514 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 996530009913 |
|||
| EG2004-5 | 515 | MICRO+MOTOR BREWUNIT V4 SMR UL ASSY.
Part Number: 421946046461 |
|||
| EG2004-5 | 516 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 996530050555 |
|||
| EG2004-5 | 517 | STEEL SPRING FOR MICRO COMPENSATOR SMR
Part Number: 421944006861 |
|||
| EG2004-5 | 518 | BLK MICRO COMPENSATOR V3 SMR
Part Number: 421944086602 |
|||
| EG2004-5 | 519 | MICROSWITCH DOOR SMR UL ASSY.
Part Number: 421941291461 |
|||
| EG2004-5 | 520 | BLK RATIOMOTOR MOUNTING PLATE MAG AS
Part Number: 421946503831 |
|||
| EG2004-5 | 521 | BLK RATIOMOT.MOUNTING PLATE COVER V2 SMR
Part Number: 421941287512 |
|||
| EG2004-5 | 522 | ADHES.STRIP TESA 4959 H=5 SP=2 L=40 MM
Part Number: 421944036081 |
|||
| EG2004-5 | 523 | GRY GASKET MOTORPLATE SMR
Part Number: 421945006151 |
|||

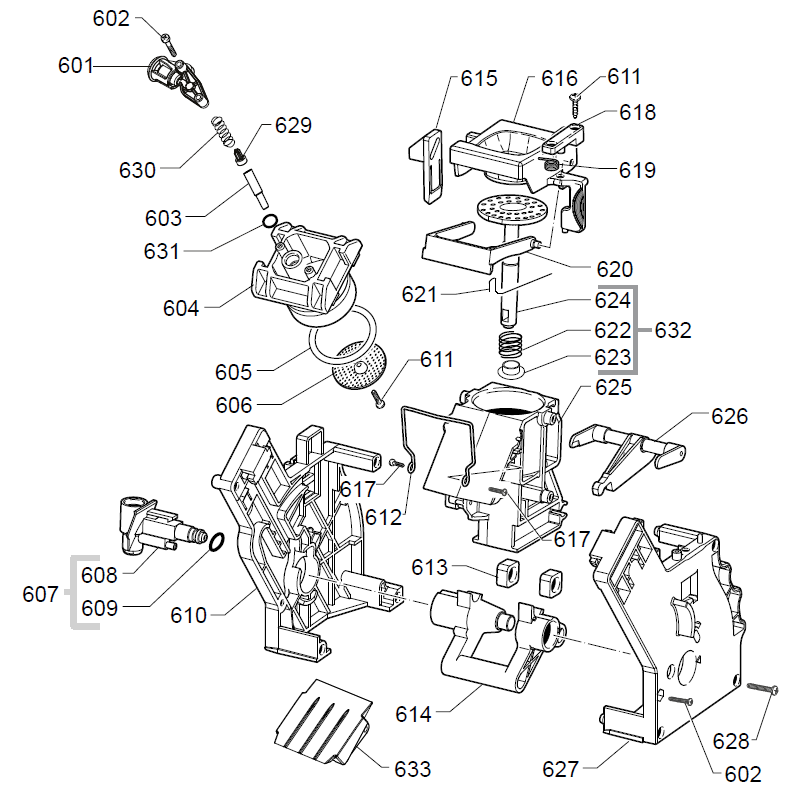

| EG2004-6 | 601 | BLK BREW UNIT COF.OUT.SLEEVE V2 SMR ASSY
Part Number: 421944065222 |
|||
| EG2004-6 | 602 | SCREW TCB TORX 10 3X25 PLAST.SS
Part Number: 996530007838 |
|||
| EG2004-6 | 603 | BLK BREW UN.COUNTER PISTON TUBE V2 S0053
Part Number: 421944079291 |
|||
| EG2004-6 | 604 | BLK BREW UNIT 8GR.COUNTER PISTON V2 P12
Part Number: 421944079991 |
|||
| EG2004-6 | 605 | OR ORM 0320-40 RED SILICONE PTFE/FDA
Part Number: 996530059406 |
|||
| EG2004-6 | 606 | PERCOLATOR DE=35,8 ELFO
Part Number: 996530050709 |
|||
| EG2004-6 | 607 | NOT AVAILABLE
Part Number: NOT AVAILABLE |
|||
| EG2004-6 | 608 | BREW UN.WATER INLET SLEEVE V2 SMR
Part Number: 421944050641 |
|||
| EG2004-6 | 609 | OR 2025 NBR FDA
Part Number: 996530059441 |
|||
| EG2004-6 | 610 | BLK BREW UNIT REAR PLATE SMART
Part Number: 996530050832 |
|||
| EG2004-6 | 611 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 |
|||
| EG2004-6 | 612 | SS BREW UNIT SPRING H=49 PK
Part Number: 421944025811 |
|||
| EG2004-6 | 613 | BLK BREW UNIT DRILLED BLOCK
Part Number: 996530050539 |
|||
| EG2004-6 | 614 | YLW BREW UNIT ELBOW SHAFT V2 M5000
Part Number: 421944079201 |
|||
| EG2004-6 | 615 | YLW BREW UNIT COUPLING PLATE V3 SMART
Part Number: 421944046932 |
|||
| EG2004-6 | 616 | BLK BREW UNIT V3 SMART1 HOPPER DOSER
Part Number: 421941095982 |
|||
| EG2004-6 | 617 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 996530013148 |
|||
| EG2004-6 | 618 | BLK BREWUNIT HOPPER BLOCKING PLATE SMART
Part Number: 996530050829 |
|||
| EG2004-6 | 619 | SS BREW UNIT HOPPER SPRING SMART
Part Number: 996530050838 |
|||
| EG2004-6 | 620 | BLK BREW UNIT SCRAPER V2 M5000
Part Number: 421944079261 |
|||
| EG2004-6 | 621 | SS BREW UNIT SCRAPER SPRING
Part Number: 996530050455 |
|||
| EG2004-6 | 622 | SS BREW UNIT 8GR.PISTON SPRING
Part Number: 996530050627 |
|||
| EG2004-6 | 623 | WHT BREW UNIT 8GR.-12GR.PISTON BUSH
Part Number: 996530050618 |
|||
| EG2004-6 | 624 | GRY BREW UNIT INTEGR.PISTON 8GR.V4 ASSY
Part Number: 421944079491 |
|||
| EG2004-6 | 625 | BLK COF.CONTAIN.BREW UNIT V4 M5000 ASSY
Part Number: 421944079431 |
|||
| EG2004-6 | 626 | BLK BREW UNIT 8GR.CONNECTING ROD
Part Number: 996530001452 |
|||
| EG2004-6 | 627 | BLK BREW UNIT FRONT PLATE S/SCR.SMART
Part Number: 996530003228 |
|||
| EG2004-6 | 628 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||
| EG2004-6 | 629 | BREW UNIT VALVE FTR/B
Part Number: 421944081491 |
|||
| EG2004-6 | 630 | SS.CONICAL SPRING
Part Number: 996530050657 |
|||
| EG2004-6 | 631 | OR ORM 0060-15 NBR FDA
Part Number: 996530013575 |
|||
| EG2004-6 | 632 | GRY BREW UNIT 8GR.INT.PISTON GEN.V3 ASSY
Part Number: 421944065811 |
|||
| EG2004-6 | 633 | BLK BREW UNIT CONVEYOR SLIDE L=56,3 V2
Part Number: 421944079341 |
|||
| EG2004-6 | BLK/YLW BREW UNIT 8GR.5BAR V2 FTR/B
Part Number: 421944085731 |
