Gaggia Titanium Part Diagram E74075
This is the Gaggia Titanium Part Diagram E74075. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

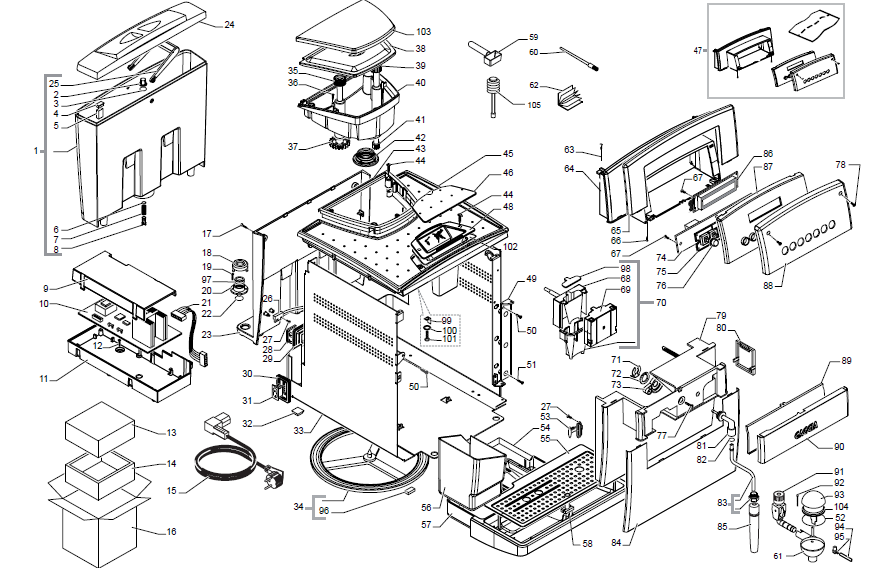

| E74075-1 | 01 |
|
WATER CONTAIN.AS.NATURAL GREY G6000 Part Number: 222693300 |
$44.99 | View Part |
| E74075-1 | 02 | EXTERNAL FILTER FOR WATER CONTAINER ASSY Part Number: 224640200 Notes: WITH PART. N03 |
$5.60 | View Part | |
| E74075-1 | 03 |
|
EPDM OR METRIC 0190-10 Part Number: 140328461 |
$5.24 | View Part |
| E74075-1 | 04 |
|
BLACK CAP FOR FLOATING SPACE LAV. Part Number: 149214359 |
$5.44 | View Part |
| E74075-1 | 05 |
|
LEVEL FLOAT GREY Part Number: 9161.112.150 |
$14.29 | View Part |
| E74075-1 | 06 |
|
OR METRIC 0060-30 IN SILICONE Part Number: 140324362 |
$5.20 | View Part |
| E74075-1 | 07 |
|
SPRING FOR WATER CONTAINER VALVE Part Number: 126764718 |
$5.32 | View Part |
| E74075-1 | 08 |
|
GREY WATER VALVE CONTAINER PISTON Part Number: 147660562 |
$5.12 | View Part |
| E74075-1 | 09 | ELECTRONICS BOARD PROTECTION G6000 Part Number: 147757100 |
$9.26 | View Part | |
| E74075-1 | 10 | POWER ELEC.BOARD G6000 DIGIT/RS.ASSY
Part Number: 281564758 Notes: 230V-WITH PART.N21 |
|||
| E74075-1 |
|
UP TO S/N. 9008GA40115459 Notes: (BOILER TEFLON TUBE) |
$44.99 | View Part | |
| E74075-1 |
|
POWER ELEC.BOARD G6000 DIGIT/RS.ASSY Part Number: 281564755 Notes: 120V-WITH PART.N21 |
$107.44 | View Part | |
| E74075-1 |
|
UP TO S/N. 9008GA40115459 Notes: (BOILER TEFLON TUBE) |
$44.99 | View Part | |
| E74075-1 | AS.CPU+FLAT G6000 DIG/SV. V1
Part Number: 11013510 Notes: 230V-WITH PART.N21 |
||||
| E74075-1 |
|
UP TO S/N. 9008GA40115460 Notes: (BOILER REINF.SIL.TUBE) |
$44.99 | View Part | |
| E74075-1 |
|
AS.CPU+FLAT G6000 DIG/SV. V1 Part Number: 11013511 Notes: 120V-WITH PART.N21 |
$107.44 | View Part | |
| E74075-1 |
|
UP TO S/N. 9008GA40115460 Notes: (BOILER REINF.SIL.TUBE) |
$44.99 | View Part | |
| E74075-1 | 11 | SUPPORT ELECTRONIC CARD G6000 BLACK
Part Number: 149202050 |
|||
| E74075-1 | 12 | PANE. TCB SCREW 3,5X16 TESTA D=8 Z
Part Number: 129670202 |
|||
| E74075-1 | 13 | UPPER TECHMATE INSERT FOR BOX G6000
Part Number: 175898300 |
|||
| E74075-1 | 14 | LOWER TECHMATE INSERT FOR BOX G6000
Part Number: 175898400 |
|||
| E74075-1 | 15 | BLACK POWER CABLE AUSTRALIA L=1200
Part Number: 183940650 |
|||
| E74075-1 |
|
POWER CABLE SJT3 USA BLACK UL L=1200 Part Number: 183921950 |
$15.72 | View Part | |
| E74075-1 | BLACK POWER CABLE UK 3X1 H05VV-F L=1200
Part Number: 183970350 |
||||
| E74075-1 | POWER CABLE CH BLACK 3X1 H05VV-F L=1200
Part Number: 183930650 |
||||
| E74075-1 | POWER CABLE SCHUKO BLACK L=1200
Part Number: 183911050 |
||||
| E74075-1 | BLACK POWER CABLE BRAZIL W/CONECT.L=1200
Part Number: 11004245 |
||||
| E74075-1 | 16 | FLEXOG.BOX GAGGIA SYNCRONY TITANIUM
Part Number: 178514800 |
|||
| E74075-1 | 17 | SCREW TCB 2,9X12,7 DIN 7981 BURN
Part Number: 129512904 |
|||
| E74075-1 | 18 | SEAL COVER GREY
Part Number: 0701.031.150 |
|||
| E74075-1 | 19 | SCREW TSP3,5X9,5 DIN 7982 SS
Part Number: 129535721 |
|||
| E74075-1 | 20 | SEAL CONTAINER GREY
Part Number: 0701.014.150 |
|||
| E74075-1 | 21 | FLAT CABLE
Part Number: 283557200 |
|||
| E74075-1 | 22 | OR METRICO 0080-20 IN TERMOIL
Part Number: 140320461 |
|||
| E74075-1 | 23 | SUPPORT WATER CONTAIN.G6000 SILVER
Part Number: 229184937 |
|||
| E74075-1 | 24 | WATER CONTAINER LID G6000 SILVER
Part Number: 222765037 |
|||
| E74075-1 | 25 | WATER CONTAINER HANDLE G6000 GREY
Part Number: 146581300 |
|||
| E74075-1 | 26 | CONNECTOR ASS. 2 POLE LEVEL
Part Number: 0301.811 |
|||
| E74075-1 | 27 | SCREW AUT.TCB 2,9X9,5 DIN 7981 C
Part Number: U109.028 |
|||
| E74075-1 | 28 | CUP SOCKET EN 60320 C 13
Part Number: NE13.013 |
|||
| E74075-1 | 29 | SOCKET POW.CABL.SUPPORT BLACK G6000
Part Number: 149202150 |
|||
| E74075-1 | 30 | SWITCH GENERAL SUPPORT BLACK G6000
Part Number: 149201950 |
|||
| E74075-1 | 31 | BIPOLAR SWITCH FUSIT C1250AR
Part Number: NE03.038 |
|||
| E74075-1 | 32 | SQUARE ADHESIVE FOOT 5023 BLACK
Part Number: 147623150 |
|||
| E74075-1 | 33 | CASING G6000 SILVER
Part Number: 222361337 Notes: 230V |
|||
| E74075-1 | CASING G6000 STAINLESS STEEL
Part Number: 122359821 Notes: 230V |
||||
| E74075-1 | STAINLESS STEEL G6000 FRAME
Part Number: 122359821_UL Notes: 120V |
||||
| E74075-1 | CARCASSA G6000 VERNIC.ARGENTO/8401C
Part Number: 222361337_UL Notes: 120V |
||||
| E74075-1 | 34 | ROTATING RING SMART WITH 3 FEET
Part Number: 220380259 Notes: WITH PART. N96 |
|||
| E74075-1 | 35 | GRIND.ADJUSTM.BLACK KNOB G100 S/SCR
Part Number: 227721650 |
|||
| E74075-1 | 36 | PANELVIT TCB 3,0X12 DIN 7505 B GAL
Part Number: U140.004 |
|||
| E74075-1 | 37 | GEAR COFF. GRIND. ADJUSTMENT COMBI
Part Number: 146000850 |
|||
| E74075-1 | 38 | LID BLUE SAFETY AROM.CAF.CONT.G6000
Part Number: 142816279 |
|||
| E74075-1 | 39 | COF.DOSE ADJUS.BLACK KNOB G100 S/SC
Part Number: 227721550 |
|||
| E74075-1 | 40 | COFFEE CONTAINER
Part Number: 8314007000 |
|||
| E74075-1 | 41 | COFFEE DOSE ADJ.GEAR BLACK SMART
Part Number: 146001950 |
|||
| E74075-1 | 42 | BEAN COFFEE CONTENIT.SEAL SMART
Part Number: 145852360 |
|||
| E74075-1 | 43 | BEAN CONTAIN.COF.PROTECT.G6000 SILV
Part Number: 227751737 |
|||
| E74075-1 | 44 | SCREW TCB 3X8 UNI 8112 ZNP
Part Number: 129570602 |
|||
| E74075-1 | 45 | CUPWARMER LID AS.G6000 SILVER
Part Number: 282800737 Notes: WITH PART. N99-100-101 |
|||
| E74075-1 | 46 | GROUND COFF.CONT.LID G6000 S/STEEL
Part Number: 222802587 |
|||
| E74075-1 | 47 | FRONT PANEL G6000 TRANSPARENT
Part Number: 226480800 |
|||
| E74075-1 |
|
UP TO S/N. 9004GA40003440 |
$44.99 | View Part | |
| E74075-1 | 48 | HOPPER BLACK GROUND COF.DOSER G6000
Part Number: 149261450 |
|||
| E74075-1 | 49 | DOOR HINGE G6000 SILVER
Part Number: 222630437 |
|||
| E74075-1 | 50 | SCREW PANELVIT TCB 3X16 DIN7505 BRU
Part Number: 129661204 |
|||
| E74075-1 | 51 | SCREW TSP PH/TT 4X10 UNI 8113 ZNP
Part Number: 129740202 |
|||
| E74075-1 | 52 | OR ORM 0340-20 IN SILICONE
Part Number: NM01.012 |
|||
| E74075-1 | 53 | DISENGAGE LEVER GREY/SILVER DOOR SMART
Part Number: 146313740 |
|||
| E74075-1 | 54 | SEALING SUPPORT AS.WATER DRIP TRAY
Part Number: 229170450 |
|||
| E74075-1 | 55 | GRATE G6000 STAINLESS STEEL/SB
Part Number: 125743987 |
|||
| E74075-1 | 56 | DUMP BOX G6000 UNPAINTED
Part Number: 142602800 |
|||
| E74075-1 | 57 | DRIP TRAY G6000 SILVER
Part Number: 229631637 |
|||
| E74075-1 | 58 | RED FLOAT FOR DRIP TRAY SMART
Part Number: 145501211 |
|||
| E74075-1 | 59 | BLACK COFFEE MEASURE SMART
Part Number: 146680850 |
|||
| E74075-1 | 60 | BRUSH FOR CLEANING
Part Number: 127390100 |
|||
| E74075-1 | 61 | CAPPUCCINATORE CASING BLACK
Part Number: 142906150 |
|||
| E74075-1 | 62 | INS.MANUAL GAGGIA SYNCRON.METAL DIG
Part Number: 165896100 |
|||
| E74075-1 | INSTRUCTIONS MANUAL GAGGIA TITANIUM BRASIL
Part Number: 15001281 |
||||
| E74075-1 | 63 | SCREW TCB 2,9X9,5 DIN 7981 NICK
Part Number: 129512503 |
|||
| E74075-1 | 64 | FRONT PANEL SUPPORT G6000 SILVER
Part Number: 229185237 |
|||
| E74075-1 |
|
FROM S/N. 9004GA40003441 |
$44.99 | View Part | |
| E74075-1 | 65 | PLATE FOR FRONT PANEL G6000 S.STEEL
Part Number: 127535621 |
|||
| E74075-1 | 66 | SCREW TSPTORX T10 3,5X9,5 D7982 NI
Part Number: 129533202 |
|||
| E74075-1 | 67 | SCREW TCB 2,9X6,4 DIN 7981 NICK
Part Number: 129511803 |
|||
| E74075-1 | 68 |
|
PARTICULAR NOT AVAILABLE Notes: SEE PART. N70 |
$44.99 | View Part |
| E74075-1 |
|
UP TO S/N. 9004GA40003440 |
$44.99 | View Part | |
| E74075-1 | 68 | REAR COFF.DISPENS.COVER G6000 BLACK
Part Number: 142855450 |
|||
| E74075-1 |
|
FROM S/N. 9004GA40003441 |
$44.99 | View Part | |
| E74075-1 | 69 |
|
PARTICULAR NOT AVAILABLE Notes: SEE PART. N70 |
$44.99 | View Part |
| E74075-1 |
|
UP TO S/N. 9004GA40003440 |
$44.99 | View Part | |
| E74075-1 | FRONT COF.DISPENS.COVER G6000 BLACK
Part Number: 142855350 |
||||
| E74075-1 |
|
DA MATR. 9004GA40003441 |
$44.99 | View Part | |
| E74075-1 | 70 | COFFEE DISPENSER AS.G6000 BLACK
Part Number: 223701304 |
|||
| E74075-1 | 71 | FOLK SPRING
Part Number: NF11.084 |
|||
| E74075-1 | 72 | SPACER FOR CONNECTION STEAM TUBE
Part Number: 9161.384 |
|||
| E74075-1 | 73 | CONNECTOR STEAM SUPPORT G100 BLACK
Part Number: 149196850 |
|||
| E74075-1 | 74 | TERMINAL BOARD BUTTON G6000 DIG.R.S
Part Number: 181555500 |
|||
| E74075-1 | 75 | TOUCH PANEL 7 BUTTONS G6000
Part Number: 149252600 |
|||
| E74075-1 | 76 | BUTTON FOR G6000 CHROMIUM PLATED
Part Number: 229140808 |
|||
| E74075-1 | 77 | SELF TAPPING GALV. SCREWPLAST
Part Number: DI7981P3.5X13Z |
|||
| E74075-1 | 78 | TSPCEI SCREW 3,9X12 STAINLESS STEEL
Part Number: 129932321 |
|||
| E74075-1 | 79 | DOOR G6000 SILVER
Part Number: 228983037 |
|||
| E74075-1 | 80 | LATERAL DOOR G6000 SILVER
Part Number: 228983137 |
|||
| E74075-1 | 81 | TEA/BRASS 90CONNECTOR STEAM TUBE G100
Part Number: 11010762 |
|||
| E74075-1 | 82 | OR 2025 TERMOIL
Part Number: NM02.007 |
|||
| E74075-1 | 83 | STEAM TUBE AS.CHROMATE G100
Part Number: 229381808 |
|||
| E74075-1 | 84 | LOWER PLATE FOR DOOR G6000 ST.STEEL
Part Number: 127535521 |
|||
| E74075-1 | 85 | PANNARELLO ASS.G100 STAINLESS STEEL
Part Number: 227431321 |
|||
| E74075-1 | 86 | 20x2 LCD BLUE DISPLAY STN + FLAT
Part Number: 192200500 |
|||
| E74075-1 | 87 | TOUCH PANEL SUPPORT G6000 SILV.S/SC
Part Number: 229161237 |
|||
| E74075-1 |
|
DA MATR. 9004GA40003441 |
$44.99 | View Part | |
| E74075-1 | 88 | TRANSPARENT FRONT PANEL G6000
Part Number: 144883200 |
|||
| E74075-1 |
|
DA MATR. 9004GA40003441 |
$44.99 | View Part | |
| E74075-1 | 89 | TRANSPLATE FOR LIGHT DIFFUSIVENESS
Part Number: 147573000 |
|||
| E74075-1 | 90 | UPPER PLATE FOR DOOR G6000 ST.STEEL
Part Number: 127535421 |
|||
| E74075-1 | 91 | 90 DEG CONN. (ARTIC.) CAPPUCC. BLACK
Part Number: 227910750 |
|||
| E74075-1 | 92 | BLACK CAPPUCCINATORE PIN
Part Number: 148870150 |
|||
| E74075-1 | 93 | CAPPUCCINATORE CASING LID BLACK
Part Number: 142816850 |
|||
| E74075-1 | 94 | TRANSPARENT SILCONE TUBE 3,5X6
Part Number: 149360400 Notes: IN ROLL |
|||
| E74075-1 | 95 | CONNECTOR 90 FOR CAPPUCCINATORE BLACK
Part Number: 147922350 |
|||
| E74075-1 | 96 | SQUARE ADHESIVE FOOT NB4256 BLACK
Part Number: 147623650 |
|||
| E74075-1 | 97 | WATER CONTAIN.VALVE SEAL GACO DIM14
Part Number: 145842900 |
|||
| E74075-1 | 98 |
|
PARTICULAR NOT AVAILABLE Notes: SEE PART. N70 |
$44.99 | View Part |
| E74075-1 |
|
UP TO S/N. 9004GA40003440 |
$44.99 | View Part | |
| E74075-1 | CAP COF.DISPEN.HEAD SUP.BLACK G6000
Part Number: 149213850 |
||||
| E74075-1 |
|
DA MATR. 9004GA40003441 |
$44.99 | View Part | |
| E74075-1 | 99 | MALE TONGUE 45 6,3 D.5,2
Part Number: NE15.026 |
|||
| E74075-1 | 100 | WASHER UNI 8842 A4 BURNISHED
Part Number: 128310404 |
|||
| E74075-1 | 101 | SCREW TCB PH/TT 4X8 UNI 8112 ZNP
Part Number: 129573202 |
|||
| E74075-1 | 102 | SEAL HOPPER GROUND COFF.DOSER G6000
Part Number: 145855060 |
|||
| E74075-1 | 103 | BEAN COFF.CONTAIN.LID G6000 SILVER
Part Number: 222765137 |
|||
| E74075-1 | 104 | BLACK CAPPUCCINATORE CASING LID INSERT
Part Number: 145897450 |
|||
| E74075-1 | 105 | LOADING PUMP DIAMETER 14 MM
Part Number: 147700100 Notes: 120V |
|||

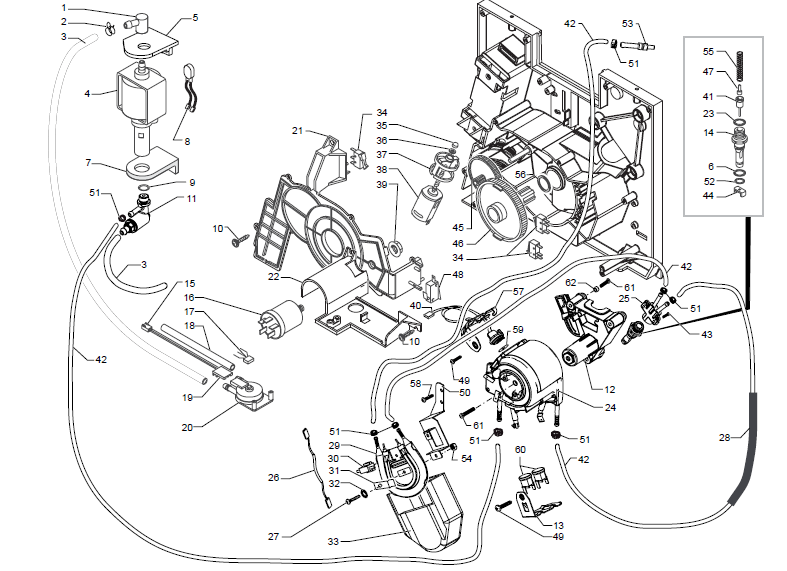

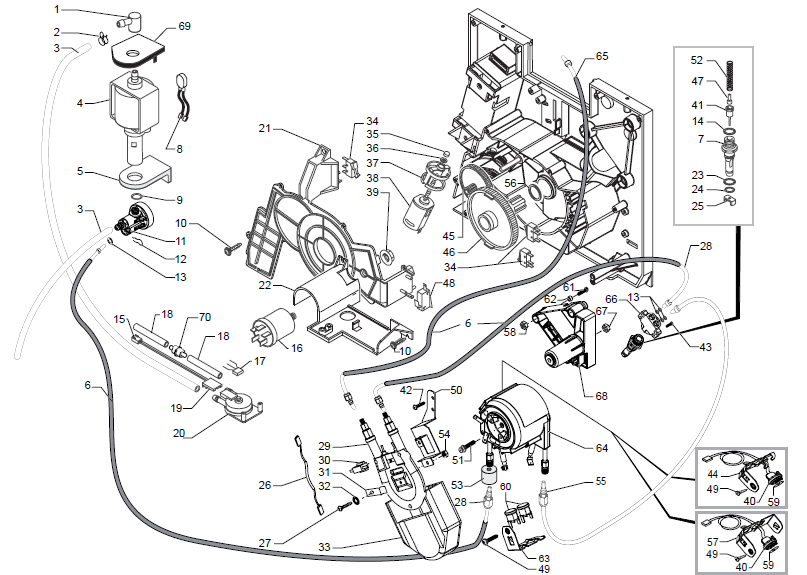

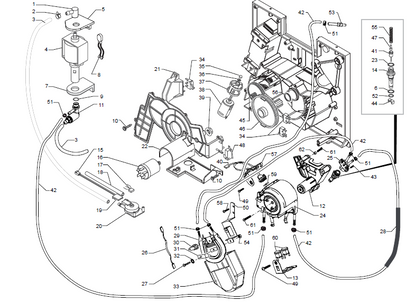

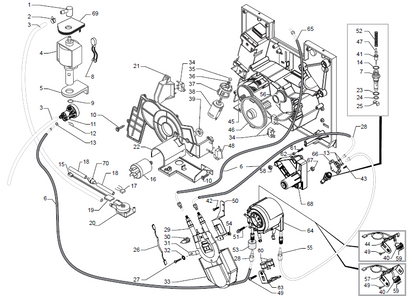

| E74075-2 | 01 | 90CONNECTOR PUMP INLET
Part Number: 147920150 |
|||
| E74075-2 | 02 | SPRING HOSE CLAMP D=9,5MM
Part Number: 184320200 |
|||
| E74075-2 | 03 | SILICONE TUBE 5X8 70SR
Part Number: 149360200 Notes: IN ROLL |
|||
| E74075-2 | 04 | ULKA PUMP EP5/S GW
Part Number: 12000140 Notes: 230V-50HZ |
|||
| E74075-2 | ULKA PUMP EP5/S
Part Number: 12000131 Notes: 120V-60HZ |
||||
| E74075-2 | 05 | EATON PUMP SUPPORT MAGIC 4002012
Part Number: 149185850 |
|||
| E74075-2 | 06 | BLACK SILICON TUBE 7,5X9,3
Part Number: 149361200 Notes: IN ROLL |
|||
| E74075-2 | 07 | PEG FOR VALVE IN PLASTIC
Part Number: 9011.100 |
|||
| E74075-2 | 08 | YELLOW HARNESS KLIXON JP 13
Part Number: 0311.807 Notes: 230V |
|||
| E74075-2 |
|
UP TO S/N. 9004GA40002300 |
$44.99 | View Part | |
| E74075-2 | THERMAL PROTECTOR 120C CAB.140/340
Part Number: 289203100 Notes: 230V |
||||
| E74075-2 |
|
FROM S/N. 9004GA40002301 |
$44.99 | View Part | |
| E74075-2 | THERMAL PROTECTOR 120C CAB.140/340
Part Number: 289204100 Notes: 120V |
||||
| E74075-2 | 09 | OR 2015 EPDM FDA
Part Number: NM02.028 |
|||
| E74075-2 | 10 | PANE. TCB SCREW 3,5X16 TESTA D=8 Z
Part Number: 129670202 |
|||
| E74075-2 | 11 | COMPENSATION AND SAFETY VALVE ASSY
Part Number: 229452100 |
|||
| E74075-2 | 12 | FORK FOR TUBE D.4
Part Number: 9011.144 |
|||
| E74075-2 | 13 | OR 2015 IN SILICONE PTFE/FDA
Part Number: 140328059 |
|||
| E74075-2 | 14 | OR METRICO 0080-20 SILICON.PTFE/FDA
Part Number: 140320459 |
|||
| E74075-2 | 15 | 3POLE CONNECT.AS.TURBINE JP18 SMART
Part Number: 283551300 |
|||
| E74075-2 | 16 | ANTIDISTURB FILTER 0,47X2+1000Y2+0,5L
Part Number: 184651100 Notes: 230V |
|||
| E74075-2 | ANTIDISTURB FILTER 16A FNC 1610474472A
Part Number: 184651500 Notes: 120V |
||||
| E74075-2 | 17 |
|
PARTICULAR NOT AVAILABLE Notes: SEE PART. N20 |
$44.99 | View Part |
| E74075-2 | 18 | SILICONE TUBE 5X10 60 SHORE
Part Number: JS01.022 Notes: IN ROLL |
|||
| E74075-2 | 19 | BRACKET FOR TURBINE
Part Number: 9161.018 |
|||
| E74075-2 | 20 | -M-VDE TURBINE WITH SENSOR KIT
Part Number: 286473300 Notes: WITH PART. N17 |
|||
| E74075-2 | 21 | RATIOMOTOR COVER TRANSPARENT
Part Number: 9161.331.920 |
|||
| E74075-2 | 22 | TURBINE SUPPORT SMART
Part Number: 149194800 |
|||
| E74075-2 | 23 | OR ORM 0090-20 SILICONE
Part Number: NM01.035 |
|||
| E74075-2 | 24 | OR ORM 0050-20 SILICONE
Part Number: NM01.057 |
|||
| E74075-2 | 25 | M CURSOR FOR BOILER VALVE IN PLASTIC
Part Number: 9011.099 |
|||
| E74075-2 | 26 | CABLE 1 WIRE SILIC.BLACK THERM/FUSE 229
Part Number: 183440800 Notes: 230V |
|||
| E74075-2 | CABLE 1WIRE SILICON.BLACK AWG18+TH/FUSE
Part Number: 183441062 Notes: 120V |
||||
| E74075-2 | 27 | TCB SCREW M4X8 UNI 7687 ZNP
Part Number: 129823802 |
|||
| E74075-2 | 28 | CONNECTOR AS.TEFLON 2X4 L=250 MM
Part Number: 227874900 |
|||
| E74075-2 | 29 | HEATING-ELEMENT BLECKMAN ASSY.
Part Number: 288140458 Notes: 230V-1000W |
|||
| E74075-2 | HEATING-ELEMENT BLECKMAN ASSY.
Part Number: 288140455 Notes: 120V-1000W |
||||
| E74075-2 | 30 | THERMOSTAT 175 INTERCONTR.161471002
Part Number: 189428300 |
|||
| E74075-2 | 31 | THERMAL FUSE FIXING PLATE
Part Number: 127535319 |
|||
| E74075-2 | 32 | WASHER UNI 8842 A4 BURNISHED
Part Number: 128310404 |
|||
| E74075-2 | 33 | HEAT.ELEMENT PROTECTION BLECKMANN SMART
Part Number: 147755900 |
|||
| E74075-2 | 34 | MICROSWITCH
Part Number: NE05.038 |
|||
| E74075-2 | 35 | SINTERED BUSH FOR MOTOR
Part Number: 9121.046 |
|||
| E74075-2 | 36 | WASHER BAKELIZZATE D=5,5
Part Number: 148380200 |
|||
| E74075-2 | 37 | ANTIVIBRATION FOR MOTOR
Part Number: 9121.044 |
|||
| E74075-2 | 38 | MOTOR FOR RATIOMOTOR ASSY.
Part Number: 11003037 Notes: 120V-230V |
|||
| E74075-2 | 39 | FLANGE NUT M8 TOOTHED BASE GALV.
Part Number: 123453602 |
|||
| E74075-2 | 40 | SENSOR ASS.FOR ALLUM.BOILER AS.
Part Number: 288582200 Notes: 230V |
|||
| E74075-2 | SENSOR ELECT.BOARD WITH CONNECTOR ASSY.
Part Number: 288582300 Notes: 120V |
||||
| E74075-2 | 41 | TEA/BRASS PISTON L=20,9 ASSY.
Part Number: 11009019 |
|||
| E74075-2 | 42 | SCREW TAPT M4X10 DIN 7985 GALV
Part Number: 129573402 |
|||
| E74075-2 | 43 | HI -LO TC SCREW 3,5X15 RIF.910189
Part Number: 129910103 |
|||
| E74075-2 | 44 | SENSOR FIXING SPRING
Part Number: 126838217 |
|||
| E74075-2 |
|
FROM S/N. 9004GA4000534 |
$44.99 | View Part | |
| E74075-2 | 45 | GEAR Z.12/90
Part Number: 9121.042 |
|||
| E74075-2 | 46 | GEAR Z=108 FOR MOUNTING PLATE M4000
Part Number: 9121.069.150 |
|||
| E74075-2 | 47 | TEA/BRASS PIN FOR PISTON L=10
Part Number: 11009013 |
|||
| E74075-2 | 48 | MICROSWITCH SAIA X3M502K2KAM92AS
Part Number: 186723800 |
|||
| E74075-2 | 49 | SCREW TCB PH/TT 4X8 UNI 8112 ZNP
Part Number: 129573202 |
|||
| E74075-2 | 50 | BRACKET BOILER SMART SUPPORT
Part Number: 129025002 |
|||
| E74075-2 | 51 | ROUND HEAD SCREW 10.9 M5X20 GALV
Part Number: 129932202 |
|||
| E74075-2 | 52 | SPRING FOR PIN
Part Number: 9011.132 |
|||
| E74075-2 | 53 | PROTECTION FOR FOLK SPRING TUBE D=4
Part Number: 147756562 |
|||
| E74075-2 | 54 | NUT HEXAGONAL M4 UNI 5588
Part Number: U302.003 |
|||
| E74075-2 | 55 | CONNECTOR TEFLON 2X4 L=235 MM ASSY.
Part Number: 227876800 |
|||
| E74075-2 | 56 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 9161.132 |
|||
| E74075-2 | 57 | SENSOR FIXING SPRING
Part Number: 126838017 |
|||
| E74075-2 |
|
UP TO S/N. 9004GA4000533 |
$44.99 | View Part | |
| E74075-2 | 58 | NUT SELF LOCK.M5 UNI 7473
Part Number: U310.003 |
|||
| E74075-2 |
|
FROM S/N. 0105144426 |
$44.99 | View Part | |
| E74075-2 | 59 | ELECTRIC INSULATING DISK D=16
Part Number: 145951600 |
|||
| E74075-2 | 60 | THERMOSTAT 175 1NT-08L-3794
Part Number: 189428200 Notes: 230V |
|||
| E74075-2 | THERMOSTAT 175 1NT-08L-5125
Part Number: 189428600 Notes: 120V |
||||
| E74075-2 | 61 | SCREW TSP M5,0X30 UNI 7688 GALV.
Part Number: U044.020 |
|||
| E74075-2 |
|
UP TO S/N. 0105144426 |
$44.99 | View Part | |
| E74075-2 | GALVANIZDE SELF DRILLING SCREW 5X30
Part Number: 129932502 |
||||
| E74075-2 |
|
FROM S/N. 0105144427 |
$44.99 | View Part | |
| E74075-2 | 62 | INSULATING SPACER FOR BOILER
Part Number: 9161.206 |
|||
| E74075-2 | 63 | 2 THERMOSTATS FIXING SPRING
Part Number: 126838117 |
|||
| E74075-2 | 64 | ALUM.BOILER WITH RESISTANCE
Part Number: 282058858 Notes: 230V-1100W |
|||
| E74075-2 | ALUM.BOILER WITH RESISTANCE AS.
Part Number: 282058855 Notes: 120V-1100W |
||||
| E74075-2 | 65 | CONNECTOR AS.TEFLON 2X4 L=330 MM
Part Number: 227875400 |
|||
| E74075-2 | 66 | BOILER SUPPORT CONNECTOR
Part Number: 147922700 |
|||
| E74075-2 | 67 | SELF-LOCKI.NUT M5X0,8 DIN 980 CLA.8
Part Number: 123453902 |
|||
| E74075-2 | 68 | SPARES KIT SUPPORT BOILER SMART
Part Number: 20000204 |
|||
| E74075-2 |
|
UP TO S/N. 0105144426 |
$44.99 | View Part | |
| E74075-2 | SUPPORT FOR ALLUMINIUM BOILER SMART
Part Number: 149197700 |
||||
| E74075-2 |
|
FROM S/N. 0105144427 |
$44.99 | View Part | |
| E74075-2 | 69 | PUMP SUPPORT HOLE 13,2 RED
Part Number: 149205710 |
|||
| E74075-2 | 70 | SUCTION FILTER GAUZE NET 500
Part Number: 144650300 |
|||
| E74075-2 | BOILER SMART/RS 230V ASSY.
Part Number: 282133758 Notes: COMPLETE |
||||
| E74075-2 | ALUM.BOILER 120V WITH RESISTANCE ASSY.
Part Number: 282135555 Notes: COMPLETE |
||||
| E74075-2 |
|
WITH PART. N 7-13-14-23-24-25-28-40-41-43-44-47-49-51 |
$44.99 | View Part | |
| E74075-2 |
|
52-53-55-57-58-59-60-63-64-66-67-68 |
$44.99 | View Part | |
| E74075-3 |
|
FROM S/N 9008GA40115520 WITH REINFORCE SILICONE TUBE |
$44.99 | View Part | |
| E74075-3 | 01 | 90 INLET CONNECTOR PUMP
Part Number: 147920150 |
|||
| E74075-3 | 02 | SPRING HOSE CLAMP D=9,5MM
Part Number: 184320200 |
|||
| E74075-3 | 03 | SILICONE TUBE 5X8 70SR
Part Number: 149360200 Notes: IN ROLL |
|||
| E74075-3 | 04 | ULKA PUMP EP5/S GW
Part Number: 12000140 Notes: 230V-50HZ |
|||
| E74075-3 | ULKA PUMP EP5/S
Part Number: 12000131 Notes: 120V-60HZ |
||||
| E74075-3 | 05 | PUMP SUPPORT HOLE 13,2 RED
Part Number: 149205710 |
|||
| E74075-3 | 06 | OR ORM 0090-20 SILICONE
Part Number: NM01.035 |
|||
| E74075-3 | 07 | EATON PUMP SUPPORT MAGIC 4002012
Part Number: 149185850 |
|||
| E74075-3 | 08 | THERMAL PROTECTOR 120C CABLES 140/340
Part Number: 289203100 Notes: 230V |
|||
| E74075-3 | THERMAL PROTECTOR 120C CABL.140/340
Part Number: 289204100 Notes: 120V |
||||
| E74075-3 | 09 | OR 2031 IN TERMOIL
Part Number: 140321961 |
|||
| E74075-3 | 10 | TCB PANELVIT SCREW 3,5X16 TESTA D=8 ZNP
Part Number: 129670202 |
|||
| E74075-3 | 11 | SAFETY VALVE 16-18 BAR V2 P0049 ASSY.
Part Number: 11010166 |
|||
| E74075-3 | 12 | SUPPORT FOR ALLUMINIUM BOILER SMART
Part Number: 11004209 |
|||
| E74075-3 | 13 | 2 THERMOSTATS FIXING SPRING
Part Number: 126838117 |
|||
| E74075-3 | 14 | PEG FOR VALVE IN PLASTIC
Part Number: 9011.100 |
|||
| E74075-3 | 15 | 3POLE CONNECT.AS.TURBINE JP18 SMART
Part Number: 283551300 |
|||
| E74075-3 | 16 | ANTIDISTURB FILTER 0,47X2+1000Y2+0,5L
Part Number: 184651100 |
|||
| E74075-3 | ANTIDISTURB FILTER 16A FNC 1610474472A
Part Number: 184651500 |
||||
| E74075-3 | 17 |
|
PARTICULAR NOT AVAILABLE Notes: SEE PART.N20 |
$44.99 | View Part |
| E74075-3 | 18 | SILICONE TUBE 5X10 60 SHORE
Part Number: JS01.022 Notes: IN ROLL |
|||
| E74075-3 | 19 | BRACKET FOR TURBINE
Part Number: 9161.018 |
|||
| E74075-3 | 20 | -M-VDE TURBINE WITH SENSOR KIT
Part Number: 286473300 Notes: WITH PART.N17 |
|||
| E74075-3 | 21 | TRANSPARENT RATIOMOTOR COVER
Part Number: 9161.331.920 |
|||
| E74075-3 | 22 | NATURAL TURBINE SUPPORT SMART
Part Number: 149194800 |
|||
| E74075-3 | 23 | OR ORM 0080-20 IN SILICONE PTFE/FDA
Part Number: 140320459 |
|||
| E74075-3 | 24 | ALUM.BOILER WITH RESISTANCE ASSY
Part Number: 11004667 Notes: 230V-1100W |
|||
| E74075-3 | ALUM.BOILER W/RESISTANCE ASSY
Part Number: 11004669 Notes: 120V-1100W |
||||
| E74075-3 | 25 | BOILER SUPPORT CONNECTOR
Part Number: 11002606 |
|||
| E74075-3 | 26 | CABLE 1 WIRE SILIC.BLACK THERM/FUSE 229
Part Number: 183440800 |
|||
| E74075-3 | 27 | TCB SCREW M4X8 UNI 7687 ZNP
Part Number: 129823802 |
|||
| E74075-3 | 28 | TRANSP.SILICONE TUBE 10,5X12,3 L=200 MM
Part Number: 11010624 |
|||
| E74075-3 | 29 | BLECKMAN RESISTANCE SMART ASSY.
Part Number: 11004550 Notes: 230V |
|||
| E74075-3 | BLECKMAN RESISTANCE SMART ASSY.
Part Number: 11004551 Notes: 120V |
||||
| E74075-3 | 30 | THERMOSTAT 175 INTERCONTR.161471002
Part Number: 189428300 |
|||
| E74075-3 | 31 | GALV/STEEL THERMAL FUSE FIXING PLATE
Part Number: 127535319 |
|||
| E74075-3 | 32 | WASHER UNI 8842 A4 BURNISHED
Part Number: 128310404 |
|||
| E74075-3 | 33 | HEAT.ELEMENT PROTECTION BLECKMANN SMART
Part Number: 147755900 |
|||
| E74075-3 | 34 | MICROSWITCH
Part Number: NE05.038 |
|||
| E74075-3 | 35 | SINTERED BUSH FOR MOTOR
Part Number: 9121.046 |
|||
| E74075-3 | 36 | WASHER BAKELIZZATE D=5,5
Part Number: 148380200 |
|||
| E74075-3 | 37 | ANTIVIBRATION FOR MOTOR
Part Number: 9121.044 |
|||
| E74075-3 | 38 | MOTOR FOR RATIOMOTOR ASSY.
Part Number: 11003037 |
|||
| E74075-3 | 39 | FLANGE NUT M8 TOOTHED BASE GALV.
Part Number: 123453602 |
|||
| E74075-3 | 40 | SENSOR ELECT.BOARD WITH CONNECTOR ASSY.
Part Number: 288582300 Notes: 120V-230V |
|||
| E74075-3 | 41 | TEA/BRASS PISTON L=20,9 ASSY.
Part Number: 11009019 |
|||
| E74075-3 | 42 | 5X8,9 SILICONE TUBE
Part Number: 16000380 Notes: IN ROLL |
|||
| E74075-3 | 43 | HI -LO TC SCREW 3,5X15 RIF.910189
Part Number: 129910103 |
|||
| E74075-3 | 44 | M CURSOR FOR BOILER VALVE IN PLASTIC
Part Number: 9011.099 |
|||
| E74075-3 | 45 | GEAR Z.12/90
Part Number: 9121.042 |
|||
| E74075-3 | 46 | GEAR Z=108 FOR MOUNTING PLATE M4000
Part Number: 9121.069.150 |
|||
| E74075-3 | 47 | TEA/BRASS PIN FOR PISTON L=10
Part Number: 11009013 |
|||
| E74075-3 | 48 | MICROSWITCH SAIA X3M502K2KAM92AS
Part Number: 186723800 |
|||
| E74075-3 | 49 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 129573202 |
|||
| E74075-3 | 50 | BRACKET BOILER SMART SUPPORT
Part Number: 129025002 |
|||
| E74075-3 | 51 | OETIKER CLAMP D=9,5 16700004
Part Number: 12000892 |
|||
| E74075-3 | 52 | OR ORM 0050-20 SILICONE
Part Number: NM01.057 |
|||
| E74075-3 | 53 | TEA/BRASS CONNECTOR FOR SILICONE TUBE
Part Number: 11000750 |
|||
| E74075-3 | 54 | NUT HEXAGONAL M4 UNI 5588
Part Number: U302.003 |
|||
| E74075-3 | 55 | SPRING FOR PIN
Part Number: 9011.132 |
|||
| E74075-3 | 56 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 9161.132 |
|||
| E74075-3 | 57 | SENSOR FIXING SPRING
Part Number: 126838217 |
|||
| E74075-3 | 58 | SCREW TAPT M4X10 DIN 7985 GALV
Part Number: 129573402 |
|||
| E74075-3 | 59 | ELECTRIC INSULATING DISK D=16
Part Number: 145951600 |
|||
| E74075-3 | 60 | THERMOSTAT 175 1NT-08L-3794
Part Number: 189428200 |
|||
| E74075-3 | 61 | SCREW TCEI 5X30 PLAST.ZN-B
Part Number: 129932502 |
|||
| E74075-3 | 62 | INSULATING SPACER FOR BOILER
Part Number: 9161.206 |
|||
| E74075-3 | BOILER SMART/RS V3 230V ASSY.
Part Number: 11010353 Notes: COMPLETE |
||||
| E74075-3 | BOILER SMART/RS V3 120V ASSY.
Part Number: 11010354 Notes: COMPLETE |
||||

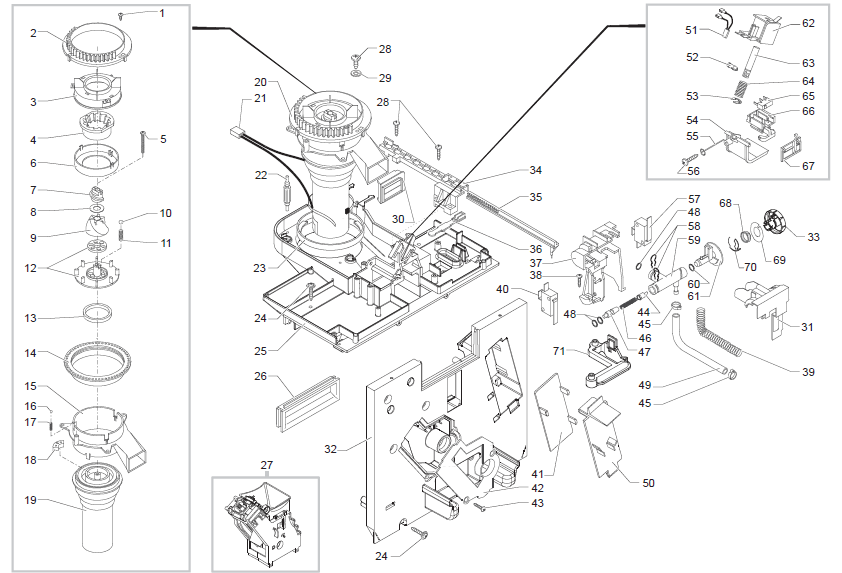

| E74075-4 | 01 | SCREW TCB 2,9X6,4 DIN 7981 NICK
Part Number: 129511803 |
|||
| E74075-4 | 02 | SECTOR GEARGRIND ADJUSTMENT KNOB COMBI
Part Number: 148650250 |
|||
| E74075-4 | 03 | BLACK UPPER GRINDER SUPPORT MAGIC
Part Number: 149186150 |
|||
| E74075-4 | 04 |
|
PARTICULAR NOT AVAILABLE Notes: SEE PART. N09 |
$44.99 | View Part |
| E74075-4 | 05 | TORX SCREW T10 TCB 3,5X40 SX ZNG
Part Number: 129931002 |
|||
| E74075-4 | 06 | UPPER GRINDER COVER COFFEE GRIND. MAGIC
Part Number: 142844550 |
|||
| E74075-4 | 07 | INCREASE SCREW PIN COFFEE GRINDER MAGIC
Part Number: 147470763 |
|||
| E74075-4 | 08 | PLAIN WASHER 10X16X0,2DIN 988 GAL
Part Number: U201.002 |
|||
| E74075-4 | 09 | KIT ITAL MILL GRINDERS
Part Number: 226477700 Notes: WITH PART. N04 |
|||
| E74075-4 | 10 | STAIL.STEEL AISI 304 SPHERE D=5,5MM
Part Number: 128610521 |
|||
| E74075-4 | 11 | STEEL SPRING SPHERE D=5,5 MOTOR MAGIC
Part Number: 126765517 |
|||
| E74075-4 | 12 | CONICAL GRIND. SUPP. + RING MAGIC
Part Number: 149188750 |
|||
| E74075-4 | 13 | FELT RING 40X34X5
Part Number: 140360200 |
|||
| E74075-4 | 14 | RING NUT FOR GRINDING ADJUSTMENT MAGIC
Part Number: 146570950 |
|||
| E74075-4 | 15 | GRINDER MOTOR SUPPORT SMART
Part Number: 149194200 |
|||
| E74075-4 | 16 | STAIL.STELL AISI 304 SPHERE D=3,2MM
Part Number: 128610421 |
|||
| E74075-4 | 17 | NEW SPRING SPHERE D=3,2 MOTOR MAGIG
Part Number: 126770117 |
|||
| E74075-4 | 18 | SHOCK ABS .CONICAL GRINDER SUPP.MAGIC
Part Number: 140230400 |
|||
| E74075-4 | 19 | MOTORE X MC MIELE WERKS NORME
Part Number: 9141.075.00A Notes: 230V |
|||
| E74075-4 | MOTOR MC MIELE WERKS NORME
Part Number: 9141.075.00F Notes: 120V |
||||
| E74075-4 | 20 | GENER.MOTOR AS. G6000 (STD/V2)
Part Number: 286884358 Notes: 230V |
|||
| E74075-4 | GENER.MOT.AS. G6000 (ITALY/V2)
Part Number: 286884458 Notes: 230V |
||||
| E74075-4 | 21 | 2POLES CONN.AS.COF.GRIN.JP1 33MH CA
Part Number: 283544900 Notes: 230V |
|||
| E74075-4 | 2POLES CONN.AS.COF.GRIN.JP1 33MH CA
Part Number: 283544955 Notes: 120V |
||||
| E74075-4 | 22 | ANTIVIBRATION FOR COFFEEGRINDER
Part Number: 9991.103 |
|||
| E74075-4 | 23 | COFFEEGRINDER REINFORCING RING
Part Number: 9141.052 |
|||
| E74075-4 | 24 | PANE. TCB SCREW 3,5X16 TESTA D=8 Z
Part Number: 129670202 |
|||
| E74075-4 | 25 | GRINDER SUPPORT PLATE P107
Part Number: 147531500 |
|||
| E74075-4 | 26 | BLACK INSERT FOR MOUNT.PLATE SMART
Part Number: 145895350 |
|||
| E74075-4 | 27 | BLACK BREW UNIT NEW P107
Part Number: 11004183 Notes: TITANIUM |
|||
| E74075-4 |
|
(SEE EXP. COD. E90052) |
$44.99 | View Part | |
| E74075-4 |
|
NOTE:FOR SINGLE PARTS OF OLD GREY |
$44.99 | View Part | |
| E74075-4 |
|
BREW UNIT: |
$44.99 | View Part | |
| E74075-4 |
|
SEE EXP.CODE E90034 |
$44.99 | View Part | |
| E74075-4 | BLACK BREW UNIT V2 NEW/SBS SMART
Part Number: 11004188 Notes: TITANIUM PLUS |
||||
| E74075-4 |
|
(SEE EXP. COD. E90055) |
$44.99 | View Part | |
| E74075-4 |
|
NOTE:FOR SINGLE PARTS OF OLD GREY |
$44.99 | View Part | |
| E74075-4 |
|
BREW UNIT: |
$44.99 | View Part | |
| E74075-4 |
|
SEE EXP.CODE E90038 |
$44.99 | View Part | |
| E74075-4 | 28 | PANELVIT TCB SCREW 3,5X18 D.7505 Z
Part Number: 129660102 |
|||
| E74075-4 | 29 | PLAIN WASHER 4,3X16 UNI 6592 GAL
Part Number: U207.004 |
|||
| E74075-4 | 30 | GROUND COFFEE OUTLET SEAL SMART
Part Number: 145851862 |
|||
| E74075-4 | 31 | PROTECTION FAUCET BODY WATER/STEAM
Part Number: 147756400 |
|||
| E74075-4 | 32 | ASSEMBLY BOILER SUPPORT PLATE SMART
Part Number: 227533000 |
|||
| E74075-4 | 33 | STEAM KNOB G6000 SILVER
Part Number: 227701537 |
|||
| E74075-4 | 34 | PLATE FIXING TOOTHED SLIDE SMART
Part Number: 147572150 |
|||
| E74075-4 | 35 | TOOTHED SLIDE FOR DOSE ADJUST SMART
Part Number: 148740550 |
|||
| E74075-4 | 36 | DOSE ADJUSTMENT LEVER GREY CLASSIC
Part Number: 9161.122.150 |
|||
| E74075-4 | 37 | BLACK FAUCET SUPPORT/V2 SMART
Part Number: 11005343 |
|||
| E74075-4 | 38 | SCREW AUT.TCB 3,5X22 DIN 7981 C NIK
Part Number: U109.021 |
|||
| E74075-4 | 39 | SPRING DI=7,5 FOR FABRIC FINISH TUB
Part Number: 126772018 |
|||
| E74075-4 | 40 | MICROSWITCH SAIA X3M502K2KAJ52
Part Number: 186723900 |
|||
| E74075-4 | 41 | INT.COVERING BLACK PUMP SPACE
Part Number: 9161.345.050 |
|||
| E74075-4 | 42 | BOILER BLACK COVER
Part Number: 9161.333.050 |
|||
| E74075-4 | 43 | SCREW TSP3,5X9,5 DIN 7982 SS
Part Number: 129535721 |
|||
| E74075-4 | 44 | TEA/BRASS PISTON L=15,1 ASSY.
Part Number: 11009018 |
|||
| E74075-4 | 45 | OETIKER CLIP
Part Number: NF11.052 |
|||
| E74075-4 | 46 | STEEL SPRING BOIL. PISTON MAG.9011
Part Number: 126765317 |
|||
| E74075-4 | 47 | TEA/BRASS CAP FOR FAUCET NESPRESSO
Part Number: 11009007 |
|||
| E74075-4 | 48 | OR 2015 IN SILICONE PTFE/FDA
Part Number: 140328059 |
|||
| E74075-4 | 49 | BRAIDED SILICONE TUBE 3X7 L=185 MM
Part Number: 229433300 |
|||
| E74075-4 | 50 | EXT.COVERING BLACK PUMP SPACE
Part Number: 9161.332.050 |
|||
| E74075-4 | 51 | THERMAL.PROTECTOR 100C
Part Number: 289202200 Notes: 230V |
|||
| E74075-4 | THERMAL.PROTEC.100C UL CAB.145/200
Part Number: 289203600 Notes: 120V |
||||
| E74075-4 | 52 | DOSER DOOR PIN GREY
Part Number: 9161.076.150 |
|||
| E74075-4 | 53 | SNAP RING 7 UNI 7434
Part Number: U701.003 |
|||
| E74075-4 | 54 | DOSER DOOR GREY
Part Number: 9161.074.150 |
|||
| E74075-4 | 55 | SCRAPER ROD
Part Number: 9161.048 |
|||
| E74075-4 | 56 | PANELVIT TCB 3,0X12 DIN 7505 B GAL
Part Number: U140.004 |
|||
| E74075-4 | 57 | MICROSWITCH SAIA X3M502K2KAJ32AV
Part Number: 186724200 |
|||
| E74075-4 | 58 | FORK FOR TUBE D.4
Part Number: 9011.144 |
|||
| E74075-4 | 59 | NIKELED STEAM FAUCET
Part Number: 11003733 |
|||
| E74075-4 | 60 | OR D=4,18 X 1,90 IN TERMOIL
Part Number: 140328561 |
|||
| E74075-4 | 61 | FAUCET SHAFT FOR SMART
Part Number: 140640300 |
|||
| E74075-4 | 62 | ELECTROMAGN.CABLE L=200 SMART ASSY.
Part Number: 283770658 Notes: 230V |
|||
| E74075-4 | ELECTROMAGN.CABLE L=200 SMART ASSY.
Part Number: 283770655 Notes: 120V |
||||
| E74075-4 | 63 | DOSER ELECTROMAGNET CORE
Part Number: 9161.041 |
|||
| E74075-4 | 64 | SPRING ELECTROM.BEAN DOSER MAGIC
Part Number: 126764818 |
|||
| E74075-4 | 65 | MICROSWITCH
Part Number: NE05.017 |
|||
| E74075-4 | 66 | MICRO SUPPORT CURSOR GREY
Part Number: 9161.072.150 |
|||
| E74075-4 | 67 | DOSE CONTROL COMPENSATOR GREY
Part Number: 9161.073.150 |
|||
| E74075-4 | 68 | COMPRESSION RING
Part Number: DM2296 |
|||
| E74075-4 | 69 | SPACER FOR NESPRESSO KNOB
Part Number: 9161.383 |
|||
| E74075-4 | 70 | FOLK SPRING
Part Number: NF11.084 |
|||
| E74075-4 | 71 | SPACER SUPPORT FAUCET S6000 BLACK
Part Number: 0352.022.050 |
|||
| E74075-4 | KIT RICAMBIO RUBINETTO NESPRESSO
Part Number: 0345.R05 |
