Gaggia Unica Part Diagram E74155
This is the Gaggia Unica Part Diagram E74155. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

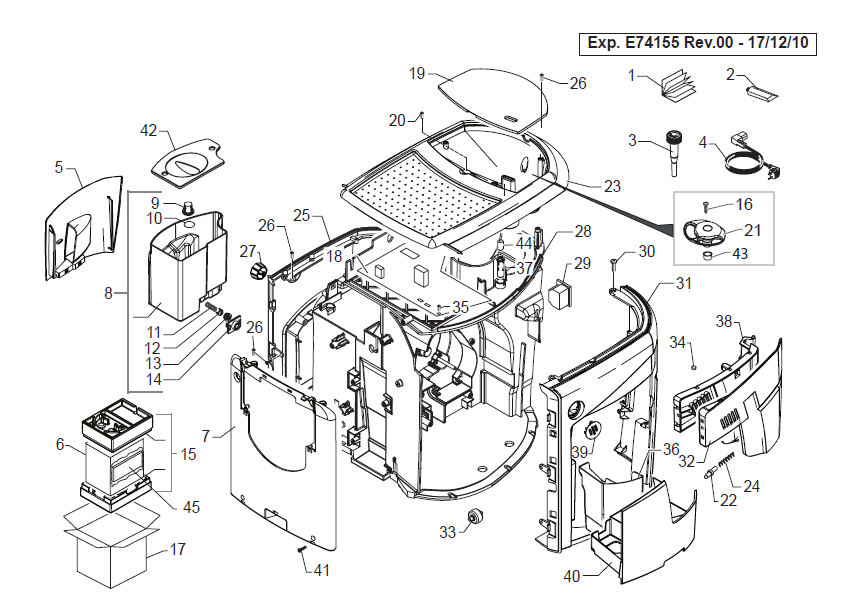

| E74155-1 | 01 | MANUAL GAG SUP035G GPM GB/I/D/F
Part Number: 15002674 |
|||
| E74155-1 | MANUAL GAG SUP035G GPM E/P/NL/PL
Part Number: 15002675 |
||||
| E74155-1 | 02 |
|
GAGGIA KLUBER TRIBOSTAR SIL 2 TUBE 5GR. Part Number: 11022867 |
$9.99 | View Part |
| E74155-1 | 03 |
|
BLACK GRINDER ADJUSTMENT KEY P0049 Part Number: 11003785 |
$5.80 | View Part |
| E74155-1 | 04 | POWER CABLE SCHUKO BLACK L=1200
Part Number: 183911050 |
|||
| E74155-1 | BLK POWER CABLE 3X1 H05VV-F UK L=1200MM
Part Number: 183970350 |
||||
| E74155-1 | 05 | BLACK WATER TANK OUTLET COVER G0053 Part Number: 11007279 |
$17.00 | View Part | |
| E74155-1 | 06 | CARTON INSERT FOR BOX S0053
Part Number: 13000695 |
|||
| E74155-1 | 07 | BLACK FRONT CASING GPM Part Number: 17000579 |
$17.58 | View Part | |
| E74155-1 | 08 |
|
TRANSPARENT WATER CONTAINER P0053 ASSY. Part Number: 11002017 |
$65.00 | View Part |
| E74155-1 | 09 | EXTERNAL FILTER FOR WATER CONTAINER ASSY Part Number: 224640200 Notes: WITH PART.N10 |
$5.60 | View Part | |
| E74155-1 | 10 |
|
EPDM OR METRIC 0190-10 Part Number: 140328461 |
$5.24 | View Part |
| E74155-1 | 11 |
|
SPRING FOR WATER CONTAINER VALVE P0049 Part Number: 11003672 |
$5.24 | View Part |
| E74155-1 | 12 |
|
GREY WATER CONTAINER VALVE INSERT P0049 Part Number: 11003673 |
$5.16 | View Part |
| E74155-1 | 13 |
|
TRANSP.VALVE FOR WATER CONTAINER P0049 Part Number: 11003671 |
$5.24 | View Part |
| E74155-1 | 14 |
|
BLACK LID FOR DUCKBILL VALVE P0049 Part Number: 11001298 |
$5.68 | View Part |
| E74155-1 | 15 | KIT PS-E INSERT FOR BOX S0053
Part Number: 20006907 |
|||
| E74155-1 | 16 |
|
ZN-B TCB SCREW M4X16 Part Number: U043.004 |
$5.08 | View Part |
| E74155-1 | 17 | FLEXOGRAPHATE BOX GPM GAGGIA UNICA
Part Number: 13001305 |
|||
| E74155-1 | 18 |
|
CPU+SW GPM ASSY. Part Number: 11025142 Notes: 230V |
$62.82 | View Part |
| E74155-1 | 19 | TRANS/GREY BEAN COFFEE CONTAIN.LID S0053
Part Number: 11008531 |
|||
| E74155-1 | 20 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 129661702 |
|||
| E74155-1 | 21 | BLACK BEAN CONTAIN.FINGER PROTECT.S0053
Part Number: 11013367 |
|||
| E74155-1 | 22 | BLACK DOOR PIN P0049
Part Number: 11001340 |
|||
| E74155-1 | 23 | BLACK V2 COVER CASING S0053
Part Number: 11013739 |
|||
| E74155-1 | 24 | SS SPRING FOR LOCK DOOR G0053
Part Number: 11008956 |
|||
| E74155-1 | 25 | BLACK LEFT SIDE CASING G0053
Part Number: 11007251 |
|||
| E74155-1 | 26 | SCREW TCBR TORX 10 3,5X12 PLAST.GALVANIZ
Part Number: 12000450 |
|||
| E74155-1 | 27 | BLACK WATER-STEAM KNOB P0049
Part Number: 11009272 |
|||
| E74155-1 | 28 | MOUNTING PLATE WITH PIN P0049 PP+T ASSY.
Part Number: 11004687 |
|||
| E74155-1 | 29 | CUP SOCKET EN 60320 C 13
Part Number: 12000280 |
|||
| E74155-1 | 30 | PANELVIT TCB 3,5X40 DIN 7505 B GAL
Part Number: U140.001 |
|||
| E74155-1 | 31 | BLACK RIGHT SIDE CASING G0053
Part Number: 11007249 |
|||
| E74155-1 | 32 | BLACK DOOR G0053
Part Number: 11007317 |
|||
| E74155-1 | 33 | BLACK WHEEL FOR CASING BOTTOM P124
Part Number: 11000223 |
|||
| E74155-1 | 34 | MAGNET FOR FLOAT SUPERAUTOM.
Part Number: 9161.111 |
|||
| E74155-1 | 35 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 129913202 |
|||
| E74155-1 | 36 | BLACK DUMP BOX P0049 ASSY.
Part Number: 11003533 |
|||
| E74155-1 | 37 | BLACK REED SENSOR SUPPORT P0049
Part Number: 11003154 |
|||
| E74155-1 | 38 | BLACK INSIDE COVER DOOR G0053
Part Number: 11005046 |
|||
| E74155-1 | 39 | BLACK CLOSING CAP FOR CASING G0053
Part Number: 11008530 |
|||
| E74155-1 | 40 | BLACK DRIP TRAY COFFEE UNIT G0053
Part Number: 11007312 |
|||
| E74155-1 | 41 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 129914002 |
|||
| E74155-1 | 42 | NATURAL/GREY WATER CONTAINER LID P0053
Part Number: 11001668 |
|||
| E74155-1 | 43 | BRASS BUSH BEAN CONT.FINGER PROTEC.P0057
Part Number: 11012466 |
|||
| E74155-1 | 44 | 5P.CONNECT.RATIOMOTOR/DOOR/DUMPBOX S0053
Part Number: 11008867 |
|||
| E74155-1 | 45 | PS-E INSERT FOR BOX GPM
Part Number: 13001329 |
|||

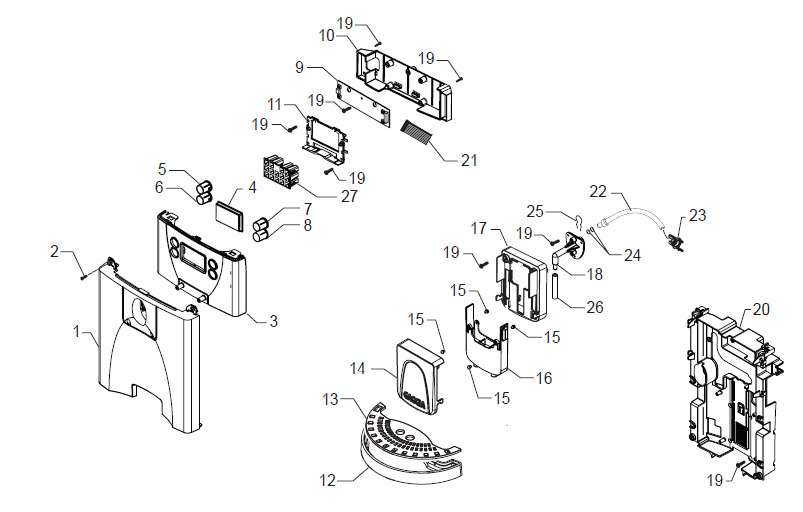

| E74155-2 | 1 | SILVER FRONT CASING COVER GPM
Part Number: 11025524 |
|||
| E74155-2 | 2 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 129913202 |
|||
| E74155-2 | 3 | SILVER FRONT PANEL S/SCR.GAGGIA GPM
Part Number: 11025522 |
|||
| E74155-2 | 4 | TRANSPARENT GLASS FOR LED GPM
Part Number: 17000728 |
|||
| E74155-2 | 5 | BLACK SHORT COFFEE CUP BUTTON GXSM
Part Number: 11021877 |
|||
| E74155-2 | 6 | BLACK LONG COFFEE CUP BUTTON GXSM
Part Number: 11021886 |
|||
| E74155-2 | 7 | BLACK.ON/OFF BUTTON GXSM
Part Number: 11021889 |
|||
| E74155-2 | 8 | BLACK STEAM COFFEE BUTTON GPM
Part Number: 17000632 |
|||
| E74155-2 | 9 | KEYBOARD LED INTERFACE GPM
Part Number: 11025084 |
|||
| E74155-2 | 10 | BLACK KEYBOARD SUPPORT GPM
Part Number: 17000577 |
|||
| E74155-2 | 11 | BLACK CPU BOARD RETAINING INSERT GXSM
Part Number: 11013889 |
|||
| E74155-2 | 12 | BLACK DRIP TRAY S0053
Part Number: 11008536 |
|||
| E74155-2 | 13 | SILVER GRATE FOR DRIP TRAY S0053
Part Number: 11025494 |
|||
| E74155-2 | 14 | CHROM.FRONT COVER COFFEE DISPEN. GPM
Part Number: 11025226 |
|||
| E74155-2 | 15 | WHITE COFFEE DISPENSER SLIDER MYB9
Part Number: 11013085 |
|||
| E74155-2 | 16 | BLACK EXT.MOBILE COF.DISPENSER GMYB
Part Number: 11021389 |
|||
| E74155-2 | 17 | SILVER REAR COVER COFFEE DISPENSER GPM
Part Number: 11025526 |
|||
| E74155-2 | 18 | BLACK COFFEE DISPENSER TUBE GPM
Part Number: 17000582 |
|||
| E74155-2 | 19 | SCREW TCBR TORX 10 3,5X12 PLAST.GALVANIZ
Part Number: 12000450 |
|||
| E74155-2 | 20 | BLACK DRIP TRAY GUIDE G0053
Part Number: 11004741 |
|||
| E74155-2 | 21 | 16 POLES FLATCABLE DISPLAY P124/C
Part Number: 11000851 |
|||
| E74155-2 | 22 | TEFLON TUBE 2X4 L=155 MM ASSY.
Part Number: 11009297 |
|||
| E74155-2 | 23 | BLACK TUBE TEFLON INSERT G0053
Part Number: 11006504 |
|||
| E74155-2 | 24 | OR 2015 IN SILICONE PTFE/FDA
Part Number: 140328059 |
|||
| E74155-2 | 25 | FORK FOR TUBE D.4
Part Number: 9011.144 |
|||
| E74155-2 | 26 | TRANSP.TUBE FOR COFFEE DISPENSER GPM
Part Number: 17000638 |
|||
| E74155-2 | 27 | WHITE GUIDE LIGHT SUPPORT GXSM
Part Number: 11023369 |
|||

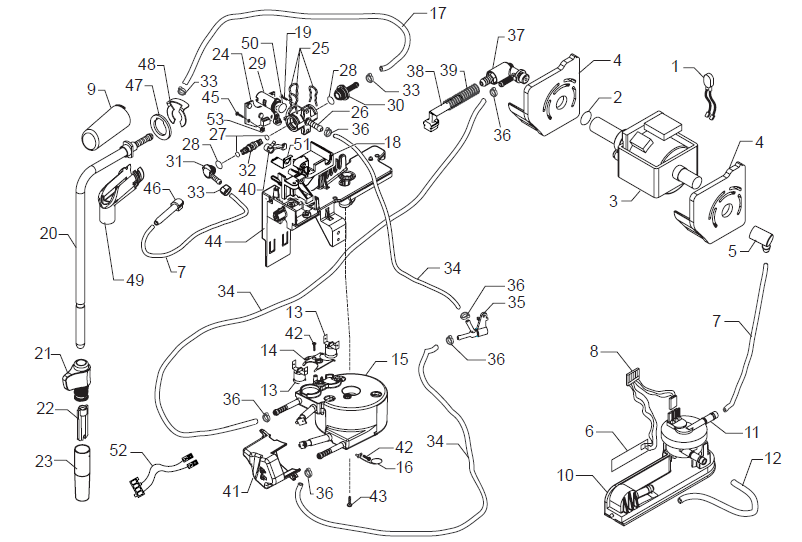

| E74155-3 | 1 | 2POLES CONNECTOR PUMP P0049 UL
Part Number: 11005668 |
|||
| E74155-3 | 2 | OR 2031 IN TERMOIL
Part Number: 140321961 |
|||
| E74155-3 | 3 | ULKA PUMP EP5/S GW
Part Number: 12000140 Notes: 230V-50HZ |
|||
| E74155-3 | 4 | BLACK PUMP SUPPORT P0049 ASSY.
Part Number: 11006296 |
|||
| E74155-3 | 5 | 90 CONNECTOR PUMP INLET
Part Number: 147920150 |
|||
| E74155-3 | 6 | WATER LEVEL SENSOR BOARD P124
Part Number: 11000651 |
|||
| E74155-3 | 7 | SILICONE TUBE 5X8 70SR
Part Number: 149360200 Notes: IN ROLL |
|||
| E74155-3 | 8 | 3 POLES CONNECT.FLOWMETER S0053 UL
Part Number: 11008906 |
|||
| E74155-3 | 9 | BLACK COVER CONNECTOR STEAM TUBE SMART
Part Number: 142853850 |
|||
| E74155-3 | 10 | BLACK TURBINE SUPPORT V2 P0049
Part Number: 11003670 |
|||
| E74155-3 | 11 | TURBINE D=1,2 932-8521/90 ASSY.
Part Number: 12000781 |
|||
| E74155-3 | 12 | SILICONE TUBE 5X10 60 SHORE
Part Number: JS01.022 Notes: IN ROLL |
|||
| E74155-3 | 13 | THERMOSTAT ONE SHOT 175
Part Number: 12001034 |
|||
| E74155-3 | 14 | THERMOSTATES SPRING FOR BOILER
Part Number: 11001751 |
|||
| E74155-3 | 15 | ALUM.BOILER SLIM ASSY.
Part Number: 11013735 Notes: 230V-1300W |
|||
| E74155-3 | 16 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 190800100 |
|||
| E74155-3 | 17 | WHITE BRAIDED SILICON TUBE 3X6
Part Number: 16000170 Notes: IN ROLL |
|||
| E74155-3 | 18 | BLACK FAUCET SUPPORT G0053
Part Number: 11006022 |
|||
| E74155-3 | 19 | SCREW TCB TORX 10 3X12 PLAST.ZN-B
Part Number: 129913902 |
|||
| E74155-3 | 20 | ST.STEEL STEAM TUBE S0053 ASSY.
Part Number: 11008806 |
|||
| E74155-3 | 21 | BLACK STEAM TUBE HANDGRIP G0053
Part Number: 11007194 |
|||
| E74155-3 | 22 | PANNARELLO INTERNAL TUBE P0049
Part Number: 11001620 |
|||
| E74155-3 | 23 | BLACK COVER PANNARELLO P0049
Part Number: 11001769 |
|||
| E74155-3 | 24 | TAP ELECTRONIC CARD G0053 ASSY.
Part Number: 11007569 |
|||
| E74155-3 | 25 | FORK SPRING FOR FAUCET P0049
Part Number: 11001499 |
|||
| E74155-3 | 26 | TEA/BRASS FAUCET CASING P0049
Part Number: 11004625 |
|||
| E74155-3 | 27 | OR 2012 IN EPDM PEROX.FDA 70 SH
Part Number: 12001614 |
|||
| E74155-3 | 28 | OR 108 IN EPDM PEROX.FDA 70 SH
Part Number: 12001613 |
|||
| E74155-3 | 29 | PLAST/BRASS FAUCET SHAFT V2 P0049 ASSY.
Part Number: 11025776 |
|||
| E74155-3 | 30 | FAUCET STRAIGHT CONNECTOR P0049
Part Number: 11001546 |
|||
| E74155-3 | 31 | BLACK FAUCET CONNECTOR P0049
Part Number: 11001544 |
|||
| E74155-3 | 32 | TEA/BRASS FAUCET SHAFT P0049
Part Number: 11004134 |
|||
| E74155-3 | 33 | OETIKER CLIP
Part Number: NF11.052 |
|||
| E74155-3 | 34 | 5X8,9 SILICONE TUBE
Part Number: 16000380 Notes: IN ROLL |
|||
| E74155-3 | 35 | BLACK CONNECTOR FOR PIN BOILER P0049
Part Number: 11001330 |
|||
| E74155-3 | 36 | OETIKER CLAMP D=9,5 16700004
Part Number: 12000892 |
|||
| E74155-3 | 37 | SAFETY VALVE 16-18 BAR V2 P0049 ASSY.
Part Number: 11010166 |
|||
| E74155-3 | 38 | PUMP DESCARGING WATER CONNECTION P0049
Part Number: 11001629 |
|||
| E74155-3 | 39 | DESCARGING WATER CONNECTOR SPRING P0049
Part Number: 11005003 |
|||
| E74155-3 | 40 | BRASS FAUCET BLOCK INSERT P0049/A
Part Number: 11008876 |
|||
| E74155-3 | 41 | BLK BOILER CONNECTORS COVER P0049/P0053
Part Number: 17000386 |
|||
| E74155-3 | 42 | SCREW TCB PH/TT 4X8 UNI 8112 ZNP
Part Number: 129573202 |
|||
| E74155-3 | 43 | SCREW TCEI 5X30 PLAST.ZN-B
Part Number: 129932502 |
|||
| E74155-3 | 44 | BLACK BOILER-FAUCET-VALVE SUPPORT P0049
Part Number: 11001332 |
|||
| E74155-3 | 45 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 129913202 |
|||
| E74155-3 | 46 | MILK ISLAND DESCARGING WATER CONNECTION
Part Number: 11001630 |
|||
| E74155-3 | 47 | STEAM TUBE WASHER P0049
Part Number: 11001624 |
|||
| E74155-3 | 48 | FOLK SPRING
Part Number: NF11.084 |
|||
| E74155-3 | 49 | BLACK CONNECTOR STEAM TUBE SMART
Part Number: 147921750 |
|||
| E74155-3 | 50 | OR 2025 IN EPDM PEROX.FDA 70 SH
Part Number: 12001615 |
|||
| E74155-3 | 51 | SS.FAUCET FOR SPRING P0049
Part Number: 11002957 |
|||
| E74155-3 | 52 | 2POLES CONNECTOR GRINDER MOTOR S0053
Part Number: 11001824 |
|||
| E74155-3 | 53 | PLAIN WASHER 3,2X7 UNI 6592 GAL
Part Number: U207.003 |
|||
| E74155-3 | TEA/BRASS FAUCET V2 P0049-P0053 ASSY.
Part Number: 11025775 |
||||
| WITH PART. N25-26-27-28-29-30-31-32-50
|
|||||
| E74155-3 | TUBOL.BOILER GPM 230V ASSY.
Part Number: 11025191 Notes: COMPLETE |
||||

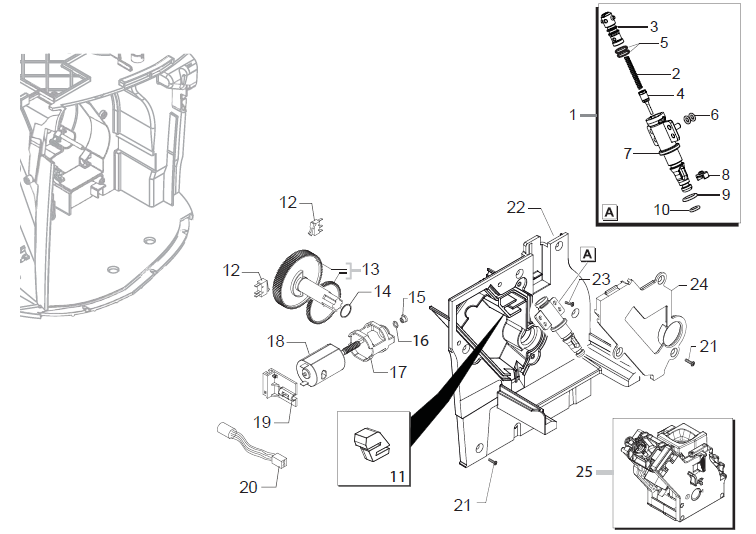

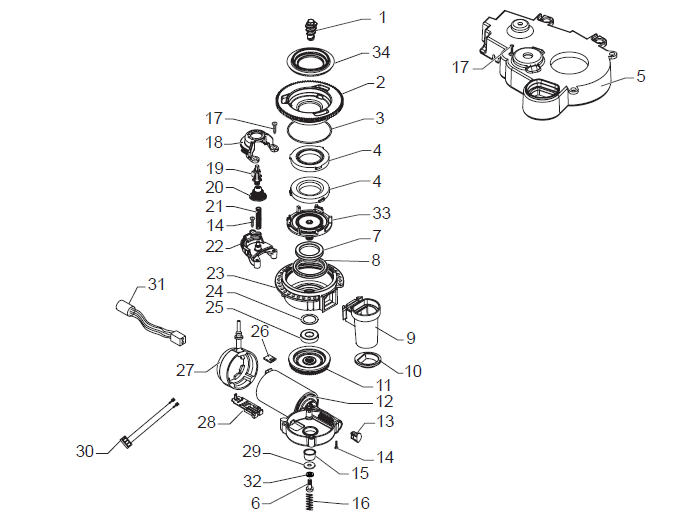

| E74155-4 | 1 | TEA/ZAMA INCREASE SCREW GRINDER
Part Number: 11010031 |
|||
| E74155-4 | 2 | UPPER GRINDER SUPPORT COFFEEGRINDER
Part Number: 149198250 |
|||
| E74155-4 | 3 | NBR FDA OR METRIC 0530-15
Part Number: 140328960 |
|||
| E74155-4 | 4 | BAKED CLAY GRINDER 48X28
Part Number: 146520100 |
|||
| E74155-4 | 5 | COFFEE GRINDER SOUNDPROOFING COVER GPM
Part Number: 17000818 |
|||
| E74155-4 | 6 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 129574802 |
|||
| E74155-4 | 7 | AXIAL BEARING EKKO 342.35252
Part Number: 123030300 |
|||
| E74155-4 | 8 | FELT RING 45,4X39,4X4
Part Number: 140360500 |
|||
| E74155-4 | 9 | GROUND COFFEE OUTLET CONVEYOR V2 ASSY
Part Number: 11012564 |
|||
| E74155-4 | 10 | GROUND COFFEE CONT.SEAL LOWER SMART1
Part Number: 145854462 |
|||
| E74155-4 | 11 | GEAR SX Z=38 FOR GRINDER MOTION ASSY.
Part Number: 226000300 |
|||
| E74155-4 | 12 | MOTOR COFFEEGRINDER/V3.1 DOMEL ASSY
Part Number: 11000513 Notes: 230V |
|||
| E74155-4 | 13 | CAP FOR WORM SCREW MC/V3 CENTRING
Part Number: 149214800 |
|||
| E74155-4 | 14 | SCREW TCB PH 3,5X30 PLAST.ZN-B
Part Number: 129661702 |
|||
| E74155-4 | 15 | INSULATOR BUSH FOR GRINDER MOTOR P124
Part Number: 11002873 |
|||
| E74155-4 | 16 | COFFEE GRINDER SUPPORT SPRING P124
Part Number: 11000597 |
|||
| E74155-4 | 17 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 129914002 |
|||
| E74155-4 | 18 | UPPER GEAR SUPPORT COFFEEGRINDER P124
Part Number: 11002508 |
|||
| E74155-4 | 19 | BLACK INSERT FOR COFFEE GRINDER P0049
Part Number: 11003446 |
|||
| E74155-4 | 20 | COFFEE GRINDING ADJUSTMENT GEAR P0049
Part Number: 11003784 |
|||
| E74155-4 | 21 | GRINDER REGULATION SPRING P124
Part Number: 11002572 |
|||
| E74155-4 | 22 | LOWER GEAR SUPPORT COFFEEGRINDER P124
Part Number: 11002613 |
|||
| E74155-4 | 23 | UPPER BODY WITH COFFE.GROUND OUTLET
Part Number: 142905450 |
|||
| E74155-4 | 24 | CRINKLE WASHER 21,8X15,8X0,2
Part Number: 128381800 |
|||
| E74155-4 | 25 | RADIAL BEARING 61900.2RS1
Part Number: 123030200 |
|||
| E74155-4 | 26 | ELECTRONIC BOARD WITH SENSOR HAL506
Part Number: 181540900 |
|||
| E74155-4 | 27 | BLACK COFFEE GRINDER SUPPORT P0049
Part Number: 11001367 |
|||
| E74155-4 | 28 | SENSOR SUPPORT FOR COFF.GRIND.MOTOR
Part Number: 149199050 |
|||
| E74155-4 | 29 | GALVAN.FLAT WASH.DI=4,3 DE=14 SP=1,5
Part Number: 128381902 |
|||
| E74155-4 | 30 | 2POLES CONNECTOR GRINDER MOTOR S0053
Part Number: 11008869 |
|||
| E74155-4 | 31 | 3 POLES CONNECTOR MC SENSOR S0053 UL
Part Number: 11008871 |
|||
| E74155-4 | 32 | GALV.WASHER UNI 8842 A4
Part Number: 128310402 |
|||
| E74155-4 | 33 | LOWER GRINDER SUPPORT COFFEEGRINDER
Part Number: 149198350 |
|||
| E74155-4 | 34 | COFFEE GRINDER SEAL P119
Part Number: 145857062 |
|||
| E74155-4 | GENERAL MOTOR MC V3 S0053 230V ASSY.
Part Number: 11013435 |
||||
| E74155-5 | 1 | PIN V2 FOR BOILER P119 ASSY.
Part Number: 11005060 |
|||
| E74155-5 | 2 | SPRING FOR PIN
Part Number: 9011.132 |
|||
| E74155-5 | 3 | CAP V2 FOR PIN BOILER P119
Part Number: 11003820 |
|||
| E74155-5 | 4 | TEA/BRASS PISTON L=20,9 ASSY.
Part Number: 11009019 |
|||
| E74155-5 | 5 | OR ORM 0060-20 IN SILICONE PTFE/FDA
Part Number: 140324459 |
|||
| E74155-5 | 6 | OR 2015 IN SILICONE PTFE/FDA
Part Number: 140328059 |
|||
| E74155-5 | 7 | NATURAL PIN V2 FOR BOILER P119
Part Number: 11003801 |
|||
| E74155-5 | 8 | NATURAL CURSOR V2 FOR BOILER P119
Part Number: 11005099 |
|||
| E74155-5 | 9 | OR ORM 0090-20 SILICONE
Part Number: NM01.035 |
|||
| E74155-5 | 10 | OR ORM 0050-20 IN SILICONE
Part Number: NM01.057 |
|||
| E74155-5 | 11 | BLACK PROTECTION FOR COVER PLATE P0049
Part Number: 11022216 |
|||
| E74155-5 | 12 | MICRO.RATIOMOTOR S0053 UL ASSY.
Part Number: 11008868 |
|||
| E74155-5 | 13 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 20000900 |
|||
| E74155-5 | 14 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 9161.132 |
|||
| E74155-5 | 15 | SINTERED BUSH FOR MOTOR
Part Number: 9121.046 |
|||
| E74155-5 | 16 | WASHER BAKELIZZATE D=5,5
Part Number: 148380200 |
|||
| E74155-5 | 17 | ANTIVIBRATION FOR MOTOR
Part Number: 9121.044 |
|||
| E74155-5 | 18 | MOTOR FOR RATIOMOTOR ASSY.
Part Number: 11003037 |
|||
| E74155-5 | 19 | BLACK MICROSWITCH SUPPORT DUMP BOX P0049
Part Number: 11001331 |
|||
| E74155-5 | 20 | PARTICULAR NOT AVAILABLE
Notes: SEE PART.N44 TABLE 01 |
|||
| E74155-5 | 21 | SCREW TSP TORX 10 3,5X12 PLAST.ZN-B
Part Number: 129914102 |
|||
| E74155-5 | 22 | BLACK COVER MOUNTING PLATE P0049 ASSY.
Part Number: 11006337 |
|||
| E74155-5 | 23 | TCB SCREW 3,5X16 PLAST.
Part Number: 129914002 |
|||
| E74155-5 | 24 | BLACK COVER FOR VAIN BOILER P0049
Part Number: 11001312 |
|||
| E74155-5 | 25 | BLACK BREW UNIT 8GR. S0053
Part Number: 11009266 |
