Gaggia Velasca Prestige Part Diagram E74238
This is the Gaggia Velasca Prestige Part Diagram E74238. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

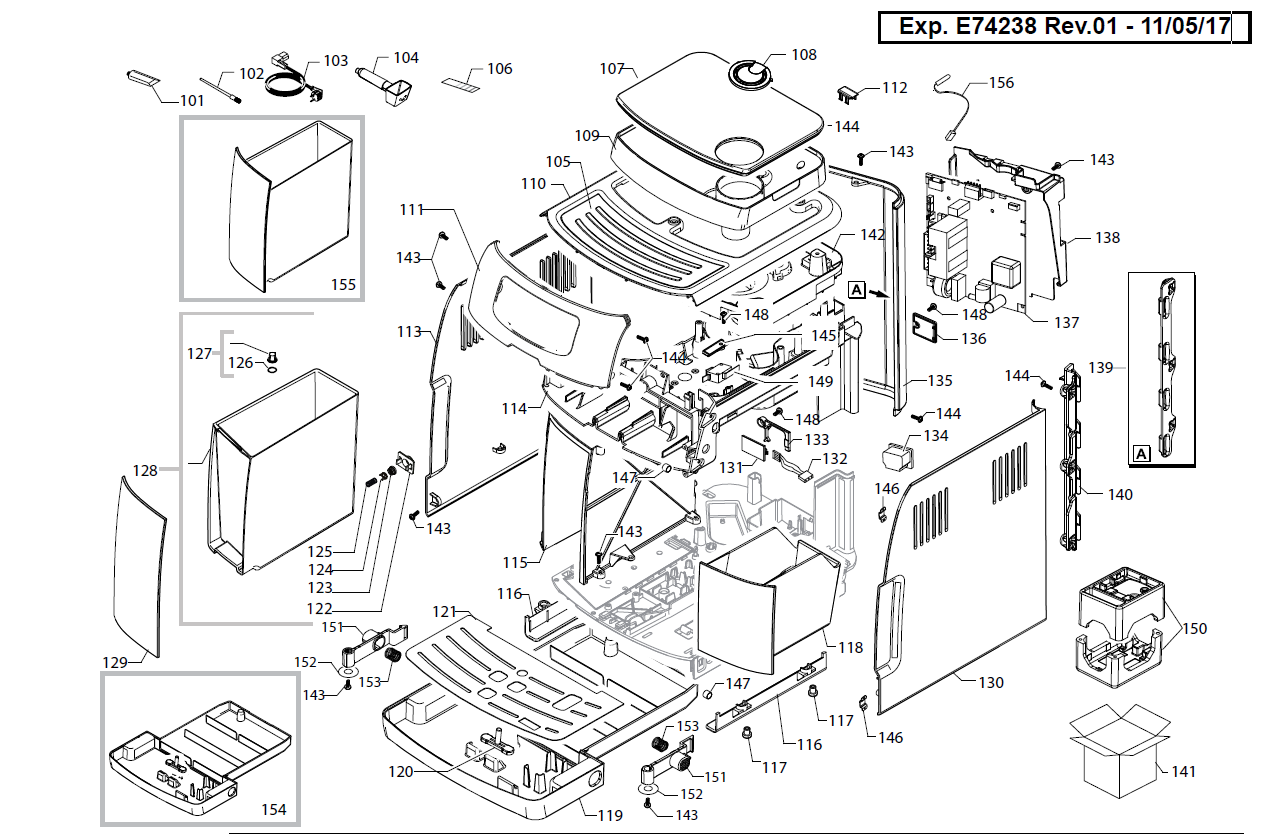

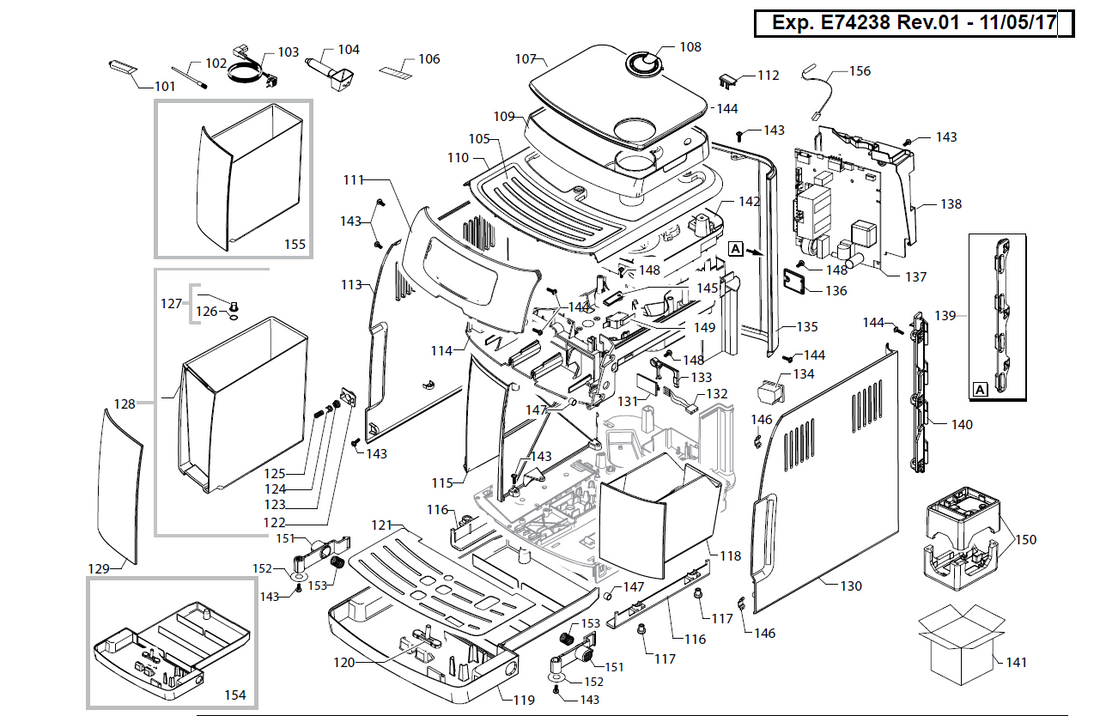

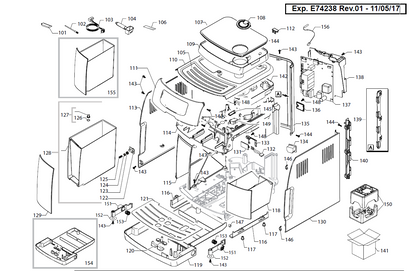

| E74238-1 | 101 |
|
KLUBERLUB NH1 11-222 TUBE 5GR. Part Number: 421946017941 |
$9.99 | View Part |
| E74238-1 | 102 |
|
BRUSH FOR CLEANING Part Number: 996530011867 |
$6.55 | View Part |
| E74238-1 | 103 | BLK POWER CABLE SCHUKO L=1200
Part Number: 996530025808 |
|||
| E74238-1 |
|
BLK POWER CABLE SJT3 USA UL L=1200 Part Number: 996530025843 |
$15.72 | View Part | |
| E74238-1 | 104 |
|
BLK ABS COFFEE MEASURE SMART Part Number: 421944033301 |
$8.16 | View Part |
| E74238-1 | 105 |
|
BA/SS UPPER CASING COVER INS.V2 NPR/H-T Part Number: 421944053591 |
$10.44 | View Part |
| E74238-1 | 106 | STICKER FOR WATER HARDNESS TEST
Part Number: 996530039604 |
|||
| E74238-1 | 107 |
|
T/GRY BEAN C.CON.LID W/SEAL S/SC.NP5/H-T Part Number: 421944057611 |
$19.99 | View Part |
| E74238-1 |
|
NAT/GRY BEAN COFF.CONT.LID V2 NPR/H-T AS Part Number: 421944063391 Notes: RI8263/47 |
$16.84 | View Part | |
| E74238-1 | 108 |
|
TRANSP/GRY GROUND COF.HOPPER LID SMRA Part Number: 421944040481 |
$11.64 | View Part |
| E74238-1 | 109 | TRANSP/GRY BEAN COFFEE CONTAINER NPR Part Number: 421944053291 |
$18.92 | View Part | |
| E74238-1 | 110 |
|
BA/SS-BLK UPPER CASING COVER NP5/H ASSY Part Number: 421944054461 |
$23.52 | View Part |
| E74238-1 | 111 |
|
SS FRONT PANEL S/SCR.GAG VELASCA ASSY Part Number: 421944074061 |
$59.99 | View Part |
| E74238-1 | 112 | TRANSP.COVER INFRAREDS ACCESS NPR/T
Part Number: 996530069844 |
|||
| E74238-1 | 113 | BLACK LEFT SIDE CASING NPR Part Number: 996530068729 |
$17.70 | View Part | |
| E74238-1 | 114 | BLK COFFEE GRINDER SUPP.PLATE V2 NPR/T Part Number: 996530071883 |
$22.49 | View Part | |
| E74238-1 | 115 | BLK CASING BOTTOM INSERT V2 NPR Part Number: 421941282512 |
$24.74 | View Part | |
| E74238-1 | 116 | BLACK DRIP TRAY GUIDE NPR Part Number: 996530068723 |
$8.34 | View Part | |
| E74238-1 | 117 |
|
TRANSPARENT SILICONE FOOT Part Number: 421324705256 |
$5.14 | View Part |
| E74238-1 | 118 | SS DUMP BOX V2 NPR/TM ASSY Part Number: 421941250042 |
$33.14 | View Part | |
| E74238-1 | 119 | BLK DRIP TRAY V3 NPR/T ASSY.
Part Number: 421944013031 |
|||
| E74238-1 | 120 | RED/3003 FLOAT FOR DRIP TRAY XSM
Part Number: 421941304791 |
|||
| E74238-1 | 121 | SA/SS GRATE FOR DRIP TRAY NP5/T 22
Part Number: 421944054531 |
|||
| E74238-1 | 122 | BLK LID FOR WATER CONT.VALVE V2 P0049
Part Number: 421944040061 |
|||
| E74238-1 | 123 | BLK GASKET FOR WATER CONT.VALVE V2 P0049
Part Number: 421944040781 |
|||
| E74238-1 | 124 | BLK WATER CONT.VALVE INSERT V2 P0049
Part Number: 421944040071 |
|||
| E74238-1 | 125 | SS SPRING FOR WATER CONTAIN.VALVE P0049
Part Number: 996530001831 |
|||
| E74238-1 | 126 | OR ORM 0190-10 EPDM
Part Number: 996530013571 |
|||
| E74238-1 | 127 | WHITE WATER CONTAINER EXT.FILTER ASSY.
Part Number: 996530029115 |
|||
| E74238-1 | 128 | NAT/GRY WATER CONTAINER V2 NPR ASSY
Part Number: 421944056301 Notes: RI8263/47 |
|||
| E74238-1 | NAT/GRY WATER CONT.LONGFILT V2 NPR ASSY
Part Number: 421944053072 |
||||
| E74238-1 | 129 | SS WATER TANK FRONT COVER V2 NPR/HM ASS
Part Number: 421941249752 |
|||
| E74238-1 | 130 | M/BLK RIGHT SIDE DOOR V4 NPR
Part Number: 421944040591 |
|||
| E74238-1 | 131 | CPU+SW WATER LEVEL SENSOR V3 ASSY.
Part Number: 421941306721 |
|||
| E74238-1 | 132 | 3P.CONN.WATER LEVEL V2 CLP UL ASSY.
Part Number: 421946000081 |
|||
| E74238-1 | 133 | BLK CAPACIT.SENSOR LOCKING INSERT NPR
Part Number: 996530068749 |
|||
| E74238-1 | 134 | CUP SOCKET V3 EN 60320 C 13
Part Number: 996530072437 |
|||
| E74238-1 | 135 | BLACK REAR CASING NPR
Part Number: 996530068714 |
|||
| E74238-1 | 136 | BLACK REAR CASING PROGRAM.INSERT NPR
Part Number: 996530068728 |
|||
| E74238-1 | 137 | CPR+SW NPR V2/T ASSY.
Part Number: 421941308171 Notes: 230V |
|||
| E74238-1 | 137 | CPU+SW NPR/T V2 USA ASSY.
Part Number: 421941308481 Notes: 120V |
|||
| E74238-1 | 138 | BLK PWR/CPU BOARD PROTECTION NP5
Part Number: 421944063711 |
|||
| E74238-1 | GRY PWR/CPU BOARD PROTECTION V2 P0057/UL
Part Number: 421944050551 Notes: USA |
||||
| E74238-1 | 139 | BLK HINGE FOR REAR CASING XSM.
Part Number: 421944022751 |
|||
| E74238-1 | 140 | BLK HINGE FOR DOOR RIGHT SIDE XSM
Part Number: 421944022731 |
|||
| E74238-1 | 141 | DISPL.BOX NP5/T GAG VELASCA
Part Number: 421946037101 |
|||
| E74238-1 | 142 | BLK COF.GRINDER SOUNDPROOFING COV.V3 NPR
Part Number: 421944058831 |
|||
| E74238-1 | 143 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| E74238-1 | 144 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-NI
Part Number: 421944016761 |
|||
| E74238-1 | 145 | BLK CAPACIT.SENSOR DEADLOCK INSERT XSM
Part Number: 996530067437 |
|||
| E74238-1 | 146 | STEEL PLATE FOR DOOR MAGNET XSM
Part Number: 996530069857 |
|||
| E74238-1 | 147 | MAGNET FOR FLOAT SUPERAUT.
Part Number: 996530050555 |
|||
| E74238-1 | 148 | SCREW TCB TORX 10 3X8 PLAST.ZN-B
Part Number: 996530013156 |
|||
| E74238-1 | 149 | MICROSWITCH XG/V3D/VA2
Part Number: 421946032321 |
|||
| E74238-1 | 150 | KIT PS-E INSERT FOR BOX NPR/H-P
Part Number: 996530068711 |
|||
| E74238-1 | 151 | BLACK DRIP TRAY LOCKING INSERT V2 NPR/T
Part Number: 996530072693 |
|||
| E74238-1 | 152 | PLAIN WASHER 4,3X16 UNI 6592 GAL
Part Number: 996530062034 |
|||
| E74238-1 | 153 | HOT WATER TUBE SPRING P124
Part Number: 996530000487 |
|||
| E74238-1 | 154 | KIT SPARES BLK DRIP TRAY V3 NPR/T
Part Number: 421941308921 |
|||
| E74238-1 | 155 | KIT SP.WATER GEN.CONT.NAT/GRY GAG NPR/T
Part Number: 421941310501 |
|||
| E74238-1 | KIT SP.WATER GEN.CONT.NAT/GRY NPR
Part Number: 421941310031 Notes: RI8263/47 |
||||
| E74238-1 | 156 | 2P.CONN.SENSOR REED DOOR V2 MYB9 UL ASSY
Part Number: 996530073867 Notes: RI8260/47 |
|||

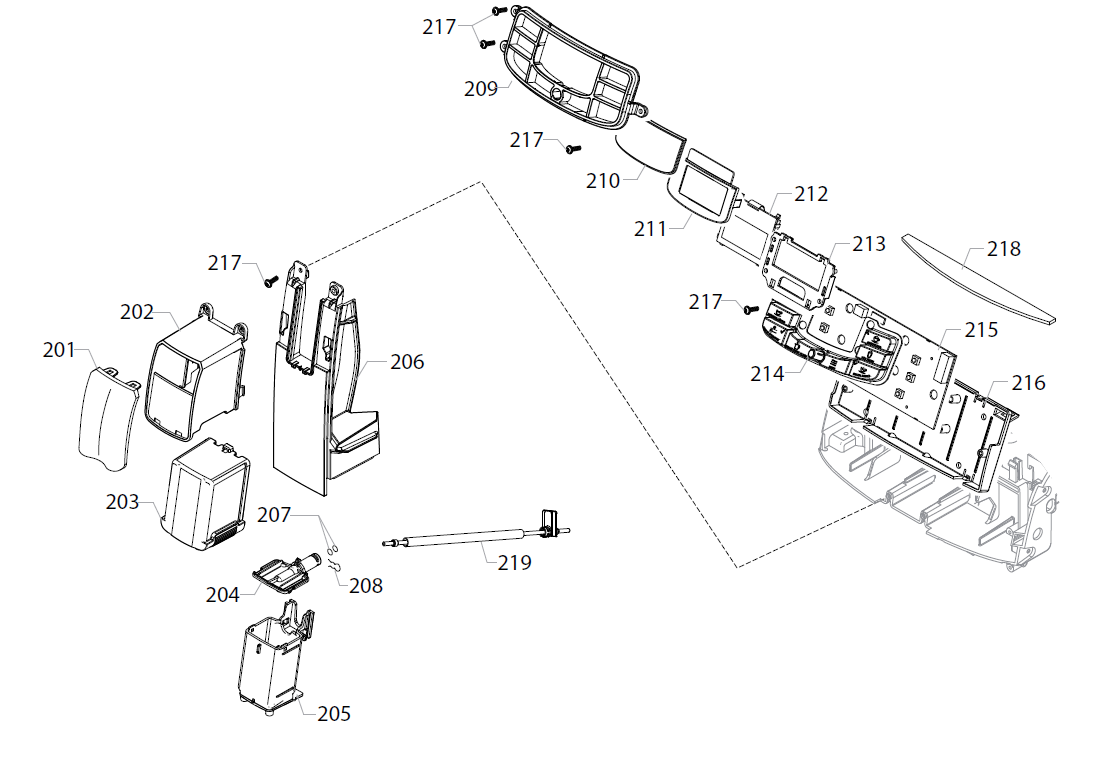

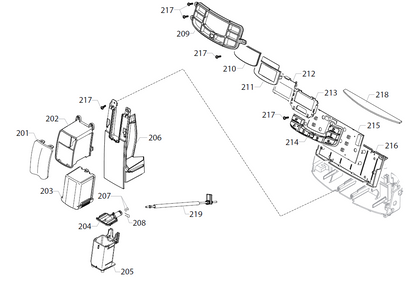

| E74238-2 | 201 | SS COF.DISPENS.FRONT PLATE NPR/HT-TM ASS
Part Number: 996530070369 |
|||
| E74238-2 | 202 | G/ANM COFFEE DISPENSER LID NPR
Part Number: 421944049371 |
|||
| E74238-2 | 203 | BLACK COFFEE DISPENSER MOBILE PART NPR
Part Number: 996530068698 |
|||
| E74238-2 | 204 | BLACK COFFEE DISPENSER BODY LID NPR
Part Number: 996530068742 |
|||
| E74238-2 | 205 | BLACK COFFEE DISPENSER BODY V2 NPR
Part Number: 996530071881 |
|||
| E74238-2 | 206 | SS FRONT CASING COVER NPR/HM ASSY.
Part Number: 996530070368 |
|||
| E74238-2 | 207 | OR 2015 SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| E74238-2 | 208 | SS FORK FOR TUBE D=4
Part Number: 996530048885 |
|||
| E74238-2 | 209 | CHROM.TOUCH PANEL FRAME NPR/E
Part Number: 996530072811 |
|||
| E74238-2 | 210 | TRANSP.GLASS FOR DISPLAY NPR
Part Number: 996530068675 |
|||
| E74238-2 | 211 | BLACK DISPLAY FRAME NPR
Part Number: 996530068673 |
|||
| E74238-2 | 212 | DISPLAY HIGO FL
Part Number: 421941307861 |
|||
| E74238-2 | 213 | BLACK DISPLAY SUPPORT NPR
Part Number: 996530068682 |
|||
| E74238-2 | 214 | SIL 9BUTTONS TOUCH PANEL S/SCR.NPR/T
Part Number: 421944053941 |
|||
| E74238-2 | 215 | KEYBOARD NPR V2/T
Part Number: 421941308161 |
|||
| E74238-2 | KEYB NPR/H 120V USA
Part Number: 421941308201 Notes: RI8263/47 |
||||
| E74238-2 | 216 | BLACK DISPLAY KEYBOARD SUPPORT V2 NPR
Part Number: 996530071879 |
|||
| E74238-2 | 217 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| E74238-2 | 218 | BLACK ADHESIVE AERSTOP NPR
Part Number: 996530069814 |
|||
| E74238-2 | 219 | TEFL.TUBE 2X4 L=235+PLATE+2BUSH NPR ASSY
Part Number: 996530073357 |
|||

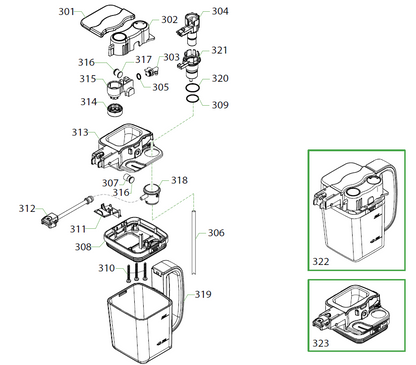

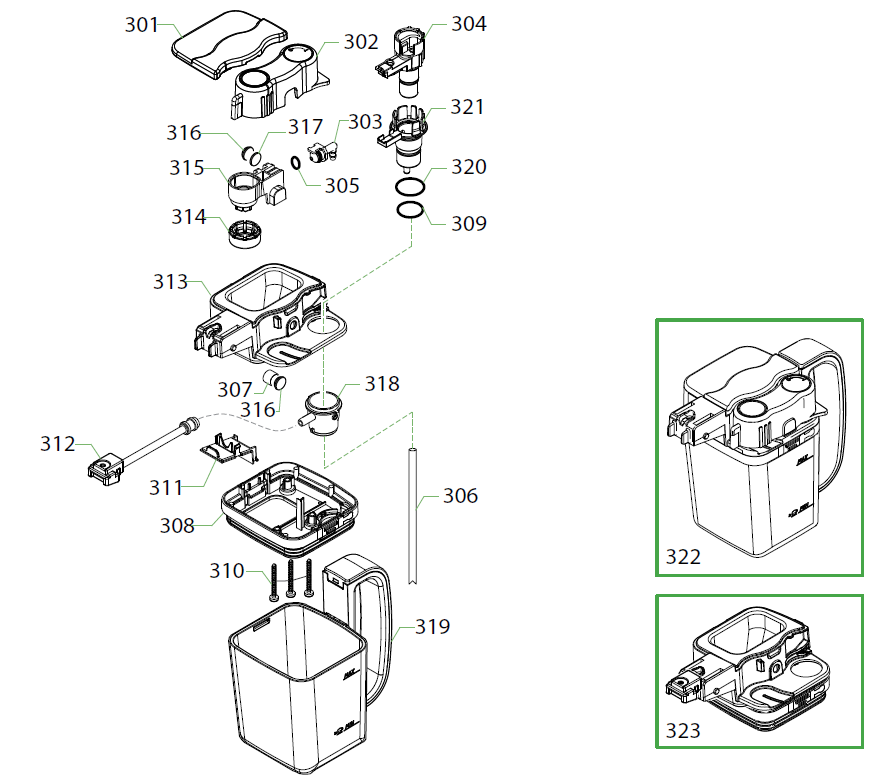

| E74238-3 | 301 | SS/BLK CARAFE COVER PLUG NPR/T ASSY
Part Number: 996530072681 |
|||
| E74238-3 | 302 | MATT/BLK CARAFE CAPPUC.COVER V6 NPR/T,
Part Number: 421944054231 |
|||
| E74238-3 | 303 | CARAFE STEAM OUTPUT CONNECT.NPR/T ASSY
Part Number: 996530069788 |
|||
| E74238-3 | 304 | BLACK CARAFE CAPPUC.PIN V3 NPR/T ASSY
Part Number: 421941262132 |
|||
| E74238-3 | 305 | O-RING 106 SILICONE
Part Number: 996530059392 |
|||
| E74238-3 | 306 | SILICONE TUBE 3,5X6 L= 75 MM
Part Number: 996530069794 |
|||
| E74238-3 | 307 | MAGNET FOR FLOAT SUPERAUT
Part Number: 996530050555 |
|||
| E74238-3 | 308 | MATT/BLACK LOWER COVER PART CARAFE NPR/T
Part Number: 996530072645 |
|||
| E74238-3 | 309 | OR ORM 0170-15 EPDM
Part Number: 996530072691 |
|||
| E74238-3 | 310 | SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
Part Number: 996530013165 |
|||
| E74238-3 | 311 | BLK CARAFE REAR COVER INSERT V2 NPR/T
Part Number: 421944001291 |
|||
| E74238-3 | 312 | BLACK CARAFE MILK DISPENSER TUBE NPR/T
Part Number: 996530069827 |
|||
| E74238-3 | 313 | MATT/BLACK UPPER COVER PART CARAFE NPR/T
Part Number: 996530072649 |
|||
| E74238-3 | 314 | BLK CARAFE CAPPUC.MILK OUTPUT CONN.NPR/T
Part Number: 996530069837 |
|||
| E74238-3 | 315 | BLACK CARAFE CAPPUC.CASING NPR/T
Part Number: 996530069847 |
|||
| E74238-3 | 316 | SS.INSERT FOR MAGNET MYB9
Part Number: 996530006968 |
|||
| E74238-3 | 317 | MAGNET D=9,5 X H=1,5
Part Number: 996530051816 |
|||
| E74238-3 | 318 | BLACK CARAFE COVER BUSH V2 NPR/T
Part Number: 996530071934 |
|||
| E74238-3 | 319 | SPARES KIT SS/BLK CARAFE HANDLE V2 NPR/T
Part Number: 996530072685 |
|||
| E74238-3 | 320 | OR ORM 0190-20 EPDM
Part Number: 996530072674 |
|||
| E74238-3 | 321 | BLACK CAPPUC.PIN SUPPORT V3 NPR/T
Part Number: 421941287432 |
|||
| E74238-3 | 322 | TRANSP-M/BLK GEN.CARAFE V2 NP5/T ASSY
Part Number: 421944054802 |
|||
| E74238-3 | 323 | KIT SPARES M/BLK UPP.COV.CAR.NPR/T
Part Number: 421941308931 |
|||

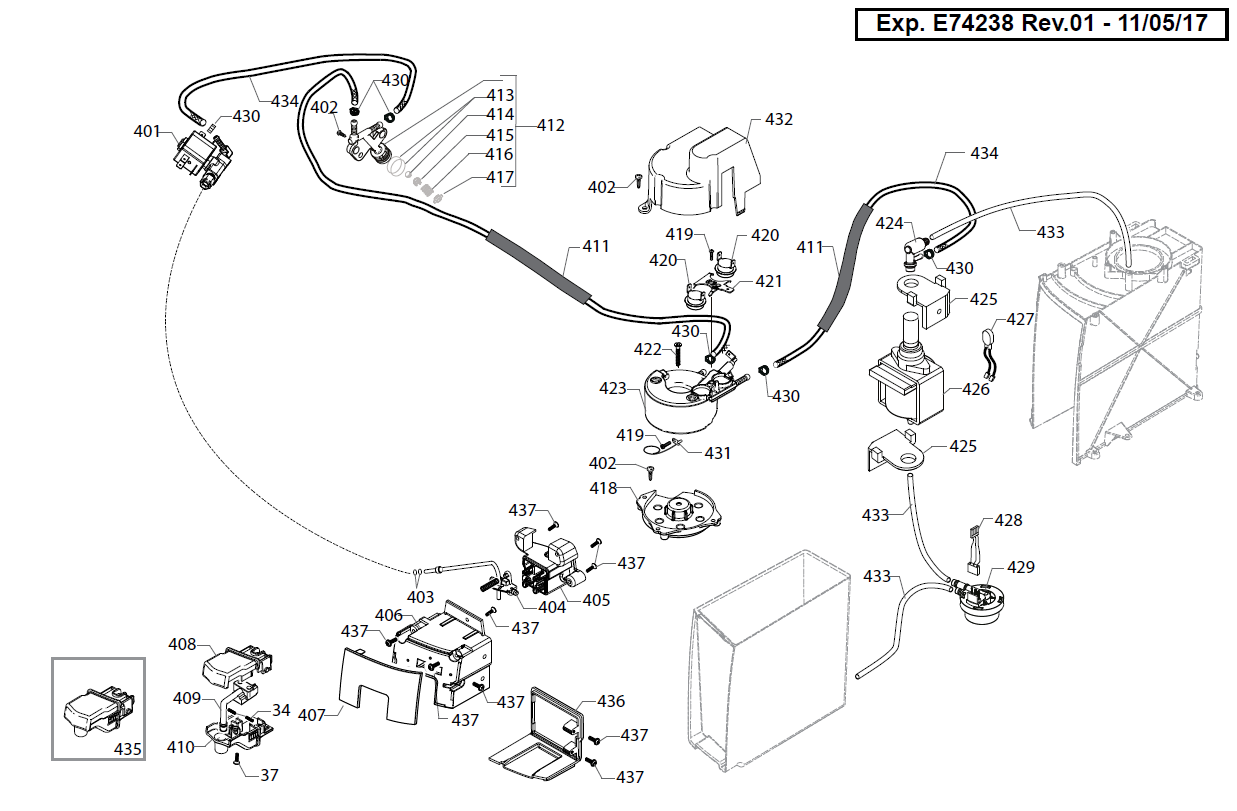

| E74238-4 | 401 | SOLENOID VALVES V2 NPR/T 24V ASSY
Part Number: 421944007421 |
|||
| E74238-4 | 402 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| E74238-4 | 403 | OR 2015 SILICONE PTFE/FDA
Part Number: 996530013564 |
|||
| E74238-4 | 404 | WHT PREFORM.TEFLON TUBE SUPP.V2 NPR ASSY
Part Number: 421944009021 |
|||
| E74238-4 | 405 | BLACK CARAFE GRAFT BODY INSERT NPR/T
Part Number: 996530069855 |
|||
| E74238-4 | 406 | BLACK CARAFE INSERT BODY NPR/T
Part Number: 996530069804 |
|||
| E74238-4 | 407 | SS CARAFE INS.BODY FRONT COVER NPR/TM AS
Part Number: 421941250052 |
|||
| E74238-4 | 408 | M/BLK UPPER BODY HOT WATER DISP.NPR/T
Part Number: 996530072648 |
|||
| E74238-4 | 409 | BLACK HOT WATER DISPENSER TUBE NPR/T
Part Number: 996530069842 |
|||
| E74238-4 | 410 | BLK LOWER BODY HOT WATER DISPENS.NPR/T
Part Number: 996530069867 |
|||
| E74238-4 | 411 | TRANSPAR.10,5X12,3 SILICONE TUBE
Part Number: 996530009523 Notes: IN ROLL |
|||
| E74238-4 | 412 | FLOW SELECTOR FAUCET NPR
Part Number: 996530068077 |
|||
| E74238-4 | 413 | SEE POS.12
Part Number: NOT AVAILABLE |
|||
| E74238-4 | 414 | SEE POS.12
Part Number: NOT AVAILABLE |
|||
| E74238-4 | 415 | SEE POS.12
Part Number: NOT AVAILABLE |
|||
| E74238-4 | 416 | SEE POS.12
Part Number: NOT AVAILABLE |
|||
| E74238-4 | 417 | SEE POS.12
Part Number: NOT AVAILABLE |
|||
| E74238-4 | 418 | BLK SLIM/EXSL TUB.BOILER SUPPORT V2
Part Number: 421941215942 |
|||
| E74238-4 | 419 | SCREW TCB TORX 20 M4X8 AUTOFORMING ZN-B
Part Number: 996530069758 |
|||
| E74238-4 | 420 | THERMOSTAT ONE SHOT 190
Part Number: 996530007973 |
|||
| E74238-4 | 421 | TUB.BOILER V3 UPPER THERM.FIXING SPRING
Part Number: 996530000997 |
|||
| E74238-4 | 422 | SCREW TSP TORX 10 5X20 PLAST.ZN-B
Part Number: 996530008024 |
|||
| E74238-4 | 423 | TUB.BOILER XS4 ASSY.
Part Number: 421944028841 Notes: 230V-1900W |
|||
| E74238-4 | TUB.BOILER XS4 ASSY.
Part Number: 421944046121 Notes: 120V-1300W |
||||
| E74238-4 | 424 | L-F/BR.SAFETY VALVE 16-18 BAR ASSY
Part Number: 996530068178 |
|||
| E74238-4 | 425 | BLACK TYPE ULKA PUMP W/BEVEL SUPPORT
Part Number: 996530018056 |
|||
| E74238-4 | 426 | ULKA PUMP EP5FMGW
Part Number: 421941305991 Notes: 230V-50HZ |
|||
| E74238-4 | ULKA PUMP EAP5/S
Part Number: 996530007754 Notes: 120V-60HZ |
||||
| E74238-4 | 427 | 2P.CONN.PUMP V2 CLP UL ASSY.
Part Number: 421946000131 |
|||
| E74238-4 | 428 | 3P.CONN.FLOWMETER V2 CLP UL ASSY
Part Number: 421946000141 |
|||
| E74238-4 | 429 | TURBINE D=1,2 932-8521/00 ASSY.
Part Number: 996530059843 |
|||
| E74238-4 | 430 | OETIKER CLAMP D=9,5 16700004
Part Number: 996530007947 |
|||
| E74238-4 | 431 | TEMPERATURE SENSOR NTC UL L=280MM
Part Number: 996530026997 |
|||
| E74238-4 | 432 | GRY BOILER INSULATING COVER NPR
Part Number: 421941284802 |
|||
| E74238-4 | 433 | SILICONE TUBE 5X10 60SH
Part Number: 996530057357 Notes: IN ROLL |
|||
| E74238-4 | 434 | MILK CONTAINER SUPPORT SPRING P124
Part Number: 996530002873 |
|||
| E74238-4 | 435 | M/BLK HOT WATER DISPENSER NPR/T ASSY.
Part Number: 996530072651 |
|||

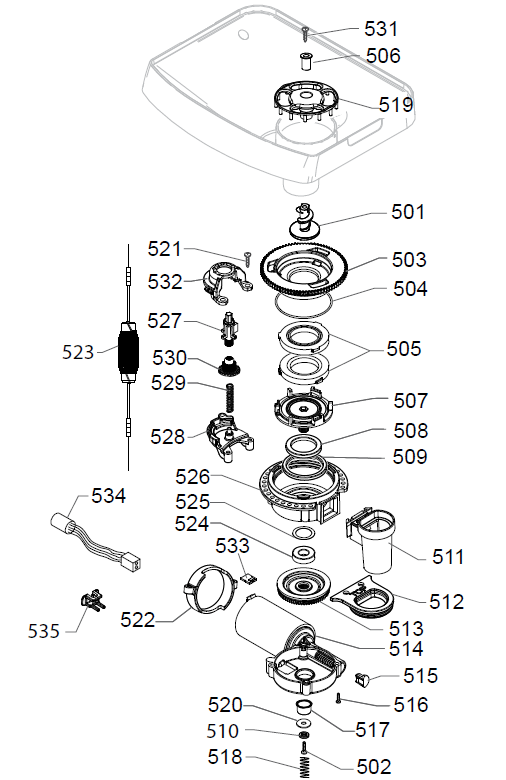

| E74238-5 | 501 | TEA/ZAMA INCREASE SCREW GRINDER
Part Number: 996530005586 |
|||
| E74238-5 | 502 | SCREW TCB TORX 20 M4X30 ZN-B
Part Number: 996530012928 |
|||
| E74238-5 | 503 | BLK COF.GRINDER UPPER GRINDER SUPPORT V2
Part Number: 421941094152 |
|||
| E74238-5 | 504 | OR ORM 0530-15 NBR FDA
Part Number: 996530013577 |
|||
| E74238-5 | 505 | BAKED CLAY GRINDER 48X28
Part Number: 996530016342 |
|||
| E74238-5 | 506 | BRASS BUSH BEAN CONT.FINGER PROTEC.P0057
Part Number: 996530006412 Notes: 230V |
|||
| E74238-5 | 507 | BLK LOWER COFFEEGRINDER GRINDER SUPPORT
Part Number: 996530017952 |
|||
| E74238-5 | 508 | AXIAL BEARING EKKO 342.35252
Part Number: 996530011183 |
|||
| E74238-5 | 509 | FELT RING 45,4X39,4X4
Part Number: 996530013597 |
|||
| E74238-5 | 510 | GALV.WASHER UNI 8842 A4
Part Number: 996530012341 |
|||
| E74238-5 | 511 | BLK GROUND COF.OUTLET CONVEYOR V4 ASSY.
Part Number: 996530068049 |
|||
| E74238-5 | 512 | GRY GROUND COF.CONT.LOWER SEAL V2 SMART1
Part Number: 421944060561 |
|||
| E74238-5 | 513 | GEAR SX Z=38 FOR GRINDER MOTION ASSY.
Part Number: 996530029609 |
|||
| E74238-5 | 514 | MOTOR COFFEEGRINDER V3.2 ASSY.
Part Number: 421944049151 Notes: 230V |
|||
| E74238-5 | MOTOR COFFEEGRINDER V3.1 ASSY.
Part Number: 421941305001 Notes: 120V |
||||
| E74238-5 | 515 | MC V3 MOD=1,25 WORM SCREW CENTRING CAP
Part Number: 996530018139 |
|||
| E74238-5 | 516 | SCREW TCB TORX 3,5X30 PLAST.ZN-B
Part Number: 996530012992 |
|||
| E74238-5 | 517 | INSULATOR BUSH FOR GRINDER MOTOR P124
Part Number: 996530001389 |
|||
| E74238-5 | 518 | COFFEE GRINDER SUPPORT SPRING P124
Part Number: 996530000376 |
|||
| E74238-5 | 519 | BLK V2 BEAN CONTAIN.FINGER PROTECT.P0057
Part Number: 996530007058 Notes: 230V |
|||
| E74238-5 | 520 | STEEL FLAT WASHER DI=4,3 DE=14 SP=1,5
Part Number: 996530012375 |
|||
| E74238-5 | 521 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-NI
Part Number: 421944016761 |
|||
| E74238-5 | 522 | BLACK COFFEEGRINDER MOTOR SUPPORT P124
Part Number: 996530000115 |
|||
| E74238-5 | 523 | 2P.CONN.COF.GRINDER MOTOR NP5 UL ASSY
Part Number: 421946031681 Notes: 230V |
|||
| E74238-5 | 2P.CONN.COF.GRINDER MOTOR V2 NPR UL ASSY
Part Number: 421946000121 Notes: 120V |
||||
| E74238-5 | 524 | RADIAL BEARING 61900.2RS1
Part Number: 996530011182 |
|||
| E74238-5 | 525 | STEEL CRINKLE WASHER 21,8X14X0,25
Part Number: 996530012374 |
|||
| E74238-5 | 526 | BLK UPPER BODY WITH COFFEE GROUND OUTLET
Part Number: 996530015258 |
|||
| E74238-5 | 527 | YLW BEAN COFFEE GRINDER INSERT SMR
Part Number: 421944025161 |
|||
| E74238-5 | 528 | LOWER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 996530001314 |
|||
| E74238-5 | 529 | COFFEEGRINDER REGULATION SPRING P124
Part Number: 996530001308 |
|||
| E74238-5 | 530 | COFFEE GRINDING ADJUSTMENT GEAR P0049
Part Number: 996530001907 |
|||
| E74238-5 | 531 | ZN-B TCB SCREW M4X16
Part Number: 996530061808 |
|||
| E74238-5 | 532 | UPPER COFFEEGRINDER GEAR SUPPORT P124
Part Number: 996530001296 |
|||
| E74238-5 | 533 | ELECTR.BOARD WITH SENSOR HAL506 SF-K
Part Number: 996530022784 Notes: 120V |
|||
| E74238-5 | 534 | 3P.CONN.MC SENSOR V2 NPR UL ASSY.
Part Number: 421946000091 Notes: 120V |
|||
| E74238-5 | 535 | BLK WIRING FIX INSERT FOR GRINDER BOARD
Part Number: 996530072477 Notes: 120V |
|||
| E74238-5 | GEN.MOTOR COF.GRINDER NP5 ASSY.
Part Number: 421944054091 Notes: 230V |
||||
| E74238-5 | GEN.MOTOR COF.GRINDER NPR ASSY.
Part Number: 996530071878 Notes: 120V |
||||

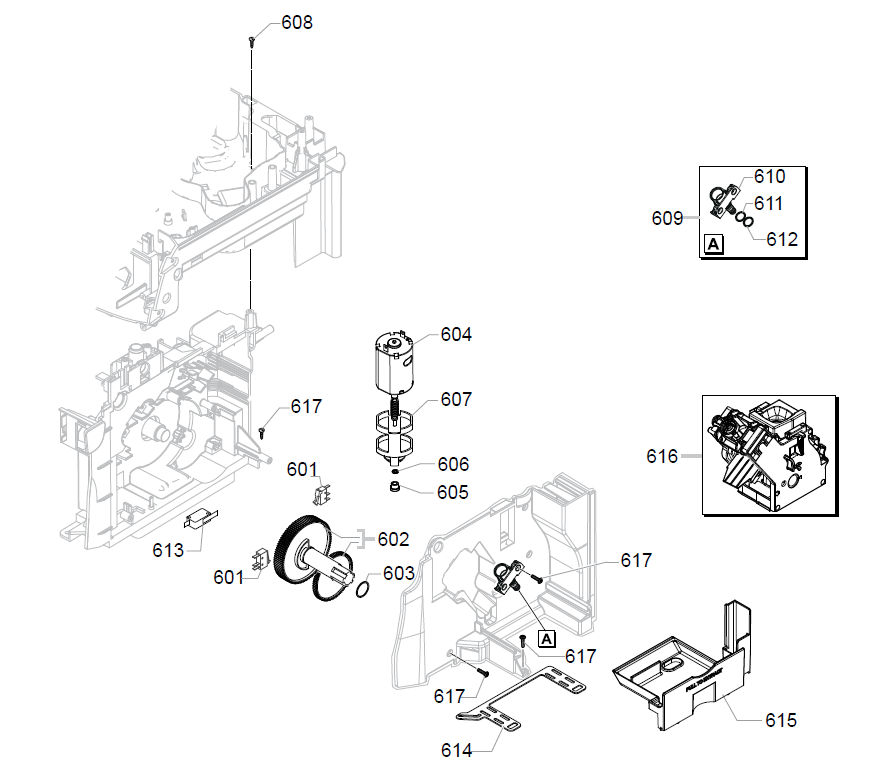

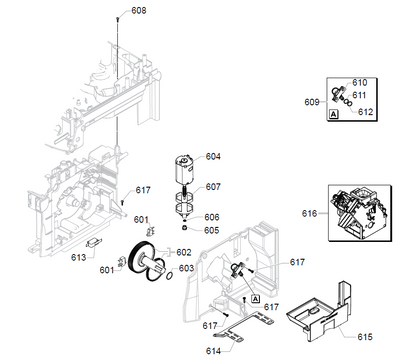

| E74238-6 | 601 | MICROSWITCH XC/SM1 V2
Part Number: 421946025541 |
|||
| E74238-6 | 602 | SPARES KIT GEARS FOR RATIOMOTOR V2
Part Number: 996530009913 |
|||
| E74238-6 | 603 | MYLAR WASHER FOR RATIOMOTOR
Part Number: 996530050569 |
|||
| E74238-6 | 604 | MOTOR FOR RATIOMOTOR P124 ASSY.
Part Number: 996530002796 |
|||
| E74238-6 | 605 | BRONZE SINTERED BUSH FOR MOTOR RATIOMOT.
Part Number: 996530049898 |
|||
| E74238-6 | 606 | BAKELIZZATE WASHER D=5,5
Part Number: 996530017424 |
|||
| E74238-6 | 607 | ANTIVIBRATION FOR MOTOR
Part Number: 996530049896 |
|||
| E74238-6 | 608 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
Part Number: 996530007819 |
|||
| E74238-6 | 609 | PIN FOR FLOW SEL.FAUCET V2 PPS P0057 AS
Part Number: 421944060181 |
|||
| E74238-6 | 610 | PIN FOR FLOW SELECT.FAUCET PPS V2 P0057
Part Number: 421944059371 |
|||
| E74238-6 | 611 | OR ORM 0090-20 SILICONE
Part Number: 996530059399 |
|||
| E74238-6 | 612 | OR ORM 0050-20 IN SILICONE
Part Number: 996530059419 |
|||
| E74238-6 | 613 | MICROSWITCH XG/V3D/VA2
Part Number: 421946032321 |
|||
| E74238-6 | 614 | BLACK SEAL FOR RATIOMOTOR PLATE NPR
Part Number: 996530072515 |
|||
| E74238-6 | 615 | GREY BREW UNIT DRAWER COFFEE NPR
Part Number: 996530068732 |
|||
| E74238-6 | 616 | BLK BREW UNIT 8GR.5BAR V4 HGO
Part Number: 421944053951 |
|||
| E74238-6 | 617 | SCREW TCBR TORX 10 3,5X12 PLAST.ZN-NI
Part Number: 421944016761 |
|||

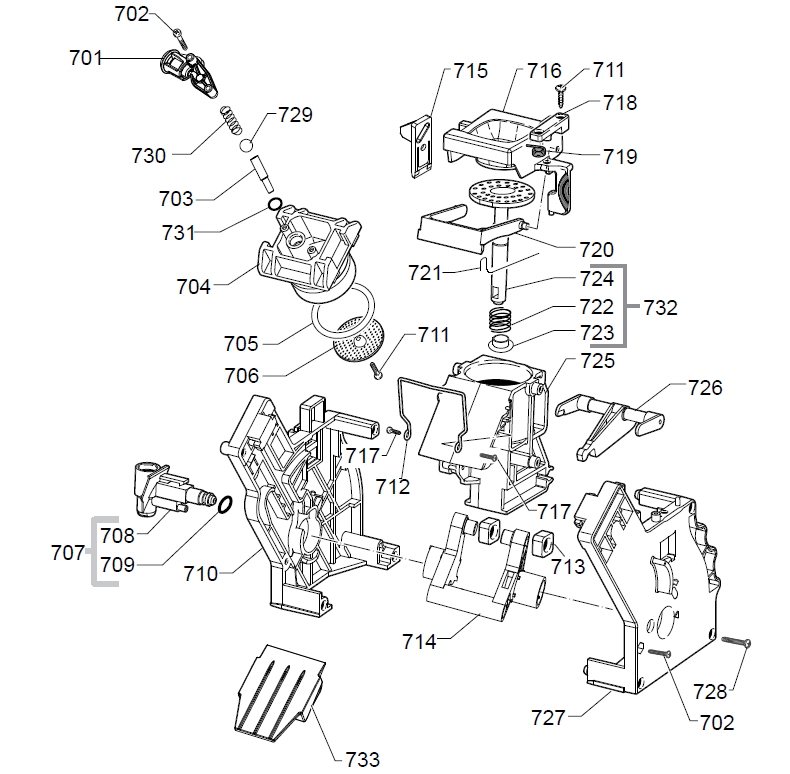

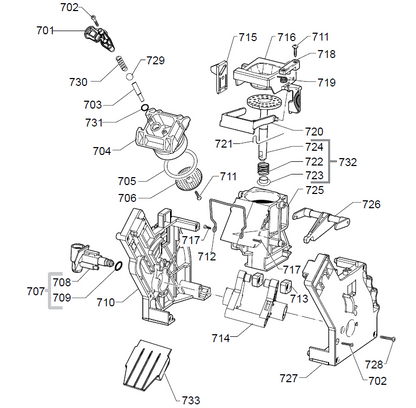

| E74238-7 | 701 | BLK BREW UNIT COF.OUTLET SLEEVE SMR ASSY
Part Number: 421944065221 |
|||
| E74238-7 | 702 | SCREW TCB TORX 10 3X25 PLAST.SS
Part Number: 996530007838 |
|||
| E74238-7 | 703 | BLK COUNTER PISTON TUBE BREW UNIT S0053
Part Number: 996530005372 |
|||
| E74238-7 | 704 | BLACK COUNTER PISTON BREW UNIT 8GR.P124
Part Number: 996530001046 |
|||
| E74238-7 | 705 | OR ORM 0320-40 SILICONE PTFE/FDA
Part Number: 996530059406 |
|||
| E74238-7 | 706 | PERCOLATOR DE=35,8 ELFO
Part Number: 996530050709 |
|||
| E74238-7 | 707 | BLACK WATER INLET SLEEVE BREW UNIT ASSY.
Part Number: 996530009825 |
|||
| E74238-7 | 708 | BLACK WATER INLET SLEEVE BREW UNIT ROYAL
Part Number: 996530050488 |
|||
| E74238-7 | 709 | OR 2025 IN TERMOIL
Part Number: 996530059441 |
|||
| E74238-7 | 710 | BLACK BREW UNIT REAR PLATE SMART
Part Number: 996530050832 |
|||
| E74238-7 | 711 | SCREW TSP TORX 10 3X10 PLAST.SS
Part Number: 996530007951 |
|||
| E74238-7 | 712 | SS BREW UNIT SPRING H=49 SMART
Part Number: 996530000898 |
|||
| E74238-7 | 713 | BLACK BREW UNIT DRILLED BLOCK
Part Number: 996530050539 |
|||
| E74238-7 | 714 | YLW BREW UNIT ELBOW SHAFT M5000
Part Number: 421944051231 |
|||
| E74238-7 | 715 | YLW BREW UNIT COUPLING PLATE V2 SMART
Part Number: 421944046931 |
|||
| E74238-7 | 716 | BLACK HOPPER DOSER BREW UNIT SMART1
Part Number: 996530018241 |
|||
| E74238-7 | 717 | SCREW TCBR TORX 10 3,5X14 PLAST.SS
Part Number: 996530013148 |
|||
| E74238-7 | 718 | YLW BREWUNIT HOPPER BLOCKING PLATE SMART
Part Number: 421944050711 |
|||
| E74238-7 | 719 | SS HOPPER SPRING FOR BREW UNIT SMART
Part Number: 996530050838 |
|||
| E74238-7 | 720 | BLACK SCRAPER FOR BREW UNIT M5000
Part Number: 996530002096 |
|||
| E74238-7 | 721 | SS SCRAPER SPRING FOR BREW UNIT
Part Number: 996530050455 |
|||
| E74238-7 | 722 | SS.8GR.BREW UNIT PISTON SPRING
Part Number: 996530050627 |
|||
| E74238-7 | 723 | WHITE 8GR.-12GR.BREW UNIT PISTON BUSH
Part Number: 996530050618 |
|||
| E74238-7 | 724 | BLK BREW UNIT INTEGR.PISTON 8GR.V3 ASSY.
Part Number: 421944025621 |
|||
| E74238-7 | 725 | BLK COF.CONTAIN.BREW UNIT V2 M5000 ASSY.
Part Number: 421944014611 |
|||
| E74238-7 | 726 | BLACK CONNECTING ROD BREW UNIT 8GR.
Part Number: 996530001452 |
|||
| E74238-7 | 727 | BLACK BREW UNIT FRONT PLATE S/SCR.SMART
Part Number: 996530003228 |
|||
| E74238-7 | 728 | SCREW TCB TORX 10 3,5X20 PLAST.SS
Part Number: 996530007953 |
|||
| E74238-7 | 729 | BOROSILICATE SPHERE D.5 MM
Part Number: 421944034451 |
|||
| E74238-7 | 730 | SS COFFEE UNIT CONTERPISTON SPRING S0053
Part Number: 996530006305 |
|||
| E74238-7 | 731 | OR ORM 0060-15 TERMOIL
Part Number: 996530013575 |
|||
| E74238-7 | 732 | BLK BREW UNIT 8GR.INT.PISTON GEN.V3 ASSY
Part Number: 421944029791 |
|||
| E74238-7 | 733 | BLK BREW UNIT CONVEYOR SLIDE L=76,8
Part Number: 996530073322 |
|||
| BLK BREW UNIT 8GR.5BAR V4 HGO
Part Number: 421944053951 |
