Profitec GO Part Diagram PROGO
This is the Profitec GO Part Diagram PROGO. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

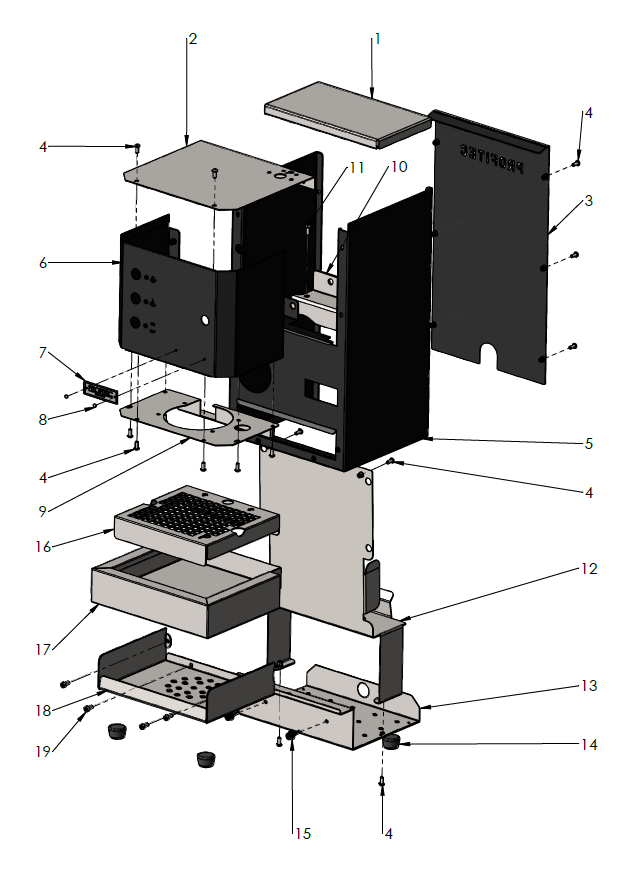

| PROGO-1 | 1 | Lid watertank
Part Number: P9070 |
|||
| PROGO-1 | 2 | Cup tray Part Number: P9067 |
$26.12 | View Part | |
| PROGO-1 | 3 | Rear panel Part Number: P9068 |
$0.00 | View Part | |
| PROGO-1 | Rear panel red
Part Number: P9068.1 |
||||
| PROGO-1 | Rear panel yellow
Part Number: P9068.2 |
||||
| PROGO-1 | Rear panel blue
Part Number: P9068.3 |
||||
| PROGO-1 | 4 |
|
Button head screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| PROGO-1 | 5 | Casing Part Number: P9065 |
$144.96 | View Part | |
| PROGO-1 | Casing red
Part Number: P9065.1 |
||||
| PROGO-1 | Casing yellow
Part Number: P9065.2 |
||||
| PROGO-1 | Casing blue
Part Number: P9065.3 |
||||
| PROGO-1 | 6 | Upper front panel
Part Number: P9066 |
|||
| PROGO-1 | Upper front panel red
Part Number: P9066.1 |
||||
| PROGO-1 | Upper front panel yellow
Part Number: P9066.2 |
||||
| PROGO-1 | Upper front panel blue
Part Number: P9066.3 |
||||
| PROGO-1 | 7 | Emblem Profitec
Part Number: P2063.1 |
|||
| PROGO-1 | 8 | Blind rivet truss head 2,4x8
Part Number: P1998 |
|||
| PROGO-1 | 9 | Cover Group
Part Number: P9052 |
|||
| PROGO-1 | 10 | Bracket brewing group
Part Number: P9071 |
|||
| PROGO-1 | 11 | Socket head cap screw M4x12
Part Number: B7819901 |
|||
| PROGO-1 | 12 | Guide rail water tank
Part Number: P9062 |
|||
| PROGO-1 | 13 | Bottom plate
Part Number: P9060 |
|||
| PROGO-1 | 14 | Machine foot
Part Number: C439901215 |
|||
| PROGO-1 | 15 | Rubber buffer EPDM
Part Number: P9046 |
|||
| PROGO-1 | 16 | Drip tray grid
Part Number: P9069 |
|||
| PROGO-1 | 17 | Drip tray
Part Number: P9057 |
|||
| PROGO-1 | 18 | Drip tray bracket
Part Number: P9061 |
|||
| PROGO-1 | 19 | Socket head cap screw M4x10
Part Number: P2006 |
|||

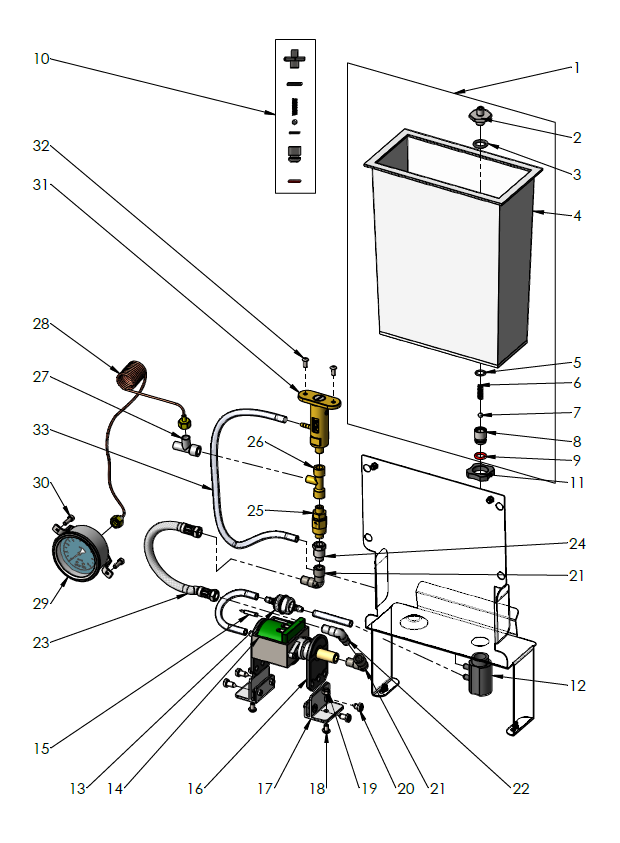

| PROGO-2 | 1 | Water tank complete
Part Number: P9010.K2 |
|||
| PROGO-2 | 2 | Water tank adapter hexagon nut
Part Number: P6020 |
|||
| PROGO-2 | 3 | Seal water tank adapter upper
Part Number: P6020.3 |
|||
| PROGO-2 | 4 | Water tank blank
Part Number: P9010 |
|||
| PROGO-2 | 5 | Seal water tank adapter middle
Part Number: P6025 |
|||
| PROGO-2 | 6 | Spring water tank adapter
Part Number: P6023 |
|||
| PROGO-2 | 7 | Ball water tank lock
Part Number: B5471509 |
|||
| PROGO-2 | 8 | Water tank adapter union
Part Number: P6017 |
|||
| PROGO-2 | 9 | Seal water tank adapter lower
Part Number: B7496076 |
|||
| PROGO-2 | 10 | Water tank adapter complete
Part Number: P6020.NK |
|||
| PROGO-2 | 11 | Water tank adapter nut M20
Part Number: P6020.K3 |
|||
| PROGO-2 | 12 | Water tank adapter connector
Part Number: P6020.K4 |
|||
| PROGO-2 | 13 | Filter water tank operation
Part Number: C439900695 |
|||
| PROGO-2 | 14 | Vibration pump 230V / 50Hz
Part Number: P6950 |
|||
| PROGO-2 | Vibration pump 120V / 60Hz
Part Number: US1001 |
||||
| PROGO-2 | 15 | Thermal protector pump
Part Number: C199900969 |
|||
| PROGO-2 | 16 | Pump holder rubber
Part Number: C249900770 |
|||
| PROGO-2 | 17 | Lower pump bracket
Part Number: P3006.K |
|||
| PROGO-2 | 18 | Button head screw M5x8
Part Number: P2008 |
|||
| PROGO-2 | 19 | Hex nut M5
Part Number: P6102 |
|||
| PROGO-2 | 20 | Thread tapping screw 4.8x13mm
Part Number: P3019 |
|||
| PROGO-2 | 21 | Elbow 1/8" MF
Part Number: P9014 |
|||
| PROGO-2 | 22 | Elbow 1/8" MM
Part Number: C229900579 |
|||
| PROGO-2 | 23 | Flex hose 1/8" FF
Part Number: P8016 |
|||
| PROGO-2 | 24 | Extension 1/8" MF 22mm
Part Number: P2047 |
|||
| PROGO-2 | 25 | Non-return valve 1/8" MM
Part Number: C229900548 |
|||
| PROGO-2 | 26 | T-connector 1/8" FMF
Part Number: C229900703 |
|||
| PROGO-2 | 27 | T-connector 1/8" MMF
Part Number: C229900644 |
|||
| PROGO-2 | 28 | Capillary tube pump pressure gauge
Part Number: P6051 |
|||
| PROGO-2 | 29 | Pump pressure gauge petrol
Part Number: P2546 |
|||
| PROGO-2 | Pump pressure gauge black
Part Number: P2546.1 |
||||
| PROGO-2 | 30 | Socket head cap screw M4x14
Part Number: P1966 |
|||
| PROGO-2 | 31 | Expansion valve
Part Number: P7000 |
|||
| PROGO-2 | 32 |
|
Button head screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| PROGO-2 | 33 | Silicon tube transparent
Part Number: C499900769 |
|||

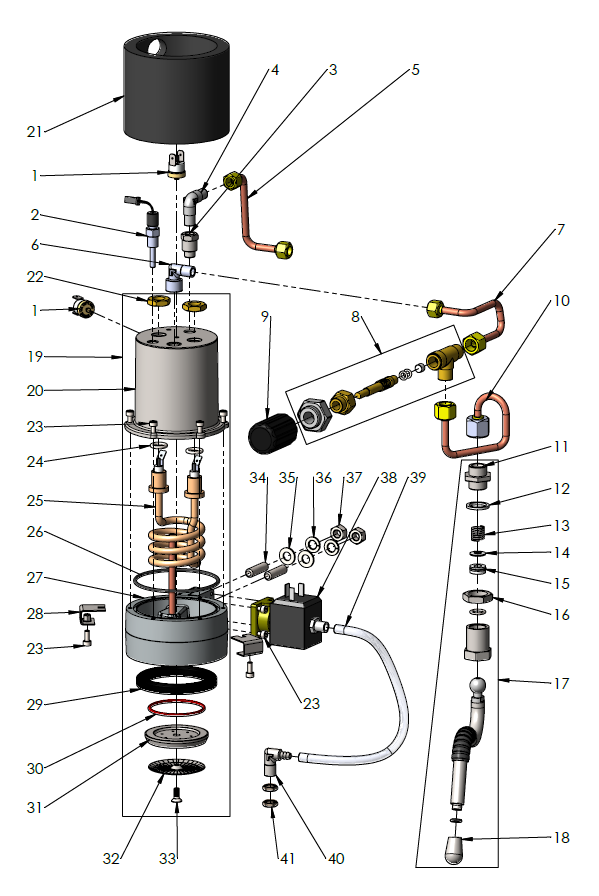

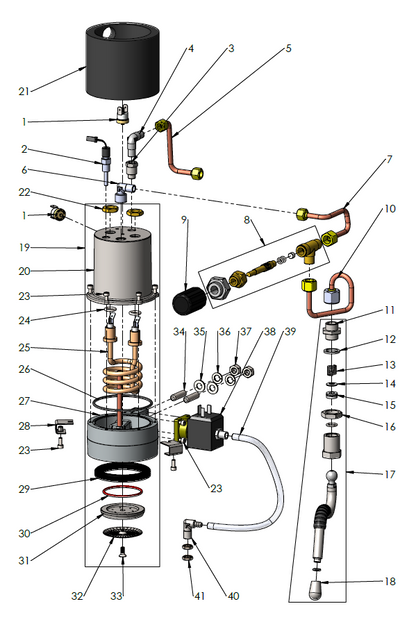

| PROGO-3 | 1 | Safety thermostat 165C round
Part Number: C199901552 |
|||
| PROGO-3 | 2 | Temperature sensor 1/8" NTC
Part Number: P6036 |
|||
| PROGO-3 | 3 | Extension 1/8" MF 22mm
Part Number: P2047 |
|||
| PROGO-3 | 4 | Elbow 1/8" MM
Part Number: C229900579 |
|||
| PROGO-3 | 5 | Boiler filling pipe
Part Number: P9047 |
|||
| PROGO-3 | 6 | Elbow 1/4" M - 1/8" M
Part Number: P9015 |
|||
| PROGO-3 | 7 | Tube boiler valve
Part Number: P9048 |
|||
| PROGO-3 | 8 | Valve
Part Number: P2550 |
|||
| PROGO-3 | 9 | Handle valve
Part Number: P2551 |
|||
| PROGO-3 | 10 | Steam valve pipe
Part Number: P9049 |
|||
| PROGO-3 | 11 | Connection straight fitting
Part Number: P9115.5 |
|||
| PROGO-3 | 12 | Gasket PTFE valve
Part Number: P6015 |
|||
| PROGO-3 | 13 | Spring steam valve
Part Number: P9115.6 |
|||
| PROGO-3 | 14 | Washer socket
Part Number: P6012 |
|||
| PROGO-3 | 15 | Ball socket teflon
Part Number: P6010 |
|||
| PROGO-3 | 16 | Hex nut
Part Number: P9115.3 |
|||
| PROGO-3 | 17 | Steam wand
Part Number: P9115 |
|||
| PROGO-3 | 18 | Steam nozzle 2 holes
Part Number: P9115.2 |
|||
| PROGO-3 | Steam nozzle 3 holes
Part Number: P6002.7 |
||||
| PROGO-3 | Steam nozzle 4 holes
Part Number: P6002.6 |
||||
| PROGO-3 | Steam nozzle 5 holes
Part Number: P6002.3 |
||||
| PROGO-3 | 19 | Brewing group 230V
Part Number: P2042 |
|||
| PROGO-3 | Brewing group 110V
Part Number: US1065 |
||||
| PROGO-3 | 20 | Boiler
Part Number: P2042.4 |
|||
| PROGO-3 | 21 | Isolation coffee boiler
Part Number: P7060 |
|||
| PROGO-3 | 22 | Nut (half) 1/4"
Part Number: C329900682 |
|||
| PROGO-3 | 23 | Socket head cap screw M4x10
Part Number: P2006 |
|||
| PROGO-3 | 24 | Gasket heater
Part Number: P2042.5 |
|||
| PROGO-3 | 25 | Heating element coffee boiler 230V/1200W
Part Number: P2042.9 |
|||
| PROGO-3 | Heating element coffee boiler 110V/1200W
Part Number: US1011 |
||||
| PROGO-3 | 26 | Gasket coffee boiler
Part Number: P2042.2 |
|||
| PROGO-3 | 27 | Ring brewing group
Part Number: P2042.1 |
|||
| PROGO-3 | 28 | Bracket boiler
Part Number: P9064 |
|||
| PROGO-3 | 29 | Group gasket h=7,8
Part Number: C449900230 |
|||
| PROGO-3 | 30 | Gasket shower plate
Part Number: C449900790 |
|||
| PROGO-3 | 31 | Shower holder ring brew group
Part Number: C529900550 |
|||
| PROGO-3 | 32 | Shower plate ring brew group
Part Number: C519900102 |
|||
| PROGO-3 | 33 | Flat head screw M5x12
Part Number: C319900134 |
|||
| PROGO-3 | 34 | Allen screw M8 x 30
Part Number: C309900131 |
|||
| PROGO-3 | 35 | Washer M8
Part Number: P2010 |
|||
| PROGO-3 | 36 | Spring ring M8
Part Number: P2011 |
|||
| PROGO-3 | 37 | Hex nut M8
Part Number: C309900127 |
|||
| PROGO-3 | 38 | Solenoid valve 230V 3 ways
Part Number: C199900226 |
|||
| PROGO-3 | Solenoid valve 110V 3 ways
Part Number: US1014 |
||||
| PROGO-3 | 39 | Silicon tube transparent
Part Number: C499900769 |
|||
| PROGO-3 | 40 | Elbow L 1/8" M x 6
Part Number: P6056 |
|||
| PROGO-3 | 41 | Half nut 1/8"
Part Number: P2067 |
|||

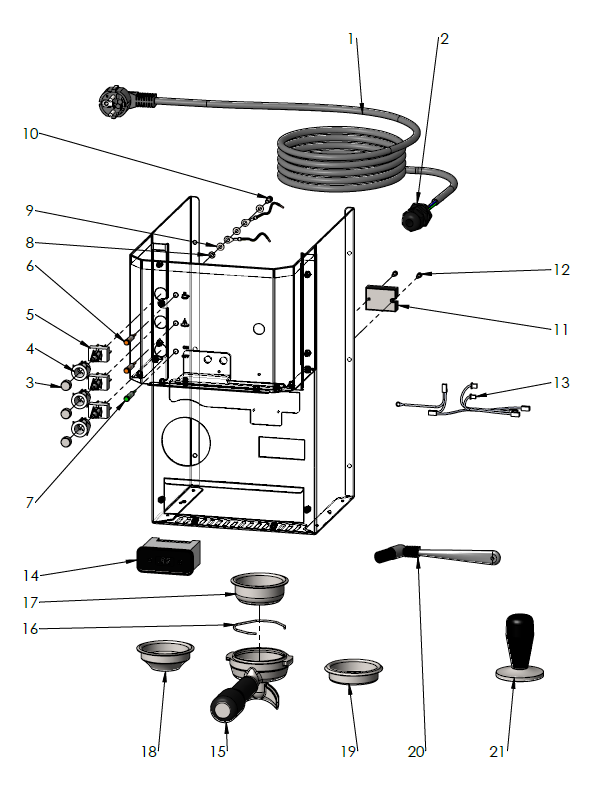

| PROGO-4 | 1 | Power cable Schuko-plug
Part Number: C199900957 |
|||
| PROGO-4 | Power cable US plug
Part Number: P2034 |
||||
| PROGO-4 | Power cable UK plug
Part Number: P2035 |
||||
| PROGO-4 | Power cable AU plug
Part Number: P2036 |
||||
| PROGO-4 | 2 | Cable clip with hexagon nut
Part Number: P2070 |
|||
| PROGO-4 | 3 | Button
Part Number: P6312 |
|||
| PROGO-4 | 4 | Button bracket
Part Number: P9112 |
|||
| PROGO-4 | 5 | Switch
Part Number: P9111 |
|||
| PROGO-4 | 6 | Control lamp orange
Part Number: P9108 |
|||
| PROGO-4 | 7 | Control lamp green
Part Number: P9109 |
|||
| PROGO-4 | 8 | Toothed washer M4
Part Number: P2004 |
|||
| PROGO-4 | 9 | Flat washer M4
Part Number: P2009 |
|||
| PROGO-4 | 10 | Socket head cap screw M4x10
Part Number: P2006 |
|||
| PROGO-4 | 11 | Static relay
Part Number: P6029 |
|||
| PROGO-4 | 12 | Socket head cap screw M3x8
Part Number: P2068 |
|||
| PROGO-4 | 13 | Cable loom
Part Number: P2589 |
|||
| PROGO-4 | 14 | PID 230V
Part Number: P6066 |
|||
| PROGO-4 | PID 115V
Part Number: US1044 |
||||
| PROGO-4 | 15 | Portafilter 2 outlets mini
Part Number: C699900235 |
|||
| PROGO-4 | 16 | Locking spring portafilter
Part Number: C619900098 |
|||
| PROGO-4 | 17 | Cup filter 14g
Part Number: C619900105 |
|||
| PROGO-4 | 18 | Cup filter 7g
Part Number: C619900104 |
|||
| PROGO-4 | 19 | Blindfilter
Part Number: C619900106 |
|||
| PROGO-4 | 20 | Cleaning brush
Part Number: R210 |
|||
| PROGO-4 | 21 | Tamper
Part Number: 89410 |
