Profitec Pro 300 Part Diagram PRO300
This is the Profitec Pro 300 Part Diagram PRO300. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

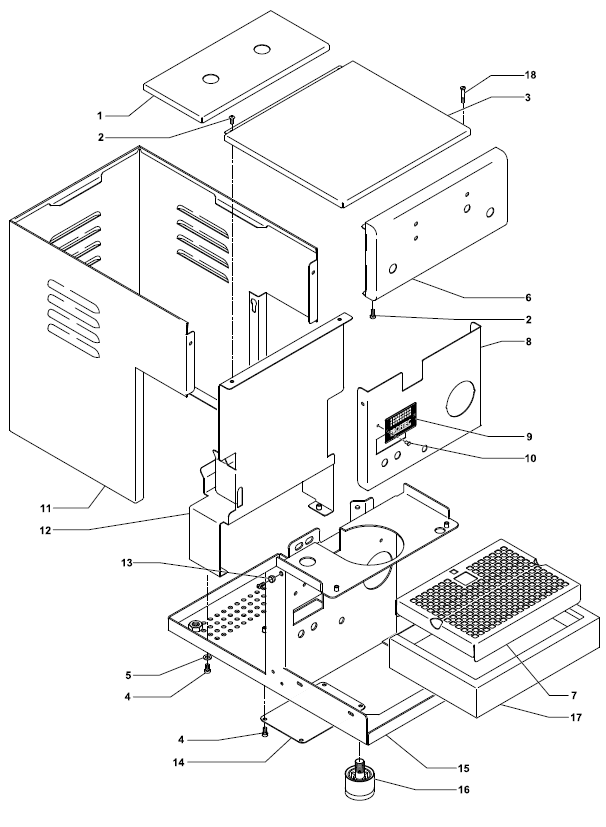

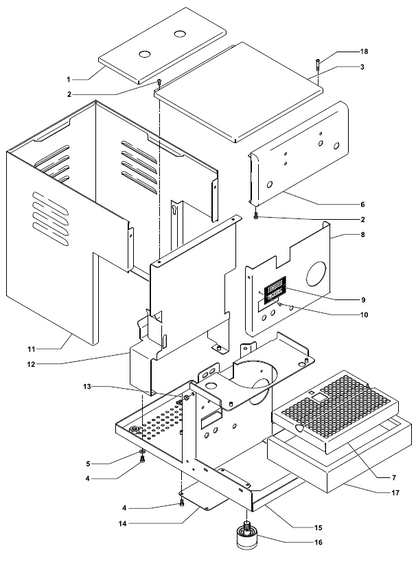

| PRO300-1 | 1 |
|
Cover water tank Part Number: P2135 |
$30.20 | View Part |
| PRO300-1 | 2 |
|
Lens screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| PRO300-1 | 3 |
|
Cup warming tray Part Number: P2132 |
$38.18 | View Part |
| PRO300-1 | 4 |
|
Screw cylinder M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO300-1 | 5 | Washer 4,3x12,0x1,0
Part Number: P6100 |
|||
| PRO300-1 | 6 |
|
Front panel upper Part Number: P2131 |
$41.25 | View Part |
| PRO300-1 | 7 |
|
Grid trip tray Part Number: P2134 |
$45.16 | View Part |
| PRO300-1 | 8 |
|
Front panel lower Part Number: P2130 |
$45.70 | View Part |
| PRO300-1 | 9 |
|
Emblem Profitec Part Number: P2063 |
$10.00 | View Part |
| PRO300-1 | 10 | Blind rivet struss Head 2,4x12
Part Number: P1998 |
|||
| PRO300-1 | 11 | U-housing Part Number: P2133 |
$168.90 | View Part | |
| PRO300-1 | 12 | Eater tank guide rail
Part Number: P2128 |
|||
| PRO300-1 | 13 | Brass bushing
Part Number: B5220818.1 |
|||
| PRO300-1 | 14 | Chassis cover
Part Number: P2127 |
|||
| PRO300-1 | 15 | Chassis Part Number: P2126 |
$115.69 | View Part | |
| PRO300-1 | 16 |
|
Foot h=30, M10 Part Number: P7025 |
$28.46 | View Part |
| PRO300-1 | 17 |
|
Drip tray Part Number: P9003 |
$142.42 | View Part |
| PRO300-1 | 18 | Lens screw M4x25 Part Number: B7819911 |
$5.46 | View Part | |

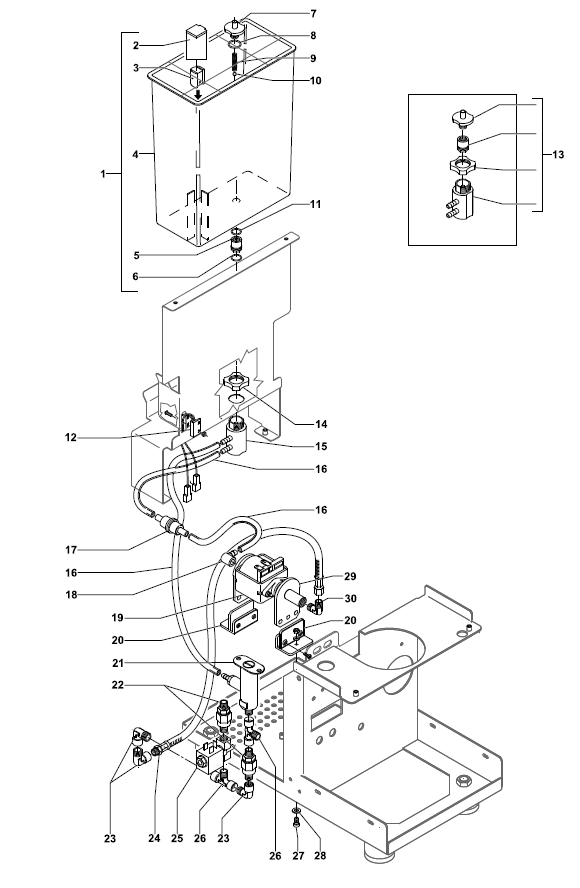

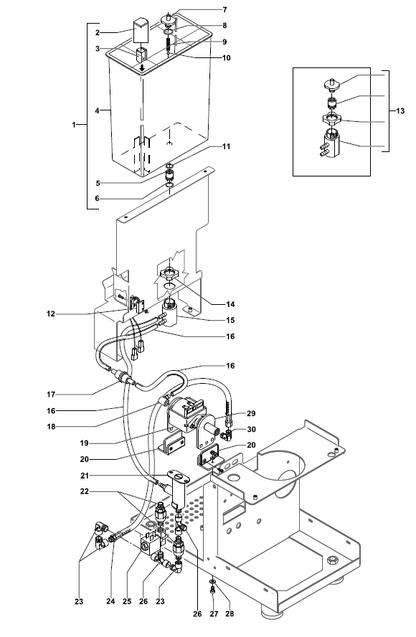

| PRO300-2 | 1 | Water tank complete
Part Number: P9010K1.KW |
|||
| PRO300-2 | 2 |
|
Water tank plug Part Number: P6016 |
$11.29 | View Part |
| PRO300-2 | 3 | Reed swimmer
Part Number: P6021 |
|||
| PRO300-2 | 4 | Water tank
Part Number: P9010.W |
|||
| PRO300-2 | 5 | Water tank adapter 2 (only available as a complete => P6020.KW)
Part Number: P6020.K2 |
|||
| PRO300-2 | 6 | OR water tank adapter lower
Part Number: B7496076 |
|||
| PRO300-2 | 7 | Water tank adapter 1 (only available as a complete => P6020.KW)
Part Number: P6020.K1 |
|||
| PRO300-2 | 8 | OR water tank adapter upper
Part Number: P6020.3 |
|||
| PRO300-2 | 9 | Spring water tank
Part Number: P6023 |
|||
| PRO300-2 | 10 | Ball 7/32"
Part Number: B5471509 |
|||
| PRO300-2 | 11 | OR water tank adapter middle
Part Number: P6025 |
|||
| PRO300-2 | 12 | Reed sensor
Part Number: P6022 |
|||
| PRO300-2 | 13 | Adapter complete (without gaskets)
Part Number: P6020.KW |
|||
| PRO300-2 | 14 | Water tank adapter 3 (only available as a complete => P6020.KW)
Part Number: P6020.K3 |
|||
| PRO300-2 | 15 | Water tank adapter 4 (only available as a complete => P6020.KW)
Part Number: P6020.K4 |
|||
| PRO300-2 | 16 | Silicone hose 8x5
Part Number: C499900769 |
|||
| PRO300-2 | 17 | Filter for silicone hose
Part Number: C439900695 |
|||
| PRO300-2 | 18 | L-connection pump
Part Number: C449900709 |
|||
| PRO300-2 | 19 | Vibration pump Ulka EX5 220V/50Hz 48W
Part Number: C199900286 |
|||
| PRO300-2 | 19 | Vibration pump Ulka EX5 120V/60Hz 52W
Part Number: US1001 |
|||
| PRO300-2 | 20 | Lower pump bracket
Part Number: P3006.K |
|||
| PRO300-2 | 21 | Expansion valve
Part Number: P2555 |
|||
| PRO300-2 | 22 | Recoil valve 1/8" MM
Part Number: C229900548 |
|||
| PRO300-2 | 23 | L-connector 1/8"M 1/8"F
Part Number: P9014 |
|||
| PRO300-2 | 24 | Metal hose flex 1/8"M 1/8"F, l=170
Part Number: P8012 |
|||
| PRO300-2 | 25 | Solenoid valve 230V 2 ways 1/8" FF
Part Number: C199900275 |
|||
| PRO300-2 | 25 | Solenoid valve 110V 2 ways 1/8" FF
Part Number: US1005 |
|||
| PRO300-2 | 26 | T-connector 1/8" MFF
Part Number: E2113001 |
|||
| PRO300-2 | 27 |
|
Screw cylinder M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO300-2 | 28 | Washer 4,3x12,0x1,0
Part Number: P6100 |
|||
| PRO300-2 | 29 | Upper pump bracket
Part Number: C249900770 |
|||
| PRO300-2 | 30 | L-connector 1/8"M 1/4"M
Part Number: P9015 |
|||

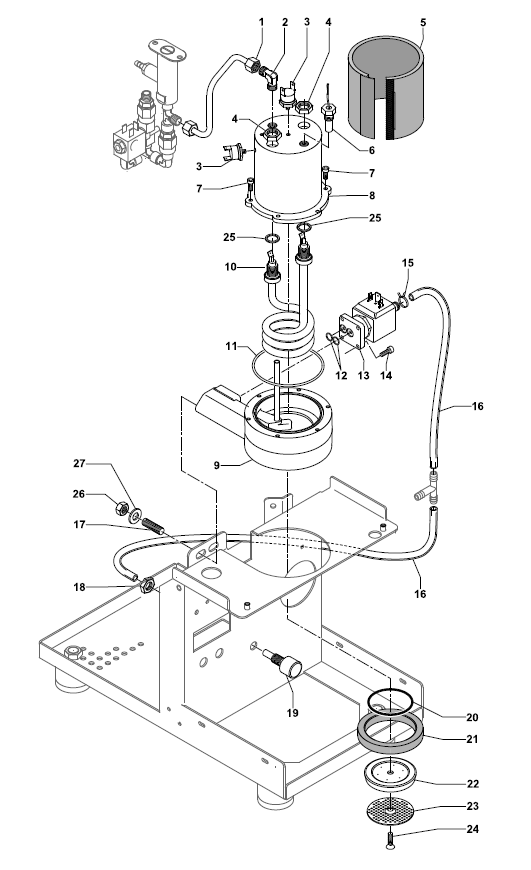

| PRO300-3 | 1 | Coffee boiler loading tube
Part Number: P2512 |
|||
| PRO300-3 | 2 | L-connector 1/8"M 1/8"M
Part Number: C229900579 |
|||
| PRO300-3 | 3 | Safety thermostat 135C
Part Number: C199901550 |
|||
| PRO300-3 | 4 | Half nut 1/4"
Part Number: C329900682 |
|||
| PRO300-3 | 5 | Isolation coffee boiler
Part Number: P7060 |
|||
| PRO300-3 | 6 | Temperature sensor 1/8"
Part Number: P6036 |
|||
| PRO300-3 | 7 |
|
Screw cylinder M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO300-3 | 8 | Coffee boiler
Part Number: P2042.4 |
|||
| PRO300-3 | 9 | Brewing Group
Part Number: P2042.1 |
|||
| PRO300-3 | 10 | Heating element coffee boiler 230V 1200W
Part Number: P2042.9 |
|||
| PRO300-3 | 10 | Heating element coffee boiler 110V 1200W
Part Number: US1011 |
|||
| PRO300-3 | 11 | Seal coffee boiler
Part Number: P2042.2 |
|||
| PRO300-3 | 12 | Gasket solenoid valve
Part Number: C449900786 |
|||
| PRO300-3 | 13 | Solenoid valve 230V 3 ways
Part Number: C199900226 |
|||
| PRO300-3 | 13 | Solenoid valve 110V 3 ways
Part Number: US1014 |
|||
| PRO300-3 | 14 |
|
Screw cylinder M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO300-3 | 15 | Clip silicone tube
Part Number: P1997 |
|||
| PRO300-3 | 16 | Silicone hose 8x5
Part Number: C499900769 |
|||
| PRO300-3 | 17 | Allen screw M8x31
Part Number: C309900131 |
|||
| PRO300-3 | 18 | Half nut M10
Part Number: P6103 |
|||
| PRO300-3 | 19 | Discharge nozzle
Part Number: C227700898 |
|||
| PRO300-3 | 20 | Gasket shower
Part Number: C449900790 |
|||
| PRO300-3 | 21 | Group gasket h=7,8
Part Number: C449900230 |
|||
| PRO300-3 | 22 | Fitting shower
Part Number: C529900550 |
|||
| PRO300-3 | 23 | Shower
Part Number: C519900102 |
|||
| PRO300-3 | 24 | Screw countersunk M5x10
Part Number: C319900134 |
|||
| PRO300-3 | 25 | Seal heating element coffee boiler
Part Number: C449901227 |
|||
| PRO300-3 | 26 | Hex nut M8
Part Number: C309900127 |
|||
| PRO300-3 | 27 | Spring ring 8,0
Part Number: P2011 |
|||

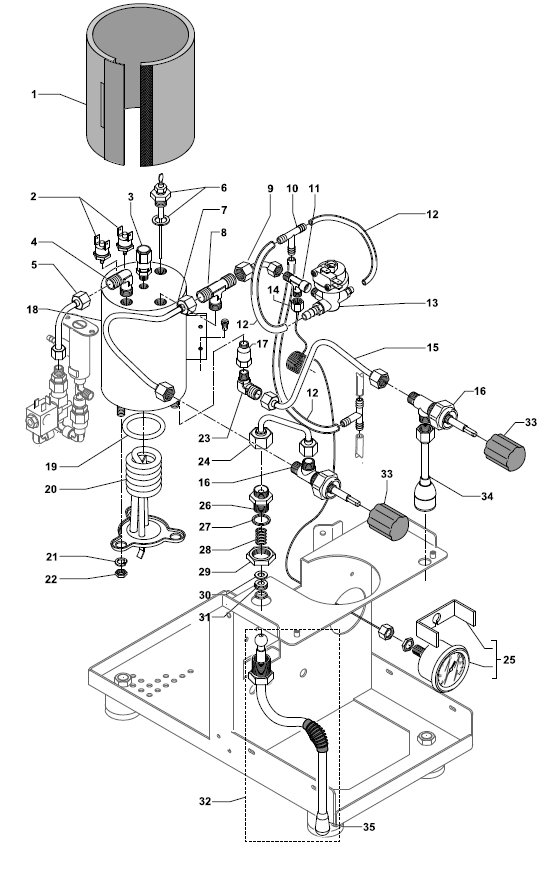

| PRO300-4 | 1 | Isolation steam-/hot water boiler
Part Number: P7051 |
|||
| PRO300-4 | 2 | Safety thermostat 165C
Part Number: C199901549 |
|||
| PRO300-4 | 3 | Safety valve 1/4"
Part Number: P2509 |
|||
| PRO300-4 | 4 | L-connector 1/4"M 1/4"M
Part Number: C229900525 |
|||
| PRO300-4 | 5 | Steam-/hot water boiler loading tube
Part Number: P1904 |
|||
| PRO300-4 | 6 | Level probe l=80
Part Number: C199900839 |
|||
| PRO300-4 | 7 | Pipe steam extraction
Part Number: P2511 |
|||
| PRO300-4 | 8 | T-connector 1/4" MMM
Part Number: P2519 |
|||
| PRO300-4 | 9 | Connection pipe pressure switch
Part Number: P3546 |
|||
| PRO300-4 | 10 | Tee plastic
Part Number: C400001932 |
|||
| PRO300-4 | 11 | T-connector 1/8" MMF
Part Number: C229900644 |
|||
| PRO300-4 | 12 | Silicone hose 8x5
Part Number: C499900769 |
|||
| PRO300-4 | 13 | Pressure switch (self-venting)
Part Number: P6030 |
|||
| PRO300-4 | 14 | Capillary tube boiler gauge
Part Number: B7400902 |
|||
| PRO300-4 | 15 | Pipe hot water extraction
Part Number: P2514 |
|||
| PRO300-4 | 16 | Valve steam/valve hot water
Part Number: P2550 |
|||
| PRO300-4 | 17 | Extension 1/8"M 1/8"F 22mm
Part Number: P2047 |
|||
| PRO300-4 | 18 | Steam-/hot water boiler
Part Number: P2508 |
|||
| PRO300-4 | 19 | Seal heating element steam-/hot water boiler
Part Number: P9013 |
|||
| PRO300-4 | 20 | Heating element steam-/hot water boiler 230V 1200W
Part Number: P9011 |
|||
| PRO300-4 | 20 | Heating element steam-/hot water boiler 110V 1200W
Part Number: US1008 |
|||
| PRO300-4 | 21 | Spring ring 8,0
Part Number: P2011 |
|||
| PRO300-4 | 22 | Hexagon nut M8
Part Number: C309900127 |
|||
| PRO300-4 | 23 | L-connector 1/8"M 1/4"M
Part Number: P9015 |
|||
| PRO300-4 | 24 | Connection pipe valve-steam wand
Part Number: P2510 |
|||
| PRO300-4 | 25 | Boiler pressure gauge
Part Number: P2501 |
|||
| PRO300-4 | 26 | Connection straight fitting
Part Number: P9115.5 |
|||
| PRO300-4 | 27 | Gasket nut-valve
Part Number: P6015 |
|||
| PRO300-4 | 28 | Spring steam valve
Part Number: P9115.6 |
|||
| PRO300-4 | 29 | Hex nut
Part Number: P9115.3 |
|||
| PRO300-4 | 30 | Washer socket
Part Number: P6012 |
|||
| PRO300-4 | 31 | Ball socket teflon
Part Number: P6010 |
|||
| PRO300-4 | 32 | Steam wand no-burn
Part Number: P2553 |
|||
| PRO300-4 | 33 | Handle
Part Number: P2551 |
|||
| PRO300-4 | 34 | Hot water wand
Part Number: P2552 |
|||
| PRO300-4 | 35 | Steam nozzle 2 holes
Part Number: P2543 |
|||
| PRO300-4 | 35 | Steam nozzle 4 holes
Part Number: P2542 |
|||

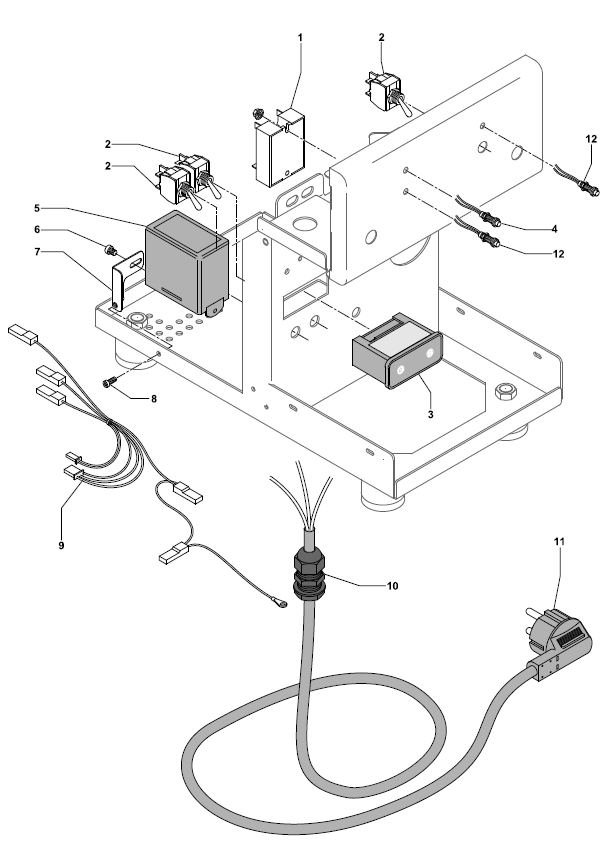

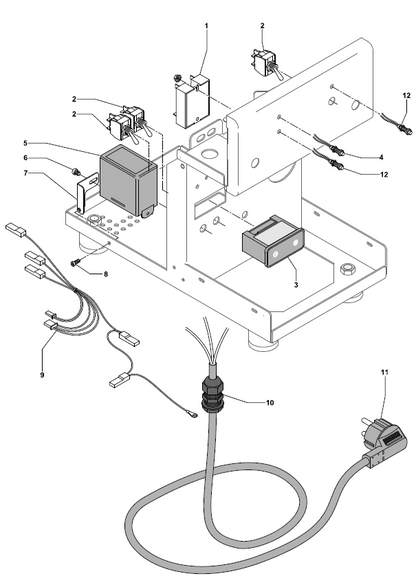

| PRO300-5 | 1 | Static relay
Part Number: P6031 |
|||
| PRO300-5 | 2 | Bipolar switch lever
Part Number: C199900087 |
|||
| PRO300-5 | 3 | Thermo PID 1
Part Number: P6035 |
|||
| PRO300-5 | 4 | Control lamp green
Part Number: P2563 |
|||
| PRO300-5 | 5 | Controlbox 240V
Part Number: M2004 |
|||
| PRO300-5 | 5 | Controlbox 115V
Part Number: US1004 |
|||
| PRO300-5 | 6 | Screw zylinder M5x10
Part Number: P2007 |
|||
| PRO300-5 | 7 | Bracket control box
Part Number: P3005 |
|||
| PRO300-5 | 8 |
|
Screw zylinder M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO300-5 | 9 | Cableloom
Part Number: P2582 |
|||
| PRO300-5 | 10 | Cable Fixing
Part Number: P2070 |
|||
| PRO300-5 | 10 | Nut PG
Part Number: P2071 |
|||
| PRO300-5 | 11 | Cable with Schucko plug
Part Number: C199900957 |
|||
| PRO300-5 | 11 | Cable with US plug
Part Number: P2034 |
|||
| PRO300-5 | 11 | Cable with UK plug
Part Number: P2035 |
|||
| PRO300-5 | 11 | Cable with AU plug
Part Number: P2036 |
|||
| PRO300-5 | 12 | Control lamp orange
Part Number: P2562 |
|||

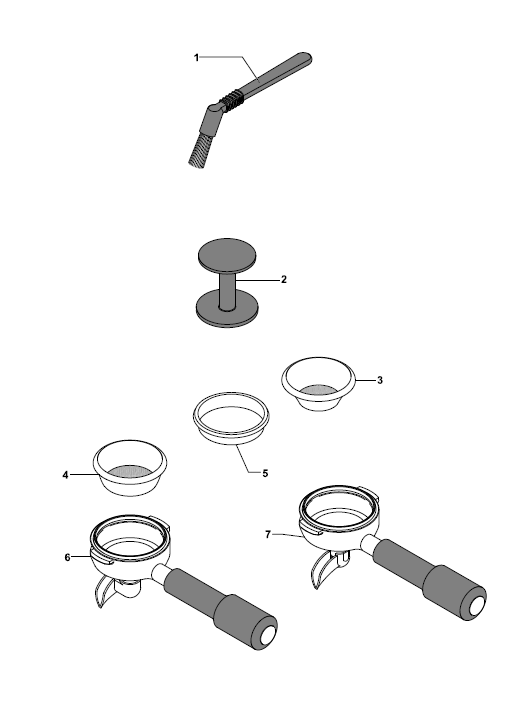

| PRO300-6 | 1 | Cleaning brush for shower screen
Part Number: R210 |
|||
| PRO300-6 | 2 | Tamper plastics
Part Number: C639900764 |
|||
| PRO300-6 | 3 | Filter 7g
Part Number: C619900104 |
|||
| PRO300-6 | 4 | Filter 14g
Part Number: C619900105 |
|||
| PRO300-6 | 5 | Blind filter
Part Number: C619900106 |
|||
| PRO300-6 | 6 | Filter holder 2 spouts
Part Number: C699900234 |
|||
| PRO300-6 | 7 | Filter holder 1 spout
Part Number: C699900233 |
