Profitec Pro 500 PID Part Diagram PRO500PID
This is the Profitec Pro 500 PID Part Diagram PRO500PID. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

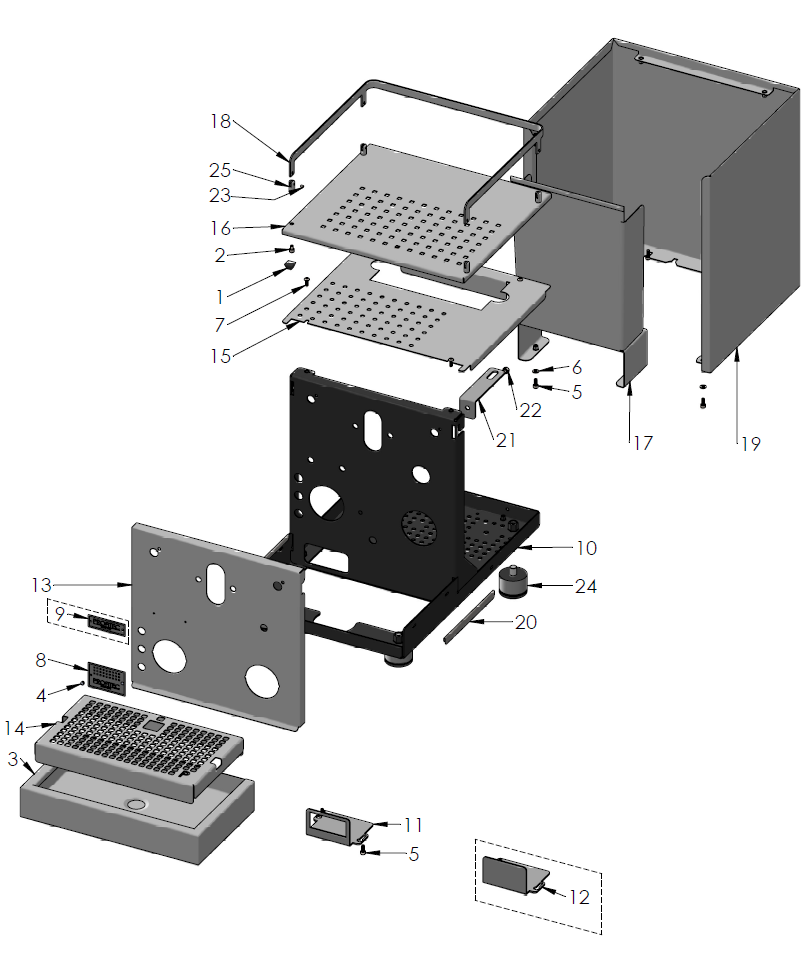

| PRO500PID-1 | 1 |
|
Foot for cup warming tray Part Number: B7474212 |
$7.35 | View Part |
| PRO500PID-1 | 2 |
|
Screw cylinder M4x6 Part Number: B7826212 |
$5.51 | View Part |
| PRO500PID-1 | 3 | Drip tray Part Number: M3022.4 |
$142.42 | View Part | |
| PRO500PID-1 | 4 | Blind rivet truss head 2,4x12
Part Number: P1998 |
|||
| PRO500PID-1 | 5 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO500PID-1 | 6 | Flat washer M4
Part Number: P2009 |
|||
| PRO500PID-1 | 7 |
|
Lens screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| PRO500PID-1 | 8 |
|
Emblem Profitec Part Number: P2063 |
$10.00 | View Part |
| PRO500PID-1 | 9 | Emblem Profitec small
Part Number: P2063.1 |
|||
| PRO500PID-1 | 10 | Base Pro500 PID Part Number: P2100.1 |
$306.24 | View Part | |
| PRO500PID-1 | 11 |
|
Bracket PID Part Number: P2100.2 |
$11.00 | View Part |
| PRO500PID-1 | 12 | Closure Part Number: P2100.3 |
$11.60 | View Part | |
| PRO500PID-1 | 13 |
|
Front panel Part Number: P2101 |
$101.90 | View Part |
| PRO500PID-1 | 14 | Grid drip tray Part Number: P2102 |
$40.40 | View Part | |
| PRO500PID-1 | 15 | Lower cup tray Part Number: P2103 |
$206.77 | View Part | |
| PRO500PID-1 | 16 | Cup warming tray
Part Number: P2104 |
|||
| PRO500PID-1 | 17 | Water tank guide rail
Part Number: P2105 |
|||
| PRO500PID-1 | 18 | Railing Part Number: P2106 |
$41.32 | View Part | |
| PRO500PID-1 | 19 | Body Part Number: P2107 |
$409.60 | View Part | |
| PRO500PID-1 | 20 | Guide rail drip tray Part Number: P3001.6 |
$11.00 | View Part | |
| PRO500PID-1 | 21 | Boiler bracket
Part Number: P3003.1 |
|||
| PRO500PID-1 | 22 | Hexagon nut M5
Part Number: P6102 |
|||
| PRO500PID-1 | 23 | Headless screw M3x4
Part Number: P6107 |
|||
| PRO500PID-1 | 24 | Foot H30, M10
Part Number: P7025 |
|||
| PRO500PID-1 | 25 | Post railing
Part Number: P8104 |
|||

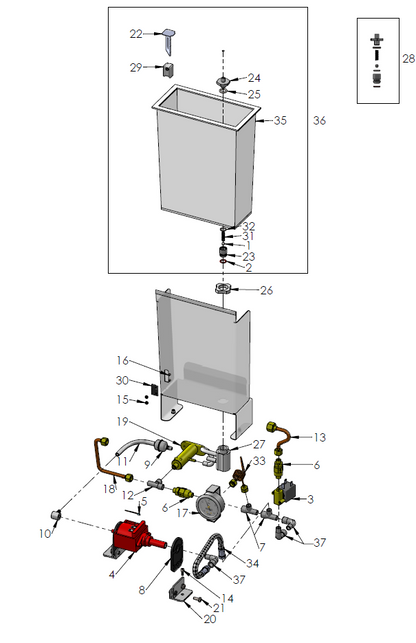

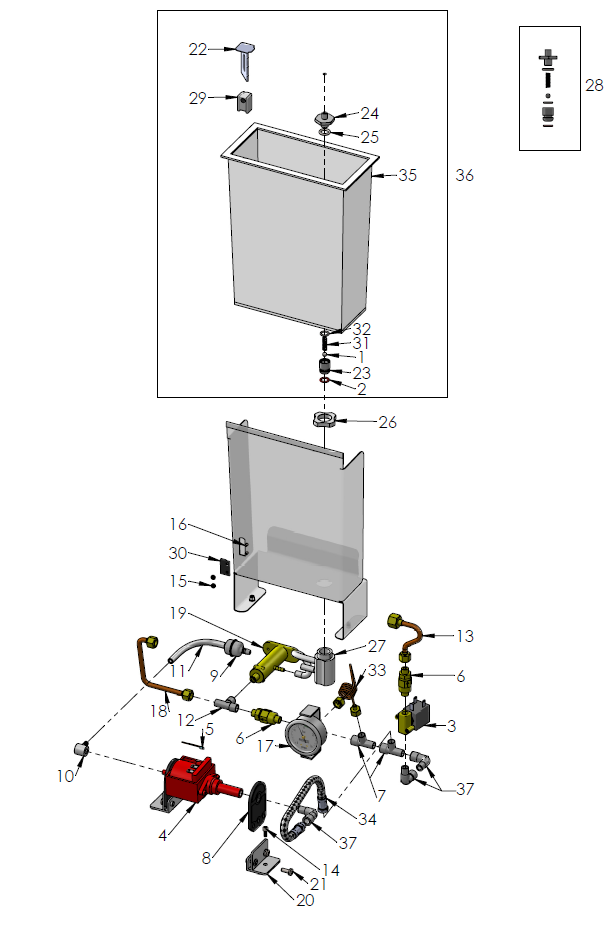

| PRO500PID-2 | 1 | Ball watertank lock
Part Number: B5471509 |
|||
| PRO500PID-2 | 2 | Gasket watertank adapter lower
Part Number: B7496076 |
|||
| PRO500PID-2 | 3 | Solenoid valve 2-ways 1/8"FF 230V/50Hz
Part Number: C199900275 |
|||
| PRO500PID-2 | Solenoid valve 100V 2 ways
Part Number: US1005 |
||||
| PRO500PID-2 | 4 | Vibration pump 230V / 50Hz
Part Number: C199900286 |
|||
| PRO500PID-2 | Vibration pump 120V/60Hz black
Part Number: US1001 |
||||
| PRO500PID-2 | Vibration pump 100V red
Part Number: US1025 |
||||
| PRO500PID-2 | 5 | Heat sensor Pump
Part Number: C199900969 |
|||
| PRO500PID-2 | 6 | Non-return valve 1/8" MM
Part Number: C229900548 |
|||
| PRO500PID-2 | 7 | T-connector 1/8 MMF
Part Number: C229900644 |
|||
| PRO500PID-2 | 8 | Upper bracket vibration pump
Part Number: C249900770 |
|||
| PRO500PID-2 | 9 | Filter watertank
Part Number: C439900695 |
|||
| PRO500PID-2 | 10 | Elbow
Part Number: C449900709 |
|||
| PRO500PID-2 | 11 | Silicon hose 5x9
Part Number: C499900769 |
|||
| PRO500PID-2 | 12 | T-connector 1/8" MFF
Part Number: E2113001 |
|||
| PRO500PID-2 | 13 | Boiler loading tube
Part Number: P1904 |
|||
| PRO500PID-2 | 14 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO500PID-2 | 15 | Hexagon nut M3
Part Number: P2019 |
|||
| PRO500PID-2 | 16 | Lens head screw M3x5
Part Number: P2064 |
|||
| PRO500PID-2 | 17 | Pump pressure gauge
Part Number: P2500 |
|||
| PRO500PID-2 | 18 | Alimentation tube
Part Number: P2515 |
|||
| PRO500PID-2 | 19 | Expansion valve complete
Part Number: P2555.K |
|||
| PRO500PID-2 | 20 | Lower bracket vibration pump
Part Number: P3006.K |
|||
| PRO500PID-2 | 21 | Screw for bracket 4,8x13mm
Part Number: P3019 |
|||
| PRO500PID-2 | 22 | Cap floater water tank
Part Number: P6016 |
|||
| PRO500PID-2 | 23 | Water tank valve
Part Number: P6017 |
|||
| PRO500PID-2 | 24 | Watertank adapter mounting nut
Part Number: P6020 |
|||
| PRO500PID-2 | 25 | Gasket watertank adapter upper
Part Number: P6020.3 |
|||
| PRO500PID-2 | 26 | Water tank adapter nut M20
Part Number: P6020.K3 |
|||
| PRO500PID-2 | 27 | Water tank adapter M20
Part Number: P6020.K4 |
|||
| PRO500PID-2 | 28 | Water tank adapter complete
Part Number: P6020.NK |
|||
| PRO500PID-2 | 29 | Reed swimmer
Part Number: P6021 |
|||
| PRO500PID-2 | 30 | Reed sensor low water switch-off
Part Number: P6022 |
|||
| PRO500PID-2 | 31 | Spring water tank lock
Part Number: P6023 |
|||
| PRO500PID-2 | 32 | Gasket water tank adapter middle
Part Number: P6025 |
|||
| PRO500PID-2 | 33 | Capillary tube 1m
Part Number: P6051 |
|||
| PRO500PID-2 | 34 | Flex hose 18cm
Part Number: P8012 |
|||
| PRO500PID-2 | 35 | Watertank blank
Part Number: P9010 |
|||
| PRO500PID-2 | 36 | Watertank complete
Part Number: P9010.BK1 |
|||
| PRO500PID-2 | 37 | Elbow 1/8" MF
Part Number: P9014 |
|||

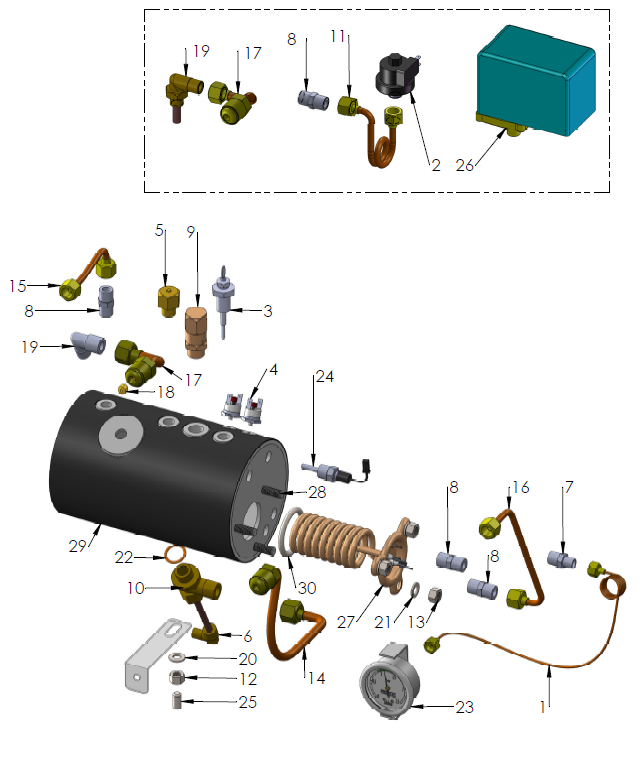

| PRO500PID-3 | 1 | Capillary tube boiler
Part Number: B7400902 |
|||
| PRO500PID-3 | 2 | Pressure switch Mater
Part Number: C199900294 |
|||
| PRO500PID-3 | 3 | Water level probe 80mm
Part Number: C199900839 |
|||
| PRO500PID-3 | 4 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| PRO500PID-3 | 5 | Anti-vacuum valve 1/4" M
Part Number: C219900561 |
|||
| PRO500PID-3 | 6 | Injection pipe
Part Number: C229900393 |
|||
| PRO500PID-3 | 7 | Nipple 1/4" - 1/8" MM
Part Number: C229900519 |
|||
| PRO500PID-3 | 8 | Nipple 1/4" - 1/4" MM
Part Number: C229900520 |
|||
| PRO500PID-3 | 9 | Safety valve 3/8" M 2bar
Part Number: C229900559 |
|||
| PRO500PID-3 | 10 | Connection injection pipe
Part Number: C229900740 |
|||
| PRO500PID-3 | 11 | Copper pipe pressure switch
Part Number: C229901576 |
|||
| PRO500PID-3 | 12 | Hex nut M8
Part Number: C309900127 |
|||
| PRO500PID-3 | 13 | Hex nut M8 brass
Part Number: C309900127.2 |
|||
| PRO500PID-3 | 14 | Return pipe group
Part Number: P1901.1 |
|||
| PRO500PID-3 | 15 | Tube steam
Part Number: P1902.1 |
|||
| PRO500PID-3 | 16 | Hot water wand
Part Number: P1903 |
|||
| PRO500PID-3 | 17 | Entry pipe group
Part Number: P1910 |
|||
| PRO500PID-3 | Entry pipe Group 8mm
Part Number: P1900.1 |
||||
| PRO500PID-3 | 18 | Restrictior 2,5mm
Part Number: P1910.1 |
|||
| PRO500PID-3 | 19 | Elbow 3/8"M 1/4"M
Part Number: P1931 |
|||
| PRO500PID-3 | Angle boiler/heatexchanger 1/4"MM
Part Number: P2040 |
||||
| PRO500PID-3 | 20 | Washer M8
Part Number: P2010 |
|||
| PRO500PID-3 | 21 | Spring ring M8
Part Number: P2011 |
|||
| PRO500PID-3 | 22 | Copper gasket 3/8"
Part Number: P2045 |
|||
| PRO500PID-3 | 23 | Boiler pressure gauge
Part Number: P2501 |
|||
| PRO500PID-3 | 24 | Temperature sensor 1/4"
Part Number: P6037 |
|||
| PRO500PID-3 | 25 | Threaded pin M8x16
Part Number: P6104 |
|||
| PRO500PID-3 | 26 | Pressure switch Sirai
Part Number: P7012 |
|||
| PRO500PID-3 | 27 | Heating element 230V 1400W
Part Number: P7014.1 |
|||
| PRO500PID-3 | Heating element 110V 1400W
Part Number: US1000 |
||||
| PRO500PID-3 | 28 | Boiler with heatexchanger
Part Number: P7014.2 |
|||
| PRO500PID-3 | 29 | Boiler isolation
Part Number: P7050 |
|||
| PRO500PID-3 | 30 | Gasket heating element
Part Number: P9013 |
|||

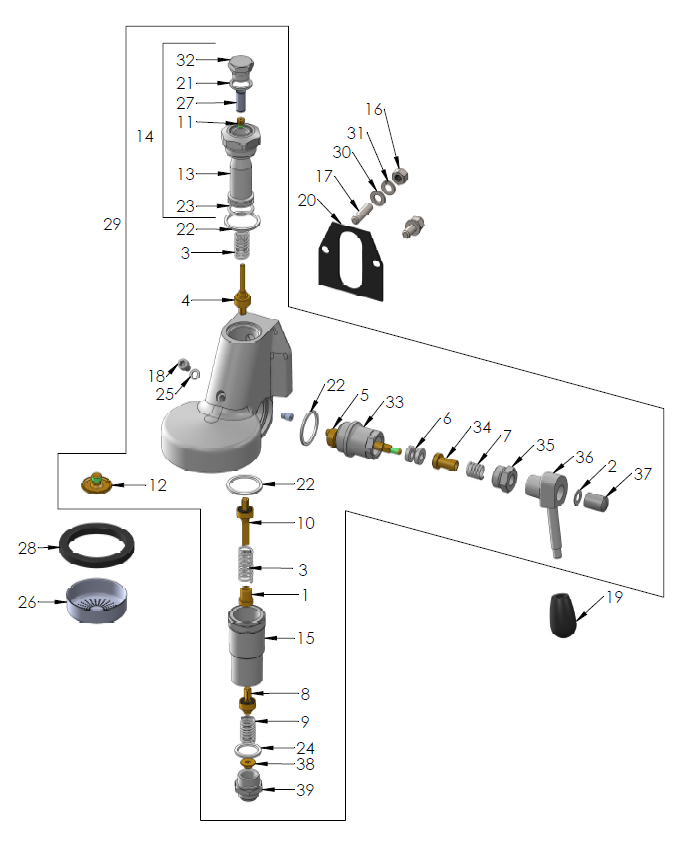

| PRO500PID-4 | 1 | Spring guide group
Part Number: B7479942 |
|||
| PRO500PID-4 | 2 | Lock washer M8
Part Number: B7479947 |
|||
| PRO500PID-4 | 3 | Spring upper/middle
Part Number: C219900423 |
|||
| PRO500PID-4 | 4 | Valve brew group E61 upper
Part Number: C219900424 |
|||
| PRO500PID-4 | 5 | Axis brew group E61
Part Number: C219900425 |
|||
| PRO500PID-4 | 6 | Washer axis brew group E61
Part Number: C219900426 |
|||
| PRO500PID-4 | 7 | Spring axis group
Part Number: C219900427 |
|||
| PRO500PID-4 | 8 | Valve group E61 lower
Part Number: C219900430 |
|||
| PRO500PID-4 | 9 | Spring lower
Part Number: C219900431 |
|||
| PRO500PID-4 | 10 | Valve brewing group E61 middle
Part Number: C219903081 |
|||
| PRO500PID-4 | 11 | Flow restrictor 0,8
Part Number: C229900549 |
|||
| PRO500PID-4 | 12 | Sprayer brew group lower
Part Number: C229901128 |
|||
| PRO500PID-4 | 13 | Upper sleave assy
Part Number: C229901133 |
|||
| PRO500PID-4 | 14 | Socket brew group complete
Part Number: C229901133.K |
|||
| PRO500PID-4 | 15 | Lower sleeve assembly
Part Number: C229901165 |
|||
| PRO500PID-4 | 16 | Hex nut M8
Part Number: C309900127 |
|||
| PRO500PID-4 | 17 | Allen screw M8 x 31
Part Number: C309900131 |
|||
| PRO500PID-4 | 18 | Screw cylinder M6 x 10
Part Number: C309900164 |
|||
| PRO500PID-4 | 19 | Lever handle
Part Number: C439900840 |
|||
| PRO500PID-4 | 20 | Gasket brew group / front panel E61
Part Number: C449900767 |
|||
| PRO500PID-4 | 21 | Gasket plug flow restrictor
Part Number: C469900420 |
|||
| PRO500PID-4 | 22 | Gasket teflon 35x30x2
Part Number: C469900421 |
|||
| PRO500PID-4 | 23 | Gasket socket brewing group
Part Number: C469900422 |
|||
| PRO500PID-4 | 24 | Teflon gasket brew group E61 lower
Part Number: C469900783 |
|||
| PRO500PID-4 | 25 | Teflon gasket 10x6x1
Part Number: C469901132 |
|||
| PRO500PID-4 | 26 | Shower screen
Part Number: C519900103 |
|||
| PRO500PID-4 | 27 | Inox filter gigleur
Part Number: C619900554 |
|||
| PRO500PID-4 | 28 | Group gasket
Part Number: P1010 |
|||
| PRO500PID-4 | 29 | Brewing group E61
Part Number: P1011 |
|||
| PRO500PID-4 | 30 | Washer M8
Part Number: P2010 |
|||
| PRO500PID-4 | 31 | Spring ring M8
Part Number: P2011 |
|||
| PRO500PID-4 | 32 | Upper fitting group cylinder
Part Number: R000002141 |
|||
| PRO500PID-4 | 33 | Flange
Part Number: R000002142 |
|||
| PRO500PID-4 | 34 | Connector brewing group
Part Number: R000002143 |
|||
| PRO500PID-4 | 35 | Screw joint axis group
Part Number: R000002144 |
|||
| PRO500PID-4 | 36 | Lever axis group with bolt
Part Number: R000002145 |
|||
| PRO500PID-4 | 37 | Bolt lever
Part Number: R000002146 |
|||
| PRO500PID-4 | 38 | Sprayer brew group lower
Part Number: R000002148 |
|||
| PRO500PID-4 | 39 | Lower discharge group
Part Number: R000002149 |
|||

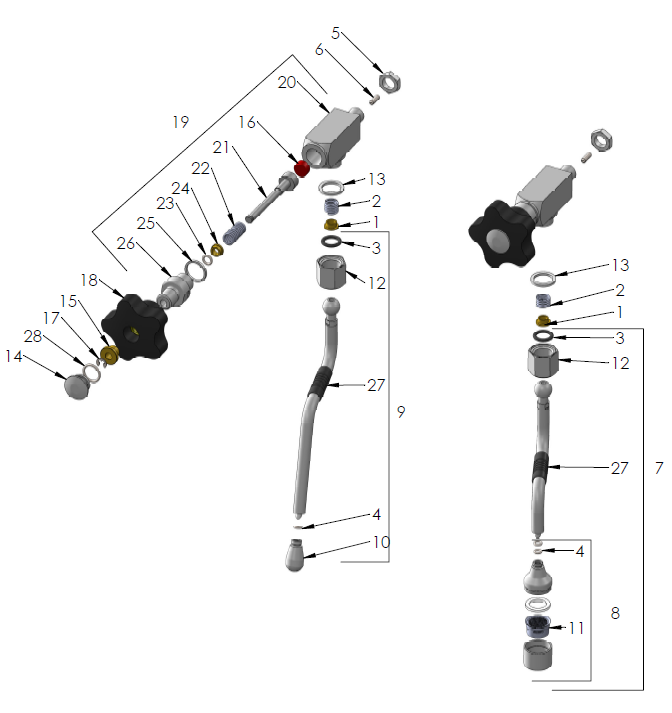

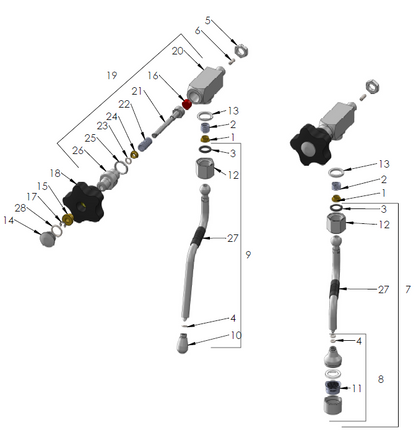

| PRO500PID-5 | 1 | Socket steam-/hot water valve
Part Number: B5220606 |
|||
| PRO500PID-5 | 2 | Spring steam-/hot water valve
Part Number: B5471532 |
|||
| PRO500PID-5 | 3 | O-Ring nut steam/hotwater
Part Number: B7496073 |
|||
| PRO500PID-5 | 4 | Gasket joint transition
Part Number: B7496083 |
|||
| PRO500PID-5 | 5 | Nut (half) 1/4"
Part Number: C329900682 |
|||
| PRO500PID-5 | 6 | Allen screw M4x12
Part Number: G1032 |
|||
| PRO500PID-5 | 7 | Hot water wand no-burn
Part Number: P2540 |
|||
| PRO500PID-5 | 8 | Hot water outlet
Part Number: P2540.1 |
|||
| PRO500PID-5 | 9 | Steam wand no-burn
Part Number: P2541 |
|||
| PRO500PID-5 | 10 | Steam nozzle 4 holes
Part Number: P2542 |
|||
| PRO500PID-5 | Steam nozzle 2 holes
Part Number: P2543 |
||||
| PRO500PID-5 | 11 | Strainer hot water outlet
Part Number: P6001.2 |
|||
| PRO500PID-5 | 12 | Nut steam/hot water wand
Part Number: P6002.5 |
|||
| PRO500PID-5 | 13 | Gasket nut valve
Part Number: P6015 |
|||
| PRO500PID-5 | 14 | Cover valve handle
Part Number: P8103 |
|||
| PRO500PID-5 | 15 | Spacer valve
Part Number: P8105 |
|||
| PRO500PID-5 | 16 | Gasket valve spindle
Part Number: P8106.1 |
|||
| PRO500PID-5 | 17 | Circlip valve spindle
Part Number: P8106.2 |
|||
| PRO500PID-5 | 18 | Rotary handle
Part Number: P8107 |
|||
| PRO500PID-5 | 19 | Valve steam/hot water
Part Number: P8108 |
|||
| PRO500PID-5 | 20 | Valve corpus
Part Number: P8108.1 |
|||
| PRO500PID-5 | 21 | Valve spindle
Part Number: P8108.2 |
|||
| PRO500PID-5 | 22 | Spring valve spindle
Part Number: P8108.4 |
|||
| PRO500PID-5 | 23 | O-ring valve spindle
Part Number: P8108.5 |
|||
| PRO500PID-5 | 24 | Socket valve spindle
Part Number: P8108.6 |
|||
| PRO500PID-5 | 25 | Gasket teflon connector
Part Number: P8108.7 |
|||
| PRO500PID-5 | 26 | Connector valve handle-valve corpus
Part Number: P8108.8 |
|||
| PRO500PID-5 | 27 | Isolation steam-/hot water wand
Part Number: P8110 |
|||
| PRO500PID-5 | 28 | Gasket cover valve handle
Part Number: P8111 |
|||

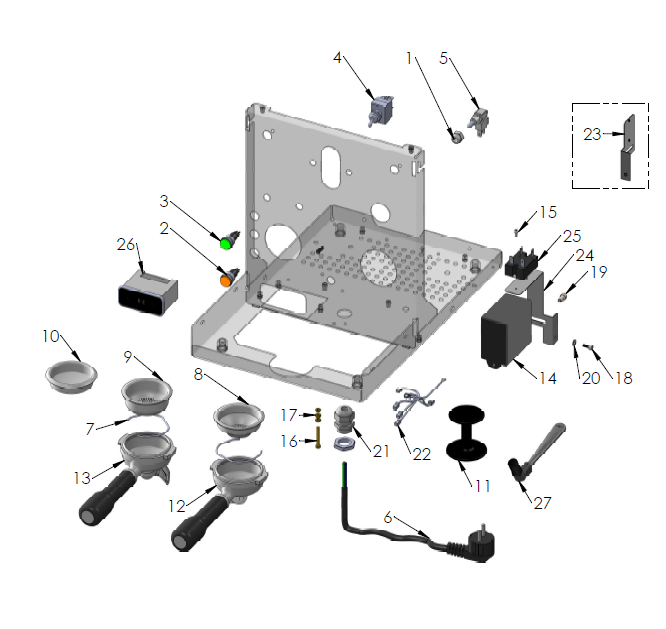

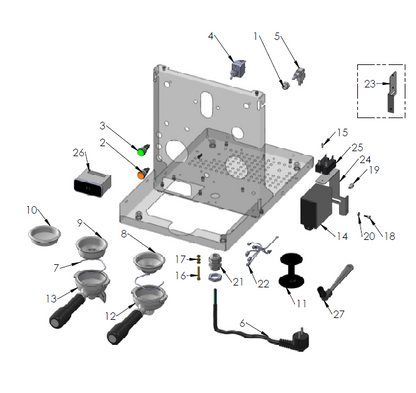

| PRO500PID-6 | 1 | Hexagon nut microswitch M10 x 0,75
Part Number: B5221875CM |
|||
| PRO500PID-6 | 2 | Control lamp orange
Part Number: B7633617 |
|||
| PRO500PID-6 | 3 | Control lamp green
Part Number: B7633618 |
|||
| PRO500PID-6 | 4 | Power switch metal
Part Number: C199900087 |
|||
| PRO500PID-6 | 5 | Microswitch
Part Number: C199900306 |
|||
| PRO500PID-6 | 6 | Power cable schuko plug
Part Number: C199900957 |
|||
| PRO500PID-6 | Power cable US-plug
Part Number: P2034 |
||||
| PRO500PID-6 | Power cable UK-plug
Part Number: P2035 |
||||
| PRO500PID-6 | Power cable AU-plug
Part Number: P2036 |
||||
| PRO500PID-6 | 7 | Locking spring portafilter
Part Number: C619900098 |
|||
| PRO500PID-6 | 8 | Cup filter 7g
Part Number: C619900104 |
|||
| PRO500PID-6 | 9 | Cup filter 14g
Part Number: C619900105 |
|||
| PRO500PID-6 | 10 | Blind filter
Part Number: C619900106 |
|||
| PRO500PID-6 | 11 | Tamper plastic
Part Number: C639900764 |
|||
| PRO500PID-6 | 12 | Portafilter 1 spout
Part Number: C699900233 |
|||
| PRO500PID-6 | 13 | Portafilter 2 spouts
Part Number: C699900234 |
|||
| PRO500PID-6 | 14 | Controlbox 240V
Part Number: M2004 |
|||
| PRO500PID-6 | Controlbox 115V
Part Number: US1004 |
||||
| PRO500PID-6 | 15 | Screw cylinder head M3x5
Part Number: P1994 |
|||
| PRO500PID-6 | 16 | Screw M4x30 Brass
Part Number: P2001 |
|||
| PRO500PID-6 | 17 | Nut M4 Brass
Part Number: P2002 |
|||
| PRO500PID-6 | 18 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO500PID-6 | 19 | Screw cylinder head M5x10
Part Number: P2007 |
|||
| PRO500PID-6 | 20 | Flat washer M4
Part Number: P2009 |
|||
| PRO500PID-6 | 21 | Cable clip with hexagon nut
Part Number: P2070 |
|||
| PRO500PID-6 | 22 | Cable loom Pro500 PID
Part Number: P2592 |
|||
| PRO500PID-6 | Cable loom 230V
Part Number: P2012 |
||||
| PRO500PID-6 | Cable loom 110V Mater
Part Number: US1030 |
||||
| PRO500PID-6 | Cable loom 110V Sirai
Part Number: US1030.1 |
||||
| PRO500PID-6 | 23 | Bracket electronic
Part Number: P3005.1 |
|||
| PRO500PID-6 | 24 | Bracket electronic and relay
Part Number: P3005.2 |
|||
| PRO500PID-6 | 25 | Static relais
Part Number: P6029 |
|||
| PRO500PID-6 | 26 | Thermo PID
Part Number: P6045 |
|||
| PRO500PID-6 | Thermo PID 110V
Part Number: US1042 |
||||
| PRO500PID-6 | 27 | Cleaning brush
Part Number: R210 |
