Profitec Pro 600 Part Diagram 10600
This is the Profitec Pro 600 Part Diagram 10600. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

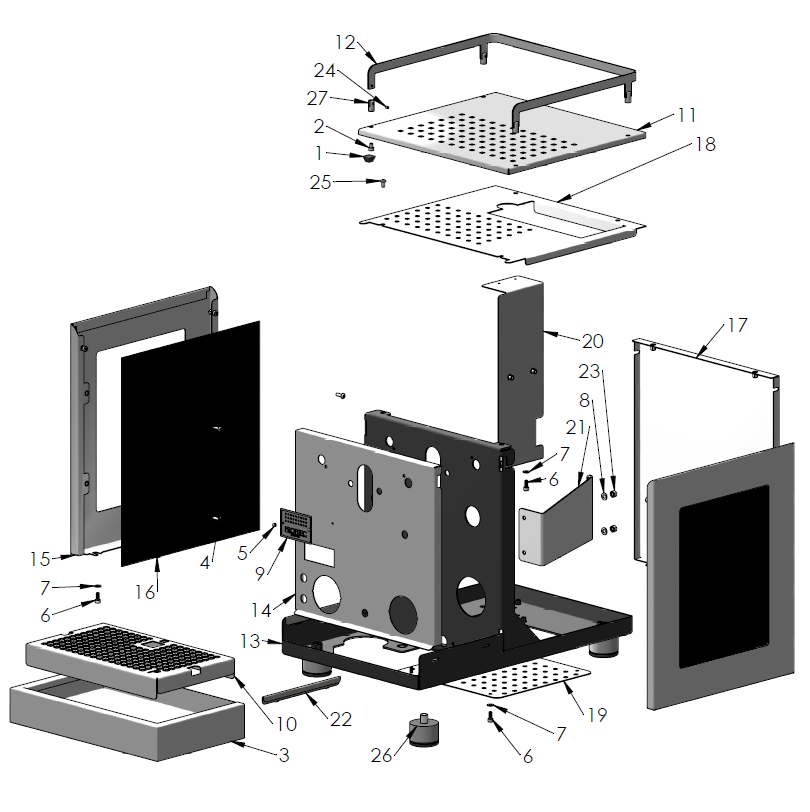

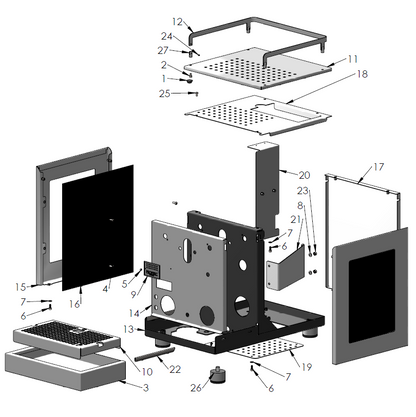

| 10600-1 | 1 |
|
Foot for cup warming tray Part Number: B7474212 |
$7.35 | View Part |
| 10600-1 | 2 |
|
Screw cylinder M4x6 Part Number: B7826212 |
$5.51 | View Part |
| 10600-1 | 3 | Drip tray Part Number: M3022.4 |
$142.42 | View Part | |
| 10600-1 | 4 | Round-head screw M4x12 Part Number: P1992 |
$5.32 | View Part | |
| 10600-1 | 5 | Blind rivet truss head 2,4x12
Part Number: P1998 |
|||
| 10600-1 | 6 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| 10600-1 | 7 | Flat washer M4
Part Number: P2009 |
|||
| 10600-1 | 8 | Flat washer 5,3
Part Number: P2043 |
|||
| 10600-1 | 9 |
|
Emblem Profitec Part Number: P2063 |
$10.00 | View Part |
| 10600-1 | 10 | Grid drip tray Part Number: P2102 |
$40.40 | View Part | |
| 10600-1 | 11 | Cup warming tray
Part Number: P2104 |
|||
| 10600-1 | 12 | Railing Part Number: P2106 |
$41.32 | View Part | |
| 10600-1 | 13 | Chassis Part Number: P2150 |
$149.44 | View Part | |
| 10600-1 | 14 | Front panel Part Number: P2151 |
$44.60 | View Part | |
| 10600-1 | 15 |
|
Side panel Part Number: P2152 |
$63.20 | View Part |
| 10600-1 | 16 |
|
Plate side panel Part Number: P2153 |
$26.90 | View Part |
| 10600-1 | 17 |
|
Rear panel Part Number: P2155 |
$62.20 | View Part |
| 10600-1 | 18 | Lower cup warming tray Part Number: P2156 |
$82.20 | View Part | |
| 10600-1 | 19 |
|
Cover heating element Part Number: P2158 |
$19.90 | View Part |
| 10600-1 | 20 | Bracket electronic
Part Number: P2159 |
|||
| 10600-1 | 21 | Bracket boilers
Part Number: P2160 |
|||
| 10600-1 | 22 | Guide rail drip tray
Part Number: P3001.6 |
|||
| 10600-1 | 23 | Hexagon nut M5
Part Number: P6102 |
|||
| 10600-1 | 24 | Headless screw M3x4
Part Number: P6107 |
|||
| 10600-1 | 25 | Lens head screw M4x8
Part Number: P6114 |
|||
| 10600-1 | 26 | Foot H30, M10
Part Number: P7025 |
|||
| 10600-1 | 27 | Post railing
Part Number: P8104 |
|||

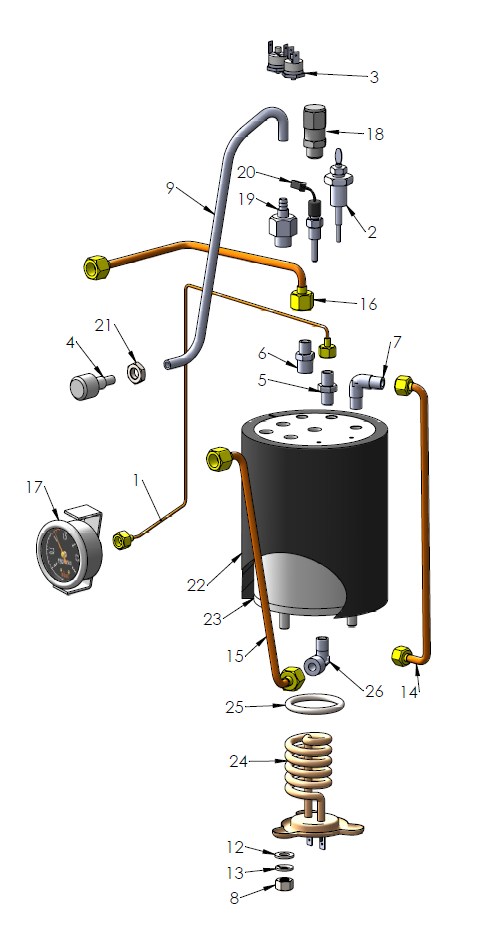

| 10600-2 | 1 | Capillary tube
Part Number: B7400902 |
|||
| 10600-2 | 2 | Water level probe 80mm
Part Number: C199900839 |
|||
| 10600-2 | 3 | Safety thermostat 165C
Part Number: C199901549 |
|||
| 10600-2 | 4 | Drain nozzle
Part Number: C227700898 |
|||
| 10600-2 | 5 | Nipple 1/8" M - 1/8" M
Part Number: C229900518 |
|||
| 10600-2 | 6 | Nipple 1/4" - 1/8" MM
Part Number: C229900519 |
|||
| 10600-2 | 7 | Elbow 1/8"M 1/8"M
Part Number: C229900579 |
|||
| 10600-2 | 8 | Hex nut M8 brass
Part Number: C309900127.2 |
|||
| 10600-2 | 9 | Silicone tube transparent
Part Number: C499900769 |
|||
| 10600-2 | 10 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| 10600-2 | 11 | Flat washer M4
Part Number: P2009 |
|||
| 10600-2 | 12 | Washer M8
Part Number: P2010 |
|||
| 10600-2 | 13 | Spring ring M8
Part Number: P2011 |
|||
| 10600-2 | 14 | Alimentation tube Steam boiler
Part Number: P2140 |
|||
| 10600-2 | 15 | Hot water tube
Part Number: P2142 |
|||
| 10600-2 | 16 | Steam tube
Part Number: P2143 |
|||
| 10600-2 | 17 | Boiler pressure gauge
Part Number: P2501.1 |
|||
| 10600-2 | 18 | Safety valve 1/4" M
Part Number: P2535 |
|||
| 10600-2 | 19 | Anti-vacuum valve 1/4" M with drain
Part Number: P2561 |
|||
| 10600-2 | 20 | Temperature sensor 1/8 " NTC
Part Number: P6036 |
|||
| 10600-2 | 21 | Hex nut (half) M10
Part Number: P6103 |
|||
| 10600-2 | 22 | Isolation steam boiler
Part Number: P7055 |
|||
| 10600-2 | 23 | Steam boiler
Part Number: P7071 |
|||
| 10600-2 | 24 | Heating element boiler 1000W 230V
Part Number: P9011 |
|||
| 10600-2 | Heating element boiler 1000W 110V
Part Number: US1008 |
||||
| 10600-2 | 25 | Gasket heating element
Part Number: P9013 |
|||
| 10600-2 | 26 | Elbow 1/4"M - 1/8"M
Part Number: P9015 |
|||

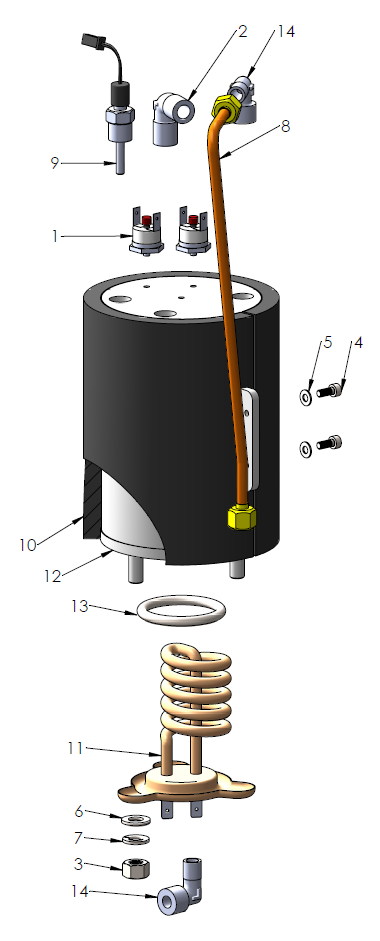

| 10600-3 | 1 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| 10600-3 | 2 | Elbow 1/4" M 1/4" M
Part Number: C229900525 |
|||
| 10600-3 | 3 | Hex nut M8 brass
Part Number: C309900127.2 |
|||
| 10600-3 | 4 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| 10600-3 | 5 | Flat washer M4
Part Number: P2009 |
|||
| 10600-3 | 6 | Washer M8
Part Number: P2010 |
|||
| 10600-3 | 7 | Spring ring M8
Part Number: P2011 |
|||
| 10600-3 | 8 | Alimentation tube boiler
Part Number: P2141 |
|||
| 10600-3 | 9 | Temperature sensor 1/4"
Part Number: P6037 |
|||
| 10600-3 | 10 | Isolation coffee boiler
Part Number: P7051 |
|||
| 10600-3 | 11 | Heating element boiler 1000W 230V
Part Number: P9011 |
|||
| 10600-3 | Heating element boiler 1000W 110V
Part Number: US1008 |
||||
| 10600-3 | 12 | Coffee boiler
Part Number: P9012 |
|||
| 10600-3 | 13 | Gasket heating element
Part Number: P9013 |
|||
| 10600-3 | 14 | Elbow 1/4"M - 1/8"M
Part Number: P9015 |
|||

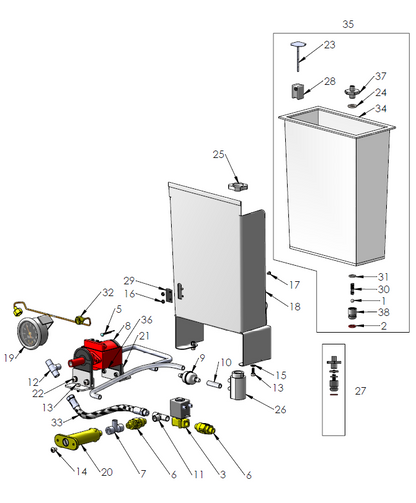

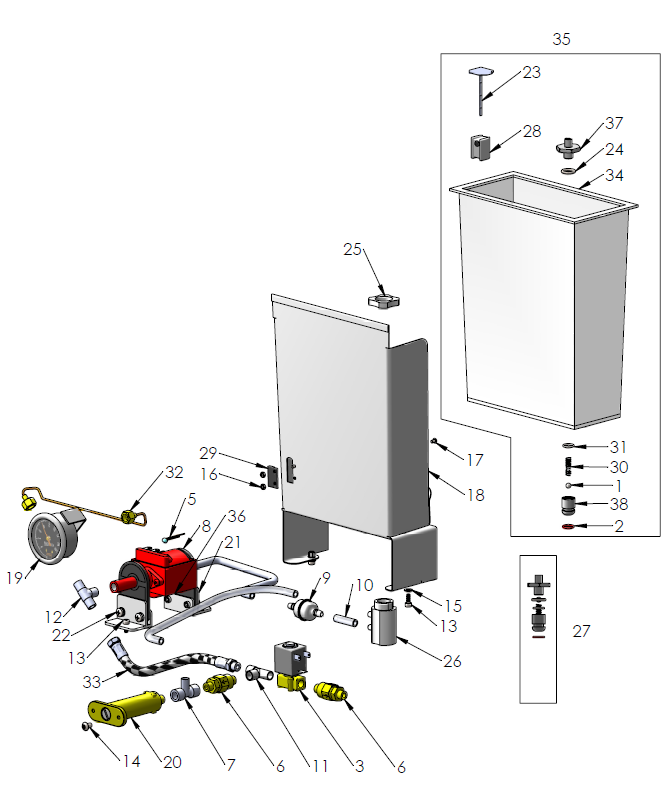

| 10600-4 | 1 | Ball watertank lock
Part Number: B5471509 |
|||
| 10600-4 | 2 | Gasket watertank adapter lower
Part Number: B7496076 |
|||
| 10600-4 | 3 | Solenoid valve 2-ways 1/8"FF 230V/50Hz
Part Number: C199900275 |
|||
| 10600-4 | Solenoid valve 2-ways 1/8"FF 110V/60Hz
Part Number: US1005 |
||||
| 10600-4 | Vibration pump 120V / 60Hz black
Part Number: US1001 |
||||
| 10600-4 | Vibration pump 100V red
Part Number: US1025 |
||||
| 10600-4 | 5 | Heat sensor Pump
Part Number: C199900969 |
|||
| 10600-4 | 6 | Non-return valve 1/8" MM
Part Number: C229900548 |
|||
| 10600-4 | 7 | T-connector 1/8" FMF
Part Number: C229900703 |
|||
| 10600-4 | 8 | Upper bracket vibration pump
Part Number: C249900770 |
|||
| 10600-4 | 9 | Filter watertank
Part Number: C439900695 |
|||
| 10600-4 | 10 | Silicon tube transparent 5x9
Part Number: C4699900769 |
|||
| 10600-4 | 11 | T-connector 1/8" MFF
Part Number: E2113001 |
|||
| 10600-4 | 12 | T-connector 1/8" MMM
Part Number: E2116001 |
|||
| 10600-4 | 13 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| 10600-4 | 14 | Lens screw M5x8
Part Number: P2008 |
|||
| 10600-4 | 15 | Flat washer M4
Part Number: P2009 |
|||
| 10600-4 | 16 | Hexagon nut M3
Part Number: P2019 |
|||
| 10600-4 | 17 | Lens head screw M3x5
Part Number: P2064 |
|||
| 10600-4 | 18 | Water tank guide rail
Part Number: P2157 |
|||
| 10600-4 | 19 | Pump pressure gauge
Part Number: P2500.1 |
|||
| 10600-4 | 20 | Expansion valve complete
Part Number: P2555.K |
|||
| 10600-4 | 21 | Lower bracket vibration pump
Part Number: P3006.K |
|||
| 10600-4 | 22 | Screw for bracket 4,8x13mm
Part Number: P3019 |
|||
| 10600-4 | 23 | Cap floater water tank
Part Number: P6016 |
|||
| 10600-4 | 24 | Gasket water tank adapter upper
Part Number: P6020.3 |
|||
| 10600-4 | 25 | Water tank adapter nut M20
Part Number: P6020.K3 |
|||
| 10600-4 | 26 | Water tank adapter M20
Part Number: P6020.K4 |
|||
| 10600-4 | 27 | Water tank adapter complete
Part Number: P6020.NK |
|||
| 10600-4 | 28 | Reed swimmer
Part Number: P6021 |
|||
| 10600-4 | 29 | Reed sensor low water switch-off
Part Number: P6022 |
|||
| 10600-4 | 30 | Spring water tank lock
Part Number: P6023 |
|||
| 10600-4 | 31 | Gasket water tank adapter middle
Part Number: P6025 |
|||
| 10600-4 | 32 | Capillary tube
Part Number: P6051 |
|||
| 10600-4 | 33 | Flex hose 1/8"M 1/8"F l=180mm
Part Number: P8012 |
|||
| 10600-4 | 34 | Watertank blank
Part Number: P9010 |
|||
| 10600-4 | 35 | Watertank complete
Part Number: P9010K1 |
|||
| 10600-4 | 36 | Vibration pump 230V / 50Hz
Part Number: C199900280 |
|||
| 10600-4 | 37 | Watertank adapter mounting nut
Part Number: P6020.N |
|||
| 10600-4 | 38 | Water tank adapter union
Part Number: P6017.N |
|||

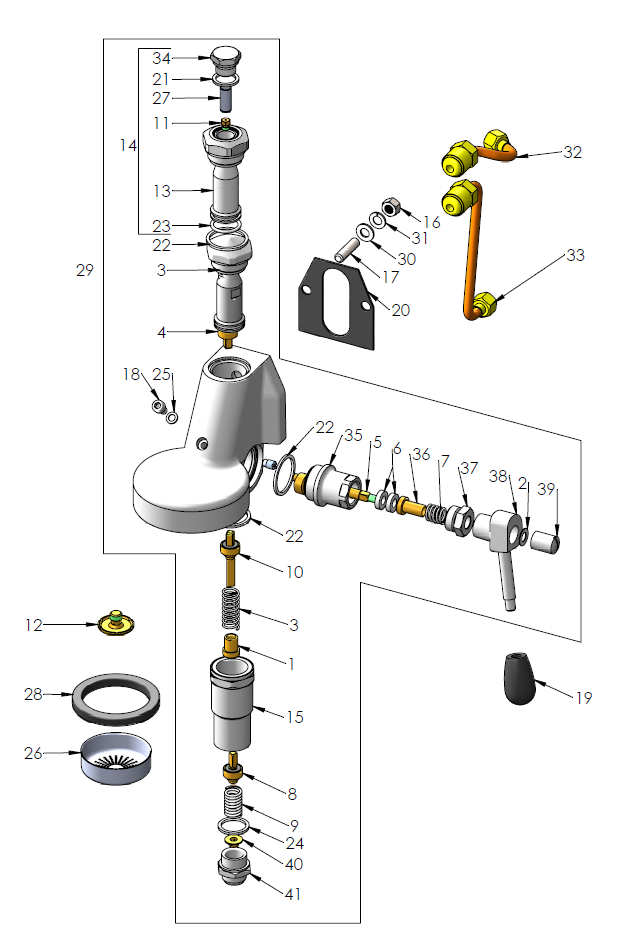

| 10600-5 | 1 | Spring guide group
Part Number: B7479942 |
|||
| 10600-5 | 2 | Lock washer M8
Part Number: B7479947 |
|||
| 10600-5 | 3 | Spring upper/middle
Part Number: C219900423 |
|||
| 10600-5 | 4 | Valve brew group E61 upper
Part Number: C219900424 |
|||
| 10600-5 | 5 | Axis brew group E61
Part Number: C219900425 |
|||
| 10600-5 | 6 | Washer axis brew group E61
Part Number: C219900426 |
|||
| 10600-5 | 7 | Spring axis group
Part Number: C219900427 |
|||
| 10600-5 | 8 | Valve group E61 lower
Part Number: C219900430 |
|||
| 10600-5 | 9 | Spring lower
Part Number: C219900431 |
|||
| 10600-5 | 10 | Valve brewing group E61 middle
Part Number: C219903081 |
|||
| 10600-5 | 11 | Flow restrictor 0,8
Part Number: C229900549 |
|||
| 10600-5 | 12 | Sprayer brew group lower
Part Number: C229901128 |
|||
| 10600-5 | 13 | Upper sleave assy
Part Number: C229901133 |
|||
| 10600-5 | 14 | Socket brew group complete
Part Number: C229901133.K |
|||
| 10600-5 | 15 | Lower sleeve assembly
Part Number: C229901165 |
|||
| 10600-5 | 16 | Hex nut M8
Part Number: C309900127 |
|||
| 10600-5 | 17 | Allen screw M8 x 31
Part Number: C309900131 |
|||
| 10600-5 | 18 | Screw cylinder M6 x 10
Part Number: C309900164 |
|||
| 10600-5 | 19 | Lever handle
Part Number: C439900840 |
|||
| 10600-5 | 20 | Gasket brew group / front panel E61
Part Number: C449900767 |
|||
| 10600-5 | 21 | Gasket plug flow restrictor
Part Number: C469900420 |
|||
| 10600-5 | 22 | Gasket teflon 35x30x2
Part Number: C469900421 |
|||
| 10600-5 | 23 | Gasket socket brewing group
Part Number: C469900422 |
|||
| 10600-5 | 24 | Teflon gasket brew group E61 lower
Part Number: C469900783 |
|||
| 10600-5 | 25 | Teflon gasket 10x6x1
Part Number: C469901132 |
|||
| 10600-5 | 26 | Shower screen
Part Number: C519900103 |
|||
| 10600-5 | 27 | Inox filter gigleur
Part Number: C619900554 |
|||
| 10600-5 | 28 | Group gasket
Part Number: P1010 |
|||
| 10600-5 | 29 | Brewing group E61
Part Number: P1011 |
|||
| 10600-5 | 30 | Washer M8
Part Number: P2010 |
|||
| 10600-5 | 31 | Spring ring M8
Part Number: P2011 |
|||
| 10600-5 | 32 | Entry pipe
Part Number: P2144 |
|||
| 10600-5 | 33 | Pipe return flow group
Part Number: P2145 |
|||
| 10600-5 | 34 | Upper fitting group cylinder
Part Number: R000002141 |
|||
| 10600-5 | 35 | Flange
Part Number: R000002142 |
|||
| 10600-5 | 36 | Connector brewing group
Part Number: R000002143 |
|||
| 10600-5 | 37 | Screw joint axis group
Part Number: R000002144 |
|||
| 10600-5 | 38 | Lever axis group with bolt
Part Number: R000002145 |
|||
| 10600-5 | 39 | Bolt lever
Part Number: R000002146 |
|||
| 10600-5 | 40 | Sprayer brew group lower
Part Number: R000002148 |
|||
| 10600-5 | 41 | Lower discharge group
Part Number: R000002149 |
|||
| 10600-5 | 42 | Socket brew group complete Profitec
Part Number: P1018.1 |
|||
| 10600-5 | 43 | Lower brew group cylinder
Part Number: P1000.3 |
|||
| 10600-5 | 44 | Inox filter gigleur L=16mm
Part Number: P1018.2 |
|||

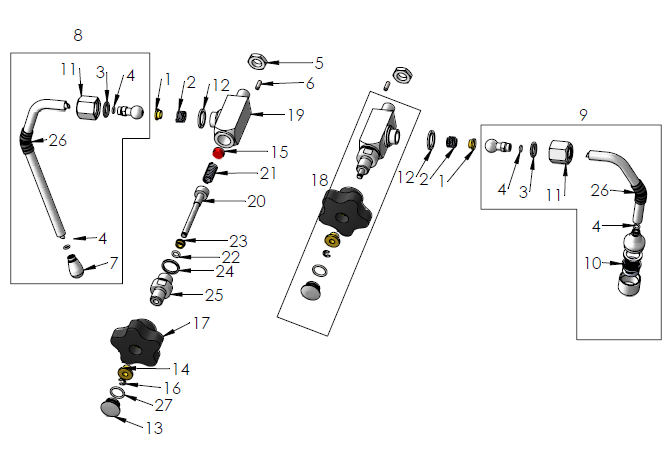

| 10600-6 | 1 | Socket steam-/hot water valve
Part Number: B5220606 |
|||
| 10600-6 | 2 | Spring steam-/hot water valve
Part Number: B5471532 |
|||
| 10600-6 | 3 | O-Ring nut steam/hotwater
Part Number: B7496073 |
|||
| 10600-6 | 4 | Gasket joint transition
Part Number: B7496083 |
|||
| 10600-6 | 5 | Nut (half) 1/4"
Part Number: C329900682 |
|||
| 10600-6 | 6 | Allen screw M4x12
Part Number: G1032 |
|||
| 10600-6 | 7 | Steam nozzle 4 holes
Part Number: P2542 |
|||
| 10600-6 | Steam nozzle 2 holes
Part Number: P2543 |
||||
| 10600-6 | 8 | Steam pipe no burn
Part Number: P2544 |
|||
| 10600-6 | 9 | Hot water pipe no burn
Part Number: P2545 |
|||
| 10600-6 | 10 | Strainer hot water outlet
Part Number: P6001.2 |
|||
| 10600-6 | 11 | Nut steam/hot water wand
Part Number: P6002.5 |
|||
| 10600-6 | 12 | Gasket nut valve
Part Number: P6015 |
|||
| 10600-6 | 13 | Cover valve handle
Part Number: P8103 |
|||
| 10600-6 | 14 | Spacer valve
Part Number: P8105 |
|||
| 10600-6 | 15 | Gasket valve spindle
Part Number: P8106.1 |
|||
| 10600-6 | 16 | Circlip valve spindle
Part Number: P8106.2 |
|||
| 10600-6 | 17 | Rotary handle
Part Number: P8107 |
|||
| 10600-6 | 18 | Valve steam/hot water complete
Part Number: P8108 |
|||
| 10600-6 | 19 | Valve corpus
Part Number: P8108.1 |
|||
| 10600-6 | 20 | Valve spindle
Part Number: P8108.2 |
|||
| 10600-6 | 21 | Spring valve spindle
Part Number: P8108.4 |
|||
| 10600-6 | 22 | O-ring valve spindle
Part Number: P8108.5 |
|||
| 10600-6 | 23 | Socket valve spindle
Part Number: P8108.6 |
|||
| 10600-6 | 24 | Gasket teflon connector
Part Number: P8108.7 |
|||
| 10600-6 | 25 | Connector valve handle-valve corpus
Part Number: P8108.8 |
|||
| 10600-6 | 26 | Rubber insulation
Part Number: P8110 |
|||
| 10600-6 | 27 | Gasket cover valve handle
Part Number: P8111 |
|||

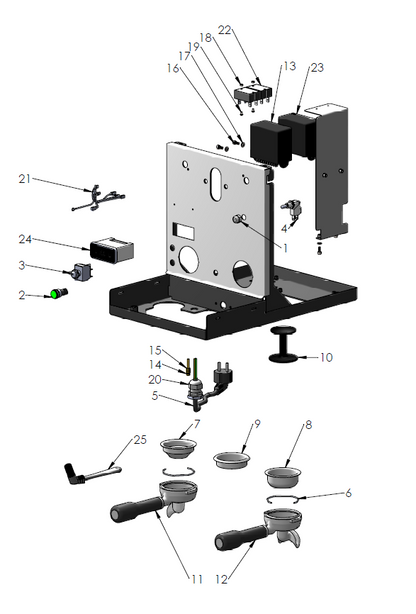

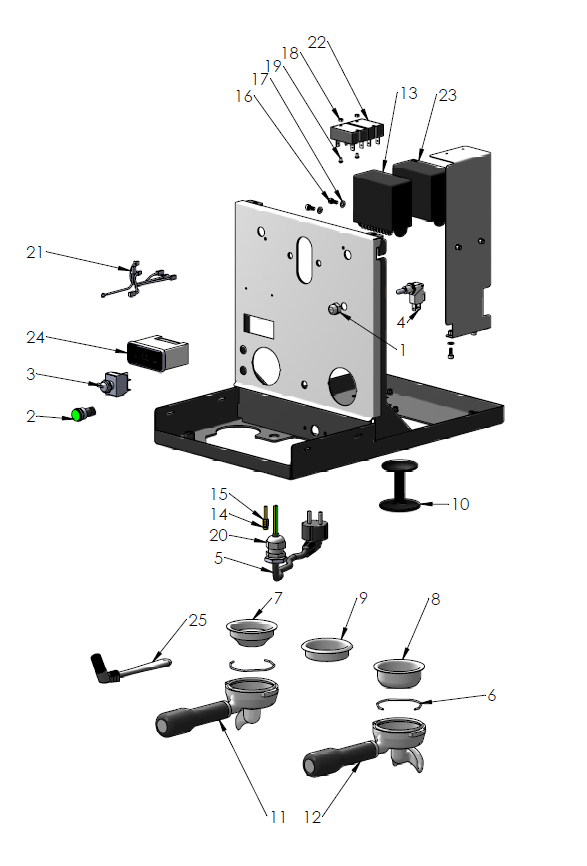

| 10600-7 | 1 | Hexagon nut microswitch M10 x 0,75
Part Number: B5221875CM |
|||
| 10600-7 | 2 | Control lamp green
Part Number: B7633618 |
|||
| 10600-7 | 3 | Power switch metal
Part Number: C199900087 |
|||
| 10600-7 | 4 | Microswitch
Part Number: C199900306 |
|||
| 10600-7 | 5 | Power cable schuko plug
Part Number: C199900957 |
|||
| 10600-7 | Power cable US-plug
Part Number: P2034 |
||||
| 10600-7 | Power cable UK-plug
Part Number: P2035 |
||||
| 10600-7 | Power cable AU-plug
Part Number: P2036 |
||||
| 10600-7 | 6 | Locking spring portafilter
Part Number: C619900098 |
|||
| 10600-7 | 7 | Cup filter 7g
Part Number: C619900104 |
|||
| 10600-7 | 8 | Cup filter 14g
Part Number: C619900105 |
|||
| 10600-7 | 9 | Blind filter
Part Number: C619900106 |
|||
| 10600-7 | 10 | Tamper plastic
Part Number: C639900764 |
|||
| 10600-7 | 11 | Portafilter 1 spout
Part Number: C699900233 |
|||
| 10600-7 | 12 | Portafilter 2 spouts
Part Number: C699900234 |
|||
| 10600-7 | 13 | Controlbox 240V
Part Number: M2004 |
|||
| 10600-7 | Controlbox 115V
Part Number: US1004 |
||||
| 10600-7 | 14 | Screw M4x30 Brass
Part Number: P2001 |
|||
| 10600-7 | 15 | Nut M4 Brass
Part Number: P2002 |
|||
| 10600-7 | 16 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| 10600-7 | 17 | Flat washer M4
Part Number: P2009 |
|||
| 10600-7 | 18 | Hexagon nut M3
Part Number: P2019 |
|||
| 10600-7 | 19 | Lens head screw M3x5
Part Number: P2064 |
|||
| 10600-7 | 20 | Cable clip with hexagon nut
Part Number: P2070 |
|||
| 10600-7 | 21 | Cable loom
Part Number: P2593 |
|||
| 10600-7 | 22 | Static relais
Part Number: P6029 |
|||
| 10600-7 | 23 | Power supply 220V-240V
Part Number: P6032 |
|||
| 10600-7 | Power supply 115V
Part Number: US1020 |
||||
| 10600-7 | 24 | Thermo PID
Part Number: P6038 |
|||
| 10600-7 | 25 | Cleaning brush
Part Number: R210 |
