Profitec Pro 700 Part Diagram PRO700
This is the Profitec Pro 700 Part Diagram PRO700. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

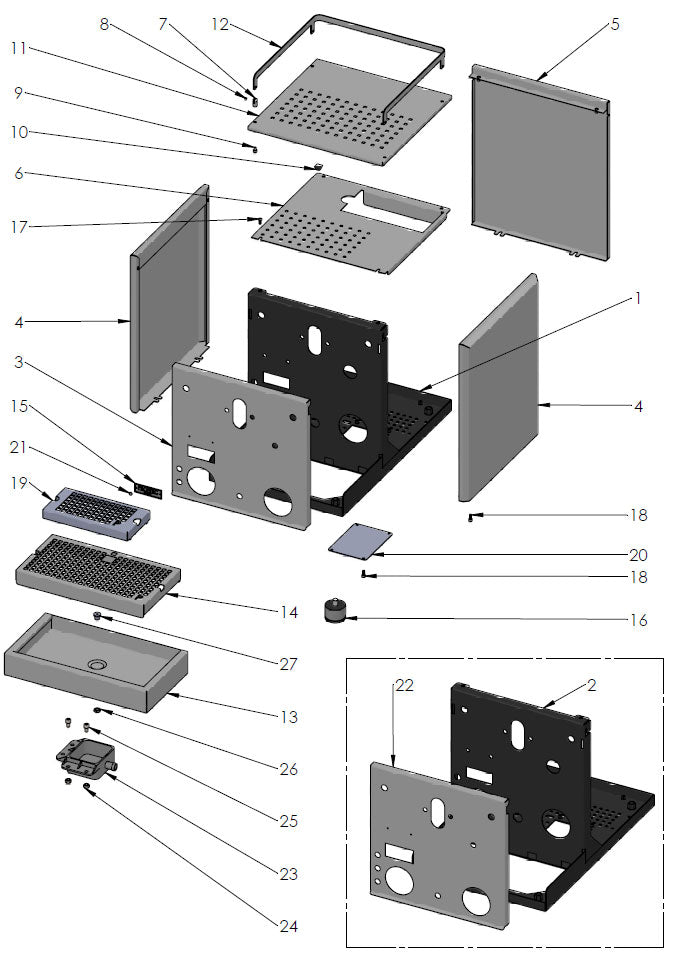

| PRO700-1 | 1 | Chassis Part Number: P2110.1 |
$124.11 | View Part | |
| PRO700-1 | 2 | Chassis Part Number: P2110 |
$373.15 | View Part | |
| PRO700-1 | 3 | Front panel big pressure gauge Part Number: P2113.1 |
$108.70 | View Part | |
| PRO700-1 | 4 | Side panel left/right Pro700/800
Part Number: P2117 |
|||
| PRO700-1 | 5 | Rear panel Pro700/800 Part Number: P2116 |
$273.60 | View Part | |
| PRO700-1 | 6 |
|
Lower cup warming tray Part Number: P2119 |
$218.87 | View Part |
| PRO700-1 | 7 |
|
Post railing Part Number: P8104 |
$18.43 | View Part |
| PRO700-1 | 8 | Headless screw M3x4 Part Number: P6107 |
$5.48 | View Part | |
| PRO700-1 | 9 |
|
Screw cylinder M4x6 Part Number: B7826212 |
$5.51 | View Part |
| PRO700-1 | 10 |
|
Foot for cup warming tray Part Number: B7474212 |
$7.35 | View Part |
| PRO700-1 | 11 | Upper cup warming tray Part Number: P2118 |
$224.02 | View Part | |
| PRO700-1 | 12 | Railing Pro700/800 Part Number: P2115 |
$113.80 | View Part | |
| PRO700-1 | 13 | Drip tray Part Number: P2111 |
$142.44 | View Part | |
| PRO700-1 | 14 |
|
Grid trip tray Part Number: P2114 |
$76.73 | View Part |
| PRO700-1 | 15 | Emblem Profitec small
Part Number: P2063.1 |
|||
| PRO700-1 | 16 |
|
Foot H30, M10 Part Number: P7025 |
$28.46 | View Part |
| PRO700-1 | 17 |
|
Lens screw M4x10 Part Number: P2022 |
$5.37 | View Part |
| PRO700-1 | 18 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO700-1 | 19 | Height grid Pro 700 Part Number: P2122 |
$46.58 | View Part | |
| PRO700-1 | 20 | Chassis cover
Part Number: P2110.3 |
|||
| PRO700-1 | 21 | Blind rivet truss head 3x8
Part Number: P1999 |
|||
| PRO700-1 | 22 | Front panel Part Number: P2113 |
$108.70 | View Part | |
| PRO700-1 | 23 | Drainage pan
Part Number: P2505 |
|||
| PRO700-1 | 24 | Hexagon nut M6
Part Number: P2051 |
|||
| PRO700-1 | 25 | Screw cylinder M6x10
Part Number: P2057 |
|||
| PRO700-1 | 26 | Half nut 1/8
Part Number: P2067 |
|||
| PRO700-1 | 27 | Plug 1/8"
Part Number: P2058 |
|||

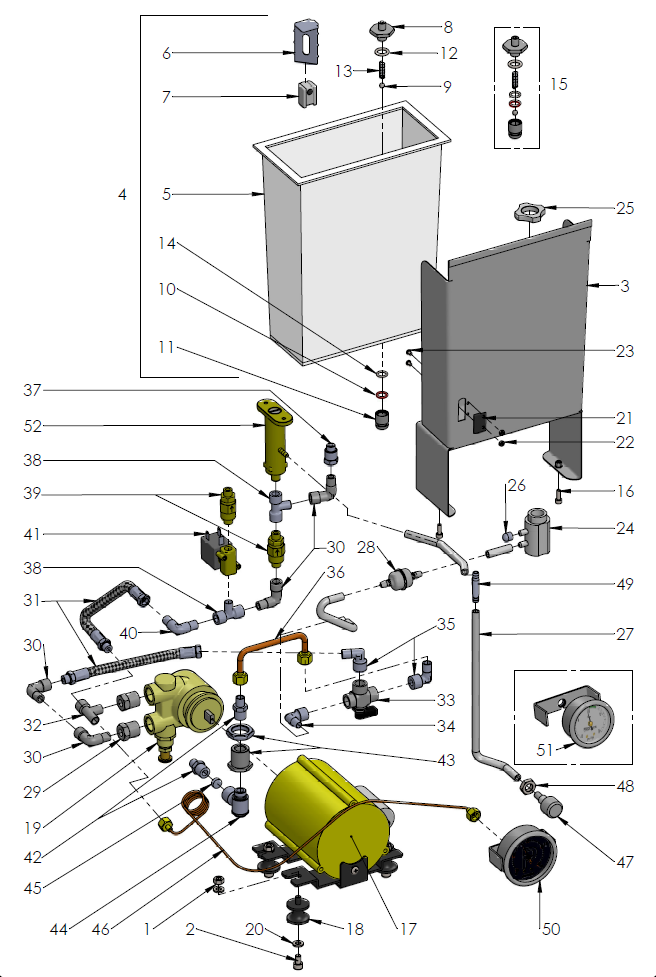

| PRO700-2 | 1 | Hexagon nut M6
Part Number: P2051 |
|||
| PRO700-2 | 2 | Screw cylinder M6x10
Part Number: P2057 |
|||
| PRO700-2 | 3 | Water tank guide rail Pro 700
Part Number: P2120 |
|||
| PRO700-2 | 4 | Watertank complete
Part Number: P9010K1 |
|||
| PRO700-2 | 5 | Watertank blank
Part Number: P9010 |
|||
| PRO700-2 | 6 | Cap floater water tank
Part Number: P6016 |
|||
| PRO700-2 | 7 | Reed swimmer
Part Number: P6021 |
|||
| PRO700-2 | 8 | Watertank adapter mounting nut
Part Number: P6020.N |
|||
| PRO700-2 | 9 | Ball watertank lock
Part Number: B5471509 |
|||
| PRO700-2 | 10 | Gasket watertank adapter lower
Part Number: B7496076 |
|||
| PRO700-2 | 11 | Water tank adapter union
Part Number: P6017.N |
|||
| PRO700-2 | 12 | Gasket water tank adapter upper
Part Number: P6020.3 |
|||
| PRO700-2 | 13 | Spring water tank lock
Part Number: P6023 |
|||
| PRO700-2 | 14 | Gasket water tank adapter middle
Part Number: P6025 |
|||
| PRO700-2 | 15 | Water tank adapter complete
Part Number: P6020.NK |
|||
| PRO700-2 | 16 | Screw cylinder M4x12
Part Number: B7819901 |
|||
| PRO700-2 | 17 | Motor rotation pump 220V/50Hz/120W
Part Number: P3026 |
|||
| PRO700-2 | Motor rotation pump 110V/60Hz/120W
Part Number: US1016 |
||||
| PRO700-2 | 18 | Foot motor rotary pump
Part Number: P3015 |
|||
| PRO700-2 | 19 | Rotary pump 50l/h
Part Number: P3025 |
|||
| PRO700-2 | 20 | Washer M6
Part Number: P2052 |
|||
| PRO700-2 | 21 | Reed sensor low water switch-off
Part Number: P6022 |
|||
| PRO700-2 | 22 | Hexagon nut M3
Part Number: P2019 |
|||
| PRO700-2 | 23 | Lens head screw M3x5
Part Number: P2064 |
|||
| PRO700-2 | 24 | Water tank adapter M20
Part Number: P6020.K4 |
|||
| PRO700-2 | 25 | Water tank adapter nut M20
Part Number: P6020.K3 |
|||
| PRO700-2 | 26 | Closure cap WT-connector
Part Number: P6026 |
|||
| PRO700-2 | 27 | Silicone tube 5x8
Part Number: C499900769 |
|||
| PRO700-2 | 28 | Filter watertank
Part Number: C439900695 |
|||
| PRO700-2 | 29 | Reducer 3/8"M 1/8"F
Part Number: P3024 |
|||
| PRO700-2 | 30 | Elbow 1/8" MF
Part Number: P9014 |
|||
| PRO700-2 | 31 | Flex hose 18cm
Part Number: P8012 |
|||
| PRO700-2 | 32 | T-connector 1/8 MMF
Part Number: C229900644 |
|||
| PRO700-2 | 33 | Valve 3-ways manual 1/4"FFF
Part Number: P3528 |
|||
| PRO700-2 | 34 | Elbow 1/4"Mx6
Part Number: P6057 |
|||
| PRO700-2 | 35 | Elbow 1/4"M - 1/8"M
Part Number: P9015 |
|||
| PRO700-2 | 36 | Tube direct water connection->valve
Part Number: P2520 |
|||
| PRO700-2 | 37 | Extension 1/8M 1/8F 22mm
Part Number: P2047 |
|||
| PRO700-2 | 38 | T-connector 1/8" FMF
Part Number: C229900703 |
|||
| PRO700-2 | 39 | Non-return valve 1/8" MM
Part Number: C229900548 |
|||
| PRO700-2 | 40 | Elbow 1/8"M 1/8"M
Part Number: C229900579 |
|||
| PRO700-2 | 41 | Solenoid valve 2-ways 1/8"FF 230V/50Hz
Part Number: C199900275 |
|||
| PRO700-2 | Solenoid valve 2-ways 1/8"FF 110V/60Hz
Part Number: US1005 |
||||
| PRO700-2 | 42 | Nipple 1/4" - 1/8" MM
Part Number: C229900519 |
|||
| PRO700-2 | 43 | Connector 1/4"FF
Part Number: P3023 |
|||
| PRO700-2 | 44 | Elbow 360 rotary 1/4"MF
Part Number: P3527 |
|||
| PRO700-2 | 45 | Filter water entry
Part Number: C519900369 |
|||
| PRO700-2 | 46 | Capillary tube pump pressure gauge
Part Number: P6051 |
|||
| PRO700-2 | 47 | Drain nozzle
Part Number: C227700898 |
|||
| PRO700-2 | 48 | Hex nut (half) M10
Part Number: P6103 |
|||
| PRO700-2 | 49 | T-fitting plastic
Part Number: C400001932 |
|||
| PRO700-2 | 50 | Pump pressure gauge black 61
Part Number: P2537 |
|||
| PRO700-2 | 51 | Pump pressure gauge black 50
Part Number: P2500 |
|||
| PRO700-2 | 52 | Expansion valve
Part Number: P2555 |
|||

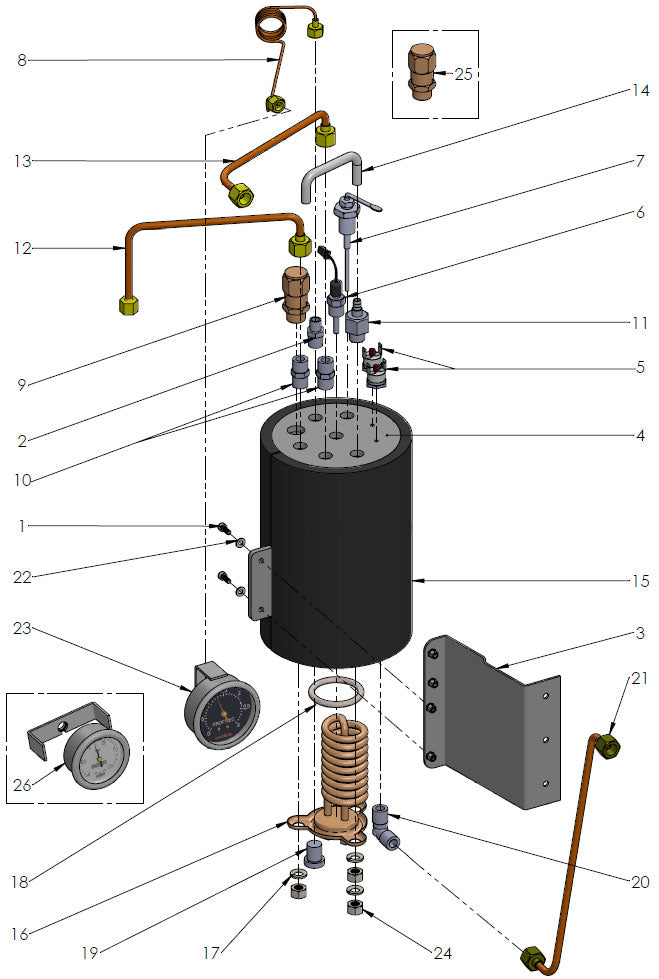

| PRO700-3 | 1 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO700-3 | 2 | Nipple 1/4" - 1/8" MM
Part Number: C229900519 |
|||
| PRO700-3 | 3 | Bracket boiler
Part Number: P2121 |
|||
| PRO700-3 | 4 | Steam-/hot water boiler loading tube
Part Number: P9232 |
|||
| PRO700-3 | 5 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| PRO700-3 | 6 | Temperature sensor 1/4"
Part Number: P6037 |
|||
| PRO700-3 | 7 | Filling level control plate
Part Number: C199900214 |
|||
| PRO700-3 | 8 | Capillary tube pressure gauge 1/8"FF
Part Number: P6051 |
|||
| PRO700-3 | 9 | Safety valve 3/8" M 2,5bar
Part Number: P2536 |
|||
| PRO700-3 | 10 | Nipple 1/4" - 1/4" MM
Part Number: C229900520 |
|||
| PRO700-3 | 11 | Anti-vacuum valve 1/4" M with drain
Part Number: P2561 |
|||
| PRO700-3 | 12 | Steam-/hot water boiler loading tube
Part Number: P2521 |
|||
| PRO700-3 | 13 | Steam extraction tube
Part Number: P2522 |
|||
| PRO700-3 | 14 | Silicone tube 5x8
Part Number: C499900769 |
|||
| PRO700-3 | 15 | Isolation steam-/hot water boiler
Part Number: P7052 |
|||
| PRO700-3 | 16 | Heating element 230V 1400W
Part Number: P7014.1 |
|||
| PRO700-3 | Heating element 110V 1400W
Part Number: US1000 |
||||
| PRO700-3 | 17 | Spring ring M8
Part Number: P2011 |
|||
| PRO700-3 | 18 | Gasket heating element
Part Number: P9013 |
|||
| PRO700-3 | 19 | Plug 1/4"
Part Number: P2060 |
|||
| PRO700-3 | 20 | Elbow 1/4" M 1/4" M
Part Number: C229900525 |
|||
| PRO700-3 | 21 | Hot water extraction tube
Part Number: P2523 |
|||
| PRO700-3 | 22 | Flat washer M4
Part Number: P2009 |
|||
| PRO700-3 | 23 | Boiler pressure gauge Pro700 II 61
Part Number: P2538 |
|||
| PRO700-3 | 24 | Hex nut M8
Part Number: C309900127.1 |
|||
| PRO700-3 | 25 | Safety valve 3/8" M 2bar
Part Number: C229900559 |
|||
| PRO700-3 | 26 | Boiler pressure gauge 50
Part Number: P2501 |
|||

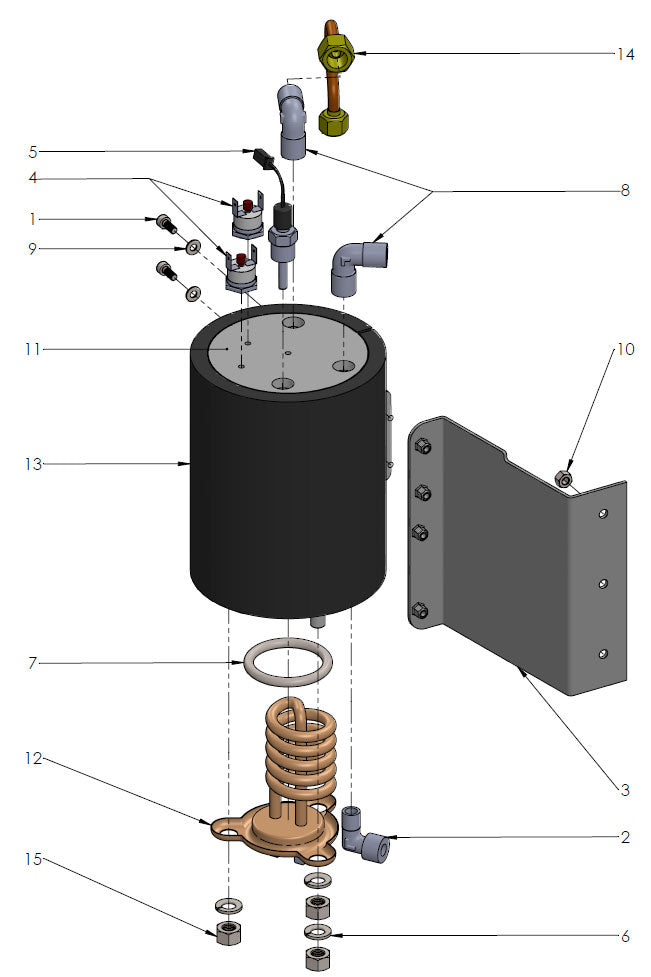

| PRO700-4 | 1 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO700-4 | 2 | Elbow 1/4"M - 1/8"M
Part Number: P9015 |
|||
| PRO700-4 | 3 | Bracket boiler
Part Number: P2121 |
|||
| PRO700-4 | 4 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| PRO700-4 | 5 | Temperature sensor 1/4"
Part Number: P6037 |
|||
| PRO700-4 | 6 | Spring ring M8
Part Number: P2011 |
|||
| PRO700-4 | 7 | Gasket heating element
Part Number: P9013 |
|||
| PRO700-4 | 8 | Elbow 1/4" M 1/4" M
Part Number: C229900525 |
|||
| PRO700-4 | 9 | Flat washer M4
Part Number: P2009 |
|||
| PRO700-4 | 10 | Hexagon nut M5
Part Number: P6102 |
|||
| PRO700-4 | 11 | Coffee boiler
Part Number: P9012 |
|||
| PRO700-4 | 12 | Heating element boiler 1000W 230V
Part Number: P9011 |
|||
| PRO700-4 | Heating element boiler 1000W 110V
Part Number: US1008 |
||||
| PRO700-4 | 13 | Isolation coffee boiler
Part Number: P7051 |
|||
| PRO700-4 | 14 | Boiler loading tube rota
Part Number: P1904 |
|||
| PRO700-4 | 15 | Hex nut M8
Part Number: C309900127.2 |
|||

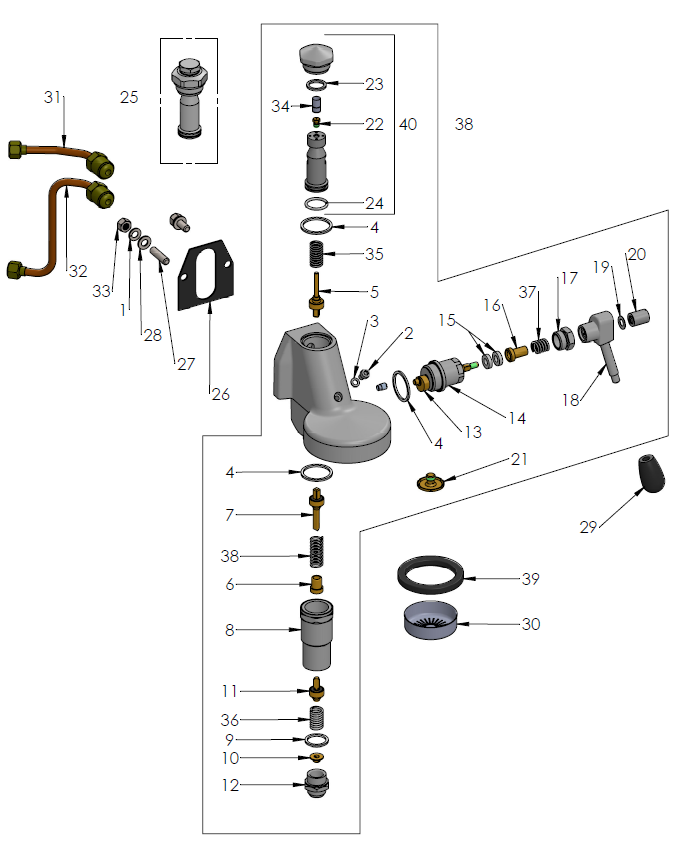

| PRO700-5 | 1 | Spring ring M8
Part Number: P2011 |
|||
| PRO700-5 | 2 | Screw cylinder M6 x 10
Part Number: C309900164 |
|||
| PRO700-5 | 3 | Teflon gasket 10x6x1
Part Number: C469901132 |
|||
| PRO700-5 | 4 | Gasket teflon 35x30x2
Part Number: C469900421 |
|||
| PRO700-5 | 5 | Valve brew group E61 upper
Part Number: C219900424 |
|||
| PRO700-5 | 6 | Spring guide group
Part Number: B7479942 |
|||
| PRO700-5 | 7 | Valve brewing group E61 middle
Part Number: C219903081 |
|||
| PRO700-5 | 8 | Lower sleeve assembly
Part Number: C229901165 |
|||
| PRO700-5 | 9 | Teflon gasket brew group E61 lower
Part Number: C469900783 |
|||
| PRO700-5 | 10 | Sprayer brew group lower
Part Number: R000002148 |
|||
| PRO700-5 | 11 | Valve group E61 lower
Part Number: C219900430 |
|||
| PRO700-5 | 12 | Lower discharge group
Part Number: R000002149 |
|||
| PRO700-5 | 13 | Axis brew group E61
Part Number: C219900425 |
|||
| PRO700-5 | 14 | Flange
Part Number: R000002142 |
|||
| PRO700-5 | 15 | Washer axis brew group E61
Part Number: C219900426 |
|||
| PRO700-5 | 16 | Connector brewing group
Part Number: R000002143 |
|||
| PRO700-5 | 17 | Screw joint axis group
Part Number: R000002144 |
|||
| PRO700-5 | 18 | Lever axis group with bolt
Part Number: R000002145 |
|||
| PRO700-5 | 19 | Lock washer M8
Part Number: B7479947 |
|||
| PRO700-5 | 20 | Bolt lever
Part Number: R000002146 |
|||
| PRO700-5 | 21 | Sprayer brew group lower
Part Number: C229901128 |
|||
| PRO700-5 | 22 | Flow restrictor 0,8
Part Number: C229900549 |
|||
| PRO700-5 | 23 | Gasket plug flow restrictor
Part Number: C469900420 |
|||
| PRO700-5 | 24 | Gasket socket brewing group
Part Number: C469900422 |
|||
| PRO700-5 | 25 | Socket brew group complete
Part Number: C229901133.K |
|||
| PRO700-5 | 26 | Gasket brew group / front panel E61
Part Number: C449900767 |
|||
| PRO700-5 | 27 | Allen screw M8 x 31
Part Number: C309900131 |
|||
| PRO700-5 | 28 | Washer M8
Part Number: P2010 |
|||
| PRO700-5 | 29 | Lever handle
Part Number: C439900840 |
|||
| PRO700-5 | 30 | Shower screen
Part Number: C519900103 |
|||
| PRO700-5 | 31 | Pipe enema group
Part Number: P2524 |
|||
| PRO700-5 | 32 | Pipe return group
Part Number: P2525 |
|||
| PRO700-5 | 33 | Hex nut M8
Part Number: C309900127.1 |
|||
| PRO700-5 | 34 | Inox filter gigleur L=16mm
Part Number: P1018.2 |
|||
| PRO700-5 | 35 | Spring upper/middle
Part Number: C219900423 |
|||
| PRO700-5 | 36 | Spring lower
Part Number: C219900431 |
|||
| PRO700-5 | 37 | Spring axis group
Part Number: C219900427 |
|||
| PRO700-5 | 38 | Brewing group E61
Part Number: P1018 |
|||
| PRO700-5 | 39 | Group gasket
Part Number: P1010 |
|||
| PRO700-5 | 40 | Socket brew group complete Profitec
Part Number: P1018.1 |
|||

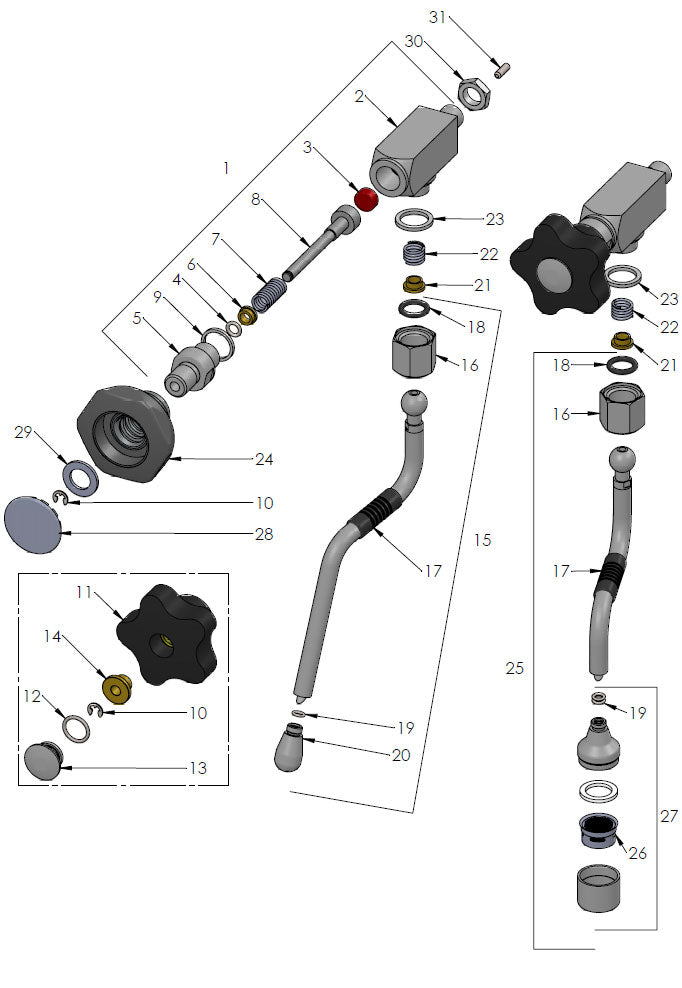

| PRO700-6 | 1 | Valve steam/hot water complete
Part Number: P8108 |
|||
| PRO700-6 | 2 | Valve corpus
Part Number: P8108.1 |
|||
| PRO700-6 | 3 | Gasket valve spindle
Part Number: P8106.1 |
|||
| PRO700-6 | 4 | O-ring valve spindle
Part Number: P8108.5 |
|||
| PRO700-6 | 5 | Connector valve handle-valve corpus
Part Number: P8108.8 |
|||
| PRO700-6 | 6 | Socket valve spindle
Part Number: P8108.6 |
|||
| PRO700-6 | 7 | Spring valve spindle
Part Number: P8108.4 |
|||
| PRO700-6 | 8 | Valve spindle
Part Number: P8108.2 |
|||
| PRO700-6 | 9 | Gasket teflon connector
Part Number: P8108.7 |
|||
| PRO700-6 | 10 | Circlip valve spindle
Part Number: P8106.2 |
|||
| PRO700-6 | 11 | Rotary handle
Part Number: P8107 |
|||
| PRO700-6 | 12 | Gasket cover valve handle
Part Number: P8111 |
|||
| PRO700-6 | 13 | Cover valve handle
Part Number: P8103 |
|||
| PRO700-6 | 14 | Spacer valve
Part Number: P8105 |
|||
| PRO700-6 | 15 | Steam wand no-burn
Part Number: P2541 |
|||
| PRO700-6 | 16 | Nut steam/hot water wand
Part Number: P6002.5 |
|||
| PRO700-6 | 17 | Isolation steam-/hot water wand
Part Number: P8110 |
|||
| PRO700-6 | 18 | O-Ring nut steam/hotwater
Part Number: B7496073 |
|||
| PRO700-6 | 19 | Gasket joint transition
Part Number: B7496083 |
|||
| PRO700-6 | 20 | Steam nozzle 4 holes
Part Number: P2542 |
|||
| PRO700-6 | Steam nozzle 2 holes
Part Number: P2543 |
||||
| PRO700-6 | 21 | Socket steam-/hot water valve
Part Number: B5220606 |
|||
| PRO700-6 | 22 | Spring steam-/hot water valve
Part Number: B5471532 |
|||
| PRO700-6 | 23 | Gasket nut valve
Part Number: P6015 |
|||
| PRO700-6 | 24 | Handle valve
Part Number: P6072 |
|||
| PRO700-6 | 25 | Hot water wand no-burn
Part Number: P2540 |
|||
| PRO700-6 | 26 | Strainer hot water outlet
Part Number: P6001.2 |
|||
| PRO700-6 | 27 | Hot water outlet
Part Number: P2540.1 |
|||
| PRO700-6 | 28 | Cover handle
Part Number: P6072.1 |
|||
| PRO700-6 | 29 | Disc handle valve
Part Number: P6072.2 |
|||
| PRO700-6 | 30 | Nut (half) 1/4"
Part Number: C329900682 |
|||
| PRO700-6 | 31 | Allen screw M4x12
Part Number: G1032 |
|||

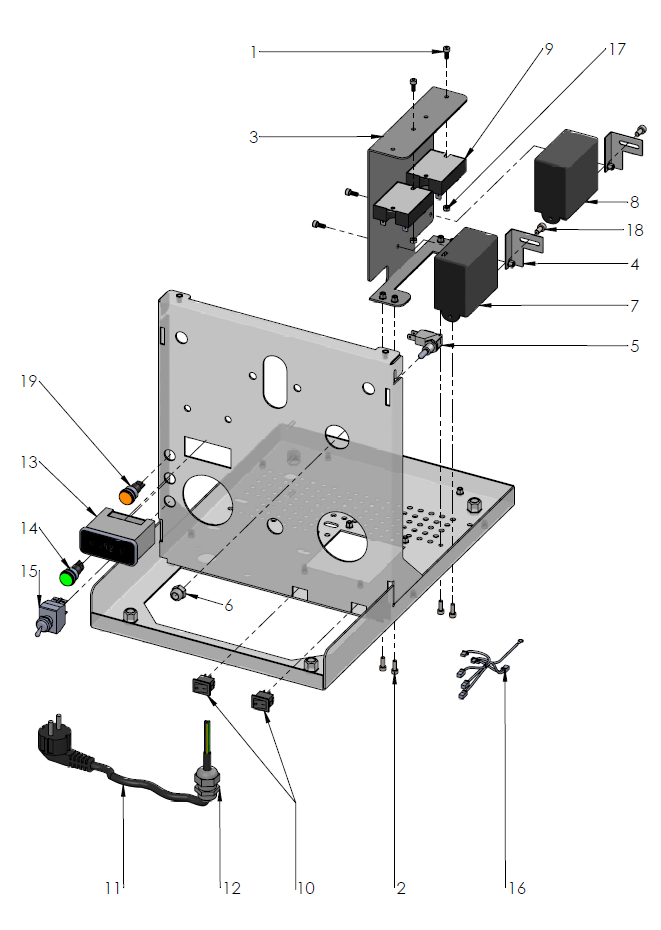

| PRO700-7 | 1 |
|
Screw cylinder head M4x10 Part Number: P2006 |
$5.41 | View Part |
| PRO700-7 | 2 | Screw cylinder M4x12
Part Number: B7819901 |
|||
| PRO700-7 | 3 | Electronics sheet
Part Number: P2112 |
|||
| PRO700-7 | 4 | Bracket electronic
Part Number: P3005 |
|||
| PRO700-7 | 5 | Microswitch
Part Number: C199900306 |
|||
| PRO700-7 | 6 | Hexagon nut microswitch M10 x 0,75
Part Number: B5221875CM |
|||
| PRO700-7 | 7 | Power supply 220V-240V
Part Number: P6032 |
|||
| PRO700-7 | Power supply 115V
Part Number: US1020 |
||||
| PRO700-7 | 8 | Controlbox 240V
Part Number: M2004 |
|||
| PRO700-7 | Controlbox 115V 16-pins
Part Number: US1004 |
||||
| PRO700-7 | 9 | Static relais
Part Number: P6031 |
|||
| PRO700-7 | 10 | Switch direct water/watertank
Part Number: P9114 |
|||
| PRO700-7 | 11 | Power cable schuko plug
Part Number: C199900957 |
|||
| PRO700-7 | Power cable AU-plug
Part Number: P2036 |
||||
| PRO700-7 | Power cable US-plug
Part Number: P2034 |
||||
| PRO700-7 | Power cable UK-plug
Part Number: P2035 |
||||
| PRO700-7 | Power cable CH-plug
Part Number: P2037 |
||||
| PRO700-7 | 12 | Cable fixing with nut
Part Number: P2070 |
|||
| PRO700-7 | 13 | Thermo PID 3 ECO
Part Number: P6041 |
|||
| PRO700-7 | Thermo PID
Part Number: P6045 |
||||
| PRO700-7 | 14 | Control lamp green
Part Number: B7633618 |
|||
| PRO700-7 | 15 | Power switch metal
Part Number: C199900087 |
|||
| PRO700-7 | 16 | Cable loom
Part Number: P2580 |
|||
| PRO700-7 | 17 | Nut M4
Part Number: P2026 |
|||
| PRO700-7 | 18 | Screw cylinder head M5x10
Part Number: P2007 |
|||
| PRO700-7 | 19 | Control lamp orange
Part Number: B7633617 |
|||

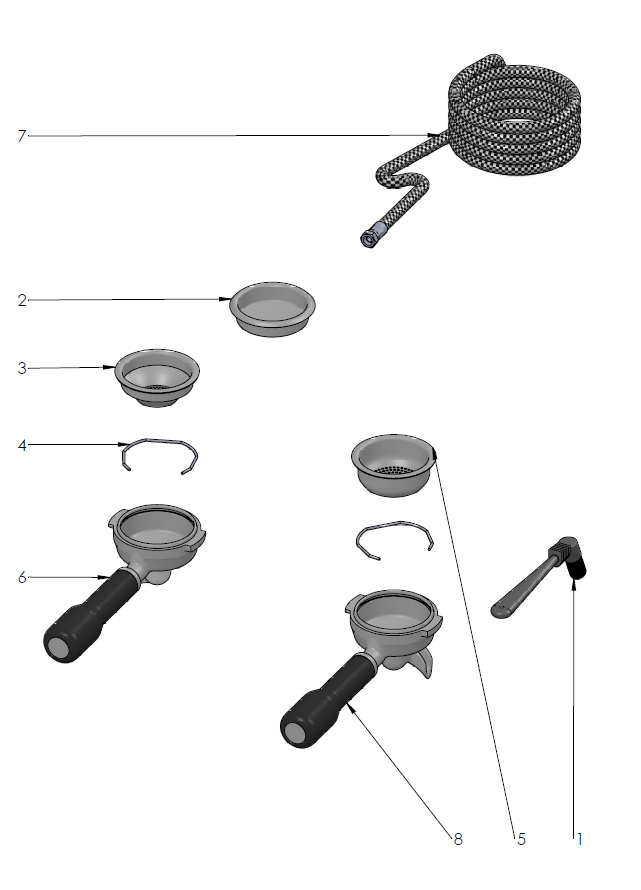

| PRO700-8 | 1 | Cleaning brush
Part Number: R210 |
|||
| PRO700-8 | 2 | Blind filter
Part Number: C619900106 |
|||
| PRO700-8 | 3 | Cup filter 7g
Part Number: C619900104 |
|||
| PRO700-8 | 4 | Locking spring portafilter
Part Number: C619900098 |
|||
| PRO700-8 | 5 | Cup filter 14g
Part Number: C619900105 |
|||
| PRO700-8 | 6 | Portafilter 1 spout
Part Number: C699900233 |
|||
| PRO700-8 | 7 | Flex hose 1/8"F 3/8"F 150cm
Part Number: P3020 |
|||
| PRO700-8 | 8 | Portafilter 2 spouts
Part Number: C699900234 |
