Profitec Pro 800 II Part Diagram 10810
This is the Profitec Pro 800 II Part Diagram 10810. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

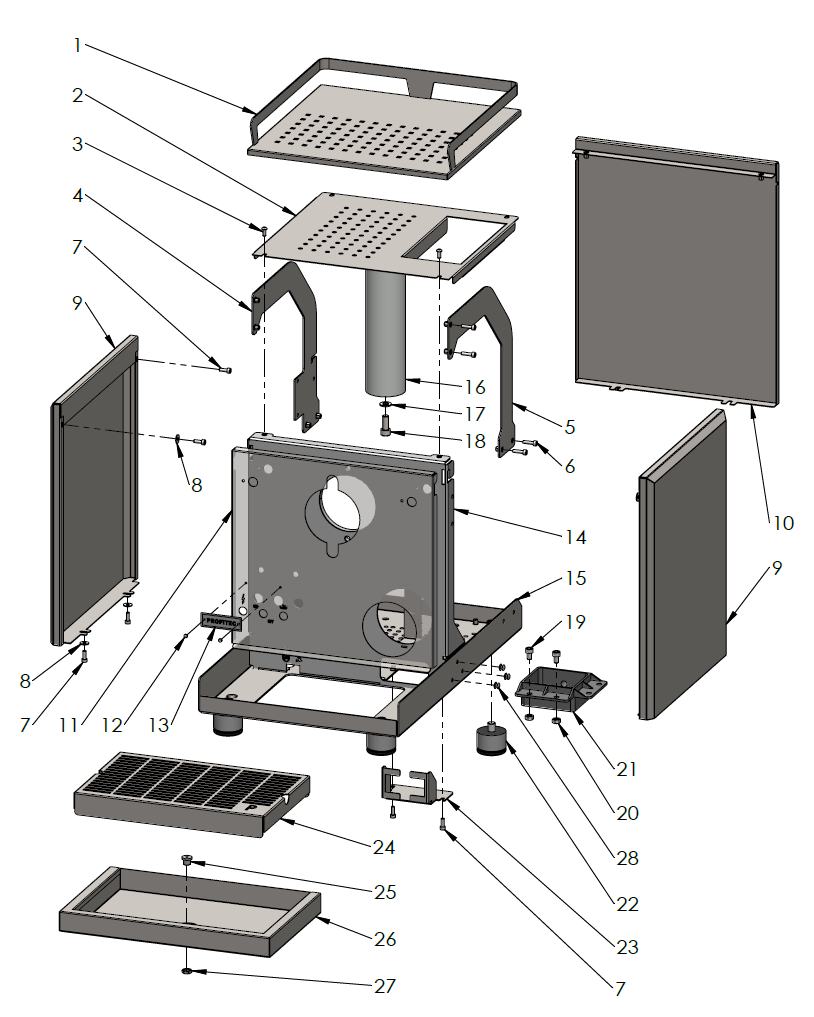

| 10810-1 | 1 |
|
Cup tray w. railing Pro700/800 Part Number: P2109 |
$143.94 | View Part |
| 10810-1 | 2 | Lower cup tray Pro800 Part Number: P2172 |
$86.84 | View Part | |
| 10810-1 | 3 |
|
Pan head screw M4 x 10 A2 Part Number: P2022 |
$5.37 | View Part |
| 10810-1 | 4 | Bracket f. chassis left Pro800
Part Number: P2177 |
|||
| 10810-1 | 5 | Bracket f. chassis right Pro800
Part Number: P2178 |
|||
| 10810-1 | 6 | Cylinderhead screw M5 x 10 A2
Part Number: P2007 |
|||
| 10810-1 | 7 | Cylinderhead screw M4 x 12 A2
Part Number: B7819901 |
|||
| 10810-1 | 8 | Washer M4 A2
Part Number: P2009 |
|||
| 10810-1 | 9 | Side panel left / right Pro700/800
Part Number: P2117 |
|||
| 10810-1 | 10 | Back panel Pro700/800 Part Number: P2116 |
$273.60 | View Part | |
| 10810-1 | 11 | Front panel Pro800 version II
Part Number: P2189 |
|||
| 10810-1 | 12 | Pop rivet 2.4 x 8 Al
Part Number: P1998 |
|||
| 10810-1 | 13 | Emblem Profitec small
Part Number: P2063.1 |
|||
| 10810-1 | 14 | Baseframe front Pro800 II
Part Number: P2188 |
|||
| 10810-1 | 15 | Baseframe bottom Pro800 II
Part Number: P2187 |
|||
| 10810-1 | 16 | Counter weight 4kg / 8.8lbs Pro800
Part Number: P2556 |
|||
| 10810-1 | 17 | Washer for M8 A2
Part Number: P2010 |
|||
| 10810-1 | 18 | Zylinderhead screw M8 x 20 A2
Part Number: P2073 |
|||
| 10810-1 | 19 |
|
Zylinderhead screw M6 x 10 A2 Part Number: C309900164 |
$5.29 | View Part |
| 10810-1 | 20 |
|
Hex nut M6 A2 Part Number: P2051 |
$6.19 | View Part |
| 10810-1 | 21 | Polymere drainage pan complete
Part Number: P2505 |
|||
| 10810-1 | 22 | Appliance foot INOX
Part Number: P7025 |
|||
| 10810-1 | 23 | Bracket for PID-Controller
Part Number: P2100.6 |
|||
| 10810-1 | 24 | Lattice Pro800 II
Part Number: P2179 |
|||
| 10810-1 | 25 | Screw plug G1/8"2
Part Number: P2058 |
|||
| 10810-1 | 26 | Drip tray Pro800 II
Part Number: P2186 |
|||
| 10810-1 | 27 | Half nut G1/8"
Part Number: P2067 |
|||
| 10810-1 | 28 | Pop rivet 4.8 INOX
Part Number: P2076 |
|||

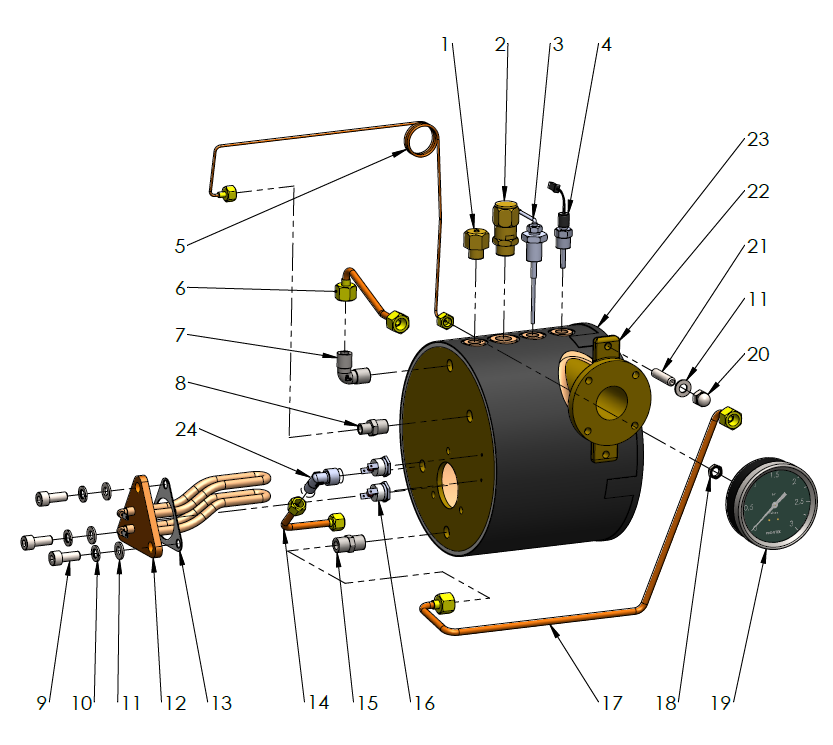

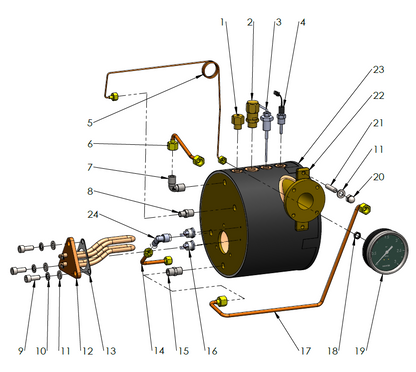

| 10810-2 | 1 | Antivacuum valve long
Part Number: C219900561 |
|||
| 10810-2 | 2 | Safety valve w.o. ring G3/8" 2,0 bar
Part Number: C229900560 |
|||
| 10810-2 | 3 | Filling level probe 120mm
Part Number: C199900214 |
|||
| 10810-2 | 4 | Temperature sensor G1/4"
Part Number: P6037 |
|||
| 10810-2 | 5 | Capillary pipe pump pressure gauge
Part Number: P6051 |
|||
| 10810-2 | 6 | Steam pipe Pro800
Part Number: P2528 |
|||
| 10810-2 | 7 | Elbow G1/4"MM conical-cylindrical
Part Number: C229900526 |
|||
| 10810-2 | 8 | Nipple G1/4" M - G1/8" M
Part Number: C229900519 |
|||
| 10810-2 | 9 | Cylinderhead screw M8 x 20 A2
Part Number: P2073 |
|||
| 10810-2 | 10 | Lock washer M8 A2
Part Number: P2011 |
|||
| 10810-2 | 11 | Washer M8 A2
Part Number: P2010 |
|||
| 10810-2 | 12 | Heating element Pro800 230V 1600W
Part Number: P9247 |
|||
| 10810-2 | Heating element Pro800 115V 1500W
Part Number: US1055 |
||||
| 10810-2 | 13 | Triangular gasket heating element
Part Number: C469900779 |
|||
| 10810-2 | 14 | Boiler feeding tube Pro800
Part Number: P2529 |
|||
| 10810-2 | 15 | Nipple G1/4" MM
Part Number: C229900520 |
|||
| 10810-2 | 16 | Safety thermostat 145C
Part Number: C199901550.1 |
|||
| 10810-2 | 17 | Pipe Hot Water Pro800
Part Number: P2527 |
|||
| 10810-2 | 18 | Half nut G1/8"
Part Number: P2067 |
|||
| 10810-2 | 19 | Boiler gauge Pro800 II
Part Number: P2547 |
|||
| 10810-2 | 20 | Cap nut M8 A2
Part Number: P2531 |
|||
| 10810-2 | 21 | Grub screw M8 x 35 A2
Part Number: P6117 |
|||
| 10810-2 | 22 | Boiler Pro800
Part Number: P2507 |
|||
| 10810-2 | 23 | Boiler Insulation Pro 800
Part Number: P7054 |
|||
| 10810-2 | 24 | Elbow G1/4"M - G1/8"M
Part Number: P9015 |
|||

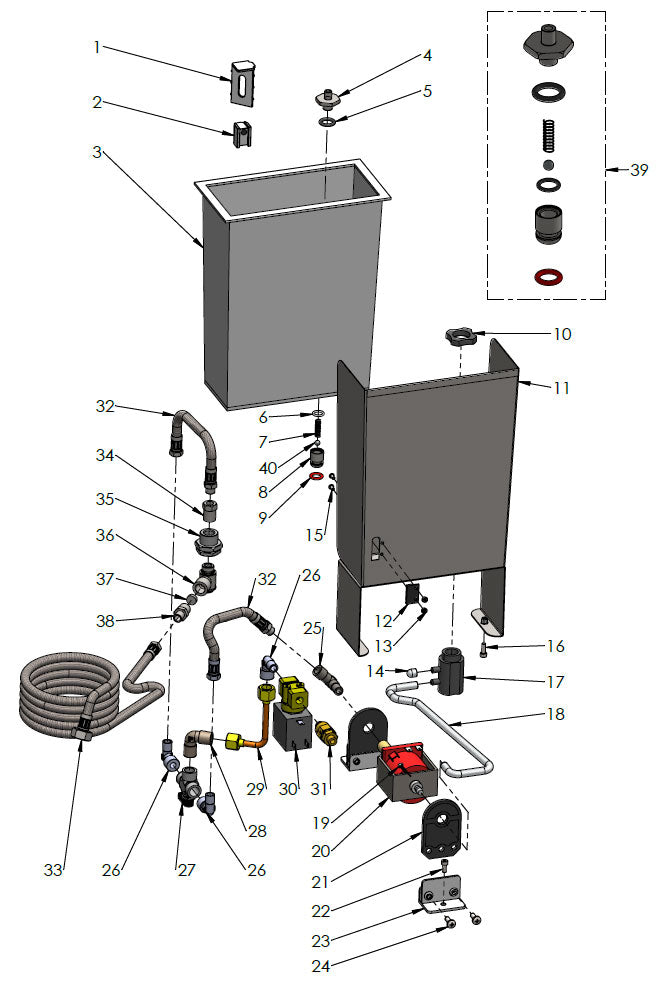

| 10810-3 | 1 | Cap water tank floater
Part Number: P6016 |
|||
| 10810-3 | 2 | Reed swimmer
Part Number: P6021 |
|||
| 10810-3 | 3 | Water tank blank 2,8l
Part Number: P9010 |
|||
| 10810-3 | 4 | Water tank adapter hex mounting nut
Part Number: P6020 |
|||
| 10810-3 | 5 | Sealing upper water tank adapter
Part Number: P6020.3 |
|||
| 10810-3 | 6 | Sealing water tank adapter middle
Part Number: P6025 |
|||
| 10810-3 | 7 | Spring water tank lock
Part Number: P6023 |
|||
| 10810-3 | 8 | Water tank adapter union
Part Number: P6017 |
|||
| 10810-3 | 9 | Sealing water tank adapter lower
Part Number: B7696076 |
|||
| 10810-3 | 10 | Watertank adapter-nut f. connector
Part Number: P6020.K3 |
|||
| 10810-3 | 11 | Watertank guide Pro800
Part Number: P2174 |
|||
| 10810-3 | 12 | Reed switch low water cut-off
Part Number: P6022 |
|||
| 10810-3 | 13 | Hexagon nut M3 A2
Part Number: P2019 |
|||
| 10810-3 | 14 | Closure cap WT-connector silicone
Part Number: P6026 |
|||
| 10810-3 | 15 | Pan head screw M3 x 10 A2
Part Number: P2021 |
|||
| 10810-3 | 16 | Cylinder head screw M4 x 12 A2
Part Number: B7819901 |
|||
| 10810-3 | 17 | Water tank adapter connector
Part Number: P6020.K4 |
|||
| 10810-3 | 18 | Silicone hose transparent
Part Number: C499900796 |
|||
| 10810-3 | 19 | Thermoprotection Pump
Part Number: C199900969 |
|||
| 10810-3 | 20 | Pump ULKA EX5 230V/ 50Hz
Part Number: C199900286 |
|||
| 10810-3 | Pump ULKA EAX5 115V/ 50Hz
Part Number: US1001 |
||||
| 10810-3 | 21 | Pump holder rubber
Part Number: C249900770 |
|||
| 10810-3 | 22 | Cylinderhead screw M5 x 10 A2
Part Number: P2007 |
|||
| 10810-3 | 23 | Plastic pump bracket "L"
Part Number: P3006.K |
|||
| 10810-3 | 24 | Screw pumpbracket St4.8 x 13mm
Part Number: P3019 |
|||
| 10810-3 | 25 | Elbow G1/8"M - G1/8"F
Part Number: P9014 |
|||
| 10810-3 | 26 | Elbow G1/4"M - G1/8"F
Part Number: P9015 |
|||
| 10810-3 | 27 | Valve 3/2 ways manual
Part Number: P3528 |
|||
| 10810-3 | 28 | Elbow 1/4" MM conical-cylindrical
Part Number: C229900526 |
|||
| 10810-3 | 29 | Feeder Pipe Pro800
Part Number: P2530 |
|||
| 10810-3 | 30 | Solenoid valve 2/2 G1/8"FF 230V/50Hz
Part Number: P3529 |
|||
| 10810-3 | 31 | Check valve G1/8" MM
Part Number: C229900548 |
|||
| 10810-3 | 32 | Flex hose 1/8"M - 1/8"F l=180mm
Part Number: P8012 |
|||
| 10810-3 | 33 | Flex hose 1/8"F - 3/8"F l=1500mm
Part Number: P3020 |
|||
| 10810-3 | 34 | Threadreduction G1/4" M - G1/8"F
Part Number: P2030 |
|||
| 10810-3 | 35 | Straight-through fitting G1/4"FF
Part Number: P3023 |
|||
| 10810-3 | 36 | Elbow 360 rotary G1/4"M - G1/4"F
Part Number: P3527 |
|||
| 10810-3 | 37 | Filter direct water operation
Part Number: C519900369 |
|||
| 10810-3 | 38 | Nipple G1/4" M - G1/8" M
Part Number: C229900519 |
|||
| 10810-3 | 39 | Watertank adapter complete
Part Number: P6020.NK |
|||
| 10810-3 | 40 | Ball water tank lock A2
Part Number: B5471509 |
|||

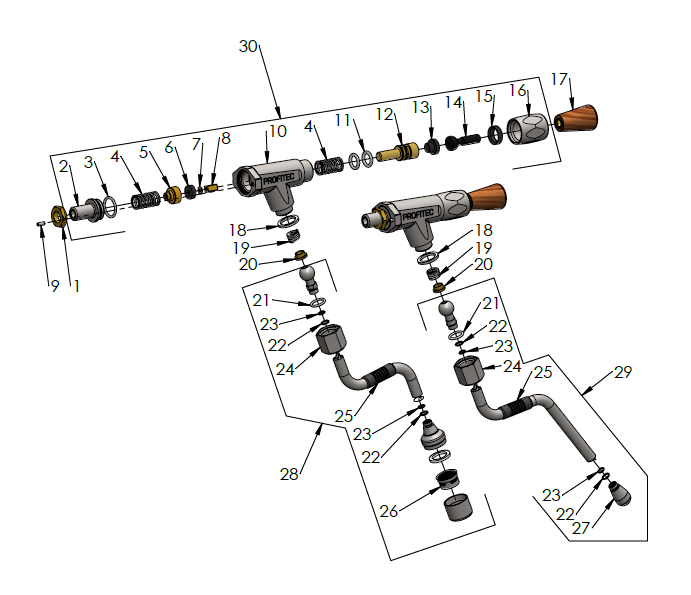

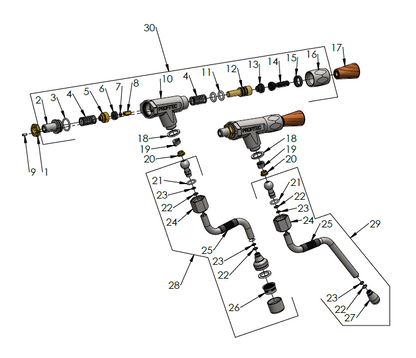

| 10810-4 | 1 | Half nut G1/4"
Part Number: C329900682 |
|||
| 10810-4 | 2 | Valve gland rear G1/4"
Part Number: P8119.X |
|||
| 10810-4 | 3 | OR Valve gland rear
Part Number: P8119.X |
|||
| 10810-4 | 4 | Valve spring front / rear
Part Number: P8119.X |
|||
| 10810-4 | 5 | Receptacle sealing element
Part Number: P8119.X |
|||
| 10810-4 | 6 | Sealingelement
Part Number: P8119.X |
|||
| 10810-4 | 7 | Brass washer
Part Number: P8119.X |
|||
| 10810-4 | 8 | Sqaure shank
Part Number: P8119.X |
|||
| 10810-4 | 9 | Grub screw M3 x 8 A2
Part Number: P7000.6 |
|||
| 10810-4 | 10 | Valve body Profitec QS large
Part Number: P8119.X |
|||
| 10810-4 | 11 | OR Valve tappet
Part Number: P8119.X |
|||
| 10810-4 | 12 | Valve tappet
Part Number: P8119.X |
|||
| 10810-4 | 13 | Slide insert Valve tappet
Part Number: P8119.X |
|||
| 10810-4 | 14 | Lever w. half-sphere
Part Number: P8119.X |
|||
| 10810-4 | 15 | Ring for lever with hemisphere
Part Number: P8119.X |
|||
| 10810-4 | 16 | Union nut
Part Number: P8119.X |
|||
| 10810-4 | 17 | Handle QS Pro800
Part Number: P1042 |
|||
| 10810-4 | 18 | Gasket valve nut
Part Number: P6015 |
|||
| 10810-4 | 19 | Spring steam-/hot water valve
Part Number: B5471532 |
|||
| 10810-4 | 20 | Socket steam-/hot water valve
Part Number: B5220606 |
|||
| 10810-4 | 21 | O-Ring steam/hotwater nut
Part Number: B7496073 |
|||
| 10810-4 | 22 | OR Steam/water lance silicone NBR
Part Number: B7496083 |
|||
| 10810-4 | 23 | OR Steam/water lance silicone red
Part Number: P2542.1 |
|||
| 10810-4 | 24 | Union nut Steam hot water pipe
Part Number: P6002.5 |
|||
| 10810-4 | 25 | Insulation steam-/hot water wand
Part Number: P8110 |
|||
| 10810-4 | 26 | Strainer hot water outlet
Part Number: P6001.2 |
|||
| 10810-4 | 27 | Steam nozzle 4 holes 1,2 mm
Part Number: P2542 |
|||
| 10810-4 | Steam nozzle 2 holes 1,2 mm
Part Number: P2543 |
||||
| 10810-4 | 28 | Hot water wand no-burn Profitec
Part Number: P2540 |
|||
| 10810-4 | 29 | Steam wand no-burn Profitec
Part Number: P2541 |
|||
| 10810-4 | 30 | Valve Profitec QS large
Part Number: P8119 |
|||

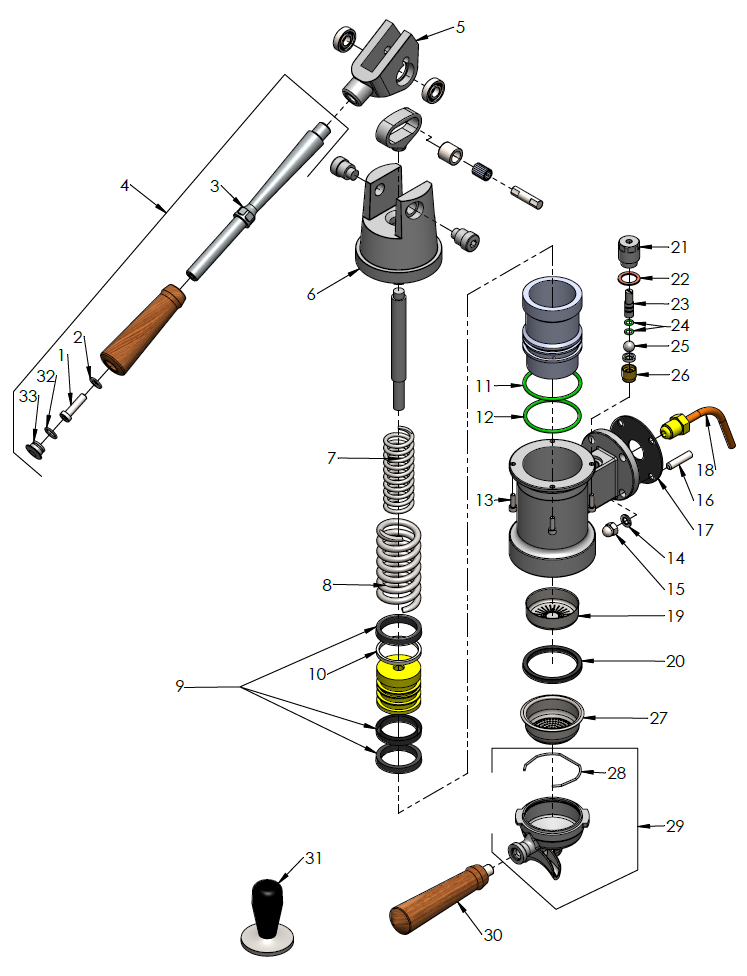

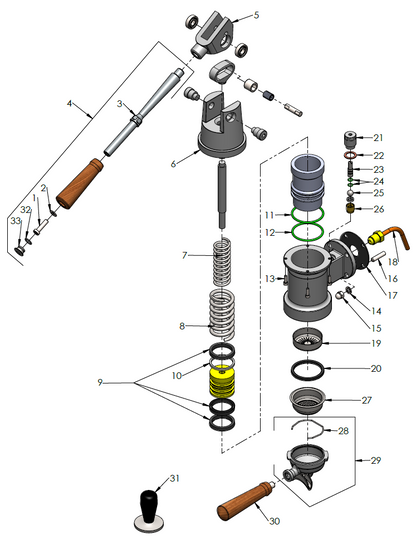

| 10810-5 | 1 | Cylinderhead screw M8 x 30 A2
Part Number: P2078 |
|||
| 10810-5 | 2 | Washer M8 A2
Part Number: P2010 |
|||
| 10810-5 | 3 | Handlever cromatized brass
Part Number: P1012.16 |
|||
| 10810-5 | 4 | Hand lever Pro800 walnut
Part Number: P1041 |
|||
| 10810-5 | 5 | Hinge piece hand lever group
Part Number: P1012.18 |
|||
| 10810-5 | 6 | Head hand lever group
Part Number: P1012.17 |
|||
| 10810-5 | 7 | Spring (small) hand lever group
Part Number: P1012.15 |
|||
| 10810-5 | 8 | Spring (laege) hand lever group
Part Number: P1015.14 |
|||
| 10810-5 | 9 | Piston gasket hand lever group
Part Number: P1012.1 |
|||
| 10810-5 | 10 | Teflon gasket piston hand lever group
Part Number: P1012.2 |
|||
| 10810-5 | 11 | O-Ring upper bushing hand lever group
Part Number: P1012.3 |
|||
| 10810-5 | 12 | O-Ring lower bushing hand lever group
Part Number: P1012.4 |
|||
| 10810-5 | 13 | Cylinderhead screw M5 x 16 A2
Part Number: P1985 |
|||
| 10810-5 | 14 | Lock washer M8 A2
Part Number: P2011 |
|||
| 10810-5 | 15 | Cap nut M8 A2
Part Number: P2531 |
|||
| 10810-5 | 16 | Grub screw M8 x 35 A2
Part Number: P6117 |
|||
| 10810-5 | 17 | Gasket Group / Boiler Pro800
Part Number: P2532 |
|||
| 10810-5 | 18 | Pipe "dipper" hand lever group
Part Number: P2526 |
|||
| 10810-5 | 19 | Shower screen
Part Number: C519900103 |
|||
| 10810-5 | 20 | Group gasket hand lever Pro800
Part Number: P2533 |
|||
| 10810-5 | 21 | Flow regulator body
Part Number: P1012.12 |
|||
| 10810-5 | 22 | Copper sealing ring
Part Number: P1012.13 |
|||
| 10810-5 | 23 | Valve spindle flow regulator
Part Number: P1012.10 |
|||
| 10810-5 | 24 | Valve stem seal flow regulator
Part Number: P1012.11 |
|||
| 10810-5 | 25 | Ball flow regulator
Part Number: P1012.9 |
|||
| 10810-5 | 26 | Screwing low regulator
Part Number: P1012.7 |
|||
| 10810-5 | 27 | Filter for 1 cup 7g coffee
Part Number: C619900104 |
|||
| 10810-5 | Filter for 2 cups 14g coffee
Part Number: C619900105 |
||||
| 10810-5 | Filter for 21g coffee Gran Crema
Part Number: C619900107 |
||||
| 10810-5 | 28 | Retaining spring Portafiltre
Part Number: C619900098 |
|||
| 10810-5 | 29 | Portafiltre 1 spout Pro800
Part Number: Pr5160 |
|||
| 10810-5 | Portafiltre 2 spouts Pro800
Part Number: Pr5170 |
||||
| 10810-5 | Bottomless Portafiltre hand lever Profi
Part Number: Pr5180 |
||||
| 10810-5 | 30 | Portafiltre handle wood Pro800
Part Number: P1040 |
|||
| 10810-5 | 31 | Neutral Tamper
Part Number: 89410 |
|||
| 10810-5 | 32 | O-Ring 2x13 NBR
Part Number: P8111 |
|||
| 10810-5 | 33 | Cover handle
Part Number: P8103 |
|||

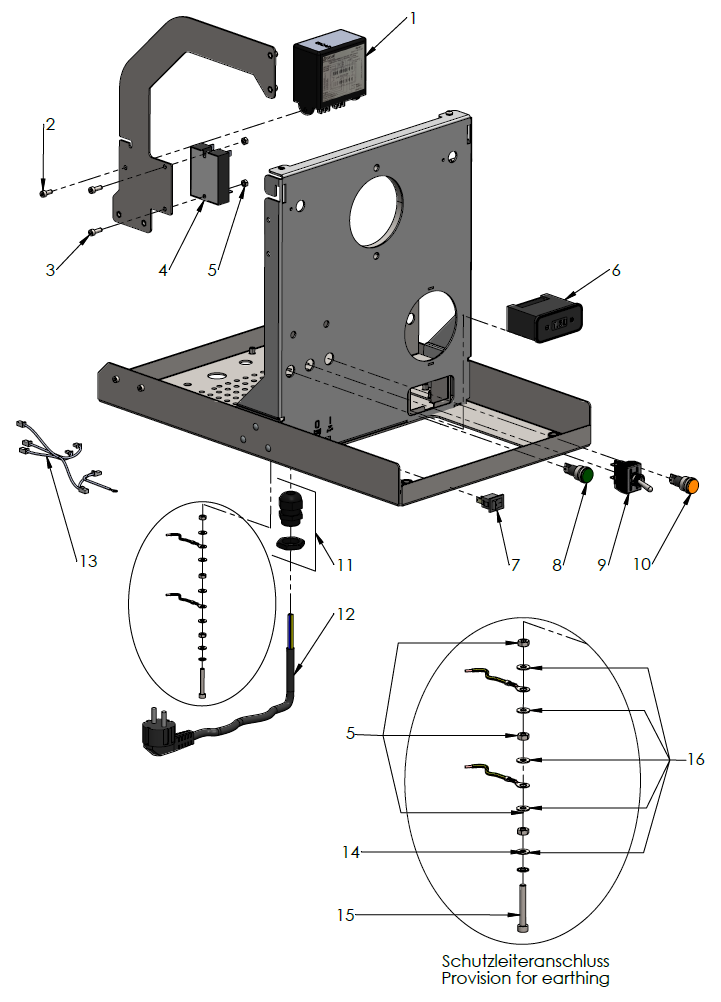

| 10810-6 | 1 | Electronic Pro800 Lever 230V
Part Number: P4101 |
|||
| 10810-6 | Electronic Pro800 Lever 115V
Part Number: US1051 |
||||
| 10810-6 | 2 | Cylinderhead screw M10 x 10 A2
Part Number: P2007 |
|||
| 10810-6 | 3 | Cylinderhead screw M4 x 10 A2
Part Number: P2006 |
|||
| 10810-6 | 4 | Solid state relais large
Part Number: P6031 |
|||
| 10810-6 | 5 | Hex nut M4 A2
Part Number: P2026 |
|||
| 10810-6 | 6 | PID 1Temp.1K1 Chrono Nera 230V
Part Number: P6045 |
|||
| 10810-6 | PID 1Temp.1K1 Chrono Nera 115V
Part Number: US1042 |
||||
| 10810-6 | 7 | Switch water tank/direct water Rota
Part Number: P9114 |
|||
| 10810-6 | 8 | Control lamp green 220-240V
Part Number: B7633618 |
|||
| 10810-6 | 9 | Power switch metal
Part Number: C199900087 |
|||
| 10810-6 | 10 | Control lamp orange 220-240V
Part Number: B7633617 |
|||
| 10810-6 | 11 | Cable gland with hexagon nut
Part Number: P2070 |
|||
| 10810-6 | 12 | Power cable Schuko-plug 1.5m
Part Number: C199900957 |
|||
| 10810-6 | Power cable US-plug 1.5m
Part Number: P2034 |
||||
| 10810-6 | Power cable UK-plug 1.8m
Part Number: P2035 |
||||
| 10810-6 | Power cable AU-plug 1.5m
Part Number: P2036 |
||||
| 10810-6 | 13 | Cable loom Pro800
Part Number: P2590 |
|||
| 10810-6 | 14 | Lock washer M4 A2
Part Number: P2004 |
|||
| 10810-6 | 15 | Cylinderhead screw M4 x 30 A2
Part Number: P1983 |
