Quick Mill Arnos Part Diagram 0985
This is the Quick Mill Arnos Part Diagram 0985. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

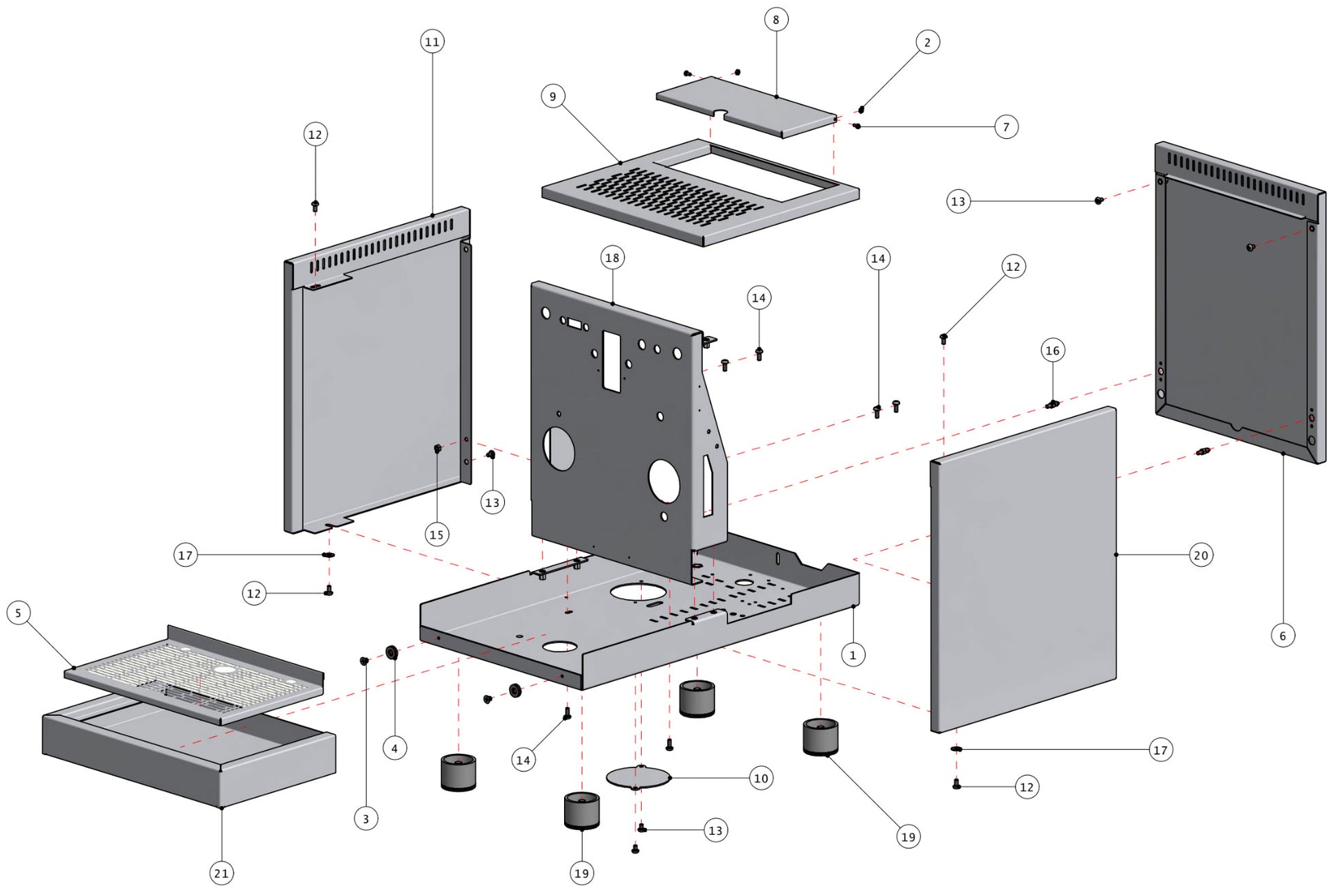

| 0985-1 | 1 | Quick Mill AC0985BS-EP
Part Number: AC0985BS-EP |
|||
| 0985-1 | 2 | Quick Mill DAI3
Part Number: DAI3 |
|||
| 0985-1 | 3 | Quick Mill VII27
Part Number: VII27 |
|||
| 0985-1 | 4 | Quick Mill CAL07000
Part Number: CAL07000 |
|||
| 0985-1 | 5 | Quick Mill AC0985GR-EP
Part Number: AC0985GR-EP |
|||
| 0985-1 | 6 | Quick Mill AC0985PP-EP
Part Number: AC0985PP-EP |
|||
| 0985-1 | 7 | Quick Mill VII50
Part Number: VII50 |
|||
| 0985-1 | 8 | Quick Mill AC0995SCS-EP
Part Number: AC0995SCS-EP |
|||
| 0985-1 | 9 | Quick Mill AC0985CS-EP
Part Number: AC0985CS-EP |
|||
| 0985-1 | 10 | Quick Mill AC0981PR
Part Number: AC0981PR |
|||
| 0985-1 | 11 | Quick Mill AC0985FD-WLL
Part Number: AC0985FD-WLL |
|||
| 0985-1 | 12 | Quick Mill VII48 Part Number: VII48 |
$5.38 | View Part | |
| 0985-1 | 13 | Quick Mill VII44
Part Number: VII44 |
|||
| 0985-1 | 14 | Quick Mill VII21
Part Number: VII21 |
|||
| 0985-1 | 15 | Quick Mill DAI4
Part Number: DAI4 |
|||
| 0985-1 | 16 | Quick Mill AC02820PS
Part Number: AC02820PS |
|||
| 0985-1 | 17 | Quick Mill ROBI02
Part Number: ROBI02 |
|||
| 0985-1 | 18 | Quick Mill AC0985FR-WLL
Part Number: AC0985FR-WLL |
|||
| 0985-1 | 19 | Quick Mill AC0992PFN
Part Number: AC0992PFN |
|||
| 0985-1 | 20 | Quick Mill AC0985FS-WLL
Part Number: AC0985FS-WLL |
|||
| 0985-1 | 21 | Quick Mill AC0985VR-WLL
Part Number: AC0985VR-WLL |
|||

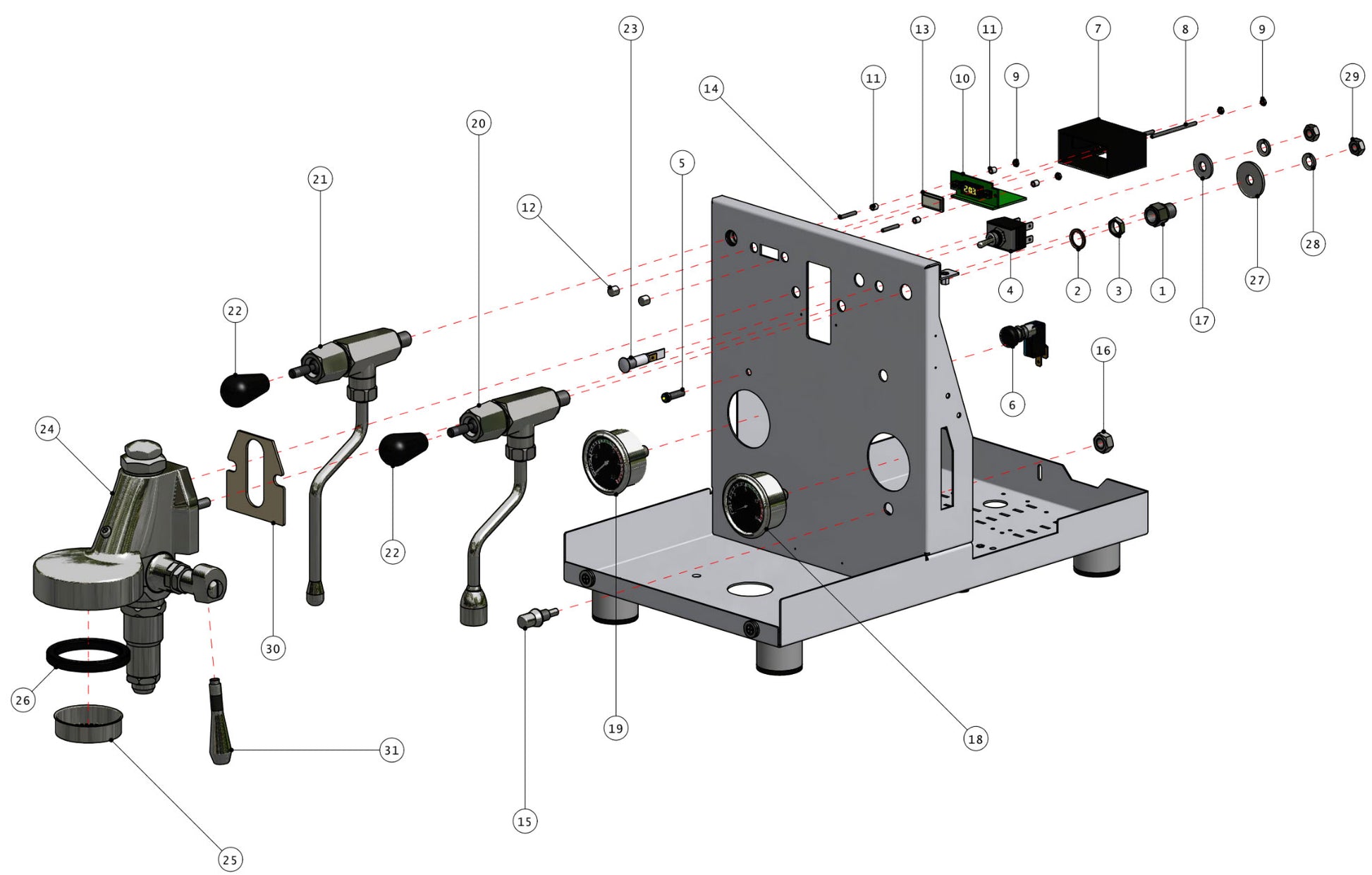

| 0985-2 | 1 | Quick Mill OT0980RC4
Part Number: OT0980RC4 |
|||
| 0985-2 | 2 | Quick Mill RO0980VS
Part Number: RO0980VS |
|||
| 0985-2 | 3 | Quick Mill OT0970GH
Part Number: OT0970GH |
|||
| 0985-2 | 4 | Quick Mill IN0970B
Part Number: IN0970B |
|||
| 0985-2 | 5 | Quick Mill SE03035SB
Part Number: SE03035SB |
|||
| 0985-2 | 6 | Quick Mill IN0970MI
Part Number: IN0970MI |
|||
| 0985-2 | 7 | Quick Mill COPTERMOPID
Part Number: COPTERMOPID |
|||
| 0985-2 | 8 | Quick Mill I3X55
Part Number: I3X55 |
|||
| 0985-2 | 9 | Quick Mill DAI3
Part Number: DAI3 |
|||
| 0985-2 | 10 | Quick Mill TERMOPIDC2-BI
Part Number: TERMOPIDC2-BI |
|||
| 0985-2 | 11 | Quick Mill PL05001DG
Part Number: PL05001DG |
|||
| 0985-2 | 12 | Quick Mill AL0995TPN
Part Number: AL0995TPN |
|||
| 0985-2 | 13 | Quick Mill PL0960PDN
Part Number: PL0960PDN |
|||
| 0985-2 | 14 | Quick Mill GRI3X20
Part Number: GRI3X20 |
|||
| 0985-2 | 15 | Quick Mill OT0996RS
Part Number: OT0996RS |
|||
| 0985-2 | 16 | Quick Mill DAI10
Part Number: DAI10 |
|||
| 0985-2 | 17 | Quick Mill RO0995RG-EP
Part Number: RO0995RG-EP |
|||
| 0985-2 | 18 | Quick Mill MAN0985P-WLL
Part Number: MAN0985P-WLL |
|||
| 0985-2 | 19 | Quick Mill MAN0985C-WLL
Part Number: MAN0985C-WLL |
|||
| 0985-2 | 20 | Quick Mill OT0995RUNA
Part Number: OT0995RUNA |
|||
| 0985-2 | 21 | Quick Mill OT0995RUNV
Part Number: OT0995RUNV |
|||
| 0985-2 | 22 | Quick Mill PL0995MR
Part Number: PL0995MR |
|||
| 0985-2 | 23 | Quick Mill SE0977FB
Part Number: SE0977FB |
|||
| 0985-2 | 24 | Quick Mill OT0970GCN
Part Number: OT0970GCN |
|||
| 0985-2 | 25 | Quick Mill AC0970FS
Part Number: AC0970FS |
|||
| 0985-2 | 26 | Quick Mill GO0970GS
Part Number: GO0970GS |
|||
| 0985-2 | 27 | Quick Mill ROB29
Part Number: ROB29 |
|||
| 0985-2 | 28 | Quick Mill ROG31
Part Number: ROG31 |
|||
| 0985-2 | 29 | Quick Mill DAI8
Part Number: DAI8 |
|||
| 0985-2 | 30 | Quick Mill IS0970
Part Number: IS0970 |
|||
| 0985-2 | 31 | Quick Mill AC0E61LGC
Part Number: AC0E61LGC |
|||

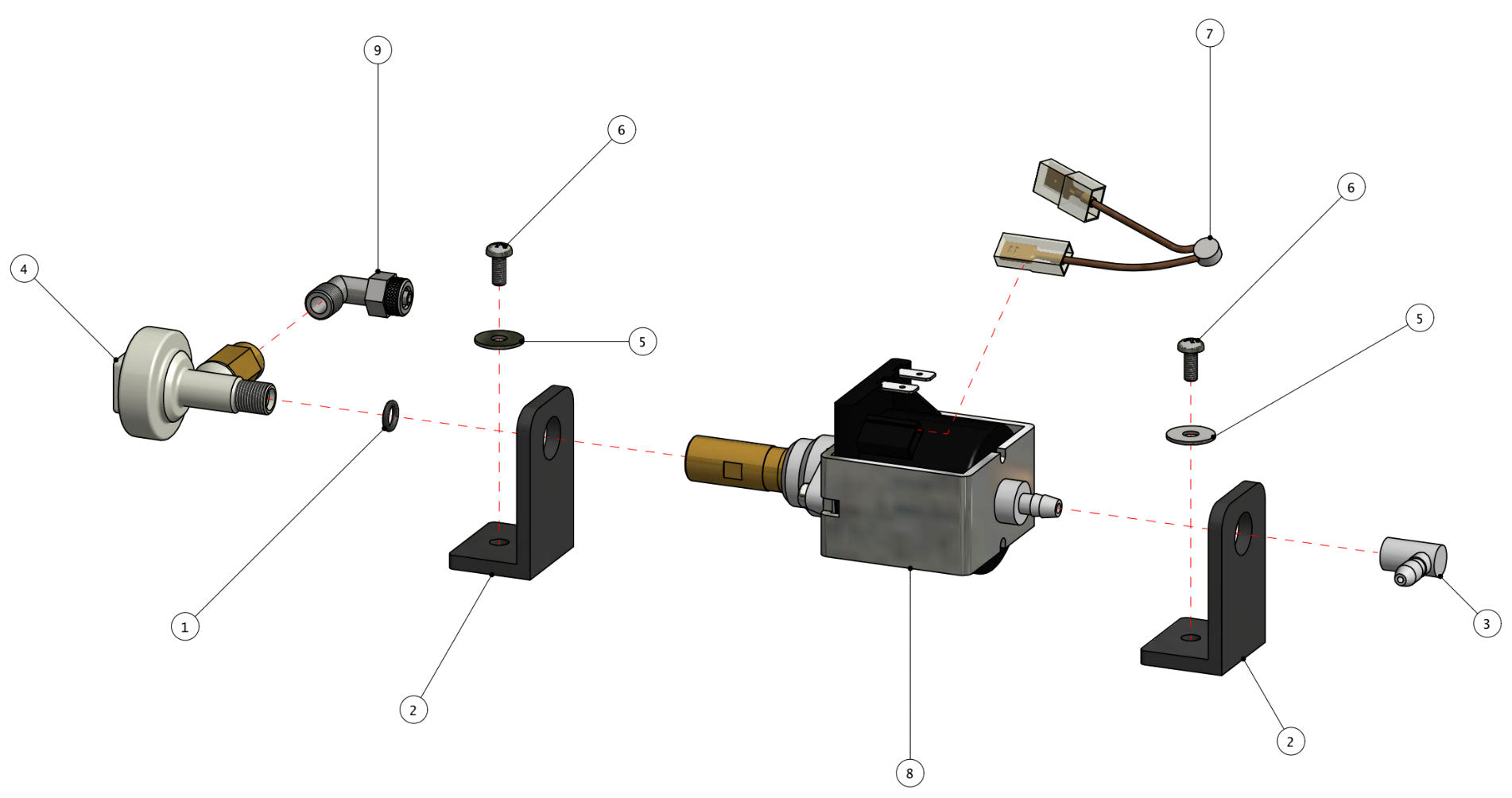

| 0985-3 | 1 | Quick Mill OR0837
Part Number: OR0837 |
|||
| 0985-3 | 2 | Quick Mill GO0900SP
Part Number: GO0900SP |
|||
| 0985-3 | 3 | Quick Mill GO03000PG
Part Number: GO03000PG |
|||
| 0985-3 | 4 | Quick Mill PL0800PU
Part Number: PL0800PU |
|||
| 0985-3 | 5 | Quick Mill RODI24
Part Number: RODI24 |
|||
| 0985-3 | 6 | Quick Mill VII21
Part Number: VII21 |
|||
| 0985-3 | 7 | Quick Mill KLIXON
Part Number: KLIXON |
|||
| 0985-3 | 8 | Quick Mill PO0980
Part Number: PO0980 |
|||
| 0985-3 | 9 | Quick Mill OT04010RG8
Part Number: OT04010RG8 |
|||

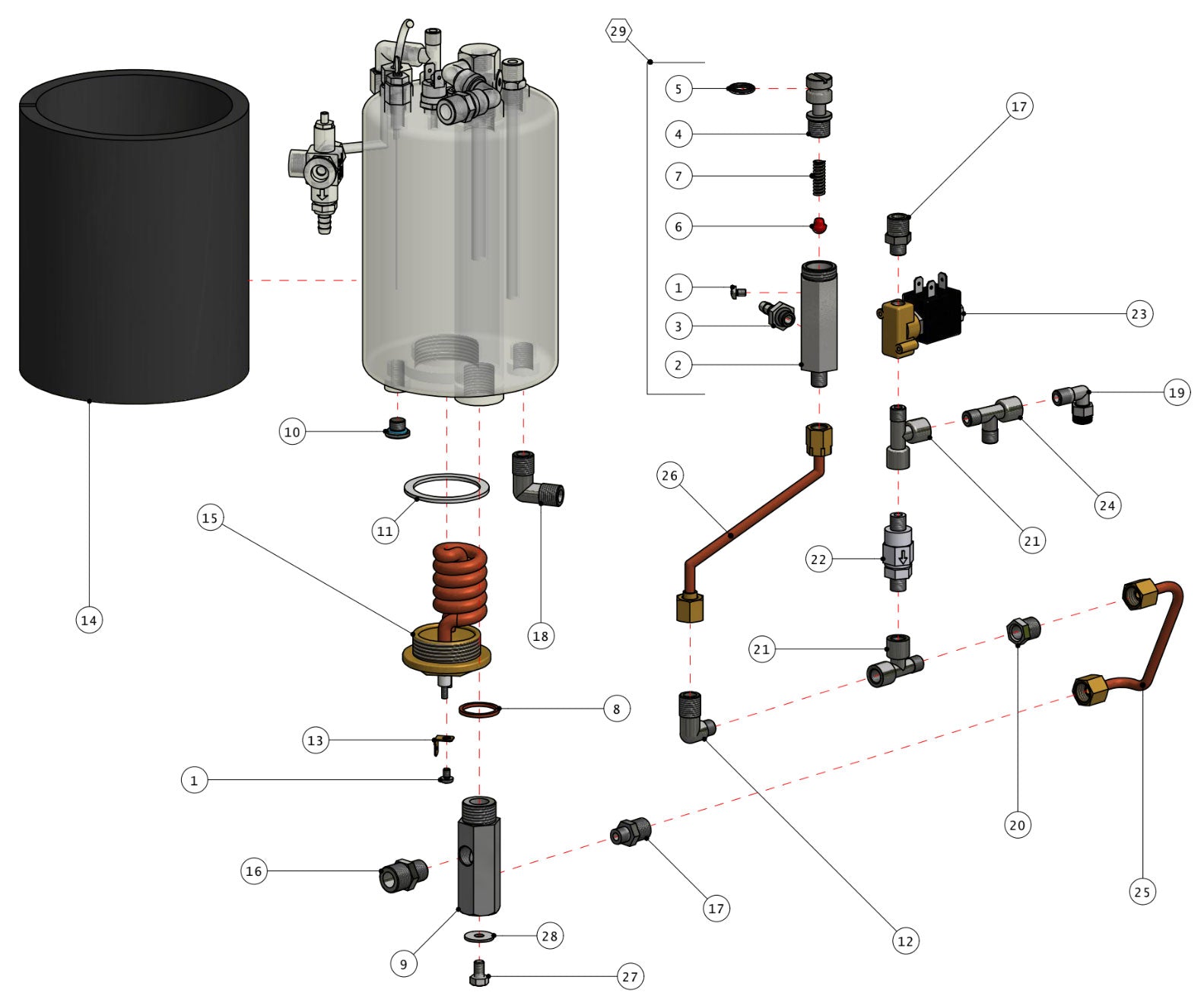

| 0985-4 | 1 | Quick Mill VII44
Part Number: VII44 |
|||
| 0985-4 | 2 | Quick Mill OT0990CVN
Part Number: OT0990CVN |
|||
| 0985-4 | 3 | Quick Mill OT0980RD8
Part Number: OT0980RD8 |
|||
| 0985-4 | 4 | Quick Mill OT0990PVE
Part Number: OT0990PVE |
|||
| 0985-4 | 5 | Quick Mill OR3043
Part Number: OR3043 |
|||
| 0985-4 | 6 | Quick Mill GO0500GE
Part Number: GO0500GE |
|||
| 0985-4 | 7 | Quick Mill MO0980VEN
Part Number: MO0980VEN |
|||
| 0985-4 | 8 | Quick Mill RA1-2RO
Part Number: RA1-2RO |
|||
| 0985-4 | 9 | Quick Mill OT0980RI
Part Number: OT0980RI |
|||
| 0985-4 | 10 | Quick Mill OT04010T8
Part Number: OT04010T8 |
|||
| 0985-4 | 11 | Quick Mill PL0980GR
Part Number: PL0980GR |
|||
| 0985-4 | 12 | Quick Mill OT02820RL
Part Number: OT02820RL |
|||
| 0985-4 | 13 | Quick Mill BM01009
Part Number: BM01009 |
|||
| 0985-4 | 14 | Quick Mill ISCALDAIA
Part Number: ISCALDAIA |
|||
| 0985-4 | 15 | Quick Mill RA0992REV
Part Number: RA0992REV |
|||
| 0985-4 | 16 | Quick Mill OT066R8
Part Number: OT066R8 |
|||
| 0985-4 | 17 | Quick Mill OT06000R8
Part Number: OT06000R8 |
|||
| 0985-4 | 18 | Quick Mill OT0980RLM4
Part Number: OT0980RLM4 |
|||
| 0985-4 | 19 | Quick Mill OT0500RA
Part Number: OT0500RA |
|||
| 0985-4 | 20 | Quick Mill OT0980RC
Part Number: OT0980RC |
|||
| 0985-4 | 21 | Quick Mill OT0980RT8
Part Number: OT0980RT8 |
|||
| 0985-4 | 22 | Quick Mill OT0995VNR
Part Number: OT0995VNR |
|||
| 0985-4 | 23 | Quick Mill EV0980V1
Part Number: EV0980V1 |
|||
| 0985-4 | 24 | Quick Mill OT05000RM
Part Number: OT05000RM |
|||
| 0985-4 | 25 | Quick Mill RA0980TC
Part Number: RA0980TC |
|||
| 0985-4 | 26 | Quick Mill RA0990VE
Part Number: RA0990VE |
|||
| 0985-4 | 27 | Quick Mill VII49
Part Number: VII49 |
|||
| 0985-4 | 28 | Quick Mill RODI26
Part Number: RODI26 |
|||
| 0985-4 | 29 | Quick Mill OT0990VE
Part Number: OT0990VE |
|||

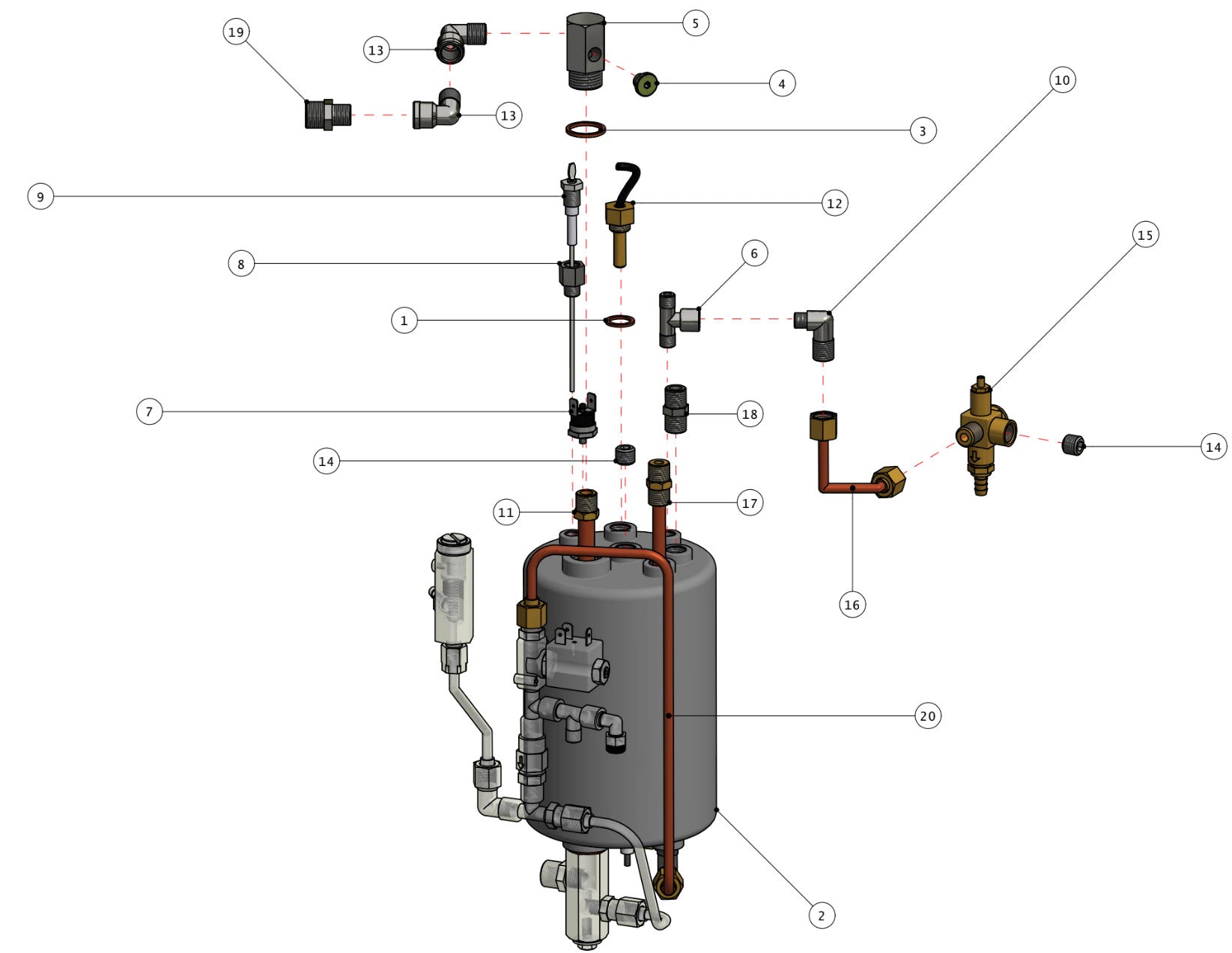

| 0985-5 | 1 | Quick Mill RO0980VS
Part Number: RO0980VS |
|||
| 0985-5 | 2 | Quick Mill AC0980CA
Part Number: AC0980CA |
|||
| 0985-5 | 3 | Quick Mill RA1-2RO
Part Number: RA1-2RO |
|||
| 0985-5 | 4 | Quick Mill OT04010T8
Part Number: OT04010T8 |
|||
| 0985-5 | 5 | Quick Mill OT0980RS
Part Number: OT0980RS |
|||
| 0985-5 | 6 | Quick Mill OT0970RT8
Part Number: OT0970RT8 |
|||
| 0985-5 | 7 | Quick Mill TE07100
Part Number: TE07100 |
|||
| 0985-5 | 8 | Quick Mill OT0980RC8
Part Number: OT0980RC8 |
|||
| 0985-5 | 9 | Quick Mill SONDA
Part Number: SONDA |
|||
| 0985-5 | 10 | Quick Mill OT02820RL
Part Number: OT02820RL |
|||
| 0985-5 | 11 | Quick Mill RA0980PC
Part Number: RA0980PC |
|||
| 0985-5 | 12 | Quick Mill SO0995AC-C
Part Number: SO0995AC-C |
|||
| 0985-5 | 13 | Quick Mill OT0980RL4
Part Number: OT0980RL4 |
|||
| 0985-5 | 14 | Quick Mill OT05500T4
Part Number: OT05500T4 |
|||
| 0985-5 | 15 | Quick Mill OT0995VA2.5B
Part Number: OT0995VA2.5B |
|||
| 0985-5 | 16 | Quick Mill RA0995TPP
Part Number: RA0995TPP |
|||
| 0985-5 | 17 | Quick Mill RA0980PA-OS
Part Number: RA0980PA-OS |
|||
| 0985-5 | 18 | Quick Mill OT066R4
Part Number: OT066R4 |
|||
| 0985-5 | 19 | Quick Mill OT066R8
Part Number: OT066R8 |
|||
| 0985-5 | 20 | Quick Mill RA0980TVE
Part Number: RA0980TVE |
|||

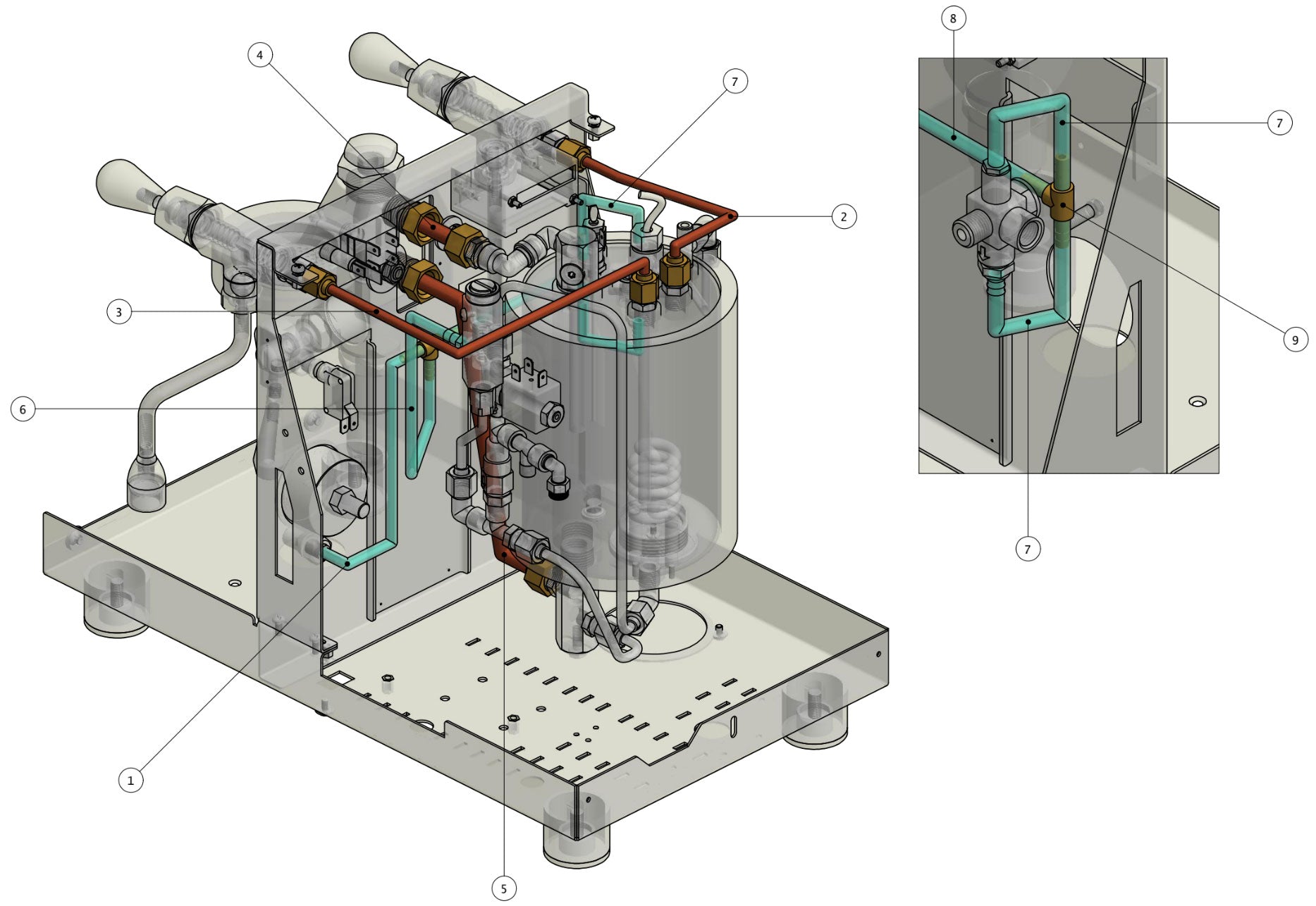

| 0985-6 | 1 | Quick Mill TUST4X7 L200
Part Number: TUST4X7 L200 |
|||
| 0985-6 | 2 | Quick Mill RA0992VEN
Part Number: RA0992VEN |
|||
| 0985-6 | 3 | Quick Mill RA064IAS
Part Number: RA064IAS |
|||
| 0985-6 | 4 | Quick Mill RA0980TIG-OS
Part Number: RA0980TIG-OS |
|||
| 0985-6 | 5 | Quick Mill RA0980RUG-OS
Part Number: RA0980RUG-OS |
|||
| 0985-6 | 6 | Quick Mill TUST4X7 L175
Part Number: TUST4X7 L175 |
|||
| 0985-6 | 7 | Quick Mill TUST4X7 L150
Part Number: TUST4X7 L150 |
|||
| 0985-6 | 8 | Quick Mill TUST4X7 L125
Part Number: TUST4X7 L125 |
|||
| 0985-6 | 9 | Quick Mill OT05500RA
Part Number: OT05500RA |
|||

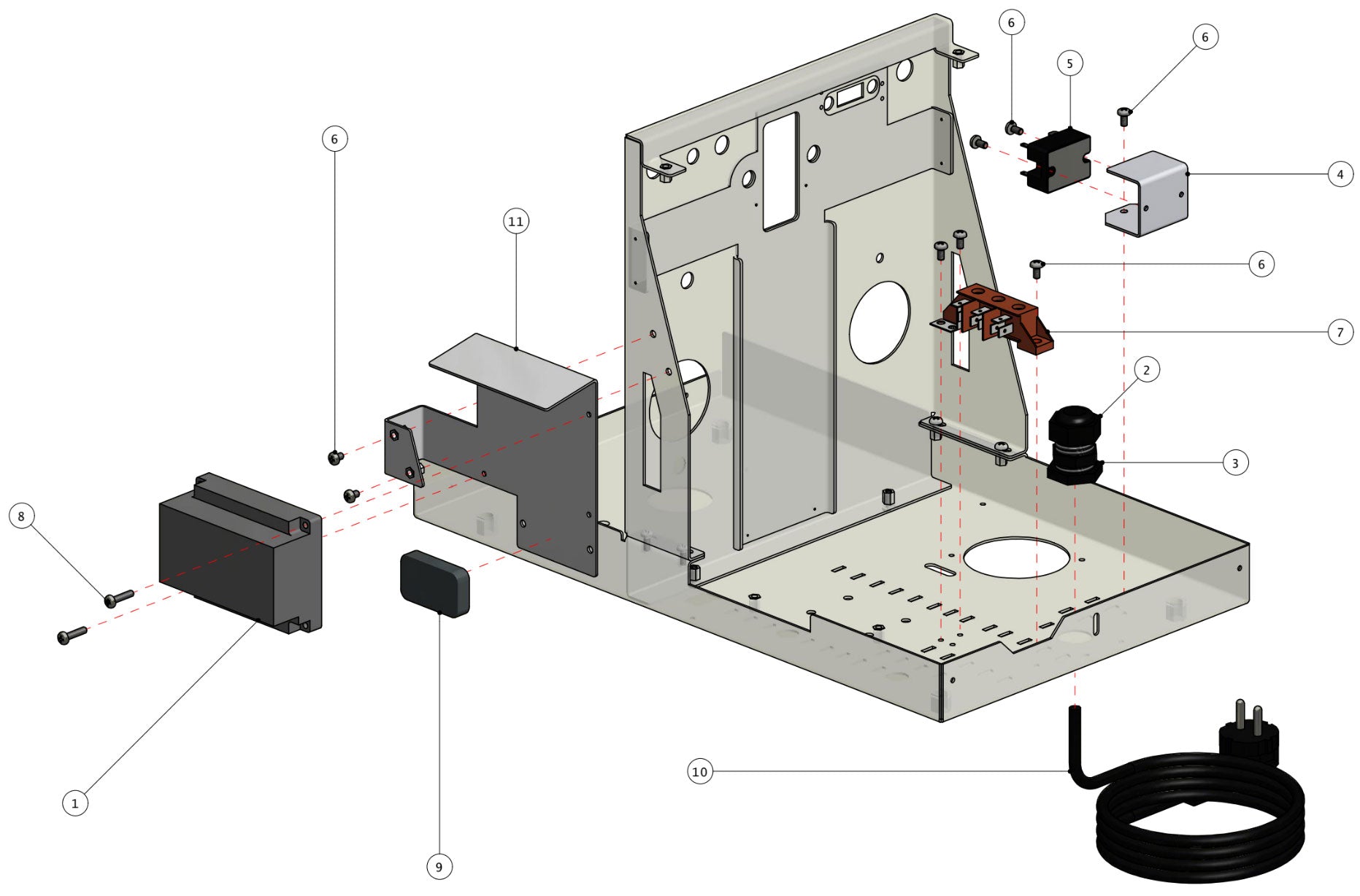

| 0985-7 | 1 | Quick Mill SCH0995SB
Part Number: SCH0995SB |
|||
| 0985-7 | 2 | Quick Mill PL0988PC
Part Number: PL0988PC |
|||
| 0985-7 | 3 | Quick Mill PL0988GP
Part Number: PL0988GP |
|||
| 0985-7 | 4 | Quick Mill AC0985PSR-EP
Part Number: AC0985PSR-EP |
|||
| 0985-7 | 5 | Quick Mill RELECG4-9V
Part Number: RELECG4-9V |
|||
| 0985-7 | 6 | Quick Mill VII48 Part Number: VII48 |
$5.38 | View Part | |
| 0985-7 | 7 | Quick Mill FV110B
Part Number: FV110B |
|||
| 0985-7 | 8 | Quick Mill VII196
Part Number: VII196 |
|||
| 0985-7 | 9 | Quick Mill SCH0995OP
Part Number: SCH0995OP |
|||
| 0985-7 | 10 | Quick Mill CAVO/14
Part Number: CAVO/14 |
|||
| 0985-7 | 11 | Quick Mill AC0985SE-WLL
Part Number: AC0985SE-WLL |
|||

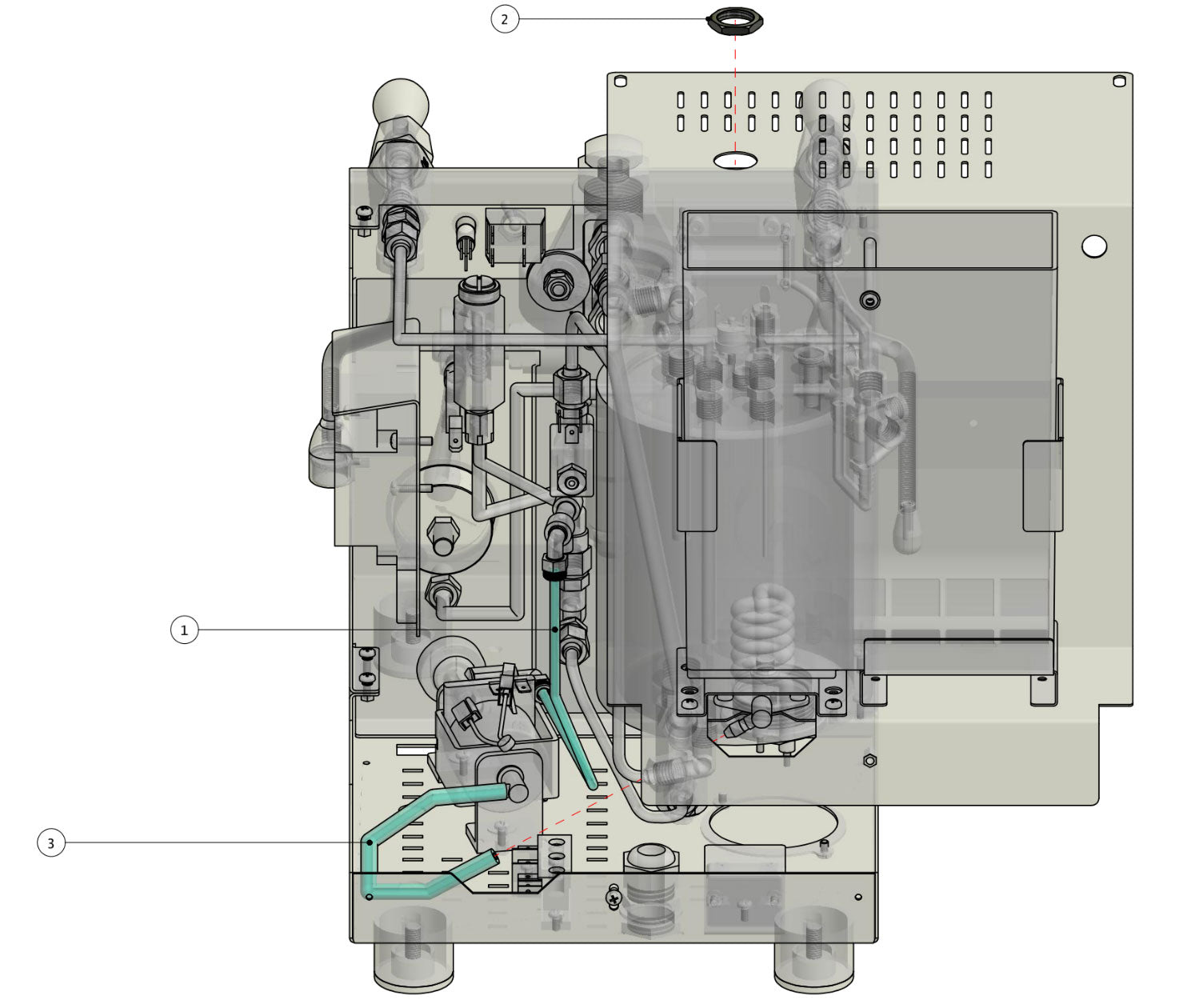

| 0985-8A | 1 | Quick Mill TUTE4X6 L250
Part Number: TUTE4X6 L250 |
|||
| 0985-8A | 2 | Quick Mill OT0990GH
Part Number: OT0990GH |
|||
| 0985-8A | 3 | Quick Mill TUST4X8.4R L250
Part Number: TUST4X8.4R L250 |
|||

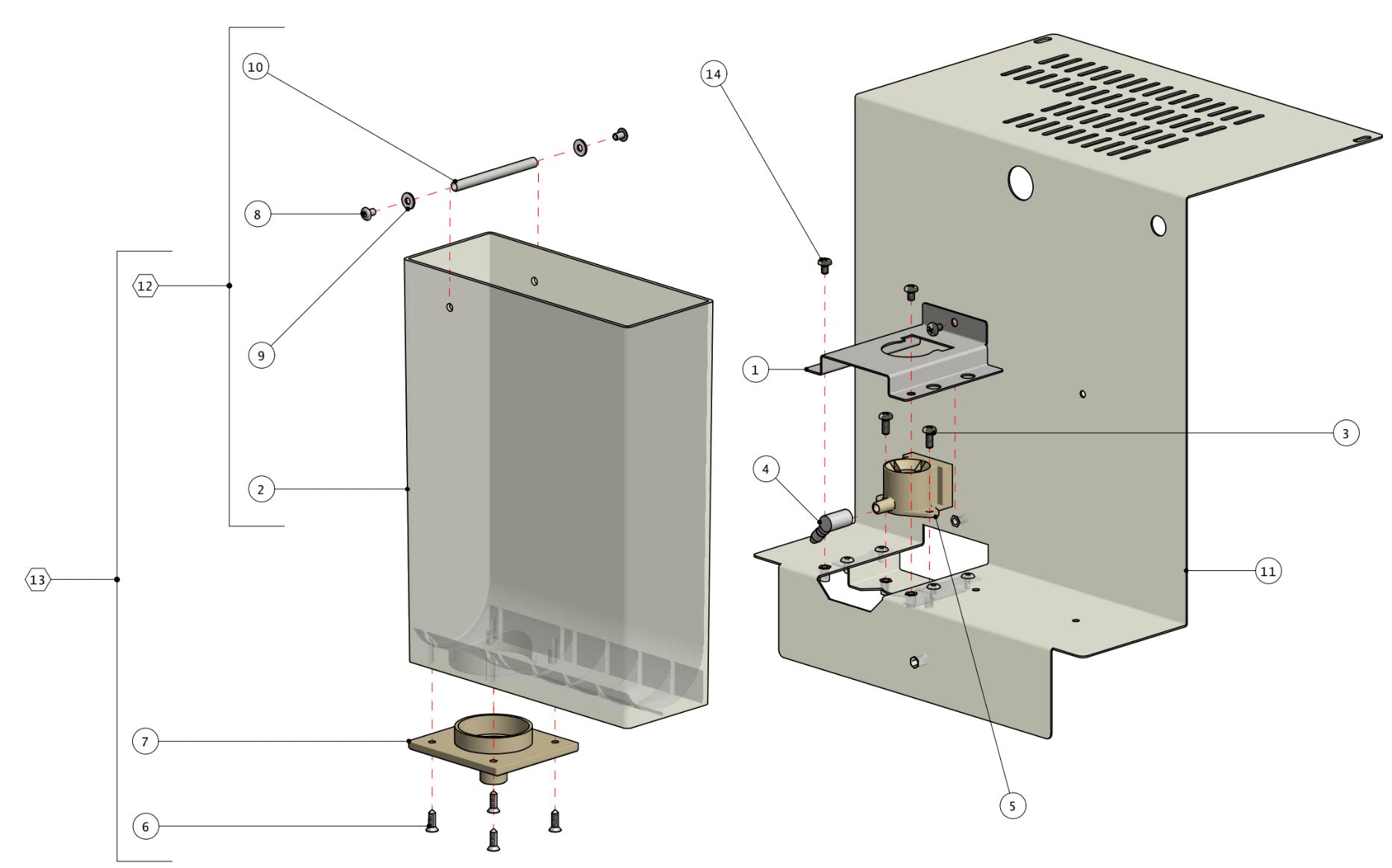

| 0985-8B | 1 | Quick Mill AC0995PCREED
Part Number: AC0995PCREED |
|||
| 0985-8B | 2 | Quick Mill PL0992TA
Part Number: PL0992TA |
|||
| 0985-8B | 3 | Quick Mill VII21
Part Number: VII21 |
|||
| 0985-8B | 4 | Quick Mill GO03000PG
Part Number: GO03000PG |
|||
| 0985-8B | 5 | Quick Mill PL0995GIR
Part Number: PL0995GIR |
|||
| 0985-8B | 6 | Quick Mill VII13
Part Number: VII13 |
|||
| 0985-8B | 7 | Quick Mill PL0995GFS
Part Number: PL0995GFS |
|||
| 0985-8B | 8 | Quick Mill RIV4X8
Part Number: RIV4X8 |
|||
| 0985-8B | 9 | Quick Mill RODI25
Part Number: RODI25 |
|||
| 0985-8B | 10 | Quick Mill AC0970BD
Part Number: AC0970BD |
|||
| 0985-8B | 11 | Quick Mill AC0985STAN-EP
Part Number: AC0985STAN-EP |
|||
| 0985-8B | 12 | Quick Mill PL0992TA-R
Part Number: PL0992TA-R |
|||
| 0985-8B | 13 | Quick Mill PL0992TAC
Part Number: PL0992TAC |
|||
| 0985-8B | 14 | Quick Mill VII44
Part Number: VII44 |
|||

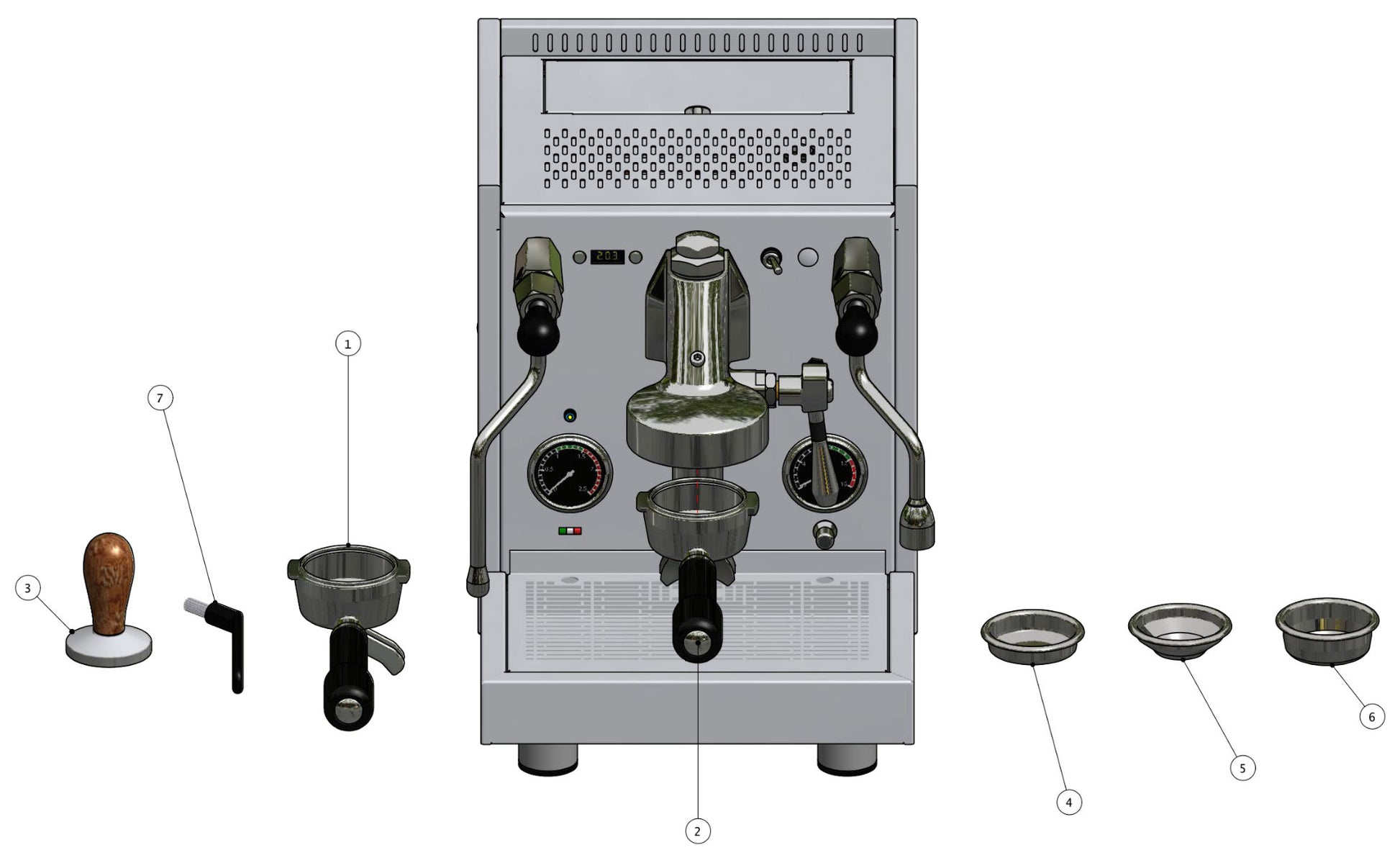

| 0985-9 | 1 | Quick Mill OT0970PF1
Part Number: OT0970PF1 |
|||
| 0985-9 | 2 | Quick Mill OT0970PF2
Part Number: OT0970PF2 |
|||
| 0985-9 | 3 | Quick Mill AC0995PRC
Part Number: AC0995PRC |
|||
| 0985-9 | 4 | Quick Mill AC0970FC
Part Number: AC0970FC |
|||
| 0985-9 | 5 | Quick Mill AC0970FI1
Part Number: AC0970FI1 |
|||
| 0985-9 | 6 | Quick Mill AC0970FI2
Part Number: AC0970FI2 |
|||
| 0985-9 | 7 | Quick Mill PLSPAZ
Part Number: PLSPAZ |
