Quick Mill Pippa Part Diagram 04100
This is the Quick Mill Pippa Part Diagram 04100. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

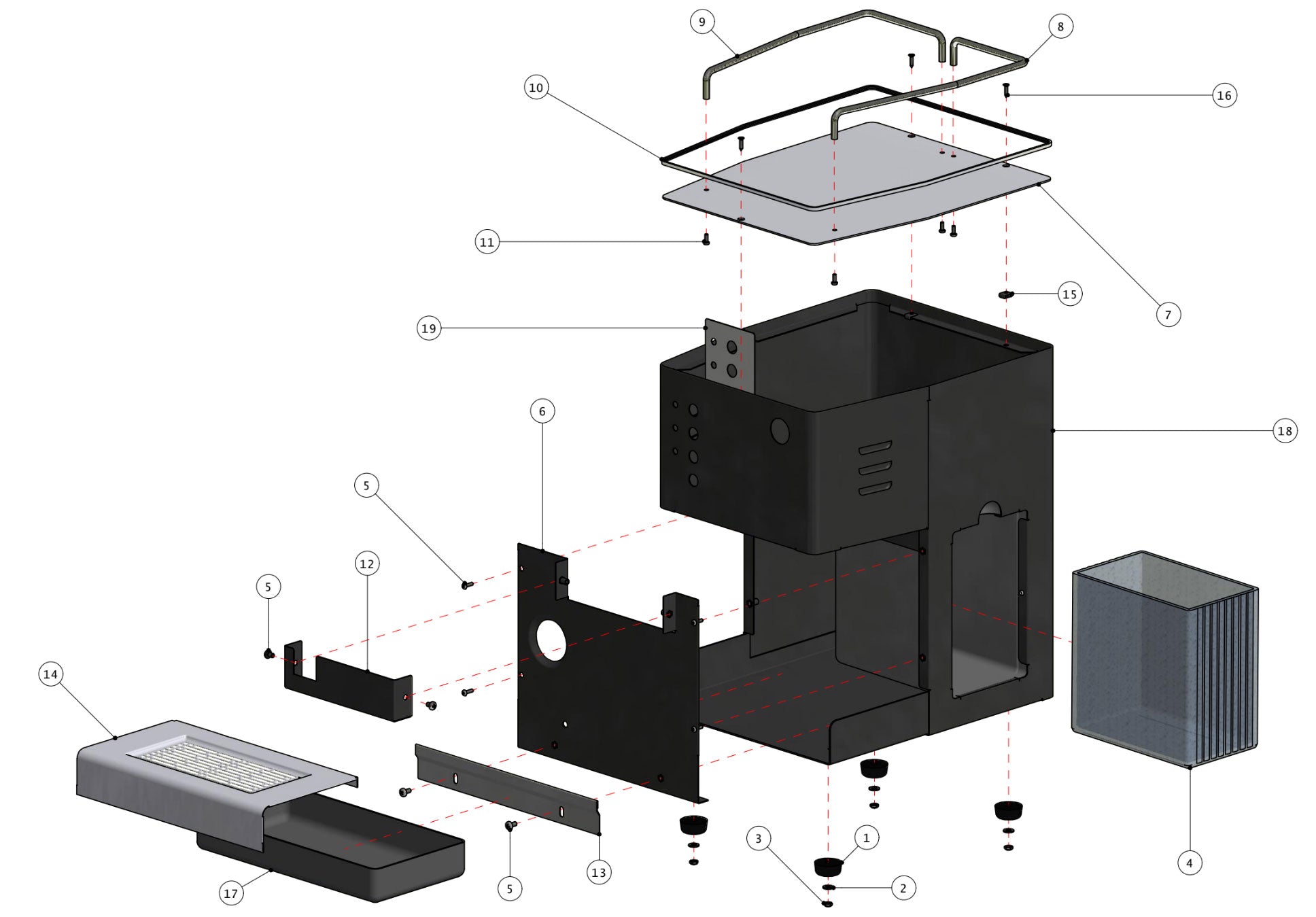

| 04100-1 | 1 | Quick Mill GO03035PF
Part Number: GO03035PF |
|||
| 04100-1 | 2 | Quick Mill RODI27
Part Number: RODI27 |
|||
| 04100-1 | 3 | Quick Mill DAB4
Part Number: DAB4 |
|||
| 04100-1 | 4 | Quick Mill PL0925RE Part Number: PL0925RE |
$18.49 | View Part | |
| 04100-1 | 5 | Quick Mill VII60
Part Number: VII60 |
|||
| 04100-1 | 6 | Quick Mill AC04100FR-WLL INOX
Part Number: AC04100FR-WLL INOX |
|||
| 04100-1 | Quick Mill AC04100FRWLL-NE BLACK
Part Number: AC04100FRWLL-NE BLACK |
||||
| 04100-1 | 7 | Quick Mill AC03004CS
Part Number: AC03004CS |
|||
| 04100-1 | 8 | Quick Mill FE03000FTD
Part Number: FE03000FTD |
|||
| 04100-1 | 9 | Quick Mill FE03000FTS
Part Number: FE03000FTS |
|||
| 04100-1 | 10 | Quick Mill GO03000CS
Part Number: GO03000CS |
|||
| 04100-1 | 11 | Quick Mill VII198
Part Number: VII198 |
|||
| 04100-1 | 12 | Quick Mill AC04100CG INOX
Part Number: AC04100CG INOX |
|||
| 04100-1 | Quick Mill AC04100CG-NE BLACK
Part Number: AC04100CG-NE BLACK |
||||
| 04100-1 | 13 | Quick Mill AC04100FM
Part Number: AC04100FM |
|||
| 04100-1 | 14 | Quick Mill AC04100GP-A Part Number: AC04100GP-A |
$79.49 | View Part | |
| 04100-1 | 15 | Quick Mill MO0825CS
Part Number: MO0825CS |
|||
| 04100-1 | 16 | Quick Mill VII23
Part Number: VII23 |
|||
| 04100-1 | 17 | Quick Mill PL03000BRN Part Number: PL03000BRN |
$13.49 | View Part | |
| 04100-1 | 18 | Quick Mill AC04100CM-WLL INOX
Part Number: AC04100CM-WLL INOX |
|||
| 04100-1 | Quick Mill ASS04100CMWLL-NE BLACK
Part Number: ASS04100CMWLL-NE BLACK |
||||
| 04100-1 | 19 | Quick Mill AC04100FS-P
Part Number: AC04100FS-P |
|||

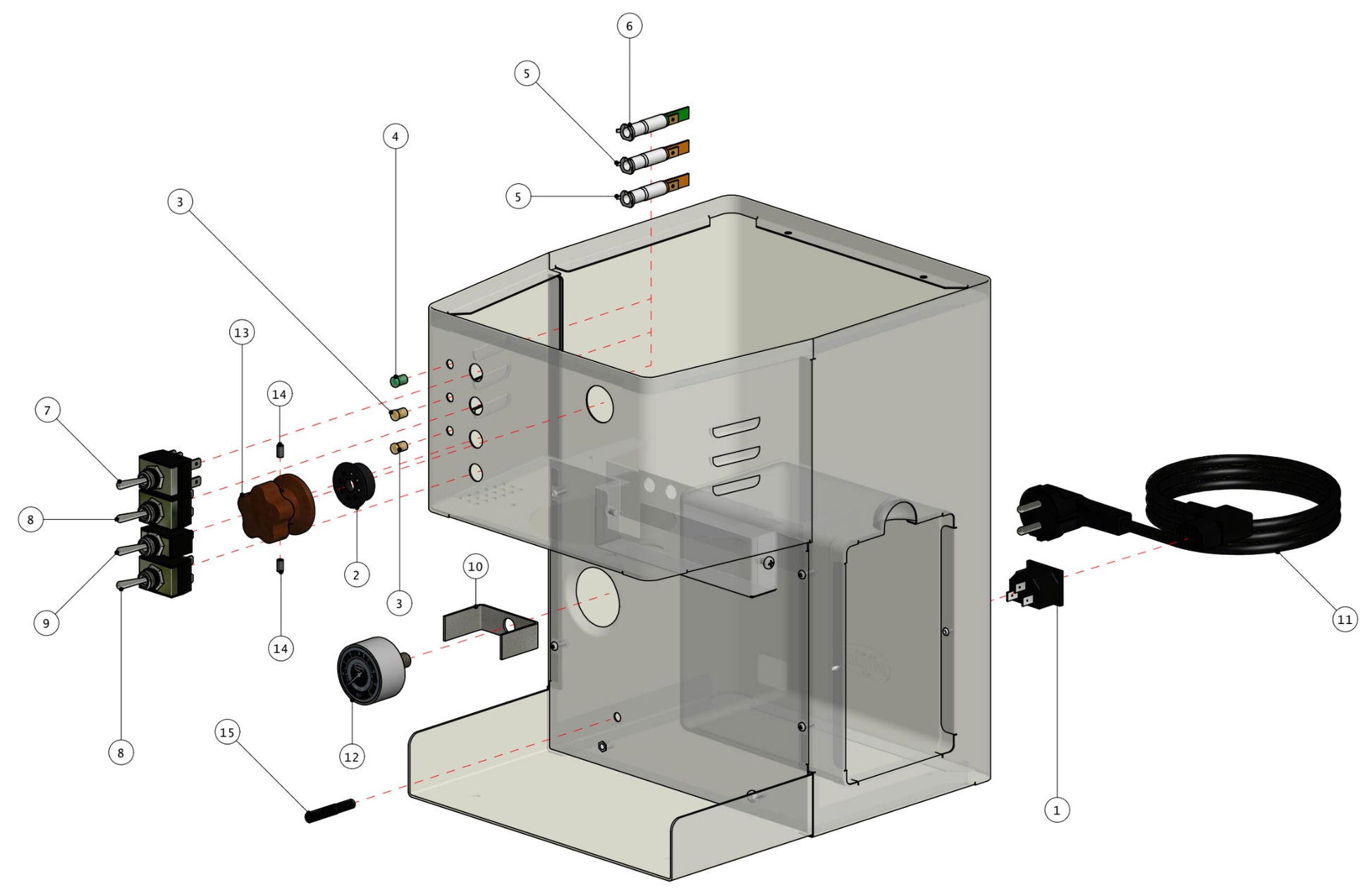

| 04100-2 | 1 | Quick Mill CON-CA
Part Number: CON-CA |
|||
| 04100-2 | 2 | Quick Mill PL04000TR
Part Number: PL04000TR |
|||
| 04100-2 | 3 | Quick Mill GEMMARANCIO
Part Number: GEMMARANCIO |
|||
| 04100-2 | 4 | Quick Mill GEMMAVERDE
Part Number: GEMMAVERDE |
|||
| 04100-2 | 5 | Quick Mill SEARANCIO
Part Number: SEARANCIO |
|||
| 04100-2 | 6 | Quick Mill SEVERDE
Part Number: SEVERDE |
|||
| 04100-2 | 7 | Quick Mill IN0970T
Part Number: IN0970T |
|||
| 04100-2 | 8 | Quick Mill IN0970B
Part Number: IN0970B |
|||
| 04100-2 | 9 | Quick Mill IN0970U
Part Number: IN0970U |
|||
| 04100-2 | 10 | Quick Mill AC03035SM
Part Number: AC03035SM |
|||
| 04100-2 | 11 | Quick Mill CAVO-C14
Part Number: CAVO-C14 |
|||
| 04100-2 | 12 | Quick Mill MAN04100-WLL
Part Number: MAN04100-WLL |
|||
| 04100-2 | 13 | Quick Mill LE04100MR
Part Number: LE04100MR |
|||
| 04100-2 | 14 | Quick Mill GRI4X8
Part Number: GRI4X8 |
|||
| 04100-2 | 15 | Quick Mill GO03000PG
Part Number: GO03000PG |
|||

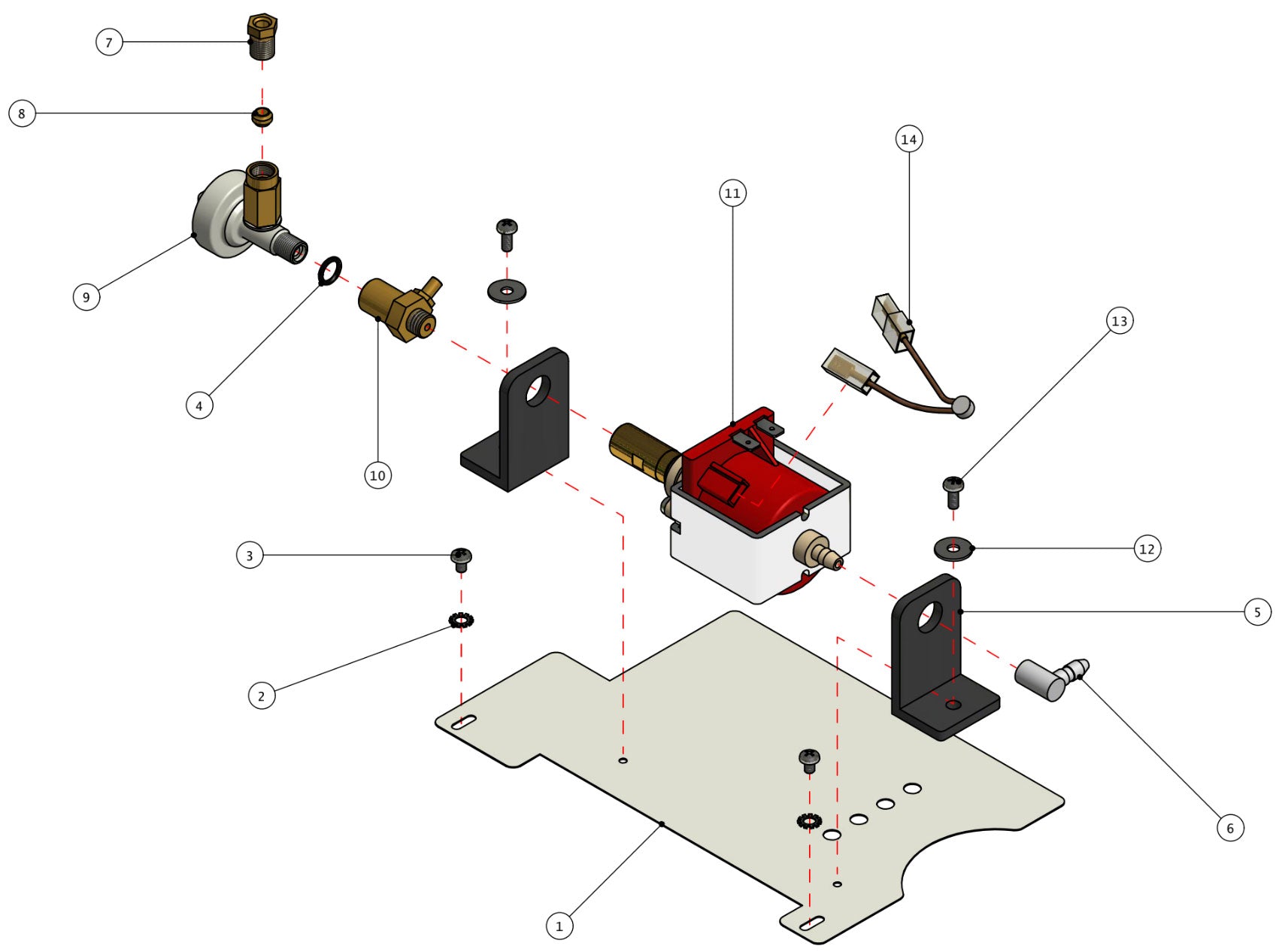

| 04100-3 | 1 | Quick Mill AC04100BS
Part Number: AC04100BS |
|||
| 04100-3 | 2 | Quick Mill RODI20
Part Number: RODI20 |
|||
| 04100-3 | 3 | Quick Mill VII44
Part Number: VII44 |
|||
| 04100-3 | 4 | Quick Mill OR0837
Part Number: OR0837 |
|||
| 04100-3 | 5 | Quick Mill GO0900SP
Part Number: GO0900SP |
|||
| 04100-3 | 6 | Quick Mill G03000PG
Part Number: G03000PG |
|||
| 04100-3 | 7 | Quick Mill OT07000RP
Part Number: OT07000RP |
|||
| 04100-3 | 8 | Quick Mill OT0800OV
Part Number: OT0800OV |
|||
| 04100-3 | 9 | Quick Mill PL0800PU
Part Number: PL0800PU |
|||
| 04100-3 | 10 | Quick Mill PL087000VA
Part Number: PL087000VA |
|||
| 04100-3 | 11 | Quick Mill PO0980
Part Number: PO0980 |
|||
| 04100-3 | 12 | Quick Mill RODI24
Part Number: RODI24 |
|||
| 04100-3 | 13 | Quick Mill VII21
Part Number: VII21 |
|||
| 04100-3 | 14 | Quick Mill KLICSON
Part Number: KLICSON |
|||

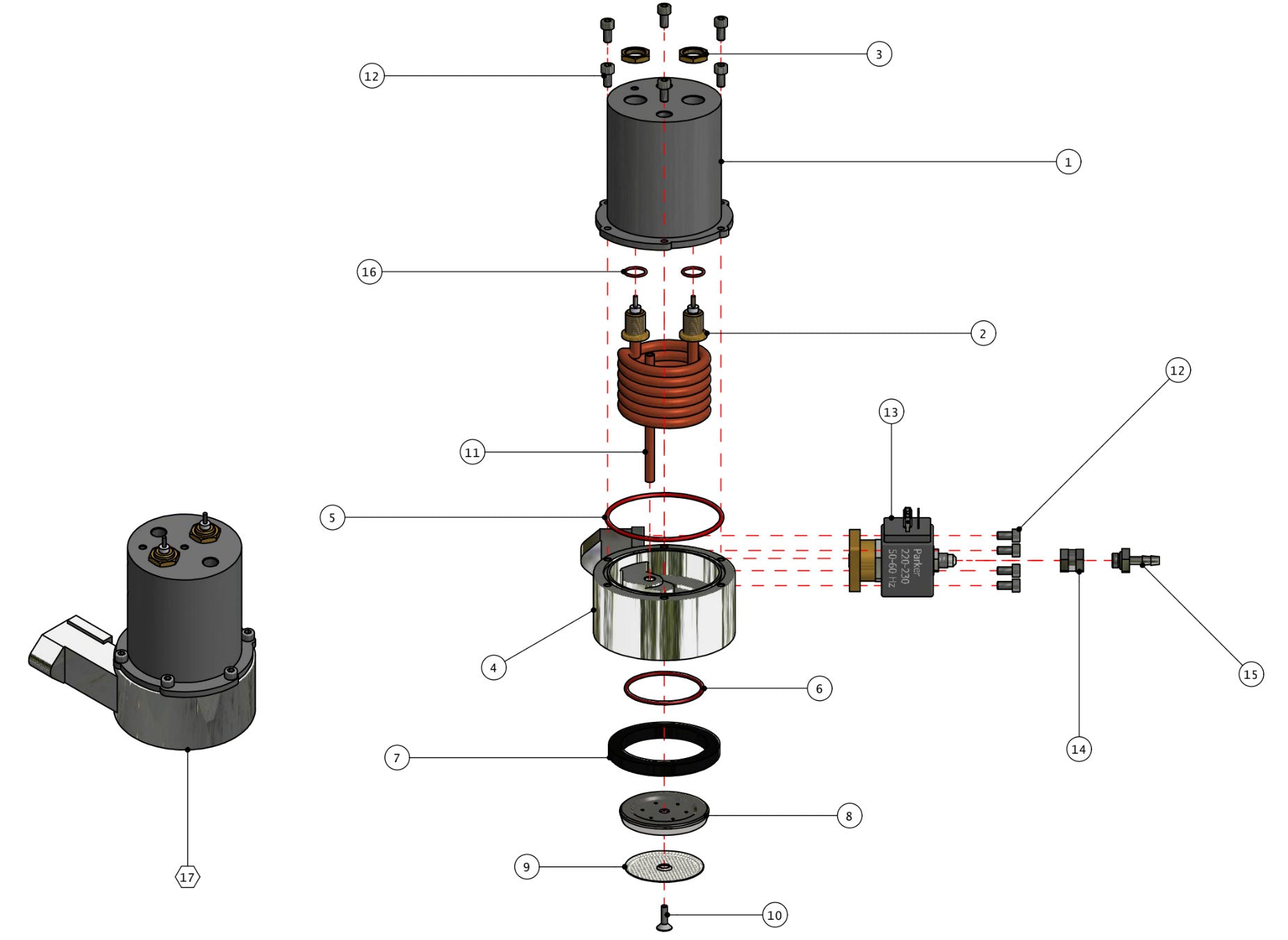

| 04100-4 | 1 | Quick Mill MN-33A1A57
Part Number: MN-33A1A57 |
|||
| 04100-4 | 2 | Quick Mill RA04000RE1
Part Number: RA04000RE1 |
|||
| 04100-4 | 3 | Quick Mill OT0970GH
Part Number: OT0970GH |
|||
| 04100-4 | 4 | Quick Mill MN-48A1CR
Part Number: MN-48A1CR |
|||
| 04100-4 | 5 | Quick Mill OR74,3X2,62
Part Number: OR74,3X2,62 |
|||
| 04100-4 | 6 | Quick Mill OR-3187S
Part Number: OR-3187S |
|||
| 04100-4 | 7 | Quick Mill 35.10.30
Part Number: 35.10.30 |
|||
| 04100-4 | 8 | Quick Mill FLA6075
Part Number: FLA6075 |
|||
| 04100-4 | 9 | Quick Mill D001.8
Part Number: D001.8 |
|||
| 04100-4 | 10 | Quick Mill VITTSPEI5X16
Part Number: VITTSPEI5X16 |
|||
| 04100-4 | 11 | Quick Mill TUCU1278
Part Number: TUCU1278 |
|||
| 04100-4 | 12 | Quick Mill VITTCE4X10
Part Number: VITTCE4X10 |
|||
| 04100-4 | 13 | Quick Mill EV04000V1
Part Number: EV04000V1 |
|||
| 04100-4 | 14 | Quick Mill OT0970M8
Part Number: OT0970M8 |
|||
| 04100-4 | 15 | Quick Mill OT05008N8
Part Number: OT05008N8 |
|||
| 04100-4 | 16 | Quick Mill OR140
Part Number: OR140 |
|||
| 04100-4 | 17 | Quick Mill OT04000KGP110V
Part Number: OT04000KGP110V |
|||

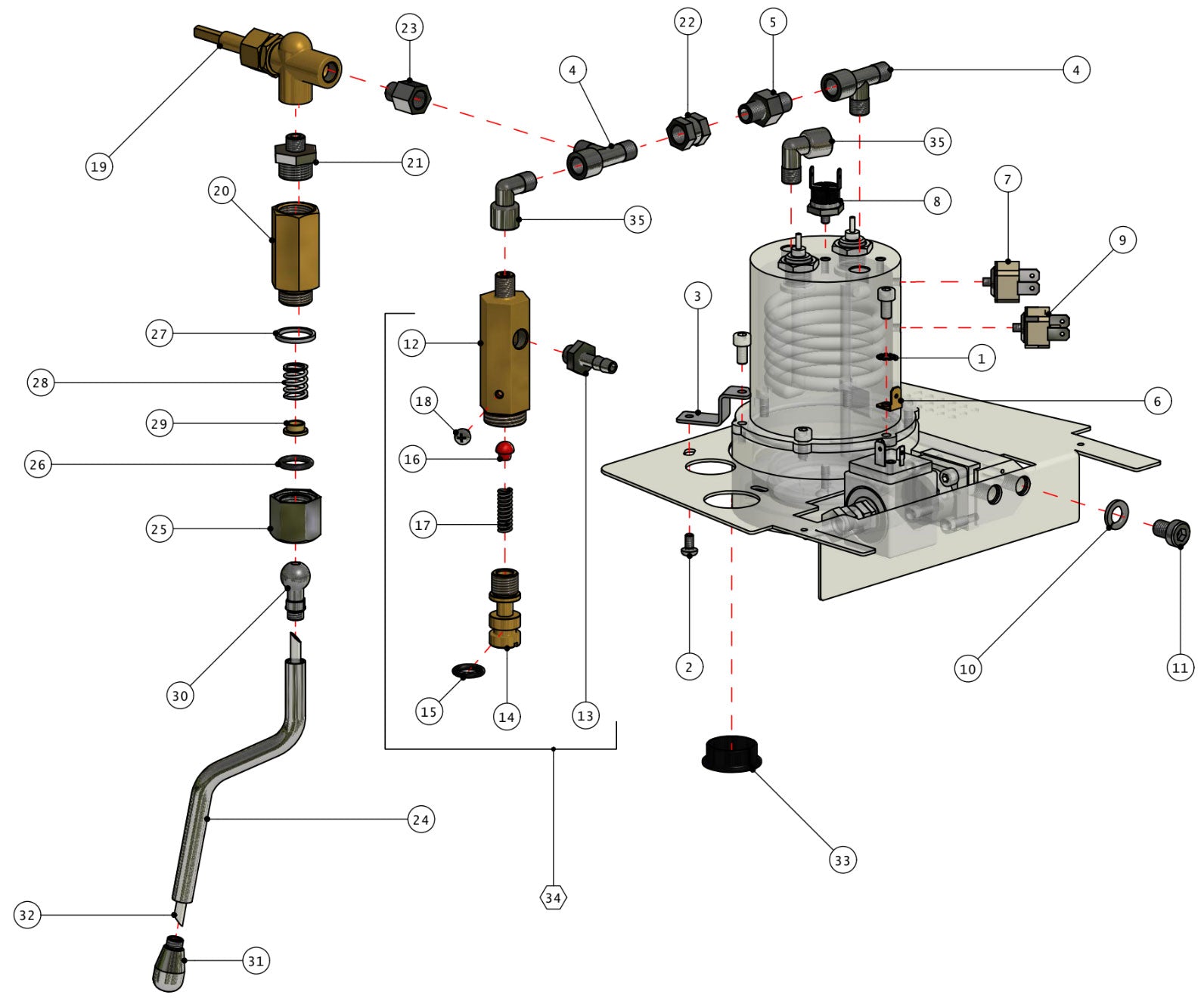

| 04100-5 | 1 | Quick Mill RODI20
Part Number: RODI20 |
|||
| 04100-5 | 2 | Quick Mill VII60
Part Number: VII60 |
|||
| 04100-5 | 3 | Quick Mill AC04100SG
Part Number: AC04100SG |
|||
| 04100-5 | 4 | Quick Mill OT05000RM
Part Number: OT05000RM |
|||
| 04100-5 | 5 | Quick Mill OT04000N8
Part Number: OT04000N8 |
|||
| 04100-5 | 6 | Quick Mill BM01009
Part Number: BM01009 |
|||
| 04100-5 | 7 | Quick Mill TE04000C
Part Number: TE04000C |
|||
| 04100-5 | 8 | Quick Mill TE04003
Part Number: TE04003 |
|||
| 04100-5 | 9 | Quick Mill TE0100
Part Number: TE0100 |
|||
| 04100-5 | 10 | Quick Mill ROG31
Part Number: ROG31 |
|||
| 04100-5 | 11 | Quick Mill VII59
Part Number: VII59 |
|||
| 04100-5 | 12 | Quick Mill OT0990CVN
Part Number: OT0990CVN |
|||
| 04100-5 | 13 | Quick Mill OT05008N8
Part Number: OT05008N8 |
|||
| 04100-5 | 14 | Quick Mill OT0990PVE
Part Number: OT0990PVE |
|||
| 04100-5 | 15 | Quick Mill OR3043
Part Number: OR3043 |
|||
| 04100-5 | 16 | Quick Mill GO0500GE
Part Number: GO0500GE |
|||
| 04100-5 | 17 | Quick Mill MO0980VEN
Part Number: MO0980VEN |
|||
| 04100-5 | 18 | Quick Mill VII44
Part Number: VII44 |
|||
| 04100-5 | 19 | Quick Mill OT04100CR
Part Number: OT04100CR |
|||
| 04100-5 | 20 | Quick Mill OT04000RLN
Part Number: OT04000RLN |
|||
| 04100-5 | 21 | Quick Mill OT08700NC
Part Number: OT08700NC |
|||
| 04100-5 | 22 | Quick Mill OT0970M8
Part Number: OT0970M8 |
|||
| 04100-5 | 23 | Quick Mill OT0980RC8
Part Number: OT0980RC8 |
|||
| 04100-5 | 24 | Quick Mill AC04000TV
Part Number: AC04000TV |
|||
| 04100-5 | 25 | Quick Mill OT04000DT
Part Number: OT04000DT |
|||
| 04100-5 | 26 | Quick Mill 8R27
Part Number: 8R27 |
|||
| 04100-5 | 27 | Quick Mill GUATF211682
Part Number: GUATF211682 |
|||
| 04100-5 | 28 | Quick Mill MOLLA-X
Part Number: MOLLA-X |
|||
| 04100-5 | 29 | Quick Mill 8R0044
Part Number: 8R0044 |
|||
| 04100-5 | 30 | Quick Mill OT0980SR
Part Number: OT0980SR |
|||
| 04100-5 | 31 | Quick Mill AC0980SVN
Part Number: AC0980SVN |
|||
| 04100-5 | 32 | Quick Mill TU04000TV
Part Number: TU04000TV |
|||
| 04100-5 | 33 | Quick Mill PL05008BO
Part Number: PL05008BO |
|||
| 04100-5 | 34 | Quick Mill OT0990VE
Part Number: OT0990VE |
|||
| 04100-5 | 35 | Quick Mill OTO980RL8
Part Number: OTO980RL8 |
|||

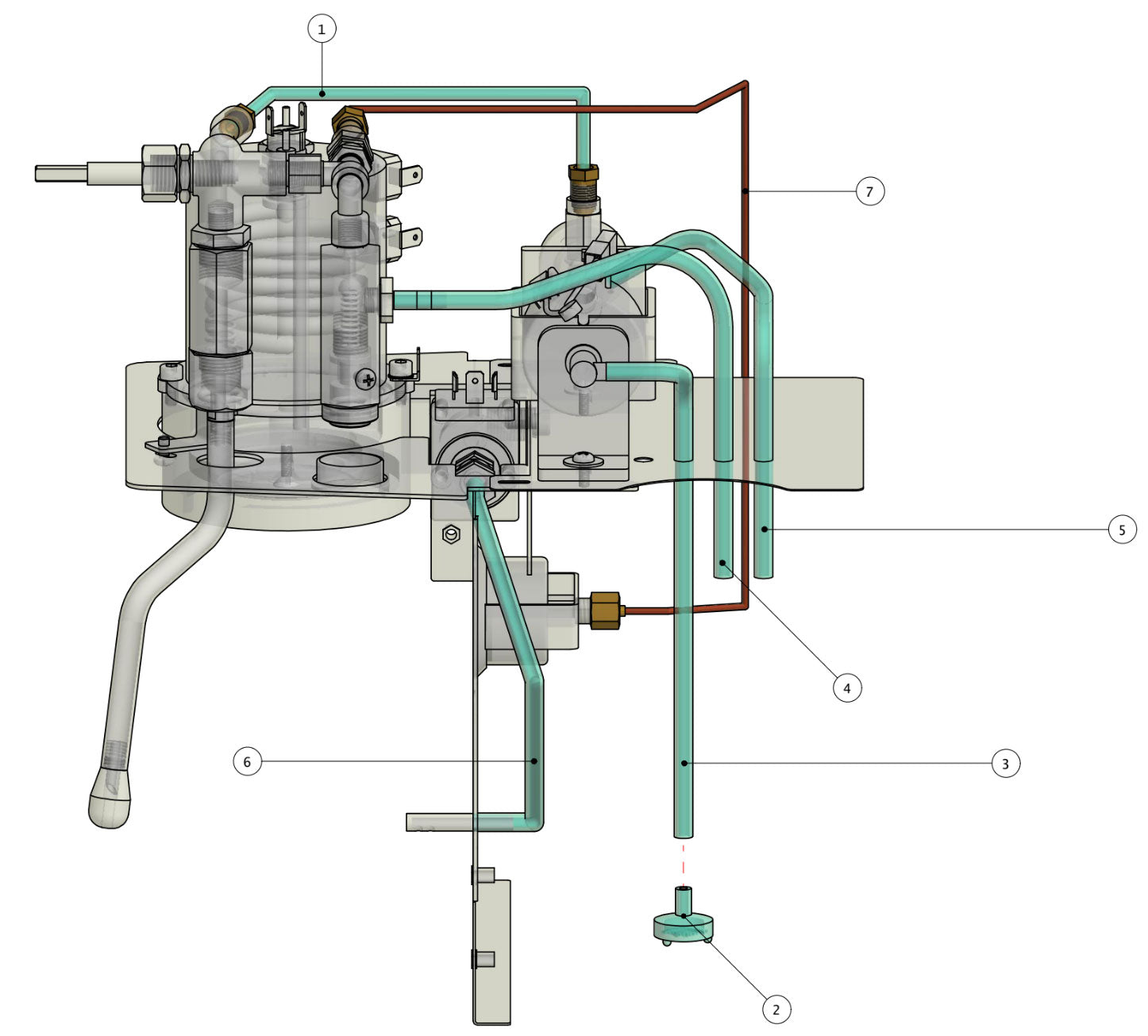

| 04100-6 | 1 | Quick Mill TU04100PC
Part Number: TU04100PC |
|||
| 04100-6 | 2 | Quick Mill PL0950FI
Part Number: PL0950FI |
|||
| 04100-6 | 3 | Quick Mill TUST4X7 L300
Part Number: TUST4X7 L300 |
|||
| 04100-6 | 4 | Quick Mill TUST4X7 L200
Part Number: TUST4X7 L200 |
|||
| 04100-6 | 5 | Quick Mill TUST4X7 L150
Part Number: TUST4X7 L150 |
|||
| 04100-6 | 6 | Quick Mill TUST4X7 L250
Part Number: TUST4X7 L250 |
|||
| 04100-6 | 7 | Quick Mill RA0970CMN
Part Number: RA0970CMN |
|||

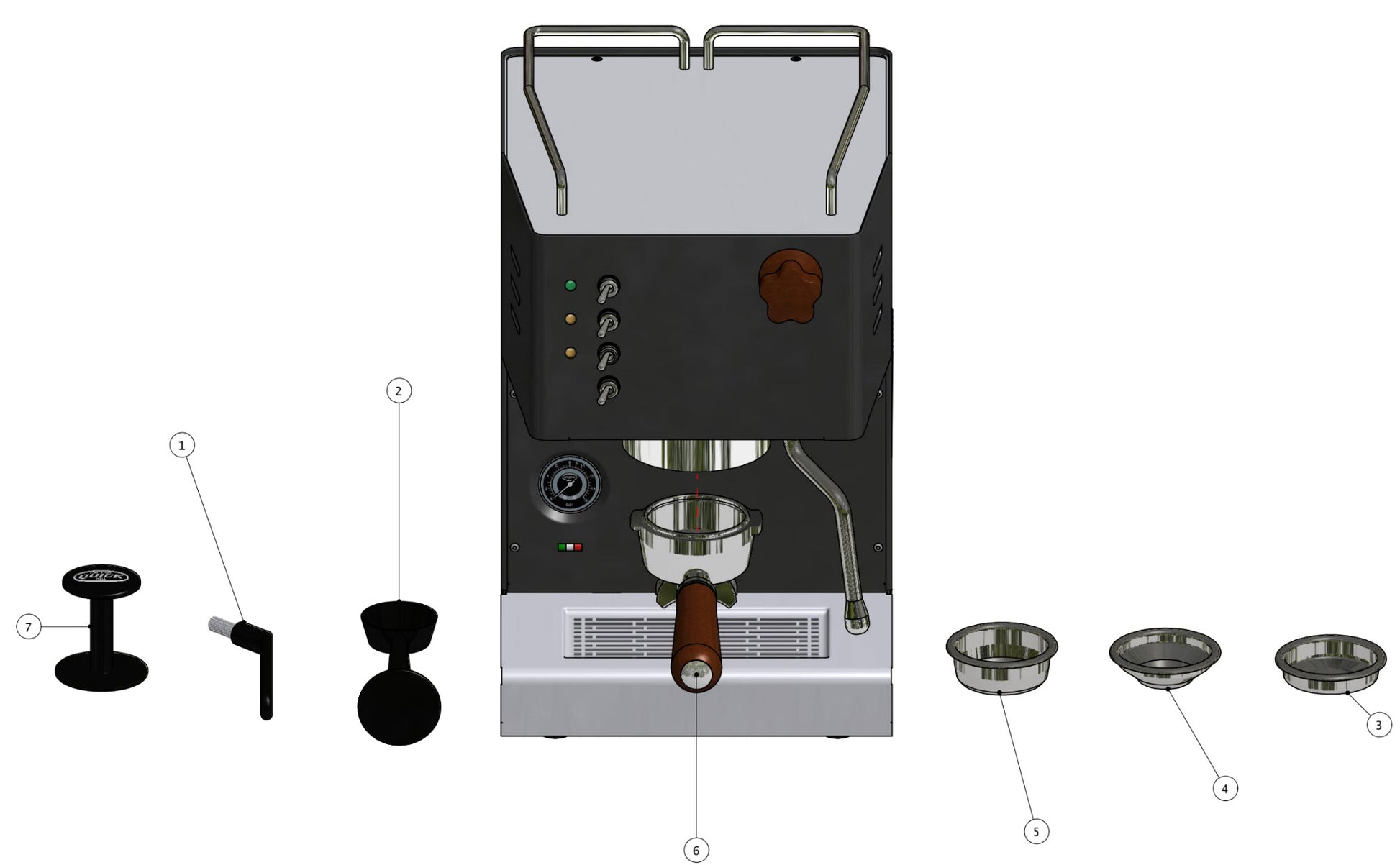

| 04100-7 | 1 | Quick Mill PLSPAZ
Part Number: PLSPAZ |
|||
| 04100-7 | 2 | Quick Mill PL04000MC
Part Number: PL04000MC |
|||
| 04100-7 | 3 | Quick Mill AC0970FC
Part Number: AC0970FC |
|||
| 04100-7 | 4 | Quick Mill AC0970FI1
Part Number: AC0970FI1 |
|||
| 04100-7 | 5 | Quick Mill AC0970FI2
Part Number: AC0970FI2 |
|||
| 04100-7 | 6 | Quick Mill LE04100PF2
Part Number: LE04100PF2 |
|||
| 04100-7 | 7 | Quick Mill PL03000PR
Part Number: PL03000PR |
