Rocket Espresso Appartamento Part Diagram REAPP
This is the Rocket Espresso Appartamento Part Diagram REAPP. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

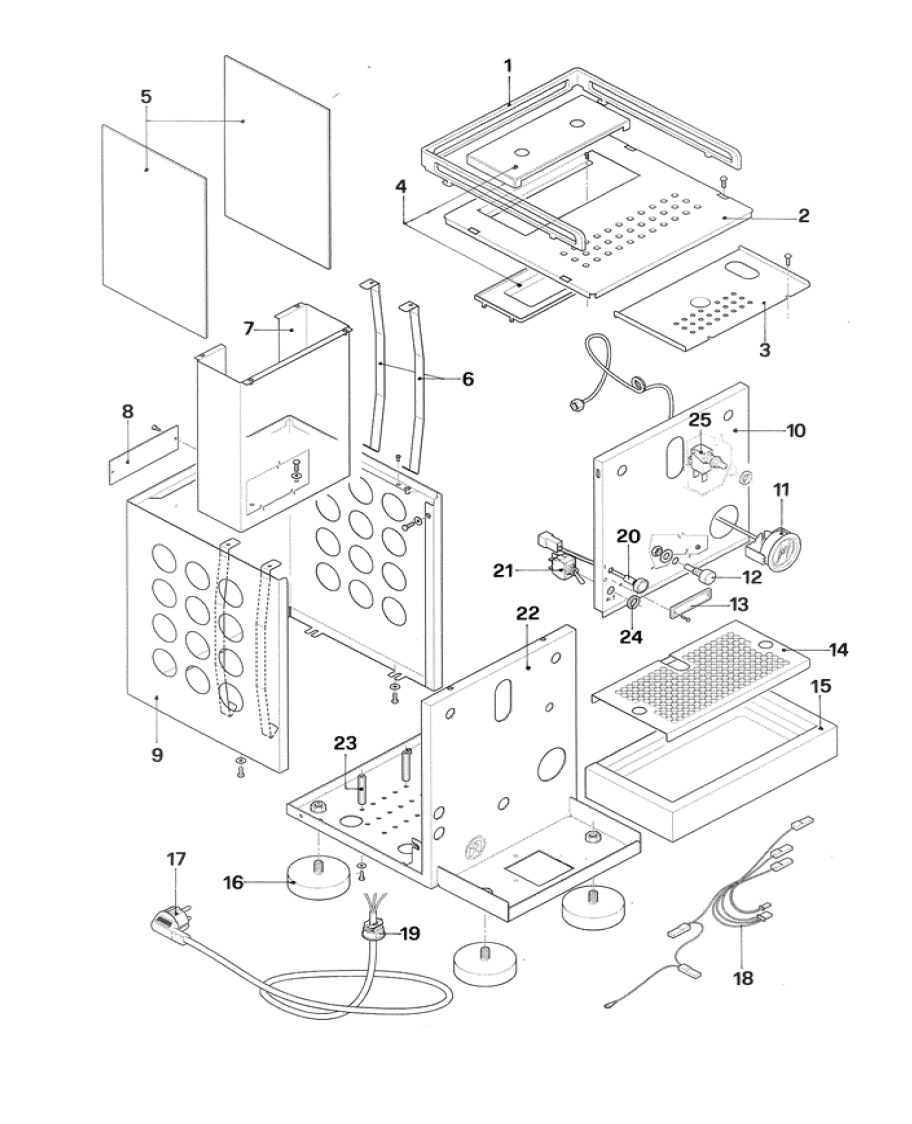

| REAPP-1 | 1 | Cups frame Part Number: A639905639 |
$33.16 | View Part | |
| REAPP-1 | 2 | Cups tray Part Number: A019905631 |
$40.08 | View Part | |
| REAPP-1 | 3 | Boiler cover plate
Part Number: A019905636 |
|||
| REAPP-1 | 4 |
|
Tank cover Part Number: R01L000382 |
$50.60 | View Part |
| REAPP-1 | 5 | Opal white side panel Part Number: A639905747 |
$18.98 | View Part | |
| REAPP-1 | Side pabel with copper finishing Part Number: A619905749 |
$38.09 | View Part | ||
| REAPP-1 | 6 | Side panel fixing bracket
Part Number: A019905732 |
|||
| REAPP-1 | 7 | Tank guide
Part Number: A019904656 |
|||
| REAPP-1 | 8 |
|
Rear tag Part Number: A859904400 |
$54.04 | View Part |
| REAPP-1 | 9 | Bodywork panel Part Number: A019905629 |
$115.88 | View Part | |
| REAPP-1 | 10 |
|
Front panel Part Number: A01I005632 |
$85.44 | View Part |
| REAPP-1 | 11 | Boiler pressure gauge
Part Number: A299905785 |
|||
| REAPP-1 | 12 | Expansion connector
Part Number: A227704363 |
|||
| REAPP-1 | 13 | Front tag
Part Number: A859905733 |
|||
| REAPP-1 | 14 |
|
Grid Part Number: A019905633 |
$28.28 | View Part |
| REAPP-1 | 15 |
|
Drain tray Part Number: A01L005630 |
$170.12 | View Part |
| REAPP-1 | 16 |
|
Foot Part Number: A059905755 |
$34.61 | View Part |
| REAPP-1 | 17 | Power cord CE
Part Number: C199900957 |
|||
| REAPP-1 | 17 | Power cord Israel
Part Number: A199904518 |
|||
| REAPP-1 | 17 | Power cord Korea
Part Number: A199904616 |
|||
| REAPP-1 | 17 | Power cord UL
Part Number: C199900958 |
|||
| REAPP-1 | 17 | Power cord AUS/NZ
Part Number: C199901115 |
|||
| REAPP-1 | 17 | Power cord GB
Part Number: C199901116 |
|||
| REAPP-1 | 17 | Power cord CH
Part Number: C199901510 |
|||
| REAPP-1 | 18 | Wiring loom
Part Number: A199905740 |
|||
| REAPP-1 | 19 | Cable retainer
Part Number: C439900086 |
|||
| REAPP-1 | 20 | Green control lamp machine on/off
Part Number: A199905886 |
|||
| REAPP-1 | 21 | On/Off switch
Part Number: A199906002 |
|||
| REAPP-1 | 22 | Basement
Part Number: A009905628 |
|||
| REAPP-1 | 23 | Tank guide fixings
Part Number: A529905637 |
|||
| REAPP-1 | 24 | Ring nut
Part Number: A527704305 |
|||
| REAPP-1 | 25 | Microswitch
Part Number: A199905198 |
|||

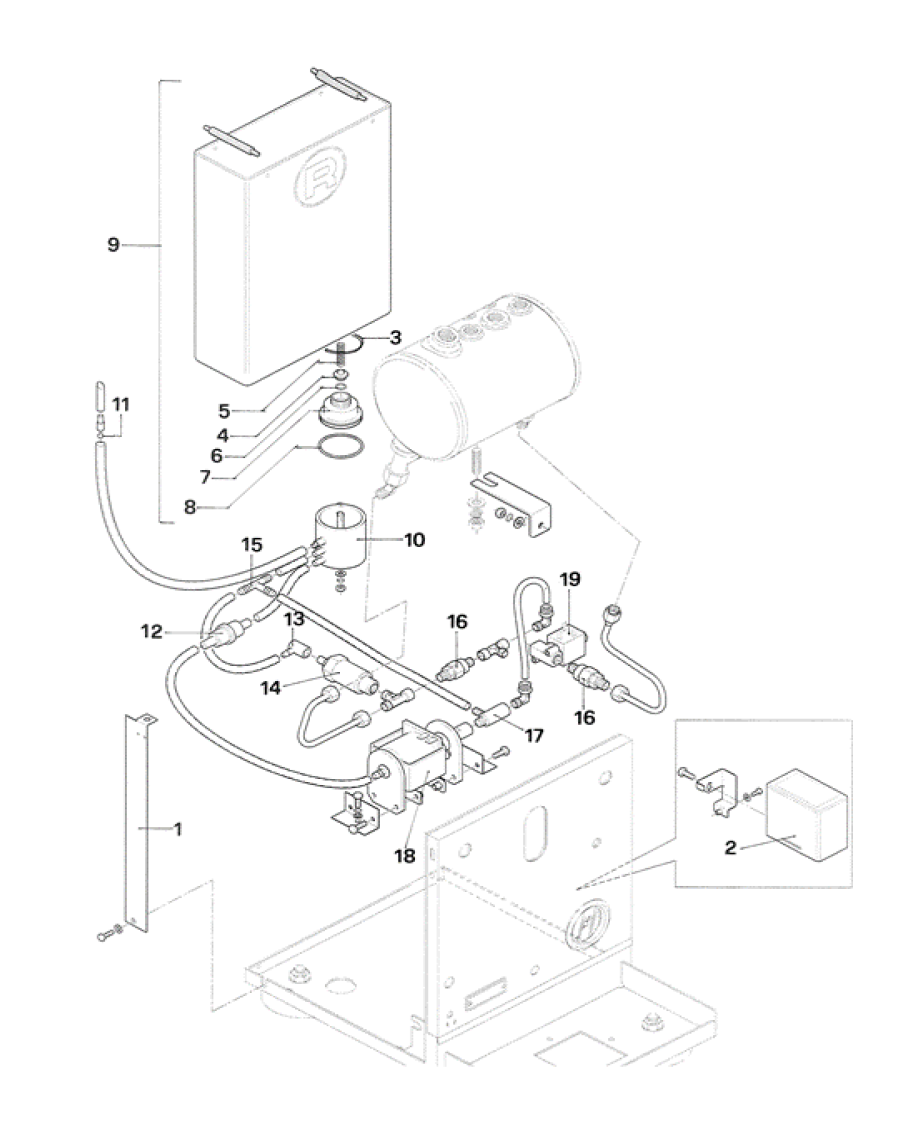

| REAPP-2 | 1 | Air vent bracket
Part Number: A019905635 |
|||
| REAPP-2 | 2 | Control board V. 230
Part Number: A190004524 |
|||
| REAPP-2 | Control board V. 115
Part Number: A190004525 |
||||
| REAPP-2 | 3 | O-Ring
Part Number: A449905151 |
|||
| REAPP-2 | 4 | Tank connector
Part Number: C430003482 |
|||
| REAPP-2 | 5 | Spring
Part Number: C019900711 |
|||
| REAPP-2 | 6 | O-Ring
Part Number: C449900702 |
|||
| REAPP-2 | 7 | Coupling
Part Number: A439905146 |
|||
| REAPP-2 | 8 | O-Ring
Part Number: A449904547 |
|||
| REAPP-2 | 9 | Water tank (complete)
Part Number: R899905145 |
|||
| REAPP-2 | 10 | Manifold
Part Number: A439905147 |
|||
| REAPP-2 | 11 | Sphere
Part Number: C430003819 |
|||
| REAPP-2 | 12 | Filter
Part Number: C439900695 |
|||
| REAPP-2 | 13 | Rubber connector
Part Number: C449900709 |
|||
| REAPP-2 | 14 | Expansion valve
Part Number: C229900911 |
|||
| REAPP-2 | 15 | Rubber T-Connector
Part Number: C400002827 |
|||
| REAPP-2 | 16 | Non return valve
Part Number: C229900540 |
|||
| REAPP-2 | 17 | S2 valve
Part Number: C200002112 |
|||
| REAPP-2 | 18 | Vibration pump V. 230
Part Number: C199900280 |
|||
| REAPP-2 | Vibration pump V. 115
Part Number: C199900281 |
||||
| REAPP-2 | 19 | Solenoid valve V. 230
Part Number: C190004066 |
|||
| REAPP-2 | Solenoid valve V. 115
Part Number: C190004067 |
||||

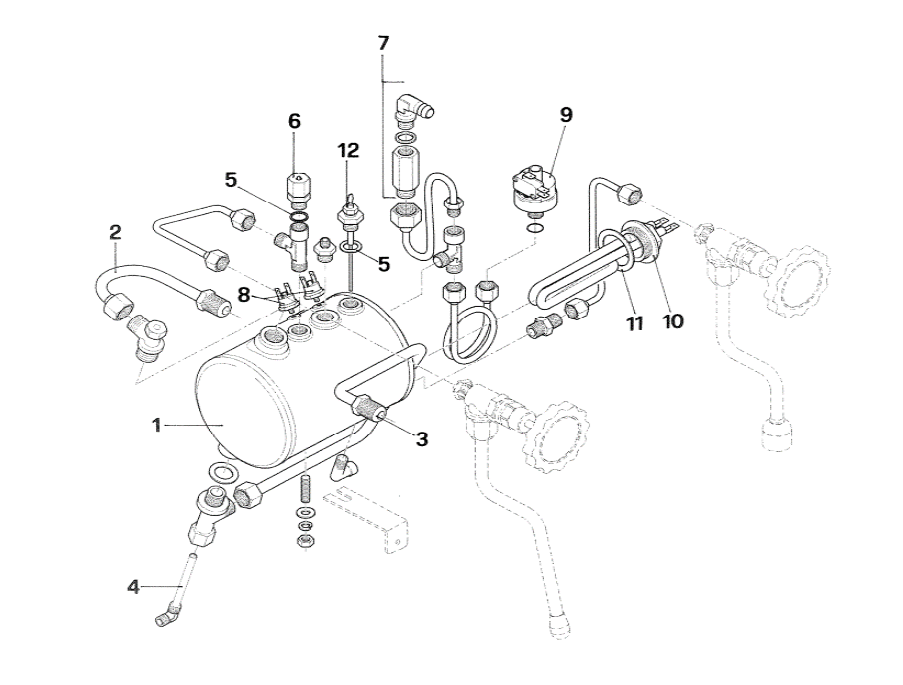

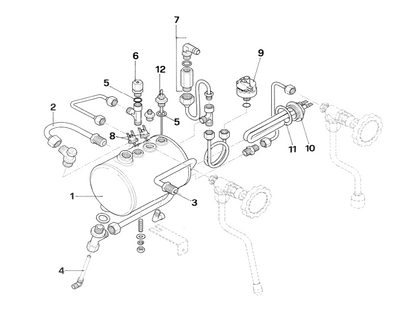

| REAPP-3 | 1 | Boiler
Part Number: A279905638 |
|||
| REAPP-3 | 2 | Pipe from boiler to group
Part Number: A279905817 |
|||
| REAPP-3 | 3 | Thermosiphonical return pipe
Part Number: A279904289 |
|||
| REAPP-3 | 4 | Injector
Part Number: C229900393 |
|||
| REAPP-3 | 5 | Teflon gasket 1/4"
Part Number: A269904417 |
|||
| REAPP-3 | 6 | Breaker valve
Part Number: A219905510 |
|||
| REAPP-3 | 7 | Safety valve
Part Number: A299904998 |
|||
| REAPP-3 | 8 |
Part Number: C199901550 Safety thermostat |
|||
| REAPP-3 | 9 | Pressure switch CE/UL
Part Number: C199900294 |
|||
| REAPP-3 | 10 | Heating element V. 230
Part Number: C199901551 |
|||
| REAPP-3 | 10 | Heating element V. 115
Part Number: C199901552 |
|||
| REAPP-3 | 11 | Heating element gasket
Part Number: C469900239 |
|||
| REAPP-3 | 12 | Boiler level probe
Part Number: C199900839 |
|||

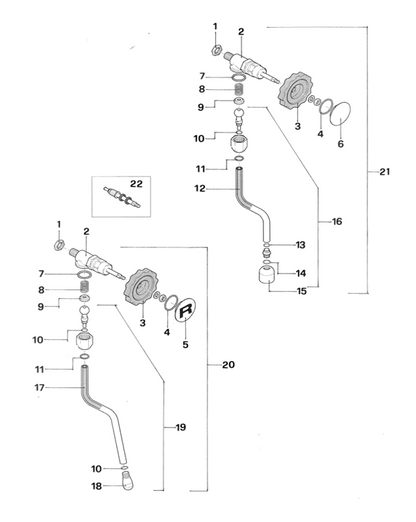

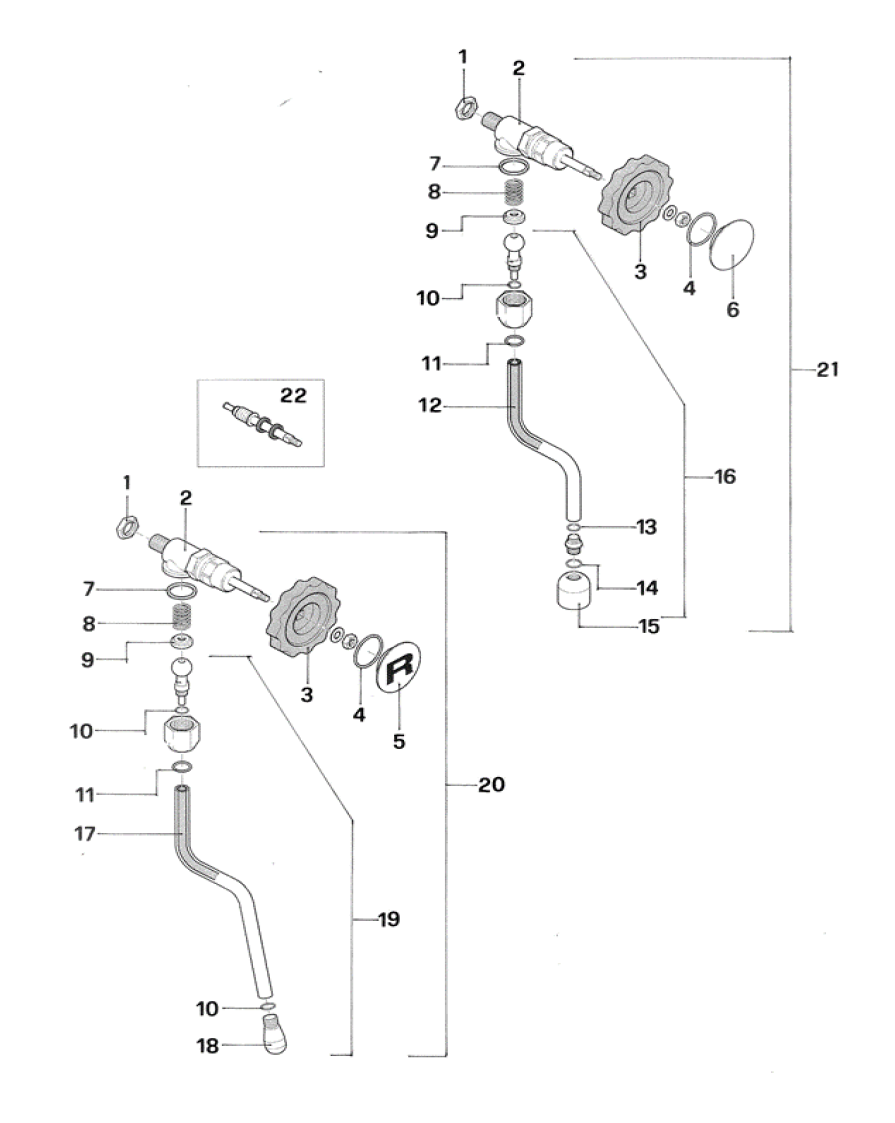

| REAPP-4 | 1 | Nut 1/4"
Part Number: A329905087 |
|||
| REAPP-4 | 2 | Valve
Part Number: A229905784 |
|||
| REAPP-4 | 3 | Handle
Part Number: A639905816 |
|||
| REAPP-4 | 4 | O-Ring
Part Number: A449904672 |
|||
| REAPP-4 | 5 | "R" cover for steam valve handle
Part Number: A529R04649 |
|||
| REAPP-4 | 6 | Cover for hot water handle
Part Number: A527704649 |
|||
| REAPP-4 | 7 | Teflon gasket
Part Number: A449904331 |
|||
| REAPP-4 | 8 | Spring
Part Number: A209904332 |
|||
| REAPP-4 | 9 | Plate
Part Number: A229904333 |
|||
| REAPP-4 | 10 | O-Ring
Part Number: C400002022 |
|||
| REAPP-4 | 11 | O-Ring
Part Number: A449904334 |
|||
| REAPP-4 | 12 | Siliconr pipe 4 x 7
Part Number: C440003449 |
|||
| REAPP-4 | 13 | O-Ring
Part Number: C400002022 |
|||
| REAPP-4 | 14 | O-Ring
Part Number: C400003008 |
|||
| REAPP-4 | 15 | Hot water nozzle
Part Number: C227700536 |
|||
| REAPP-4 | 16 | Hot water wand (complete)
Part Number: R290003612 |
|||
| REAPP-4 | 17 | Silicone pipe 4 x 7
Part Number: C440003449 |
|||
| REAPP-4 | 18 | Steam nozzle 2 holes 1,5
Part Number: C200002839 |
|||
| REAPP-4 | 19 | Steam wand (complete)
Part Number: R290003611 |
|||
| REAPP-4 | 20 | Steam wand with valve
Part Number: R299906015 |
|||
| REAPP-4 | 21 | Hot water wand with valve
Part Number: R299906016 |
|||
| REAPP-4 | 22 | Shaft
Part Number: R229905953 |
|||

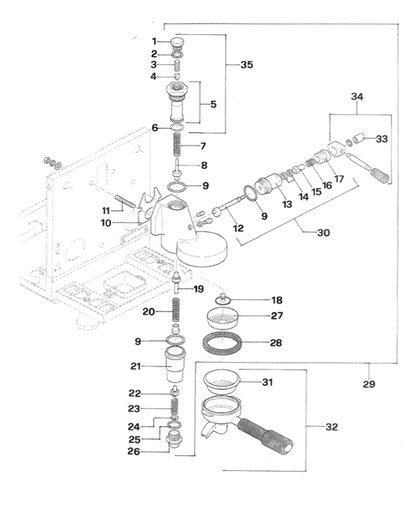

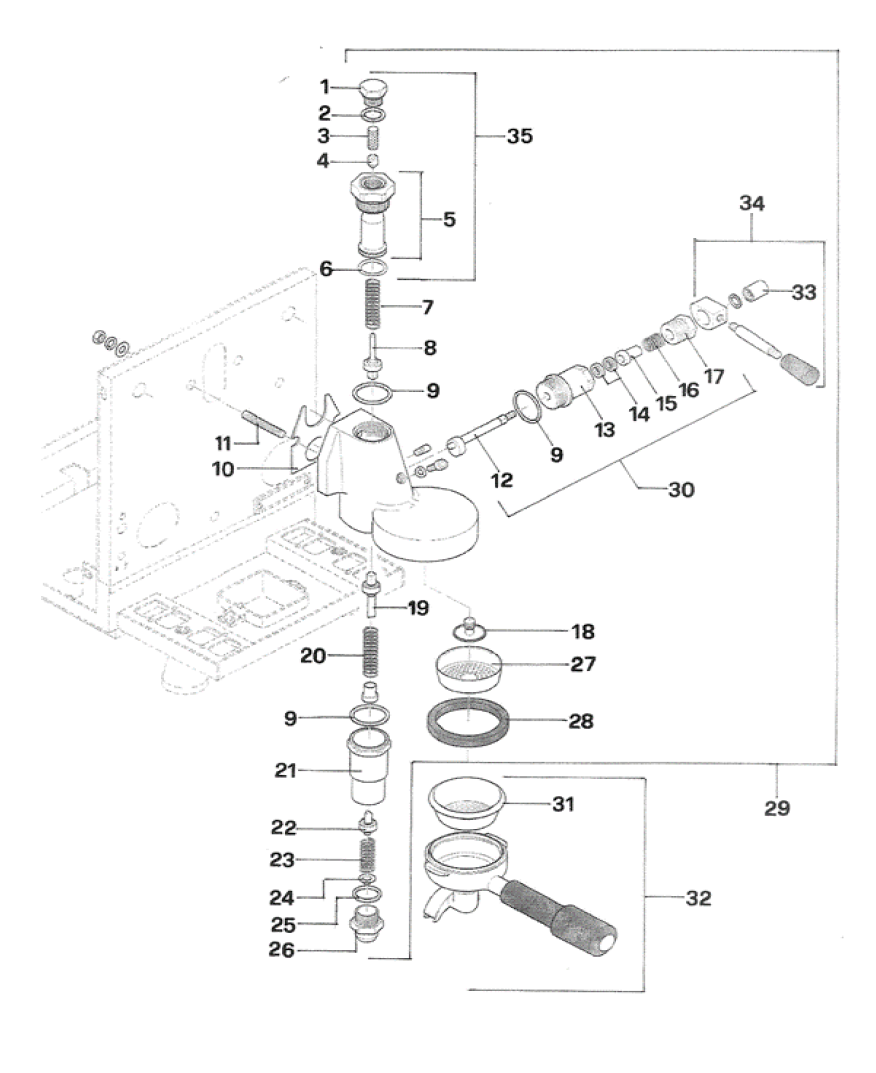

| REAPP-5 | 1 | Rounded nut
Part Number: A229904391 |
|||
| REAPP-5 | 2 | Gasket
Part Number: C469900420 |
|||
| REAPP-5 | 3 | Filter
Part Number: C619900554 |
|||
| REAPP-5 | 4 | Restrictor 0,8
Part Number: C229900549 |
|||
| REAPP-5 | 6 | Green gasket
Part Number: C469900422 |
|||
| REAPP-5 | 7 | Spring
Part Number: R219905890 |
|||
| REAPP-5 | 8 | Valve
Part Number: R229905608 |
|||
| REAPP-5 | 9 | Teflon gasket
Part Number: C469900421 |
|||
| REAPP-5 | 10 | Gasket
Part Number: C449900767 |
|||
| REAPP-5 | 11 | Screw
Part Number: A319904599 |
|||
| REAPP-5 | 12 | Shaft
Part Number: R229905238 |
|||
| REAPP-5 | 13 | Flange
Part Number: R000002142 |
|||
| REAPP-5 | 14 | Gasket
Part Number: C219900426 |
|||
| REAPP-5 | 15 | Support
Part Number: R000002143 |
|||
| REAPP-5 | 16 | Spring
Part Number: C219900427 |
|||
| REAPP-5 | 17 | Cover
Part Number: R000002144 |
|||
| REAPP-5 | 18 | Diffuser
Part Number: C229901228 |
|||
| REAPP-5 | 19 | Valve
Part Number: R229905239 |
|||
| REAPP-5 | 20 | Spring
Part Number: R219905890 |
|||
| REAPP-5 | 21 | Cylinder
Part Number: C229901165 |
|||
| REAPP-5 | 22 | Valve
Part Number: R229905609 |
|||
| REAPP-5 | 23 | Spring
Part Number: R299905958 |
|||
| REAPP-5 | 24 | Connector
Part Number: R000002148 |
|||
| REAPP-5 | 25 | Gasket
Part Number: C469900783 |
|||
| REAPP-5 | 26 | Connector
Part Number: R000002149 |
|||
| REAPP-5 | 27 | Shower foil
Part Number: C519900103 |
|||
| REAPP-5 | 28 | Group gasket
Part Number: C449900229 |
|||
| REAPP-5 | 29 | Group complete
Part Number: A229905448 |
|||
| REAPP-5 | 30 | Cam kit
Part Number: R299905887 |
|||
| REAPP-5 | 31 | 7 g filter basket
Part Number: C610003902 |
|||
| REAPP-5 | 14 g filterbasket
Part Number: C610003901 |
||||
| REAPP-5 | Backflush cap ("blind filter")
Part Number: C619900106 |
||||
| REAPP-5 | 32 | 1 cup filter holder with basket
Part Number: A699905020 |
|||
| REAPP-5 | 2 cups filter holder with basket
Part Number: A699905021 |
||||
| REAPP-5 | 33 | Pin
Part Number: R000002146 |
|||
| REAPP-5 | 34 | Lever assembly
Part Number: R299905888 |
|||
| REAPP-5 | 35 | Ceramic group shaft
Part Number: RA99905814 |
