Rocket Espresso Mozzafiato Evoluzione R Part Diagram REMOZZEVOR
This is the Rocket Espresso Mozzafiato Evoluzione R Part Diagram REMOZZEVOR. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

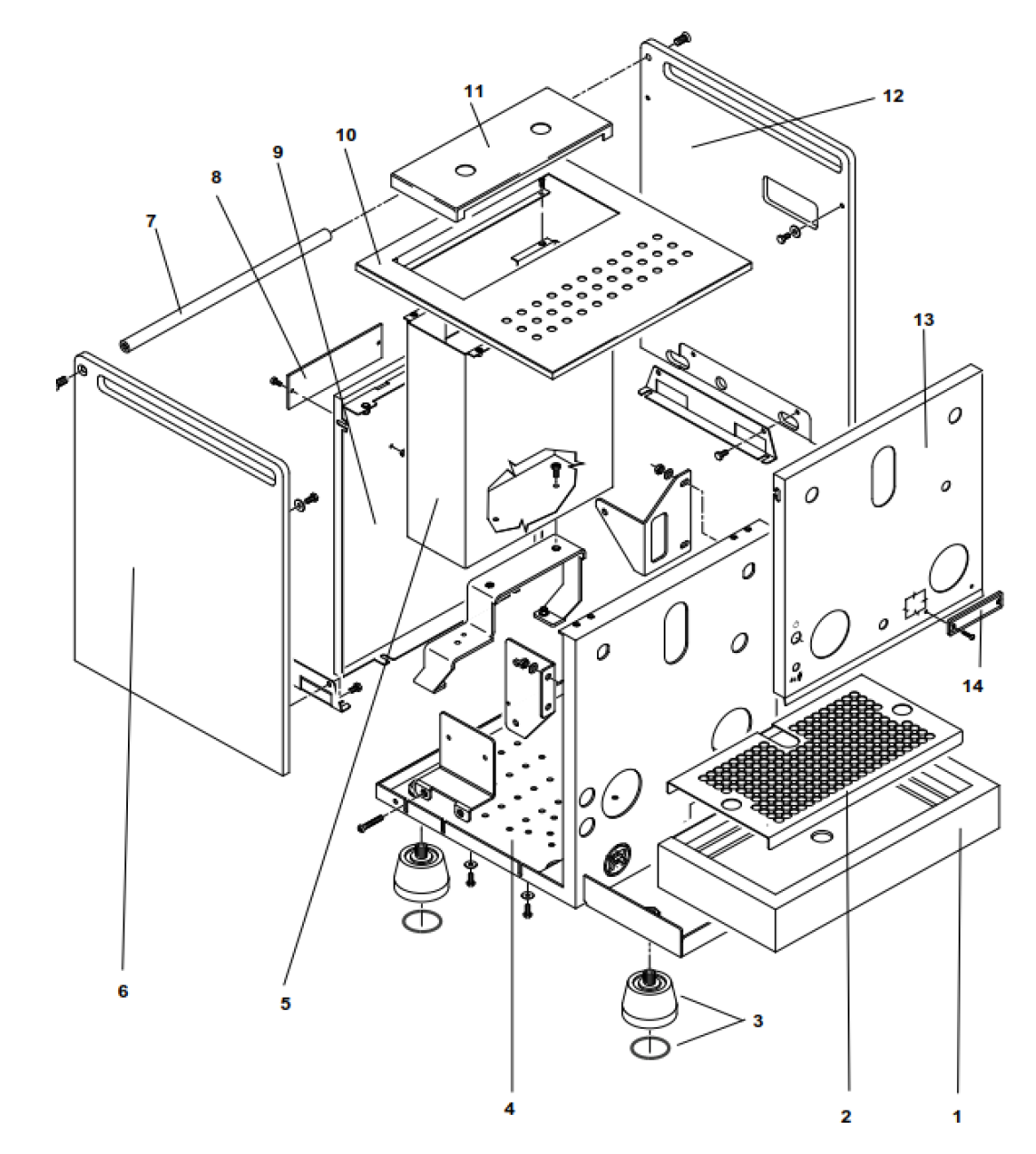

| REMOZZEVOR-1 | 1 |
|
Drip tray Part Number: R01L005125 |
$110.60 | View Part |
| REMOZZEVOR-1 | 2 |
|
Grid Part Number: A019904346 |
$30.00 | View Part |
| REMOZZEVOR-1 | 3 |
|
Foot with silicone O-ring Part Number: A059906054 |
$17.12 | View Part |
| REMOZZEVOR-1 | 4 | Chassis Part Number: A009906042 |
$209.05 | View Part | |
| REMOZZEVOR-1 | 5 | Tank guide
Part Number: A019904656 |
|||
| REMOZZEVOR-1 | 6 | Left side panel chrome Part Number: A057706052 |
$199.81 | View Part | |
| REMOZZEVOR-1 | Left side panel black
Part Number: A05B706052 |
||||
| REMOZZEVOR-1 | Left side panel white Part Number: A05W706052 |
$150.00 | View Part | ||
| REMOZZEVOR-1 | 7 | Bar
Part Number: A059906053 |
|||
| REMOZZEVOR-1 | 8 |
|
Rear tag Part Number: A859904400 |
$54.04 | View Part |
| REMOZZEVOR-1 | 9 |
|
Rear panel chrome Part Number: C01L004255 |
$117.18 | View Part |
| REMOZZEVOR-1 |
|
Rear panel black Part Number: C01B004255 |
$100.00 | View Part | |
| REMOZZEVOR-1 | Rear panel white Part Number: C01W004255 |
$100.00 | View Part | ||
| REMOZZEVOR-1 | 10 | Cover Part Number: A019906050 |
$71.88 | View Part | |
| REMOZZEVOR-1 | 11 |
|
Reservoir cover Part Number: R01L000382 |
$50.60 | View Part |
| REMOZZEVOR-1 | 12 | Right side panel chrome Part Number: A057706051 |
$215.58 | View Part | |
| REMOZZEVOR-1 | Right side panel black
Part Number: A05B706051 |
||||
| REMOZZEVOR-1 | Right side panel white Part Number: A05W706051 |
$150.00 | View Part | ||
| REMOZZEVOR-1 | 13 | Front panel Part Number: A19I004629 |
$86.94 | View Part | |
| REMOZZEVOR-1 | 14 | Front tag
Part Number: A859906121 |
|||

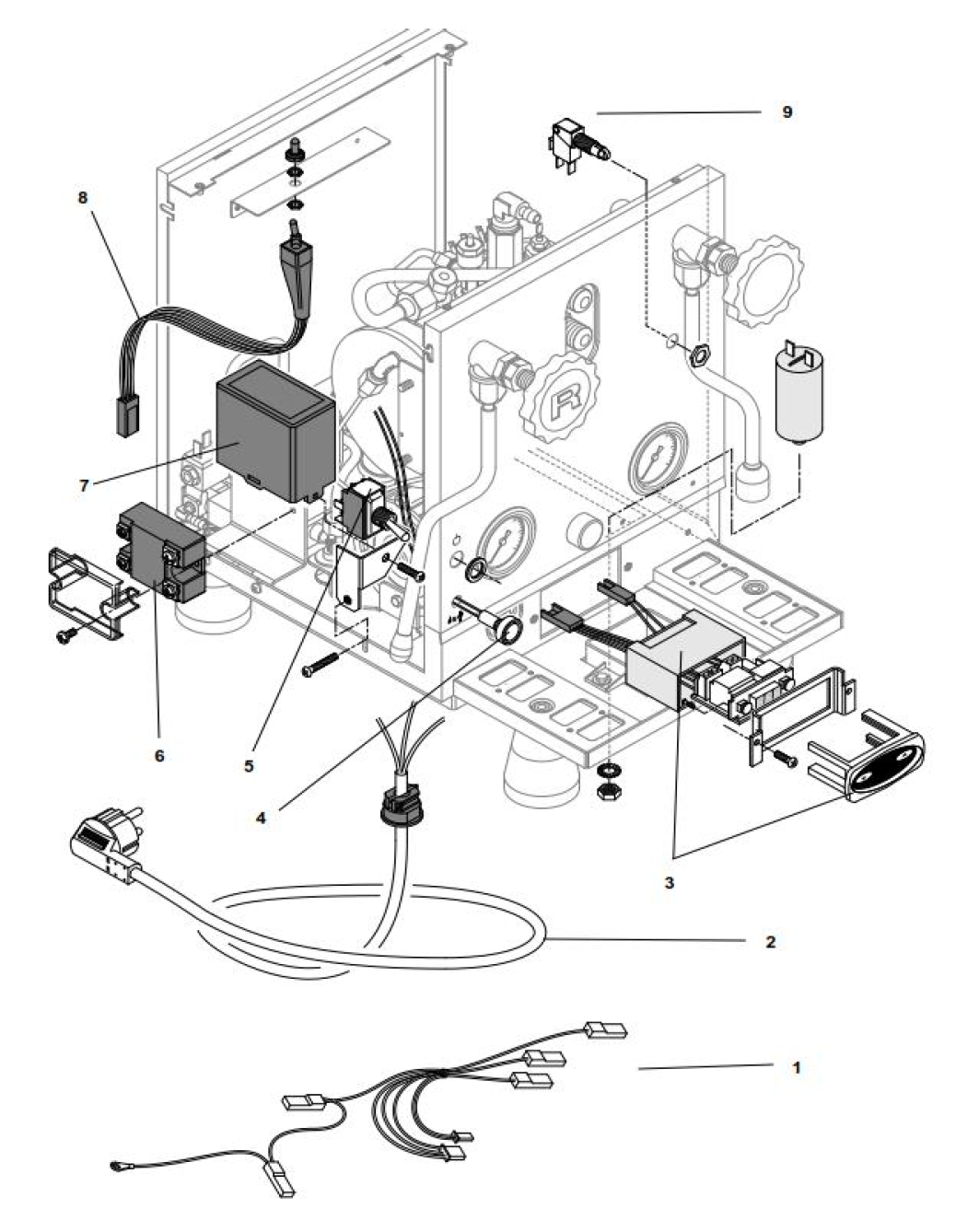

| REMOZZEVOR-2 | 1 | Wiring loom (includes pos. 8)
Part Number: A199906055 |
|||
| REMOZZEVOR-2 | 2 | CE Power cord
Part Number: C199900957 |
|||
| REMOZZEVOR-2 | IS Power cord
Part Number: A199904518 |
||||
| REMOZZEVOR-2 | KR Power cord
Part Number: A199904616 |
||||
| REMOZZEVOR-2 | UL Power cord
Part Number: C199900958 |
||||
| REMOZZEVOR-2 | AUS/NZ Power cord
Part Number: C199901115 |
||||
| REMOZZEVOR-2 | GB Power cord
Part Number: C199901116 |
||||
| REMOZZEVOR-2 | CH Power cord
Part Number: C199901510 |
||||
| REMOZZEVOR-2 | 3 | Thermo-PID V. 230/50
Part Number: A199905505 |
|||
| REMOZZEVOR-2 | Thermo-PID V. 115/60
Part Number: A199905514 |
||||
| REMOZZEVOR-2 | 4 | Green lamp
Part Number: A139904519 |
|||
| REMOZZEVOR-2 | 5 | On-off switch
Part Number: A199906002 |
|||
| REMOZZEVOR-2 | 6 | Rel SSR
Part Number: A190004666 |
|||
| REMOZZEVOR-2 | 7 | Control board V.230-240 /50 - 60 Hz
Part Number: A190004524 |
|||
| REMOZZEVOR-2 | Control board V. 115/60
Part Number: A190004525 |
||||
| REMOZZEVOR-2 | 9 | Microswitch
Part Number: A199905198 |
|||

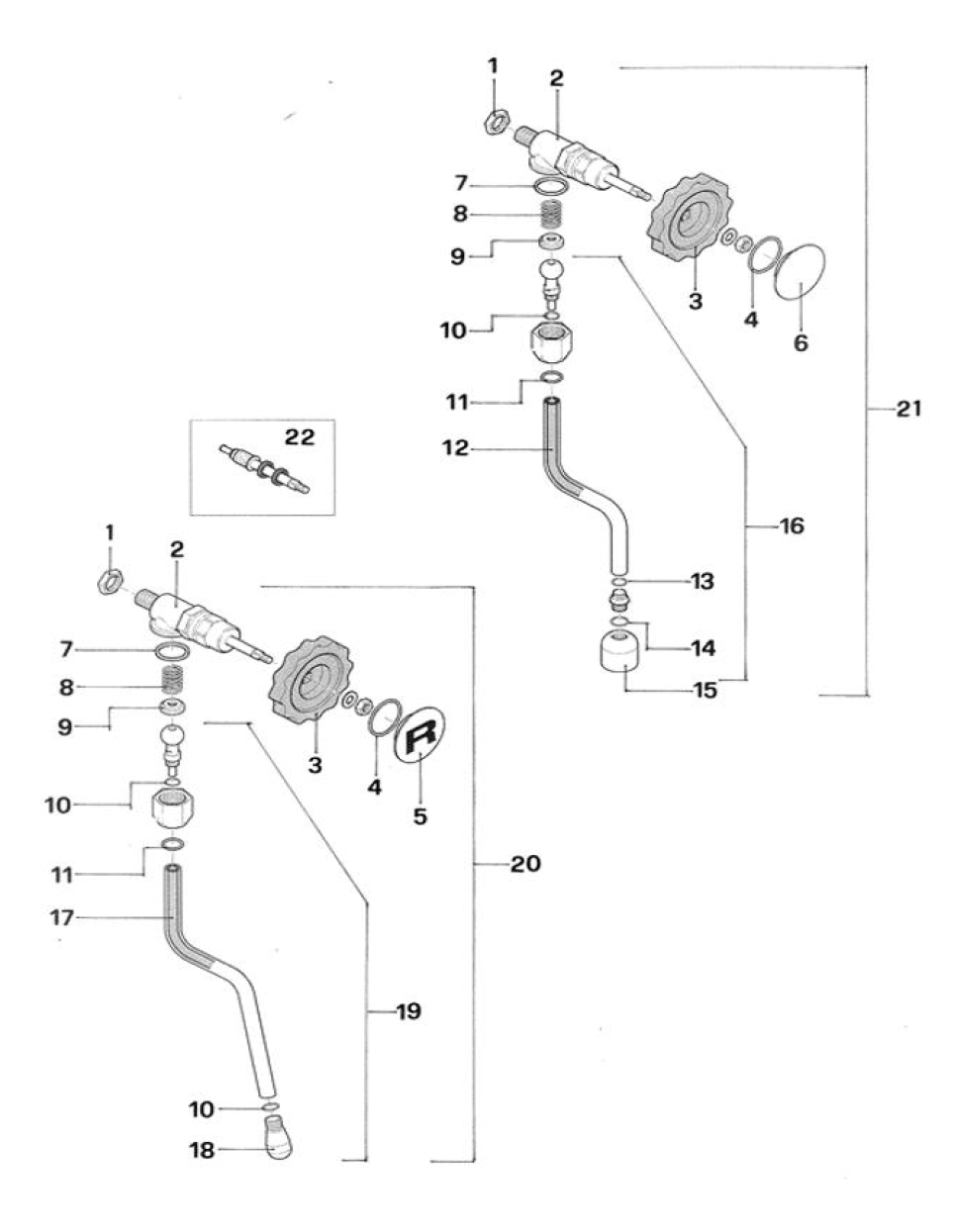

| REMOZZEVOR-3 | 1 | Nut 1/4"
Part Number: A329905087 |
|||
| REMOZZEVOR-3 | 2 | Valve
Part Number: A229905784 |
|||
| REMOZZEVOR-3 | 3 | Handle
Part Number: A639905816 |
|||
| REMOZZEVOR-3 | 4 | O-Ring
Part Number: A449904672 |
|||
| REMOZZEVOR-3 | 5 | "R" cover for steam valve handle
Part Number: A529R04649 |
|||
| REMOZZEVOR-3 | 6 | Cover for hot water handle
Part Number: A527704649 |
|||
| REMOZZEVOR-3 | 7 | Teflon gasket
Part Number: A449904331 |
|||
| REMOZZEVOR-3 | 8 | Spring
Part Number: A209904332 |
|||
| REMOZZEVOR-3 | 9 | Plate
Part Number: A229904333 |
|||
| REMOZZEVOR-3 | 10 | O-Ring
Part Number: C400002022 |
|||
| REMOZZEVOR-3 | 11 | O-Ring
Part Number: A449904334 |
|||
| REMOZZEVOR-3 | 12 | Siliconr pipe 4 x 7
Part Number: C440003449 |
|||
| REMOZZEVOR-3 | 13 | O-Ring
Part Number: C400002022 |
|||
| REMOZZEVOR-3 | 14 | O-Ring
Part Number: C400003008 |
|||
| REMOZZEVOR-3 | 15 | Hot water nozzle
Part Number: C227700536 |
|||
| REMOZZEVOR-3 | 16 | Hot water wand (complete)
Part Number: R290003612 |
|||
| REMOZZEVOR-3 | 17 | Silicone pipe 4 x 7
Part Number: C440003449 |
|||
| REMOZZEVOR-3 | 18 | Steam nozzle 2 holes 1,5
Part Number: C200002839 |
|||
| REMOZZEVOR-3 | 19 | Steam wand (complete)
Part Number: R290003611 |
|||
| REMOZZEVOR-3 | 20 | Steam wand with valve
Part Number: R299906015 |
|||
| REMOZZEVOR-3 | 21 | Hot water wand with valve
Part Number: R299906016 |
|||
| REMOZZEVOR-3 | 22 | Shaft
Part Number: R229905953 |
|||

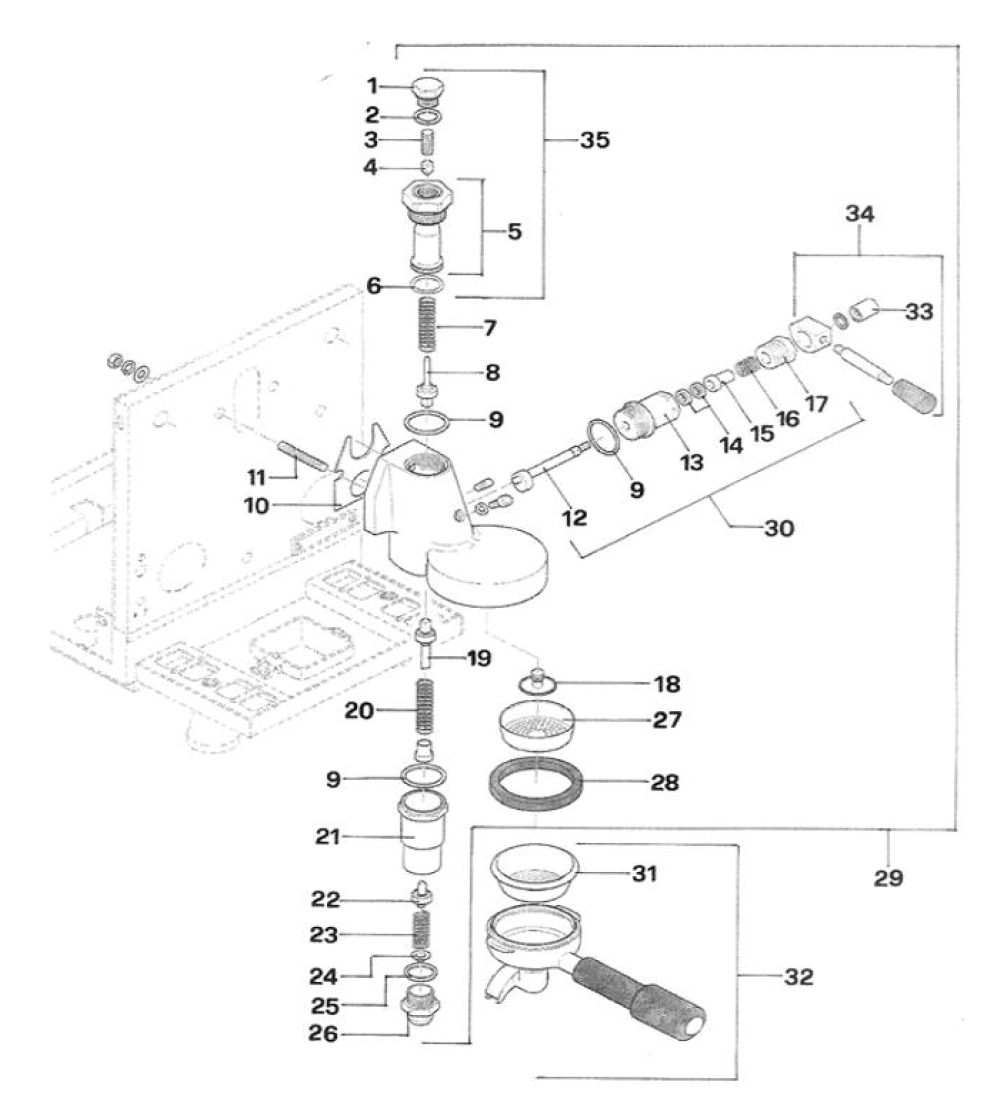

| REMOZZEVOR-4 | 1 | Rounded nut
Part Number: A229904391 |
|||
| REMOZZEVOR-4 | 2 | Gasket
Part Number: C469900420 |
|||
| REMOZZEVOR-4 | 3 | Filter
Part Number: C619900554 |
|||
| REMOZZEVOR-4 | 4 | Restrictor 0,8
Part Number: C229900549 |
|||
| REMOZZEVOR-4 | 6 | Green gasket
Part Number: C469900422 |
|||
| REMOZZEVOR-4 | 7 | Spring
Part Number: R219905890 |
|||
| REMOZZEVOR-4 | 8 | Valve
Part Number: R229905608 |
|||
| REMOZZEVOR-4 | 9 | Teflon gasket
Part Number: C469900421 |
|||
| REMOZZEVOR-4 | 10 | Gasket
Part Number: C449900767 |
|||
| REMOZZEVOR-4 | 11 | Screw
Part Number: A319904599 |
|||
| REMOZZEVOR-4 | 12 | Shaft
Part Number: R229905238 |
|||
| REMOZZEVOR-4 | 13 | Flange
Part Number: R000002142 |
|||
| REMOZZEVOR-4 | 14 | Gasket
Part Number: C219900426 |
|||
| REMOZZEVOR-4 | 15 | Support
Part Number: R000002143 |
|||
| REMOZZEVOR-4 | 16 | Spring
Part Number: C219900427 |
|||
| REMOZZEVOR-4 | 17 | Cover
Part Number: R000002144 |
|||
| REMOZZEVOR-4 | 18 | Diffuser
Part Number: C229901228 |
|||
| REMOZZEVOR-4 | 19 | Valve
Part Number: R229905239 |
|||
| REMOZZEVOR-4 | 20 | Spring
Part Number: R219905890 |
|||
| REMOZZEVOR-4 | 21 | Cylinder
Part Number: C229901165 |
|||
| REMOZZEVOR-4 | 22 | Valve
Part Number: R229905609 |
|||
| REMOZZEVOR-4 | 23 | Spring
Part Number: R299905958 |
|||
| REMOZZEVOR-4 | 24 | Connector
Part Number: R000002148 |
|||
| REMOZZEVOR-4 | 25 | Gasket
Part Number: C469900783 |
|||
| REMOZZEVOR-4 | 26 | Connector
Part Number: R000002149 |
|||
| REMOZZEVOR-4 | 27 | Shower foil
Part Number: C519900103 |
|||
| REMOZZEVOR-4 | 28 | Group gasket
Part Number: C449900229 |
|||
| REMOZZEVOR-4 | 29 | Group complete
Part Number: A229905448 |
|||
| REMOZZEVOR-4 | 30 | Cam kit
Part Number: R299905887 |
|||
| REMOZZEVOR-4 | 31 | 7 g filter basket
Part Number: C610003902 |
|||
| REMOZZEVOR-4 | 14 g filterbasket
Part Number: C610003901 |
||||
| REMOZZEVOR-4 | Backflush cap ("blind filter")
Part Number: C619900106 |
||||
| REMOZZEVOR-4 | 32 | 1 cup filter holder with basket
Part Number: A699905020 |
|||
| REMOZZEVOR-4 | 2 cups filter holder with basket
Part Number: A699905021 |
||||
| REMOZZEVOR-4 | 33 | Pin
Part Number: R000002146 |
|||
| REMOZZEVOR-4 | 34 | Lever assembly
Part Number: R299905888 |
|||
| REMOZZEVOR-4 | 35 | Ceramic group shaft
Part Number: RA99905814 |
|||

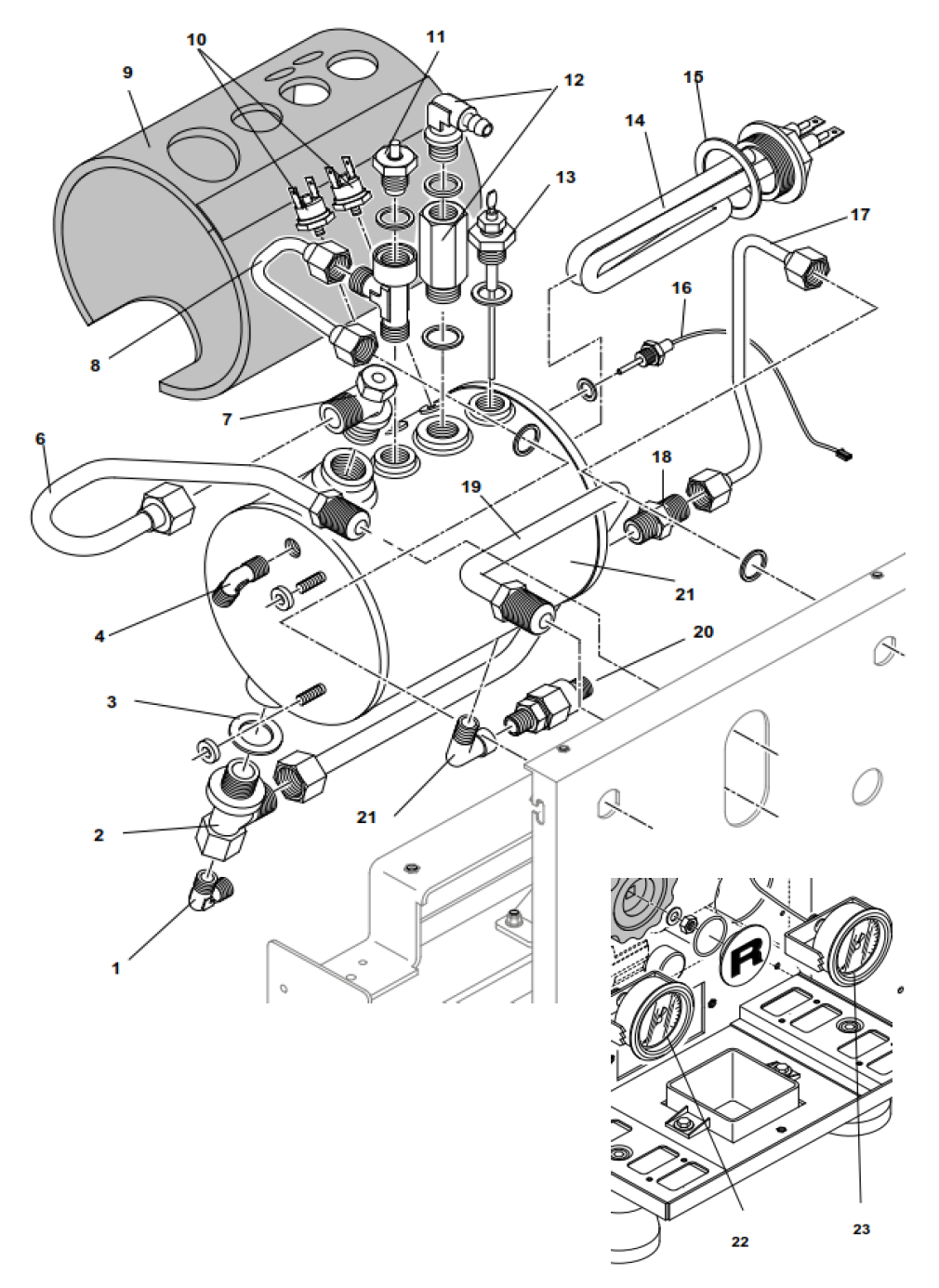

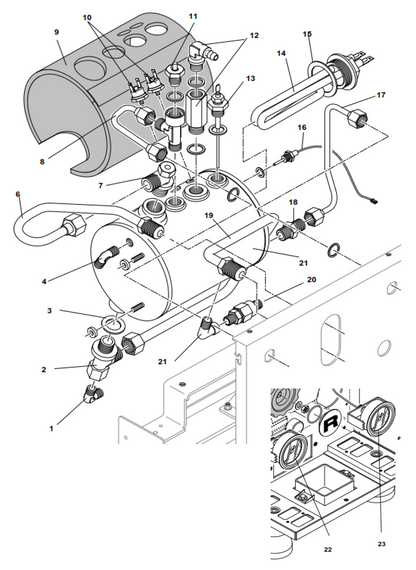

| REMOZZEVOR-5 | 1 | Injector 110 mm
Part Number: C229900393 |
|||
| REMOZZEVOR-5 | 2 | Connector
Part Number: C229900740 |
|||
| REMOZZEVOR-5 | 3 | Copper gasket
Part Number: C479900673 |
|||
| REMOZZEVOR-5 | 4 | Connector
Part Number: A229904355 |
|||
| REMOZZEVOR-5 | 6 | Inlet pipe
Part Number: A279905173 |
|||
| REMOZZEVOR-5 | 7 | Connector
Part Number: A229904957 |
|||
| REMOZZEVOR-5 | 8 | Steam pipe
Part Number: A279904290 |
|||
| REMOZZEVOR-5 | 9 | Boiler insulation
Part Number: A499905058 |
|||
| REMOZZEVOR-5 | 10 | Thermostat 135C
Part Number: C199901550 |
|||
| REMOZZEVOR-5 | 11 | Vacuum breaker valve
Part Number: A219905510 |
|||
| REMOZZEVOR-5 | 12 | Safety valve
Part Number: A299904998 |
|||
| REMOZZEVOR-5 | 13 | Boiler level probe
Part Number: C199900839 |
|||
| REMOZZEVOR-5 | 14 | Heating element V. 230
Part Number: C199901551 |
|||
| REMOZZEVOR-5 | Heating element V.1115
Part Number: C199901552 |
||||
| REMOZZEVOR-5 | 15 | Heating element gasket
Part Number: C469900239 |
|||
| REMOZZEVOR-5 | 16 | NTC probe
Part Number: A119905081 |
|||
| REMOZZEVOR-5 | 17 | Water pipe
Part Number: A229905097 |
|||
| REMOZZEVOR-5 | 18 | Connector
Part Number: C229900520 |
|||
| REMOZZEVOR-5 | 19 | Return pipe
Part Number: A279904289 |
|||
| REMOZZEVOR-5 | 20 | Non return valve
Part Number: C229900540 |
|||
| REMOZZEVOR-5 | 21 | Boiler
Part Number: A277704278 |
|||
| REMOZZEVOR-5 | 22 | Boiler pressure gauge with capillary pipe
Part Number: A299905009 |
|||
| REMOZZEVOR-5 | 23 | Pump pressure gauge with capillary pipe
Part Number: A299905010 |
|||

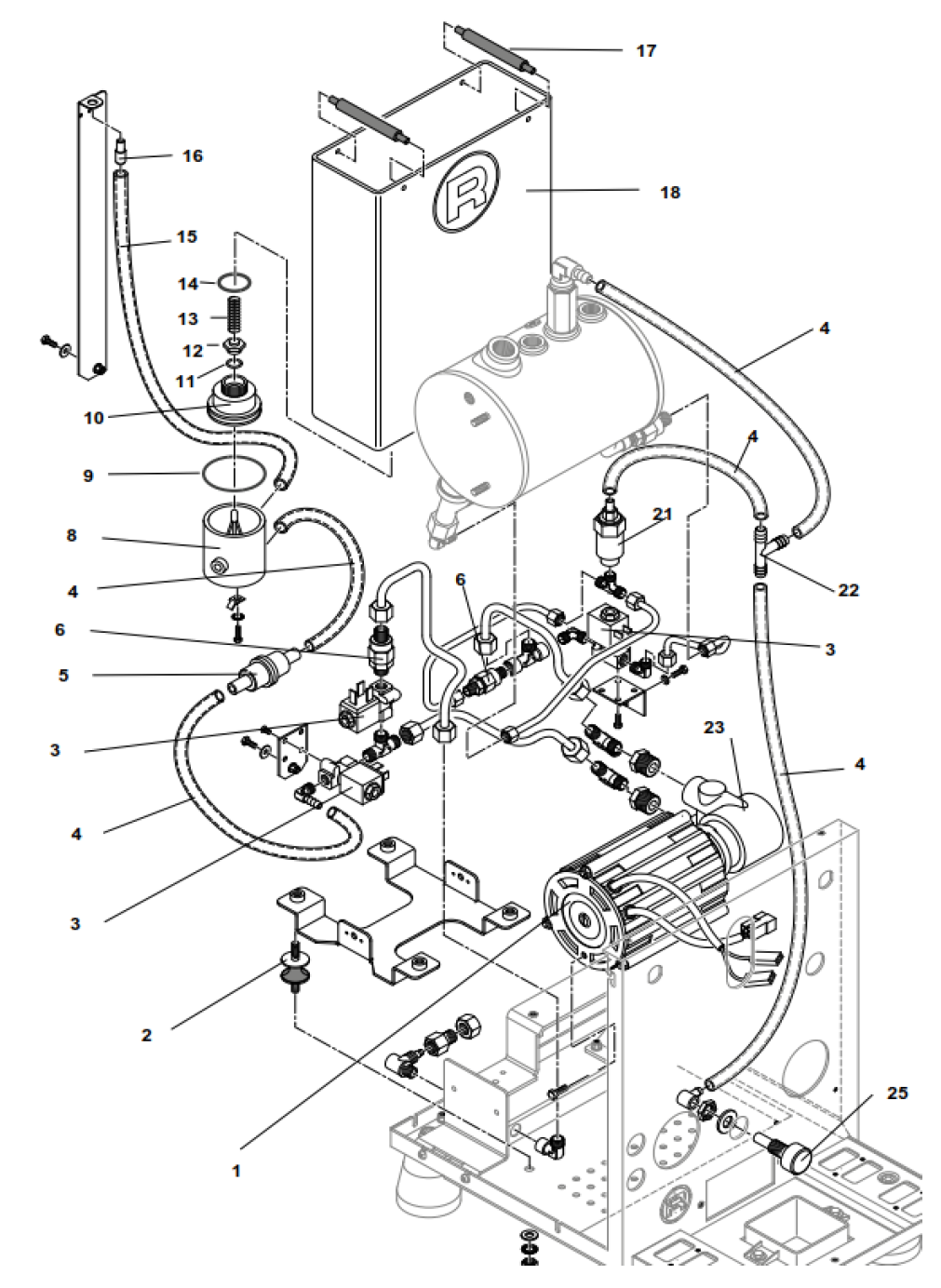

| REMOZZEVOR-6 | 1 | Pump motor V. 220-230-240
Part Number: A199904493 |
|||
| REMOZZEVOR-6 | Pump motor V. 110-115
Part Number: A199904494 |
||||
| REMOZZEVOR-6 | 2 | Anti-vibration absorber
Part Number: A499904364 |
|||
| REMOZZEVOR-6 | 3 | Solenoid valve V. 230
Part Number: C190004066 |
|||
| REMOZZEVOR-6 | Solenoid valve V.115
Part Number: C190004067 |
||||
| REMOZZEVOR-6 | 4 | Silicone pipe 5x8
Part Number: C499900769 |
|||
| REMOZZEVOR-6 | 5 | Filter
Part Number: C439900695 |
|||
| REMOZZEVOR-6 | 6 | Non return valve
Part Number: C229900540 |
|||
| REMOZZEVOR-6 | 8 | Manifold
Part Number: A439905148 |
|||
| REMOZZEVOR-6 | 9 | O-ring
Part Number: A449904547 |
|||
| REMOZZEVOR-6 | 10 | Coupling
Part Number: A439905146 |
|||
| REMOZZEVOR-6 | 11 | O-ring
Part Number: C449900702 |
|||
| REMOZZEVOR-6 | 12 | Connector
Part Number: C430003482 |
|||
| REMOZZEVOR-6 | 13 | Spring
Part Number: C019900711 |
|||
| REMOZZEVOR-6 | 14 | O-ring
Part Number: A449905151 |
|||
| REMOZZEVOR-6 | 15 | Silicone pipe 6x9
Part Number: C260003822 |
|||
| REMOZZEVOR-6 | 16 | Non return connector
Part Number: C220003818 |
|||
| REMOZZEVOR-6 | 17 | Water reservoir handle
Part Number: A639904956 |
|||
| REMOZZEVOR-6 | 18 | Water tank complete (18+9+10+11+12+13+14)
Part Number: R899905144 |
|||
| REMOZZEVOR-6 | 21 | Expansion valve
Part Number: C229900911 |
|||
| REMOZZEVOR-6 | 22 | Plastic connector
Part Number: C400002827 |
|||
| REMOZZEVOR-6 | 23 | Rotary pump
Part Number: A299904495 |
|||
| REMOZZEVOR-6 | 25 | Connector
Part Number: A227704363 |
