Rocket Espresso Porta Via Part Diagram REPORTVIA
This is the Rocket Espresso Porta Via Part Diagram REPORTVIA. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

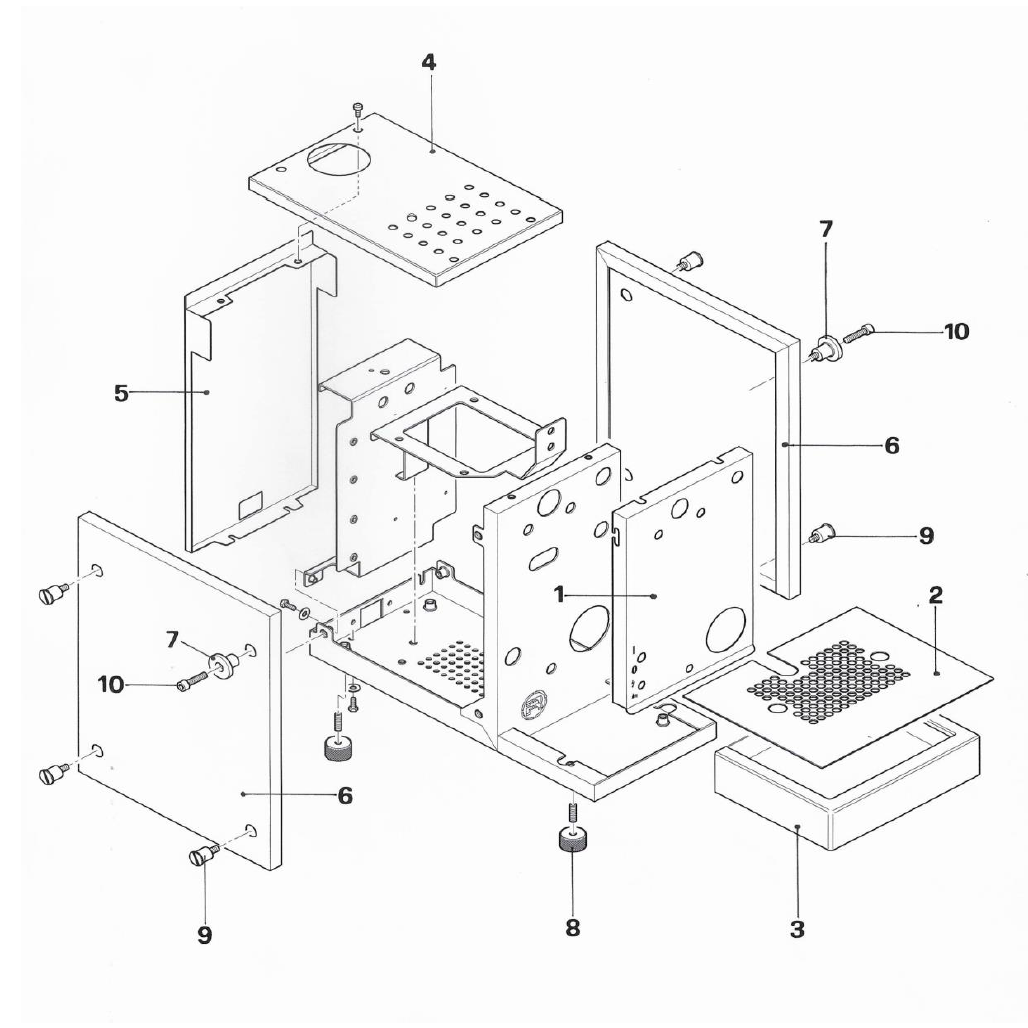

| REPORTVIA-1 | 1 | Front panel
Part Number: A01I006147 |
|||
| REPORTVIA-1 | 2 | Grid
Part Number: A019906257 |
|||
| REPORTVIA-1 | 3 | Drip tray
Part Number: A019906150 |
|||
| REPORTVIA-1 | 4 | Cups frame
Part Number: A019906148 |
|||
| REPORTVIA-1 | 5 | Back panel
Part Number: A019906152 |
|||
| REPORTVIA-1 | 6 |
|
Lateral panel Part Number: A019906153 |
$79.99 | View Part |
| REPORTVIA-1 | 7 | Side panel fixing nut
Part Number: A529906170 |
|||
| REPORTVIA-1 | 8 | Anti-vibration 25X15-M6FF
Part Number: A849906258 |
|||
| REPORTVIA-1 | 9 | Side panel screw
Part Number: A519906341 |
|||
| REPORTVIA-1 | 10 | Allen screw
Part Number: A319906278 |
|||

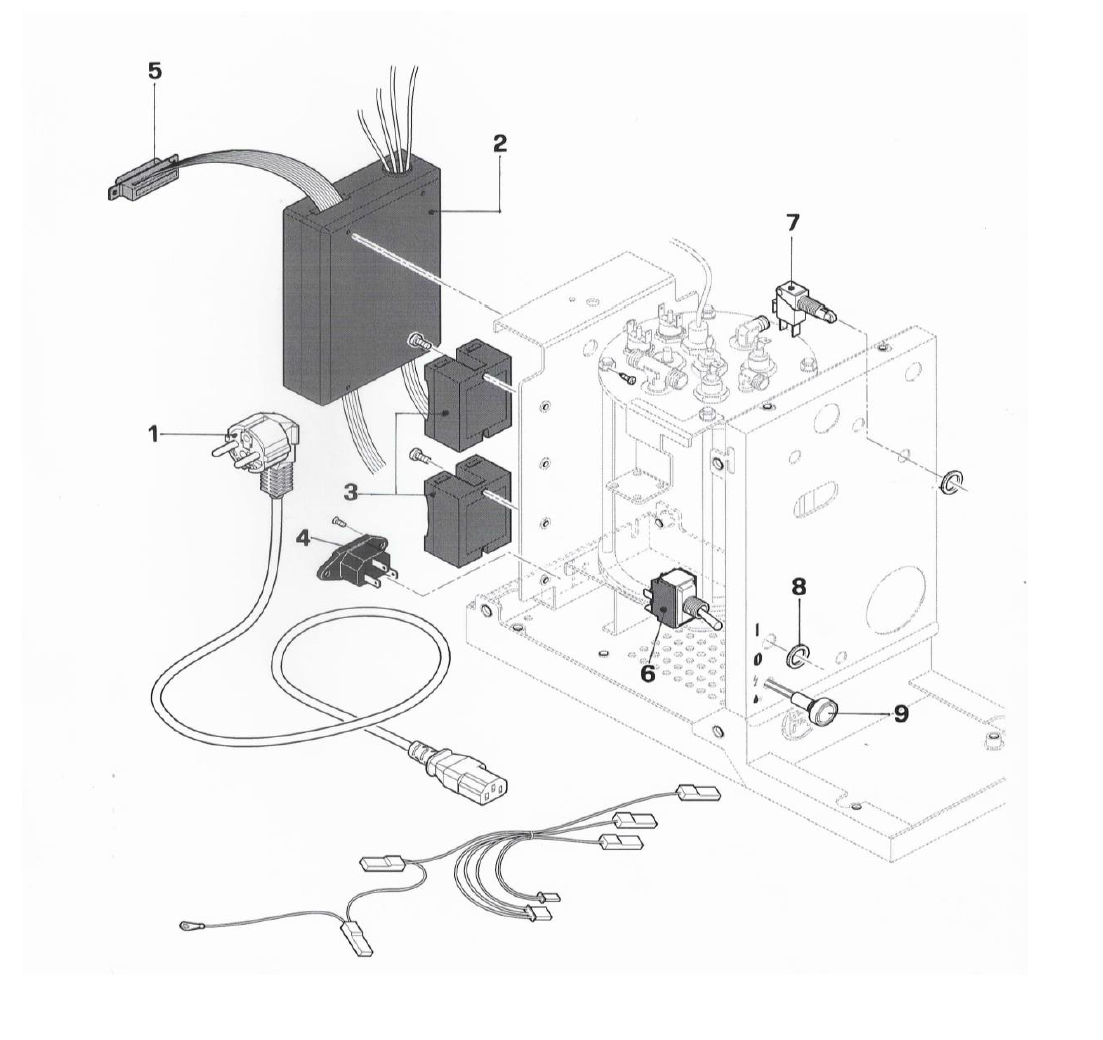

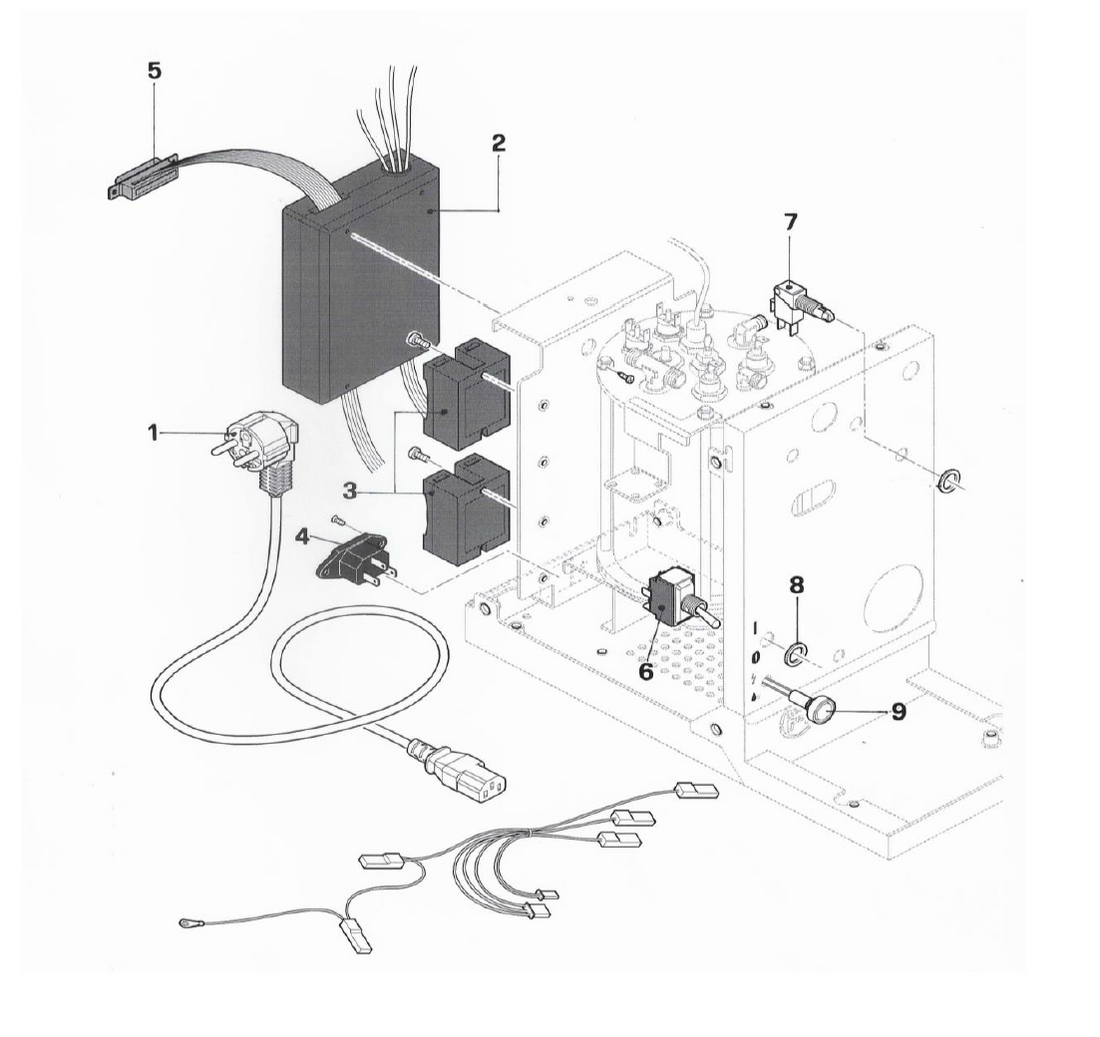

| REPORTVIA-2 | 1 | Cable IEC- CE
Part Number: A199906271 |
|||
| REPORTVIA-2 | Cable IEC- GB
Part Number: A199906272 |
||||
| REPORTVIA-2 | Cable IEC- AUS/NZ
Part Number: A199906273 |
||||
| REPORTVIA-2 | Cable IEC- KC
Part Number: A199906274 |
||||
| REPORTVIA-2 | Cable IEC- USA
Part Number: A199906275 |
||||
| REPORTVIA-2 | 2 | Control board V230-240
Part Number: A199906268 |
|||
| REPORTVIA-2 | 3 | Reley with cover Part Number: A190004666 |
$51.20 | View Part | |
| REPORTVIA-2 | 4 | Power cable connector
Part Number: A199906252 |
|||
| REPORTVIA-2 | 5 | Display cable
Part Number: A199906485 |
|||
| REPORTVIA-2 | 6 | On/off switch Part Number: A199906002 |
$25.00 | View Part | |
| REPORTVIA-2 | 7 | Microswitch
Part Number: A199905198 |
|||
| REPORTVIA-2 | 8 | Ring nut
Part Number: A527704305 |
|||
| REPORTVIA-2 | 9 | Control light appartamento V115/250 UL
Part Number: A199905886 |
|||

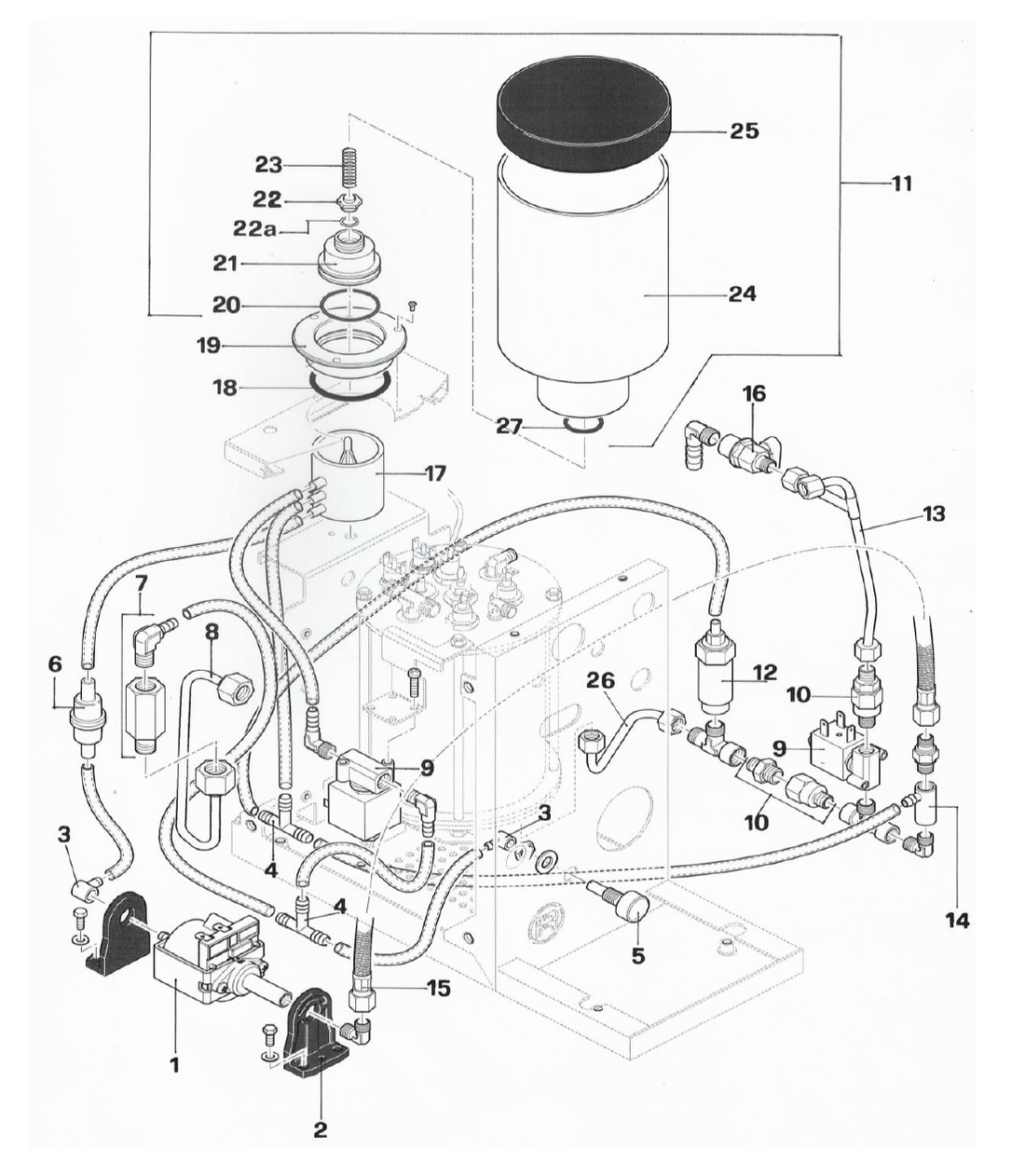

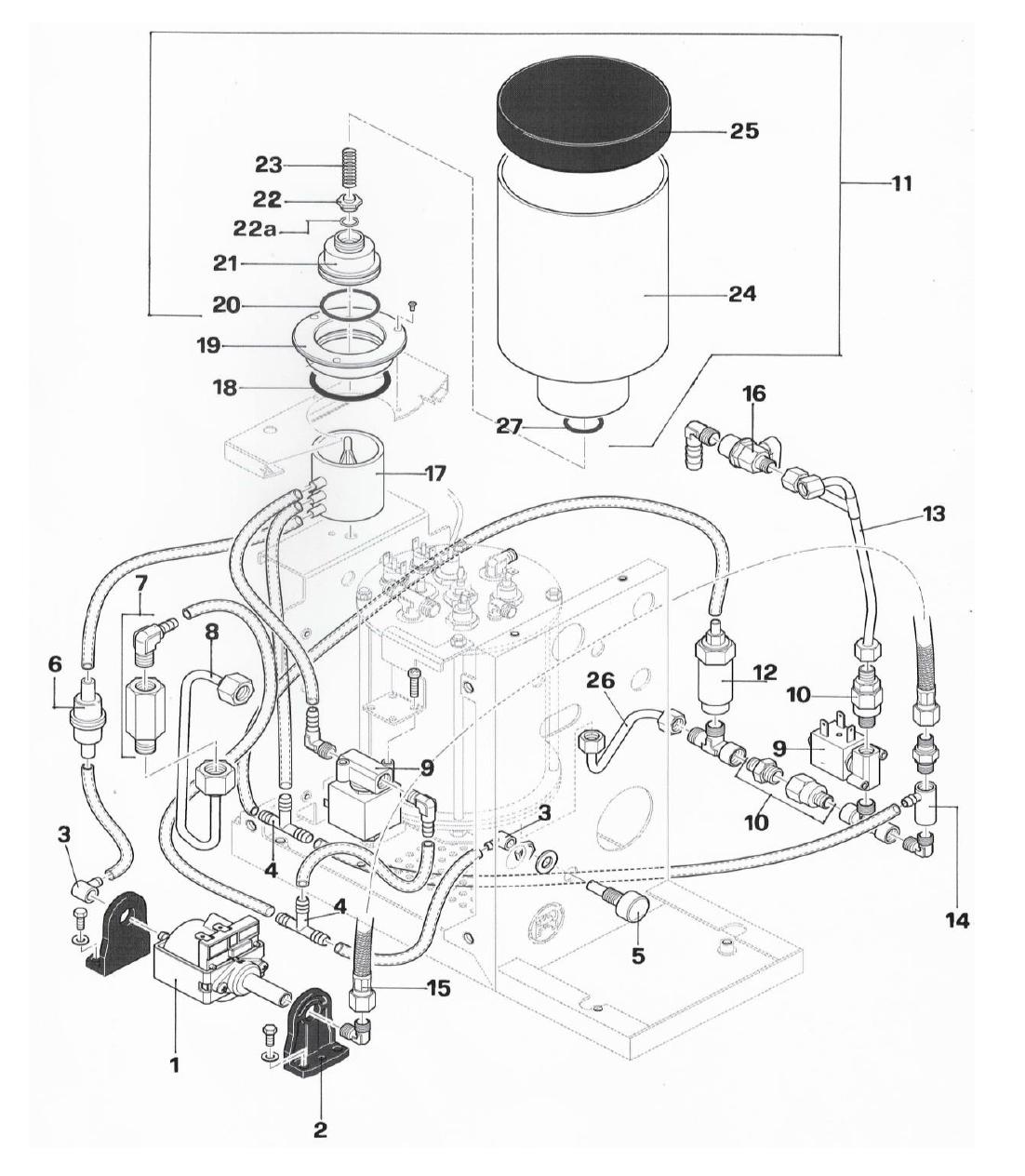

| REPORTVIA-3 | 1 | Vibration pump 230/50 Hz
Part Number: C199900280 |
|||
| REPORTVIA-3 | Vibration pump 115/60 Hz
Part Number: C199900281 |
||||
| REPORTVIA-3 | 2 | Vibration pump support
Part Number: A849906070 |
|||
| REPORTVIA-3 | 3 | Rubber connector
Part Number: C449900709 |
|||
| REPORTVIA-3 | 4 | Rubber connector T
Part Number: C400002827 |
|||
| REPORTVIA-3 | 5 | Expansion output
Part Number: A227704363 |
|||
| REPORTVIA-3 | 6 | Suction filter
Part Number: C439900695 |
|||
| REPORTVIA-3 | 7 | Security valve
Part Number: A299904998 |
|||
| REPORTVIA-3 | 8 | Safety valve pipe
Part Number: A279906263 |
|||
| REPORTVIA-3 | 9 | Solenoid valve V230/50 Hz
Part Number: C190004066 |
|||
| REPORTVIA-3 | Solenoid valve v115/60 Hz
Part Number: C190004067 |
||||
| REPORTVIA-3 | 10 | Non return valve
Part Number: C229900540 |
|||
| REPORTVIA-3 | 12 | Expansion valve
Part Number: C229900911 |
|||
| REPORTVIA-3 | 13 | Boiler fill pipe
Part Number: A279906267 |
|||
| REPORTVIA-3 | 14 | Valve
Part Number: C200002112 |
|||
| REPORTVIA-3 | 15 | Pump pipe type Porta Via
Part Number: A299906088 |
|||
| REPORTVIA-3 | 16 | Tap drain
Part Number: A299904994 |
|||
| REPORTVIA-3 | 17 | Tank collector
Part Number: R839906557 |
|||
| REPORTVIA-3 | 18 | OR Manifold ring
Part Number: A449906259 |
|||
| REPORTVIA-3 | 19 | Tank manifold ring
Part Number: A529906144 |
|||
| REPORTVIA-3 | 20 | Lower tank OR
Part Number: A449904547 |
|||
| REPORTVIA-3 | 21 | Coupling
Part Number: A439905146 |
|||
| REPORTVIA-3 | 22 | Water tank connector
Part Number: C430003482 |
|||
| REPORTVIA-3 | 22A | Tank valve OR
Part Number: C449900702 |
|||
| REPORTVIA-3 | 23 | Water tank spring
Part Number: C019900711 |
|||
| REPORTVIA-3 | 24 | Water tank
Part Number: A219906146 |
|||
| REPORTVIA-3 | 25 | Cover tank
Part Number: A539906176 |
|||
| REPORTVIA-3 | 26 | Coffee boiler feed pipe
Part Number: A279906266 |
|||
| REPORTVIA-3 | 27 | OR 4187 Manifold ring
Part Number: A449906259 |
|||

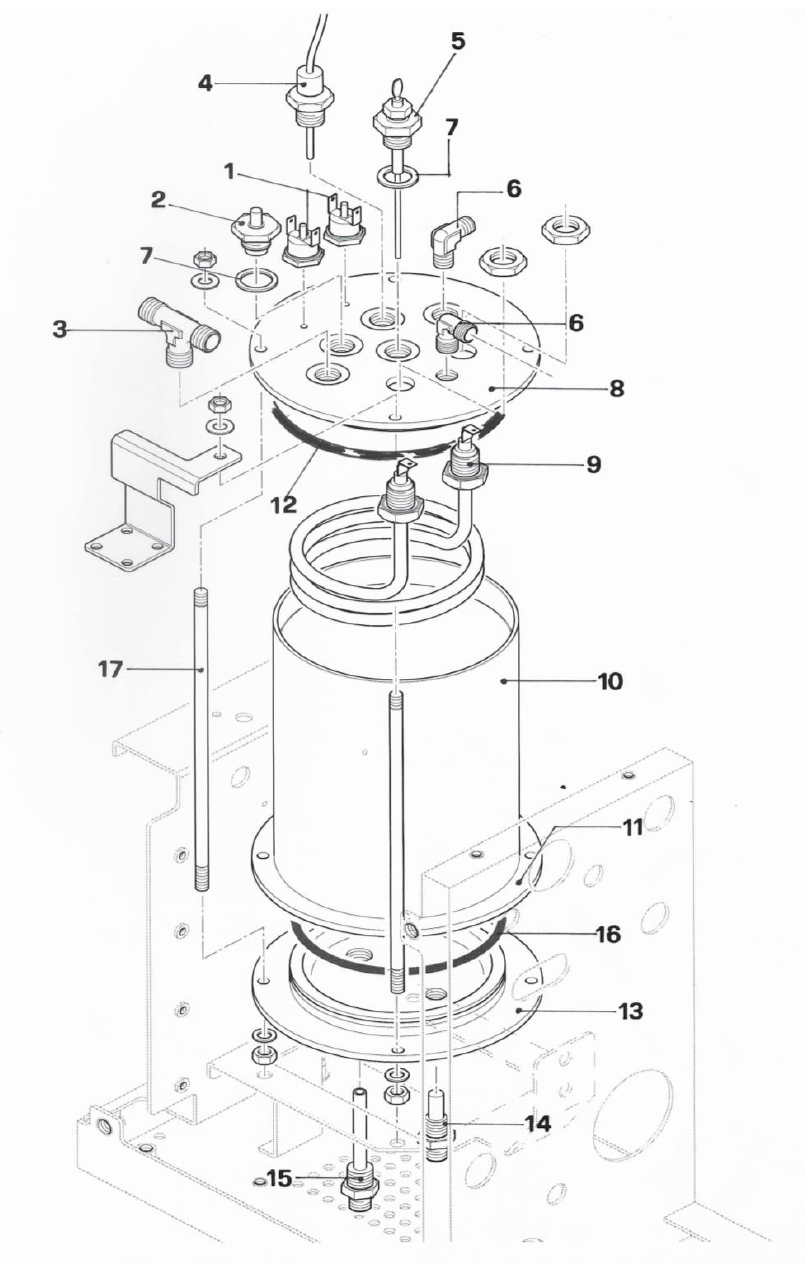

| REPORTVIA-4 | 1 | Safety thermostat 135 C
Part Number: C199901550 |
|||
| REPORTVIA-4 | 2 | Vacuum breaker valve 1/4 inox
Part Number: A219905510 |
|||
| REPORTVIA-4 | 3 | Connection T MMM 1/4
Part Number: M229905351 |
|||
| REPORTVIA-4 | 4 | Probe NTC
Part Number: A119905081 |
|||
| REPORTVIA-4 | 5 | Probe L80
Part Number: C199900839 |
|||
| REPORTVIA-4 | 6 | Connection L MM 1/8
Part Number: A229904355 |
|||
| REPORTVIA-4 | 7 | Teflon gasket 1/4
Part Number: A269904417 |
|||
| REPORTVIA-4 | 8 | Steam boiler end plate
Part Number: A229906138 |
|||
| REPORTVIA-4 | 9 | Heating element V230/1100 W
Part Number: A119906136 |
|||
| REPORTVIA-4 | Heating element V115/1000 W
Part Number: A119906137 |
||||
| REPORTVIA-4 | 10 | Boiler body
Part Number: A219906139 |
|||
| REPORTVIA-4 | 11 | Boiler
Part Number: A229906140 |
|||
| REPORTVIA-4 | 12 | OR 4412 Boiler flange
Part Number: A449906261 |
|||
| REPORTVIA-4 | 13 | Coffee boiler end plate
Part Number: A229906141 |
|||
| REPORTVIA-4 | 14 | Injection pipe brew boiler
Part Number: A229906249 |
|||
| REPORTVIA-4 | 15 | Coffee boiler pipe
Part Number: A279906250 |
|||
| REPORTVIA-4 | 16 | Coffee boiler flange
Part Number: A449906262 |
|||
| REPORTVIA-4 | 17 | Boiler fixing
Part Number: A219906142 |
|||

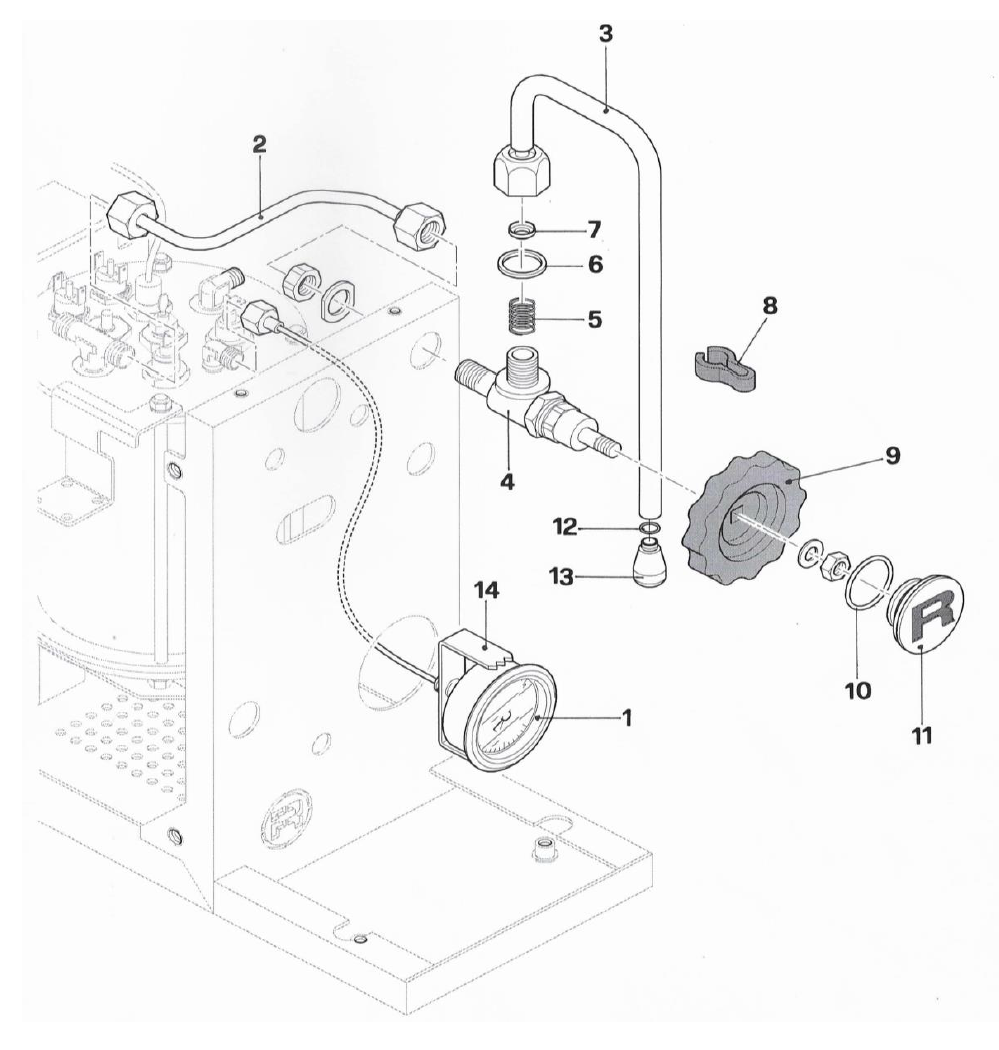

| REPORTVIA-5 | 1 | Boiler gauge plus
Part Number: A299904632 |
|||
| REPORTVIA-5 | 2 | Steam pipe
Part Number: A279906265 |
|||
| REPORTVIA-5 | 3 | Steam wand joint
Part Number: A219906168 |
|||
| REPORTVIA-5 | 4 | Steam tap
Part Number: A229906260 |
|||
| REPORTVIA-5 | 5 | Steam/hot water wand nut spring
Part Number: A209904332 |
|||
| REPORTVIA-5 | 6 | Steam/hot water valve 3/8 teflon gasket
Part Number: A449904331 |
|||
| REPORTVIA-5 | 7 | Plate
Part Number: A229904333 |
|||
| REPORTVIA-5 | 8 | No burn cup
Part Number: A639905074 |
|||
| REPORTVIA-5 | 9 | Handle
Part Number: A639905816 |
|||
| REPORTVIA-5 | 10 | Or Ring cover/handle
Part Number: A449904672 |
|||
| REPORTVIA-5 | 11 | Steam knob
Part Number: A529R04649 |
|||
| REPORTVIA-5 | 12 | Steam wand O-Ring
Part Number: C400002022 |
|||
| REPORTVIA-5 | 13 | Steam nozzle
Part Number: C200002839 |
|||
| REPORTVIA-5 | 14 | Gauge bracket
Part Number: A019904843 |
|||

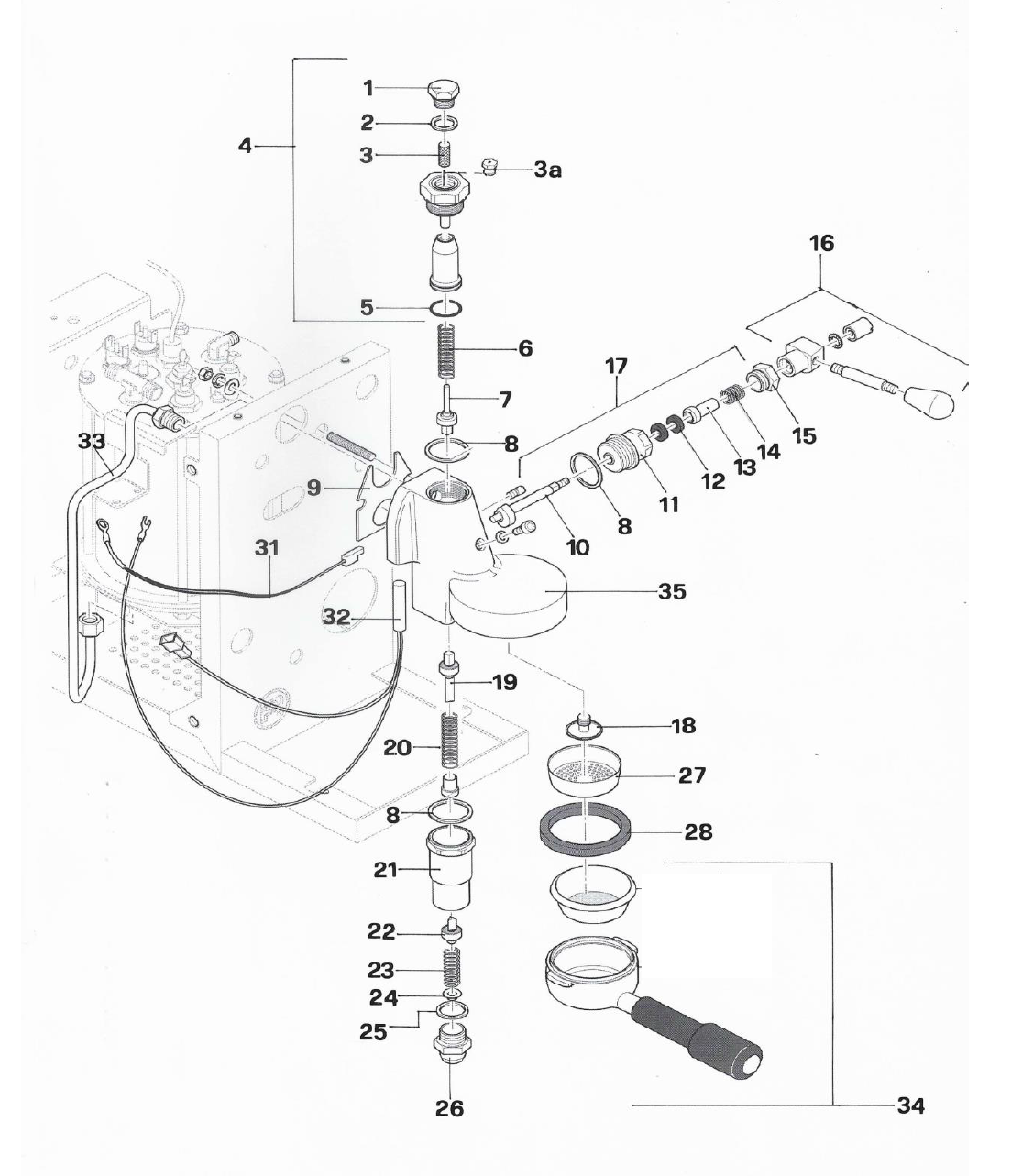

| REPORTVIA-6 | 1 | Group cover
Part Number: A229904391 |
|||
| REPORTVIA-6 | 2 | Gasket
Part Number: C469900420 |
|||
| REPORTVIA-6 | 3 | Filter
Part Number: C619900554 |
|||
| REPORTVIA-6 | 3A | Gigleur 0,7
Part Number: R619906596 |
|||
| REPORTVIA-6 | 4 | Ceramic group shaft
Part Number: RA99905814 |
|||
| REPORTVIA-6 | 5 | Ceramic group shaft gasket
Part Number: C469900422 |
|||
| REPORTVIA-6 | 6 | Dispensing spring
Part Number: R219905890 |
|||
| REPORTVIA-6 | 7 | Group valve T/C
Part Number: R229905608 |
|||
| REPORTVIA-6 | 8 | Teflon group gasket
Part Number: C469900421 |
|||
| REPORTVIA-6 | 9 | Gaasket
Part Number: C449900767 |
|||
| REPORTVIA-6 | 10 | Cam shaft T/C
Part Number: R229905238 |
|||
| REPORTVIA-6 | 11 | Cam housing
Part Number: R000002142 |
|||
| REPORTVIA-6 | 12 | Gasket
Part Number: C219900426 |
|||
| REPORTVIA-6 | 13 | Support
Part Number: R000002143 |
|||
| REPORTVIA-6 | 14 | Spring
Part Number: C219900427 |
|||
| REPORTVIA-6 | 15 | Cam housing cover
Part Number: R000002144 |
|||
| REPORTVIA-6 | 16 | Lever assembly T/C
Part Number: R299905888 |
|||
| REPORTVIA-6 | 17 | Cam kit
Part Number: R299905887 |
|||
| REPORTVIA-6 | 18 | Group diffuser
Part Number: C229901228 |
|||
| REPORTVIA-6 | 19 | Group infusion valve T/C
Part Number: R229905239 |
|||
| REPORTVIA-6 | 20 |
Part Number: R219905890 |
|||
| REPORTVIA-6 | 21 | Cylinder
Part Number: C229901165 |
|||
| REPORTVIA-6 | 22 | Low drain valve T/C
Part Number: R229905609 |
|||
| REPORTVIA-6 | 23 | Spring
Part Number: R299905958 |
|||
| REPORTVIA-6 | 24 | Connector
Part Number: R000002148 |
|||
| REPORTVIA-6 | 25 | Teflon gasket
Part Number: C469900783 |
|||
| REPORTVIA-6 | 26 | Connector
Part Number: R000002149 |
|||
| REPORTVIA-6 | 27 | Shower foil
Part Number: C519900103 |
|||
| REPORTVIA-6 | 28 | Group gasket
Part Number: C449900229 |
|||
| REPORTVIA-6 | 29 | 7 gram filter basket
Part Number: C610003902 |
|||
| REPORTVIA-6 | 14 gram filter basket
Part Number: C610003901 |
||||
| REPORTVIA-6 | 31 | Temperature probe
Part Number: A199906255 |
|||
| REPORTVIA-6 | 32 | Group heating element V230/200 W
Part Number: A199906253 |
|||
| REPORTVIA-6 | Group heating element V115/200 W
Part Number: A199906254 |
||||
| REPORTVIA-6 | 33 | Pipe from coffee boiler to group
Part Number: A279906264 |
|||
| REPORTVIA-6 | 34 | Portafilter bottomless
Part Number: RA99905022 |
|||

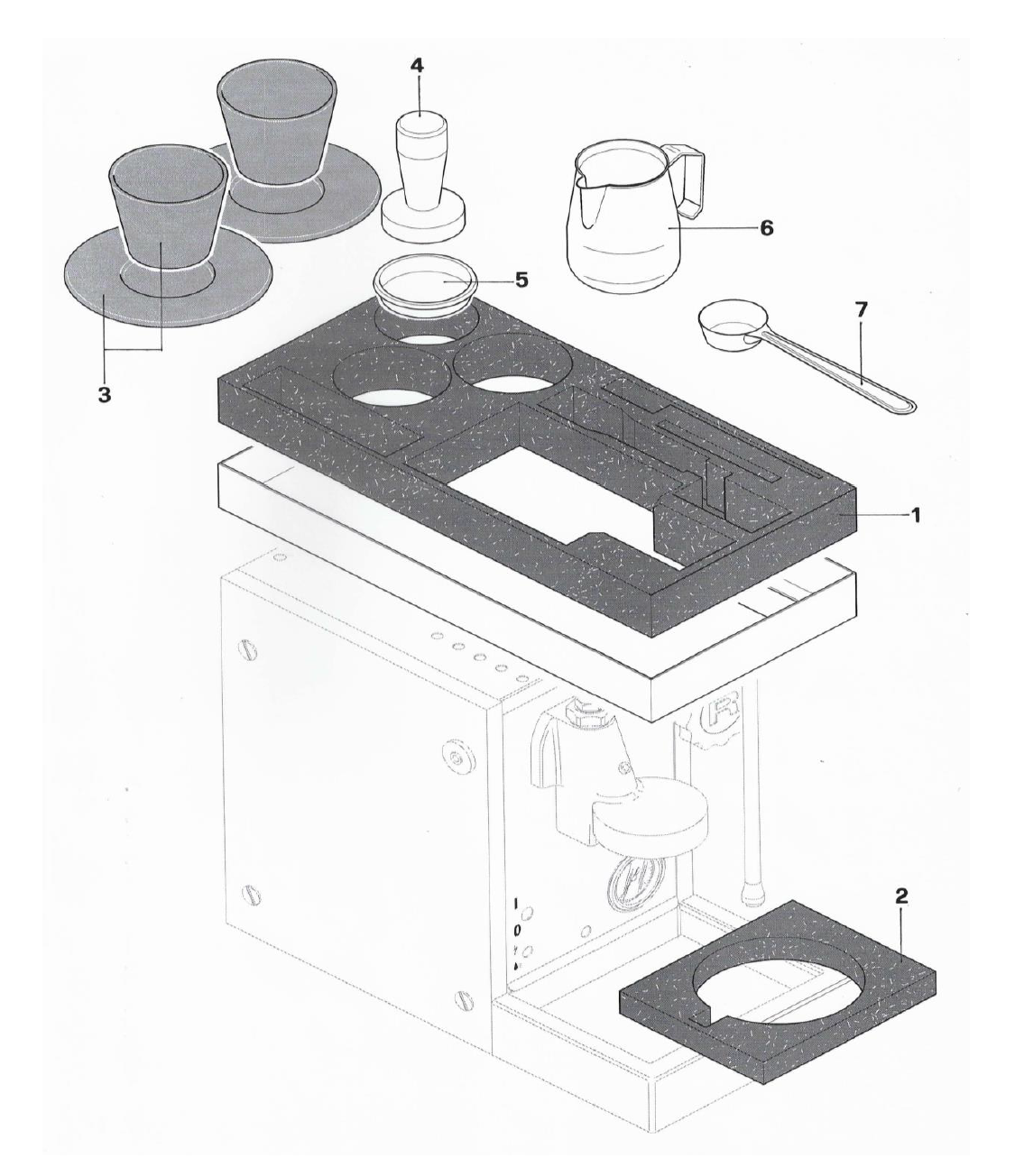

| REPORTVIA-7 | 1 | Internal parts accessory box
Part Number: A659906350 |
|||
| REPORTVIA-7 | 2 | Cover insert
Part Number: A659906481 |
|||
| REPORTVIA-7 | 3 | Cup with saucer
Part Number: A699906449 |
|||
| REPORTVIA-7 | 4 | Tamper
Part Number: A999904594 |
|||
| REPORTVIA-7 | 5 | Blind filter
Part Number: C619900106 |
|||
| REPORTVIA-7 | 6 | 35 ml milk jug
Part Number: A699905513 |
|||
| REPORTVIA-7 | 7 | Portion spoon
Part Number: A619906279 |
|||

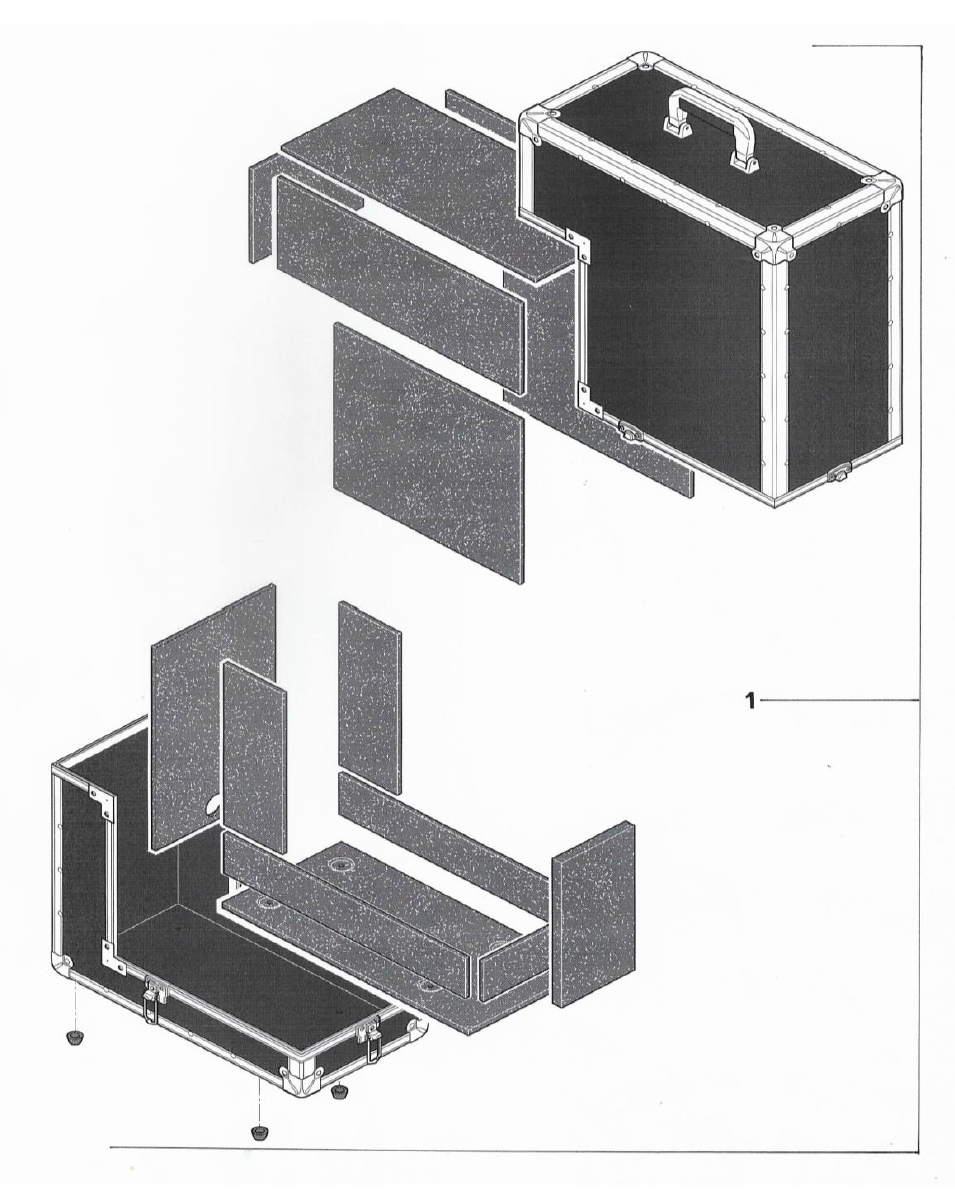

| REPORTVIA-8 | 1 | Complete suitcase with internal
parts
Part Number: A659906281 |
