Rocket Espresso R Cinquantotto Part Diagram RECINQ
This is the Rocket Espresso R Cinquantotto Part Diagram RECINQ. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
-
-
-
-
-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|

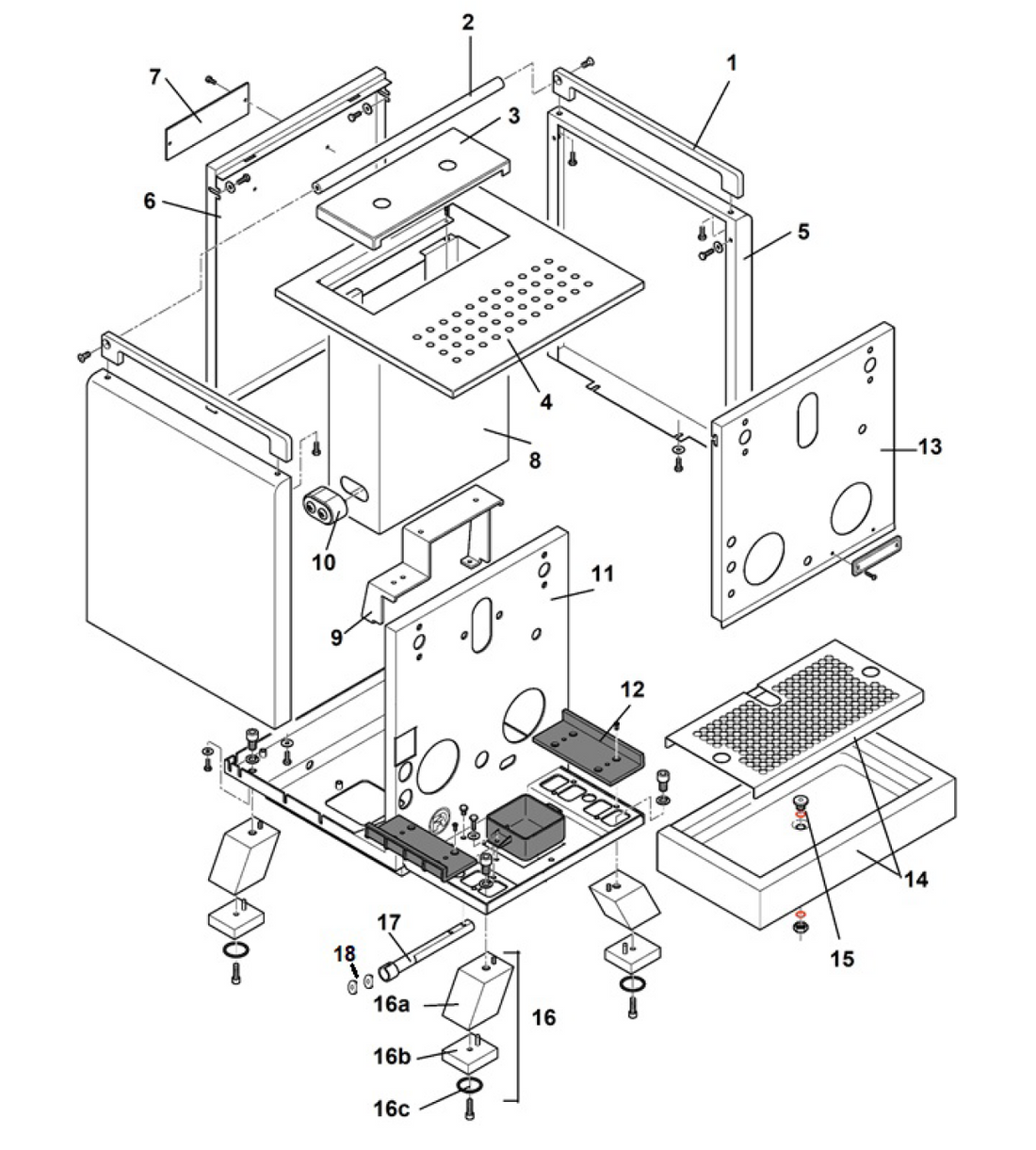

| RECINQ-1 | 1 | Cups frame
Part Number: A619906932 |
|||
| RECINQ-1 | Cups frame engraved
Part Number: A61I006932 |
||||
| RECINQ-1 | 2 | Cups frame rod
Part Number: A059906933 |
|||
| RECINQ-1 | 3 | Tank cover
Part Number: C01L000382 |
|||
| RECINQ-1 | 4 | Cups warmers
Part Number: A019906929 |
|||
| RECINQ-1 | 5 | Lateral panel Part Number: A019906927 |
$269.29 | View Part | |
| RECINQ-1 | 6 | Back panel
Part Number: A0199906928 |
|||
| RECINQ-1 | 7 |
|
Back rocket lable Part Number: A859904400 |
$54.04 | View Part |
| RECINQ-1 | 8 | Tank guide
Part Number: A019904656 |
|||
| RECINQ-1 | 9 | Tank guide bracket Part Number: A019906937 |
$24.80 | View Part | |
| RECINQ-1 | 10 | Water control system
Part Number: R839907128 |
|||
| RECINQ-1 | 11 | Chassis Part Number: A019906926 |
$228.38 | View Part | |
| RECINQ-1 | 12 | Basin guide
Part Number: A439905130 Notes: Composed by: grid (A019906573 ) + basin (r01l006574) |
|||
| RECINQ-1 | 13 | Front panel
Part Number: A01I006823 |
|||
| RECINQ-1 | 14 | Drain basin
Part Number: RA99906574 |
|||
| RECINQ-1 | 15 |
|
Drain basin cap Part Number: A229904512 |
$11.84 | View Part |
| RECINQ-1 | 16 | Complete foot
Part Number: A059907027 |
|||
| RECINQ-1 | 16A | Upper foor
Part Number: A01I006823 |
|||
| RECINQ-1 | 16B | Lower foot
Part Number: A059906953 |
|||
| RECINQ-1 | 16C | Foot o-ring
Part Number: A449906954 |
|||
| RECINQ-1 | 17 | Support display
Part Number: A519906923 |
|||
| RECINQ-1 | 18 | Couple of magnet
Part Number: NOT-AVAILABLE |
|||

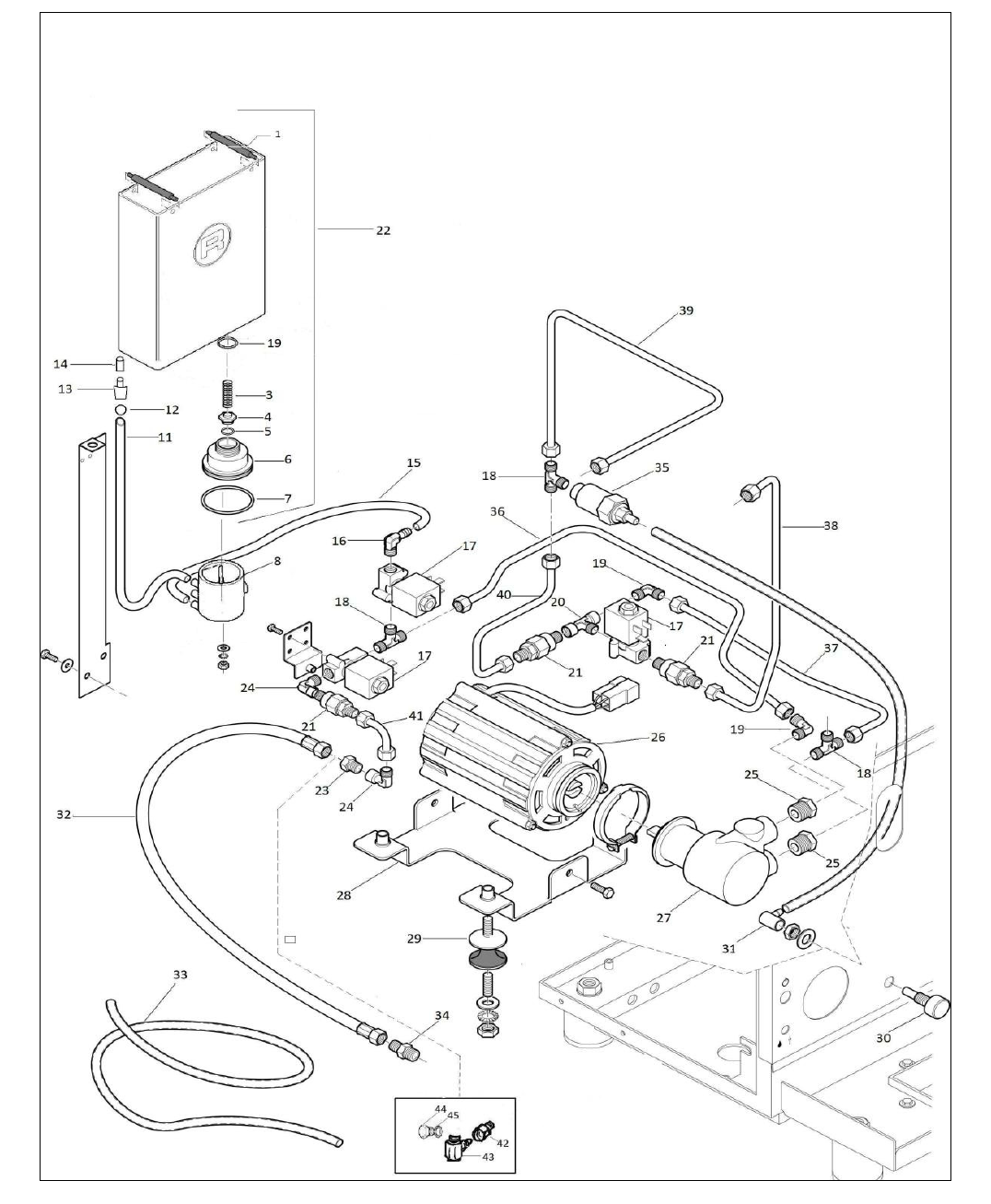

| RECINQ-2 | 1 | Water tank handle
Part Number: A639904956 |
|||
| RECINQ-2 | 3 | Water tank spring
Part Number: C019900711 |
|||
| RECINQ-2 | 4 | Connector
Part Number: C430003482 |
|||
| RECINQ-2 | 5 | O ring
Part Number: C449900702 |
|||
| RECINQ-2 | 6 | Coupling
Part Number: A439905146 |
|||
| RECINQ-2 | 7 | O ring
Part Number: A449904547 |
|||
| RECINQ-2 | 8 | Manifold
Part Number: R899906970 |
|||
| RECINQ-2 | 8A | Opening valve rod
Part Number: C520003483 Notes: till Sn D1314R581793 (use with 8 and 8B) |
|||
| RECINQ-2 | 8B | O ring
Part Number: C449901159 Notes: till Sn D1314R581793 (use with 8 and 8A) |
|||
| RECINQ-2 | 11 | 6 x 9 Silicon pipe
Part Number: C260003822 |
|||
| RECINQ-2 | 12 | Valve ball
Part Number: C430003819 |
|||
| RECINQ-2 | 13 | Non return connector
Part Number: C220003818 |
|||
| RECINQ-2 | 14 | 4 x 7 Silicon pipe
Part Number: C400001928 |
|||
| RECINQ-2 | 15 | 5 x 8 Silicon pipe
Part Number: C499900769 |
|||
| RECINQ-2 | 16 | Silicon pipe holder
Part Number: A229904511 |
|||
| RECINQ-2 | 17 | Solenoid valve V230
Part Number: C190004066 |
|||
| RECINQ-2 | 17A | Solenoid valve V115
Part Number: C190004067 |
|||
| RECINQ-2 | 18 | 1/8 T Connector M
Part Number: A229904358 |
|||
| RECINQ-2 | 19 | Oring
Part Number: A449905151 |
|||
| RECINQ-2 | 20 | 1/8 T Connector FMF
Part Number: C229900703 |
|||
| RECINQ-2 | 21 | Non return valve
Part Number: C229900540 |
|||
| RECINQ-2 | 22 | Water tank complete
Part Number: R899906849 |
|||
| RECINQ-2 | 23 | 1/8 MF Reduction
Part Number: A229905086 |
|||
| RECINQ-2 | 24 | 1/8 L Connector MF
Part Number: A229904445 |
|||
| RECINQ-2 | 25 | 3/8 - 1/8 MF Reduction
Part Number: A229904356 |
|||
| RECINQ-2 | 26 | Pump motor V230
Part Number: A199904493 |
|||
| RECINQ-2 | 26A | Pump motor V115
Part Number: A199904494 |
|||
| RECINQ-2 | 27 | Volumetric pump
Part Number: A299904495 |
|||
| RECINQ-2 | 28 | Motor bracket
Part Number: A009904447 |
|||
| RECINQ-2 | 29 | Motor schock absorber
Part Number: A499904364 |
|||
| RECINQ-2 | 30 | Expansion output
Part Number: A227704363 |
|||
| RECINQ-2 | 31 | Rubber connector
Part Number: C449900709 |
|||
| RECINQ-2 | 32 | Direct water connection hose
Part Number: A299904390 |
|||
| RECINQ-2 | 33 | 9 x12 Silicon pipe
Part Number: M499904824 |
|||
| RECINQ-2 | 34 | 3/8 M-1/8 M Connector
Part Number: A229904374 |
|||
| RECINQ-2 | 3/8 F-1/8 M Connector
Part Number: A229905211 Notes: USA |
||||
| RECINQ-2 | 3/8 M - 9/16 M Connector
Part Number: A229905212 Notes: USA |
||||
| RECINQ-2 | 35 | Expansion valve
Part Number: C229900911 |
|||
| RECINQ-2 | 36 | Pipe
Part Number: A279904642 |
|||
| RECINQ-2 | 37 | Pipe
Part Number: A279904643 |
|||
| RECINQ-2 | 38 | Pipe
Part Number: A279904644 |
|||
| RECINQ-2 | 39 | Pipe
Part Number: A279906955 |
|||
| RECINQ-2 | 40 | Pipe
Part Number: A279906956 |
|||
| RECINQ-2 | 41 | Pipe
Part Number: A279904353 |
|||
| RECINQ-2 | 42 | Water inlet connector
Part Number: A220004313 |
|||
| RECINQ-2 | 43 | Svivel connector
Part Number: A229904349 |
|||
| RECINQ-2 | 44 | 1/8 Plug
Part Number: A229904548 |
|||
| RECINQ-2 | 45 | Teflon gasket 1/8
Part Number: A469904549 |
|||

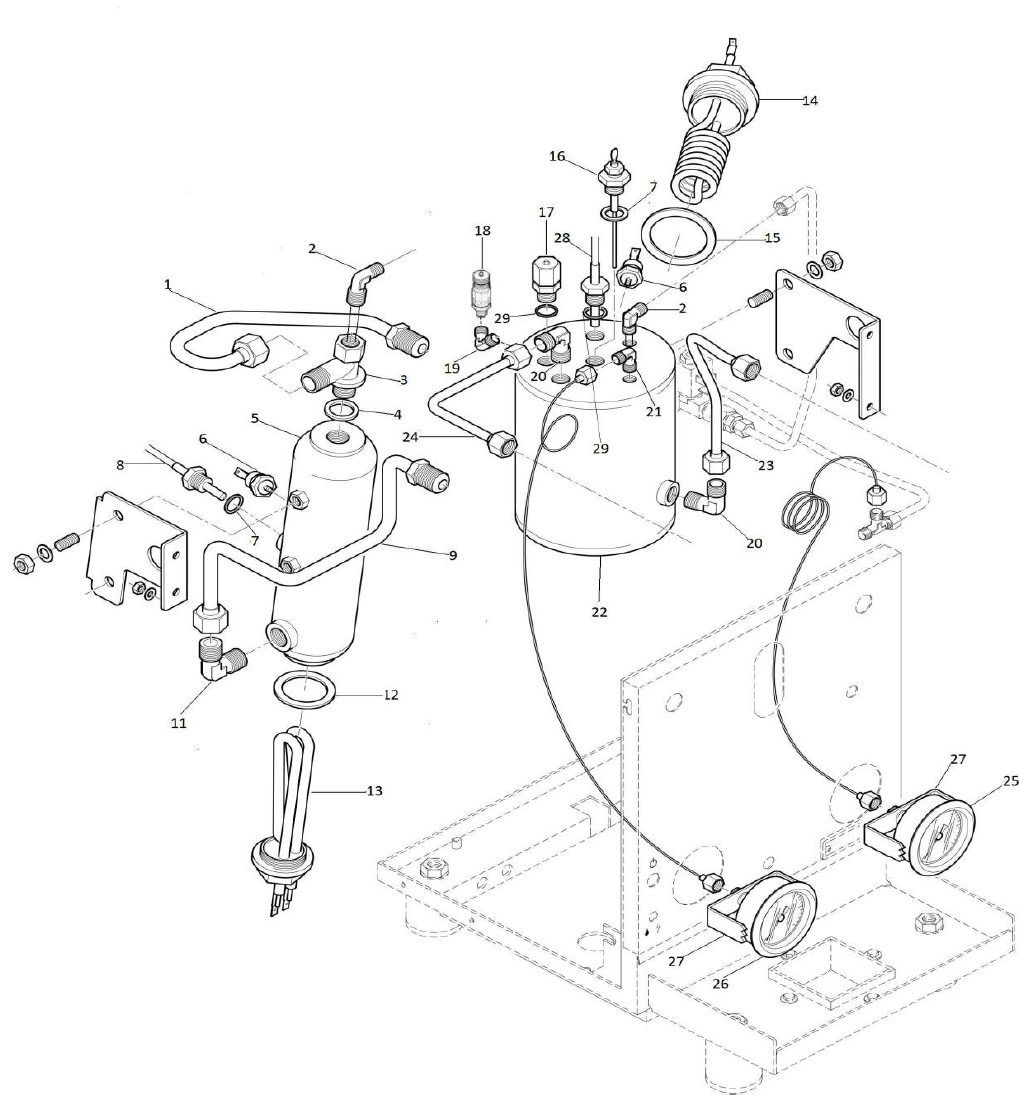

| RECINQ-3 | 1 | Inlet pipe w. 3 mm restrictor
Part Number: A279905173 |
|||
| RECINQ-3 | 2 | Injector
Part Number: C229900393 |
|||
| RECINQ-3 | 3 | Connector
Part Number: C229900740 |
|||
| RECINQ-3 | 4 | Copper gasket
Part Number: C479900673 |
|||
| RECINQ-3 | 5 | Coffee boiler
Part Number: A270004558 |
|||
| RECINQ-3 | 6 | Thermostat 135C
Part Number: C199901550 |
|||
| RECINQ-3 | 7 | OR Viton 114
Part Number: A449905175 |
|||
| RECINQ-3 | 8 | NTC Probe
Part Number: A119905081 |
|||
| RECINQ-3 | 9 | Return pipe
Part Number: A279904641 |
|||
| RECINQ-3 | 11 | L Connector 3/8 MM
Part Number: A229904957 |
|||
| RECINQ-3 | 12 | Heating element gasket
Part Number: C469900239 |
|||
| RECINQ-3 | 13 | Heating element V230
Part Number: A199905013 |
|||
| RECINQ-3 | 13A | Heating element V115
Part Number: A199905014 |
|||
| RECINQ-3 | 14 | Heating element V230
Part Number: A110004667 |
|||
| RECINQ-3 | 14A | Heating element V115
Part Number: A110004668 |
|||
| RECINQ-3 | 15 | Heating element gasket
Part Number: A269904671 |
|||
| RECINQ-3 | 16 | R58 Service boiler probe
Part Number: A199905078 |
|||
| RECINQ-3 | 17 | Vacuum breaker valve
Part Number: A219905510 |
|||
| RECINQ-3 | 18 | Safety valve 1.8
Part Number: A229905084 |
|||
| RECINQ-3 | 19 | 3/8 L Connector MF
Part Number: A229904680 |
|||
| RECINQ-3 | 20 | 1/4 L Connector MM
Part Number: C229900525 |
|||
| RECINQ-3 | 21 | 1/8 L Connector MM
Part Number: A229904355 |
|||
| RECINQ-3 | 22 | Service boiler
Part Number: A270004559 |
|||
| RECINQ-3 | 23 | Hot water pipe
Part Number: A279904645 |
|||
| RECINQ-3 | 24 | Steam pipe
Part Number: A279904646 |
|||
| RECINQ-3 | 25 | Pump pressure gauge
Part Number: A299904663 |
|||
| RECINQ-3 | 26 | Boiler pressure gauge
Part Number: A299904662 |
|||
| RECINQ-3 | 27 | Pressure gauge support
Part Number: M009904997 |
|||
| RECINQ-3 | 28 | NTC Service boiler probe
Part Number: A119905081 |
|||
| RECINQ-3 | 29 | Teflon gasket
Part Number: A269904417 |
|||

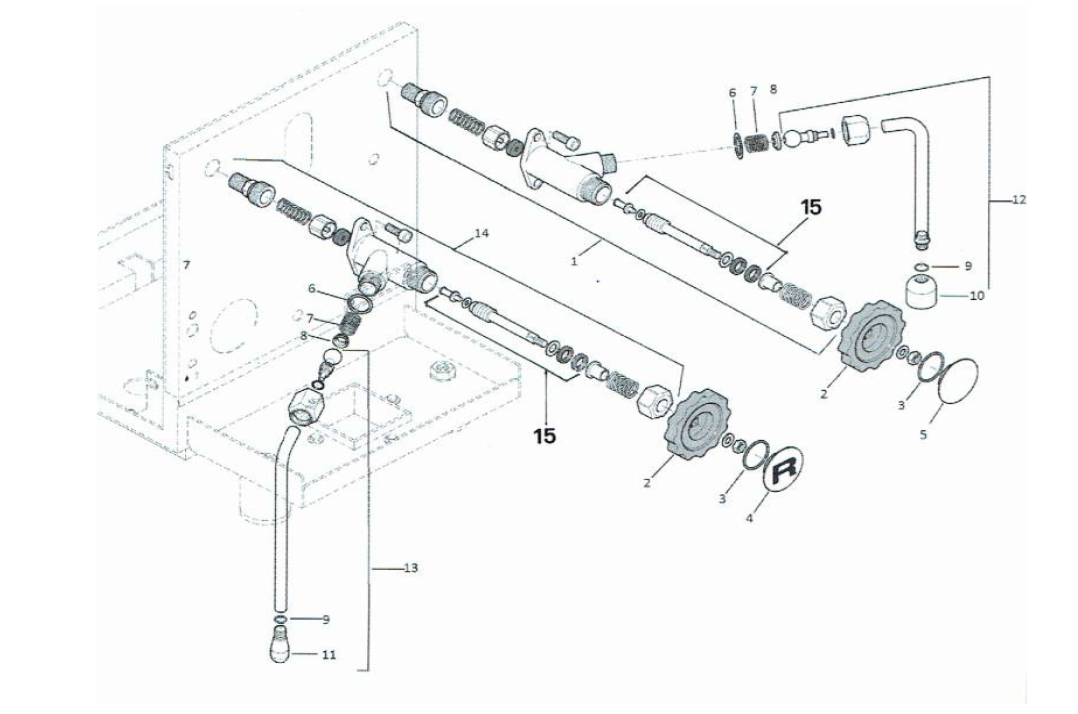

| RECINQ-4 | 1 | Hot water valve
Part Number: A227704669 |
|||
| RECINQ-4 | 2 | Steam/hot water valve handle
Part Number: A639905816 Notes: From serial # D1540R58 |
|||
| RECINQ-4 | 3 | Oring
Part Number: A449904672 |
|||
| RECINQ-4 | 4 | Steam cover handle
Part Number: A529R04649 |
|||
| RECINQ-4 | 5 | Hot water cover handle
Part Number: A527704649 |
|||
| RECINQ-4 | 6 | Teflon gasket
Part Number: A449904331 |
|||
| RECINQ-4 | 7 | Spring
Part Number: A209904332 |
|||
| RECINQ-4 | 8 | Plate
Part Number: A229904333 |
|||
| RECINQ-4 | 9 | Oring
Part Number: C400002022 |
|||
| RECINQ-4 | 10 | Hot water nozzle
Part Number: R299905217 |
|||
| RECINQ-4 | 11 | Steam tip 1.5
Part Number: A899905091 |
|||
| RECINQ-4 | 11A | Steam tip 1.2
Part Number: A899905092 |
|||
| RECINQ-4 | 12 | Hot water wand complete
Part Number: A219904650 |
|||
| RECINQ-4 | 13 | Steam wand complete
Part Number: A219904651 |
|||
| RECINQ-4 | 14 | Steam valve
Part Number: A227705093 |
|||
| RECINQ-4 | 15 | Valve rod (compl. assembly kit) 15,25
Part Number: R229905676 |
|||

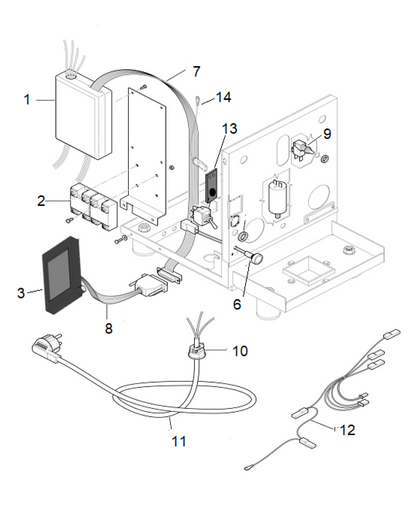

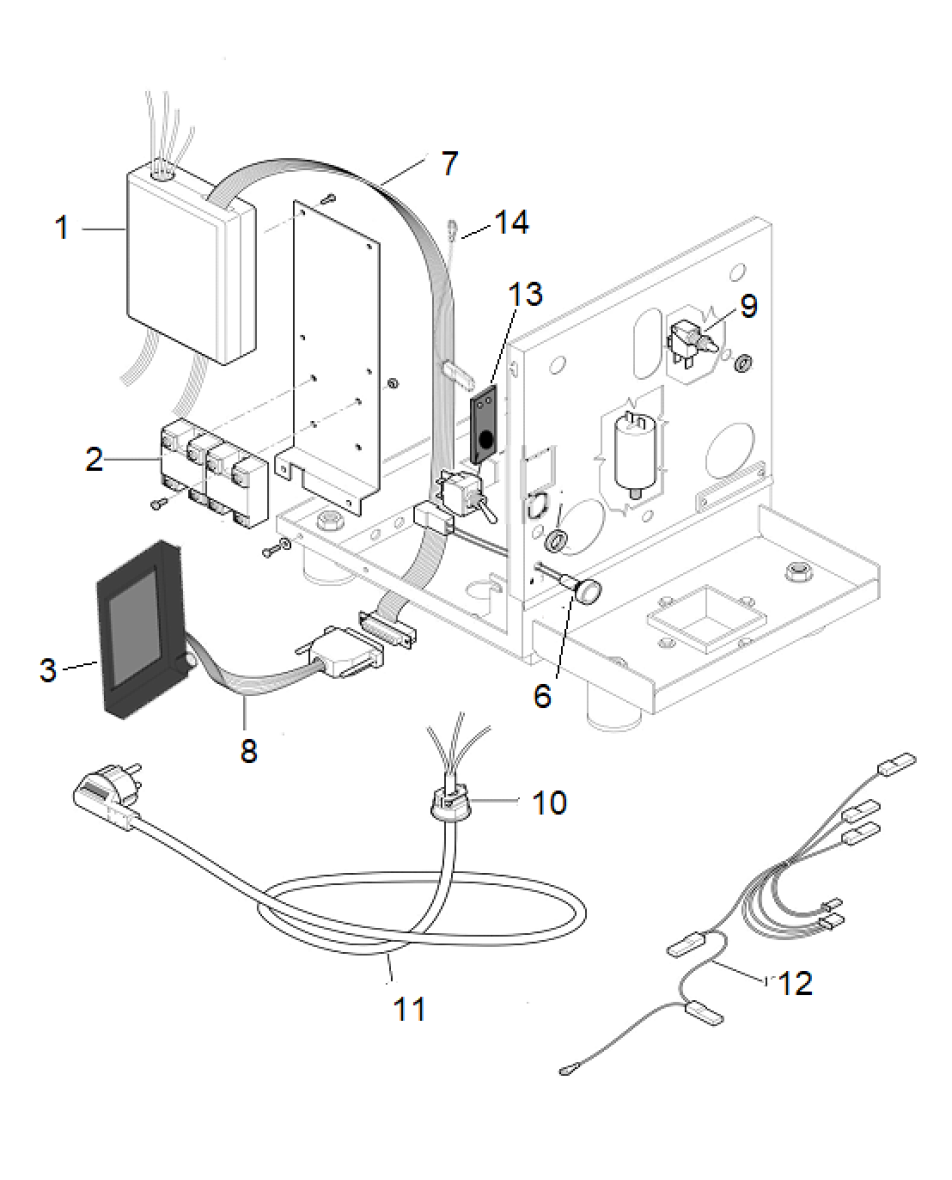

| RECINQ-5 | 1 | Control Box V230
Part Number: A199906962 |
|||
| RECINQ-5 | 2 | Relay
Part Number: A190004666 |
|||
| RECINQ-5 | 3 | TFT Display complete
Part Number: A199906960 |
|||
| RECINQ-5 | 4 | Microswitch
Part Number: A199905198 |
|||
| RECINQ-5 | 5 | Nut
Part Number: A529904989 |
|||
| RECINQ-5 | 6 | Green lamp
Part Number: A139904519 |
|||
| RECINQ-5 | 7 | Flat cable connection to board
Part Number: A199906957 |
|||
| RECINQ-5 | 8 | Conn. cable board to display
Part Number: A199904674 Notes: till Sn D1233R584657 |
|||
| RECINQ-5 | Cable machine to display
Part Number: A199906959 Notes: from Sn D1233R584657 |
||||
| RECINQ-5 | 9 | Microswitch
Part Number: A199905198 |
|||
| RECINQ-5 | 10 | Cordlock
Part Number: C439900086 |
|||
| RECINQ-5 | 11 | CE Power cord
Part Number: C199900957 |
|||
| RECINQ-5 | IS Power cord
Part Number: A199904518 |
||||
| RECINQ-5 | KR Power cord
Part Number: A199904616 |
||||
| RECINQ-5 | UL Power cord
Part Number: C199900958 |
||||
| RECINQ-5 | AUS/NZ Power cord
Part Number: C199901115 |
||||
| RECINQ-5 | GB Power cord
Part Number: C199901116 |
||||
| RECINQ-5 | CH Power cord
Part Number: C199901510 |
||||
| RECINQ-5 | 12 | Wiring loom
Part Number: A199906960 |
|||
| RECINQ-5 | 13 | OLED Display
Part Number: A199906642 |
|||
| RECINQ-5 | 14 | OLED Display cable
Part Number: A199906958 |
|||

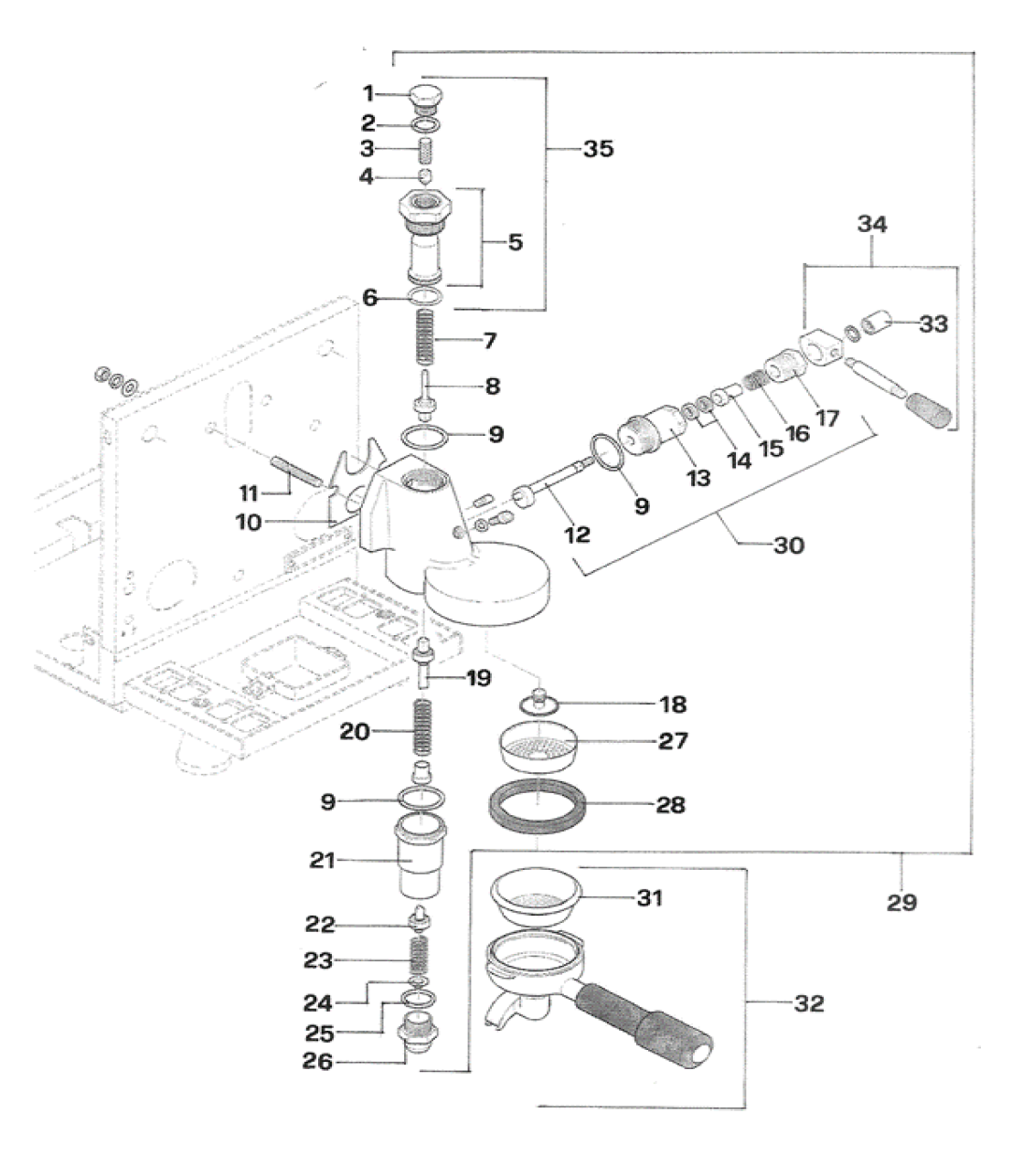

| RECINQ-6 | 1 | Rounded nut
Part Number: A229904391 |
|||
| RECINQ-6 | 2 | Gasket
Part Number: C469900420 |
|||
| RECINQ-6 | 3 | Filter
Part Number: C619900554 |
|||
| RECINQ-6 | 4 | Restrictor 0,8
Part Number: C229900549 |
|||
| RECINQ-6 | 6 | Green gasket
Part Number: C469900422 |
|||
| RECINQ-6 | 7 | Spring
Part Number: A999905754 |
|||
| RECINQ-6 | 8 | Valve
Part Number: R229905608 |
|||
| RECINQ-6 | 9 | Teflon gasket
Part Number: C469900421 |
|||
| RECINQ-6 | 10 | Gasket
Part Number: C449900767 |
|||
| RECINQ-6 | 11 | Screw
Part Number: A319904599 |
|||
| RECINQ-6 | 12 | Shaft
Part Number: R229905238 |
|||
| RECINQ-6 | 13 | Flange
Part Number: R000002142 |
|||
| RECINQ-6 | 14 | Gasket
Part Number: C219900426 |
|||
| RECINQ-6 | 15 | Support
Part Number: R000002143 |
|||
| RECINQ-6 | 16 | Spring
Part Number: C219900427 |
|||
| RECINQ-6 | 17 | Cover
Part Number: R000002144 |
|||
| RECINQ-6 | 18 | Diffuser
Part Number: C229901228 |
|||
| RECINQ-6 | 19 | Valve
Part Number: R229905239 |
|||
| RECINQ-6 | 20 | Spring
Part Number: A999905754 |
|||
| RECINQ-6 | 21 | Cylinder
Part Number: C229901165 |
|||
| RECINQ-6 | 22 | Valve
Part Number: R229905609 |
|||
| RECINQ-6 | 23 | Spring
Part Number: R299905958 |
|||
| RECINQ-6 | 24 | Connector
Part Number: R000002148 |
|||
| RECINQ-6 | 25 | Gasket
Part Number: C469900783 |
|||
| RECINQ-6 | 26 | Connector
Part Number: R000002149 |
|||
| RECINQ-6 | 27 | Shower foil
Part Number: C519900103 |
|||
| RECINQ-6 | 28 | Group gasket
Part Number: C449900229 |
|||
| RECINQ-6 | 29 | Group complete
Part Number: C200002983 |
|||
| RECINQ-6 | 30 | Cam kit
Part Number: R299905887 |
|||
| RECINQ-6 | 31 | 7 g filter basket
Part Number: C610003902 |
|||
| RECINQ-6 | 14 g filterbasket
Part Number: C610003901 |
||||
| RECINQ-6 | Backflush cap ("blind filter")
Part Number: C619900106 |
||||
| RECINQ-6 | 32 | 1 cup filter holder with basket
Part Number: A699905020 |
|||
| RECINQ-6 | 2 cups filter holder with basket
Part Number: A699905021 |
||||
| RECINQ-6 | 33 | Pin
Part Number: R000002146 |
|||
| RECINQ-6 | 34 | Lever assembly
Part Number: R299905888 |
|||
| RECINQ-6 | 35 | Ceramic group shaft
Part Number: RA99905814 |
|||
| RECINQ-6 | Group complete
Part Number: C200002983 |
