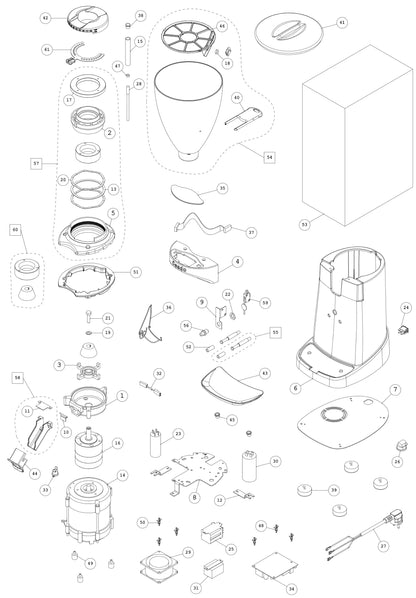

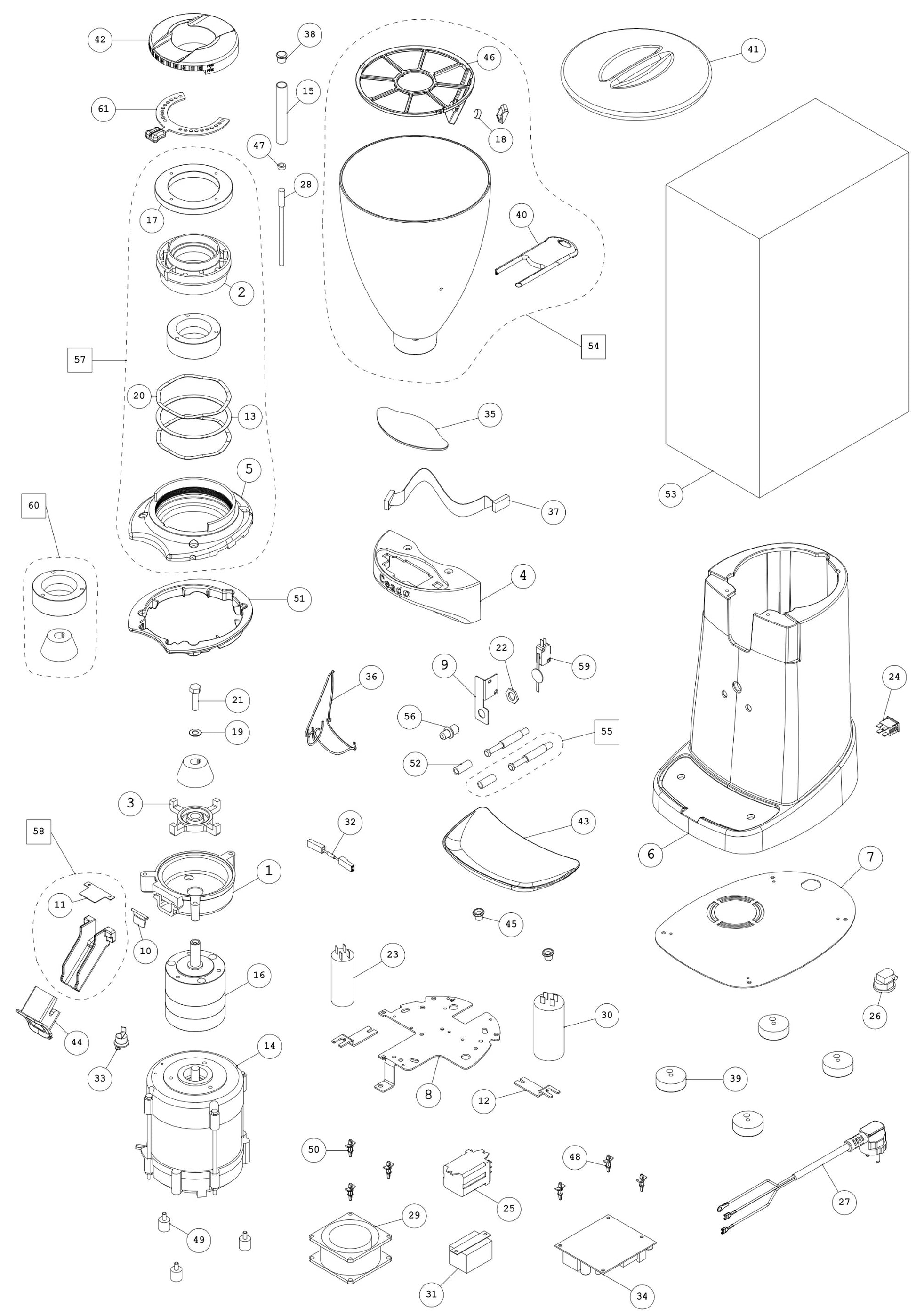

Ceado E92 Part Diagram CEAE92
This is the Ceado E92 Part Diagram CEAE92. In the list below, you will find all the parts associated with the diagram that are available. Use the parts diagram to determine the part(s) you need.
If the part listed below is not viewable then we do not carry it at this time. However, if your machine is currently in production we are likely able to acquire the part directly from the manufacturer. In this case, contact us by submitting a support ticket. Please be advised that it may take up to eight weeks for us to receive the part from the manufacturer.
Please note: Parts are neither returnable nor refundable. If you need assistance selecting a part for your machine, please submit a support ticket.-
| Diagram # | Pos # | Image | Description | Price |
|---|
| Diagram # | Pos # | Image | Description | Price | |
|---|---|---|---|---|---|
| CEAE92-1 | 1 | GRINDER CUP E92 WORKED
Part Number: 10264 |
|||
| CEAE92-1 | 2 | MACHINED E92 GRINDER SUPPORT
Part Number: 10274 |
|||
| CEAE92-1 | 3 | MACHINED E92 IMPELLER Part Number: 10284 |
$32.70 | View Part | |
| CEAE92-1 | 4 |
|
DISPLAY SUPPORT E37S/E92 2011 GLOSS Part Number: 10381 |
$85.30 | View Part |
| CEAE92-1 | 5 | E92 POLISHED GRINDER HEAD (rev. C)
Part Number: 10470 |
|||
| CEAE92-1 | 6 | E92 GRAY GRINDER BODY
Part Number: 10683 |
|||
| CEAE92-1 | 7 | BACKPACK E92 (rev.B)
Part Number: 20321 |
|||
| CEAE92-1 | 8 | E92 ENGINE SUPPORT BRACKET (rev.M)
Part Number: 20322 |
|||
| CEAE92-1 | 9 | MICRO E92 SUPPORT BRACKET (rev.A)
Part Number: 20323 |
|||
| CEAE92-1 | 10 | DOOR FOR SLIDE E92/E37S (rev.C) + SPACER FOR SLIDE DOOR E37
Part Number: 20325 + 75160 |
|||
| CEAE92-1 | 11 | SLIDE CLOSURE BRACKET E92
Part Number: 20330 |
|||
| CEAE92-1 | 12 | CONDENSER SUPPORT BRACKET E92/E37S (Rev.C)
Part Number: 20331 |
|||
| CEAE92-1 | 13 | E92 ADJUSTMENT SPRING RING DISC
Part Number: 20339 |
|||
| CEAE92-1 | 14 | E92 GRINDER MOTOR
Part Number: 30125 |
|||
| CEAE92-1 | 15 | SAFETY ROD E92 Part Number: 40033 |
$35.49 | View Part | |
| CEAE92-1 | 16 |
|
PLANETARY REDUCER FOR CONICAL Part Number: 40224 |
$837.00 | View Part |
| CEAE92-1 | 17 | ADJUSTING RING COFFEE GRINDER E92 NICKEL PLATED
Part Number: 40331 |
|||
| CEAE92-1 | 18 | MAGNET d. 12x5 (SC35MA NI) Part Number: 45104 |
$8.70 | View Part | |
| CEAE92-1 | 19 | M8 SPRING WASHER FOR IMPELLER
Part Number: 45131 |
|||
| CEAE92-1 | 20 | SPRING WASHER LMKAS 100A
Part Number: 45146 |
|||
| CEAE92-1 | 21 | TE SCREW M8X20 SX ZN
Part Number: 45339 |
|||
| CEAE92-1 | 22 | NUT M12 X 0.8 (DIN xxx)
Part Number: 45323 |
|||
| CEAE92-1 | 23 | CAPACITOR 10uF (MLR25 PRL45 450V 30.000h) DOUBLE F.6.3 CONDOLO
Part Number: 50104 |
|||
| CEAE92-1 | 24 | TWO-POLE SWITCH OI M98
Part Number: 50108 |
|||
| CEAE92-1 | 25 | ES500 RELAY (FINDER 628282300300)
Part Number: 50153 |
|||
| CEAE92-1 | 26 | CABLE LOCK PA107
Part Number: 50161 |
|||
| CEAE92-1 | 27 | CABLE G22 SP SCHUKO H05RN 3X1 2MT F4.8x08
Part Number: 50213 |
|||
| CEAE92-1 | 28 | REED SAFETY E92 (A081 1V UL CEA01)
Part Number: 50214 |
|||
| CEAE92-1 | 29 | E92 COFFEE GRINDER FAN (art. 80X80X38)
Part Number: 50216 |
|||
| CEAE92-1 | 30 | CAPACITOR 20uF (MLR25 PLR 400V 30.000h) DOUBLE F. 6.3 SHANK
Part Number: 50219 |
|||
| CEAE92-1 | 31 | AMP. CIRCUIT BREAKER KLIXON 4CR630
Part Number: 50220 |
|||
| CEAE92-1 | 32 | RESISTANCE FOR CAPACITOR 180KOhm
Part Number: 50226 |
|||
| CEAE92-1 | 33 | FAN THERMOSTAT 42/31 (3TE1NT01F-3567)
Part Number: 50236 |
|||
| CEAE92-1 | 34 | E37 2011 COFFEE GRINDER DATASHEET
Part Number: 50286 |
|||
| CEAE92-1 | 35 | COMPLETE E37S COFFEE GRINDER CARD KEYBOARD
Part Number: 50296 |
|||
| CEAE92-1 | 36 | E92 WIRING (rev. E)
Part Number: 50349 |
|||
| CEAE92-1 | 37 | FLAT CABLE 8X2 L=450 E37 CARD
Part Number: 50386 |
|||
| CEAE92-1 | 38 | BLENDER JAR CAP
Part Number: 70108 |
|||
| CEAE92-1 | 39 | RUBBER FEET D.40
Part Number: 70138 |
|||
| CEAE92-1 | 40 | COFFEE BELL SHUTTER
Part Number: 70145 |
|||
| CEAE92-1 | 41 | COFFEE GRINDER BELL COVER
Part Number: 70146 |
|||
| CEAE92-1 | 42 | E8 GRADUATED BELL SUPPORT
Part Number: 70155 |
|||
| CEAE92-1 | 43 | COFFEE TRAY SAUCER E37S/E92
Part Number: 70163 |
|||
| CEAE92-1 | 44 | E92 SLIDE RUBBER
Part Number: 70165 |
|||
| CEAE92-1 | 45 | RUBBER PLATE E37S
Part Number: 70173 |
|||
| CEAE92-1 | 46 | E92 BELL SAFETY GRILLE
Part Number: 70174 |
|||
| CEAE92-1 | 47 | REED RUBBER E92 (1266 CA01)
Part Number: 75109 |
|||
| CEAE92-1 | 48 | BOARD PIN E37S B210 (LCBS 5-01)
Part Number: 75146 |
|||
| CEAE92-1 | 49 | VIBRATION DAMPER M/F 15X15 (M5X15+M5 SH60)
Part Number: 75165 |
|||
| CEAE92-1 | 50 | GRINDER FAN PIN (LCBS- 6-5-01)
Part Number: 75173 |
|||
| CEAE92-1 | 51 | E8 GRINDER RING GASKET
Part Number: 75530 |
|||
| CEAE92-1 | 52 | ANTI-VIBRATION TUBE FOR FILTER HOLDER PIN E37 (rev.A)
Part Number: 75534 |
|||
| CEAE92-1 | 53 | E8 GRINDER BOX (24x39x62h)
Part Number: 80121 |
|||
| CEAE92-1 | 54 | COMPLETE E92 COFFEE GRINDER BELL
Part Number: 90177 |
|||
| CEAE92-1 | 55 | UPPER PIN COMPLETE RUBBER FILTER HOLDER
Part Number: 90179 |
|||
| CEAE92-1 | 56 | E37S/E92 BUTTON KEY COMPLETE
Part Number: 90180 |
|||
| CEAE92-1 | 57 | COMPLETE E92 GRINDER HEAD
Part Number: 90203 |
|||
| CEAE92-1 | PAIR OF CONICAL GRINDERS D.71
Part Number: 40223 |
||||
| CEAE92-1 | 58 | COMPLETE SLIDE WITH E92 CLOSURE
Part Number: 90219 |
|||
| CEAE92-1 | 59 | MICRO E37S/E92 ASSEMBLY
Part Number: 90261 |
|||
| CEAE92-1 | 60 | PAIR OF CONICAL GRINDER KIT D.71 (40223)
Part Number: 90304 |
|||
| CEAE92-1 | 61 | GRINDING ADJUSTMENT LEVER 83 COMPLETE
Part Number: 90504 |
