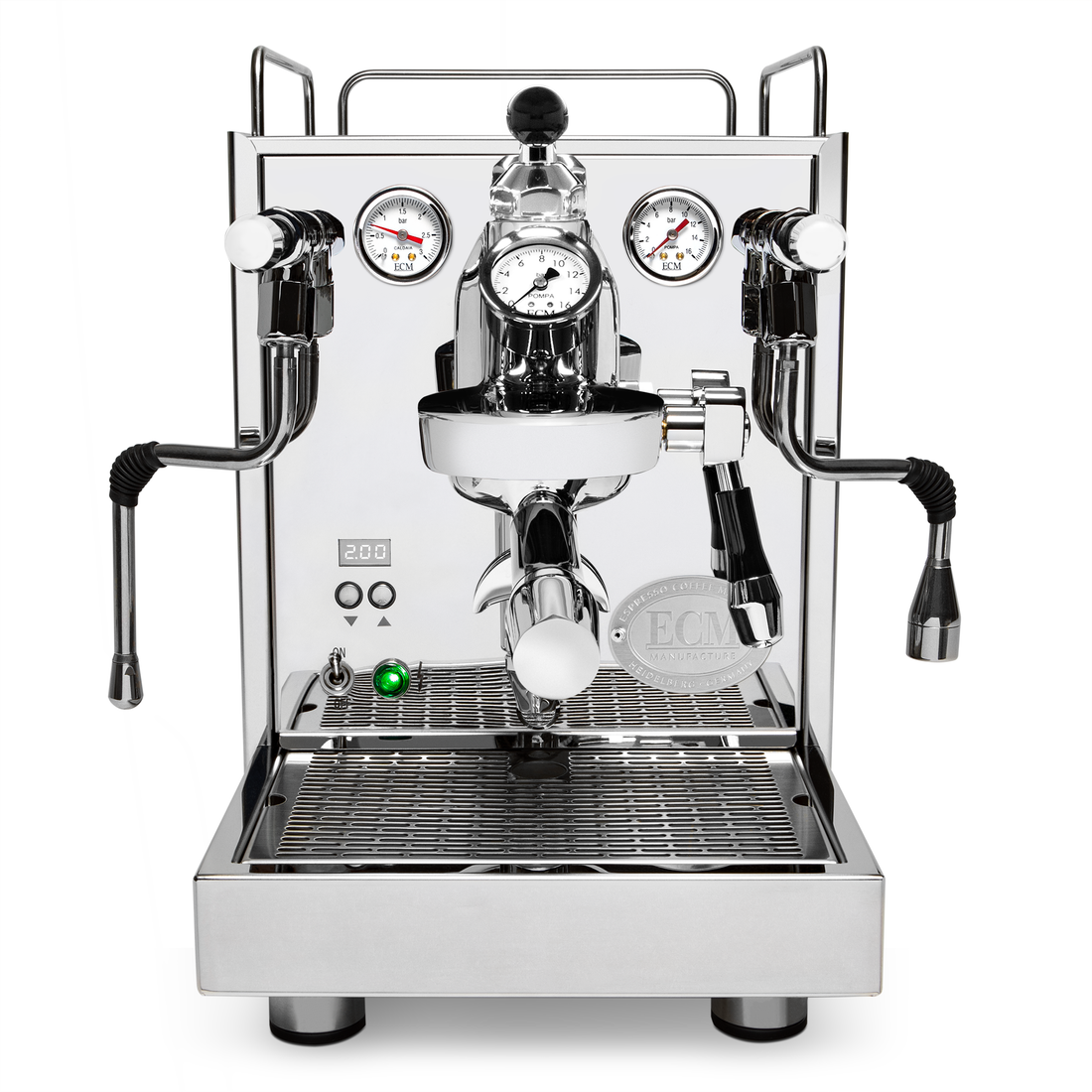

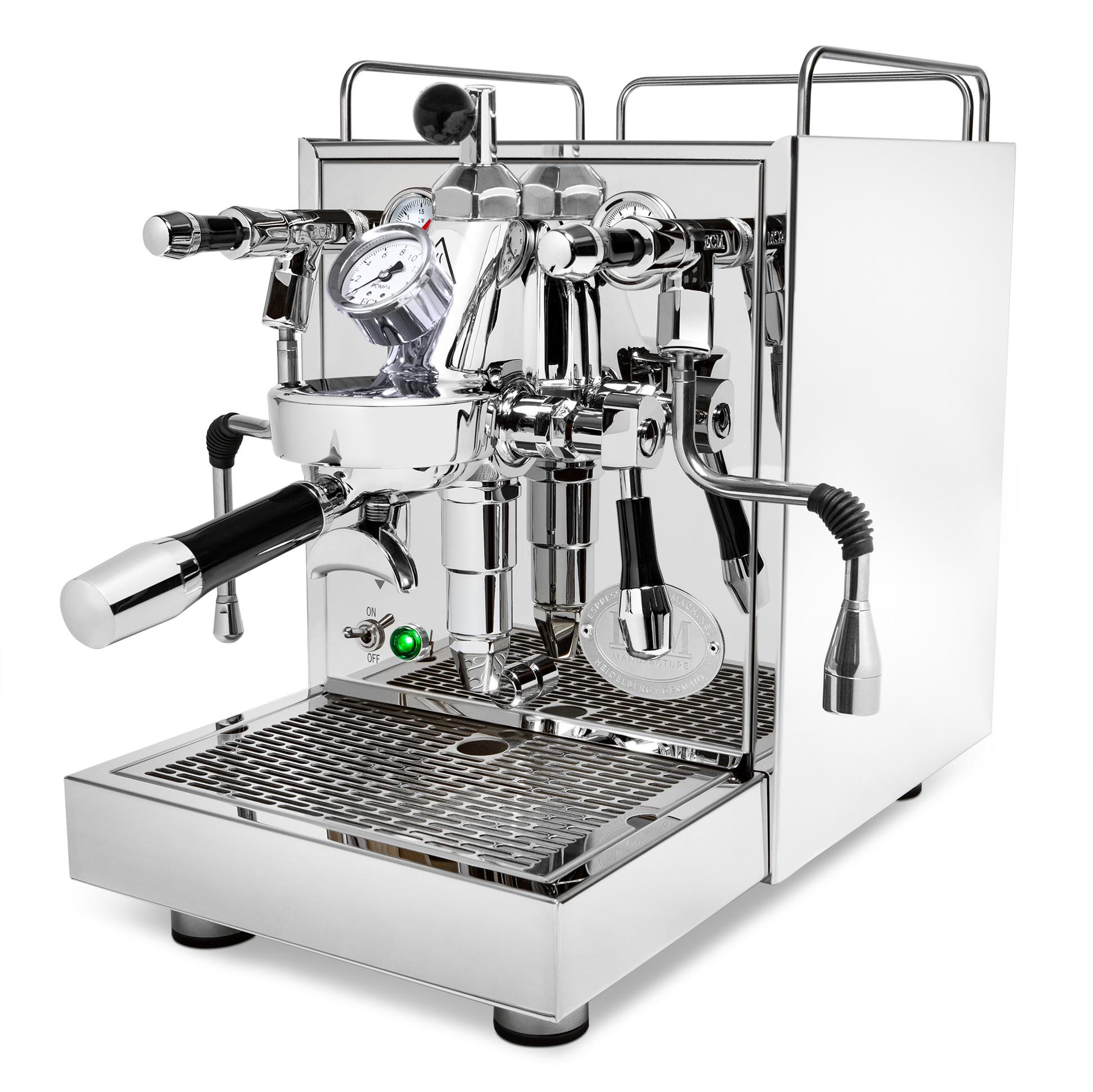

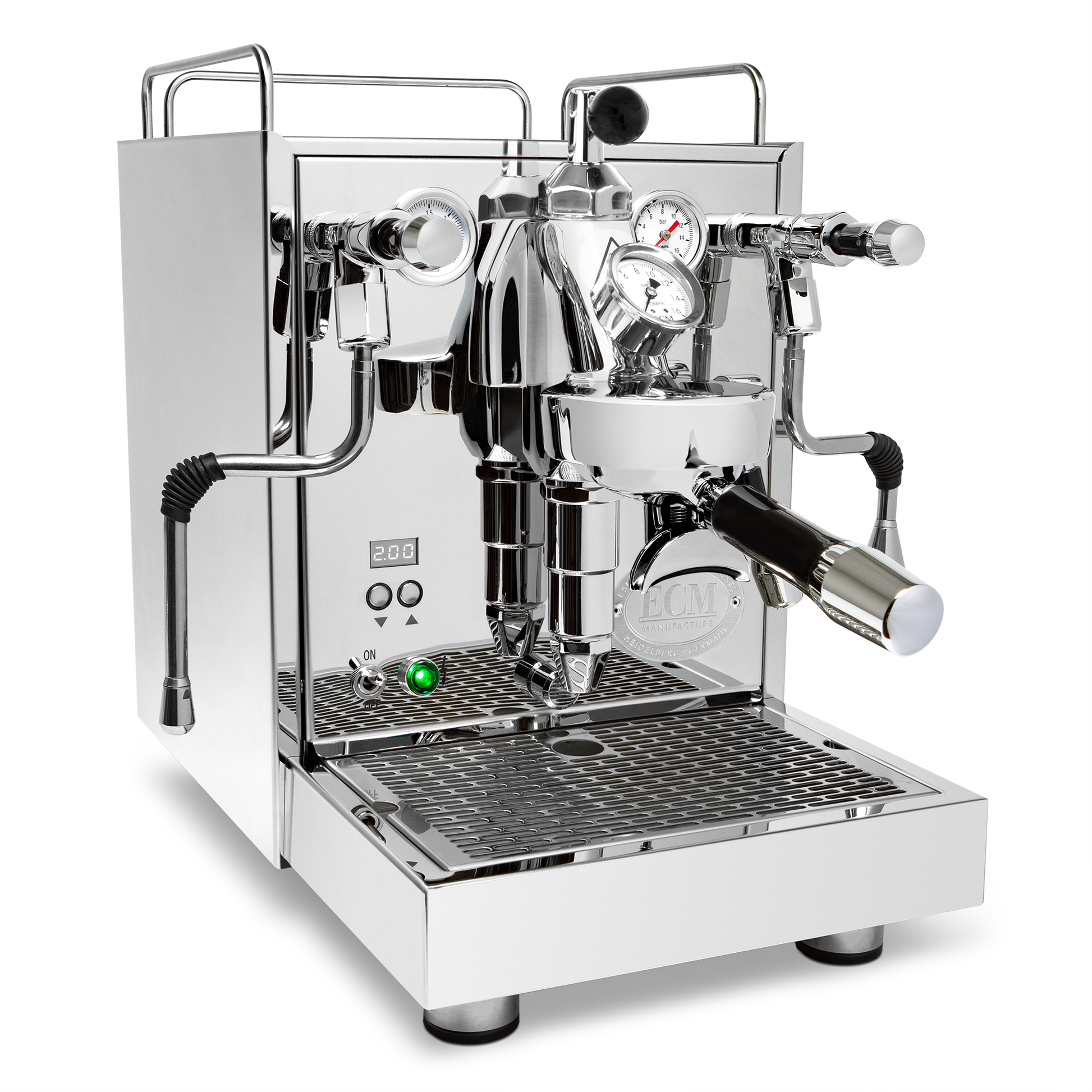

ECM Mechanika Max Espresso Machine with Flow Control

By ECM

Regular price $2,599.00

Earn $77.97 on this order.

Sale price $2,599.00

Earn $77.97 on this order.

Regular price $2,799.00

Request a Price Match

| Add to Compare
With its revolutionary PID controller that actively monitors and regulates the temperature at the brew group, the ECM Mechanika MAX with Flow Control redefines the potential of heat exchanger espresso machines. Its sleek exterior houses robust functionality like programmable on/off times, various pre-infusion options, maintenance reminders, and most importantly a compact and plumbable rotary pump.

Members earn 3% back in Latte Rewards. Sign in or Sign up now!

Free shipping on all orders over $50 or more.

Includes a 3-Years Parts and Labor.

View full details

Featured Product

Bundle & SaveCustomize

Bundle & Save

Select an option to build your coffee bar.
Select an option to build your coffee bar.
Select an option to build your coffee bar.
Branded Accessories
Please select an option
Grinders
Please select an option
Pro Brewing
Please select an option
Care and Maintenance
Please select an option
Barista Essentials
Please select an option
Coffee
Please select an option
Water Fitting
Please select an option

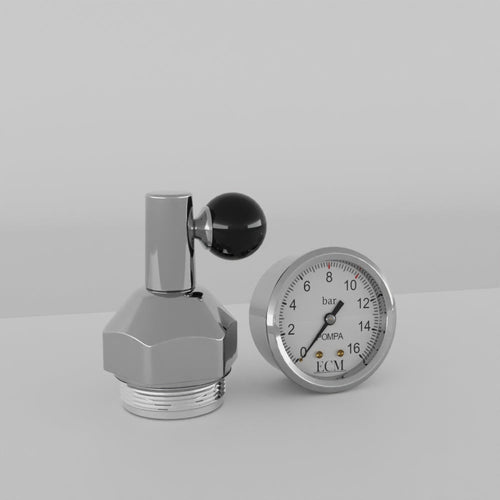

Flow Control Device *
Please select an option
Espresso Machine Warranty
Please select an option

Customize

Loading Models... Use on desktop for the best performance.

Rotate

Click and Drag in any direction

Zoom

Scroll up and down to zoom in and out

  • Customize in 2D
  • Customize in 3D
Panels
Please select an option
Flow Control
Please select an option
Knobs
Please select an option
Double Spout Portafilter
Please select an option
Single Spout Portafilter
Please select an option
Bottomless Portafilter
Please select an option

Savings: $0.00

Your total: $2,629.00

ECM Mechanika Max Overview

The ECM Mechanika MAX with Flow Control is a PID controlled smart heat exchanger espresso machine with a rotary pump. It introduces a number of firsts for ECM including the ability to program the PID to regulate the boiler based on the temperature at the brew group. It’s also the first with programmable weekday and weekend on/off timers so you can have the MAX ready to brew whenever you need it. Equipped with a plumbable rotary pump and <11" wide the Mechanika MAX will have no trouble fitting into any home espresso bar.

Features and Performance

Underneath its housing the Mechanika MAX brews with a miniature rotary pump and a PID regulated 1.9L stainless steel boiler. Unique to the MAX is its group temperature regulation which allows the PID to monitor and control boiler temperature based on the temperature at the brew group rather than simply within the boiler. Temperature can be programmed in 1 degree increments and the PID doubles as a shot timer when the brew lever is engaged. As a result, it is the only smart heat exchanger espresso machine with the precision control to regulate brew water temperature. Combined with an E61 flow control device, the Mechanika MAX offers incredible precision when controlling extractions. For more traditional operation, the MAX can also prioritize steam for milk drinkers while providing a cooling flush reminder if the group is hotter than your designed temperature.

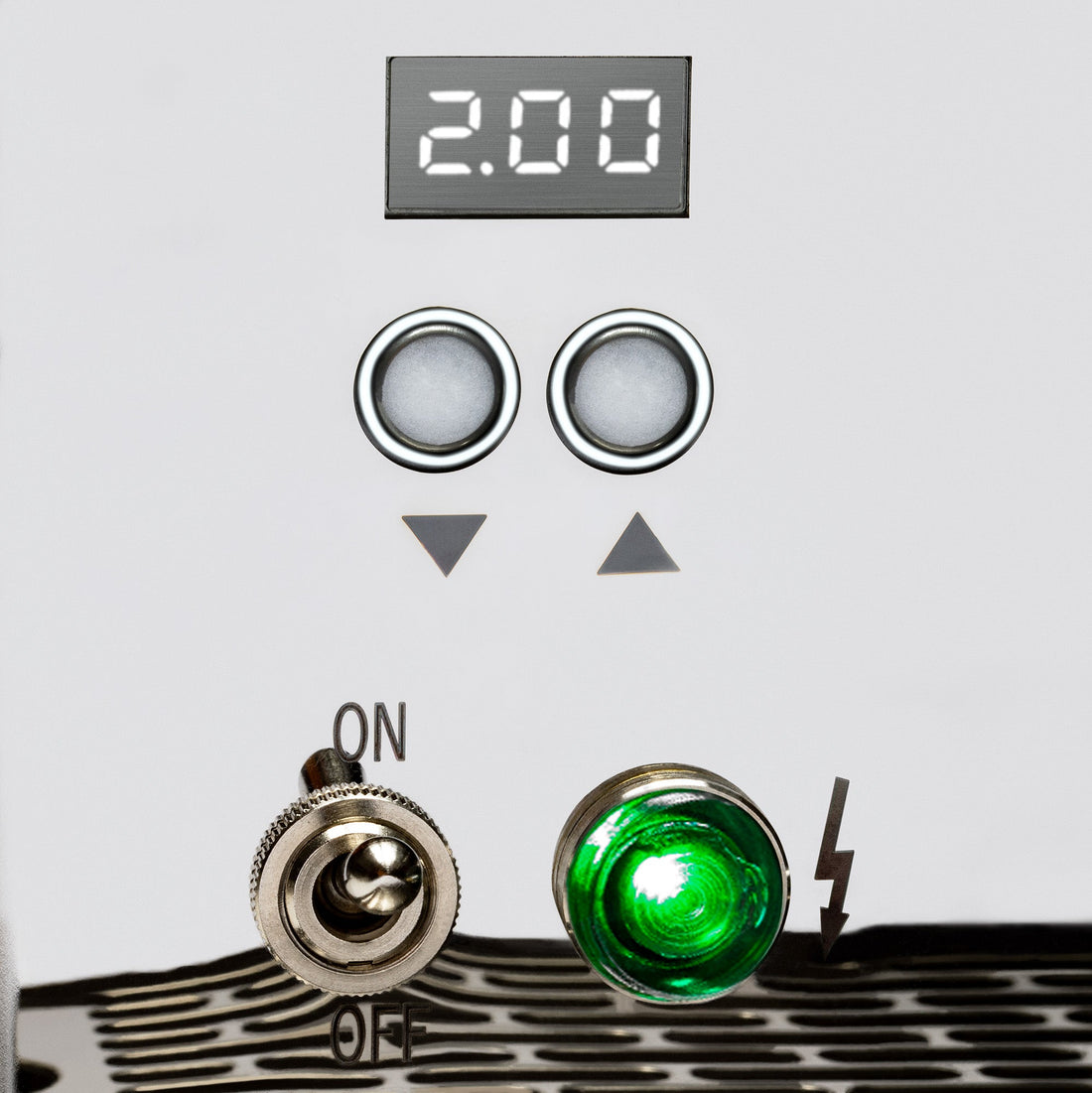

For such a compact display, ECM has packed a huge amount of functionality within the PID controller. To help with keeping up on maintenance, the MAX can be set to remind you when it’s time to backflush or when you need to replace your water filter. To save energy the ECO mode will power the machine down after a set period of time and in a first for ECM you can also designate up to two unique on and off times per day to have the MAX on and ready to brew when you need it most.

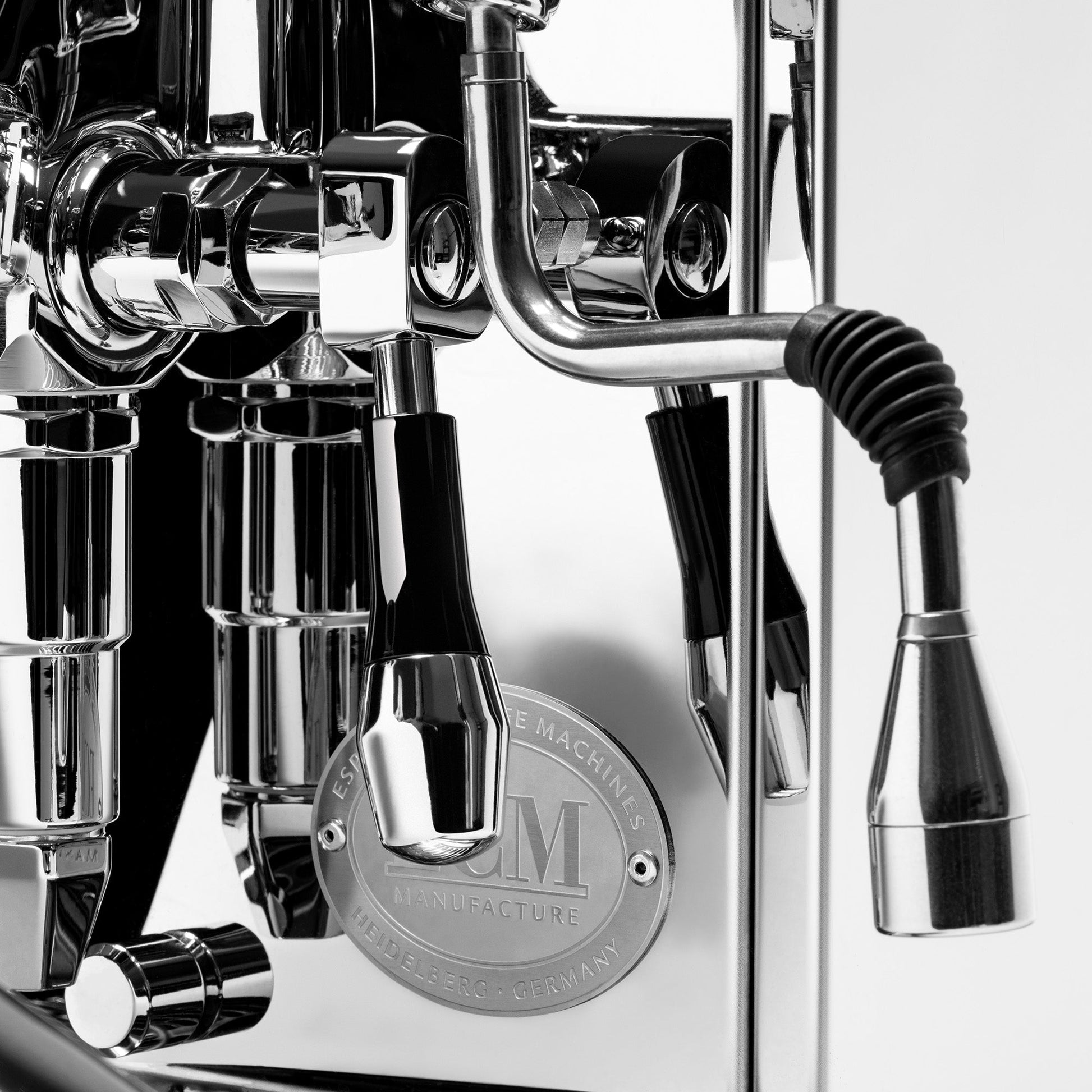

From a design standpoint the Mechanika MAX shares a good amount of DNA with the Mechanika VI Slim with the same cup railings, similar wrapped body panels, and ECM styled E61 group. The steam and hot water valves have received a notable improvement, having been upgraded to spring-loaded chrome tipped joysticks found on the ECM Technika V and Synchronika espresso machines. Similar to those machines, the inclusion of a rotary pump means whisper quiet brewing and allows the machine to be connected directly to a water line.

In the box, the ECM Mechanika MAX includes the following accessories:

Single Spout Portafilter, Double Spout Portafilter, 7g Single-Shot Basket, 14g Double Shot Basket, Backflush Disc, Tamper, Group Cleaning Brush, Water Line

Why You Should Get It

The ECM Mechanika MAX is the most compelling smart heat exchanger alternative to a dual boiler espresso machine we’ve ever seen. Its compact design, flexible water sources and lower price point make it far more accessible to aspiring home baristas without sacrificing the precision temperature control that is the cornerstone of specialty coffee. Coupled with its clean and elegant design, the Mechanika MAX has made ECM’s midrange even more exciting.

  • PID Regulated Smart Heat Exchanger System

    In a first for PID controlled smart heat exchanger espresso machines the Mechanika MAX actively monitors brew group temperature in addition to the boiler temperature. As a result, the MAX can offer two modes of operation designed to ensure proper brewing temperature. A basic flush reminder can be toggled to alert you to perform a cooling flush prior to brewing. For more active control you can also designate the temperature controller to use the group temperature to dictate heating to ensure stability. When entertaining this mode offers a “steam boost” feature to provide extra pressure as needed.

    gridimage-1

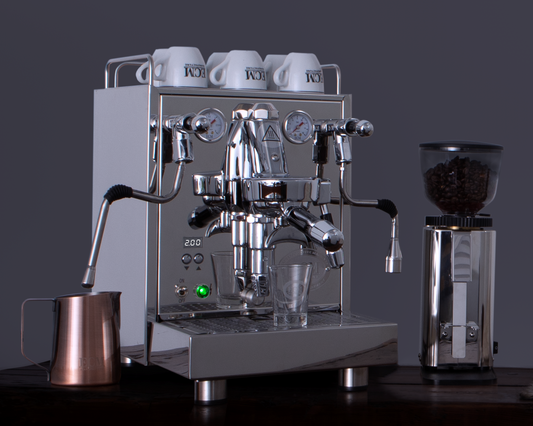

  • Programmable On/Off Time

    A sought after feature in home prosumer espresso machines, the Mechanika MAX features programmable on/off times that can be scheduled for weekdays and the weekend. Proper heat-up time allows for more consistent extractions, giving the temperatures of the E61 and portafilter time to normalize before brewing. Up to two unique on and off times can be set per weekday or weekend, allowing flexibility for work and play schedules. In conjunction with the Clock feature, the schedule can be programmed by the hour within 10 minute increments.

    gridimage-2

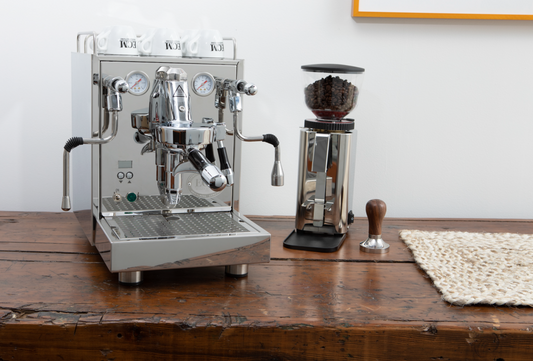

  • Compact Design

    The Slim is <11" wide with a streamlined design. For added convenience the rotary pump allows the MAX to be connected directly to a water supply, eliminating the need for refilling and making the machine a more permanent fixture on your countertop. This also allows for direct connection to inline water filtration to improve the flavor of your espresso and extend the longevity of your machine.

    gridimage-3

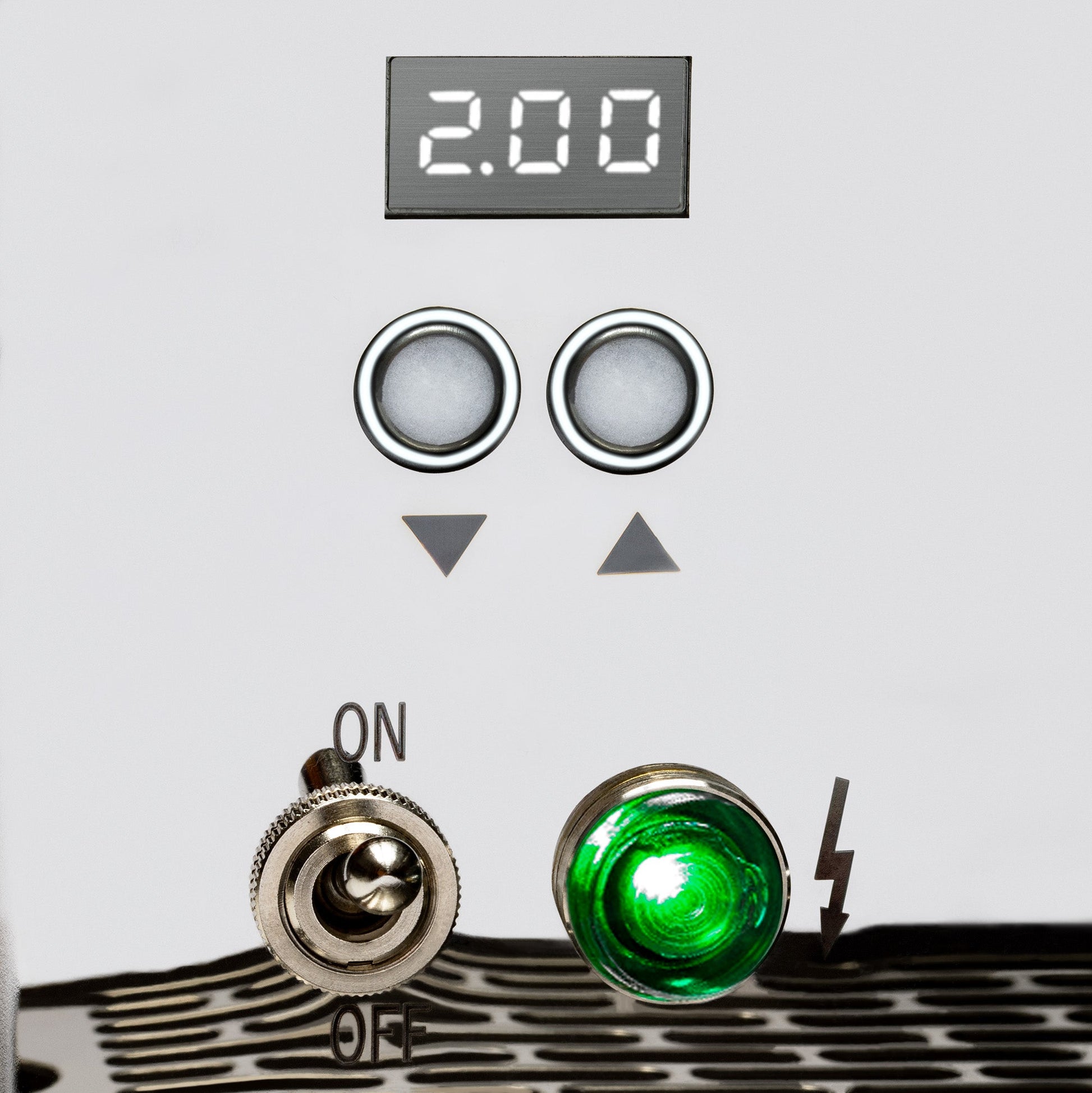

  • In-Depth Programming

    In addition to upgrading the PID for more accurate brew temperature control, ECM has included a bevy of features to aid with both maintenance and espresso brewing. The ECO function allows you to designate an automatic shutoff time to save energy. CLN and FLT can be set to remind you when it’s time to backflush your machine or to change your water filter. The MAX also features two pre-infusion modes, active and passive which allow you to either program a pause after an initial dose of water, or allow water line pressure to gently saturate the puck before extraction.

    gridimage-3

Details

  • E-61 Brew Group
  • Heat Exchanger
  • Flow Control
  • 3 L Water Reservoir
  • 1.9 L Stainless Steel Boiler

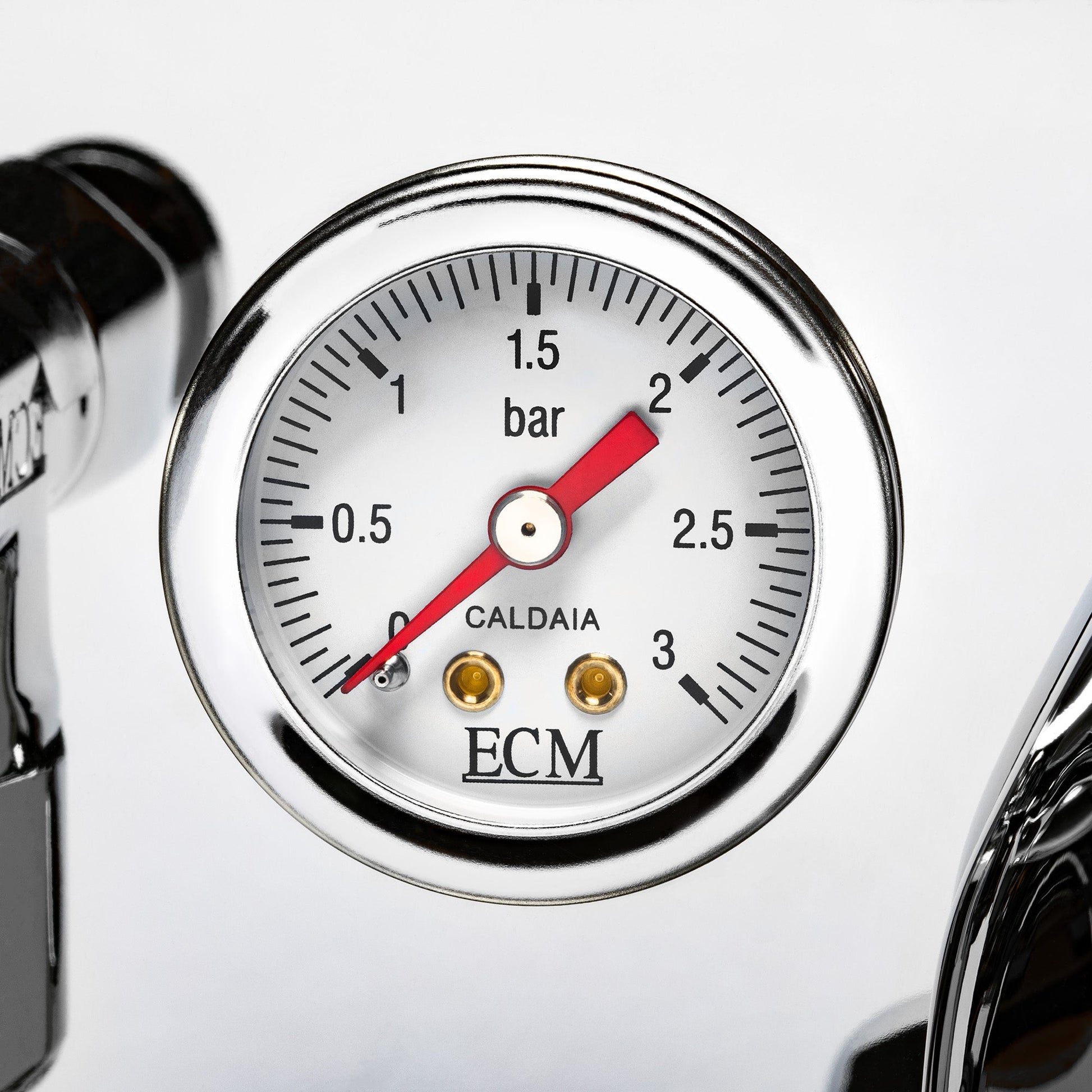

  • Boiler & Pump Pressure Gauges
  • PID Controlled Boiler
  • PID Display Functions as Shot Timer
  • Plumbable Rotary Pump
  • Automatic ON/OFF Times
  • Adjustable Pre-Infusion

Whats Included

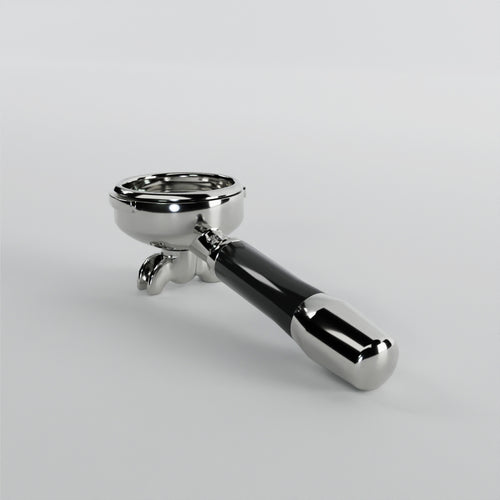

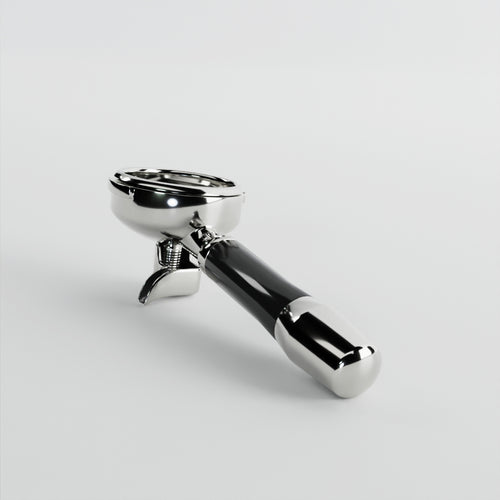

  • ECM Single-Spout Portafilter

  • ECM Double-Spout Portafilter

  • 7-Gram Single-Shot Filter Basket

  • 14-Gram Double-Shot Filter Basket

  • Backflush Disc

  • 58mm Tamper w/Stainless Base

  • Metal Hose (1/8", 3/8") BSPP

  • Brew Group Cleaning Brush

  • User Manual

Specifications

Property Value
SKU ECMMECHMAXFC
Recommended Application Home / Residential
NSF Certified No
Display Type PID
Controls and Additional Features Programmable On/Off Time, Programmable Brew Temperature, Programmable Steam Temperature, Backflush Reminder, Water Filter Reminder, Eco Mode, Pre-Infusion Mode
Pressure Gauges Brew and Steam
Type of Controls Brew Lever, PID
Cup Warmer Material Stainless Steel
Cup Warmer Size (L-in x W-in) 10.5 x 9.5
Cup Warmer Passively Heated

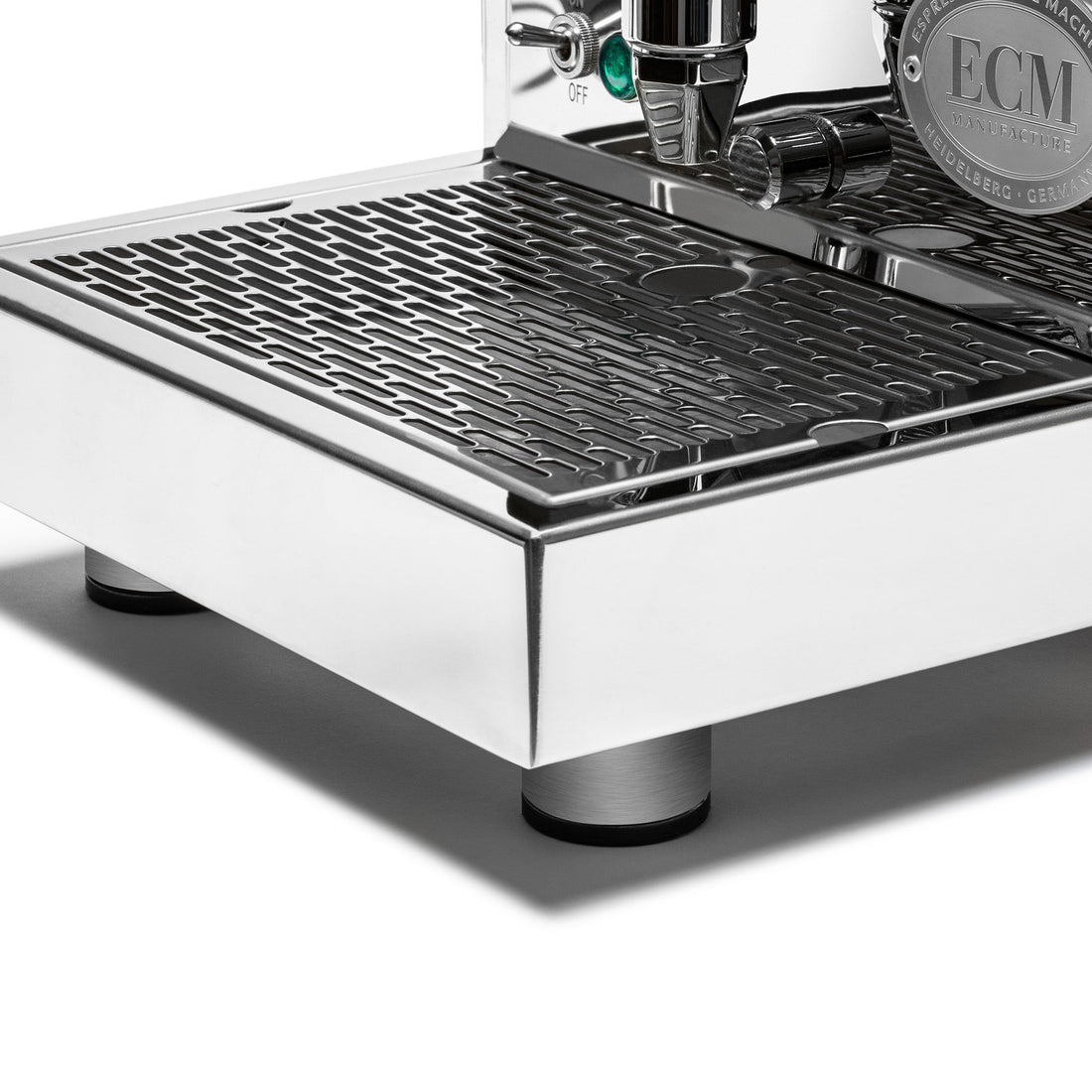

Drip Tray Capacity (oz) 35 fl-oz
Drip Tray Cover Material Stainless Steel
Drip Tray Material Stainless Steel
Removable Drip Tray Yes
Portafilter Baskets Included Single, Double, Backflush
Frame Material Steel
Housing Color Polished Stainless
Housing Material Stainless Stainless
Maintenance Alerts Yes
Recommended Descaler Type Durgol Swiss
Recommended Water Filter BWT Bestmax Premium, BWT Bestsave M
Depth (Inches) 17.5
Height (Inches) 16
Weight (Lbs) 51.8
Width (Inches) 10.8
Bottomless Portafilter Available Sold Separately
Filter Diameter (mm) 58mm
Portafilter Handle Material Plastic
Portafilter Material Chrome Plated Brass
Property Value
Number of Portafilters Included 2 (Single and Double)
Ground, E.S.E., Pod and Capsule Compatibility No
Portafilter Type Commercial Style
Portafilter Weight (lbs) 2lb
Portafilter Diameter 58mm
Pump Type Rotary
Warranty Service Provider Email support@wholelattelove.com
Warranty Service Provider Whole Latte Love
Warranty Service Provider Phone Number 585-924-7170
Manufacturers Warranty Period 3-Years Parts and Labor
Volt 110/120V
Steam Boiler Auto-Fill Yes
Steam Boiler Heater Location Internal
Steam Boiler Insulation Yes
Steam Boiler Material Stainless Steel
Steam Boiler Orientation Vertical
Steam Boiler Volume (Oz) 1.9L

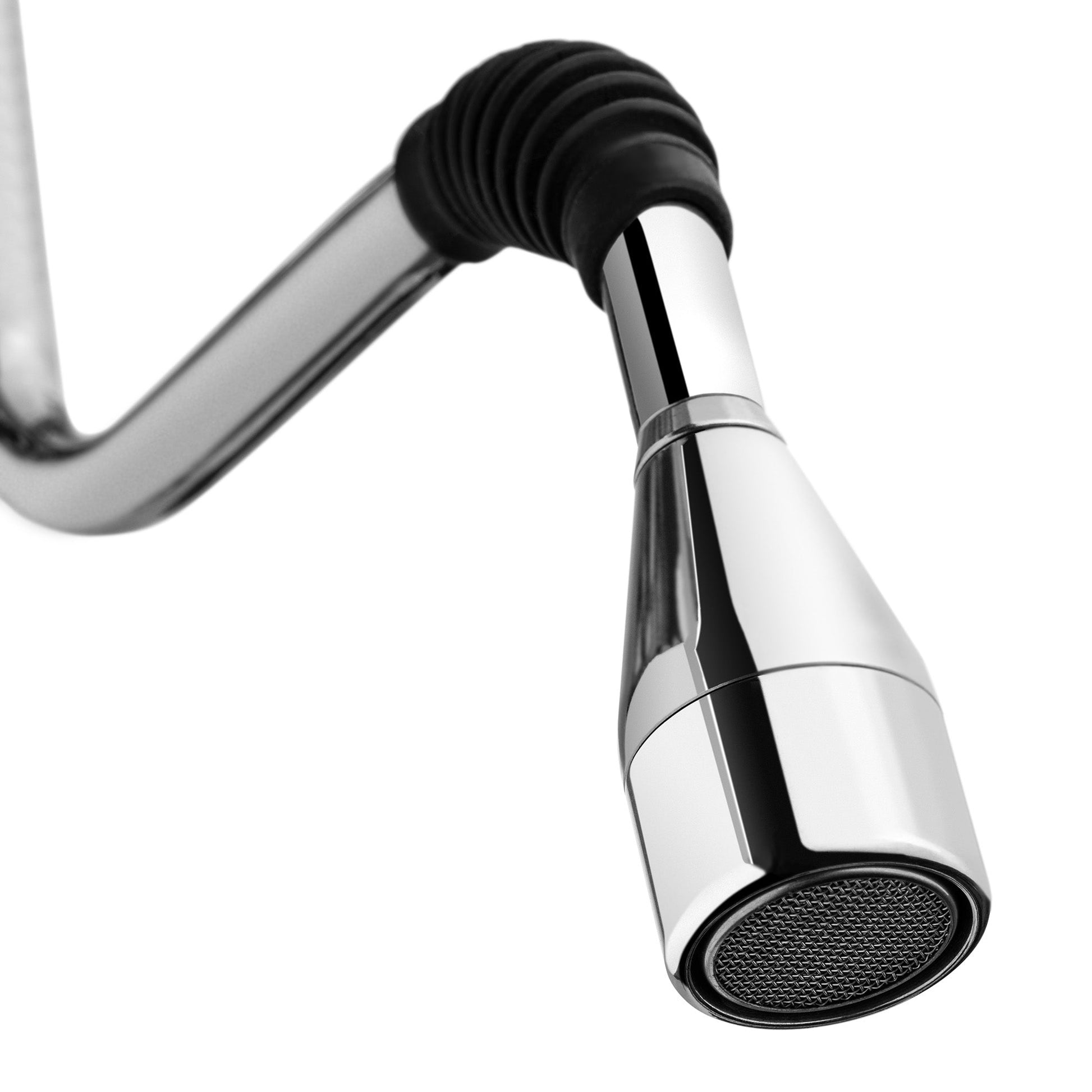

Steam Wand Features No-Burn
Steam Tip Hole Count 2
Steam Wand Material Stainless Steel
Steam Wand Movement Type Fully Articulated
Steam Wand Commercial Style
Water Reservoir Access Location Top
Water Reservoir Capacity 3 Liters
Water Reservoir Features Removable
Water Reservoir Material Plastic
Water Source Reservoir or Plumb
Maximum Incoming Water Pressure (PSI) 2 Bar
